SLEIPNER MOTOR AS SIDE-POWER SEP Series User manual

Made in Norway
©Sleipner Motor AS 2020
SLEIPNER MOTOR AS
P.O. Box 519
N-1612 Fredrikstad
Norway
www.side-power.com
Document id:
Revision:
Date:
5916
9
DC SEP & SEP-IP SERIES
OPERATIONAL
THRUSTER USER MANUAL
To download your language go to www.side-power.com
Keep this
manual onboard !
2020

25916 92020
-
SEP & SEP IP user manual
DECLARATION OF CONFORMITY
Sleipner Motor AS
P.O. Box 519, Arne Svendsensgt. 6-8
N-1612 Fredrikstad, Norway
Declare that this product with accompanying standard control systems complies with
the essential health and safety requirements according to:
DIRECTIVE 2013/53/EU
DIRECTIVE 2014/30/EU
DIRECTIVE 2014/35/EU
MC_0020
Important User Considerations and Precautions................. 3
User Manual
Thruster Operation .................................................................... 4
Proportional Control Panel ........................................................ 5
Maintenance........................................................................ 6 - 8
Troubleshooting......................................................................... 9
Checklist.................................................................................. 10
Spare Parts.............................................................................. 11
Contents
EN
Products
SEP300/300TC - SEP300 tunnel thruster 48v
SEP250/300TC - SEP250 Tunnel thruster, 24v
SEP210/250TC - SEP210 Tunnel thruster, 24V
SEP170/250TC - SEP170 Tunnel thruster, 24V
SEP150/215T-24V - SEP150 Tunnel thruster, 24V
SEP130/250T-24V - SEP130 Tunnel thruster, 24V
SEP130/250T-12V - SEP130 Tunnel thruster, 12V
SEP120/215T-24V - SEP120 Tunnel thruster, 24V
SEP100/185T-12V - SEP100 Tunnel thruster, 12V
SEP100/185T-24V - SEP100 Tunnel thruster, 24V
SEP80/185T-12V - SEP80 Tunnel thruster, 12V
SEP80/185T-24V - SEP80 Tunnel thruster, 24V
SEP60/185S-12V - SEP60 Tunnel thruster, 12V
SEP60/185S-24V - SEP60 Tunnel thruster, 24v
SEP60/185S2-12V - SEP60 Tunnel thruster, 12v
SEP60/185S2-24V - SEP60 Tunnel thruster, 24v
SEP50/140S-12V - SEP50 Tunnel thruster, 12v
SEP50/140S-24V - SEP50 Tunnel thruster, 24v
SEP40/125S2 - SEP40 Tunnel thruster, 12v
SEP40/125S - SEP40 Tunnel thruster, 12V
SEP30/125S2 - SEP30 Tunnel thruster, 12v
SEP30/125S - SEP30 Tunnel thruster, 12v
SEP25/110S - SEP25 Tunnel thruster, 12v
SEP170/250TC-IP - SEP170 Tunnel thruster, 24V-IP
SEP130/250T-12IP - SEP130 Tunnel thruster, 12V-IP
SEP130/250T-24IP - SEP130 Tunnel thruster, 24v
SEP120/215T-24IP - SEP120 Tunnel thruster, 24V-IP
SEP100/185T-24IP - SEP100 Tunnel thruster, 24V-IP
SEP100/185T-12IP - SEP100 Tunnel thruster, 12V-IP
SEP80/185T-12IP - SEP80 Tunnel thruster, 12V-IP
SEP80/185T-24IP - SEP80 Tunnel thruster, 24v-IP
SEP60/185S2-12IP - SEP60 Tunnel thruster, 12v-IP
SEP60/185S-12IP - SEP60 Tunnel thruster, 12V-IP
SEP50/140S-24IP - SEP50 Tunnel thruster, 24v-IP
SEP50/140S-12IP - SEP50 Tunnel thruster, 12v-IP
SEP40/125S2-IP - SEP40 Tunnel thruster, 12v-IP
SEP40/125S-IP - SEP40 Tunnel thruster, 12V-IP

3
5916 92020
-
SEP & SEP IP user manual
DECLARATION OF CONFORMITY
Sleipner Motor AS
P.O. Box 519, Arne Svendsensgt. 6-8
N-1612 Fredrikstad, Norway
Declare that this product with accompanying standard control systems complies with
the essential health and safety requirements according to:
DIRECTIVE 2013/53/EU
DIRECTIVE 2014/30/EU
DIRECTIVE 2014/35/EU
MC_0020
MC_0004
Important Thruster User Considerations and Precautions
EN
• Ensure you know the location of the main battery switch that disconnects the thruster from all power sources (batteries) so the thruster can
be turned off in case of serious malfunction.
• Always turn the control device off when the thruster is not in use or when leaving the boat.
• When leaving the boat always turn off the main power switch for the thruster.
• The maximum continuous run time of the electrical thruster is approximately 3 minutes. The motor is equipped with a built-in thermal cut-off switch that
will shut the motor off when overheating. Consider this when planning your manoeuvring.
• Never use thrusters out of water.
• If the thruster stops giving thrust while running, there is possibly a problem in the drive system. You must immediately stop running the thruster and
turn it off . Running the thruster for more than a few seconds without resistance from the propeller can cause serious damage to the thruster.
• We advise keeping the main engine(s) running while using the thruster. This will keep the batteries in a good charge condition. It will also give better
performance to the thruster.
• If the performance of the thruster is reduced check the battery system or check the tunnel for marine growth.
• If two panels are operated with confl icting directions at the same time the thruster will not run. If both are operated in the same direction, the thruster
will run in this direction.
• If you notice any faults with the thruster switch it off to avoid further damage.
• The electro motor, its components, contacts/ plugs or other joints in the control cables must be mounted so they will remain dry at all times.
• It is the owner/ captain/ other responsible parties full responsibility to assess the risk of any unexpected incidents on the vessel. If the thruster stops
giving thrust for some reason while manoeuvring you must have considered a plan on how to avoid damage to persons or other objects.
• The primary purpose of the thruster is to manoeuvre/ dock the vessel. Forward/ reverse speed must not exceed 4 knots when operated.
IMPORTANT
Failure to follow the Considerations and precautions can cause serious injury / damage and will render all warranty given
by Sleipner Motor AS VOID.
Never use thrusters when close to objects/ persons or pets in the water. The thruster will draw objects into the tunnel and
the rotating propellers. This will cause serious injuries and damage the thruster.
Always turn the main power switch off before touching any part of the thruster, An incidental start while touching moving
parts can cause serious injuries.
Never store items (e.g. equipment, sails, ropes etc.) in the same compartment as the thruster. When the thruster runs for an
extended period, it can reach 150°C and will cause damage to nearby items or cause a fi re. The electromotor will generate
some carbon dust so any storage compartment must be separated from the thruster to prevent nearby items from becoming
dusty/ dirty.
Any loose items near the thruster motor can cause problems with electrical wiring coming loose and short-circuiting.
MC_0007
User Considerations and Precautions for IP
EN
IMPORTANT
NEVER Disassemble any part of the Ignition Protected assembly. Tampering with the Ignition Protected assembly will
cause it to lose this safety feature.
If there is a problem with your Ignition Protected stern thruster, please contact your dealer.

45916 92020
-
SEP & SEP IP user manual
Thruster Operation
EN MC_0354

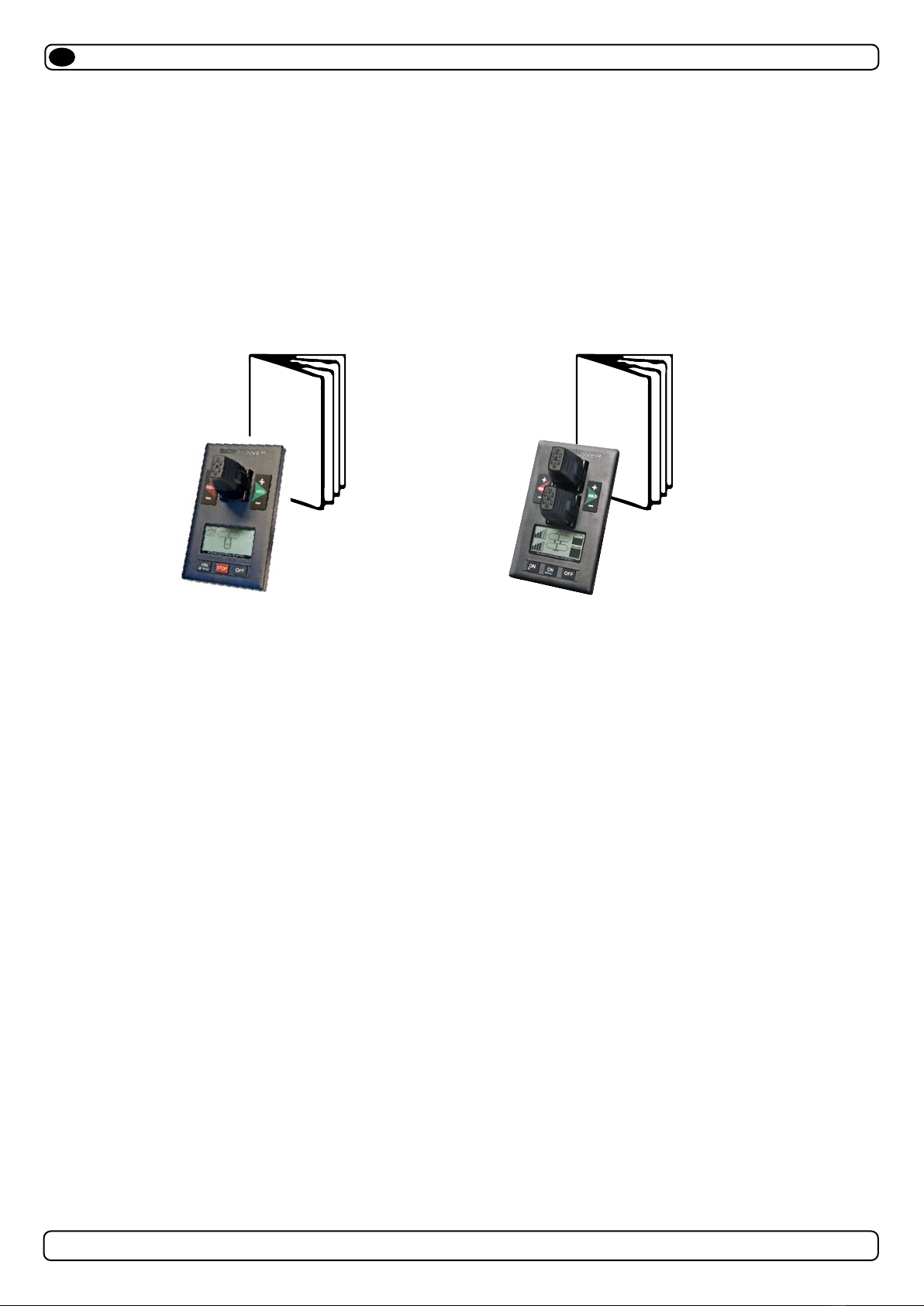

!Please refer to the graphic for special considerations relating to your model !
PJC211 PJC212
PRO proportional CONTROL PANEL
Take time to practice operation in open water to become familiar with the thruster and to avoid damages to your boat or people.
How to use the Thruster
1. Turn on the main power switch for the thruster. (NB: Always turn off the main power switch when not on-board.)
2. Turn on the control panel by pushing both “ON” buttons on the Side-Power panel simultaneously.
* Turn off the control panel by pushing both “OFF” button
(NB: Control panels designed for the hydraulic system have a replace the secondary ‘OFF’ button with a red ‘STOP’ button for an emergency
stop function.)
Joystick Control
To Turn the bow in the desired direction move the joystick in the direction you wish the bow to move.
Button Control
For ‘HOLD’ function.
* For other controls like foot switches or toggle-switches please refer to that products user manual for detailed operational use.
How to use a combined bow and stern thruster
The combination of a bow and stern thruster off ers total manoeuvrability to the boat and the ability to move the bow and the stern separately from each
other. This enables you to move the boat sideways in both directions and turn the boat around its axis 360º staying stationary.
(NB: At speed the side thruster will have little or no eff ect to steer the vessel.)
Proportional control thruster
For proportional control move the joystick equivalent to the amount of thrust you intend to receive.
RCS-20
S-Link REMOTE CONTROL

5
5916 92020
-
SEP & SEP IP user manual
Thruster Operation
EN MC_0354
!Please refer to the graphic for special considerations relating to your model !
PJC211 PJC212
PRO proportional CONTROL PANEL
Take time to practice operation in open water to become familiar with the thruster and to avoid damages to your boat or people.
How to use the Thruster
1. Turn on the main power switch for the thruster. (NB: Always turn off the main power switch when not on-board.)
2. Turn on the control panel by pushing both “ON” buttons on the Side-Power panel simultaneously.
* Turn off the control panel by pushing both “OFF” button
(NB: Control panels designed for the hydraulic system have a replace the secondary ‘OFF’ button with a red ‘STOP’ button for an emergency
stop function.)
Joystick Control
To Turn the bow in the desired direction move the joystick in the direction you wish the bow to move.
Button Control
For ‘HOLD’ function.
* For other controls like foot switches or toggle-switches please refer to that products user manual for detailed operational use.
How to use a combined bow and stern thruster
The combination of a bow and stern thruster off ers total manoeuvrability to the boat and the ability to move the bow and the stern separately from each
other. This enables you to move the boat sideways in both directions and turn the boat around its axis 360º staying stationary.
(NB: At speed the side thruster will have little or no eff ect to steer the vessel.)
Proportional control thruster
For proportional control move the joystick equivalent to the amount of thrust you intend to receive.
RCS-20
S-Link REMOTE CONTROL

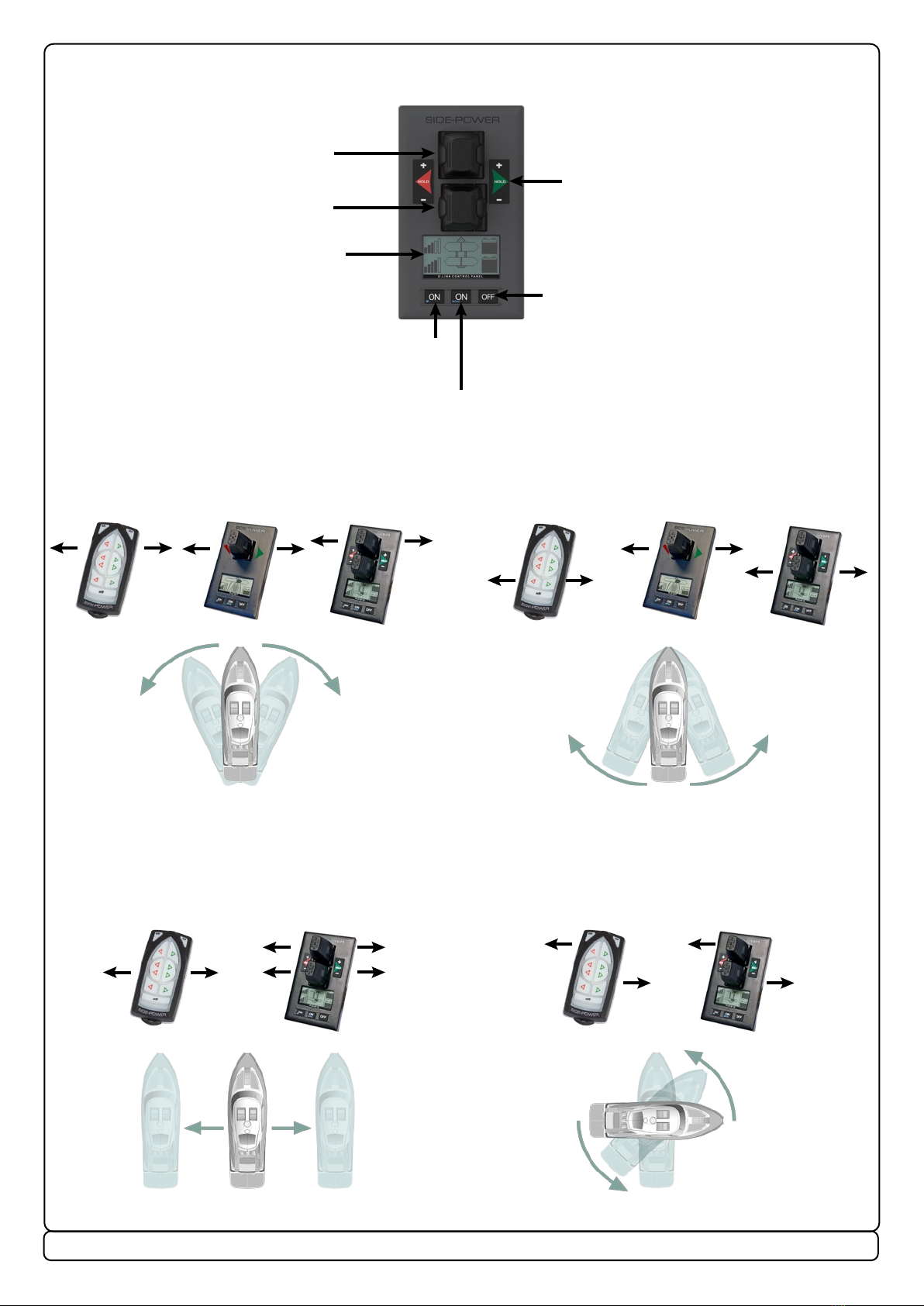

MG_0393
Activating the bow thruster
Holding function for
auto running the
thrusters together in
the direction of the
arrows at selected
power Press “+” for
more and “-” for less
power.
Information display, see
following pages for details.
Speed control joystick
for bow thruster
Speed control joystick
for stern thruster
*Control panel example
*Control panel example
*Control panel example*Control panel example
Activating the stern thruster
Activating both bow and
stern thruster to rotate the
boat on axis
Activating both bow and
stern thruster to push the
boat sideways
Proportional
Control Panel
Press to deactivate
control panel,
cancel, go back in
the menu system or
to mute internal
alarm buzzer.
Press and hold both
“ON” button for 1
second to activate
control panel. Press and hold for 3
second to activate
menu.

65916 92020
-
SEP & SEP IP user manual
Maintenance
EN
As a part of the seasonal service of your Thruster before every season, always check that:
In Water
• The area around the thruster inside the boat is clean and dry. Ensure there are no signs of water leaks.
• All electrical connections are clean and fastened fi rmly.
• Ensure that your batteries are in good condition.
Out of Water
• Check the propeller(s) or tunnel for any damage for example impact damage.
• The propeller(s) is fastened securely to the gear leg.
• Check all components of thruster are fastened securely.
• Clean the tunnel and gear leg from marine growth.
• Paint the propeller and gear leg with anti-fouling before every season to keep it clean from sea growth. (NB: Never paint the anode, sealing or
propeller shaft. Ensure paint does not enter the space between the propeller and the gear leg.)
• Change the anode before every season, or when half the anode has eroded. Always use a sealant or thread glue on the holding screw to ensure
that it does not fall off .
• Check the gear leg is not leaking oil
MC_0045
MC_0007
User Considerations and Precautions for IP
EN
IMPORTANT
NEVER Disassemble any part of the Ignition Protected assembly. Tampering with the Ignition Protected assembly will
cause it to lose this safety feature.
If there is a problem with your Ignition Protected stern thruster, please contact your dealer.

7
5916 92020
-
SEP & SEP IP user manual
Maintenance
EN
As a part of the seasonal service of your Thruster before every season, always check that:
In Water
• The area around the thruster inside the boat is clean and dry. Ensure there are no signs of water leaks.
• All electrical connections are clean and fastened fi rmly.
• Ensure that your batteries are in good condition.
Out of Water
• Check the propeller(s) or tunnel for any damage for example impact damage.
• The propeller(s) is fastened securely to the gear leg.
• Check all components of thruster are fastened securely.
• Clean the tunnel and gear leg from marine growth.
• Paint the propeller and gear leg with anti-fouling before every season to keep it clean from sea growth. (NB: Never paint the anode, sealing or
propeller shaft. Ensure paint does not enter the space between the propeller and the gear leg.)
• Change the anode before every season, or when half the anode has eroded. Always use a sealant or thread glue on the holding screw to ensure
that it does not fall off .
• Check the gear leg is not leaking oil
MC_0045

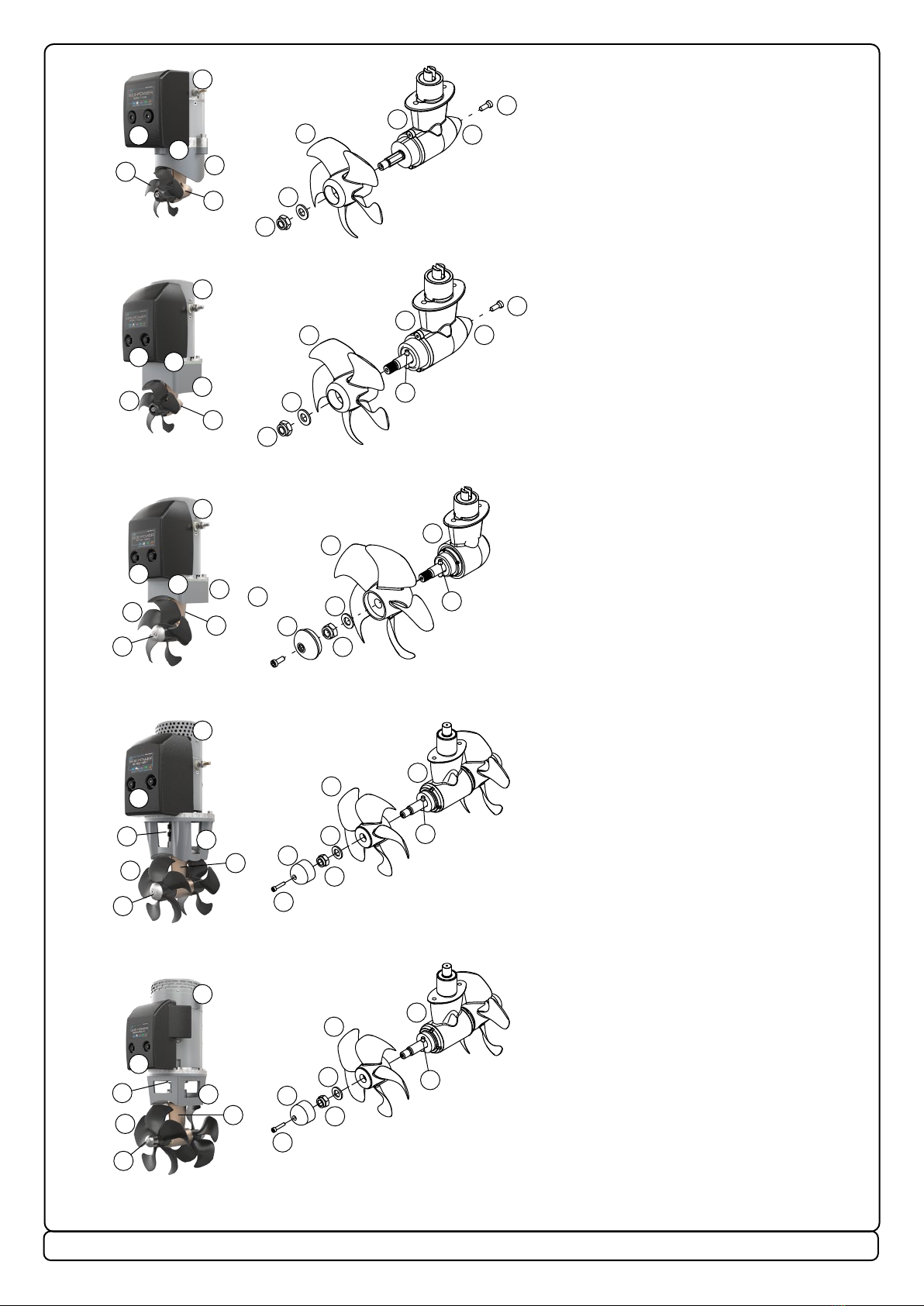

MG_0074
SE / SEP
*20
*25
*30
*40
KEY:
1. Electro motor
2. Directional Solenoids/ power &
control cables
3. Coupling (inside motor bracket
4. Motor Bracket
5. Gear Leg
6. Propeller
7. Anode
8. Propeller Drive pin
9. Washer
10. Lock Nut
11. Fastening Screw for anode
SE / SEP
*50
SE / SEP
*60
SE / SEP
*80
*100
*120
*130
*150
*170
*210
SE / SEP
*250
*300
11
11
11
11
11
10
10
10
10
10
9
9
9
9
9
8
8
8
8
7
7
7
7
7
7
7
7
6
6
6
6
6
6
6
6
6
6
5
5
5
5
5
5
5
5
5
5
4
4
4
4
4
3
3
3
3
3
2
2
2
2
2
1
1
1
1
1
MC_0007
User Considerations and Precautions for IP
EN
IMPORTANT
NEVER Disassemble any part of the Ignition Protected assembly. Tampering with the Ignition Protected assembly will
cause it to lose this safety feature.
If there is a problem with your Ignition Protected stern thruster, please contact your dealer.

85916 92020
-
SEP & SEP IP user manual
MG_0088
KEY:
1. Electro motor
2. Directional Solenoids/ power & control cables
3. Coupling (inside motor bracket
4. Motor Bracket
5. Gear Leg
6. Propeller
7. Anode
8. Propeller Drive pin
9. Washer
10. Lock Nut
11. Fastening Screw for anode
SE / SEP (IP)
*30
*40
SE / SEP (IP)
*50
SE / SEP (IP)
*60
SE / SEP (IP)
*80
*100
*120
*130
*170
11
11
11
11
10
10
10
10
8
8
8
9
9
9
9
7
7
7
7
7
7
6
6
6
6
6
6
6
6
5
5
5
5
5
5
5
5
4
4
4
4
3
3
3
3
2
2
2
1
1
1
1

9
5916 92020
-
SEP & SEP IP user manual
MC_0352
Basic Troubleshooting
EN
Before seeking assistance from the website help desk from your Side-Power dealer/ distributor, please perform these tests.
(NB: If you are unable to understand what to check, you must consult a Side Power distributor.)
Control panels operating on the S-link system display all faults via the control panel interface or via other warming methods.
To review any issues of your product refer to the appropriate user manual for a complete list of fault codes and troubleshooting guides.
For additional supporting documentation, we advise you
to visit our website www.side-power.com for the spare
parts list.
MG_0088
KEY:
1. Electro motor
2. Directional Solenoids/ power & control cables
3. Coupling (inside motor bracket
4. Motor Bracket
5. Gear Leg
6. Propeller
7. Anode
8. Propeller Drive pin
9. Washer
10. Lock Nut
11. Fastening Screw for anode
SE / SEP (IP)
*30
*40
SE / SEP (IP)
*50
SE / SEP (IP)
*60
SE / SEP (IP)
*80
*100
*120
*130
*170
11
11
11
11
10
10
10
10
8
8
8
9
9
9
9
7
7
7
7
7
7
6
6
6
6
6
6
6
6
5
5
5
5
5
5
5
5
4
4
4
4
3
3
3
3
2
2
2
1
1
1
1

MC_0064
Seasonal Checklist
EN
CHECK TO PERFORM DATE
The propeller is fastened securely to the gear leg. The thruster components are fastened securely. The area around the thruster is clean and dry. If there are signs of water, try to fi nd the source and eliminate it. Apply the propeller and gear leg with anti-fouling. Batteries are in good condition. All electrical connections are clean and fastened fi rmly. Replace the anode.
10 5916 92020
-
SEP & SEP IP user manual

11
5916 92020
-
SEP & SEP IP user manual
1. The equipment manufactured by Sleipner Motor AS (The “Warrantor”) is warranted to be free from defects in workmanship and materials under normal
use and service.
2. This Warranty is in eff ect for of two years (Leisure Use) or one year (Commercial use) from the date of purchase by the user. Proof of purchase must be
included, to establish that it is inside the warranty period.
3. This Warranty is transferable and covers the product for the specifi ed time period.
4. In case any part of the equipment proves to be defective, other than those parts excluded in paragraph 5 below, the owner should do the following:
(a) Prepare a detailed written statement of the nature and circumstances of the defect, to the best of the Owner’s knowledge, including the date of
purchase, the place of purchase, the name and address of the installer, and the Purchaser’s name, address and telephone number;
(b) The Owner should return the defective part or unit along with the statement referenced in the preceding paragraph to the warrantor,
Sleipner Motor AS or an authorized Service Centre, postage/shipping prepaid and at the expense of the Purchaser;
(c) If upon the Warrantor’s or Authorized Service Centre’s examination, the defect is determined to result from defective material or workmanship, the
equipment will be repaired or replaced at the Warrantor’s option without charge, and returned to the Purchaser at the Warrantor’s expense;
(d) no refund of the purchase price will be granted to the Purchaser, unless the Warrantor is unable to remedy the defect after having a reasonable
number of opportunities to do so. Prior to refund of the purchase price, Purchaser must submit a statement in writing from a professional boating
equipment supplier that the installation instructions of the Installation and Operation Manual have been complied with and that the defect remains;
(e) warranty service shall be performed only by the Warrantor, or an authorized Service Centre, and any attempt to remedy the defect by anyone else
shall render this warranty void.
5. There shall be no warranty for defects or damages caused by faulty installation or hook-up, abuse or misuse of the equipment including exposure to
excessive heat, salt or fresh water spray, or water immersion except for equipment specifi cally designed as waterproof.
6. No other express warranty is hereby given and there are no warranties which extend beyond those described in section 4 above. This Warranty is
expressly in lieu of any other expressed or implied warranties, including any implied warranty of merchantability, fi tness for the ordinary purposes for
which such goods are used, or fi tness for a particular purpose, and any other obligations on the part of the Warrantor or its employees and
representatives.
7. There shall be no responsibility or liability whatsoever on the part of the Warrantor or its employees and representatives for injury to any person or
persons, or damage to property, loss of income or profi t, or any other consequential or resulting damage or cost which may be claimed to have been
incurred through the use or sale of the equipment, including any possible failure or malfunction of the equipment, or part thereof.
8. The Warrantor assumes no liability for incidental or consequential damages of any kind including damages arising from collision with other vessels
or objects.
9. This warranty gives you specifi c legal rights, and you may also have other rights which vary from country to country.
For the most up to date documentation, we advise you to
visit our website www.side-power.com for the spare parts
list.
For additional supporting documentation, we advise you
to visit our website www.side-power.com for the spare
parts list.
Spare Parts
Product Templates and Additional Resources
Warranty statement
EN
EN
EN
MC_0024
MC_0024
MC_0024

MC_0030
Worldwide sales and service
www.side-power.com
SLEIPNER MOTOR ✴AS P.O. Box 519 ✴N-1612 Fredrikstad ✴Norway
The information given in the document was correct at the time it was published. However, Sleipner Motor AS can not accept liability for any inaccuracies or omissions it
may contain. Continuous product improvement may change the product specifi cations without notice. Therefore, Sleipner Motor AS can not accept liability for any possi-
ble differences between product and document.
