SLEIPNER MOTOR AS S-Link 8730B User manual

Installation guide
S-link external switch interface
8730B/8730S
Made in Norway
©Sleipner Motor AS version 1.1 - 2010
SLEIPNER MOTOR AS
P.O. Box 519
N-1612 Fredrikstad
Norway
Tel: [phone]
Fax: [phone]
www.side-power.com
[e-mail]

Important !
This interface will only work with Sidepower electric thrusters with
a S-link control system.
Installation:
1. Connect the (foot)switches according to the wiring diagram(s).
2. To connect the optional radio remote, rst cut the wires close to the plastic
connector on the “bow” connection lead according to Fig. 1. Strip the wires
properly and connect to the 8730 according to the wiring diagram(s).
Do the same with the “stern” wires if needed.
3. Mount the 8730 in a place where it will be protected from direct and con-
ensed water ingress. Use cable ties or other suitable means of mounting.
4. Plug the S-link Spur cable into the green connector at the rear of interface
box. Twist the locking ring on the connector clockwise to secure connector.
Installation guide S-link external switch interface 8730 Page 2
The 8730 external switch interface allows the use of mechanical foot switches
or other normally open switches to control a S-link bow thruster. In addition it
allows for connecting the 8980/8985 radio remote control.
If you have two thrusters bow and stern, then you need two 8730. One 8730B
for bow and one 8730S for stern. You can change instance of 8730 B & S with
a panel, se manual for panels for how to changing instance of 8730 B & S.

Installation guide S-link external switch interface 8730 Page 3
Foot Switch
Port
Foot Switch
Starboard
RED BLACK RED GREY BLUE YELLOW
Radio Remote
S-link
PORT
STARBOARD
REMOTE ACTIVE
Foot Switch
Port
Foot Switch
Starboard
RED BLACK RED GREY BLUE YELLOW
Radio Remote
Cut off wires from
BOW connector
Non-terminated
wires
8730
TOP VIEW FRONT VIEW
BOW
STERN
Fig. 1
Cut here
8730B Wiring diagram:





 














 








TOP VIEW FRONT VIEW
Installation guide S-link external switch interface 8730 Page 4
8730S Wiring diagram:

Installation guide S-link external switch interface 8730 Page 5







Using switch interface 8730 with other control units:
The 8730 needs to be activated for the switch inputs to work. Connect the
control signals to the 4 pin connector as shown on wiring diagram below.
Solution 1: Use a joystick panel or retract panel to activate 8730 by turning the
panel ON. When the last panel are turned OFF by timeout or OFF button
the 8730 is deactivated. Preferred solution.
Solution 2: By connecting a wire from pin 1 to pin 6 on the 6 pin connector the
8730 will be activated and stay activated all the time when there is power
on the S-Link (se wiring diagram below). NB! This solution cannot be used
with an retract thruster.

Installation guide S-link external switch interface 8730 Page 6
+12/24V -
5A
S-link on/off switch
red
yellow
black
12/24V12/24V
Stern thruster
battery
Bow thruster
battery
Bow thruster
(SEP model)
Stern thruster
(SEP model)
-
black
+
red
B+
-
black +
red
B+
Fixed multicable 5m
Fixed multicable 5m
5A
+12/24 5A +12/24
PPC
PPC Proportional
Power Controller
Proportional
Power Controller
PJC 212
Proportional
joystick
control panel
Bow and stern
Station 1
Automatic Main Switch
8977 12 / 8977 24
or
Manual main switch
w/ANL fuse
Automatic Main Switch
8977 12 / 8977 24
or
Manual main switch
w/ANL fuse
S-link control system End terminator
End terminator
PJC 212
Observe PPC battery
terminal polarity !
S-link supply
S-link external
switch interface
and remote
(optional)
S-link external
switch interface
and remote
(optional)
Proportional
joystick
control panel
Bow and stern
Station 2
8730 8730

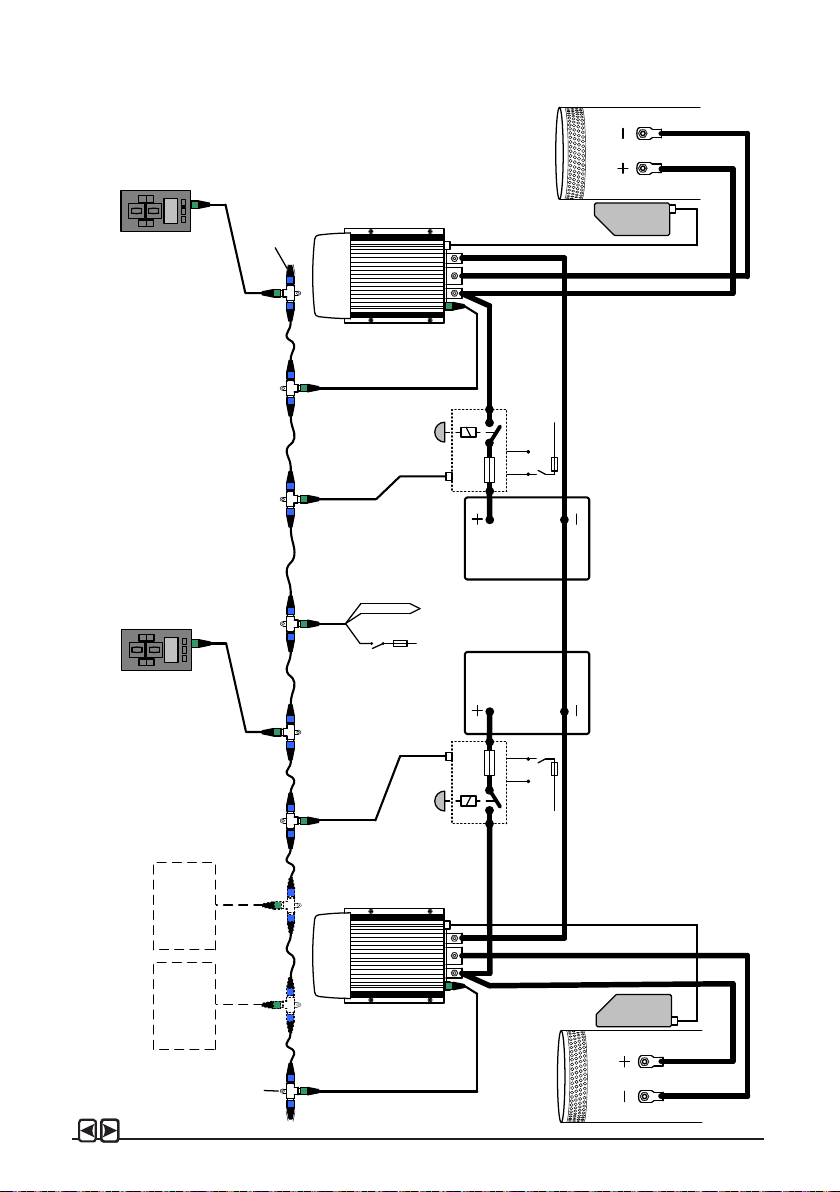

Sample S-link system setup:

We Sleipner Motor AS declare that these
control panels complies with health and
safety requirements according to the
Directive 89/336/EEC of 23 May 1989
amended by 92/31/EEC and 93/68/EEC.
Installation guide S-link external switch interface 8730 Page 7
