Slide Kamera ROAD JIB User manual

User Manual
Slide Kamera ROAD JIB
Camera Crane
Pdf version of the manual available for download: www.slidekamera.eu
1/2014
Ultralight - 4.5 kg, portable and compact camera crane, used
for cameras and photo cameras of a total weight up to 3.5 kg.
Its compact size makes it a perfect solution when shooting in most
extreme places. Slide Kamera ROAD JIB outperforms other camera
cranes in terms of stability, rigidity and comfort of use.

Before you start your work with Slide Kamera ROAD JIB camera crane we strongly recommend to read the manual
carefully. Please note that using the device in a manner inconsistent with the instructions, unauthorized repair
attempts or any kind of modification of the device can cause a damage the manufacturer is not responsible for.
Photos of products may slightly differ from the actual product due to constant modifications
and improvements introduced by the manufacturer.
Producent Slide Kamera ®
High Engineering Technology CNC s.c.
Sebastian Pawelec Karol Mikulski
Glina 45
82-522 Sadlinki
Vat Identification Number: 581-188-33-32
Slide Kamera Office
80-175 Gdańsk (Poland)
Ul. Kartuska 386
tel./fax [phone]
e-mail: [email protected] / [email protected]
www.slidekamera.com / www.slidekamera.eu
1Slide Kamera ROAD JIB Camera Crane
In case of damage during transport you are required to submit:
proof of purchase
protective styrofoam inserts/ fillers included in the set in case of new product delivery
If you fail to comply with the abovementioned conditions, the manufacturer reserves the right
to refuse the complaint.

Table of contents
1. Elemens and construction of Slide Kamera ROAD JIB camera crane.................................................................3
2. Additional accessories.....................................................................................................................................5
3. Product description...........................................................................................................................................6
4. Specification......................................................................................................................................................8
5. Mounting ROAD JIB camera crane on Slide Kamera HST series tripods.............................................................9
5.1. Mounting ROAD JIB camera crane on Slide Kamera HST series tripod using Manfrotto half ball......................9
5.2. Mounting ROAD JIB camera crane on Slide Kamera HST series tripod using Slide Kamera AKC-3 ..................
adapter or Manfrotto MN577 adapter..............................................................................................................9
6. Preparing Slide Kamera ROAD JIB crane to work.............................................................................................11
6.1. Setting up counterweight arm of the crane......................................................................................................11
6.2. Setting up working arm of the crane...............................................................................................................12
7. Mounting equipment on ROAD JIB mounting plate...........................................................................................12
8. Slide Kamera HDN DC drive for ROAD JIB camera crane................................................................................13
9. Safety measures..............................................................................................................................................13
10. Maintenance..................................................................................................................................................13
11. Transport........................................................................................................................................................14
12. Terms of warranty...........................................................................................................................................14
12
Slide Kamera ROAD JIB Camera Crane

1
2
3
8
9
3
1. Elemens and construction of Slide Kamera ROAD JIB camera crane
Once the shipment is received please make sure that all the elements of Slide Kamera ROAD JIB crane are inside.
Set includes:
Slide Kamera ROAD JIB crane with built-in rotational head
counterweight: weights (2x2kg, 1x1kg, 1x0,5kg)
Construction of ROAD JIB camera crane:
Elements of counterweight arm:
Counterweight: weights (2x2kg, 1x1kg, 1x0,5kg) [1]
Counterweight arm [2]
Sliding weight [3]
Working arm of the crane [4]
Crane mounting plate [5]
Camera crane base [6]
Built-in rotational head with 3/8" and 1/4" holes [7]
Sliding weight locking knob [8]
Counterweight safety nut [9]
3
12345
6
7
1000mm
1450mm
Slide Kamera ROAD JIB Camera Crane

Elements of ROAD JIB crane base:
Clamping knob for tilt adjustment [1]
Pin that locks counterweight arm [2]
Arm slide clamping knobs [3]
1/4" hole [4]
3/8" hole [5]
Clamping knob that locks the rotational head [6]
Elements of mounting plate:
Mounting groove [1]
Four M4 holes [2]
3/8" photographic screw [3]
1/4" photographic screw [4]
Grub that locks 1/4" and 3/8" photographic screws [5]
Rubber plates [6]
Clamping lever that locks the position of the mounting plate [7]
1
2
3
4
4
55
66
12
23
4
5
6
7
34
Slide Kamera ROAD JIB Camera Crane

3
54
2. Additional accessories
Tripods:
Slide Kamera HST-2 tripod (700 or 920) [1]
(HST-2 series tripods are also available without HSTA-1 wheels)
Slide Kamera HST-3 tripod [2]
Tripod sockets:
Slide Kamera HCZ-75/100mm socket (Manfrotto system) [3]
Slide Kamera HCZ-75/100mm socket (Miller system) [4]
Slide Kamera HCZ-75/100mm socket (Sachtler system) [5]
Half ball leveler:
Manfrotto MN520BALL/BALLSH 75mm [6]
Manfrotto MN500BALL/BALLSH 100mm [7]
7
6
7
Articulated arm:
11'’ Magic arm for DSLR [8]
Slide Kamera AF-17 articulated arm [9]
12
89
5Slide Kamera ROAD JIB Camera Crane

Transport:
Slide Kamera PSK-3 cover [10]
Adapters:
Slide Kamera AKC-3 adapter [11]
3. Product description
Slide Kamera ROAD JIB is an ultralight - 4.5 kg, portable and compact camera crane, used for cameras and photo
cameras of a total weight up to 3.5 kg. It is equipment that offers great possibilities of creating images, allowing
to achieve excellent results during film realisations. It allows to take smooth rise up and fall down crane shots,
and to film from the places previously inaccessible for the operator. It also allows to present the scene from multiple
perspectives while maintaining perfect smoothness of motion. Telescopic aluminium construction allows to extend
arms of the crane in no time, thus giving you a possibility to spend more time on shooting instead of on setting-up
the equipment. Its compact size makes it a perfect solution when shooting in most extreme places. Slide Kamera
ROAD JIB outperforms other camera cranes in terms of stability, rigidity and comfort of use.
Arm of the crane is made of resistant building profiles that ensure high rigidity and durability of the device. Profiles
have also anticorrosive protection against weather conditions. Additionally, the crane is eqipped with various knobs
and levers that allow you to lock the arm in any desirable position. ROAD JIB crane comes with a rotational head
with a locking system build-in camera crane base (equipped with 1/4" and 3/8" holes). Quick Release System
(1/4 "and 3/8" holes) allows to mount and dismount the crane on and from the tripod using Manfrotto 577 or Slide
Kamera AKC-3 adapters. Mounting of the adapter to the rotational head using both 1/4" and 3/8" screws
is the most effective solution and provides high stability of your equipment when you capture a perfect shot.
All moving parts of the crane are bearinged, what ensures extreme smoothness of motion.
10
Motion controllers:
Slide Kamera HDN DC drive for ROAD JIB crane [12]
11
6
12
Slide Kamera ROAD JIB Camera Crane

Movement
Setting
Locking the movement
Vertical
(rotational)
movement
Rotational head built in
ROAD JIB crane base
Lock the clamping lever
of the rotational head
Horizontal
movement
Unlock clamping knob
for tilt adjustment
Lock clamping knob for tilt
adjustment and set the crane
in a desired position
Arm Slide
Unlock three arm slide
clamping knobs
Lock three arm slide clamping
knobs to lock the arm
in a desired position
Angular position
of the crane
mounting plate
Unlocking three arm
slide clamping knobs
enables to control and
set the arms of the
crane, making it
possible to set a
desired angular
position of the crane
mounting plate
Lock three arm slide clamping
knobs to lock angular position
of the crane mounting plate
Number of mounting holes allowing to attach additional accessories provide great universality of our device.
Mounting plate of the crane is equipped with 1/4" and 3/8" photographic screws for DLSR photo cameras or light
cameras. Hole spacing allows to mount Manfrotto 577 adapter or Slide Kamera AKC-3 adapter. Steel joint of high
durability and resistance to damage allows to safely mount the camera in horizontal and vertical position.
Table below presents Slide Kamera ROAD JIB crane steering possibilities.
Table presenting Slide Kamera ROAD JIB crane steering possibilities:
7Slide Kamera ROAD JIB Camera Crane

4. Specification
Application:
For lifting and rotating the camera or photo camera together
with the accessories. Dedicated for mounting on Slide kamera HST series
tripods (HST-2 or HST-3).
Lengths:
Transport length: 1022mm
Counterweight arm length: 600mm
Arm length range:
1000mm do 1450mm (working arm length)
Mounting holes:
two 3/8" holes
two 1/4" holes
1/4" and 3/8" holes in rotational head (Quick Release System)
four M4 holes (in camera crane mounting plate)
Rotational head:
built in camera crane base
Safety payload:
3.5kg for 6kg of counterweight
Material:
aluminium
Mounting equipment
on crane mounting
plate:
devices equipped with 1/4" hole
devices equipped with 3/8" hole
four M4x12 screws
Weight without
weights:
4.5kg
sliding weight: 0.5kg
Weights:
2x2kg, 1x1kg, 1x0,5kg
Blokada wysuwu
ramienia:
available (three knobs on working arm of the c rane)
Arm tilt:
available
Rotation:
available
Mounting plate angular
position range
90°
8
Slide Kamera ROAD JIB Camera Crane

5. Mounting ROAD JIB camera crane on Slide Kamera HST series tripods
Slide Kamera ROAD JIB camera crane device is dedicated to Slide Kamera HST series tripods. Method
of mounting in case of HST-2 and HST-3 tripod is the same. ROAD JIB crane can be mounted on the tripod
either directly, using Manfrotto half ball or indirectly using a proper adapter: Slide Kamera AKC-3 or Manfrotto
MN577, that allow to change the accesories used in photo-video productions in a very fast and easy way.
5.1. Mounting ROAD JIB camera crane on Slide Kamera HST series tripod using
Manfrotto half ball

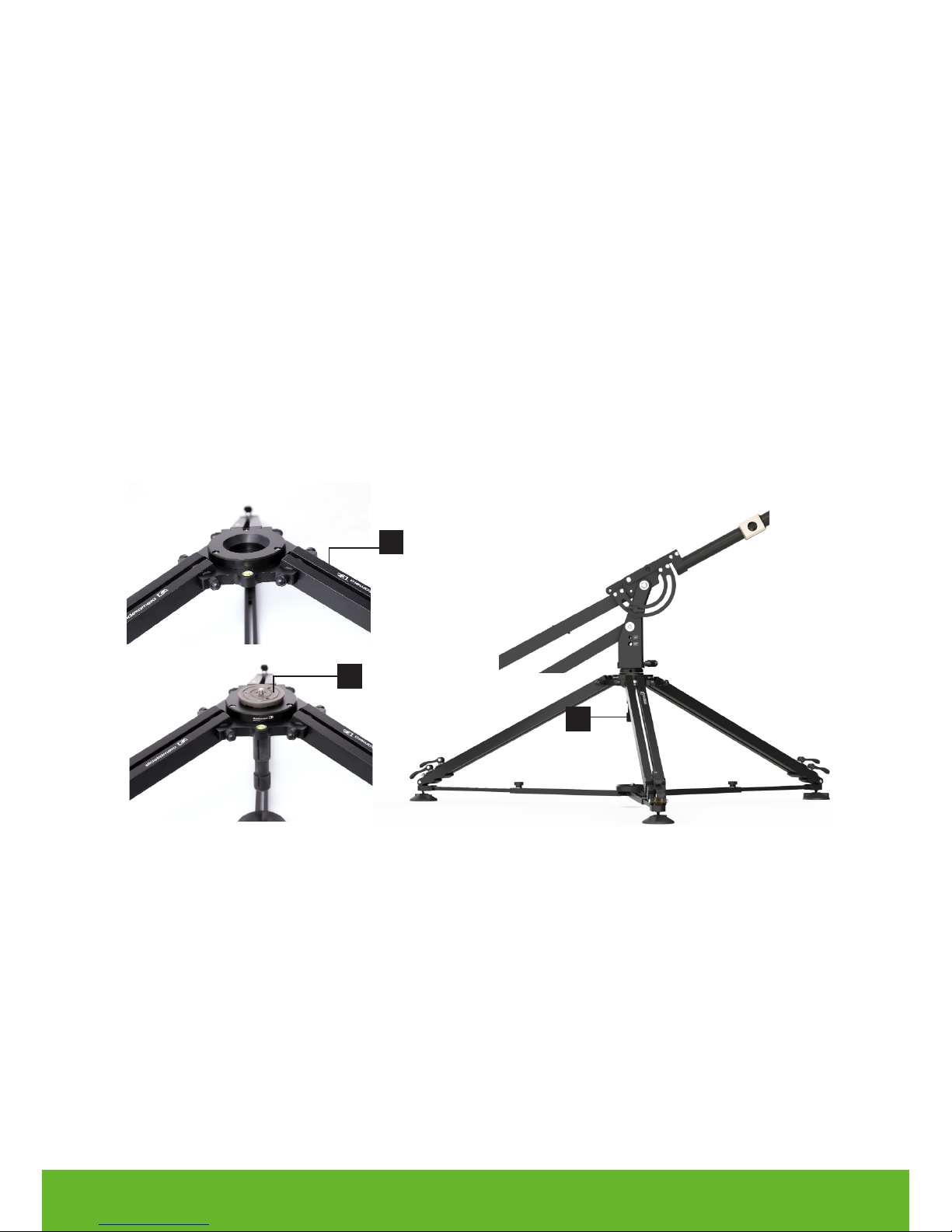

Slide kamera ROAD JIB crane can be mounted directly on HST series tripod with the use of Manfrotto half ball.
Picture below presents example of mounting ROAD JIB crane on HST-3 tripod. Thanks to rotational head
built in camera crane base there is no neet to attach addittional rotational head to the crane. In order to make
mounting more efficient and comfortable screw the half ball to the rotational head of the crane, place the set
on the tripod socket and then attach the handle from the underside of the tripod.
Slide Kamera tripods come with Slide Kamera HCZ 75mm or 100mm socket. Replaceable Slide Kamera HCZ
sockets match systems such as Manfrotto, Sachtler, Miller. We are able to provide a socket for any type of video
head on client's request.
5.2. Mounting ROAD JIB camera crane on Slide Kamera HST series tripod using Slide
Kamera AKC-3 adapter or Manfrotto MN577 adapter

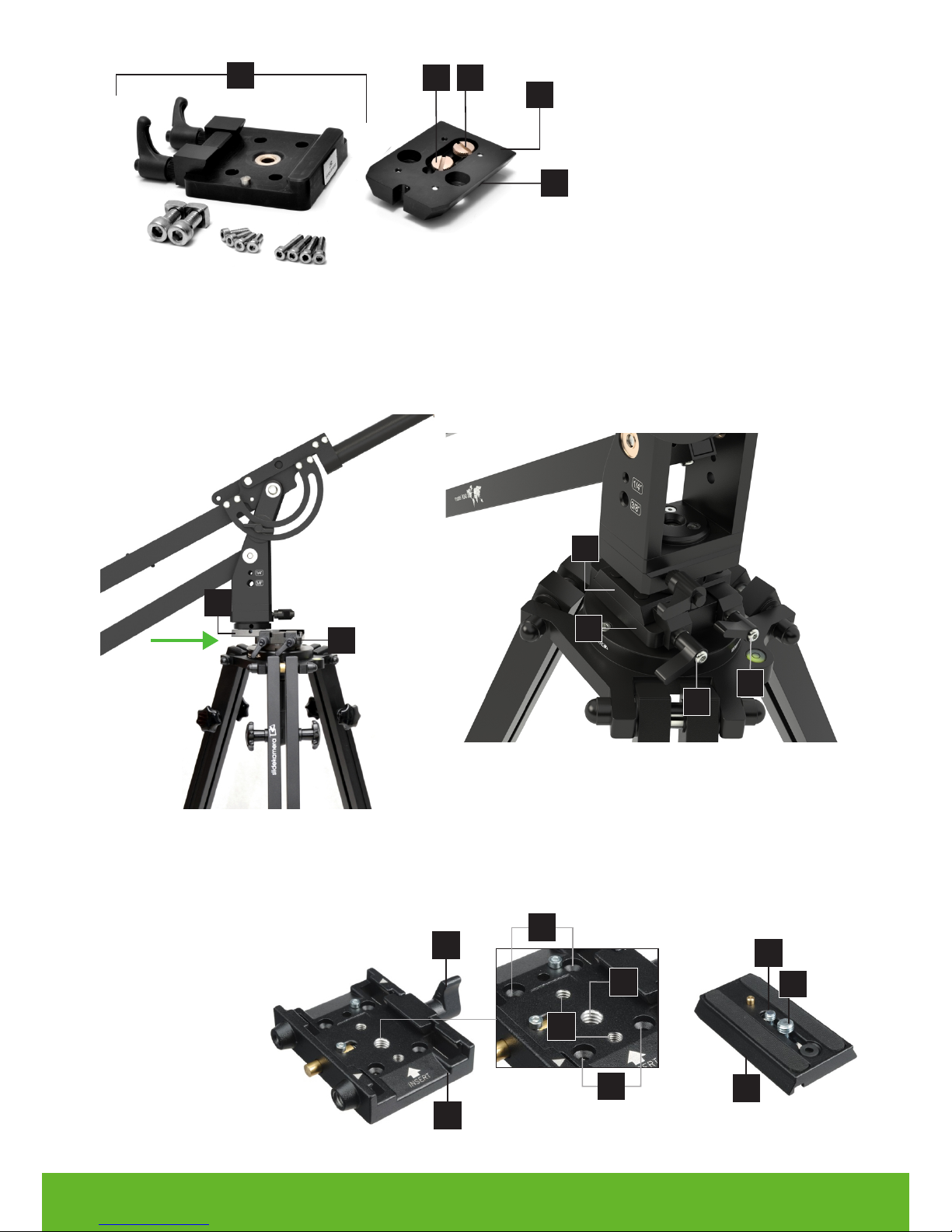

Slide Kamera AKC-3 adapter or Manfrotto MN577 adapter allows to mount and dismount various accessories used
during photo-video realisations. In this case mounting ROAD JIB crane on Slide Kamera tripod using AKC-3
adapter or Manfrotto MN577 adapter allows to mount and dismount the crane from the tripod in a very fast and easy
way. Method of mounting both adapters is the same, photos below present Slide Kamera AKC-3 adapter in use.
Elements of Manfrotto MN577 adapter with MN501PL plate are described on the next page. In order to mount
AKC-3 adapter slide AK-101 sliding plate out of the AKC-3 adapter base. Remove all screws
except for the 1/4'' and 3/8''photographic screws and the grub that locks them.
1
2
2
9Slide Kamera ROAD JIB Camera Crane
