smart home SH - F66 Product guide

1
Model: SH - F66
SENSOR FAUCET
MANUAL BOOK
SMARTHOME TECHNOLOGY DEVELOPMENT INVESTMENT COMPANY LIMITED

Các bước lắp đặt
2
Warnings
Avoid electrical shock to the device. Avoid using
voltage higher than that in the device’s specifications.
Disconnect its power prior to installing, disassem-
bling or repairing the device.
Comply with the safety information during the
device’s usage.
Do not clean the device with corrosive chemicals.
Do not disassemble the device if not necessary.
Do not store the device in high-temperature
environment.
Safety information

3

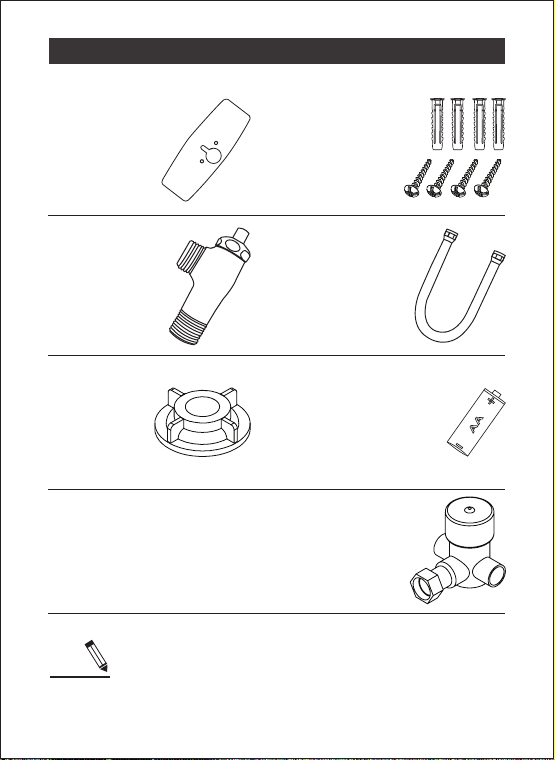

Water hose
(Qty: 2)
Set of screw and anchor
(Qty: 4)
Hot&cold mixing valve
(Optional – Not included)
Faucet base
(Qty: 1)
Fastening screw
(Qty: 1)
Pressure regulator
(Qty: 1)
Battery
(Qty: 4)
Notice
Accessories
Please check to ensure that the accessories are
attached to the device. Should there be any
missing accessory, please contact the shop from
which you purchased.

4
Technical specifications
Voltage 6V – 4 AA batteries, Alkaline
1 second
Clean water without dregs
Faucet body: 140 x 140 x 58 mm
Control box: 120 x 80 x 90 mm
0,6 Kg
15cm - 20cm
220V - 50/60Hz
Power consumption Operating: Po = 6W
0.5 seconds in normal mode
(AC power or battery).
2.2 seconds in power-saving mode
(battery) *
*
( )
( )
Standby: Ps = 0.5W
Water supply pressure
Water temperature
0,7 - 7,6 Kgf/Cm2
50C - 500C
00C - 500C
Verification time
Breaking time
Water Supply
Sensor range
Working temperature
Dimensions (D x C x R)
Faucet body weight
Power-saving mode: When using battery source, after 60 minutes
from the last use, the verification time increases from 0.5 seconds to
2.2 seconds. In power-saving mode, on detecting user, verification
time reduces from 2.2 seconds to 0.5 seconds.

5
Components
Range for receiving reflected signal
Range for emitting infrared signal
Sensor range can be adjusted from 15 to 20 cm under
construction conditions and customer’s need.
Sensor range
Infrared sensor component:
Detects presence of user to
trigger water pouring
Indicator light: Has notification
function, the light turns on when
detecting user in its sensor area.
Note

6

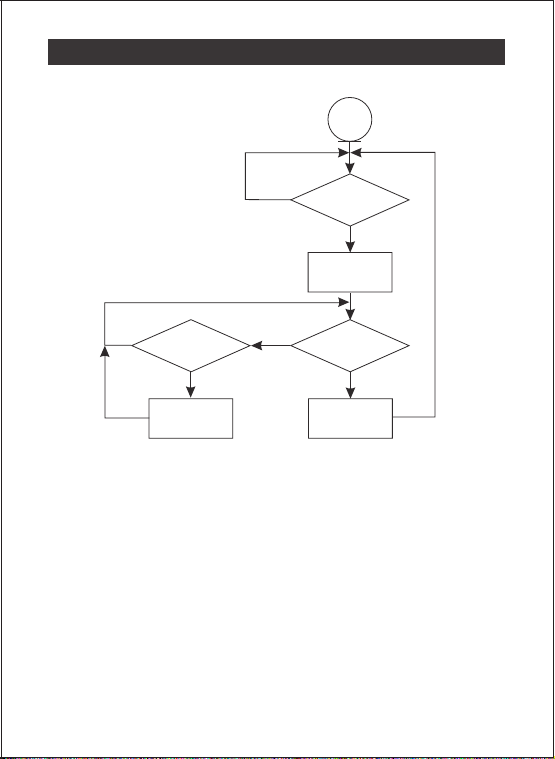

Operation cycle
Standby
Presence of user
Flushing water
User moving out
of the sensor range
Flush duration >60s
Flush break Flush break
TrueTrue
True
False
FalseFalse
Explanation
When a user put his hands in the sensor range, water will
automatically flush. After 1 second from hands withdrawn, the
device will stop the flush. The 1-second period is added to
guarantee the continuous working of the device during usage.
If the user put his hands in the sensor range in 60 seconds, the
device will automatically stop the flush. Just by putting his hand
in the sensor range, the user can continue his usage. The smart
feature prevents water wasting due to faulty detection.

Notice
Installation with cold water supply
7

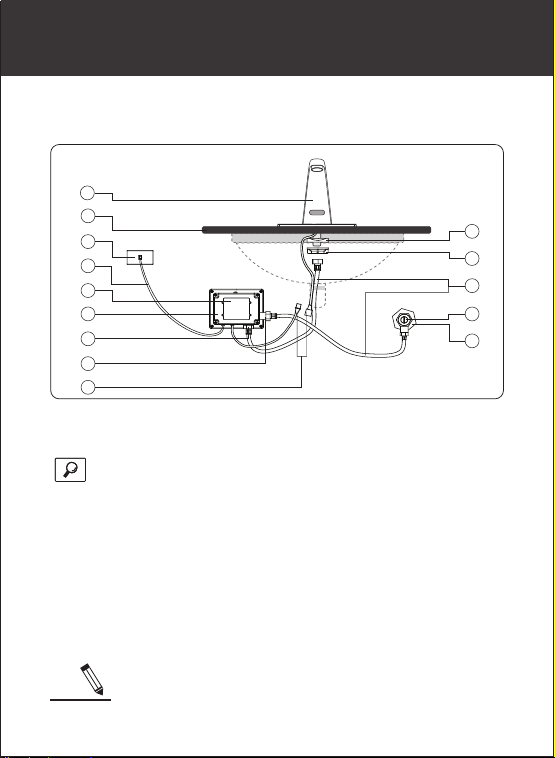

Installation with cold water supply
8
7
6
5
4
3
2
1
10
11
12
13
14
9
Note
1: Faucet body
11: Fastening screw
6: Control Box
2: Lavabo
12: Hose
7: Solenoid valve output
Please check actual distances and dimensions before
installation.
3: Power source
13: Pressure regulator
8: Solenoid valve input
4: Power Cord
14: Water supply
9: Signal wire
5: Battery box
10: Rubber washer

Step 1: Mount the faucet body onto the Lavabo.
Step 2: Install the Rubber washer, Fastening screw onto the Lavabo.
8
Installation with cold water supply
1
10
11

Step 3: Insert batteries into Control box, then mount Control box to the
wall (the direction of control box should be exactly as shown in diagram).
Step 4: Connect pressure regulator to Water supply. Connect
pressure regulator to Solenoid valve input with the Hose.
9
6
1213
14
5
8

Step 5: Connect the Solenoid valve output to Faucet body with
the Hose. Then connect the Signal wire.
Step 6: Connect Power cord to Power source.
10
3
4
12
7
9
1

3: Power source
4: Power cord
6: Control Box
8: Solenoid valve output
13: Presssure Regulator
15: Hot-cold mixing valve
16: Output to solenoid valve
17: Hot water supply
18: Cold water supply
12: Hose
Installation with hot&cold water supply
11
Notice
The device supports hot&cold water supply with a hot/cold mixing
valve.
Instructions for Faucet body, Battery, Control box
installations can be found on page 8, 9, 10.
Installation with hot&cold water supply
6
818
4
3
13
15
12
17
16
Note

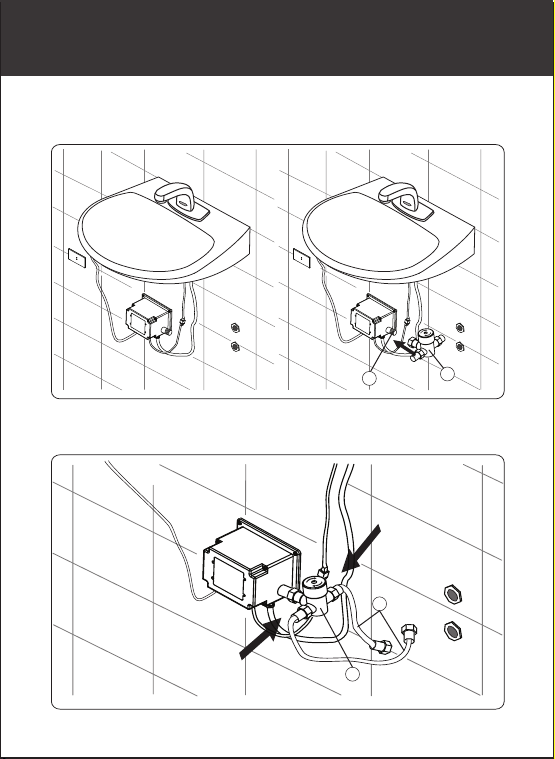

Step 1: Connect hot/cold mixing valve to solenoid valve input.
Step 2: Connect hose to hot/cold mixing valve.
12
Installation with hot&cold water supply
15
15
12
8

Step 3: Connect pressure regulator to Cold water supply.
Step 4: Connect the Hoses to Relief valve and Hot water supply.
13
18
13
15
17
13

Step 5: Connect Power Cord to Power source.
14
4
3

15
Maintenance during usage
Maintenance of faucet body
After the period of usage and operation in the moist and dusty environ-
ment, the device cover may be foul due to these factors. Thus, it is
necessary to clean the faucet body to keep the device clean.
Maintenance of solenoid valve
After a period of usage, if the flushing water is weaken or leaked, it
means the solenoid valve needs to be cleaned. This task should be
done by technical experts.
Solenoid valve cleaning steps:
Step 1: Disconnect the device’s power source, lock the water
supply valve.
Step 2: Disassemble the water supply hose plugged to solenoid valve.
Step 3: Disassemble the filter of solenoid valve for cleaning.
Step 4: Let the water flush through the valve to get rid of dirt, from both
directions of the valve alternatively. Keep the control box away from
the water flush.
Step 5: Reassemble and check the device’s operation.
In case of large object stuck in the valve which impossible to get rid of
with above steps, the solenoid valve should be disassembled for
cleaning. This case might require assistance from technical staffs.
Replacing batteries:
When the indicator light flashes every 2 seconds, it is time to replace
batteries. The device uses 4 non-leaking Alkaline 1.5V-AA batteries
such as Energizer, Duracell. Improper batteries may cause usage
period reduction or malfunction to the device.

16
Troubleshooting
Checking
Solutions
Checking
Solutions
The device is not functioning
The appliance keeps functioning without breaking
If water does not come out.
If the device is not powered.
If the faucet body is not connected to control system.
If the problem is not mentioned above.
Check the water supply for the device.
Connect the device with AC power or battery.
Connect the wire from faucet body to control box.
Please contact Customer Contact Center or the local shop you
purchased.
If there is obstacle in sensor range of the device.
If the problem is not mentioned above.
Take the obstacle away from sensor range.
Please contact Customer Contact Center or the local shop you
purchased.
If there is any problem related to product,
please contact Customer Contact Center:
Customer Care Center: 1900 6632
