Smart UV The Apollo User manual

ShenZhen Luzwell Technology Co., Ltd.
Add: Comprehensive Building 401m,Xuanrun Gift Factory,
NO.1225,Guanguang Rd,Guihua Community,Guanlan Str.
Longhua,Shenzhen,China.518129
Tel: [phone]
Email: [email protected]
Web: www.luzwell.com

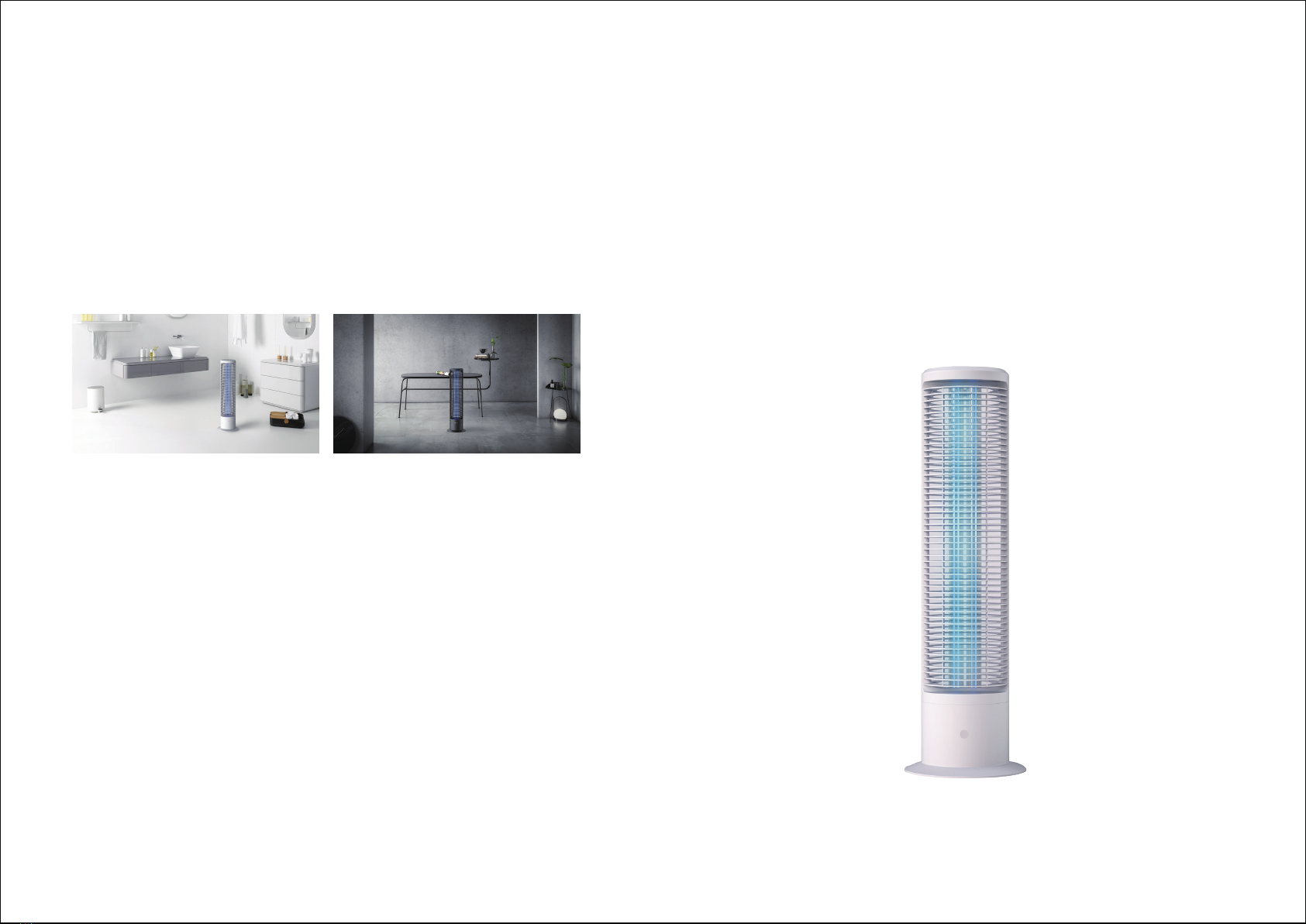

Home Use UV
Germicidal Lamp

The Apollo UV-C
Sterilization Lamp
Instruction Manual
Smart UV
[e-mail]
www.smartuv.shop
The Apollo UV-C
Sterilization Lamp
Instruction Manual
Smart UV
[e-mail]
www.smartuv.shop
The Apollo UV-C
Disinfection Lamp
Instruction Manual
Smart UV
[e-mail]
www.smartuv.shop

Product parameters
Product details
Panel control description
Product parameters
Product Name: Home Use UV Germicidal Lamp
Power: 36W / 60W
Input voltage: 110-230VAC
Color: Black / white
Product weight: 1800g
Product size: diameter 180 * 530mm
Scope of application: home use,
office, etc
Control operation mode:
touch the key
1
2
3
4
5
1、Operation control panel
and indicator light
2、Ultraviolet germicidal lamp
3、Lamp body
4、Human body sensor
5、Power input socket
After the AC power is connected, press and hold the button
for 3S to start the machine, and the germicidal lamp will
start to work. In order to avoid skin injury, the system will
delay for 10s to light the lamp. The default is 15min timing,
and the lamp will go out after the timing. During operation,
touch the key once, switch to 30min timing, switch to 45min
timing twice, switch to 60min timing three times, and return
to 15min timing four times, so as to cycle. Press and hold the
key for 3S to shut down.
Human induction Description
Matters needing attention
When the sterilizing lamp is in operation, when someone or
animals pass by, the sensor will detect it, and then turn off
the output, and the lamp will go out to protect the skin from
the damage of ultraviolet rays. After turning off, the system
will automatically turn on and light the lamp after a delay of
10s, and continue to work.
1. During use, children shall not touch the lamp body, direct
light on eyes and skin, and animals, plants and precious
painting materials shall not be present.
2. After opening, please close the doors and windows to
leave the room. The sterilization effect will be better. After
sterilization, please open the doors and windows for
ventilation before entering.
3. In case of malfunction or control failure of germicidal lamp,
it can be warranted within the warranty period without self
disassembly (except for damage caused by man-made
reasons or improper operation)
4. When not in use, please disconnect the power supply and
place it in a ventilated and dry environment to ensure the
normal use of the product.
WARNING
When turning on the light, people
and animals must leave the room
quickly. Otherwise the ultraviolet
radiation will cause damage to
their bodies.
Product Specications
The Apollo UV-C Disinfection Lamp
60 Watts
110 Volts
5-Meter Motion Sensor
Dual UV-C Emiting Bulbs
Protective Outer Casing
Customizable Timers
and Operational Indictor Lights
110V Wall Socket Plugin
Product Details
How To Use
When turning on the light, please
leave the room. You can not be in
the room during operation.
UV-C light is dangerous to people,
pets, and plants. Please use with care.
Saftey Feature Information
The Apollo is equipped with a 5-meter automatic shut o
motion detection sensor. This helps protect unexpected
visitors and pets. If they enter the room when The Apollo
is running, it will shut o to protect them from the UV-C light.
The Apollo turns back on after the visitor or pet leaves the room,
with a 10-second delay. The Apollo will then operate for the
remainder of the set sterilization time.
Best Practices & Saftey Protocols
1. Keep out of reach from children. During use, do not touch the lamp
body or have direct contact with the UV-C light on skin, animals, or plants.
Precious painting materials should not be present.
2. Before turning on The Apollo, please close all doors and windows.
After turning on The apollo please leave the room. Enclosing the room
helps the disinfection process. After sterilization, we recommend
ventilating the room by opening the doors and windows.
3. In case of a malfunction or control failure of The Apollo, or an
emergency shut o is needed - cover up with long sleeves and
cover the face and wear UV-C protective eyeglasses. Then enter
the room and unplug The Apollo. In the case of a malfunction
please reach out to the Smart UV team to go over your warranty.
4. When The Apollo is not in use, please disconnect the
power supply and place in a dry environment to ensure
the health of your product.
1.Press and hold the power button for 3 seconds to start it up
2. To turn o the Apollo hold the power button for 3 seconds
3. The default cycle duration is 15 minutes and does not need to be selected after the
power-up
4. To Select exposure time greater than 15 minutes (30/45/60 minutes) tap the power key
once to select a 30-minute cycle, twice for a 45-minute cycle, thrice for 60 minutes, and 4
times to revert to the 15-minute cycle
5. Once the desire duration is selected leave the room and shut the door. 10 seconds
timer will turn the lamp on automatically. The disinfection process will begin allowing
you enough time to leave the room.
6. Do not enter the room during the disinfection process.
7. Allow the lamp to cool down for 10 minutes after each disinfection is completed.

Introduction to Apollo
The Apollo user manual will guide you to use your UV-C lamp
use.
Thank you for your purchase. Read these instructions
thoroughly and keep them more future reference before using
the Apollo UV-C lamp.
What is UV-C.
Ultraviolet radiation is segmented into three regions: UV-A:
315-400 UV-A: 315-400 nanometers (nm), UV-B: 280-315 nm,
and UV-C: 100-280 nm.
Ultraviolet radiation can be linked with detrimental health
eects dependent on the exposure time and wavelength.
The adverse health eects that could occur are erythema
(sunburn), photokeratitis (a feeling of sand in the eyes) skin
cancer, melanoma, cataracts and retinal burns.
Band
Wavelength
Primary
Visual
Hazard
Other
Visual
Hazards
Other
Hazards
UV-C
100-280nm
corneal
injuries
keratitis
erythema,
skin cancer
Warning! Save and Read these instructions.
Failure to follow the instructions below may result in re, electric
shock and or serious personal injury.
The warnings, cautions and instructions discussed in this
instruction manual cannot cover all possible conditions and
situations that may occur.
The operator must exercise common sense when using the
Apollo UV-C lamp.
The germicidal lamp is not a toy. Keep children away from
germicidal lamps. Serious injury and electrocution might be
possible. This unit has to be operated by an adult only.
Caution: The unit is provided with a short power cord to mitigate
the risk of personal injuries. An extension cord may be used if
necessary.
If the cord is required, special caution and care is suggested.
Keep in mind that the cord must not be arranged to drape over a
countertop, table top or where it can be pulled on by children or
become a tripping hazard.
1. Plug Apollo directly into power outlet to avoid shock
hazard and re.
2. Do not operate unit or use if cord or plug is damaged.
3. Cord should not be placed in heavy trac areas. To
avoid re never place cord near heat registers, stoves, under rugs,
heaters and radiators.
4. Always place the Apollo lamp on a sturdy surface where
it is not easily knocked over by persons in a business or house-
hold.
5. Never use a germicidal lamp near water.
6. Never touch the UV-C lamp if your hands are wet.
Warning! Save and Read these instructions.
7. All interactions with the Apollo UV-C Germinal
Lamp should be with Dry hands.
8. Unplug the UV-C lamp always, prior to cleaning,
substituting or exchanging parts or before moving to
another location
9. Never place or drop any objects into the openings
of the UV-C light.
10. This device should be only used indoors never
outdoors.
11. The cord should be not be used as a means to
move the Apollo light. Never carry, drag, pull or lift the
germicidal UV-C lamp with the power cord. The power cord
should not be pulled around sharp corners or edges. This
may result in injury to the use and or damage to the cord.
12. Do not block the air openings, or place on a soft
surface, such as a bed or sofa, as tis could cause the unit to
fall over which could lead to a re.
13. Never place anything on top or around the unit
when disinfection is in progress.
14. Do not use any detergents to clean any part of the
unit.
15. Do not pull the cord itself to unplug from the
power outlet.
16. Always turn the unit o before unplugging
17. Always place the Apollo on a sturdy smooth at
level surface and away from direct sunlight. Keep the power
plug away from heated surfaces and high trac areas where
the plug could be tripped over stepped on or walked over.
Always unplug the Apollo when not in use and whenever
you clean or move the unit.

Germicidal UV-C Light Notice.
Never directly look at the UV-C light while the unit is
illuminated-doing so could result in temporarily or chronic
damage to your eyesight or may even lead to loss of vision.
UV light is harmful to exposed skin and eyes.
To prevent exposure to UV light, always disconnect the
power to the unit once the disinfection process is nished.
Do not use the unit if any part of the lamp is damaged or
cracked.
Apollo Disposal
UV lamps as with uorescent light bulbs contain mercury
and must be disposed of properly. Therefore do not throw
out old lamps into the trash.
Most communities have agencies that accept mercury along
with other carcinogenic materials like old paint and solvent
that requires special disposal.
Contact your municipal or county waste collection agency
please for proper disposal procedure and guidance.
If a lamp is broken do not use a vacuum cleaner to pick up
the waste. Rather, sweep up the waste contents into a plastic
bag and seal.
Please contact your municipal or county waste collection
agency for proper disposal procedures.
Facility Safety Awareness
Maintenance and janitorial personnel may be accidentally
exposed to the radiation of UV lamps while in the course of their
duties, it is essential that all UV sources and facilities be
adequately labeled to instruct personnel of the dangers of
exposure.
Ideally, all activated UV sources should either be attended by
knowledgeable personnel at all times, or the lamps should be
housed in foolproof, interlocked enclosures.
However, warning signs are needed in both cases. Prominent
activation warning lights are also helpful.
Personal Protective Equipment
Personal protective equipment must be worn by
individuals exposing themselves to an operating UV
lamp. The personal protective equipment must protect
the eyes and skin. Appropriate PPE would include
gloves, lab coat with no gap between the cu and the
glove, and a UV resistant face shield.
Access to room
Access to the room must be strictly controlled while the
lamps are operating to prevent employee exposure. The
UV lamp should only be operational when the door is
closed. It is recommended that the UV lamp should be
used when employees are o site.
Signage
Posting a warning sign on the door when the lamp is
operating is highly recommended. Most UV exposure
accidents involve a party that was not aware of UV-C use in
the room. The warning sign should include Caution: High
Intensity Ultraviolet Energy. Protect Skin and Eyes.
Maintenance/Monitoring
Unplug the unit before bulb replacement and cleaning.
Bulbs should be wiped o on a quarterly basis with a soft
cloth and dampened with ethanol. The bulb must not be
operating and must be cool to the touch prior to wiping. A
Bulbs life span is 9000 hours of use
Suggested Disinfection Times
Disinfection times depend upon size of the room
which requires disinfection. Please refer to table
below as a guideline.
Room Area (ft2)!
Recommended Disinfection
Time
160 ft2
15 minutes
320 ft2
30 minutes
480 ft2
45 minutes
645 ft2
60 minutes
Exposure time should be increased if:
1. Room temperature is below 68 degrees Fahrenheit
2. Room temperature is above 104 degrees Fahren-
heit
3. Unit is operated in germ prone environment
4. Unit is operated in wet areas of your home (e.g.
bathroom)
Analysis and Test Results for Apollo on
pathogenic microbial strains.
Duration: 30min
Distance: 30cm
Test organism
Test
Group
Average
cfu of
testing
groups
(cfu piece)
Average
cfu of
positive
controls
(cfu piece)
Sterilization
logarithm
(KL)
Sterilization
Rate (%)
Escherichia coli
8099
1
<5
1.6x10^6
>5.51
>99.9
2
<5
1.7x10^6
>5.51
>99.9
3
<5
1.6x10^6
>5.51
>99.9
average
1.6x10^6
>5.51
>99.9
Staphylococcus
aurous ATCC
6538
1
<5
3.4x10^6
>5.83
>99.9
2
<5
3.2x10^6
>5.83
>99.9
3
<5
3.6x10^6
>5.83
>99.9
average
3.4x10^6
>5.83
>99.9
Candida albicans
ATCC
10231
1
10
8.0x10^6
4.89
99.99
2
5
8.0x10^5
5.19
99.99
3
10
7.5x10^5
4.89
99.99
average
7.8x10^5
4.99
99.99
