M1000 Drive
The M1000 drive is a permanent magnet AC drive.
Figure 1: M1000 PM Drive
Equipment/Settings Verification
Set and verify the equipment matches the job specific parameters. See V2 Controller sheet 01
Getting Started Parameter Table for more information.
Figure 2: Example of Parameter Table
Scroll through the motor parameters and verify that they are set to the motor nameplate
values prior to performing the Motor Learn procedure.

Drive Startup Manual M1000-PM
Page 2 © 2019 Smartrise Engineering, Inc. All Rights Reserved December 17, 2019
Grounding Requirements
NOTE: A proper and effective building ground connection is required for the safe and successful
operation of the controller.
Examples of a proper building-to-controller ground is as follows:
1. Attach the ground wire to the street side of a water main.
2. Attach the ground wire to a grounding rod in the pit.
The controller has a common ground bus terminal connection.
Figure 3: Ground Bus Terminal
•The building, motor, transformer, and filter(s) must all share a common ground. This
removes ground loops., limits impedance, and routes noise into the ground.
Wiring
A checklist must be completed during the drive wiring process.
Power
Perform the following to connect power. See V2 Controller sheet 03 Machine Room for job
specific information.
1. Connect Main line power to terminal blocks L1/L2/L3.
2. Connect the ground wire to the yellow/green terminal block next to L1-L3.

Drive Startup Manual M1000-PM
December 17, 2019 ©2019 Smartrise Engineering, Inc. All Rights Reserved Page 3
Brake
Perform the following to connect the brakes. See V2 Controller sheet 05 Brakes for job specific
information.
1. Connect the main brake wiring to terminal K1/K2 and the secondary brake wiring (if
equipped) to terminals J1/J2 located on the terminal block next to the M Contactor.
2. Jump EB to the terminal on Construction Box and connect either the rope gripper or
sheave brake to EBR (if installed). See V2 Controller sheet 01 Getting Started for more
information.
Motor/Encoder
Perform the following to connect the drive to the motor and encoder cable. See V2 Controller
sheet 04 Drive and Motor for job specific information.
•Connect motor leads to the M contactor at T1/T2/T3.
•Connect the encoder cable, if applicable, to the PG card located under the top cover.
The table below lists the Wiring References for Common Encoders.
Table 1: Wiring References for Common Encoders
Encoder
Drive
Hollister Whitney
Heidenhain
Torin ECN413
Ziehl
PWR
IP
Brown
Green/Blue
and Brown
Red/Pink
Gray/Green
COM
IG
White
Green/White
and White
Black and
Red/White
Pink/Yellow
A
A+
Green
Green/Black
Green and
Black
Gray/Pink
/A
A-
Yellow
Yellow/Black
Yellow and
Black
Red/ Blue
B
B+
Blue
Blue/Black
Blue and Black
Blue
/B
B-
Red
Red/Black
Red and Black
Red
Z
/Z
CLK+
CK
Black
Gray
Gray
White
CLK-
CK
Violet
Pink
Clear or Silver
Brown
DAT+
DT
Gray
Violet
Purple
Violet
DAT-
DT
Pink
Yellow
White
Black
SHIELD
FE
Shield
Shield
Large Red
Shield

Drive Startup Manual M1000-PM
Page 4 © 2019 Smartrise Engineering, Inc. All Rights Reserved December 17, 2019
Construction
Perform the following to wire the construction box. See V2 Controller sheet 01 Getting Started
for job specific information.
1. Install jumpers between M24 and the Inputs/Outputs (IOs).
2. Is an external run box being used?
a. If an external run box is being used, go to step 3.
b. If an external run box is not being used, go to step 5.
3. Remove factory wires on inputs 521 and 522.
4. Install the Run Bug UP/DOWN switch to IOs 521 and 522.
5. Install the Run Bug UP/DOWN SAFE switch to M24.
6. Install the Temporary Run switch between 120 and SFIN on the CXN Board and 120 to
THL, MHL, and BHL on the CXN Board.
7. Are there two sheave brakes and no rope gripper?
a. If there are two sheave brakes and no rope gripper, go to step 8.
b. If there is a rope gripper or single sheave brake, the process ends.
8. Install a jumper between EB and SOUT.
Figure 4: Example of Construction Wiring

Drive Startup Manual M1000-PM
December 17, 2019 ©2019 Smartrise Engineering, Inc. All Rights Reserved Page 5
Powering Up
A checklist must be completed when powering up the drive.
Perform the following to power up the drive.
1. Apply external power by closing the main line disconnect.
2. Close the two-pole breaker and all the pushbutton breakers.
3. Verify the LCD on the Smartrise board and the Magnetek M1000 Drive powers up.
Figure 5: Breakers
Final Setup
A checklist must be completed during final setup.
Perform the following to set the Bypass Term Limit.
NOTE: The selected menu within the menu options is shown with a *.
1. Toggle the Inspection/Normal switch to Inspection.
2. On the Smartrise Machine Room board, press the left arrow (ESC) button several times
to get to the MAIN SCREEN.
3. Press the right button to access the Main Menu.

Drive Startup Manual M1000-PM
Page 6 © 2019 Smartrise Engineering, Inc. All Rights Reserved December 17, 2019
4. From the MAIN MENU, scroll and select Setup.
Figure 6: MAIN MENU –Setup
5. From the SETUP menu, scroll and select Misc.
Figure 7: SETUP Menu –Misc
6. From the MISC menu, scroll and select Bypass Term Limits.
Figure 8: MISC Menu –Bypass Term Limits
7. From the BYPASS TERM LIMITS menu, set the bypass term limits from NO to YES.
Figure 9: Bypass Term Limits Menu –NO

Drive Startup Manual M1000-PM
December 17, 2019 ©2019 Smartrise Engineering, Inc. All Rights Reserved Page 7
8. Scroll and change NO to YES.

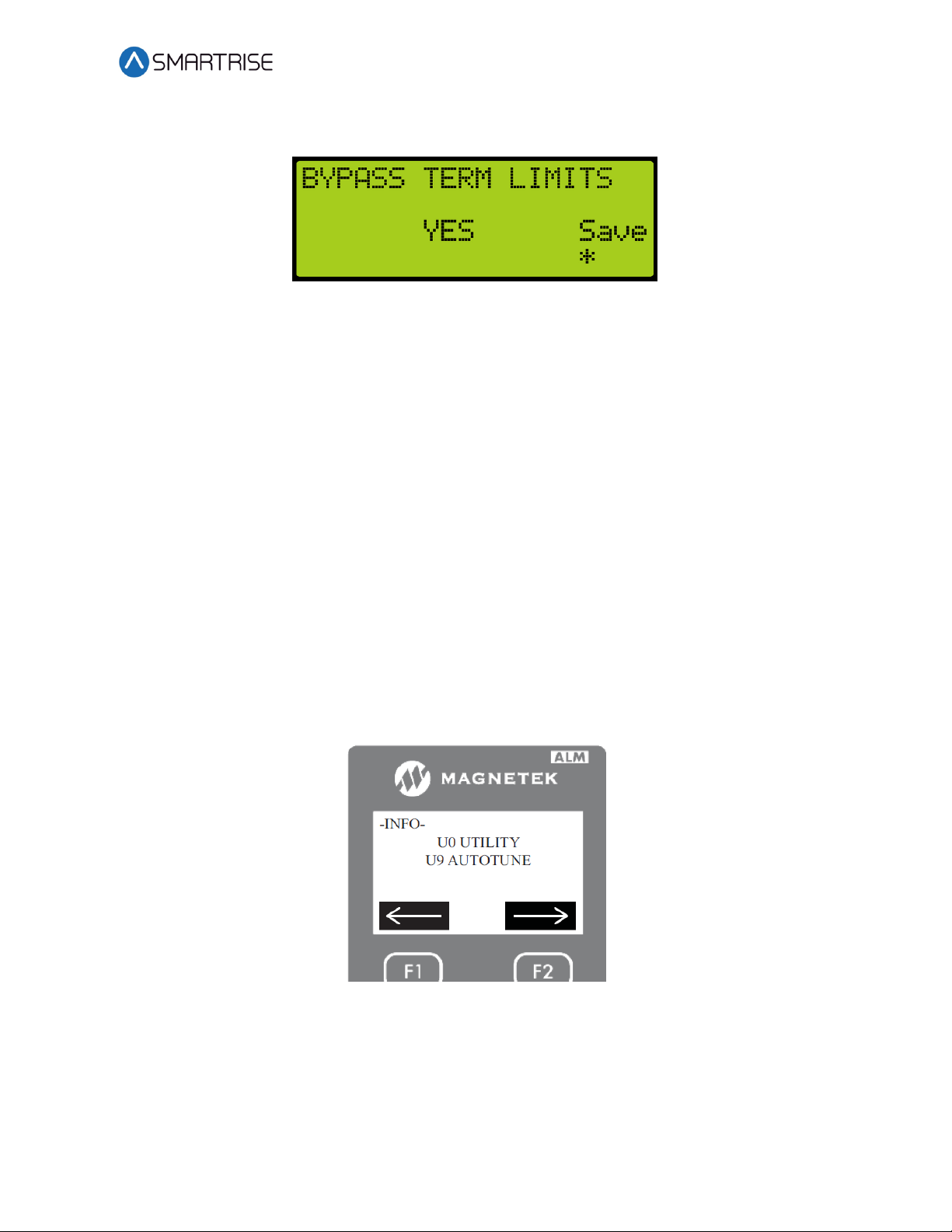

Figure 10: Bypass Term Limits Menu –YES
9. Scroll right and press Enter to save.
10. Press the left button several times to get to the MAIN SCREEN.
11. Verify the LCD displays Construction Mode on the MAIN SCREEN.
Auto Tuning
NOTE: There are two modes to auto tuning a permanent magnet.
A checklist must be completed during the tuning process.
Motor Alignment
Perform the following to align the motor.
The following procedure describes how to perform a motor alignment.
1. Write down the motor data on the motor name plate.
2. Navigate to U9 AUTOTUNE, then press ENTER.
Figure 11: U9 Autotune
3. Select Tune No Rotation 1 as the motor alignment method.

Drive Startup Manual M1000-PM
Page 8 © 2019 Smartrise Engineering, Inc. All Rights Reserved December 17, 2019
4. Press the DOWN button to enter the following motor data that was written down into
the drive.
a. Enter the motor nameplate horsepower, then press the down button.
b. Enter the motor nameplate voltage, then press the down button.
c. Enter the motor nameplate current, then press the down button.
d. Enter the motor nameplate poles, then press the down button.
e. Enter the motor nameplate speed, then press the down button.
f. Enter the encoder pulses per revolution (PPR), then press the down button.
5. The drive indicates that the ENTER button be pressed to begin the auto-tune, but DON’T
PRESS THE ENTER BUTTON YET!
6. Press and hold the M contactor button in.
7. Press the ENTER button on the drive to start the alignment.
Encoder Alignment
Perform the following to align the encoder.
1. Select Pole Position No Rotation as the encoder alignment method.
2. Press the DOWN button to begin auto-tune.
3. The drive indicates that the ENTER button be pressed to begin the auto-tune, but DON’T
PRESS THE ENTER BUTTON YET!
4. Press and hold the M contactor button.
5. Press the ENTER button on the drive to start the alignment.
Operation
Run the car and complete the checklist during the verification process.
1. Make sure the car is moving without triggering a fault either on the Smartrise SRU Board
or the drive. If the SRU Board is faulted, see the Smartrise Equipment Installation
Manual. If the drive is faulted, see the Magnetek M1000 Manual.
2. Proper Direction –Make sure the car is moving in the same direction as the control
switch on the Run Bug.
a. If the car is moving only in one direction, swap the ENC 1 ROT DIRECT (C1) in the
M1000 Drive to forward or reverse.
b. If the car is moving in the opposite direction, swap the direction of both the ENC 1
ROT DIRECT (C1) and MOTOR ROTATION (C1).
3. Are the brakes picking?
a. If the brake is not picking, make sure that the brake is wired correctly (see V2
Controller sheet 05 Brakes) and if there is a second brake installed, verify that the EB
terminal is jumpered to the terminal. See V2 Controller sheet 01 Getting Started for
more information.

Drive Startup Manual M1000-PM
December 17, 2019 ©2019 Smartrise Engineering, Inc. All Rights Reserved Page 9
b. If the brakes are picking, go to step 4.
4. Verify the proper voltages on the brake coils by checking the following:
•During a run command, check for DC voltage between points K1/K2 and J1/J2 if a
second brake is installed. Verify the voltages are also at the brake coil(s) when
commanded to pick.
•Verify that the voltages match brake coil voltages according to the V2 Controller
sheet 01 Getting Started for the job.

Drive Startup Manual M1000-PM
Page 10 © 2019 Smartrise Engineering, Inc. All Rights Reserved December 17, 2019
Page intentionally left blank
