Operation and Maintenance Manual
ZUP
ZUP-L
Power Supply Unit for
Fire Safety Systems
Fire ventilation zone

Rev. 1.2 of 12.2020
2
Rev. 1.2 of 12.2020
SMAY reserves the right to modify this document.
Contents
Introduction ........................................................................................................................ 4
Legal Regulations ................................................................................................................ 5
2.13. Placing on the market .......................................................................................................5
2.13. Declaration of Performance..............................................................................................6
Product Description ............................................................................................................ 9
3.13. Application ........................................................................................................................9
3.13. Basis for the Study ............................................................................................................9
3.13. Operating principle .........................................................................................................10
Constituent modules......................................................................................................... 10
4.1. MZR Module - Reserve Activation Module.....................................................................10
4.13. MZ24 Module –24 V DC Power Supply Module.............................................................11
4.13. MZSW Module –Power Supply Unit for Fire Safety Fan Motors ...................................12
4.13. MZKDC Module –Power Supply Unit for Components of the Smoke and Heat
Control System................................................................................................................16
4.13. MZKP Module –Power Supply Unit for Fire Damper Actuators.....................................16
4.13. MZOD Module –Power Supply Module for Smoke Ventilation Window and
Door Actuators................................................................................................................17
4.13. MSOA Module –Module for Strobe Light Sirens............................................................17
4.13. MKL Module –Supply Line Control Module ...................................................................19
4.13. MMG Module –Power Generator Module ....................................................................27
4.13. MPP Module –Overvoltage Protection Module ............................................................28
4.13. MOW module –Heating and Ventilation of the interior of the Power Supply
Unit..................................................................................................................................29
4.12. M230 module - 230 VAC power supply module.............................................................30
4.13. List of Component Modules............................................................................................31
Internal Wiring.................................................................................................................. 32
Available Versions –Housings .......................................................................................... 33
Packing, Transport and Storage........................................................................................ 36
7.13. Packing ............................................................................................................................36
7.13. Transport.........................................................................................................................36

Rev. 1.2 of 12.2020
3
7.13. Storage ............................................................................................................................37
Installation ........................................................................................................................ 38
8.13. Installation of Wall Mounted Power Supply Units..........................................................38
8.13. Installation of Free-Standing Power Supply Units ..........................................................38
Operation and Maintenance............................................................................................. 39
Operation Safety............................................................................................................... 40
Certification....................................................................................................................... 41
Impact on the Environment.............................................................................................. 41
General Warranty Terms and Conditions ......................................................................... 41
Annexes............................................................................................................................. 43
14.13.ZUP Assembly and On-site Launch Instruction Manual..................................................43

Rev. 1.2 of 12.2020
4
Introduction
Careful reading of this manual, installation and usage of the ZUP units in accordance with
instructions provided in this document, as well as complying to all safety conditions constitute
the basis of proper and safe operation of the device.
It is assumed that transport and installation of the ZUP power supply, connecting the systems
associated with the device, as well as maintenance and repair works are carried out by qualified
personnel or supervised by authorized persons.
A qualified person is a person who is properly trained, and has professional experience regarding
electrical and mechanical machines, and the knowledge of essential standards, documents and
rules concerning safety and work conditions.
This operation and maintenance manual contains detailed information about possible
configurations of ZUP, installation examples, as well as launching and usage. If the power supply
units are used in accordance with their intended purpose, this documentation, as well as other
documents delivered with the units, contain guidelines sufficient for qualified personnel.
-Installation of the unit, connecting the associated systems, launching, operation and
maintenance shall be performed in accordance with directives and legal regulations
valid in the country, where the unit is installed.
-It is recommend to seek assistance of SMAY Authorized Service Points during
assembly, installation, launching, as well as repairs and maintenance activities.
-The documentation shall always be kept near the device and be easily accessible for
the service personnel.
NOTE:
The manufacturer reserves the right to make changes in the operation and maintenance
manual.

Rev. 1.2 of 12.2020
5
Legal Regulations
2.13. Placing on the market
The power supply for the ZUP Fire Equipment was introduced to the market on the basis of the
following documents issued by the Scientific and Research Center for Fire Protection - National
Research Institute in Józefów:
1. Certificate of admittance: 3970/2020
2. Certificate of constancy of performance: 1438-CPR-0406
The ZUP fire equipment power supply has been marked by the manufacturer with the sign of
the admitting authority for the Scientific and Research Center for Fire Protection - National
Research Institute in Józefów (CNBOP-PIB).

Rev. 1.2 of 12.2020
6
2.13. Declaration of Performance

Rev. 1.2 of 12.2020
7

Rev. 1.2 of 12.2020
8

Rev. 1.2 of 12.2020
9
Product Description
3.13. Application
ZUP/ZUP-L modular power supply is designed for supplying low and ultra-low voltages
(max: 1000 V AC, 1500 V DC) to the smoke and heat control systems, including the power
supply of the smoke exhaust and makeup air fans, using frequency converters.
The power supply is also suitable for such equipment items as fire dampers (including
fire ventilation dampers), smoke exhaust windows, smoke dampers, solenoid valves,
electromagnetic door holders and gates.
The product successfully passed the functional tests and evaluation of performance
parameters and has been granted the approval for using in fire protection systems by the
Scientific and Research Centre for Fire Protection –National Research Institute in Józefów.
The difference between ZUP and ZUP-L:
The ZUP-L type power supply is not equipped with Automatic Reserve Switching (SZR).
3.13. Basis for the Study
The subject-matter of this study is an idea of a A class, UZS modular power supply for
energy distribution of low and ultra-low voltages in smoke and heat control systems (series of
PN-EN 12101 and PN-EN 54-4 standards).
The appliance has been created in order to meet the formal requirements for placing on
the market systems of supplying certified devices by uncertified components (e.g. inverters,
contactors, relays), for which there is no legal basis for evaluation according to I conformity
evaluation system and for proving the reliability of such solutions.
This study is based on the provisions of PN-EN 12101, Part 10: “Power supplies”.
It contains the following part:
(…)
“A power supply for smoke and heat control systems can be intended for supplying
pneumatic systems, low voltage and ultra-low voltage electrical systems, and any combination
of the above.
The power supply units for smoke and heat control systems can supply energy necessary
for everyday ventilation of rooms and for supplying other fire protection devices operating
under fire conditions”.
According to Annex A to the above standard, low voltage is the voltage up to 1500 V DC
and 1000 V AC. Ultra-low voltage is the voltage up to 75 V DC and 50 V AC.
ZUP power supply unit meets the requirements of PN-EN 12101, Part 10 and PN-
EN 54-4 standards.

Rev. 1.2 of 12.2020
10
3.13. Operating principle
The ZUP power supply unit may be used for supplying the components both of fire safety
and household ventilation systems.
The power supply unit is adapted to work with control signals by potential-free contacts.
After receiving a signal, the relevant constituent module of the power supply switches on/off
the power supply to a given consumer unit. If the consumer equipment is used in non-fire
mode, it can be controlled by any control system (it is possible to install its components inside
the ZUP housing). In the fire mode (master) for equipment connected to the power supply
unit, the control signals are sent from the Control Panels or their modules. The control panels
need to meet the requirements for fire and non-fire control.
When activated, the power supply continuously monitors the parameters of the mains
and feeding lines to the respective components of the fire safety system. If any irregularities
are detected, a generic failure signal is sent, and the corresponding LED starts to glow on the
power supply’s housing.
The power supply enables the Control Panel to monitor power transmission paths to the
supplied fire safety components by using line control modules embedded in the power supply.
The “Żubr” series power supply unit also fully controls activation of the respective modules by
external monitoring units (it is possible to install them inside the ZUP housing).
Constituent modules
The power supplies are manufactured as integrated units provided with a specific number
of component modules. The modular design makes it possible to adapt the device functionalities
to individual demands, in terms of both the number of supplying devices and their types.
The description of modules presented below is optional and depends on the technical
conditions at the installation site and the intended function of the unit assumed by the designer
of the system supplied.
The mutual relations between modules result from the intended functionalities of the
device and are subject to individual electrical design of each of the ZUP power supply unit
pieces.
4.1. MZR Module - Reserve Activation Module
The reserve activation module is used for automatic switching between separate sources
of electric energy (primary and backup) with the use of the Automatic Reserve Switching (MZR)
system. In the event of the loss of the primary power source, the MZR automatically switches
the power supply line to the backup power supply and signals the loss of the primary power
supply. When primary power is restored, the MZR switches back to primary power supply.

Rev. 1.2 of 12.2020
11
Fig. 4.1 Diagram of the MZR module
4.13. MZ24 Module –24 V DC Power Supply Module
24 V DC power supplying is carried out by the power supply unit adjusted for
cooperating with batteries, which meets the requirements of PN-EN 12101-10 for signalling
systems and firefighting automation.
24 V DC power supply unit is available in various power variants, depending on expected
load (output current –from 5,5 A to 50 A).
The MZ24 power supply module is equipped with a battery backup system. The
batteries are selected so that their capacity meets assumptions of Item 6.2 of the standard.
They are charged and monitored by the power supply unit. In case the discharge state or
damage of batteries has been detected, the power supply unit reports an error to the Control
Panel.
Power Supply I
Power Supply II
Power Supply I
Power Supply II
Support
PS 2
Support
PS 2

Rev. 1.2 of 12.2020
12
Fig. 3.2. Scheme of the MZ24 module with battery backup
4.13. MZSW Module –Power Supply Unit for Fire Safety Fan Motors
A single module consists of the protection circuit of the energy receiver and the final
control element of the electrical connection. The protection circuit of the fan motors consists
of self-acting motor switches (e.g. PKZM0 or NZMH2 type) with adjustable actuation set
points. The protection circuit of the frequency converter consists of thermal fuses (e.g. FWC
type). Power contactors (e.g. DILM) or MCD201 and MCD500 Danfoss soft starters, or FC101
and FC102 Danfoss frequency converters serve as connecting elements in the power circuit.
The devices included in the modules are additionally equipped with ancillary contacts
making it possible to monitor their present state (whether they have acted or not).
The frequency converter can have braking resistors attached in case when it supplies
fans working with quick-change rotation. The converter is able to receive voltage signals
within the range from 0 to 10 V DC, determining set rpm of the powered motor.
CONTROL PANEL
230 V AC
23 V DC

Rev. 1.2 of 12.2020
13

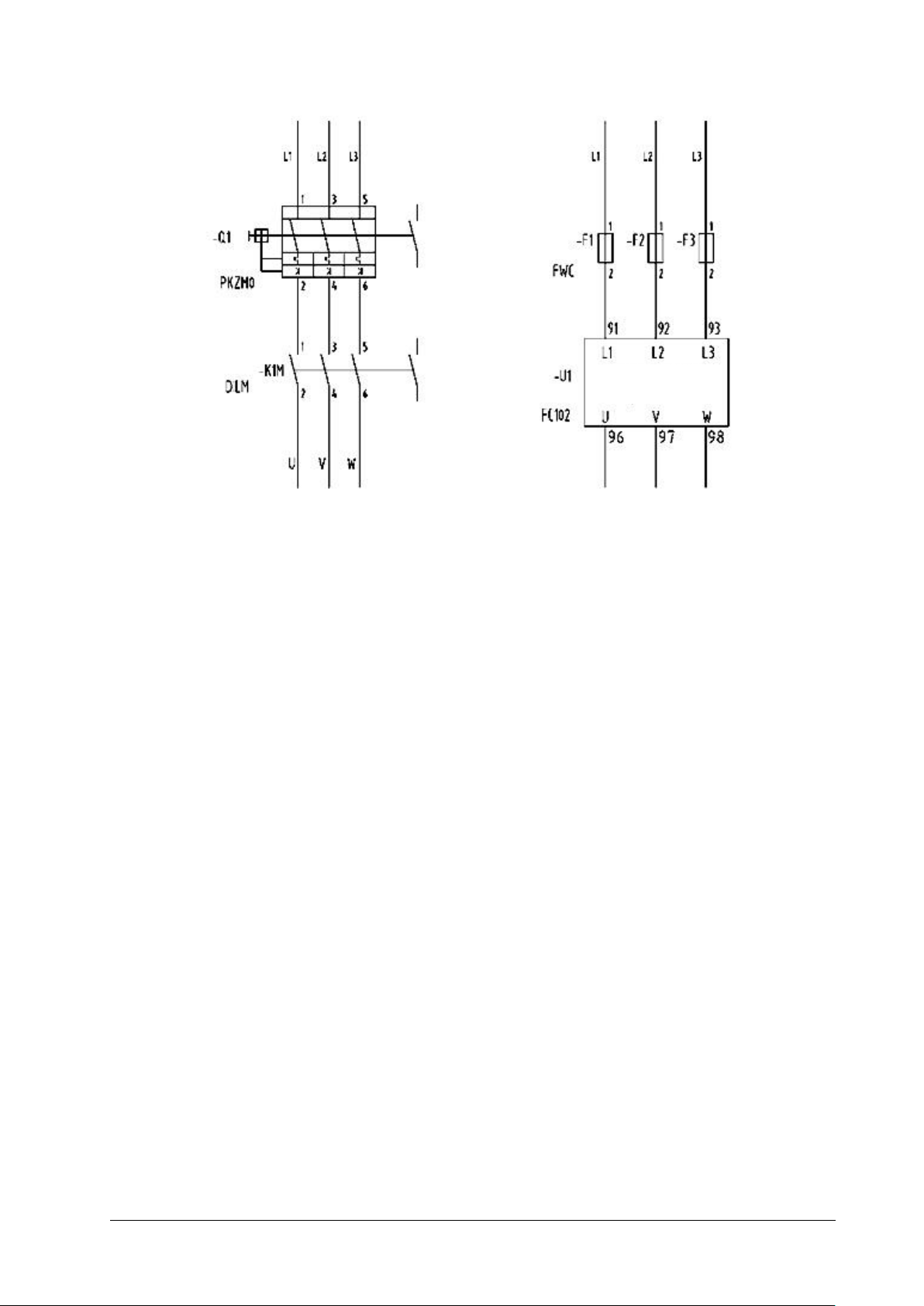

Fig. 3.3. Scheme of the MZSW module supplied through the contactor and frequency converter

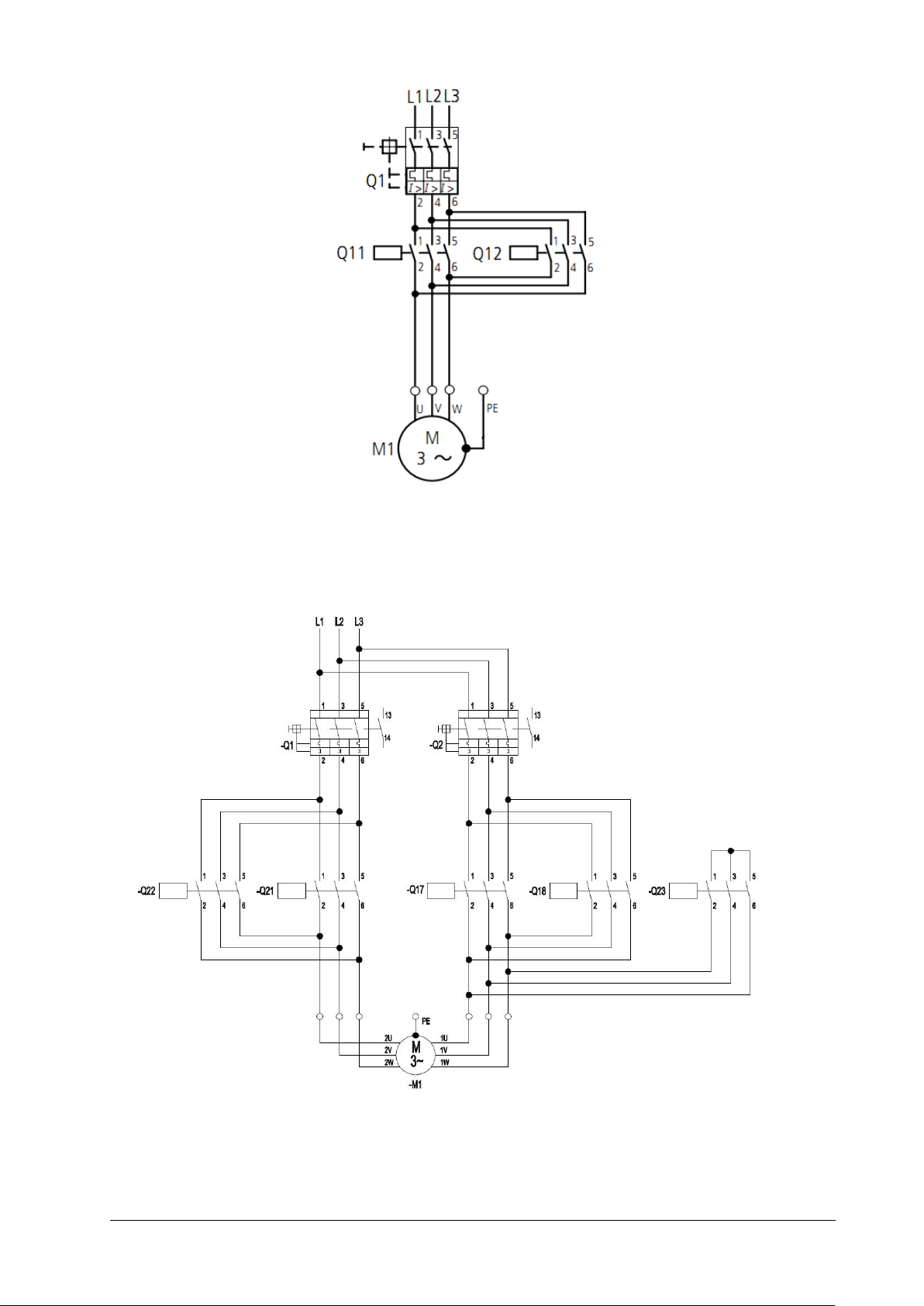

For starting motors of higher power, star–delta changeover switches consisting of
contactors (e.g. DILM) and time relays are used.
Depending on the power of the fan and its operating mode, the following modules,
performing tasks listed below, may be applied:
•Direct activation (up to 5.5 kW)–MZSW-ZB
•Activation through a star-delta system (from 7.5 kW to 75 kW)–MZSW-GT
•Activation of first/second gear of the fan (Dahlander system)–MZSW-2B
•Activation in any direction –MZSW-2K
•Activation of first/second gear of the fan (Dahlander system)in any
direction - MZSW-2B2K
•Activation and supplying through a frequency converter –MZSW-FC
Besides the distribution of electrical power needed for operation of the fans, the
modules also monitor the operation status and possible failures of the power circuit.
Operation confirmation and generic failure signals are transferred to the Control Panel.
FREQUENCY
CONVERTER

Rev. 1.2 of 12.2020
14
Fig. 3.4. MZSW-GT module scheme –supplying motors with Υ/Δ start-up
Fig. 3.5. MZSW-2B module scheme –supplying bipolar electrical Dahlander motors

Rev. 1.2 of 12.2020
15
Fig. 3.6. MZSW-2K module scheme –supplying bidirectional motors
Fig. 4.1 Diagram of the MZSW-2B2K module - power supply for two-speed, two-directional motors

Rev. 1.2 of 12.2020
16
4.13. MZKDC Module –Power Supply Unit for Components of the Smoke and
Heat Control System
These modules will provide guaranteed power supply for components of the systems
described in PN-EN 12101-12. The supply lines of these devices are monitored for short and
open circuit. The protection circuits of the powered devices may also be monitored. The line
damage or protection activation signals are transferred to the Control Panel.
The modules are equipped with protection circuits selected for receivers and the supply
line so that the fire protection conditions and the requirement of selectiveness of activation
are met. Depending on the type and power of the receiver, the overcurrent protection or fuses
with proper characteristics are used.
Fig. 3.7. Scheme of a power supply module for the components of the smoke and heat control system
4.13. MZKP Module –Power Supply Unit for Fire Damper Actuators
These modules make it possible to supply the actuator or group of actuators of fire
dampers (with transition to the fire position once the power supply failure occurs) and the fire
ventilation (controlling supply changeover between the actuator contacts).
The position of the damper baffle is controlled in two positions –open and closed.
Additionally, the Control Panel is capable of supervising the correctness of the damper
operation by monitoring the time of change of the baffle position.
The supply outputs are protected with proper fuses which are monitored by the Control
Panel.
The connecting and switching functions in the power circuit are performed by relays
with monostable changeover contacts (NO and NC), e.g. RM84 or R4 type.
PHASE
SEQUENCE
SENSOR

Rev. 1.2 of 12.2020
17

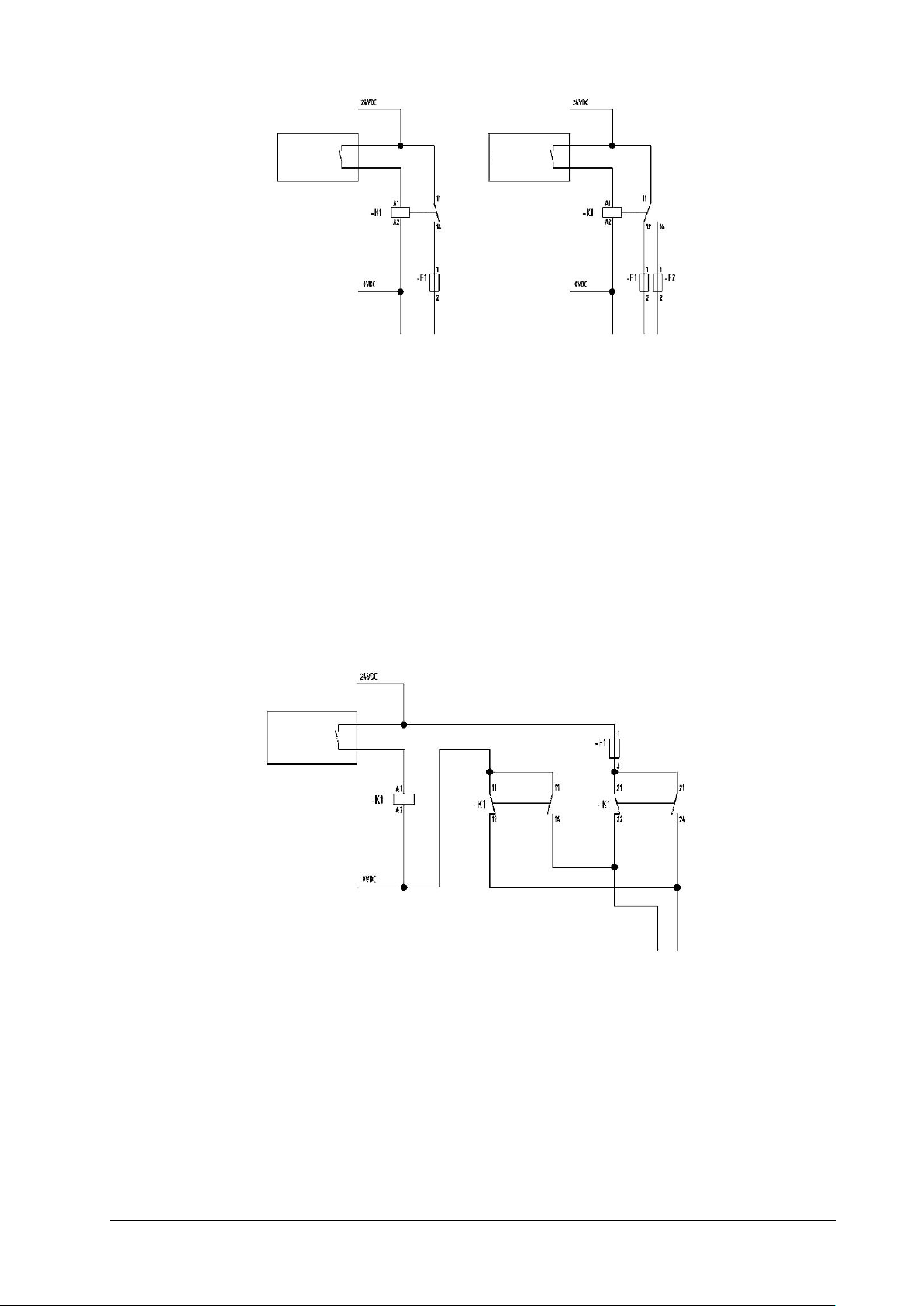

Fig. 3.8. Scheme of a power supply module for fire damper actuators with a safe position
and voltage overdrive
4.13. MZOD Module –Power Supply Module for Smoke Ventilation Window
and Door Actuators
These modules make it possible to supply the actuator or group of actuators of fire
windows and doors, controlled by the change of polarization of the mains voltage. In order to
monitor the door or window status, the module can operate a potential-free contact of an
additional reed relay.
The connecting and switching functions in the power circuit are performed by relays
with monostable changeover contacts (NO and NC), e.g. RM84 or R4 type.
Fig. 3.9. Scheme of a power supply module for smoke ventilation window or door actuators
4.13. MSOA Module –Module for Strobe Light Sirens
This module makes it possible to supply optical indicators, fire alarm sounders or strobe
light sirens connected in parallel. The module safety circuits are adjusted according to the
power and number of supplied signalling devices. The module may be adapted to 24 V DC or
230 V AC power supply.
ALARM
SYSTEM
CONTROL
PANEL
ALARM
SYSTEM
CONTROL
PANEL
ALARM SYSTEM
CONTROL
PANEL

Rev. 1.2 of 12.2020
18
Fig. 3.10. Scheme of the power supply module for strobe light sirens
ALARM
SYSTEM
CONTROL
PANEL
ALARM
SYSTEM
CONTROL
PANEL
OPTICAL INDICATOR
FIRE ALARM SOUNDER
24 V DC
0 V DC
24 V DC
0 V DC

Rev. 1.2 of 12.2020
19
4.13. MKL Module –Supply Line Control Module
This module makes it possible to detect the damage in power cables for peripheral
actuators (e.g. fan motors, fire damper actuators). The MKL module makes the Control Panel
capable of continuously supervising the status of the system supplying energy receivers.
3.8.1 MKL N-780
The N-780 Line Control Module makes it possible to detect open and short circuits in the
fans power and control circuit along with the supervision of the motor winding. Due to the
use of MKL N-780 it is possible to monitor the service (repair) switch applied in the fan
wirelessly. Disconnecting the fan power and control circuit by the service switch is detected
by the MKL N-780 module as an open transmission circuit which triggers the alarm. Thanks
to this functionality, the cost of the service switch alone is reduced (no need for extending
the circuit with additional position monitoring contacts) and the cost of the additional cable
for monitoring the service switch position contact is completely eliminated.
With the use of MKL N780 it is possible to monitor power cables for fan motors in the
following configurations:
•two fans with direct start-up (star or delta)
•two fans supplied and controlled by frequency inverters
•single fan with a star-delta start-up
•single two-speed and/or two-way Dahlander fan
Connecting the Module:
Installation: on a DIN rail
1 –1–24 V power supply
2–signalling LEDs
3–S1 button
4–2–230 V AC power supply
5–“contactor” input
6 –potential-free contact
7–motor winding inputs

Rev. 1.2 of 12.2020
20
Connect 24 V and 230 V AC power supply.
The green D1 LED should indicate the activation of the system.
Connect all motor windings according to the markings.
In order to start the measurement apply 24 V voltage to the “contactor” input.
By pressing and holding the S1 button for about 3 seconds, the system memorizes the
parameters of the windings of the engine being in good working order. It is the so-called
“teaching process”, indicated by the yellow D2 LED flashing. Once the process is
successfully completed, this LED stops flashing and starts to light continuously.
Henceforth the system begins to analyse the status of the power supply and control
transmission circuit for the motor along with its windings. In case of open or short circuit
in the power supply circuit or motor winding, the module indicates this state by the red D3
LED flashing.
In order to shut the motor down disconnect the “contactor” input beforehand. Otherwise
the system will suffer damage.
The S2 switch is used for selecting the module operating mode. When the switch is in
position No. 1, the module is adapted for examining a single motor with 6 cables, whereas
in position No. 0 the module works with two motors with 3 cables each.
Wiring diagrams:
•Monitoring the cable and windings of a single motor (star-delta or Dahlander system)
Motor 1
Primary
winding
Motor 1
Secondary
winding
MOTOR
CONTACTOR
POWER
SUPPLY
ALARM
Measurement
activation
input
General
fault
Guaranteed
230 V AC, 2 W
power supply
Guaranteed
24 V DC, 2 W
power supply
1U 1V 1W
2U 2V 2W
24 V
