SMC Networks LECPA Series User manual

Doc.No. JXC※-OMT0042-A
PRODUCT NAME
Step Motor Driver
（ Pulse input type ）
MODEL / Series / Product Number
LECPA Series

- 1 -
Contents
1.Safety Instructions.......................................................................... 5
2. Product Outline ............................................................................... 7
2.1 Product features..........................................................................................................7
2.2 Product configuration ..............................................................................................8
2.3 How to Order.................................................................................................................9
2.4 Option ............................................................................................................................ 10

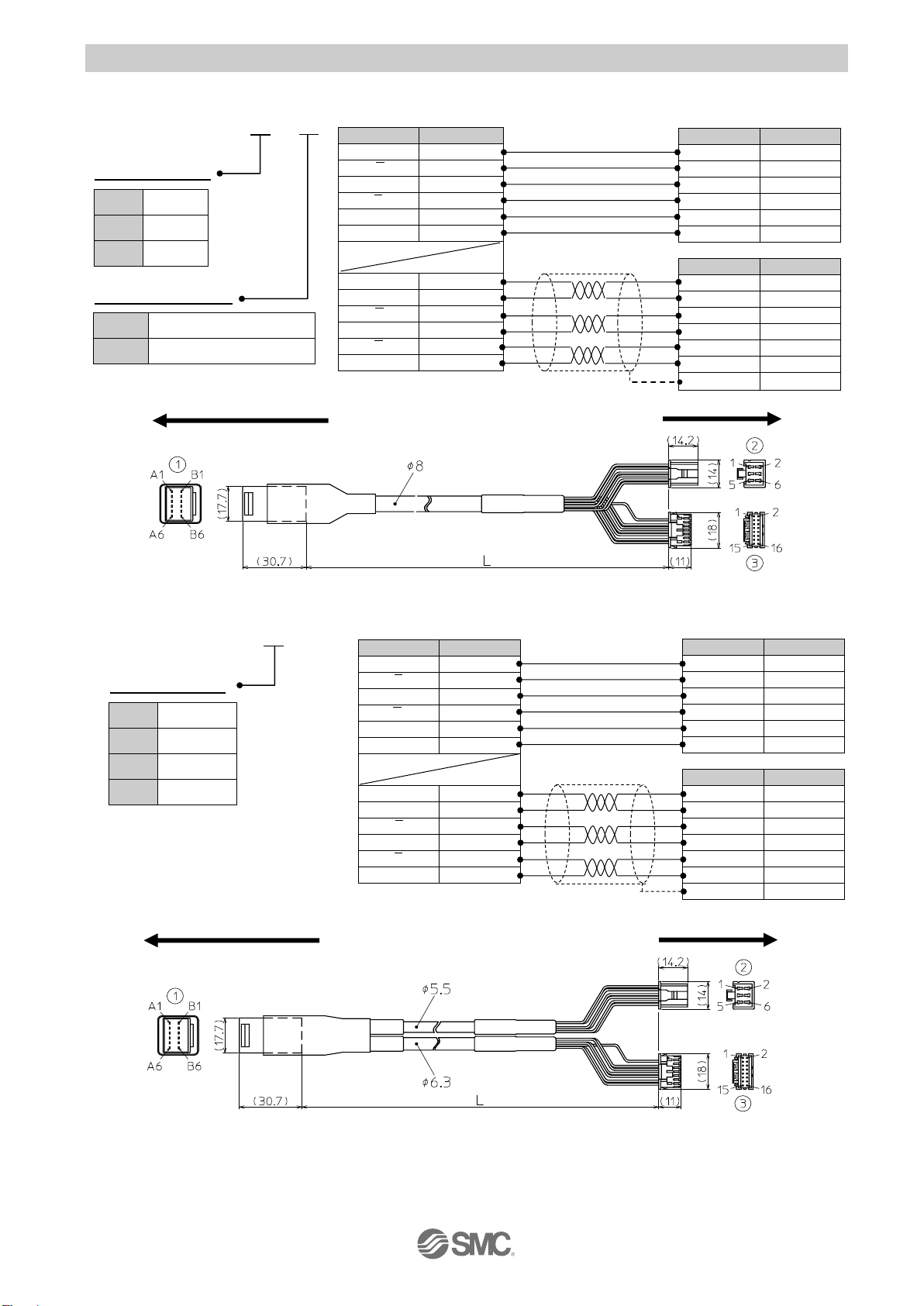

(1) Actuator cable (5m or less)........................................................................ 10
(2) Actuator cable (8-20m) ................................................................................. 10
(3) Actuator cable for with lock (5m or less) ........................................... 11
(4) Actuator cable for with lock (8-20m)..................................................... 11
(5) I/O Cable............................................................................................................... 12
(6) Controller setting kit...................................................................................... 12

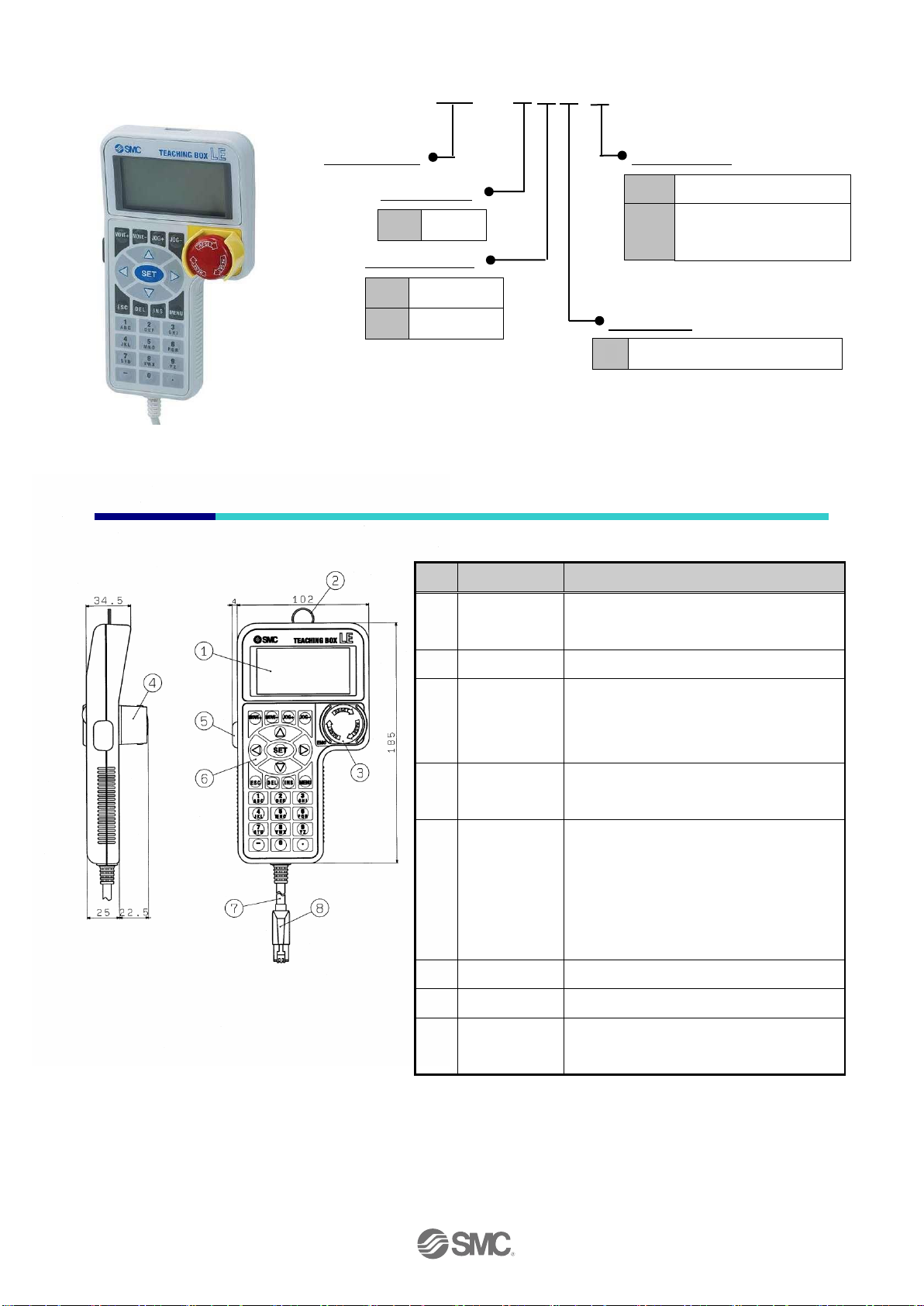

(7) Teaching box ..................................................................................................... 13

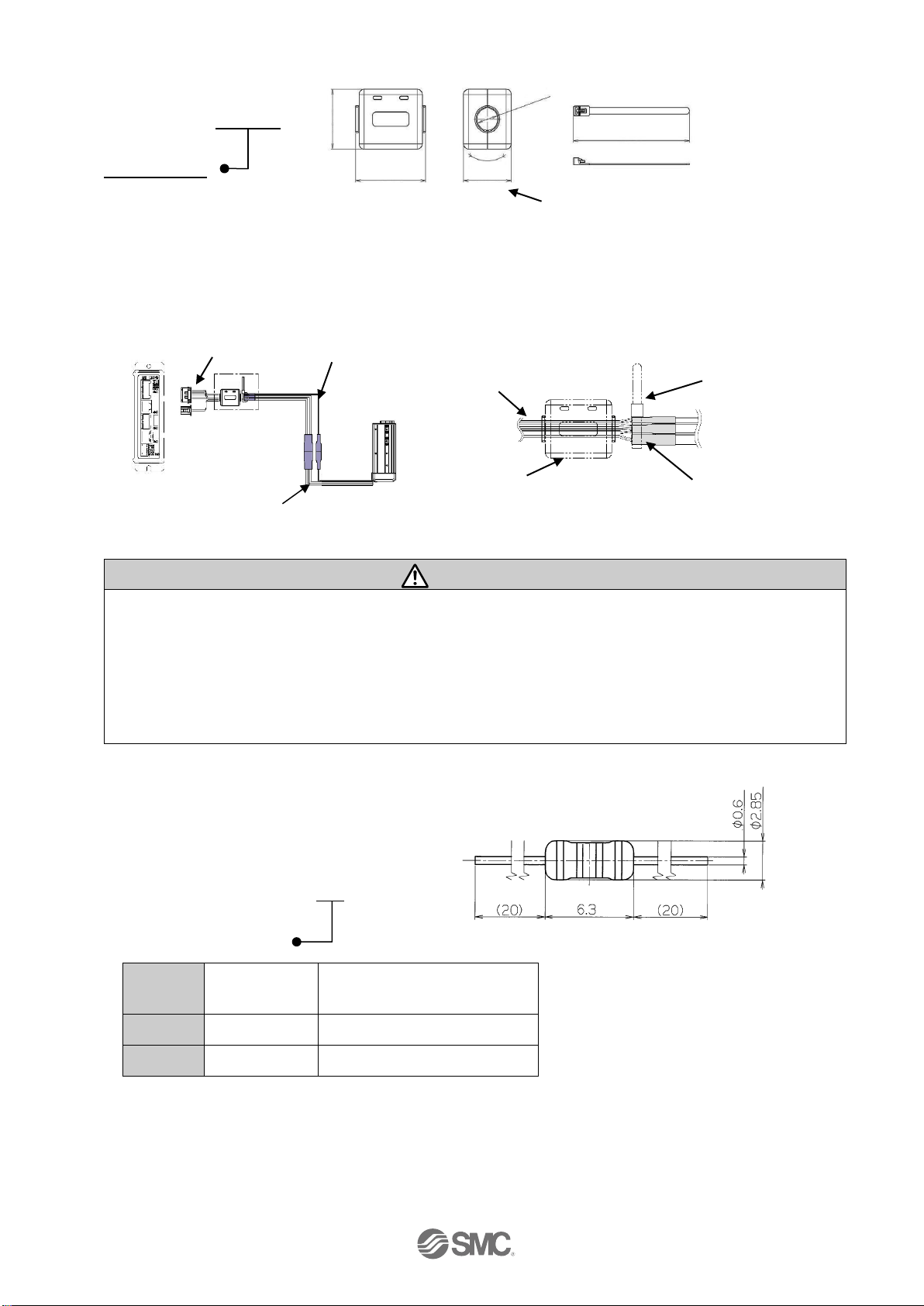

(8) Noise filter set................................................................................................... 14
(9) Current limiting resistor.............................................................................. 14
2.5 Startup Procedures ................................................................................................ 15
(1) Confirmation of the package content................................................... 15
(2) Installation .......................................................................................................... 15
(3) Wiring and connection................................................................................. 15
(4) Power ON alarm (error)................................................................................ 15
(5) Operation pattern setting............................................................................ 16
(6) Trial run (Electric actuator adjustment) .............................................. 16
3. Product Specifications..............................................................17
3.1 Basic specifications............................................................................................... 17
3.2 Parts description...................................................................................................... 18
3.3 Outside dimension diagram............................................................................... 19
(1) Screw mount type (LECPA□□-□).............................................................. 19
(2) DIN rail mount type (LECPA□□D-□)........................................................ 19
3.4 How to install ............................................................................................................. 20
(1) How to install..................................................................................................... 20
(2) Ground wire connection.............................................................................. 20
(3) Installation location ....................................................................................... 21
4. External Wiring Diagram ..........................................................22
4.1 CN1: Power connector.......................................................................................... 22
4.2 CN2: Motor power connector and CN3: Encoder connector ........... 22
4.3 CN4: Serial I/O connector.................................................................................... 22

- 2 -
(1) Connection with the teaching box......................................................... 22
(2) Connection with a PC ................................................................................... 23
4.4 CN5: Parallel I/O connector................................................................................ 23
5. CN1: Power supply plug...........................................................24
5.1 Power supply plug specifications .................................................................. 24
5.2 Electric wire specifications................................................................................ 24
5.3 Wiring of power supply plug ............................................................................. 24
(1) Wiring of the power supply........................................................................ 24
(2) Wiring of the stop switch............................................................................ 25
(3) Wiring of the lock release........................................................................... 25
5.4 Stop circuits ............................................................................................................... 26
(1) Example circuit 1- Single driver with teaching Box ..................... 26
(2) Example circuit 2（Stop relay contact(1)）........................................... 27
(3) Example circuit 3 Motor power shutdown(Stop relay contact(2)）28
6. CN5: Parallel l/O Connector ...................................................29
6.1 Parallel I/O specifications ................................................................................... 29
6.2 Parallel I/O type (NPN/PNP type) ..................................................................... 29
(1) Parallel I/O input circuit (same for both NPN and PNP type)... 29
(2) Parallel I/O output circuit ............................................................................ 29
(3) Pulse signal input circuit ............................................................................ 30
6.3 The parallel I/O signal is detailed.................................................................... 32
6.4 Parallel I/O Wiring Example................................................................................ 35
7. Setting Data Entry........................................................................37
7.1 Step data ...................................................................................................................... 37
7.2 Basic parameter ....................................................................................................... 39
(1) Details of basic parameter ......................................................................... 39
(2) Setting "Options set 1"..................................................................................... 44
7.3 Return to origin parameter................................................................................. 48
8. Operations explanation ...................................................................49
8.1 Return to origin......................................................................................................... 49
8.2 Positioning operation............................................................................................ 49
8.3 Pushing operation................................................................................................... 50
(1) Pushing operation is successfully performed ................................ 50
(2) Pushing operation is failed (pushing the air)................................... 50
(3) Movement of the work piece after the completion of the pushing process
.......................................................................................................................................... 51
8.4 Response time for the driver input signal.................................................. 51

- 3 -
8.5 Methods of interrupting operation................................................................. 51
9. Operation (example) ...................................................................52
9.1 Positioning operation............................................................................................ 52
9.2 Pushing operation................................................................................................... 53
9.3 Actions after pushing operation............................................................................... 54
10. Operation instruction ..............................................................56
(1) Power on → Return to origin .................................................................... 56
(2) Positioning operation ................................................................................... 57
(3) Pushing operation .......................................................................................... 58
(4) Alarm reset.......................................................................................................... 59
(5) Deviation reset ..................................................................................................... 59
(6) Stop (EMG).......................................................................................................... 59
(7) Area output......................................................................................................... 60
11. Automatic pulse reference detection..............................61
11.1 The meaning of automatic pulse reference detection....................... 61
11.2 Operation procedure using automatic detection function ............. 61
11.3 Automatic pulse reference detection OFF............................................... 62
12. Alarm Detection ..........................................................................64
12.1 Parallel output for the alarm group............................................................. 64
12.2 Alarm details............................................................................................................ 65
13. Wiring of cables/Common precautions.........................70
14．Electric actuators/ Common precautions....................71
14.1 Design and Selection.......................................................................................... 71
14.2 Mounting.................................................................................................................... 72
14.3 Handling..................................................................................................................... 73
14.4 Operating environment...................................................................................... 74
14.5 Maintenance............................................................................................................. 74
14.6 Precautions for electric actuator with lock............................................. 75
15 ． Driver and its peripheral devices /Specific product precautions
......................................................................................................................76
15.1 Design and Selection.......................................................................................... 76
15.2 Handling ......................................................................................................................... 76
15.3 Installation.................................................................................................................... 77

- 4 -
15.4 Wiring of cables..................................................................................................... 78
15.5 Power supply........................................................................................................... 78
15.6 Grounding ................................................................................................................. 78
15.7 Maintenance............................................................................................................. 78
16.Troubleshooting.................................................................................80
Appendix 1. Default setting value per actuator................86
Appendix 1.1 LEY/LEYG series setting value .................................................. 86
Appendix 1.2 LEF series setting value ................................................................ 88
Appendix 1.3 LES series setting value................................................................ 92
Appendix 1.4 LEHZ series setting value............................................................. 96
Appendix 1.5 LER series setting value.............................................................. 102
Appendix 1.6 LEP series setting value........................................................................104

- 5 -
LECPA Series / Driver
1.Safety Instructions
These safety instructions are intended to prevent hazardous situations and/or equipment damage.
These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.”
They are all important notes for safety and must be followed in addition to International Standards
(ISO/IEC)*1), and other safety regulations.
*1) ISO 4414: Pneumatic fluid power -- General rules relating to systems.
ISO 4413: Hydraulic fluid power -- General rules relating to systems.
IEC 60204-1: Safety of machinery -- Electrical equipment of machines. (Part 1: General requirements)
ISO 10218-1992: Manipulating industrial robots -Safety.
etc.
Caution
Caution indicates a hazard with a low level of risk which, if not avoided, could result in minor or
moderate injury.
Warning
Warning indicates a hazard with a medium level of risk which, if not avoided, could result in
death or serious injury.
Danger
Danger indicates a hazard with a high level of risk which, if not avoided, will result in death or
serious injury.
Warning
1. The compatibility of the product is the responsibility of the person who designs the equipment or
decides its specifications.
Since the product specified here is used under various operating conditions, its compatibility with specific
equipment must be decided by the person who designs the equipment or decides its specifications based on
necessary analysis and test results.
The expected performance and safety assurance of the equipment will be the responsibility of the person who
has determined its compatibility with the product.
This person should also continuously review all specifications of the product referring to its latest catalog
information, with a view to giving due consideration to any possibility of equipment failure when configuring the
equipment.
2. Only personnel with appropriate training should operate machinery and equipment.
The product specified here may become unsafe if handled incorrectly.
The assembly, operation and maintenance of machines or equipment including our products must be performed
by an operator who is appropriately trained and experienced.
3. Do not service or attempt to remove product and machinery/equipment until safety is confirmed.
1.The inspection and maintenance of machinery/equipment should only be performed after measures to
prevent falling or runaway of the driven objects have been confirmed.
2.When the product is to be removed, confirm that the safety measures as mentioned above are implemented
and the power from any appropriate source is cut, and read and understand the specific product precautions
of all relevant products carefully.
3.Before machinery/equipment is restarted, take measures to prevent unexpected operation and malfunction
4. Contact SMC beforehand and take special consideration of safety measures if the product is to be
used in any of the following conditions.
1.Conditions and environments outside of the given specifications, or use outdoors or in a place exposed to
direct sunlight.
2.Installation on equipment in conjunction with atomic energy, railways, air navigation, space, shipping,
vehicles, military, medical treatment, combustion and recreation, or equipment in contact with food and
beverages, emergency stop circuits, clutch and brake circuits in press applications, safety equipment or
other applications unsuitable for the standard specifications described in the product catalog.
3.An application which could have negative effects on people, property, or animals requiring special safety
analysis.
4.Use in an interlock circuit, which requires the provision of double interlock for possible failure by using a
mechanical protective function, and periodical checks to confirm proper operation.

- 6 -
LECPA Series / Driver
1. Safety Instructions
Caution
The product is provided for use in manufacturing industries.
The product herein described is basically provided for peaceful use in manufacturing industries.
If considering using the product in other industries, consult SMC beforehand and exchange specifications
or a contract if necessary.
If anything is unclear, contact your nearest sales branch.
Limited warranty and Disclaimer/Compliance Requirements
The product used is subject to the following “Limited warranty and Disclaimer” and “Compliance
Requirements”.
Read and accept them before using the product.
Limited warranty and Disclaimer
1.The warranty period of the product is 1 year in service or 1.5 years after the product is delivered,
whichever is first. 2)
Also, the product may have specified durability, running distance or replacement parts. Please
consult your nearest sales branch.
2.For any failure or damage reported within the warranty period which is clearly our responsibility,
a replacement product or necessary parts will be provided.
This limited warranty applies only to our product independently, and not to any other damage
incurred due to the failure of the product.
3.Prior to using SMC products, please read and understand the warranty terms and disclaimers
noted in the specified catalog for the particular products.
*2) Vacuum pads are excluded from this 1 year warranty.
A vacuum pad is a consumable part, so it is warranted for a year after it is delivered.
Also, even within the warranty period, the wear of a product due to the use of the vacuum pad or
failure due to the deterioration of rubber material are not covered by the limited warranty.
Compliance Requirements
1.The use of SMC products with production equipment for the manufacture of weapons of mass
destruction (WMD) or any other weapon is strictly prohibited.
2.The exports of SMC products or technology from one country to another are governed by the
relevant security laws and regulations of the countries involved in the transaction. Prior to the
shipment of a SMC product to another country, assure that all local rules governing that export
are known and followed.
Caution
SMC products are not intended for use as instruments for legal metrology.
Measurement instruments that SMC manufactures or sells have not been qualified by type approval tests
relevant to the metrology (measurement) laws of each country.
Therefore, SMC products cannot be used for business or certification ordained by the metrology
(measurement) laws of each country.

- 7 -
2. Product Outline
2.1 Product features
The followings are the main functions of this driver:
Electric Actuator Control
Positioning operation and Pushing operation, at a specific speed and force, of the electric actuator
are possible by controlling the Step motor (24 VDC servo).
Separated power supply
The power supply is separated into the drive power and the control power. Therefore, even when the
drive power is off, if the control power is on, the position information from the encoder will be
maintained and the serial communication and parallel I/O control are still available.
Return to origin
Return the electric actuator to the home position by sending a single signal to a dedicated terminal.
Alarm detection function
Automatically detect the abnormal conditions and output the appropriate alarm signal via the serial
interface and parallel I/O. The alarm information (up to the last 8 alarms) will be recorded into the
memory in the driver.
Data input method
It is possible to perform parameter setup, status monitoring, trial run and alarm reset via the serial
communication with a PC installed with the controller setting kit or the teaching box.
Specified force operation
Control the pushing force (or the pressing force) of the electric actuator.
Caution
The operation with specified thrust is available for driver version 1.60 or more.
Please refer to the “3.2 Parts description (page 13)” for the confirm method of the driver version.
Please keep this manual safe for future use. It will be necessary to refer to this manual along with the
operation manuals for other electric actuators, teaching box, and controller setting kit at installation and fault
finding.
Keep this operation manual accessible for reference.

- 8 -
2.2 Product configuration
The product configuration of this driver is as follows.
*6) Prepared by user
●Electric actuator *1)
Connect the ground
Driver
*5)
*1) *6)
●Actuator cable
Part No：LE-CP-□-S
LE-CP-□-B-S
(Standard cable)
LE-CP-□
LE-CP-□-B
(Robotic type cable)
*3)* 4 ) ●Power supply plug (accessory)
Applicable cable size
AWG20(0.5mmP2P)
*1) These items are included when ordered using the part number for an actuator set.
*2) The controller setting software must use the latest version.
For version information and upgrade, please refer to the SMC website. http://www.smcworld.com/
*3) When conformity to UL is required, the electric actuator and driver should be used with a UL1310 Class
2 power supply.
*4) 24 VDC power supply for driver input and 24 VDC power supply for I/O signal should be separated.
*5) PC is prepared by the user.
*6) Optional.
Warning
Refer to section “4. External Connection for wiring”.
Refer to “13. Precautions for wiring and cables” when handling the wiring and cables.
Do not connect the teaching box directly to the Personal computer.
Do not use LAN cable to connect to the driver, it will cause damage to the personal computer.
Power supply for driver
24 VDC
PLC
*3) *4)
Power supply for I/O signal
24 VDC
To CN1
To CN4
To
CN5
●I/O cable
Part No: LEC-CL5-□
To CN3
To CN2
●Controller setting kit *2) *5)
Part No: LEC-W2
●Teaching box
(With 3m cable)
Part No: LEC-T1-3□G□

- 9 -
2.3 How to Order
The part number construction for this product is as follows:
ＬＥＣＰＡＮ□□－ □
Compatible Electric actuator model
Driver type
Parallel I/O type
I/O cable length
Option
*2) Available only with the differential pulse input type.
Only 1.5 m cable is available for the open collector type.
Caution
The driver and electric actuator are factory set Confirm the combination of the driver
and the electric actuator is correct.
<Check the following before use.>
(1) Check the electric actuator label for the model number. Check that this matches the driver.
(2) Check Parallel I/O configuration matches (NPN or PNP)
Driver
(1) (1) (2)
N
NPN type
P
PNP type
Nil
Screw mounting
D
DIN rail mounting
LEFS25B-100
NPN
Nil
None
1
1.5m
3
3m*2)
5
5m*2)
Stroke example：For LEFS25B-100B-S3AN1,
specify LEFS25B-100
Rotating angle：For LER10K-2L-R1AN1D,
specify LER10K-2.
(For an electric rotary table, the rotation angle must
also be entered. Note, this product is not specified for
continuous rotation).
BC
Blank controller *1)
*1)Specified software (LEC-BCW) is required.
Step motor (Servo / 24 VDC)
P
Pulse input type
A
Electric actuator
LEFS25B-100

- 10 -
2.4 Option
(1) Actuator cable (5m or less)
ＬＥ－ ＣＰ－ □－ □
Cable length (L)
Actuator cable type
Electric actuator side Driver side
(2) Actuator cable (8-20m)
ＬＥ－ＣＰ－ □
Cable length (L)
*1) Produced upon receipt of order.
Only Robotic type cable can
be selected.
Electric actuator side Driver side
signal
Terminal no.
A
B-1
A
A-1
B
B-2
B
A-2
COM-A/COM
B-3
COM-B/ -
A-3
Vcc
B-4
GND
A-4
A
B-5
A
A-5
B
B-6
B
A-6
(30.7)
1
1.5m
3
3m
5
5m
Shield
③
Nil
Robotic type cable
S
Standard cable
②
Cable color
Terminal no.
Brown
2
Red
1
Orange
6
Yellow
5
Green
3
Blue
4
Cable color
Terminal no.
Brown
12
Black
13
Red
7
Black
6
Orange
9
Black
8
-
3
signal
Terminal no.
A
B-1
A
A-1
B
B-2
B
A-2
COM-A/COM
B-3
COM-B/ -
A-3
Vcc
B-4
GND
A-4
A
B-5
A
A-5
B
B-6
B
A-6
Cable color
Terminal no.
Brown
2
Red
1
Orange
6
Yellow
5
Green
3
Blue
4
Cable color
Terminal no.
Brown
12
Black
13
Red
7
Black
6
Orange
9
Black
8
-
3
Shield
②
②
8
8m *1)
A
10m *1)
B
15m *1)
C
20m *1)
③
①
①
①

- 11 -
(3) Actuator cable for with lock and sensor (5m or less)
ＬＥ－ＣＰ－□－Ｂ－□
Cable length（L）
Actuator cable type
Electric actuator side Driver side
(4) Actuator cable for with lock and sensor (8-20m)
ＬＥ-ＣＰ－ □－ Ｂ
Cable length (L)
*1) produced upon receipt of order
Only “Robotic type cable” can
be selected.
Electric Actuator side Driver side
Signal
Terminal no.
A
B-1
A
A-1
B
B-2
B
A-2
COM-A/COM
B-3
COM-B/ -
A-3
Vcc
B-4
GND
A-4
A
B-5
A
A-5
B
B-6
B
A-6
1
1.5m
3
3m
5
5m
Nil
Robotic type cable
S
Standard cable
①
signal
Terminal no.
Lock （＋）
B-1
Lock （－）
A-1
Sensor （＋）
B-3
Sensor （－）
A-3
④
③
Shield
Cable color
Terminal no.
Brown
2
Red
1
Orange
6
Yellow
5
Green
3
Blue
4
Cable color
Terminal no.
Brown
12
Black
13
Red
7
Black
6
Orange
9
Black
8
-
3
Red
4
Black
5
Brown
1
Blue
2
②
signal
Terminal no.
A
B-1
A
A-1
B
B-2
B
A-2
COM-A/COM
B-3
COM-B/ -
A-3
Vcc
B-4
GND
A-4
A
B-5
A
A-5
B
B-6
B
A-6
①
②
Cable color
Terminal no.
Brown
2
Red
1
Orange
6
Yellow
5
Green
3
Blue
4
Cable color
Terminal no.
Brown
12
Black
13
Red
7
Black
6
Orange
9
Black
8
-
3
Red
4
Black
5
Brown
1
Blue
2
③
④
8
8m *1)
A
10m *1)
B
15m *1)
C
20m *1)
signal
Terminal no.
Lock （＋）
B-1
Lock （－）
A-1
Sensor （＋）
B-3
Sensor （－）
A-3

- 12 -
(5) I/O Cable
Ｌ Ｅ Ｃ － ＣＬ５－ □
Cable length(L)
(6) Controller setting kit
ＬＥＣ－ Ｗ２
Contents
Hardware requirements
PC/AT compatible machine installed with Windows®XP and Windows®7 Windows®8.1 and equipped
with USB1.1 or USB2.0 ports.
WindowsⓇ and Windows®XP, Windows®7, Windows®8.1 are registered trademarks of Microsoft Corporation.
Caution
The controller setting software must use the latest version.
Upgrade software be able to download on SMC website. http://www.smcworld.com/
Item
Product No.*1）
Quantity
(1) Controller setting software (CD-ROM)
LEC-W2-S
1
(2) Communication cable(3m)
LEC-W2-C
1
(3) USB cable(0.3m)
LEC-W2-U
1
Pin No.
Color of
insulation
Dot mark Dot color
20
White
■■
Red
19
White
■■
Red
18
Gray
■■
Red
17
Gray
■■
Black
16
Light green
■■
Red
15
Light green
■■
Black
14
Yellow
■■
Red
13
Yellow
■■
Black
12
Light brown
■■
Red
11
Light brown
■■
Black
10
White
■
Red
9
White
■
Black
8
Gray
■
Red
7
Gray
■
Black
6
Light green
■
Red
5
Light green
■
Black
4
Yellow
■
Red
3
Yellow
■
Black
2
Light brown
■
Red
1
Light brown
■
Black
1
1.5m
3
3m *1）
5
5m *1）
(1)
(2)
(3)
* Available only when differential
pulse input. Only 1.5m cable is
available for open collector.
Driver side
PLC side
Core number 20
20
AWG size
AWG 24
19
20
(22)
(11)
(φ9.3)
Ｌ
100±10
2
1

- 13 -
(7) Teaching box
ＬＥＣ－Ｔ１－ ３ＪＧ □
Teaching box Enable switch
Cable length
Initial language
Stop switch
Dimensions
No.
Name
Function
(1)
LCD
A screen of liquid crystal
display(with backlight)
(2)
Ring
A ring for hanging the teaching box.
(3)
Stop switch
When switch is pushed in,the switch
locks and stops.The lock is released
when it is turned to the right.
(4)
Stop switch
guard
A guard for the stop switch
(5)
Enable
switch
(Option)
Prevent unintentional operation of
(unexpected operation)of the Jog
test function.
Other functions such as data
change are not covered.
(6)
Key switch
Entry switches
(7)
Cable
3m length
(8)
Connector
The connector to be connected to
the CN4 of the driver
Equipped with
enableswitchchluded.
S
No enable switch
Nil
Japanese
J
English
E
3m
3
Equipped with stop switch
G

- 14 -
(8) Noise filter set
ＬＥＣ－ＮＦＡ
Noise filter set
Assembly procedure:
1) Mount a noise filter around the single wires of the actuator cable close to the driver connectors.
Next, fasten a cable tie to the shrink sleeve as shown (refer to A1).
2) Mount a noise filter to the motor cable, and fasten with a cable tie at both ends.
CN2 and CN3 connectors Actuator cable
Single wires Cable tie
Driver Noise filter Shrink sleeve
Motor cable
Caution
When installing a noise filter on the actuator cable, bundle all of the single wires together and then
house them inside the noise filter case. When locking the noise filter, make sure not to damage the
wires.
Attach the noise filter at the root of the cable immediately next to the connector.
When unplugging the actuator cable connectors CN2 and CN3 from the driver, remove the cable tie
and move the noise filter towards the shrink sleeve. After re-mounting, return the noise filter to its
original position and re-fasten the cable tie.
(9) Current limiting resistor
Use this resistor when the positioning unit’s
pulse-train output signal is specified as an
open collector type output.
ＬＥＣ－ＰＡ－Ｒ－□
Current limiting resistor
Symbol
Resistance
Power supply voltage for
pulse input signal
332
3.3kΩ±5%
24VDC ±10%
391
390Ω±5%
5VDC ±5%
Select the current limiting resistor R which corresponds to the pulse signal voltage.
LEC-PA-R-□is provided with 2 pcs in one set.
A1
A1
(28.8)
(42.2)
Catch closed
(33.5)
(140)
Cable tie (3pcs.)
Noise filter (2pcs.)
(12.5)

- 15 -
2.5 Startup Procedures
Be sure to check the procedure below before use.
(1) Confirmation of the package content
After unpacking everything, check the description on the label to identify the driver and the number of
accessories. If any parts are missing or damaged, please contact your distributor.
*1) Included in the package only when the I/O
cable length is specified.
【Option】
● Teaching box
● Controller setting kit
● Actuator cable
● Noise filter set
● Current limiting resistor
(2) Installation
Please refer to the “3.4 How to install”
(3) Wiring and connection
Connect cables, etc. to the connector (CN1 to CN5) of the driver.
Please refer to the “5 External Wiring Diagram” for the wiring of the connectors.
(4) Power ON alarm (error)
Ensure the stop is not activated and then supply 24VDC power.
Function
LED color
Status
PWR
Green
Normal
ALM
Off
Normal
Red
Problems
Driver
If the LED [PWR] lights in green, the driver is in the normal condition.
However, if the LED [ALM] lights in red, the driver is in the alarm (error) condition.
Caution
In case of alarm (error) condition:
Connect a PC or the teaching box to the CN4 serial I/O connector and check the details of the alarm.
Then, remove the cause of the error referring to the “12. Alarm Detection”
Please refer to the manuals of the controller setting software or the teaching box for details of the
alarms.
Item
Quantity
Driver（LECPA□□□-□）
1 unit
Power supply plug
1 piece
I/O cable (LEC-CN5-□) *1)
1 piece
Driver
Power supply plug
Teaching box
Controller setting kit
I/O cable
Actuator cable

- 16 -
(5) Operation pattern setting
Setup the operation pattern (step data, basic parameter and return to origin parameters) by using a
Controller setting kit or the teaching box. Specifically, be sure to configure the parameter"option set
1” from the basic parameters section. Refer to “7. Setting Data Entry (page 31)” for details.
● Controller set up kit ● Teaching box
Please refer to the manuals of the controller setting software or the teaching box for how to setup the
operation pattern
[1] Counts of input pulses
The pulse number input from the positioning unit is
displayed. However, please take care that under the
situation that the driver doesn't count the pulse (The
SVRE power output: turning off, the return to origin
inside, and
CLR input: turn on, Test in operation by Controller
setting kit /teaching box), this value is changed.
[2] Value converted into pulse
The values about the speed and the target position, current position converted into the pulse
number are displayed. Conversion formula is shown in below.
Position [Pulse]
= Position [mm] / Actuator lead [mm/rotation] x 800 [Pulse/rotation] x electronic gear
(denominator) / electronic gear (numerator)
Speed [Pulse/sec]
= Speed [mm/s] / Actuator lead [mm/rotation] x 800 [Pulse/rotation] x electronic gear
(denominator) / electronic gear (numerator)
Please refer to “7.2 Basic parameter” for electronic gear (denominator, numerator).
(6) Trial run (Electric actuator adjustment)
After confirming that an unexpected operation can be stopped externally, check the operation by inputting
the pulse signal from the positioning unit.
A: Status window
A
[1]
[2]

- 17 -
3. Product Specifications
3.1 Basic specifications
The basic specifications of this driver are as follows:
Item
Specifications
Compatible motor
Step Motor (Servo / 24 VDC)
Compatible encoder
Incremental A/B phase (800 pluse/rotation)
Power supply *1) *3)
Power voltage: 24 VDC +/-10%
Max. current consumption: 3A (Peak 5A) *2)
(for both of motor drive power control power,
stop, lock brake release)
Parallel input
5 inputs (photo-coupler isolation)
Except pulse signal input terminal and COM terminal
Parallel output
9 outputs (photo-coupler isolation)
Pulse signal input
Open collector input
Differential input
Maximum
frequency
60kpps
200kpps
Input type
1 pulse mode
(Direction and pulse input)
2 pulse mode
(Pulse for each direction)
1 pulse mode
(Direction and pulse input)
2 pulse mode
(Pulse for each direction)
Serial communication
Conforming to RS485. （Modbus protocol compliant）
Memory
EEPROM
LED indicator
2 of LED’s (green and red)
Lock control
Forced-lock release terminal (Applicable to non -magnetizing lock.)
Cable length
I/O cable:1.5m or less (Open collector input)
5m or less (Differential input)
Actuator cable: 20m or less
Cooling system
Natural air cooling
Operating temperature
range
0– 40oC(No freezing)
Operating humidity
range
90％RH or less (No condensation)
Storage temperature
range
-10 – 60oC (No freezing)
Storage humidity range
90％RH or less (No condensation)
Insulation resistance
Between external terminals and case
50MΩ(500VDC)
Mass
120g(Screw mount type)
140g(DIN rail mount type)
*1) The driver power supply do not use the power supply of “inrush current restraining type”.
*2) The power consumption changes depending on the electric actuator model.
Please refer to the specifications of the electric actuator for more details.
*3) When conformity to UL is required, the electric actuator and driver should be used with a UL1310
Class 2 power supply.

- 18 -
3.2 Parts description
The detailed descriptions of each part are as follows:
A side(driver version)
A Side
No.
Label
Name
Description
(1)
PWR
Power LED (green)
Power ON/No alarm: Green light
Data (step data, parameter) writing /green light flashing
Caution
Do not turn off the input power supply for the driverr while the
data is being written (power supply LED (green) flashes).
Data (step data ,parameter) may not be written correctly.
(2)
ALM
Power LED (red)
Power ON/Alarm: Red light
(3)
CN5
Parallel I/O
Connector (20 pins)
Used to connect PLC, etc. with the I/O cable.
(4)
CN4
Serial I/O
Connector (8 pins)
Used to connect the teaching box, PC, etc.
(5)
CN3
Encoder connector
(16 pins)
Used to connect the actuator cable.
(6)
CN2
Motor power
connector (6 pins)
(7)
CN1
Power connector
(5 pins)
Used to connect the driver power supply (24 VDC) with the
power supply plug.
Common power (-) ,Motor power (+) ,Control power (+) ,Stop
signal (+) ,Lock release (+)
(8)
―
Applicable electric
actuator model
number label
The label indicating the applicable electric actuator model.
It also indicates the type of the parallel I/O (PNP/NPN).
(9)
―
Driver label
The label indicating the part number of the driver.
(10)
―
FG
Functional ground
(When the driver is mounted, tighten screws and connect the
grounding cable)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(9)
(10)
ARX8300073
NPN V１.00
Serial No.label of driver version
Driver I/O type
Driver version label
(Ex.) Driver I/O type "NPN type"
Driver version "V1.00"
(8)

- 19 -
3.3 Outside dimension diagram
The outside view of this product is as shown in the diagram below:
(1) Screw mount type (LECPA□□-□)
(2) DIN rail mount type (LECPA□□D-□)
