Smeg Classica C6GMX9 User manual

Contents
3
EN
1Instructions 4
1.1 General safety instructions 4
1.2 Manufacturer liability 8
1.3 Appliance purpose 8
1.4 Identification plate 8
1.5 This user manual 8
1.6 Disposal 8
1.7 How to read the user manual 9
2 Description 10
2.1 General Description 10
2.2 Cooking hob 11
2.3 Control panel 11
2.4 Other parts 12
2.5 Available accessories 12
3Use 14
3.1 Instructions 14
3.2 Using the accessories 16
3.3 Using the hob 17
3.4 Using the oven 18
3.5 Programmer clock 19
3.6 Using the storage compartment 23
3.7 Cooking advice 23
4 Cleaning and maintenance 26
4.1 Instructions 26
4.2 Cleaning the surfaces 26
4.3 Cleaning the hob 27
4.4 Cleaning the door 28
4.5 Cleaning the oven cavity 30
4.6 Extraordinary maintenance 32
5Installation 34
5.1 Gas connection (not valid for the UK) 34
5.2 Adaptation to different types of gas 37
5.3 Positioning 42
5.4 Instructions for the installer 47
5.5 Electrical connection 48
We advise you to read this manual carefully, as it contains all the instructions for maintaining
the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com
TRANSLATION OF THE ORIGINAL INSTRUCTIONS

Instructions
4
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or flames
with water: turn off the appliance
and smother the flames with a fire
blanket or other appropriate
cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.
• Children must not play with the
appliance.
• Keep children under the age of 8
at a safe distance unless they are
constantly supervised.
• Keep children under the age of 8
away from the appliance when it
is in use.
• Cleaning and maintenance must
not be carried out by
unsupervised children.
• Make sure that the flame-spreader
crowns are correctly positioned in
their seats with their respective
burner caps.
• Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
Danger of overheating.
• Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid
on the pan and turn off the
relevant cooking zone.
• Cooking process should always
be kept under control. A short
cooking process must be
continuously surveyed.
• While cooking do not place metal
objects, such as cutlery or dishes
on the hob surface as they may
overheat.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in
the appliance.
• Do not pour water directly on very
hot trays.
• Keep the oven door closed during
cooking.

Instructions
5
EN
• If you need to move food or at the
end of cooking, open the door
5 cm for a few seconds, let the
steam come out, then open it fully.
• Do not open the storage
compartment (where present)
when the oven is on and still hot.
• The items inside the storage
compartment could be very hot
after using the oven.
• DO NOT USE OR STORE
FLAMMABLE MATERIALS IN
THE STORAGE
COMPARTMENT (IF AVAILABLE)
OR NEAR THE APPLIANCE.
•DONOTUSEAEROSOLSIN
THE VICINITY OF THIS
APPLIANCE WHILST IT IS IN
USE.
• Switch off the appliance after use.
• DO NOT MODIFY THIS
APPLIANCE.
• Before any operation on the
appliance (installation,
maintenance, positioning or
movement) always wear PPM.
• Before performing any operation
on the appliance, switch off the
power supply.
• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• Do not pull the cable to remove
the plug.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Use wooden or plastic utensils.
• Racks and trays should be inserted
as far as they will go into the side
guides. The mechanical safety
locks that prevent them from being
removed must face downwards
and towards the back of the oven.
• Do not sit on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could overheat and take fire. Be
very careful
• Never leave objects on the
cooking surface.

Instructions
6
• DO NOT USE THE APPLIANCE
TO HEAT ROOMS FOR ANY
REASON.
• Do not spray any spray products
near the oven.
• Do not use plastic cookware or
containers for cooking.
• Do not place sealed tins or
containers in the oven cavity.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays directly
on the bottom of the oven cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.
• Do not use the open door to place
pans or trays on the internal
glazing pane.
• Cooking vessels or griddle plates
should be placed inside the
perimeter of the hob.
• All pans must have smooth, flat
bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.
• Take care not to spill acid
substances such as lemon juice or
vinegar on the hob.
• Do not put empty pans or frying
pans on switched on cooking
zones.
• Do not use steam jets to clean the
appliance.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Do not wash the removable
components such as the hob
grids, flame-spreader crowns and
burner caps in a dishwasher.
• Never use the oven door to lever
the appliance into place when
fitting.
• Avoid exerting too much pressure
on the door when open.
• Do not use the handle to lift or
move this appliance.

Instructions
7
EN
Installation
• THIS APPLIANCE MUST NOT BE
INSTALLED IN A BOAT OR
CARAVAN.
• This appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cut-out with the help of a
second person.
• To prevent any possible
overheating, the appliance should
not be installed behind a
decoration door or a panel.
• Have the gas connection
performed by authorised staff.
• Installation using a hose must be
carried out so that the length of
the hose does not exceed
2 metres when fully extended for
steel hoses and 1.5 metres for
rubber hoses.
• The hoses should not come into
contact with moving parts and
should not be crushed in any way.
• If required, use a pressure
regulator that complies with
current regulations.
• After carrying out any operation,
check that the tightening torque of
gas connections is between
10 Nm and 15 Nm.
• At the end of the installation, check
for any leaks with a soapy
solution, never with a flame.
• Have the electrical connection
performed by authorised
technicians.
• The appliance must be connected
to ground in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90 °C.
• The tightening torque of the screws
of the terminal board leads must
be1.5-2Nm.
• Before installation, make sure that
the local distribution conditions
(nature and pressure of the gas)
and the adjustment of the
appliance are compatible;
• The adjustment conditions for this
appliance are shown on the gas
setting label.
• This appliance is not connected to
an exhaust system for combustion
products. It must be installed and
connected in compliance with the
current installation regulations.
Special attention should be paid
to the relevant requirements as for
ventilation.

Instructions
8
For this appliance
• Ensure that the appliance is
switched off before replacing the
bulb.
•Donotrestanyweight or sit on the
open door of the appliance.
• Take care that no objects are stuck
in the doors.
1.2 Manufacturer liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• use of the appliance other than
that specified;
• failure to comply with the
instructions in the user manual;
• tampering with any part of the
appliance;
• use of non-original spare parts.
1.3 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered inappropriate.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.4 Identification plate
The identification plate bears the
technical data, serial number and
brand name of the appliance. Do not
remove the identification plate for
any reason.
1.5 This user manual
This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the
user’s reach for the whole working
life of the appliance.
Read this user manual carefully
before using the appliance.
1.6 Disposal
This appliance must be
disposed of separately from
other waste (Directives
2002/95/EC, 2002/96/EC,
2003/108/EC). The appliance
does not contain substances in
quantities sufficient to be considered
hazardous to health and the
environment, in accordance with
current European directives.

Instructions
9
EN
To dispose of the appliance:
• Cut the power supply cable and
remove it along with the plug.
• Deliver the appliance to the
appropriate recycling centre for
electrical and electronic
equipment waste, or return it to the
retailer when purchasing an
equivalent product, on a one for
one basis.
Our appliances are packaged in
non-polluting and recyclable
materials.
• Deliver the packing materials to
the appropriate recycling centre.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Power voltage
Danger of electrocution
• Disconnect the mains power
supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or
any part of it unattended.
• Do not let children play with the
plastic bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice

Description
10
2 Description
2.1 General Description

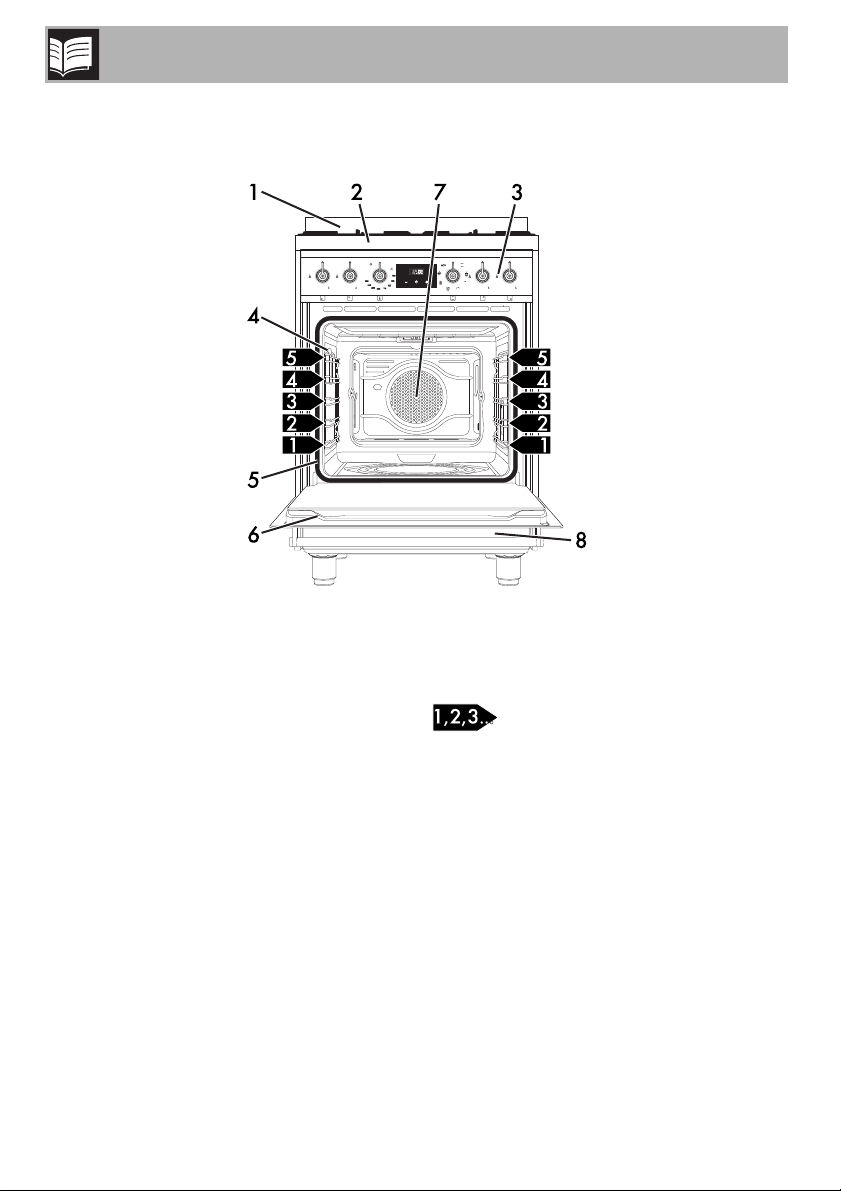

1 Upstand
2 Cooking hob
3 Control panel
4 Left bulb
5 Seal
6 Door
7 Fan
8 Storage compartment
Rack/tray support frames

Description
11
EN
2.2 Cooking hob
AUX = Auxiliary burner
SR = Semi-rapid burner
UR-3c = Ultra-rapid burner
2.3 Control panel
1 Hob burner knobs
Used for lighting and adjusting the hob
burners. Press and turn the knobs anti-
clockwise to in order to light the
relative burners. Turn the knobs to the zone
between the maximum and minimum
setting to adjust the flame. Return the
knobs to the position to turn off the
burners.
2 Indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.
3 Temperature knob
This knob allows you to select the cooking
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
setting.

Description
12
4 Digital programmer
Useful for displaying the current time, setting
programmed cooking operations and
programming the minute minder timer.
5 Function knob
The oven’s various functions are suitable for
different cooking modes. After selecting the
required function, set the cooking
temperature using the temperature knob.
2.4 Other parts
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the appliance and comes into
operation during cooking. The fan causes a
steady outflow of air that exits from the rear
of the appliance and which may continue
for a brief period of time even after the
appliance has been turned off.
Interior lighting
The appliance’s interior lighting comes on:
• when the door is opened;
• when any function is selected, apart from
the function.
2.5 Available accessories
Rack
Useful for supporting containers with food
during cooking.
Tray
Useful for collecting fat from foods placed
on the rack above.
Do not obstruct ventilation
openings and heat dispersal slots.
when the door is open, it is not
possible to turn off the interior
lighting.

Description
13
EN
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Tray rack
To be placed over the top of the tray; for
cooking foods which may drip.
Ring reducer
Useful when using small cookware.
WOK ring
Useful when using a wok.
Not all accessories are available
on some models.
The oven accessories intended to
come into contact with food are
made of materials that comply with
the provisions of current legislation.
Original supplied and optional
accessories can be requested to
Authorised Assistance Centres.
Use only original accessories
supplied by the manufacturer.

Use
14
3 Use
3.1 Instructions
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands wearing heat
resistant gloves when moving food
inside the oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly on very hot
trays.
• Keep children under the age of 8 away
from the oven when it is in use.
• If you need to move food or at the end
of cooking, open the door 5 cm for a
few seconds, let the steam come out,
then open it fully.
Improper use
Danger of burns
• Make sure that the flame-spreader
crowns are correctly positioned in their
seats with their respective burner caps.
• Oils and fats could catch fire if
overheated. Be very careful.
High temperature inside the
storage compartment
Danger of burns
• Do not open the storage compartment
when the appliance is on and still hot.
• The items inside the storage
compartment could be very hot after
using the appliance.
• It must not be used to store flammable
materials, cloths or paper.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven cavity.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not use the open door to place pans
or trays on the internal glazing pane.
• Do not pour water directly on very hot
trays.
• Cooking vessels and griddle plates
should be placed inside the perimeter of
the hob.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.

Use
15
EN
Precautions
A gas leak can cause an explosion.
If you smell gas or there are faults in the gas
system:
• Immediately turn off the gas supply or
close the valve on the gas cylinder.
• Extinguish all open flames and cigarettes.
• Do not turn on power switches or
appliances and do not remove plugs
from power sockets. Do not use phones
or mobile phones inside the building.
• Open the window in order to ventilate
the room.
• Call customer assistance services or your
gas supplier.
Malfunctions
Any of the following indicate a malfunction
and you should contact a service centre:
• Yellowing of the burner plate.
• Damage to kitchen utensils.
• The burners do not ignite properly.
• It is difficult to keep the burners lit.
• The burners go out when the appliance
is in use.
• It is difficult to turn the gas valves.
If the appliance does not work properly,
contact your local Authorised Service
Centre.
First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance's
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
High temperature inside the
storage compartment
Danger of fire or explosion
• Do not spray any spray product near the
appliance.
• Do not use or leave flammable materials
near the appliance or the storage
compartment.
• Do not use plastic cookware or
containers for cooking.
• Do not place sealed tins or containers in
the oven cavity.
• Do not leave the appliance unattended
during cooking operations where fats
and oils could be released.
• Remove all trays and racks which are
not required during cooking.

Use
16

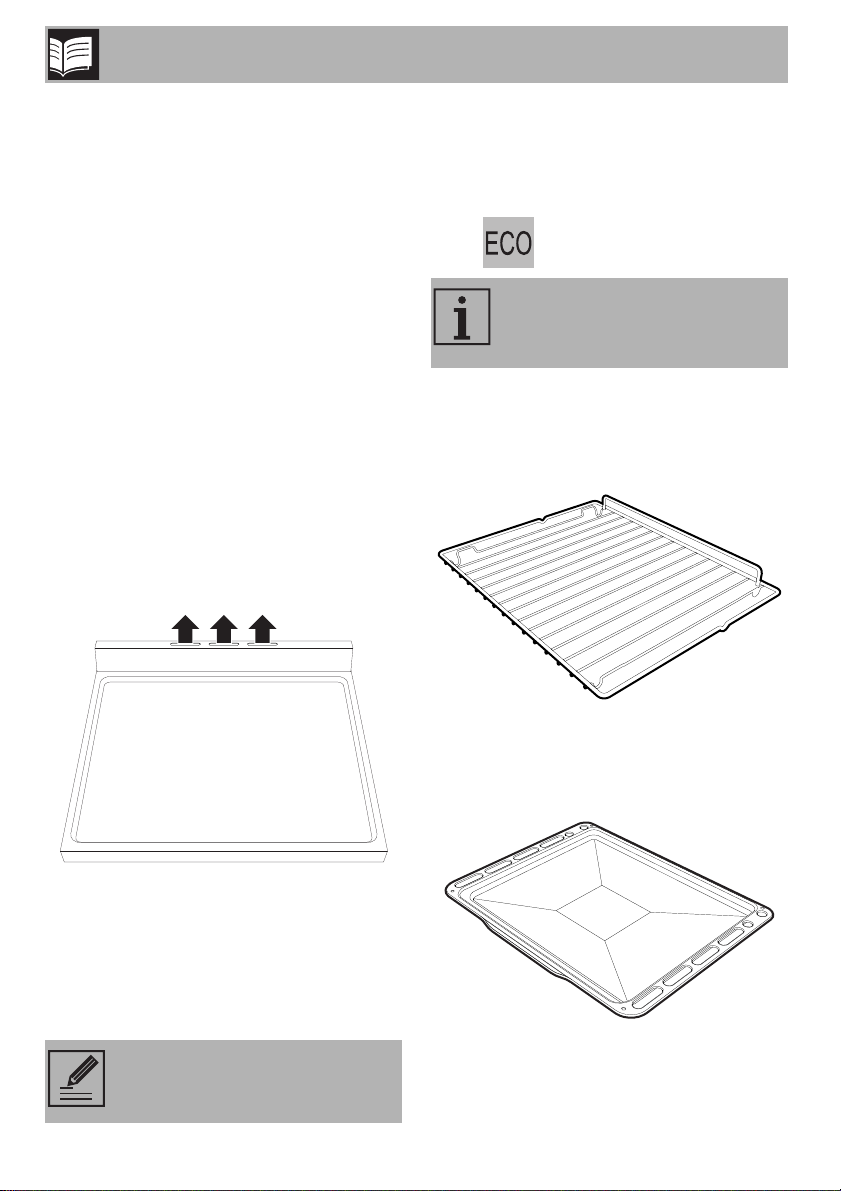

3.2 Using the accessories
Ring reducers
The ring reducers must be placed on the
hob grids. Make sure they are placed
properly.
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being taken out
accidentally have to face downwards
and towards the oven back.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.

Use
17
EN
3.3 Using the hob
All the appliance’s control and monitoring
devices are located together on the front
panel. The burner controlled by each knob
is shown next to the knob. The appliance is
equipped with an electronic ignition device.
Simply press the knob and turn it
counterclockwise to the maximum flame
symbol, until the burner ignites. If the burner
does not light in the first 15 seconds, turn the
knob to and wait 60 seconds before
trying again. After lighting, keep the knob
pressed in for a few seconds to allow the
thermocouple to heat up. The burner may
go out when the knob is released: In this
case, the thermocouple has not heated up
sufficiently.
Wait a few moments and repeat the
operation. Keep the knob pressed in
longer.

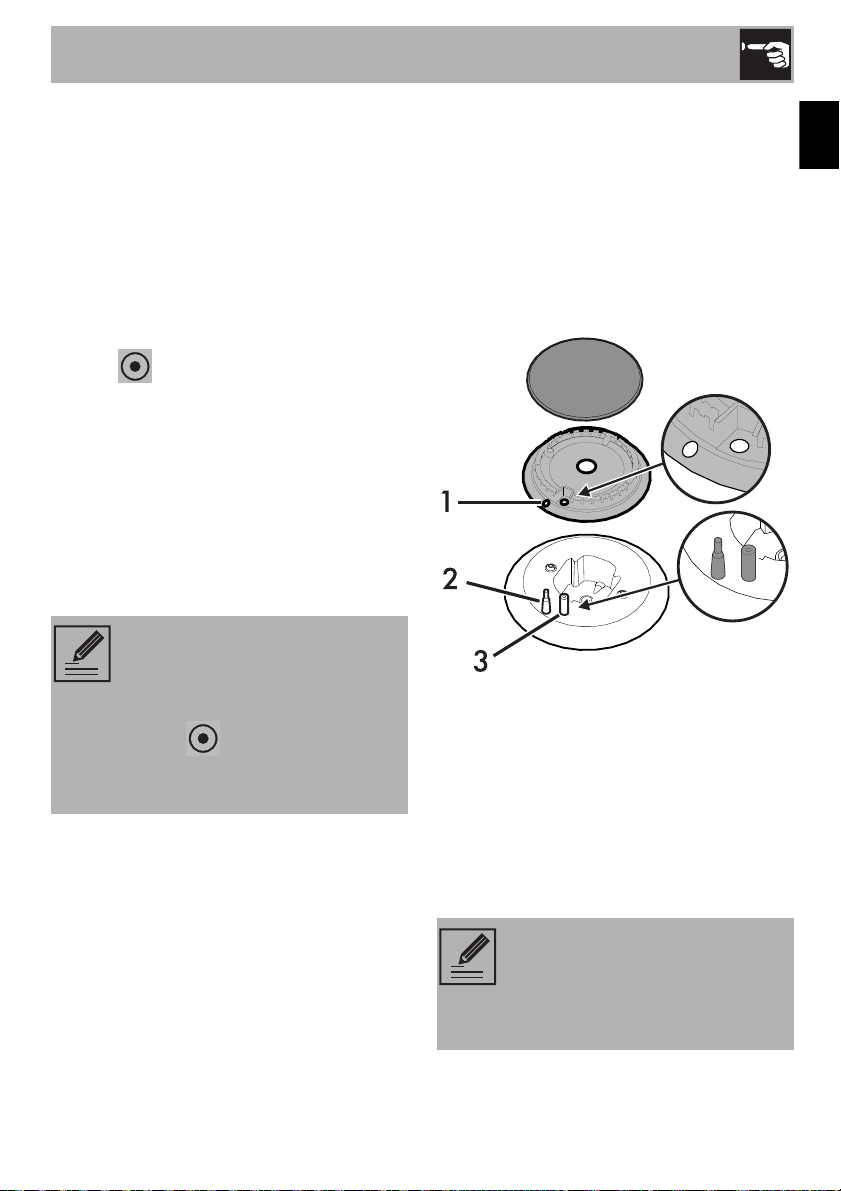

Correct positioning of the flame-
spreader crowns and burner caps
Before lighting the hob burners, make sure
that the flame-spreader crowns are
correctly positioned in their seats with their
respective burner caps. Make sure that the
holes 1in the flame-spreader crowns are
aligned with the igniters 3and
thermocouples 2.
Practical tips for using the hob
For better burner efficiency and to minimise
gas consumption, use pans with lids and of
suitable size for the burner, so that the
flames do not reach up the sides of the pan.
Once the contents come to the boil, turn
down the flame far enough to ensure that
the liquid does not boil over.
In case of an accidental switching
off, a safety device will be tripped,
cutting off the gas supply, even if
the gas cock is open. Return the
knob to and wait at least
60 seconds before lighting it
again.
Pan diameters:
• AUX: 12 - 14 cm.
• SR: 16 - 24 cm.
• UR2: 18 - 28 cm.

Use
18
3.4 Using the oven
Switching on the oven
To switch the oven on:
1. Select the cooking function using the
function knob.
2. Select the temperature using the
temperature knob.
Functions list
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes, and in any case,
particularly suitable for fatty meats
such as goose and duck.
Fan + lower element
The combination of the fan with just
the lower heating element allows
cooking to be completed more
rapidly. This system is
recommended for sterilising or for
finishing off the cooking of foods
which are already well-cooked on
the surface, but not inside, which
therefore need a little more heat.
Perfect for any type of food.
Small grill
Using only the heat released from
the central element, this function
allows you to grill small portions of
meat and fish for making kebabs,
toasted sandwiches and any types
of grilled vegetable side dishes.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and, in combination
with the rotisserie (where fitted),
gives the food an even browning at
the end of cooking. Perfect for
sausages, spare ribs and bacon.
This function enables large
quantities of food, particularly meat,
to be grilled evenly.
Fan with grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. shin of pork).
Turbo
The combination of fan assisted
cooking and traditional cooking
allows different foods to be cooked
on several levels extremely quickly
and efficiently, without odours and
flavours mingling. Perfect for large
volumes that call for intense
cooking.

Use
19
EN
3.5 Programmer clock
Value decrease key
Clock key
Increase key
Fan with round heating element
The combination of the fan and the
round heating element
(incorporated in the rear of the
oven) allows you to cook different
foods on several levels, as long as
they need the same temperatures
and same type of cooking. Hot air
circulation ensures instant and even
distribution of heat. It will be
possible, for instance, to cook fish,
vegetables and biscuits
simultaneously (on different levels)
without odours and flavours
mingling.
Eco
This function is particularly suitable
for cooking on a single shelf with
low energy consumption.
Ideal for cooking meat, fish and
vegetables. It is not recommended
for leavened foods.
To obtain maximum energy savings
and reduce cooking times, it is
recommended to place food in the
oven without preheating.
When using the ECO function,
avoid opening the door during
cooking.
Cooking (and preheating) times
are longer with the ECO function.
Vapour Clean
This function makes cleaning easier
using the steam produced by a little
quantity of water poured onto the
appropriate groove placed on the
bottom. (see chapter “Cleaning and
maintenance”)
Ensure that the programmer clock
shows the cooking duration
symbol , otherwise it will not
be possible to turn on the oven.
Press the key to reset the
programmer clock.

Use
20

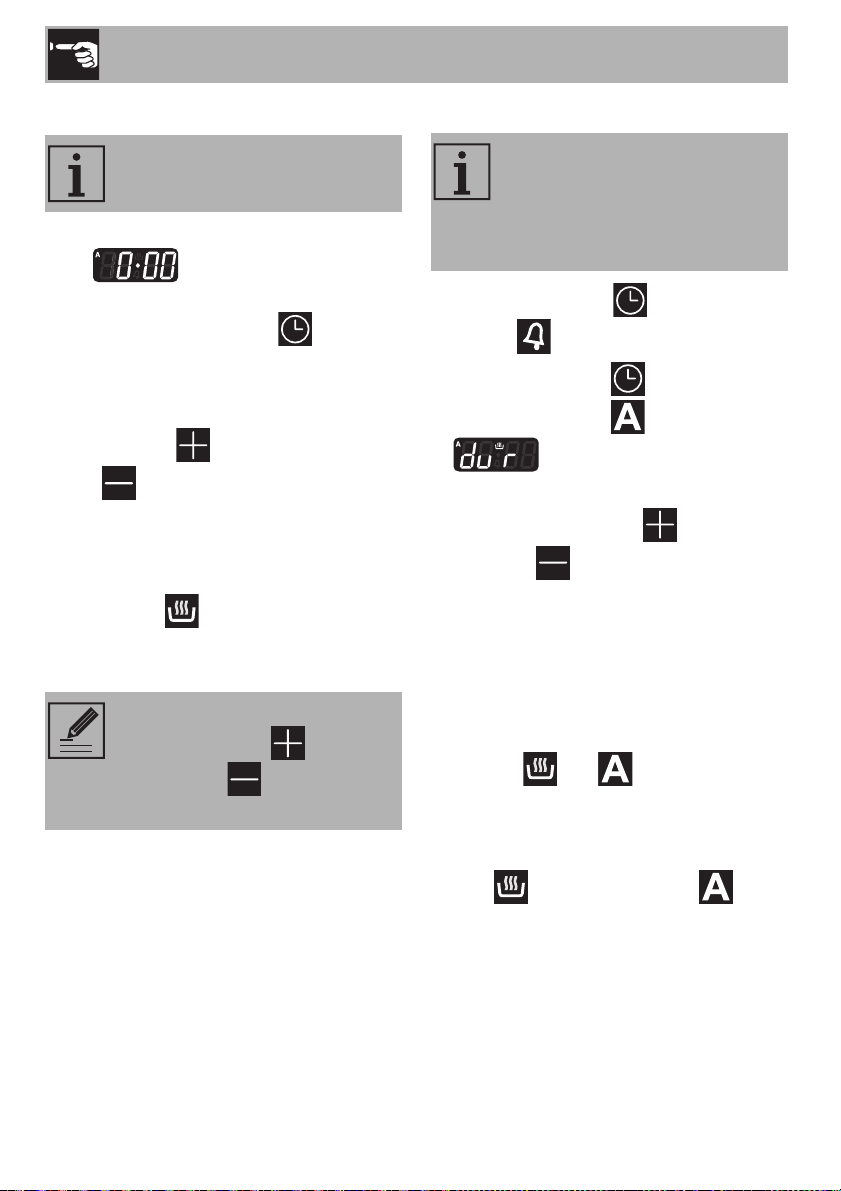

Setting the time
On the first use, or after a power failure, the
digits will be flashing on the
appliance’s display.
1. Hold down the clock key for two
seconds. The dot between the hours and
the minutes flashes.
2. The time can be set via the value
increase key and value decrease
key . Keep the key pressed in to
increase or decrease rapidly.
3. Wait 7 seconds. The dot between the
hours and the minutes stops flashing.
4. The symbol on the display indicates
that the appliance is ready to start
cooking.
Timed cooking
1. Keep the clock key pressed until the
symbol appears.
2. Press the clock key again. On the
display the symbol and the text
appear, alternating with the
current time.
3. Use the value increase and value
decrease keys to set the required
minutes of cooking.
4. Select a function and a cooking
temperature.
5. Wait approx. 5 seconds without pressing
any key in order for the function to
activate. The current time and the
symbols and will appear on the
display.
At the end of cooking the heating elements
will be deactivated. On the display, the
symbol turns off, the symbol
flashes and the buzzer sounds.
6. To turn the buzzer off, simply press one of
the programmer clock keys.
If the time is not set, the oven will
not switch on.
To change the time, hold down the
value increase key and value
decrease key at the same time
for two seconds, then set the time.
Timed cooking is the function
which allows a cooking operation
to be started and then ended after
a specific length of time set by the
user.

Use
21
EN
7. Press the clock key to reset the
programmer clock.
Programmed cooking
1. Set the cooking time as described in the
previous point “Timed cooking”.
2. Hold the menu key down for
2seconds.
3. Press the menu key again. The
display will show the digits
and the text in sequence,
while the symbol flashes (for
example, the current time is 17:30)
4. Use the or key to set the
required minutes. (for example 1 hour)
5. Press the menu key . The text
will appear on the display in
sequence with the pre-set cooking
duration added to the current time (for
example, the cooking end time shown is
18:30).
6. Press the or key to set the
cooking end time. (for example, 19:30).
7. Wait approx. 7 seconds without pressing
any key in order for the function to
activate. The current time and the
and symbols appear on the display.
8. Select a cooking temperature and
function.
9. At the end of cooking the heating
elements will be deactivated. On the
display, the symbol turns off, the
symbol flashes and the buzzer
sounds.
It is not possible to set a cooking
time of more than 10 hours.
To cancel the set programming
press and hold down the value
increase and the value
decrease keys at the same
time and then turn the oven off
manually.
Programmed cooking is the
function which allows a cooking
operation to be started at a set
time and then ended after a
specific length of time set by the
user.
Bear in mind that a few minutes for
oven preheating must be added to
the cooking time.

Use
22
10. Return the function and temperature
knobs to 0.
11. To turn off the buzzer just press any key
of the programmer clock.
12. Press the and keys at the same
time to reset the set program.
Minute minder timer
The minute minder timer can be activated at
any time.
1. Keep the clock key pressed for per
a few seconds. The display shows the
figures and the symbol
flashing between the hours and minutes.
2. Use the value increase and value
decrease keys to set the number of
minutes required.
3. Wait approx. 5 seconds without pressing
any key to finish setting the minute
minder. The current time and the symbols
and appear on the display.
A buzzer will sound when the set time is
reached.
4. Press the value decrease key to turn
the buzzer off.
It is not possible to set a cooking
time of more than 10 hours.
It is not possible to set a
programmed cooking time of more
than 24 hours.
After setting, hold the menu key
down for 2 seconds to
display the cooking time
remaining. Press the menu key
again. The display shows the text
and the remaining
cooking time in sequence.
The minute minder timer does not
stop the cooking operation but
rather informs the user when the set
time has run out.
The minute minder timer can be set
from 1 minute to a maximum of
23 hours and 59 minutes.
