Smeg CW520 User manual



PROFESSIONAL DISHWASHER

‐CW520/530

2
TABLEOFCONTENTS

1PRECAUTIONSFORSAFETYANDUSE.............................................................................5
2TECHNICALDATA...........................................................................................................7
3INSTALLATIONANDPOSITIONING.................................................................................9
4INSTRUCTIONSFORTECHNICALSTAFF.......................................................................10
4.1Plumbinghookup..................................................................................................10
4.2Electricalconnection.............................................................................................11
5FIRSTSTART‐UP...........................................................................................................13
5.1Usingthewatersoftener(onmodelswiththisfeatureonly)...............................13
6SET‐UP.........................................................................................................................14
6.1Dishwasherparametermodificationprocedure:..................................................14
6.2Quit“SET‐UP”menu...........................................................................................17
6.3Rinsingtemperaturesetup...................................................................................17
6.4Washingtemperaturesetup.................................................................................17
6.5Rinseaiddispensingsetup....................................................................................17
6.6Detergentdispensingsetup..................................................................................18
6.7Autostartfunction.................................................................................................18
6.8Regenerationfrequencysetup(modelswithsoftener)........................................18
6.9tStP(minimumrinsingtemperature)function.....................................................19
6.10Rinseaidpump(displayandifrequiredresetduringmaintenance)................20
6.11Detergentpump(displayandifrequiredresetduringmaintenance)..............20
6.12Energyconsumption–Displayandresetifrequired.........................................20
6.13CustomisationofdurationofprogramP4.........................................................20
6.14Servicesetting(forAfter‐SalesServiceonly).....................................................21
6.15Startingtheperistalticpumps–rapidfillingofdetergentandrinseaiddelivery
circuit.21
7MALFUNCTIONSSHOWNONTHEDISPLAY(FORTHETECHNICIAN)...........................21

‐CW520/530

3
8INSTRUCTIONSFORTHEUSER....................................................................................24
8.1Controlpanel........................................................................................................24
8.2Beforewashing.....................................................................................................25
8.3Firstuseeachday(tankandboilerempty)...........................................................25
8.4ChangingtheProgram..........................................................................................27
9CHOOSINGTHEPROGRAM.........................................................................................27
10SUPPLEMENTARYFUNCTIONS.................................................................................28
10.1Selectingthecrys“glassware”function(availableinP1‐P2)..............................28
10.2Selectingtheerin“extrarinse”function(availableinP1‐P2‐P3‐P4).................28
10.3Selectingthe“sanitisation”function(onlyavailableinP3)...............................28
11MAINTENANCEANDCLEANING...............................................................................31
11.1Dailycleaning.....................................................................................................31
11.2Routineinspectionofthesprayarms................................................................32
11.3Lengthyperiodsoutofuse................................................................................32
12TROUBLESHOOTING.................................................................................................33
13MALFUNCTIONSSHOWNONTHEDISPLAY(FORTHEUSER)...................................34


‐CW520/530

4




SMEGthanksyouforchoosingoneofitsproducts.

Readalltheinstructionsinthismanualcarefullytobecomefamiliarwiththerightconditionsforthe
properuseofyourdishwasher.


TECHNICALINSTRUCTIONS


Theseareintendedforthequalifiedstaffwhoaretoinstall,commissionandtest
theapplianceandcarryoutanyservicingandrepairs.

INSTRUCTIONSFORTHEUSER



Theseproviderecommendationsforuse,adescriptionofthecontrolsandthe
correctproceduresforcleaningandmaintainingthedishwasher.



‐CW520/530

5
1 PRECAUTIONS FOR SAFETY AND USE



THEDISHWASHERISINTENDEDFORPROFESSIONALUSEONLYANDMUSTONLYBEUSEDBY
AUTHORISEDSTAFF.ITISDESIGNEDTOWASHTABLEWARE(PLATES,CUPS,BOWLS,OVENDISHES
ANDCUTLERY)ANDSIMILARITEMSINTHERESTAURANTANDINSTITUTIONALCATERINGSECTOR,
ANDCOMPLIESWITHTHEINTERNATIONALSTANDARDSONELECTRICALANDMECHANICALSAFETY
(CEI‐EN‐IEC60335‐2‐58/61770)ANDELECTROMAGNETICCOMPATIBILITY(CEI‐IEC‐EN55014‐1/‐2,
61000‐3;4,50366).


THEMANUFACTURERDECLINESALLRESPONSIBILITYFORINJURYORDAMAGECAUSEDBYFAILURE
TOCOMPLYWITHTHEINSTRUCTIONSINTHEMANUAL,BYINCORRECTUSE,BYTAMPERINGWITH
EVENJUSTONEPARTOFTHEAPPLIANCEANDBYTHEUSEOFNON‐ORIGINALSPAREPARTS.


THISAPPLIANCEISTAGGEDUNDEREUROPEANDIRECTIVE2002/96/ECONWASTEELECTRICALAND
ELECTRONICEQUIPMENT(WEE).
BYMAKINGSURETHATTHISPRODUCTISDISPOSEDOFCORRECTLYTHEUSERHELPSTOPREVENT
POTENTIALDETRIMENTALEFFECTSONHEALTHANDTHEENVIRONMENT.
WHENDECOMMISSIONINGTHEAPPLIANCECOMPLYWITHTHELOCALWASTEDISPOSAL
REGULATIONS.
FORFURTHERINFORMATIONONTHETREATMENT,RECOVERYANDRECYCLINGOFTHISPRODUCT,
CONTACTTHECOMPETENTLOCALOFFICE,THEDOMESTICWASTECOLLECTIONSERVICE,ORTHE
SHOPWHERETHEPRODUCTWASPURCHASED.

THISMANUALISANINTEGRALPARTOFTHEDISHWASHERANDMUSTALWAYSBE
KEPTINTACTTOGETHERWITHTHEAPPLIANCE.

POSITIONING,HOOKUP,COMMISSIONING,TROUBLESHOOTINGANDREPLACINGTHE
POWERCABLEMUSTALWAYSBECARRIEDOUTBYQUALIFIEDSTAFF.

THEAPPLIANCEMUSTBEGROUNDEDASREQUIREDBYELECTRICALEQUIPMENT
SAFETYSTANDARDS.

‐CW520/530

6



THESYMBOLOFTHERUBBISHBINWITHABARACROSSITONTHEPRODUCTORINTHE
TECHNICALDOCUMENTATIONINDICATESTHATTHISPRODUCTMUSTNOTBETREATED
ASORDINARYDOMESTICWASTEBUTMUSTBECONSIGNEDTOTHESPECIAL
COLLECTIONPOINTFORTHERECYCLINGOFELECTRICALANDELECTRONICEQUIPMENT.


NEVERPLACESOLVENTSSUCHASALCOHOLORTURPENTINE,WHICHMIGHTCAUSEAN
EXPLOSION,INSIDETHEAPPLIANCE.NEVERLOADDISHESDIRTYWITHASH,WAXOR
PAINTS.


NEVERUSETHEDISHWASHERORANYPARTOFITASALADDER,SUPPORTORSTAND
FORPEOPLE,ANIMALSORANYOBJECT.
LEANINGORSITTINGONTHEOPENDOOROFTHEDISHWASHERMIGHTCAUSEITTOTIP
OVER,PUTTINGPEOPLEINDANGER.
NEVERLEAVETHEDISHWASHERDOOROPENSINCEPEOPLEMIGHTTRIPOVERIT.


DONOTDRINKANYWATERLEFTINTHEDISHESORDISHWASHERATTHEENDOFTHE
WASHINGPROGRAM.


THEAPPLIANCEISNOTSUITABLEFORUSEBYJUVENILESORPERSONSWITHREDUCED
PHYSICAL,SENSORIALORMENTALCAPACITIES,ORTHOSEWITHOUTTHENECESSARY
KNOWLEDGEANDEXPERIENCE.SUCHPERSONSMAYONLYUSETHEAPPLIANCEUNDER
THESUPERVISIONOFAPERSONRESPONSIBLEFORTHEIRSAFETY.


‐CW520/530

7
2 TECHNICAL DATA

SupplyvoltageV400V3N~
SupplyfrequencyHz50
FrequencyHz50
Max.powerabsorptionat400V3N~kW6.6
Max.powerabsorptionat230V1N~kW2.6
Boilerheatingelementpowerat400V3N~kW6
Boilerheatingelementpowerat230V1N~kW2
TankheatingelementpowerkW0,8
WaterintakepressurekPa(bar)100‐600(1÷6)
Waterintaketemperature°C15°C–60°C
Intakewaterhardness(modelswithsoftener)°f15°f‐60°f
Rinsecyclewaterconsumptionl3.2
Boilercapacityl6
Tankcapacityl11
Standardcycledurationwithintakewaterat50°Cs90/150/240
NoiseleveldB(A)<70
DegreeofprotectionIPX4
NetweightKg64/77
Powersupplycabletype◄HAR►H07RN‐F
FuseA4


400V3N~230V1N~
C SC SC=PowerSupplyCableS=masterswitch
2.6kW ‐‐‐‐ ‐‐‐‐ 3X2.516°3P+N
6.6kW5X2.516°3P+N 



‐CW520/530

8
CAVITYDIMENSIONSFORBUILT‐UNDERINSTALLATION

APPLIANCEDIMENSIONSANDCONNECTIONPOSITIONS
(**N.B.–VALUE“1000”WITHASTERISK:max600ifsiphonwithvalveisused)


‐CW520/530

9
KEYTOLETTERSUSEDINDIAGRAM
RLOWERBACKPANEL
C FILLERHOSE
Q

EARTHTERMINAL
EELECTRICITYSUPPLYCABLE
PPERISTALTICHOSES
SDRAINHOSE
TEXTERNALDISPENSERPOWERCABLEENTRY
POINT

3 INSTALLATION AND POSITIONING

INSTALLATIONandPOSITIONING


Bringthedishwashertotheinstallationsite,removethepackagingandchecktheapplianceand
componentsfordamage;anydamagefoundmustbereportedtothetransporterinwriting.
Thepackagingcomponents(plasticbags,expandedpolystyrene,nails,etc.)mustnotbeleftwithinreach
ofchildrenandpetssincetheyarepotentiallydangerous.Allpackagingmaterialsusedareenvironment‐
friendly.Theycanbekeptwithoutconstitutinganyhazard,ormaybedisposedofataspecialistwaste
disposalcentre.Theplasticcomponentssuitableforrecyclingaremarkedasfollows:PEpolyethylene:
externalpackagingfilm,bagcontainingtheinstructions,protectivebags.PPpolypropylene:straps.PS
expandedpolystyrene:cornerguards,topofpackaging.Woodenandcardboardcomponentscanbe
disposedofinaccordancewiththerelevantregulations.Whentheproductisdecommissioneditmust
notbedumpedintheenvironment;itmustbedisposedofinaccordancewiththerelevantregulations.
Allmetalpartsareinstainlesssteelandcanberemoved.Theplasticpartsaremarkedwiththesymbol
identifyingthematerialusedandmustbedisposedofinaccordancewiththerelevantregulations.
Whentheproductisdecommissioneditmustnotbedumpedintheenvironment;itmustbedisposedof
inaccordancewiththerelevantregulations.Allmetalpartsareinstainlesssteelandcanberemoved.



‐CW520/530

10
POSITIONING:


4 INSTRUCTIONS FOR TECHNICAL STAFF
4.1 Plumbinghookup

Watersupplyanddrainhookup
Thewaterpipelinesandelectricitysupplycableleadoutofthebottomright‐
handcorneroftheappliance.Connectthewaterintakehosetoaconnector
with¾”gasthreadedfitting,fittingthefilterAprovided(inmodelswith
aquastop,thefilterandring‐nutformasingleunit).
Theconnectiontothewatermainsmustonlybemadewithnewhoses;the
useofoldorwornhosesisnotpermitted.
Thedynamicwatersupplypressuremustbebetween1and6bar;ifitishigher,installationofa
pressurereducerisnecessary.
Itisessentialtofitamainstoptaponthewaterintakedeliverpipeline;thetapmustbeaccessible
afterinstallationoftheappliance,sodonotinstallitbehindthedishwasher.Thestatedcycle
durationappliestoappliancessuppliedwithhotwater>50°C<60°C.Ifthedishwasherissupplied
withcoldwater,thecycledurationmightincreasedependingontheintakewatertemperature.The
dishwasherisfittedwithadrainpumpandcanoperatewithdrainconnectionsonthefloororwall.
Refertotheconnectiondiagramforthemaximumpermittedheightofwalldrains–(seeTECHNICAL
DATA)


Caution:makesurethattheintakeanddrainhosesarenotbent,constrictedorcrushed
afterinstallation.


Wheninstallingthedrainhosetoasiphonwithvalve,themaximumheightofthedrainoutletis
reducedto600mm.

Caution:theindoorsystemandpremisesinwhichequipmentforinstitutionsisinstalled
mustcomplywiththerelevantregulations.
Themanufacturerdeclinesallliabilityfordirectorindirectinjuryordamagederivingfromfailure
tocomplywiththeseregulations.
Beforeinstallation,checkthattherearenoobjectsormaterialsinthevicinitywhichmaybe
damagedbysteamorsplashesofwashingsolution,orthatanysuchitemsaresuitablyprotected.
Placethedishwasherinthechosenpointandremovetheprotectivefilm.
Levelthedishwasher(withtheaidofaspiritlevel)onitsadjustablefeettoensurethatitisstable;
allothermountingsolutionsmustbeapprovedbythemanufacturer.


‐CW520/530

11

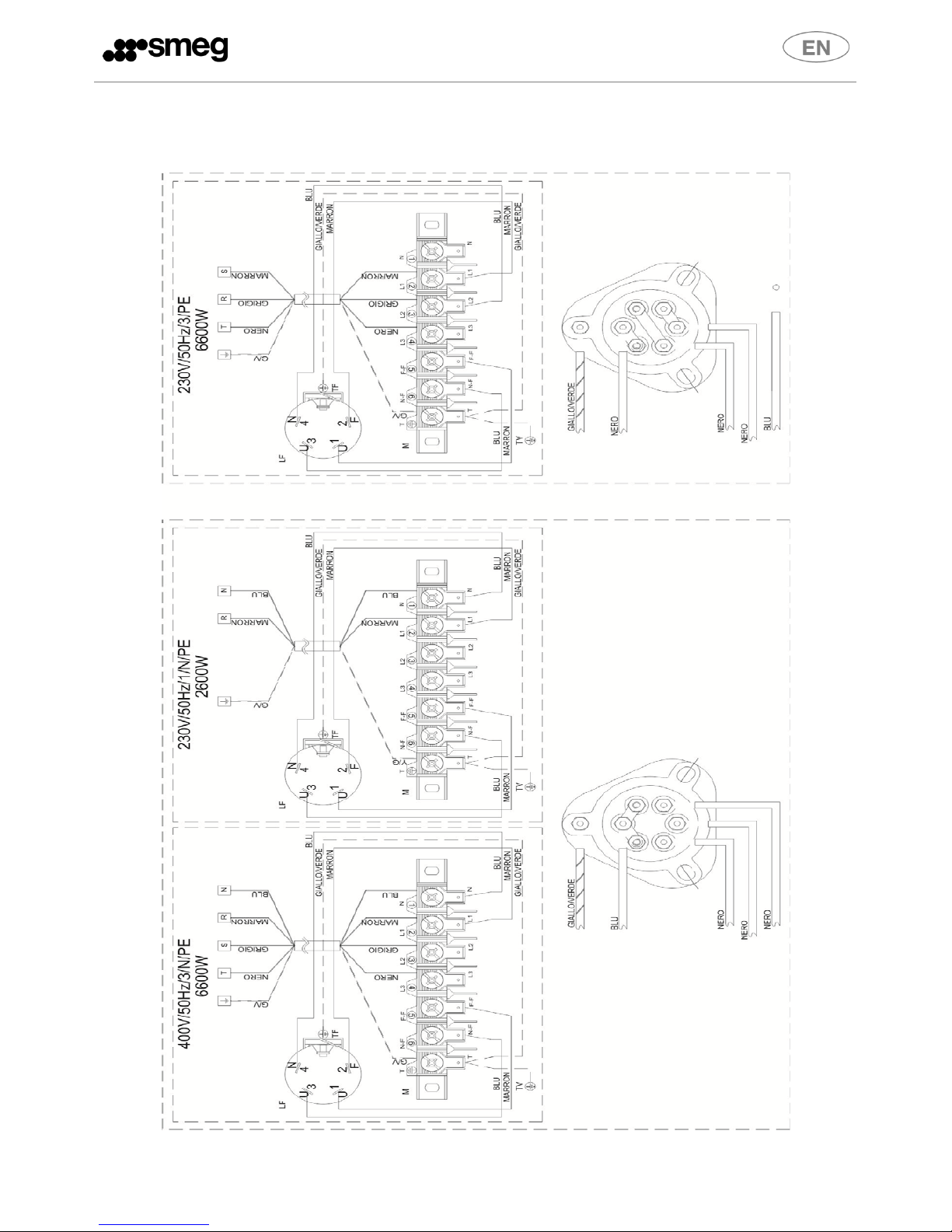

4.2 Electricalconnection














 

Thedishwasherandanyadditionalequipmentmustbeconnectedtotheelectrical
systembyauthorised,skilledstaff,inaccordancewiththerelevantregulations;also
complywiththetechnicalinstructionsfortheconnection.
Thetotalratedpowerisstatedontheappliance’stechnicaldataplate.
Theelectricalprotectiondevicesfittedforthedishwashermustservethisappliance
only.
Theusermusthaveamasterswitchandadifferentialsafetybreaker,withrating
suitablefortheappliance’scharacteristics,installedontheelectricitysupplylinein
accordancewiththerelevantregulations.
Theseswitchesmustbeinstalledclosetothedishwasher,beeasilyaccessibleafter
installation,andprovidecompletedisconnectionfromtheelectricalmainsin
overvoltageclassIIIconditions.


Warning!!!
Thedishwasherisalwayspoweredupunlessthemasterswitchisturnedoff.


Connecttheappliancetotheuser’searthsystem.Theterminalfortheconnectionis
inthebottomright‐handcorneroftheappliance.
Theearthwire(PE)isyellow‐greenincolour,theneutralwire(N)isblueandthelive
wires(L1,L2,L3)areblack,greyandbrown.
Intheeventofsingle‐phaseconnection(230V‐1N~),theconnectiontotheelectrical
mainsmustbemadeusingacablewithplugcompliantwiththerelevantregulations.


THEPOWERSUPPLYCABLEMUSTBEREPLACEDBYTHEMANUFACTURERORAN
AUTHORISEDSERVICECENTRETOPREVENTALLRISKS.


‐CW520/530

12
Figure1–Applianceelectricalsystemdiagram

‐CW520/530

13
5 FIRST START-UP
Firststart‐up
Theelectricalprotectionsystemmustundergoafunctionaltestbeforetheapplianceisputinto
operation.
Theappliancemustbeinstalledand/orinspectedbyqualifiedstaff,whowillstartitupforthefirst
timeandprovidetherelevantoperatinginstructions.

Preparingforuse(important)
Therinseaiddispenserisfittedonallmodels,thedetergentdispenseronlyonsome.
Ifbothdispensersarepresentputtheexternaldetergentandrinseaidcontainersinplaceand
inserttherespectiveintakehosesontherearoftheapplianceintothem.
Redhose:detergent
bluehose:rinseaid


Beforeinsertingthehosesintothecontainers,fittheweights(needed
toensurethattheyalwaysdrawinliquidfromthebottomsofthe
containers)andthefiltersontotheirendsasshown.
Ifthedetergentdispenserisnotfactory‐fitted,itcanberetrofitted
afterorderingtherelativekit.

Asanalternativeanexternaldispensercanbefitted,makingtheelectricalconnectionbymeansof
anH05RN‐F2x0.5mmelectricalcable,whichcanbelaidalongtherouteshownintheTECHNICAL
DATAdiagramandconnectedasshowninthewiringdiagramsuppliedwiththedishwasher.
Thedispensermustoperateon230V/50Hzwithmaximumpowerabsorptionof15W.
Connecttothedetergentdispenseroutsidethedishwasherusingtheredhosementionedabove.
5.1 Usingthewatersoftener(onmodelswiththisfeatureonly)

Thequantityoflimeinthewater(whichindicatesitshardness)causeswhitish
marksondrydishesanddishesalsotendtolosetheirshineovertime.
Thedishwasherisequippedwithanautomaticwatersoftenerwhichremovesthe
substancesthatcausehardnessfromthewaterwiththeaidofregeneratingsalt.




Thefirsttimethedishwasherisused,alitreofwatermustbepouredintothetank
withthesalt.
Wheneverthetankisfilled,alwaystakecaretoensurethatthecapisfirmly
closed.
Themixtureofwateranddetergentmustnotgetintothesalttank,asthiswould
impairoperationoftheregenerationsystem.
Inthiscasewarrantycoverwillbeforfeited.



‐CW520/530

14



6 SET-UP

6.1 Dishwasherparametermodificationprocedure:
Onlyaccessibleafterfillingiscompleteorwiththedooropen.
Indicatorlightsshowing: off;green;orange;flashing.

Access“programmingmode”bypressingthebuttonfor
afewsecondswiththeapplianceonwiththedooropen
andthetankempty(afterthefillingandheatingphases).
ThedisplayshowsUnLo1:58;whenthebeepsounds,
releasethebuttonandpressitagainatonce.Keep
pressingthebuttonagaintoscrollthroughallthe
modifiableparametersinthefollowingorder:

IMPORTANT: 

Wheneverthetypeofdetergentorrinseaidischanged,itisABSOLUTELYESSENTIALtoflushout
theperistalticpumpsbyplacingtheexternalintakepipesinwaterforafewcycles.

Alwaysuseonlyproductsspecificallyrecommendedforuseinadishwasher.

Failuretocomplywiththisrecommendationleadstoforfeitureofthewarrantyentitlementon
theappliance’swatersystem.

TheinternalpipesofthedetergentandrinseaidpumpsshouldbereplacedbytheAfter‐Sales
Serviceevery12monthsor15,000washcyclesandoperationofthediaphragmcanbedisposed
ofinaccordancewiththerelevantregulationsrinseaidpumpshouldbechecked.


Set‐up
Duringfirststart‐up,thefunctions/parameterslistedbelowmustbesetoradjusted:

‐CW520/530

15


Rinsingtemperature(boilertemperature)





Washingtemperature(tanktemperature)



Quantityofrinseaiddispensed,OPT,onlyifinstalled(the
numberindicatesthenumberofsecondsforwhichthe
peristalticpumpisoperated)



Quantityofdetergentdispensed,OPT,onlyifinstalled(the
numberindicatesthenumberofsecondsforwhichthe
peristalticpumpisoperated)


Start‐on/start‐off
Setat“on”tostartthecyclewhenthedoorisclosed.
Setat“off”forcyclestartafterconfirmationwiththestart
button 



Waterhardnesssetting(OPT,onmodelswithsoftener
only)


‐CW520/530

16
tStPon/off“on”=minimumrinsingtemperatureasset,
regardlessofintakewatertemperature.
Iftheintakewaterisnothot;thecycledurationmightbea
fewsecondslongerthanthenominaltiming,“off”=the
minimumrinsingtemperaturemightbeafewdegrees
lowerthanthesetting


Rinseaidpumptotaloperatingminutesdisplay.
Thisvaluecanberesetduringpumpmaintenance‐see
below.


Detergentpumptotaloperatingminutesdisplay.
Thisvaluecanberesetduringpumpmaintenance‐see
below.






Energyconsumption(kW)display
ThePcoptionindicatesthetotalkWconsumedsince
installationofthedishwasherorsincethelatestreset.


Displayofthenumberofcyclesperformed
Whenscrollingthroughtheapplianceparameters,the“tc
88888”itemwillalsoappear;thisisthecountofthetotal
cyclesperformedbythedishwashersinceinstallation.
Thisparametercannotbemodifiedorresetunlessthe
softwareisreprogrammed.


CustomisationofdurationofprogramP4.



‐CW520/530

17

Thissubmenuandtherelativefunctionscanonlybe
accessedwiththeaidofapasswordavailableon
SmegTechandonlybytechnicalstaff.

6.2 Quit“SET‐UP”menu
Waitmorethan10secondswithoutpressinganybuttonandtheappliancequitsthismenu
automatically,
orpresstheon/off buttontoexit.

Indicatorlightsshowing: off;green;orange;flashing.

Caution:thetankandboilertemperaturesshownonthedisplaymaybedifferfromtheactual
temperaturesbyafewdegrees,especiallyintransientphases(justaftertheFILLiscompleted,justafter
theendofthecycle,etc.)duetotheinertiaofthemeasurementprobe.
6.3 Rinsingtemperaturesetup

Modifythevalueoftheparameterbypressing .
(Defaultvalue:85°C)
Min.71°C–max.85°C
6.4 Washingtemperaturesetup

Modifythevalueoftheparameterbypressing .
(Defaultvalue:62°C)
Min.52°C–max.62°C
Indicatorlightsshowing: off;green;orange;flashing.
6.5 Rinseaiddispensingsetup

Modifythevalueofthe
parameterbypressing .
RINSEAID
Deliverytime
(s)
Delivery
quantity(c.c.)

‐CW520/530

18
 
00,0
60,7


*defaultvalue(factorypreset)

121,3
182,0
242,7
30*3,3
364,0
424,7
6.6 Detergentdispensingsetup


Modifythevalueofthe
parameterbypressing 
.
DETERGENT
Deliverytime
(s)
Delivery
quantity(c.c.)
00,0
41,7
83,3

*defaultvalue(factorypreset)

12*5,0
166,7
208,3
2410,0
  3011,7
  3613,3
  4215,0
6.7 Autostartfunction
Modifytheparameter(ON/OFF)bypressing .
Setat“on”tostartthecyclewhenthedoorisclosed.
Setat“off”forcyclestartafterconfirmationwiththestartbutton 
6.8 Regenerationfrequencysetup(modelswithsoftener)
(Defaultvalue:H03;modifytheparametertosuitthemainswaterhardness.

‐CW520/530

19
Atfirstuse,thesalttankhastobefilled.Itissubsequentlysufficientsimplytofillupwith
regeneratingsaltwhennecessary.




Modifythe
valueofthe
parameterby
pressing .
Hardness
(°dH
German
degrees)
Hardness(°dF
French
degrees)
Setting
level
Regeneratio
noff
Regeneration
offH00
8,515H01
1120H02
1730H03
22,540H04
2850H05
Regenerationcycleduration:12minutes33,560H06

Withvaluesover60°dFanexternalwatertreatmentdevicemustbeusedandtheregeneration
frequencymustbesetonH00.
6.9 tStP(minimumrinsingtemperature)function

Modifytheparameter(ON/OFF)bypressing .

Setat“on”forminimumrinsingtemperatureasset;setat“off”forrinsingregardlessofboiler
temperature.
Iftheparameterissetas“off”andhotintakewaterisnotused,theminimumrinsingtemperature
mightbeafewdegreeslowerthanthesetting.
Ifthetermostopdeviceisset“off”therinsingisnolongermonitoredandtheuserisresponsible
forensuringthattheminimumcorrectT°aremaintainedforthetankandboiler.Itisparticularly
importanttochecktheintakewatertemperature.
Alsorefertotheinsufficientwashing/drying/foamintankpointofthe“troubleshooting”section:
restoreTStopONand/orconnecttheappliancetoahotwatersupply

‐CW520/530

20
6.10 Rinseaidpump(displayandifrequiredresetduringmaintenance)

Toreset,press for3seconds.

6.11Detergentpump(displayandifrequiredresetduringmaintenance)

Toreset,press for3seconds.

6.12Energyconsumption–Displayandresetifrequired
Toreset,press for3seconds.
6.13CustomisationofdurationofprogramP4.
ThedurationofprogramP4canbecustomisedfrom3to10minutes




Accesstheprogrammingprocedureandscrollthroughto
“ınF”usingthebutton,thento03:00andpressthe
buttontosetthetimerequired(from3to10minutes)



Afterafewsecondswithouttheuserpressinganybuttons,
thedisplaywillreturntothenormaloperatingstatusandthe
modificationswillbesaved.
