1 PRECAUTIONS FOR SAFETY AND USE



THEDISHWASHERISINTENDEDFORPROFESSIONALUSEONLYANDMUSTONLYBEUSEDBY
AUTHORISEDSTAFF.ITISDESIGNEDTOWASHTABLEWARE(PLATES,CUPS,BOWLS,OVENDISHES
ANDCUTLERY)ANDSIMILARITEMSINTHERESTAURANTANDINSTITUTIONALCATERINGSECTOR,
ANDCOMPLIESWITHTHEINTERNATIONALSTANDARDSONELECTRICALANDMECHANICALSAFETY
(CEI‐EN‐IEC60335‐2‐58/61770)ANDELECTROMAGNETICCOMPATIBILITY(CEI‐IEC‐EN55014‐1/‐2,
61000‐3;4,50366).


THEMANUFACTURERDECLINESALLRESPONSIBILITYFORINJURYORDAMAGECAUSEDBYFAILURE
TOCOMPLYWITHTHEINSTRUCTIONSINTHEMANUAL,BYINCORRECTUSE,BYTAMPERINGWITH
EVENJUSTONEPARTOFTHEAPPLIANCEANDBYTHEUSEOFNON‐ORIGINALSPAREPARTS.


THISAPPLIANCEISMARKEDASREQUIREDBYEUDIRECTIVE2002/96/EC,WASTEELECTRICALAND
ELECTRONICEQUIPMENT(WEE).
BYMAKINGSURETHATTHISPRODUCTISDISPOSEDOFCORRECTLYTHEUSERHELPSTOPREVENT
POTENTIALDETRIMENTALEFFECTSONHEALTHANDTHEENVIRONMENT.
WHENDECOMMISSIONINGTHEAPPLIANCECOMPLYWITHTHELOCALWASTEDISPOSAL
REGULATIONS.
FORFURTHERINFORMATIONONTHETREATMENT,RECOVERYANDRECYCLINGOFTHISPRODUCT,
CONTACTTHECOMPETENTLOCALOFFICE,THEDOMESTICWASTECOLLECTIONSERVICE,ORTHE
SHOPWHERETHEPRODUCTWASPURCHASED.


THISMANUALISANINTEGRALPARTOFTHEDISHWASHERANDMUSTALWAYSBE
KEPTINTACTTOGETHERWITHTHEAPPLIANCE.

POSITIONING,HOOKUP,COMMISSIONING,TROUBLESHOOTINGANDREPLACINGTHE
POWERCABLEMUSTALWAYSBECARRIEDOUTBYQUALIFIEDSTAFF.

THEAPPLIANCEMUSTBEGROUNDEDASREQUIREDBYELECTRICALEQUIPMENTSAFETY
STANDARDS.

THESYMBOLOFTHERUBBISHBINWITHABARACROSSITONTHEPRODUCTORINTHE
TECHNICALDOCUMENTATIONINDICATESTHATTHISPRODUCTMUSTNOTBETREATED
ASORDINARYDOMESTICWASTEBUTMUSTBECONSIGNEDTOTHESPECIAL
COLLECTIONPOINTFORTHERECYCLINGOFELECTRICALANDELECTRONICEQUIPMENT.


‐CWC610

5



NEVERPLACESOLVENTSSUCHASALCOHOLORTURPENTINE,WHICHMIGHTCAUSEAN
EXPLOSION,INSIDETHEAPPLIANCE.NEVERLOADDISHESDIRTYWITHASH,WAXOR
PAINTS.


NEVERUSETHEDISHWASHERORANYPARTOFITASALADDER,SUPPORTORSTAND
FORPEOPLE,ANIMALSORANYOBJECT.
LEANINGORSITTINGONTHEOPENDOOROFTHEDISHWASHERMIGHTCAUSEITTOTIP
OVER,PUTTINGPEOPLEINDANGER.
NEVERLEAVETHEDISHWASHERDOOROPENSINCEPEOPLEMIGHTTRIPOVERIT.


DONOTDRINKANYWATERLEFTINTHEDISHESORDISHWASHERATTHEENDOFTHE
WASHINGPROGRAM.


THEAPPLIANCEISNOTSUITABLEFORUSEBYJUVENILESORPERSONSWITHREDUCED
PHYSICAL,SENSORIALORMENTALCAPACITIES,ORTHOSEWITHOUTTHENECESSARY
KNOWLEDGEANDEXPERIENCE.SUCHPERSONSMAYONLYUSETHEAPPLIANCEUNDER
THESUPERVISIONOFAPERSONRESPONSIBLEFORTHEIRSAFETY.


‐CWC610

6
2 TECHNICAL DATA
  CWC610/D
SupplyvoltageV400V3N~
FrequencyHz50
Max.powerabsorptionat400V3N~kW10
Boilerheatingelementpowerat400V3N~kW9
TankheatingelementpowerkW1.8
WaterintakepressurekPa(bar)200‐600(2÷6)
Waterintaketemperature°C15°C–60°C
Max.intakewaterhardness°dF15°dF
RinsecyclewaterconsumptionL3.2
BoilercapacityL8
TankcapacityL22
Standardcycledurationwithintakewaterat50°CS60/120/180
NoiseleveldB(A)<70
DegreeofprotectionIPX5
NetweightKg120
Powersupplycabletype◄HAR►H07RN‐F
FuseA4


10kW
400V3N~
CSC=PowerSupplyCableS=masterswitch
5x432A






‐CWC610

7
APPLIANCEDIMENSIONSANDCONNECTIONS

KEYTOLETTERSUSEDINDIAGRAM
CSOLENOIDVALVE
Q EARTHTERMINAL
EELECTRICITYSUPPLYCABLE
PPERISTALTICHOSES
SDRAINHOSE



‐CWC610

8
3 INSTALLATION AND POSITIONING
INSTALLATIONandPOSITIONING

Bringthedishwashertotheinstallationsite,removethepackagingandchecktheapplianceand
componentsfordamage;anydamagefoundmustbereportedtothetransporterinwriting.
Thepackagingcomponents(plasticbags,expandedpolystyrene,nails,etc.)mustnotbeleftwithinreach
ofchildrenandpetssincetheyarepotentiallydangerous.Allpackagingmaterialsusedareenvironment‐
friendly.Theycanbekeptwithoutconstitutinganyhazard,ormaybedisposedofataspecialistwaste
disposalcentre.Theplasticcomponentssuitableforrecyclingaremarkedasfollows:PEpolyethylene:
externalpackagingfilm,bagcontainingtheinstructions,protectivebags.PPpolypropylene:straps.PS
expandedpolystyrene:cornerguards,topofpackaging.Woodenandcardboardcomponentscanbe
disposedofinaccordancewiththerelevantregulations.Whentheproductisdecommissioneditmust
notbedumpedintheenvironment;itmustbedisposedofinaccordancewiththerelevantregulations.
Allmetalpartsareinstainlesssteelandcanberemoved.Theplasticpartsaremarkedwiththesymbol
identifyingthematerialused.



POSITIONING:



Caution:theindoorsystemandpremisesinwhichequipmentforinstitutionsisinstalled
mustcomplywiththerelevantregulations.
Themanufacturerdeclinesallliabilityfordirectorindirectinjuryordamagederivingfromfailure
tocomplywiththeseregulations.
Beforeinstallation,checkthattherearenoobjectsormaterialsinthevicinitywhichmaybe
damagedbysteamorsplashesofwashingsolution,orthatanysuchitemsaresuitablyprotected.
Placethedishwasherinthechosenpointandremovetheprotectivefilm.
Levelthedishwasher(withtheaidofaspiritlevel)onitsadjustablefeettoensurethatitisstable;
allothermountingsolutionsmustbeapprovedbythemanufacturer.


‐CWC610

9
4 INSTRUCTIONS FOR TECHNICAL STAFF
4.1 Plumbinghookup

Watersupplyanddrainconnection
Thewaterpipelinesandelectricitysupplycableleadoutofthebottomright‐
handcorneroftheappliance.Connectthewaterintakehosetoaconnector
with¾”gasthreadedfitting,fittingthefilterAprovided(inmodelswith
aquastop,thefilterandring‐nutformasingleunit).
Theconnectiontothewatermainsmustonlybemadewithnewhoses;the
useofoldorwornhosesisnotpermitted.
Thedynamicwatersupplypressuremustbebetween2and6bar;ifitishigherapressurereducer
mustbeinstalled.Ifthepressureislessthan2baritmightbenecessarytofitaspecialpumponthe
appliancetoensureoptimalperformance.ContacttheAfter‐SalesService.
Itisessentialtofitamainstoptaponthewaterintakedeliverpipeline;thetapmustbeaccessible
afterinstallationoftheappliance,sodonotinstallitbehindthedishwasherThestatedcycle
durationappliestoappliancessuppliedwithhotwater>50°C<60°CIfthedishwasherissuppliedwith
coldwater,thecycledurationmightincreasedependingontheintakewatertemperature.
Thedishwasherisfittedwithadrainpumpandcanoperatewithdrainconnectionsontheflooror
wall.
Refertotheconnectiondiagramforthemaximumpermittedheightofwalldrains–(seeTECHNICAL
DATA)


Caution:makesurethattheintakeanddrainhosesarenotbent,constrictedorcrushed
afterinstallation.

Wheninstallingthedrainhosetoasiphonwithvalve,themaximumheightofthedrainoutletis
reducedto600mm.
4.2 Electricalconnection

Thedishwasherandanyadditionalequipmentmustbeconnectedtotheelectrical
systembyauthorised,skilledstaff,inaccordancewiththerelevantregulations;also
complywiththetechnicalinstructionsfortheconnection.
Thetotalratedpowerisstatedontheappliance’stechnicaldataplate.Theelectrical
protectiondevicesfittedforthedishwashermustservethisapplianceonly.
Theusermusthaveamasterswitchandadifferentialsafetybreaker,withrating
suitablefortheappliance’scharacteristics,installedontheelectricitysupplylinein
accordancewiththerelevantregulations.
Theseswitchesmustbeinstalledclosetothedishwasher,beeasilyaccessibleafter
installation,andprovidecompletedisconnectionfromtheelectricalmainsin

‐CWC610

10


Keytothree‐phaseelectricalsystemdiagram


NTCB Boilertemperatureprobe EVA Aquastopsolenoidvalve
NTCV Tanktemperatureprobe EVR Regenerationsolenoidvalve
SDET Detergentsensor EVS Brinedischargesolenoidvalve
SBRIL Rinseaidsensor PB Rinseaidperistalticpump
SFIL Filtersensor PD Detergentperistalticpump
FLMT FlowmeterEVF Fillersolenoidvalve
SS Saltsensor PS Drainpump
RD Doorsensor PLA Analoglevelpressureswitch
PR Rinsingpump PLV Tanklevelpressureswitch
PL Washingpump PSV Tanksafetypressureswitch
PLB Boilerlevelpressureswitch AQS Aquastopmicroswitch
THB Boilersafetythermostat SB Motherboard
MTerminalboard SI Interfaceboard
LF RFIfilter TM Terminalboardground
FUSE Mainsfuse TV Tankground
CB Boilercontactor TF RFIfilterground
RB Boilerheatingelement TPL Washingpumpground
T‐FU Overtemperaturefuse TPR Rinsingpumpground
THRV Tanksafetythermostat TRV Tankheatingelementground
RV Tankheatingelement TB Boilerheatingelementground

overvoltageclassIIIconditions.

Warning!!!
Thedishwasherisalwayspoweredupunlessthemasterswitchisturnedoff.

Connecttheappliancetotheuser’searthsystem.Theterminalfortheconnectionis
inthebottomright‐handcorneroftheappliance.
Theearthwire(PE)isyellow‐greenincolour,theneutralwire(N)isblueandthelive
wires(L1,L2,L3)areblack,greyandbrown.

THEPOWERSUPPLYCABLEMUSTBEREPLACEDBYTHEMANUFACTURERORAN
AUTHORISEDSERVICECENTRETOPREVENTALLRISKS.

‐CWC610

11

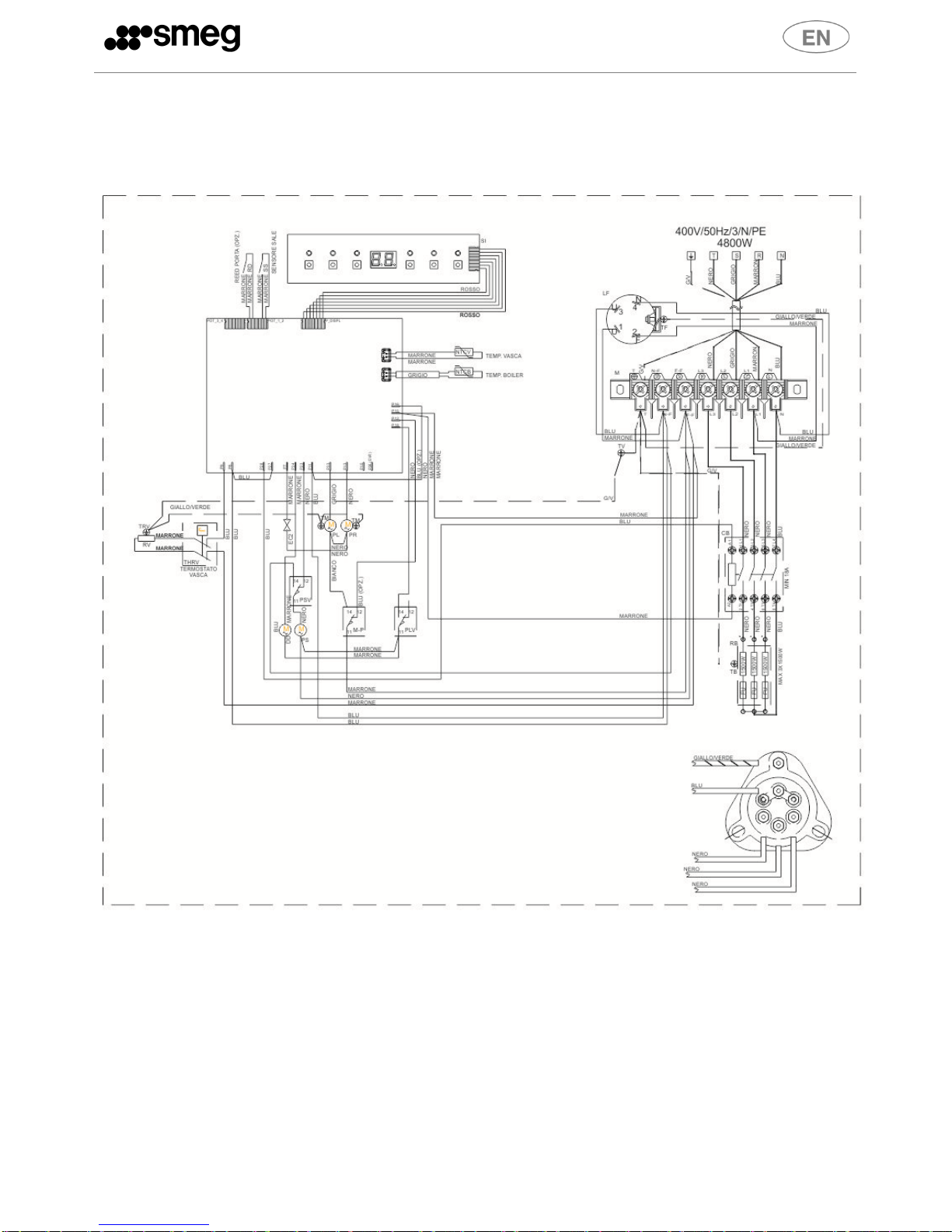

Figure1Appliancethree‐phaseelectricalsystemdiagram









‐CWC610

12
Firststart‐up
Theelectricalprotectionsystemmustundergoafunctionaltestbeforetheapplianceisputinto
operation.
Theappliancemustbeinstalledand/orinspectedbyqualifiedstaff,whowillstartitupforthefirst
timeandprovidetherelevantoperatinginstructions.

Preparingforuse(important)
Therinseaiddispenserisfittedonallmodels,thedetergentdispenseronlyonsome.
Ifbothdispensersarepresentputtheexternaldetergentandrinseaidcontainersinplaceand
inserttherespectiveintakehosesontherearoftheapplianceintothem.
Redhose:detergent
Bluehose:rinseaid


Beforeinsertingthehosesintothecontainers,fittheweights(needed
toensurethattheyalwaysdrawinliquidfromthebottomsofthe
containers)andthefiltersontotheirendsasshown.
Ifthedetergentdispenserisnotfactory‐fitted,itcanberetrofitted
afterorderingtherelativekit.


Asanalternativeanexternaldispensercanbefitted,makingtheelectricalconnectionbymeansof
anH05RN‐F2x0.5mmelectricalcable,whichcanbelaidalongtherouteshownintheTECHNICAL
DATAdiagramandconnectedasshowninthewiringdiagramsuppliedwiththedishwasher.
Thedispensermustoperateon230V/50Hzwithmaximumpowerabsorptionof15W.
Connecttothedetergentdispenseroutsidethedishwasherusingtheredhosementionedabove.



IMPORTANT: 

Wheneverthetypeofdetergentorrinseaidischanged,itisABSOLUTELYESSENTIALtoflushout
theperistalticpumpsbyplacingtheexternalintakepipesinwaterforafewcycles.

Alwaysuseonlyproductsspecificallyrecommendedforuseinadishwasher.

Failuretocomplywiththisrecommendationleadstoforfeitureofthewarrantyentitlementon
theappliance’swatersystem.

TheinternalpipesofthedetergentandrinseaidpumpsshouldbereplacedbytheAfter‐Sales
Serviceevery12monthsor15,000washcyclesandoperationofthediaphragmrinseaidpump
shouldbechecked.


‐CWC610

13
5 SET-UP



Aseriesofoperationscanbecarriedoutwhenthedishwasherisfirstinstalledtocustomiseittothe
user'srequirements.Tomodifytheparameters,proceedasfollows.
5.1 DisplayContents

Thetwogreendigitsprovidethefollowinginformation:
Applianceoffbutpoweredup:alldecimalpointsonbothdigits
Applianceon:Boilertemperature
Washingphase:Tanktemperature
Pausephase:Boilertemperature
Rinsephase:Boilertemperature
Programmingphase:Seeparameterprogrammingsection
Errormessage:Seeerrormessagessection

5.2 Noteondisplayoftemperatures
BoththeBoilerandtheTanktemperaturesprovideinstantaneousreadingsofthecurrentvaluepicked
upbytheprobe,butduetothethermalinertiaoftheprobeoritsseat,waitabout1'aftertheheating
elementpowerabsorptionreadingtoobtaintherealtemperature.
5.3 Parameterprogrammingprocedure
Toaccesstheprogrammingmenu,proceedasfollows:
1) switchtheapplianceoffwiththe(OnOff)key
2) Within6seconds,presskeyP1(SHORTwash)7times.Waitforthe6secondstopass;attheend
P0appearsonthedisplay
3) UsekeyP1toselecttheparametertobemodified
4) PressthePUMP‐OUTKEYtodisplaytheparameterformodification
5) ModifytheparameterbypressingkeyP1
6) ConfirmthechangebypressingthePUMP‐OUTkey
7) Selecttheotherparametersformodificationinthesamewayandproceedasdescribedabove
8) Aftersettingalltheapplianceparameters,presstheOnOffkeytoquit.



Set‐up
Duringfirststart‐up,thefunctions/parameterslistedbelowmustbesetoradjusted:

‐CWC610

14
5.4 Modifiableparameters
Thistableliststhemodelchoiceorcycleandtemperatureoptionparameters.
F/MIDDescription610Notes
MP0ApplianceType4Constructionversion
Donotmodify
FP1ApplianceModel4Donotmodify
MP2Boilertemperature80CStep1degree
donotsetabove85°
MP3Tanktemperature58CStep1degree
MP4Thermostopoption00=off1=on
MP5SoftStartoption10=off1=on
MP6Boilertemperature
offset
0Real=measured+Offset
MP7Tanktemperatureoffset4Real=measured+Offset
MP8Realtemperature
display
10=filtered,1=real
FP9Tankprobetype1Donotmodify

NoteforP6andP7:negativenumbersareindicatedbyilluminationofbothdecimalpoints(e.g.:‐12
“1.2.”)

5.5 Alarmtriggertimethresholds
Thistablelistsallthesafetydevicetriggertimethresholds.
F/MIDDescriptionDefaultNotes
FA0  
FA1Boilermax.heatingtime20minStep=1min
FA2Tankmax.heatingtime50minNotactivewithPLON
FA3Maximumwaterintaketime5minStep=1min
FA4Maximumemptyingwaittime1minStep=1min



‐CWC610

15

5.6 Adjustingdetergentandrinseaiddispensing



Caution:ensurethattheapplianceisnotpoweredup‐ELECTRICSHOCKHAZARD





 
RD:Detergentdispensingregulatorscrew.
(onsomemodelsonly)
Adjustmentsaremadeusingtheadjuster
screwASSHOWN.Thequantitydispensedis
reducedbyturninganticlockwiseand
increasedbyturningclockwise.
RB:Rinseaiddispensingregulatorscrew
AdjustmentsaremadeusingtheadjusterscrewAS
SHOWN.Thequantitydispensedisreducedby
turningclockwiseandincreasedbyturning
anticlockwise.

RDDetergentdispensingregulatorscrew(onsomemodelsonly)
RBRinseaiddispensingregulatorscrew
RVInspectionpanelremovalscrew

‐CWC610

16
6 MALFUNCTIONS SHOWN ON THE DISPLAY (FOR
THE TECHNICIAN)
Thedishwasherisabletoidentifyanumberofmalfunctionsandshowthemonthedisplay.
Iftheproblempersistsafterthedishwasherhasbeenswitchedoffandbackon,proceedasdescribed
below:
E.1Boilertemperatureprobemalfunction

Boilertemperatureprobedisconnectedornot
working
E.2Tanktemperatureprobemalfunction

Tanktemperatureprobedisconnectedornot
working
E.3WaterintakemalfunctionWaterintakenotcompletedinthemaximumtime
allowed
Checkdynamicpressureinintakesystem,clean
waterintakefilter.
Iftheproblempersists:
‐tankpressureswitchhasfailed(continuousempty
reading)
‐leakfrompipeconnectedtoairtrap
‐drainsiphonblocked‐thetankisemptydueto
siphoningwhenthedrainpumpisnotrunning

E.4Boileroverheating.Reduceboilertemperatureto80°
Circuitboardrelayfailed,checkcircuitboardand
inspectboilerheatingelementfordamage
E.5TankoverheatingReduceboilertemperatureto58°
Circuitboardrelayfailed,checkcircuitboardand
inspecttankheatingelementfordamage
E.6
Waternotpumpedoutoftank


Inspectthefiltersfordirtandcheckthatthedrain
hoseisnotblocked,bentorcrushed.
Checkthatthedrainpumpisnotblockedbydirtby
removingtheinsertonthesump(frominsidethe
tank)
Iftheproblempersists:
‐withtankempty:tankpressureswitchhasfailed
(continuousfullreading)
‐withtankfull:drainpumpfailure

E.7
Boilerheatingmalfunction(doesnot
heatup)
‐circuitboardrelayfailure
‐boilerheatingelementfaultyor"furred"with
limescale
‐boilertemperatureprobefaultyorincorrectly
positioned
E.8Tankheatingmalfunction(doesnot
heatup)
‐circuitboardrelayfailure
‐tankheatingelementfaultyor"furred"with
limescale

‐CWC610

17
‐tanktemperatureprobefaultyorincorrectly
positioned
E.9MicroprocessorfailureReplacecircuitboard

7 INSTRUCTIONS FOR THE USER
7.1 Controlpanel


On‐offbutton
Totalemptyingbutton(tankandboiler)
L1poweronLED
L2pump‐outinprogressLED
Shortcyclekey
Mediumcyclekey
Longcyclekey
L5shortcycleprogramLED
L6mediumcycleprogramLED
L7longcycleprogramLED

7.2 Beforewashing


Useonlydetergentsandrinseaidsforindustrialdishwashers.
Donotusedetergentsintendedforhandwashing.
WerecommendtheuseofSmegproducts,speciallydevelopedforthisdishwasher.

‐CWC610

18

Whentoppingupthetanks,takecarenottoswaptheproducts;thismightdamagethe
dishwasherandcausemalfunctions.

Donotmixdifferentdetergents;thiswoulddamagethedispenserdevice.Failuretocomplywiththis
recommendationleadstoforfeitureofthewarrantyentitlementontheappliance’swatersystem.
Industrialdishwasherdetergentsmaycauseseriousirritation.Complycarefullywiththeinstructions
providedbythedetergentproduceronthepack.



1.Turnonthe
mainswatertap
(user)
CHECK
5.Switchonthemasterswitch
(user):theword“OFF”
appearsonthedisplay.
2.Thelevelof
detergentandrinse
aidinthecontainers.
4.Thatthefiltersare
inplace,thespray
armsrotate.










7.3 Firstuseeachday(tankandboilerempty)

DisplayshowsActionsandwhathappens
DoorclosedandmasterswitchonON:
Pressandholditdownfor2‐3seconds;the
ON/OFFlightandthetwodigitsonthedisplaylight
up.


Thedishwasherfillsthetankautomatically.Atthe
endofthisphase,whenthetankisfull,Pappears
onthedisplayandprogramlightsL5,L6andL7are
lit.

WARNING!Iftheapplianceisconnectedtocoldwater,waitatleast15'beforemovingontothe
nextphasetogivethetanktimetoreachthecorrectwashingtemperature.


‐CWC610

19

Loadthedishesandclosethehood.
Selecttheprogrammerequiredbypressingoneof
thethreebuttons;theLEDoftheselectedprogram
flashesandtheothertwogoout.Thecyclestarts
afterthehoodhasbeenraisedandlowered.While
washingisinprogressthedisplayshowsthewater
temperatureinthetank.Duringrinsing,itshows
theboilertemperature.

AttheendoftheprogramtheprogramLEDcomes
onand“End"flashesonthedisplay.



Removethedishes


Whenthehoodisclosedagain,thelastprogramsetisrepeated.




‐CWC610

20
7.4 Choosingtheprogram

PROGRAMTYPEOFDIRTDURATION
(610)
ShortGlassesandcups Short1’
MediumGlasses,cupsandplateswithlightdirtMedium2'
LongVerydirtydishesandcutleryLong3’

(*)Thecycledurationstatedaboveisguaranteediftheapplianceisconnectedtohotwater>50°C
<60°C
Ifthedishwasherissuppliedwithcoldwater,thecycledurationmightincreasedependingonthe
intakewatertemperatureandthe"thermostop"setting.
7.5 Changingtheprogram(notpossibleoncetheprogramhasstarted)


Ifthemasterswitchisnotturnedoff,the
appliancesetsonthelastcycleperformed.To
changeit,pressthekeyoftheprogram
required;thelightcomeson.

Toperformthecycle,raiseandclosethehood.
TheLEDstartstoflashandthewashingcycle
starts.

Glasses
Loadglassesupsidedown.
Cutlery
Usethebasket(s)provided.Loadcutleryloose,preferablywiththehandleatthebottom,takingcarenot
toinjureyourselfwithforkprongsorknifeblades.


Plates
Thebasketisabletotake12
soupplatesor18dinnerplates.
Removesolidresidues(bones,
fruitpeel,stones,etc.)andfirst
soakplateswithdriedresidues
ofcheese,egg,etc.inwater.


