Smeg DI112 User manual

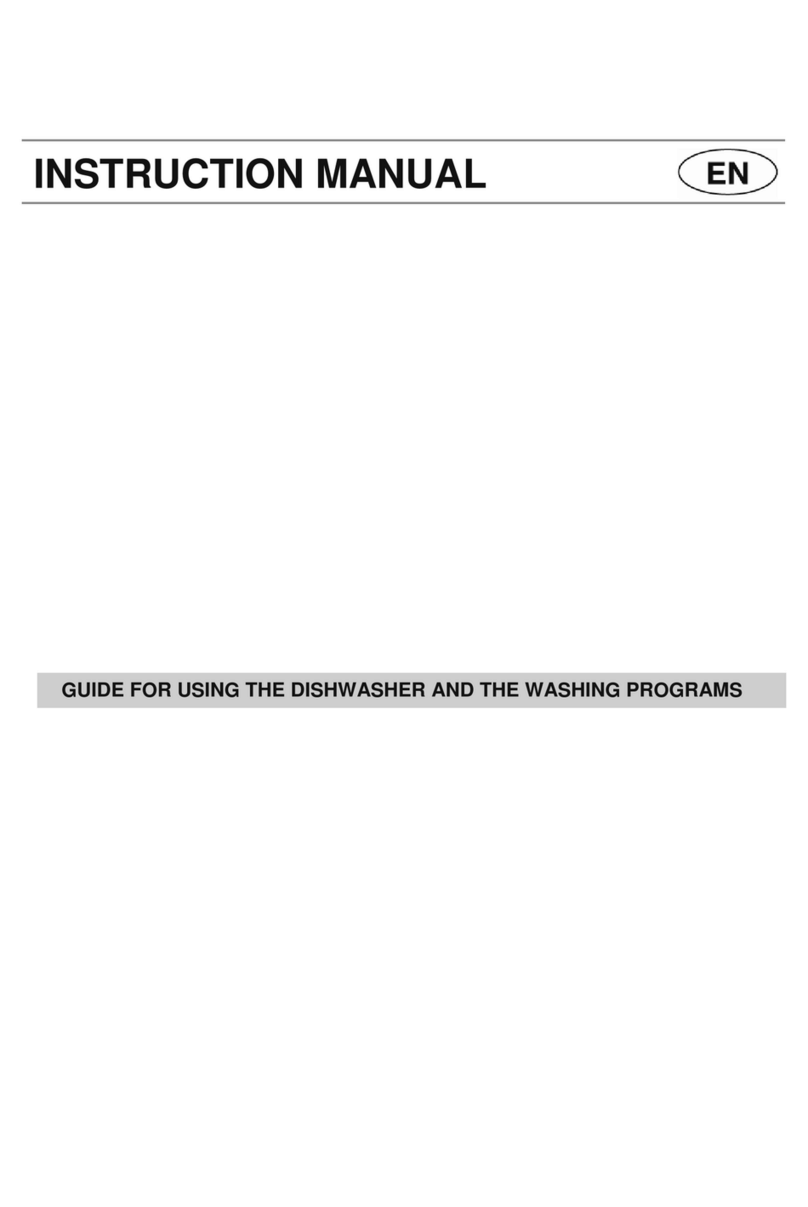

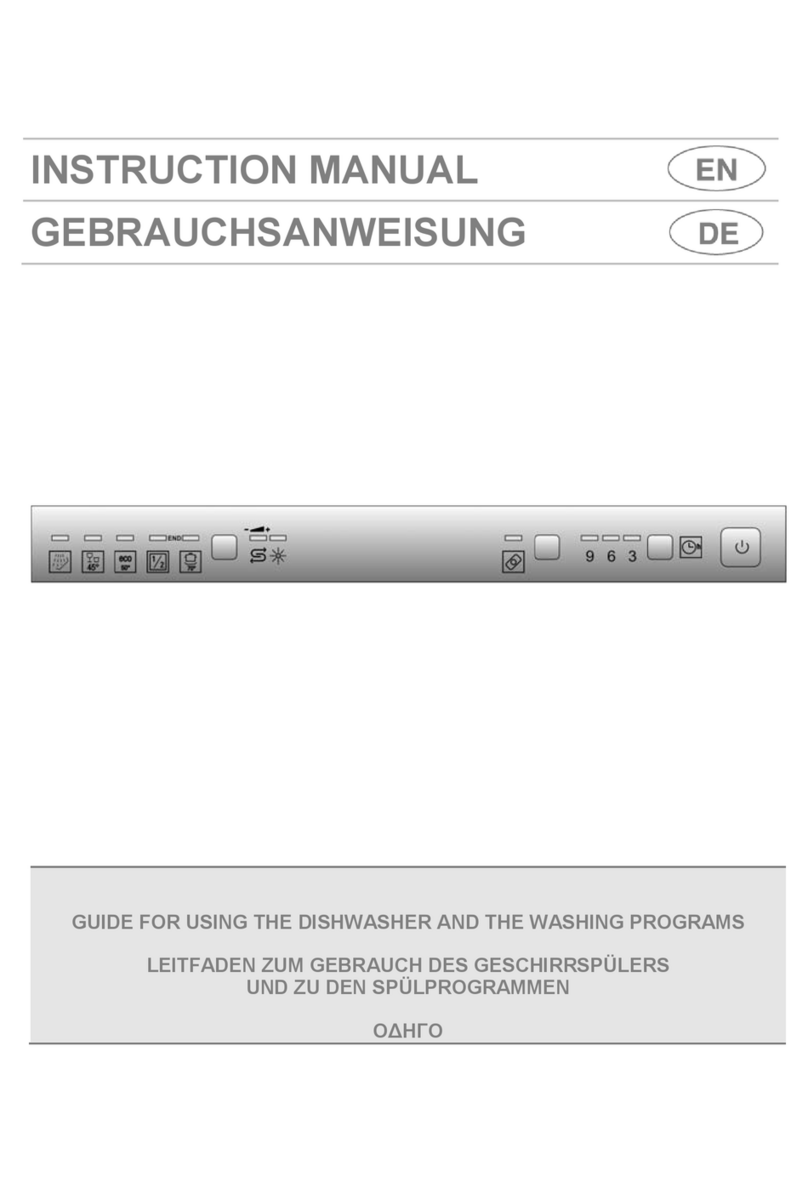

INSTRUCTION MANUAL
GUIDE FOR USING THE DISHWASHER AND THE WASHING PROGRAMS

Contents
1
1. Safety and operating instructions ___________________________2
2. Installation and hook-up___________________________________5
3. Description of the controls_________________________________9
4. Operating instructions ___________________________________19
5. Cleaning and maintenance _______________________________31
6. Troubleshooting________________________________________35
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use
of your dishwasher.
The individual sections are laid out to provide you with a step-by-step
guide to all your appliance's functions; the texts are easy to understand
and are complete with detailed illustrations.
Recommendations are given for the correct use of the baskets, spray
arms, containers, filters, washing programs, and for operating the
controls.
Following the cleaning instructions provided here will keep your
dishwasher's performance at peak levels in the long term.
This user-friendly manual will provide answers to all your questions
about use of the dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the qualified
technician who must carry out the installation, hook-up and testing of
the appliance.
USER INSTRUCTIONS: these consist of recommendations for using the
appliance, a description of its controls and of the correct cleaning and
maintenance procedures.

Safety instructions
2
1. Safety and operating instructions
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST
ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE
USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS
CONTAINED IN THIS MANUAL.
INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN
COMPLIANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR DOMESTIC USE, AND COMPLIES WITH THE 2006/95 EC
AND 2004/108 EC DIRECTIVES CURRENTLY IN FORCE, INCLUDING THE
PREVENTION AND ELIMINATION OF RADIO FREQUENCY INTERFERENCE.
THE APPLIANCE IS DESIGNED FOR THE FOLLOWING PURPOSE: WASHING
AND DRYING OF DISHES; ANY OTHER USE SHALL BE CONSIDERED
IMPROPER. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
USES OTHER THAN THOSE DESCRIBED ABOVE.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER
AND MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE
DOOR. THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST
NEVER BE REMOVED.
DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED
WITHIN THE HOME. SEPARATE THE VARIOUS MATERIALS WHICH MAKE
UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE
COLLECTION CENTRE.
THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN
ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO
PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE
APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.
IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR,
ENSURE THAT THE OPENINGS ON ITS UNDERSIDE ARE NOT
OBSTRUCTED.
ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID
WASTING ELECTRICITY.

Safety instructions
3
OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE
MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET,
AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR
CHILDREN (LOCKS, DOORS, ETC.).
THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE
2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
(WEEE).
BY ENSURING THIS PRODUCT IS DISPOSED OF CORRECTLY, YOU WILL
HELP PREVENT POTENTIAL NEGATIVE CONSEQUENCES FOR THE
ENVIRONMENT AND HUMAN HEALTH, WHICH COULD OTHERWISE BE
CAUSED BY INAPPROPRIATE WASTE HANDLING OF THIS PRODUCT.
THE SYMBOL ON THE PRODUCT, OR ON THE DOCUMENTS
ACCOMPANYING THE PRODUCT, INDICATES THAT THIS APPLIANCE MAY
NOT BE TREATED AS HOUSEHOLD WASTE. INSTEAD IT SHALL BE
HANDED OVER TO THE APPLICABLE COLLECTION POINT FOR THE
RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT.
DISPOSAL MUST BE CARRIED OUT IN ACCORDANCE WITH LOCAL
ENVIRONMENTAL REGULATIONS FOR WASTE DISPOSAL. FOR MORE
DETAILED INFORMATION ABOUT TREATMENT, RECOVERY AND
RECYCLING OF THIS PRODUCT, PLEASE CONTACT YOUR LOCAL CITY
OFFICE, YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP
WHERE YOU PURCHASED THE PRODUCT.
IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE
ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP.
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING
TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER.
THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE
WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OR BY A
QUALIFIED TECHNICIAN.
THIS DISHWASHER MUST BE USED BY ADULTS.
USE BY PERSONS WITH REDUCED MENTAL AND/OR PHYSICAL
CAPABILITIES IS ONLY PERMITTED UNDER THE SUPERVISION OF A
PERSON RESPONSIBLE FOR THEIR SAFETY.
KEEP CHILDREN AWAY FROM DETERGENTS AND PACKAGING MATERIALS
(PLASTIC BAGS, POLYSTYRENE, ETC.), AND NEVER ALLOW THEM TO
APPROACH OR PLAY WITH THE DISHWASHER, SINCE IT MIGHT CONTAIN
DETERGENT RESIDUES CAPABLE OF CAUSING PERMANENT DAMAGE TO
THE EYES, MOUTH AND THROAT, AND EVEN LEADING TO SUFFOCATION.
DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE
WHICH MAY CAUSE AN EXPLOSION.
DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.

Safety instructions
4
LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY
CAUSE THE APPLIANCE TO OVERTURN, PUTING PEOPLE AT RISK.
NEVER LEAVE THE DISHWASHER DOOR OPEN; PEOPLE MIGHT TRIP
OVER IT.
DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE
THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM
AND BEFORE THE DRYING CYCLE.
KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED
IN THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE
TOP BASKET. TAKE CARE NOT TO CUT YOURSELF AND ENSURE THAT
THEY DO NOT PROJECT FROM THE BASKET.
AQUASTOP MODELS
THE AQUASTOP DEVICE PREVENTS FLOODING IN THE EVENT OF A
WATER LEAK. WHEN THE AQUASTOP DEVICE IS TRIPPED, CALL IN A
QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT.
IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A
SOLENOID VALVE INSIDE THE WATER INTAKE HOSE. DO NOT CUT THE
HOSE AND DO NOT ALLOW THE SOLENOID VALVE TO DROP INTO
WATER. IN THE EVENT OF DAMAGE TO THE WATER INTAKE HOSE,
DISCONNECT THE APPLIANCE FROM THE ELECTRICAL POWER SUPPLY
AND FROM THE WATER SUPPLY.
IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK
TEST OF THE APPLIANCE FOLLOWING THE INSTRUCTIONS BELOW. IF
THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT
FROM THE ELECTRICAL POWER SUPPLY AND CALL THE NEAREST
TECHNICAL SERVICE CENTRE. DO NOT ATTEMPT TO REPAIR THE
APPLIANCE.
THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE
REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL
EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED
EXCLUSIVELY BY A TRAINED AND AUTHORISED TECHNICIAN: REPAIRS
CARRIED OUT BY UNAUTHORISED PERSONS WILL INVALIDATE THE
WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.
The manufacturer declines all responsibility for damage to persons or property
resulting from failure to observe the above precautions, from tampering with
even a single component of the appliance, or from the use of non original
spare parts.

Installation instructions
5
2. Installation and hook-up
Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation. The back or
sides of the dishwasher may be placed up against walls or other
furniture units. If the dishwasher is installed near a heat source, fit the
special insulating panel to prevent overheating and malfunction of the
appliance. To ensure stability, install integrated or built-under
dishwashers only under continuous worktops, and screw them to the
adjacent units. To facilitate the installation procedure, the intake and
drain hoses can be positioned in any direction; make sure that the hoses
are not kinked, crushed or pulled too tightly. Make sure to tighten the
locking ring-nut once the pipes have been placed in the direction
required. A hole at least 8 cm in diameter is required to allow the power
supply cable and pipes to pass.
Level the appliance on the floor using its adjustable feet. This operation
is essential for ensuring correct operation of the dishwasher.
Building-in a dishwasher underneath a ceramic hob is absolutely
forbidden.
A dishwasher can be built-in underneath a conventional hob provided
there is no break in the kitchen worktop, and the dishwasher and hob are
installed and secured correctly, so that no hazards are generated.
When installing the dishwasher in a compartment next to one or more
other appliances, it is essential to comply with all the recommendations
provided by the appliance’s manufacturer (minimum distances, installation
procedures, etc.).
Some models are equipped with only one adjustable foot at the rear,
which can be adjusted by turning the screw on the lower front part of the
appliance.
2.1 Water supply connection
Preventing the risk of clogging or damage: if the water pipe is new or
has not been used for a long time, before connecting to the water supply
check that the water is clear and free of impurities, to prevent damage to
the appliance.
The dishwasher must always be connected to the water system
with new hoses; old or used hoses must never be reused.

Installation instructions
6
CONNECTING TO THE WATER SUPPLY
Connect the intake hose to a cold water supply with ¾”
gas thread, inserting the filter Asupplied with the
dishwasher. Take care to screw the hose firmly into
place with your hands and then complete by
tightening about ¼ of a turn with pliers.
In dishwashers equipped with the ACQUASTOP
device, the filters is already fitted inside the threaded
ring.
The dishwasher can also be connected to a hot water supply not
exceeding 60°C. Supplying the appliance with hot water cuts down the
washing time by approximately 20 minutes, but slightly reduces its
effectiveness. Make the connection to the domestic hot water supply using
the same procedure described for connecting to the cold water supply.
DRAIN CONNECTION
Insert the dishwasher’s drain hose
into a drain pipe having a diameter
of at least 4 cm, or alternatively,
place it inside the kitchen sink
using the plastic support provided,
taking care not to crush or
excessively bend the hose. It is
important to prevent the hose from
coming loose and falling. For this
purpose, the plastic support is
equipped with a hole for tying it to
the wall or water tap.
The free end should be positioned at a height of between 30 and 100
cm,and should never be submerged in water. If a horizontal drain
extension hose is used (for a maximum of 3 m) the drain hose can be
placed at a maximum height of 85 cm from the ground.

Installation instructions
7
2.2 Electrical connection and precautions
CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH
THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON
THE INNER EDGE OF THE DOOR.
THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET
OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN
FORCE.
THE PLUG MUST BE ACCESSIBLE AFTER INSTALLATION.
NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY
LEAD.
IN THE EVENT OF DAMAGE TO THE SUPPLY CORD, HAVE IT REPLACED
BY THE MANUFACTURER OR AN AUTHORIZED TECHNICAL SERVICE
CENTRE.
DO NOT USE ADAPTORS OR SHUNT CONNECTIONS IN ORDER TO AVOID
THE POSSIBILITY OF OVERHEATING OR BURNING.
IF THE APPLIANCE IS PROVIDED WITH A PLUGLESS SUPPLY CORD:
IT IS NECESSARY TO INSTALL IN THE FIXED WIRING AN ALL-POLE
DISCONNECTION DEVICE HAVING A GAP BETWEEN CONTACTS OF AT
LEAST 3.5MM. AFTER INSTALLATION THE DISCONNECTION DEVICE HAS
TO BE EASY TO REACH.
THE CONNECTION TO THE MAINS MUST BE CARRIED OUT BY A
QUALIFIED TECHNICIAN IN ACCORDANCE TO THE SCHEME SHOWN
BELOW AND THE REGULATIONS IN FORCE.
L= brown
N= blue
= yellow-green
In the event of damage to the supply cord, have it replaced by the
manufacturer or an Authorized Technical Service Centre in order to
avoid any risk.

Installation instructions
8
FOR GREAT BRITAIN ONLY:
THIS APPLIANCE MUST BE EARTHED.
Fuse replacement
If the mains lead of this appliance is fitted
with a BS 1363A 13amp fused plug, to
change a fuse in this type of plug use an
A.S.T.A. approved fuse to BS 1362 type
and proceed as follows:
1. Remove the fuse cover Aand fuse B.
2. Fit replacement 13A fuse into fuse
cover.
3. Refit both into plug.
The fuse cover must be refitted when changing a fuse and if the fuse
cover is lost the plug must not be used until a correct replacement is
fitted.
Correct replacement are identified by the colour insert or the colour
embossed in words on the base of the plug.
Replacement fuse covers are available from your local electrical store.

User instructions
9
3. Description of the controls
3.1 Upper panel
All the dishwasher controls are grouped on the upper panel. Switch-on,
programming, switch-off, etc. procedures are only possible when the door is
open.
The panel shown is only a guideline example: the form of the lights and
buttons may vary depending on the model.
1 ON/OFF BUTTON
Press this button to switch the dishwasher on/off.
2
SELECTED PROGRAM INDICATOR LIGHTS
Illumination of this light denotes the program selected and the
occurrence of a fault (troubleshooting).
3
PROGRAM SELECTION BUTTON
+ ADJUSTING THE WATER SOFTENING SYSTEM
Used to select the washing program required and adjust the water
softening system.
4
WATER HARDNESS ADJUSTMENT ON INDICATOR LIGHT
The light flashes to indicate that the appliance is in “water hardness
adjustment” mode.
SALT WARNING LIGHT (on some models only)
If the symbol is present, illumination of this light denotes a
regenerating salt warning level.
5 RINSE AID WARNING LIGHT (on some models only)
Illumination of this light denotes a rinse aid warning level in the tank.
6 OPTIONS (on some models only)

User instructions
10
<<OPTIONS(6)>>
Depending on the model, this zone may contain one or more of the
following options, identified by the relative symbols and described in
more detail in the relevant sections of the manual.
It is not possible to select any options when the soak program is being
used. All options except "Flexi Tabs" are disabled at the end of the
wash cycle. To disable the “Flexi tabs” option, press the relative
button (the light goes out).
Flexi Tabs
Specifically for the use of products which contain salt and
rinse aid as well as detergent.
HYCLEAN
Adds a final antibacterial rinse to the selected program.
Spread HALF LOAD WASH
Allows washing of just a few dishes placed in both baskets.
PROGRAM DELAY
Allows the program to be set to start with a delay of 3, 6 or 9
hours.

User instructions
11
PROGRAMS TABLE
The manual contains the programs table for several models. To find the
table for your dishwasher, compare the program symbols at the top of the
table with those on your control panel.
SETTING THE WASHING PROGRAM AND SWITCHING ON
After identifying the most suitable program with the aid of the programs
table:
•Press the ON/OFF button (1) and wait for the PROGRAM
INDICATOR LIGHT (2) to illuminate;
•Keep pressing the PROGRAM SELECTION button (3) until the
indicator light corresponding to the desired program illuminates;
•select the option required (if any and if the model provides options);
•close the door; after about 2" the program will start LIGHT will
flashing (indicating that the program is being executed).

User instructions
12
PROGRAMS TABLE
DURATION
CONSUMPTION
PROGRAMME
NUMBER
& SYMBOL
LOAD CROCKERY AND
CUTLERY PROGRAM PROGRESS
MINUTES
(1)
WATER
LITRES
(2)
POWER
KWh (1)
1SOAK
Pans and dishes awaiting
completion of the load Cold prewash 15' 3,5 0,02
2 GLASS
Glass, china and mixed
dishes with light dirt.
Wash at 45°C
Cold rinse
Rinse at 70°C
Dry
65'
9,5 1,10
3 ECO (*)
EN 50242
Dishes with normal dirt,
even with dried-on
residues
Cold prewash
Wash at 50°C (3)
Rinse at 66°C
Dry
180'
** **
4 NORMAL
IEC/DIN
Dishes with normal dirt,
even with dried-on
residues
Cold prewash
Wash at 65°C
Cold rinse
Rinse at 70°C
Dry
115’
13,5 1,35
5 ULTRA
CLEAN
***
Very dirty pans and
dishes, even with dried-on
residues.
Hot prewash
Wash at 70°C
Cold rinse (4)
Rinse at 70°C
Dry
150'
15,5 1,70
* Reference program as per EN 50242 standard. ** See energy label.
*** Reference program for laboratories: Detergent: 20g in the dispenser + 10g in the
door or tablet. Configuration: see photo in “Using the baskets”.
Only run the soak program with partial loads.
The ULTRA CLEAN program terminate with an extra anti-bacteria rinse that ensures a further
reduction in the bacteria level. If the temperature falls during this stage of the program (e.g.
because the door is opened or due to a power blackout), the program lights flash to warn that
the anti-bacteria effect is not guaranteed.
(1) The cycle duration and power consumption may vary according to the water and
room temperatures, and the type and amount of dishes.
(2) Average power consumption with the softener set on level 2.
(3) Some models feature an intermediate rinse.
(4) 1 or 2 cold rinses depending on the model.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.

User instructions
13
PROGRAMS TABLE
DURATION
CONSUMPTION
PROGRAMME
NUMBER
& SYMBOL
LOAD CROCKERY AND
CUTLERY PROGRAM PROGRESS
MINUTES
(1)
WATER
LITRES
(2)
POWER
KWh (1)
1SOAK
Pans and dishes awaiting
completion of the load Cold prewash 15' 3,5 0,02
2 GLASS
Glass, china and mixed
dishes with light dirt.
Wash at 45°C
Cold rinse
Rinse at 70°C
Dry
65'
9,5 1,10
3 ECO (*)
EN 50242
Dishes with normal dirt,
even with dried-on
residues
Cold prewash
Wash at 50°C (3)
Rinse at 66°C
Dry
180'
** **
4 NORMAL
IEC/DIN
Dishes with normal dirt,
even with dried-on
residues
Cold prewash
Wash at 65°C
Cold rinse
Rinse at 70°C
Dry
115’
13,5 1,35
5 SUPER
***
Very dirty pans and
dishes, even with dried-on
residues.
Hot prewash
Wash at 70°C
Cold rinse (4)
Rinse at 70°C
Dry
135'
15,5 1,60
* Reference program as per EN 50242 standard.
** See energy label.
*** Reference program for laboratories: Detergent: 20g in the dispenser + 10g in the
door or tablet. Configuration: see photo in “Using the baskets”.
Only run the soak program with partial loads.
(1) The cycle duration and power consumption may vary according to the water and
room temperatures, and the type and amount of dishes.
(2) Average power consumption with the softener set on level 2.
(3) Some models feature an intermediate rinse.
(4) 1 or 2 cold rinses depending on the model.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.

User instructions
14
PROGRAMS TABLE
DURATION
CONSUMPTION
PROGRAMME
NUMBER
& SYMBOL
LOAD CROCKERY AND
CUTLERY PROGRAM PROGRESS
MINUTES
(1)
WATER
LITRES
(2)
POWER
KWh (1)
1SOAK
Pans and dishes awaiting
completion of the load Cold prewash 15' 3,5 0,02
2 GLASS
Glass, china and mixed
dishes with light dirt.
Wash at 45°C
Cold rinse
Rinse at 70°C
Dry
65'
9,5 1,10
3 ECO (*)
EN 50242
Dishes with normal dirt,
even with dried-on
residues
Cold prewash
Wash at 50°C (3)
Rinse at 66°C
Dry
180'
** **
4 HALF LOAD
IEC/DIN
Half load of dishes with
normal dirt, washed
immediately after use.
Wash at 65°C
Cold rinse
Rinse at 70°C
Dry
90’
11 1,20
5 ULTRA
CLEAN
***
Very dirty pans and
dishes, even with dried-on
residues.
Hot prewash
Wash at 70°C
Cold rinse (4)
Rinse at 70°C
Dry
150'
15,5 1,70
* Reference program as per EN 50242 standard. ** See energy label.
*** Reference program for laboratories: Detergent: 20g in the dispenser + 10g in the
door or tablet. Configuration: see photo in “Using the baskets”.
Only run the soak program with partial loads.
The ULTRA CLEAN program terminate with an extra anti-bacteria rinse that ensures a further
reduction in the bacteria level. If the temperature falls during this stage of the program (e.g.
because the door is opened or due to a power blackout), the program lights flash to warn that
the anti-bacteria effect is not guaranteed.
(1) The cycle duration and power consumption may vary according to the water and
room temperatures, and the type and amount of dishes.
(2) Average power consumption with the softener set on level 2.
(3) Some models feature an intermediate rinse.
(4) 1 or 2 cold rinses depending on the model.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.

User instructions
15
3.2 Washing programs
Before starting a washing program make sure that:
•The water supply tap is open.
•The softener container contains regenerating salt.
•The correct amount of detergent has been added to the
dispenser.
•The baskets have been correctly loaded.
•The spray arms are able to rotate freely and without
obstruction.
•The dishwasher door is securely closed.
OPTION SELECTION
Options are selected by pressing the relative button by the symbol of the
option required; the light comes on to confirm that the option has been
activated.
•It is not possible to select any options when the soak
program is being used.
•All options except "Flexi tabs" are disabled at the end of the
wash cycle. To disable the “Flexi tabs” option, press the
relative button (the light goes out).
•All options, including "Flexi tabs" are disabled when a program
is CANCELLED after it has begun.
ADDITIONAL OPTIONS
Some models feature additional options, activated by pressing two
buttons simultaneously. In this case, two lines in the control panel
graphics link the symbol of the additional option to the two buttons to be
pressed simultaneously to enable it. (e.g. “Flexi Tabs” in this
illustration)

User instructions
16
Flexi Tabs
Ideal for multi-function detergents, this option allows washing to be
optimised, with full benefits from the combined-action tablets. When this
option is activated, any salt and rinse aid in the relative containers will
not be used.
If the option is not provided, we recommend the use of conventional
products (separate detergent, salt and rinse aid), because with
conventional washing cycles, combined products might create problems
such as a white deposit, poor drying results and residues left on dishes.
N.B.:
When the salt and rinse aid containers are empty, the relative lights will
remain on even if the “Flexi Tabs” option is selected.
IMPORTANT:
when no longer required, the option must be deactivated by pressing
the relative button (the light goes out).
If the water hardness has been set on a value above H3, and the “Flexi
Tabs” option is activated, the relative light flashes, warning of a setting
error. Multi-function products are not suitable for use with very "hard"
water; this does not prevent the use of the option, but the washing
results might not be of the best.
ULTRA CLEAN
The "ULTRA CLEAN" program prolongs the final hot rinse to ensure a
further reduction in the bacteria level. If the temperature in the tank falls
during this stage of the program (e.g. because the door is opened or due
to a power blackout), the light of the option and the program lights (2) flash
to warn that the additional washing phase has not been completed
successfully. This does not mean that the wash program has been less
effective than usual.
SPREAD HALF LOAD
Suitable when there are not many dishes to be washed, it saves energy
and reduces the program duration. Place dishes in both baskets then
load the detergent dispenser than less than the normal amount for a full
load.

User instructions
17
PROGRAM DELAY
The start of the program can be delayed by 3, 6 or 9hours.
This allows you to set the dishwasher to work at the times of day most
convenient to you. After setting the program, press the button to select
the delay you require; the corresponding light will come on. When the
door is closed, the appliance will prewash the dishes, after which the
"program delay" set will come into effect. If you wish to exit the
procedure without setting delayed start, press the button in sequence
until all three lights are out.
N.B.: It is not possible to select the PROGRAM DELAY option once the
cycle has begun.
CANCELLING THE CURRENT PROGRAM
•To cancel the currently selected program open the door and hold
down the PROGRAM SELECTION (3) button for a few seconds
until the indicator lights for programs 4and 5 illuminate
simultaneously (marked "end").
•Close the door.
•After approximately 1 minute the dishwasher will advance to the end
of cycle.
CHANGING THE PROGRAM
To change the program in progress, simply open the door and select a
new program. When the door is closed the dishwasher will automatically
select the new program.

User instructions
18
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
•Always use the dishwasher with a full load.
•Do not wash the dishes in running water.
•Use the washing program that is most appropriate for each type of
load.
•Do not carry out any preliminary rinsing.
•If available, connect the dishwasher to a hot water supply up to 60°C.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:
•separate the more delicate items from dishes that are more resistant
to aggressive detergents and high temperatures;
•do not pour the detergent directly on the dishes.
If the door has to be opened while washing is in progress, the program
will be interrupted. The relative light will keep flashing and a beeper will
signal that the cycle has not been completed. You must wait about 1
minute before closing the door to restart the program. When the door is
closed the program will continue from where it was interrupted. This
operation should only be carried out if strictly necessary, because it
might cause problems in execution of the program.
SWITCHING OFF
At the end of the program the beeper
sounds briefly and the lights of programs no.
4and 5 (marked "end") flash.
To switch off the dishwasher, open the door and press the ON/OFF
button (1).
REMOVING THE DISHES
At the end of the washing program, wait at least 20 minutes before
removing the dishes, to allow them to cool. To ensure that any drops of
water left in the top basket cannot drip onto the dishes still in the bottom
basket, you are advised always to empty the bottom basket first.
