Smeg GW2145 User manual

Rev. 19 561 0151 08 - EN
1 - 18
INSTALLATION REQUIREMENTS
SMEG S.p.A. thanks you for having chosen this product.
In a constant quest for complete Customer satisfaction throughout the lifecycle of the product,
SMEG S.p.A. ensures the start-up and after sales service of its machines across the National territory by
SMEG Authorized Centers.
Preliminary operations for Start-up, at Customer's care:
any necessary work of room preparation
prearrangement of properly operating systems, in compliance with the requirements and
regulations in force
machine positioning
Refer to the instructions in this manual for detailed instructions on the above.
SMEG S.p.A. disclaims any liability for damage to persons or property resulting from defective systems or
not compliant with the regulations, for improper installation of the appliance and/or accessories made by
unauthorized personnel.
Any operation on the appliance by unauthorized personnel will invalidate the warranty.
08
26/02/2020
Update of environmental conditions and references to backflow devices.
06
10/12/2019
WD1160P4, WD4060P4 dimensions. GW6290 air vent prescriptions.
REV. DOC.
DATE
NOTES

REQUEST FOR START-UP
Rev. 19 561 0151 08 - EN
2 - 18
CONTENTS
INSTALLATION REQUIREMENTS ....................................................................................................................................................3
1PRODUCT DIMENSIONS –UNITS IN mm ................................................................................................................................3
2AMBIENT CONDITIONS...........................................................................................................................................................5
3MACHINE POSITIONING .........................................................................................................................................................5
4ELECTRICAL SYSTEM REQUIREMENTS ....................................................................................................................................7
5HYDRAULIC ARRANGEMENT ................................................................................................................................................10
5.1 WATER FILLING ...........................................................................................................................................................10
5.1.1 WATER INLETS CONNECTION .................................................................................................................................10
5.1.2 FILLING TAPS POSITIONING ....................................................................................................................................11
5.1.3 SYSTEM REQUIREMENTS........................................................................................................................................12
5.1.4 CHARACTERISTICS OF WATER SUPPLY....................................................................................................................12
5.1.5 “PAD” ACCESSORY FOR DEMINERALIZED WATER NOT UNDER PRESSURE ............................................................13
5.2 WATER DRAIN.............................................................................................................................................................15
5.3 STEAM DRAIN CONNECTION –GW6290 MODELS ONLY ............................................................................................17

REQUEST FOR START-UP
Rev. 19 561 0151 08 - EN
3 - 18
INSTALLATION REQUIREMENTS
1PRODUCT DIMENSIONS – UNITS IN mm

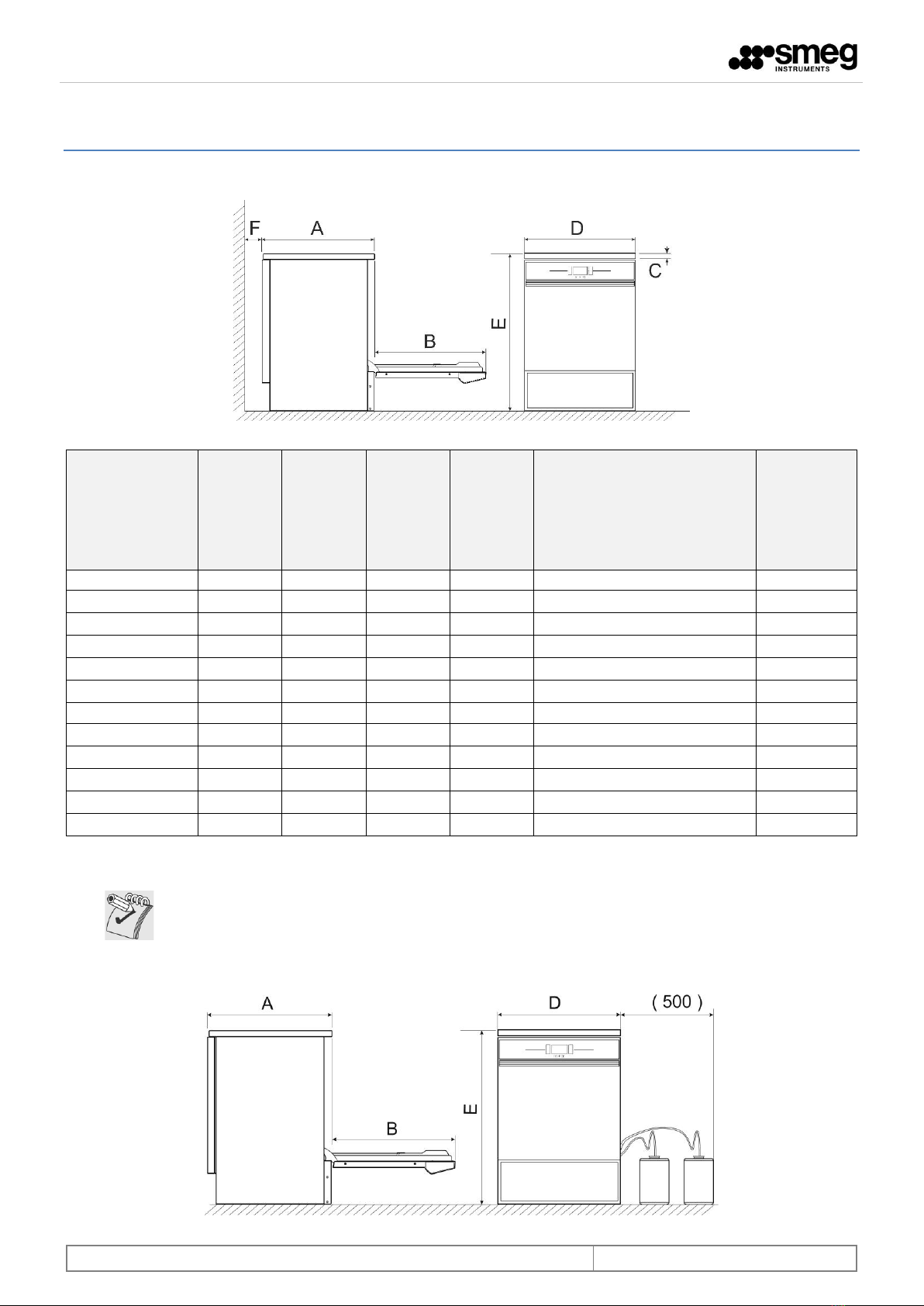

fig. 1–Schematic drawing 45CM and 60CM, overall dimensions of the product
FAMILY
A
B
C
D
E
(in brackets the height with built-in top)
[Only for the GW0160, GW1160,
GW4060, WD1160, WD4060 series: the
height, with the optional “Aquastop
system”, is indicated between square
brackets]
F
GW2145
620
600
30
450
850 (830)
> 10
GW0160
600
600
30
600
850 (820) [857]
> 10
GW1160
600
600
30
600
850 (820) [857]
> 10
GW3060
640
600
30
600
850 (820)
> 10
GW4060
600
600
30
600
850 (820) [857]
> 10
PW4060
600
600
30
600
850 (820) [857]
> 10
WD2145
620
600
30
450
850 (830)
> 10
WD1160
600
600
30
600
850 (820) [857]
> 10
WD1160P4
660
600
30
600
850 (820) [857]
> 10
WD3060
640
600
30
600
850 (820)
> 10
WD4060
600
600
30
600
850 (820) [857]
> 10
WD4060P4
660
600
30
600
850 (820) [857]
> 10
Note:
For all devices that are not equipped with the cabinet for detergents jerry cans, you must consider
an extra space for lateral positioning of the detergents (the jerry cans can be positioned both left
and right of the device).
See the image below - guideline for n.2 jerry cans.

REQUEST FOR START-UP
Rev. 19 561 0151 08 - EN
4 - 18

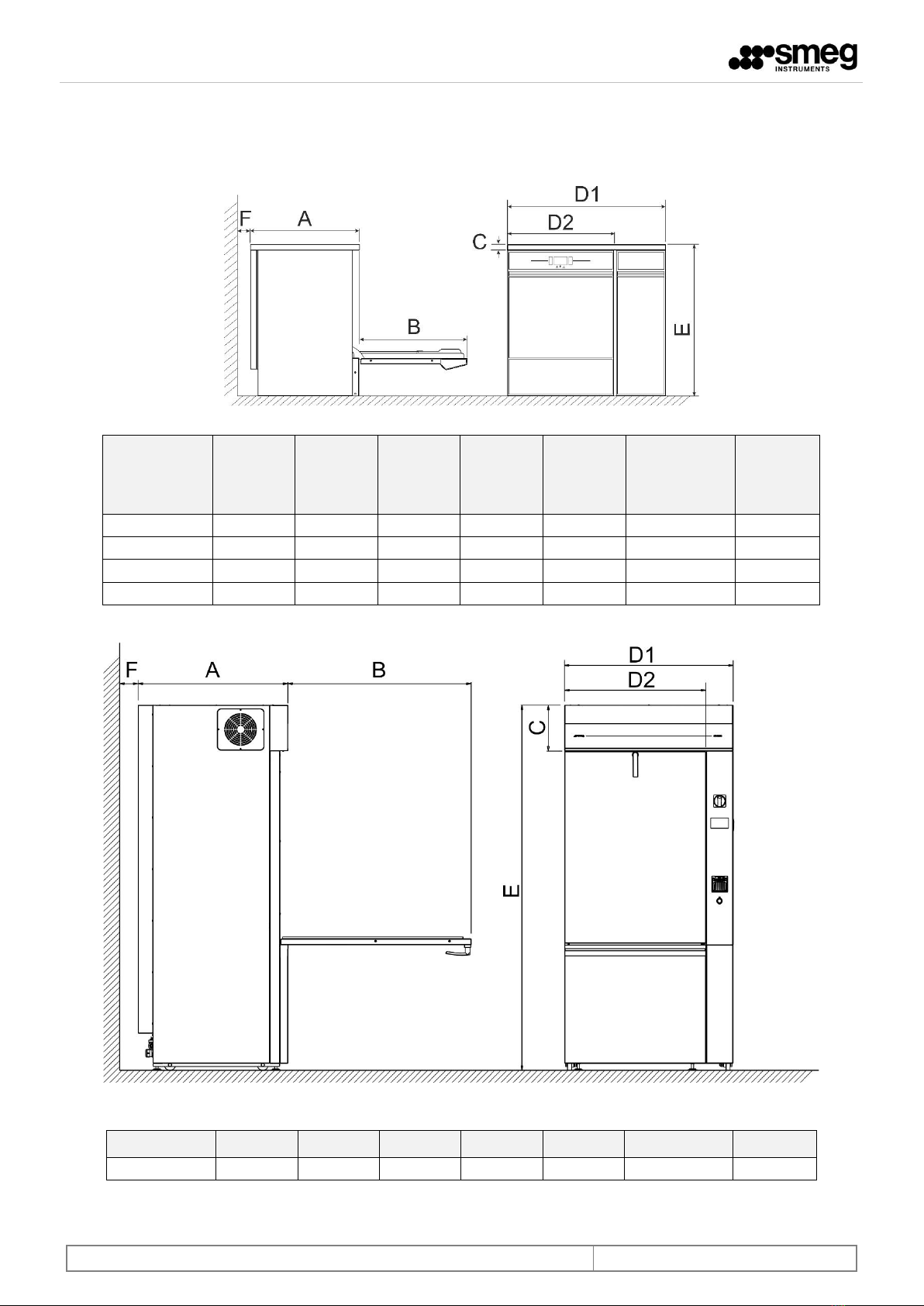

fig. 2–Schematic drawing GW4090 and WD5090 overall dimensions of the product 90CM.
FAMILY
A
B
C
D1
D2
E
(in brackets the
height with built-
in top)
F
GW4090
640
600
30
900
600
850 (820)
> 10
GW4190
600
600
30
900
600
850 (820)
> 10
WD4190
600
600
30
900
600
850 (820)
> 10
WD5090
640
600
30
900
600
850 (820)
> 10
fig. 3–Schematic drawing GW6290, overall dimensions of the product
FAMILY
A
B
C
D1
D2
E
F
GW6290DS
800
980
245
900
754
1950
> 10

REQUEST FOR START-UP
Rev. 19 561 0151 08 - EN
5 - 18
2AMBIENT CONDITIONS
AMBIENT CONDITIONS
USE
Indoor
ALTITUDE
Up to 1000m
AMBIENT TEMPERATURE
From 5°C to 40°C
MINIMUM LIGHTING LEVEL
REQUIRED
300 lx
MAX RELATIVE HUMIDITY
80% for temperatures up to 31°C with linear decrease to 50% at the
temperature of 40°C
INSTALLATION CATEGORY (OR
SURGE CATEGORY or
INSTALLATION CATEGORY)
II
ELECTRICAL INSULATION CLASS
(ref. IEC 61140)
I
DEGREE OF POLLUTION
2
MODEL
GW2145,
WD2145
GW0160, GW1160, WD1160,
GW4060, WD4060, PW4060,
GW4190, WD4190
GW3060, GW4090, WD5090
GW6290
HEAT EMISSION INTO THE ROOM -
CYCLE RUNNING
(Assessed considering a cycle containing a
93°C thermal disinfection cycle - not
including the heat emitted by the steam
vent)
600 W
(2050
BTU/h)
900 W
( 3070 BTU/hr )
1000 W
(3400 BTU/h)
3MACHINE POSITIONING
IMPORTANT
The machine must be positioned with its back against a wall (minimum distance 10 mm) and must be installed by an authorized
SMEG technician. The machine, when suitably prepared, can be placed under a work top
The technician who installs the machine is responsible for the appliance correct operation after it has been installed. The
technician must also provide all the necessary information to the user for correct use.
During installation, it is necessary to remove the scratchproof film on the outer steel surfaces.
The kit of installation accessories (seals and clamps) is located inside the wash chamber.
The machine can be placed up against the sides to the adjacent units, taking care to leave free venting of the steam on the
back: it is therefore advisable that the wall at the back is made of brickwork or some other impermeable material.
Furthermore ensure the heat does not reach any electrical circuits or sockets on the back of the appliance.
The machine is equipped with hoses to supply and drain off the water. These can be positioned towards the right or left,
depending on the installation requirements.
LEVELLING
After positioning the machine, adjust the feet by screwing or unscrewing them in order to adjust the height and level it using
a spirit level so that it is to be horizontal (max angle tolerance allowed: 0.5°).
Correct levelling will ensure that the machine operates in the right way.
CAUTION
Any adjustment, maintenance, etc.. must be performed with the device switched off and disconnected from power sources.
LIFTING AND TRANSPORT
The base of the machine, before leaving the factory, is fixed on a pallet which serves both for lifting and for the transport.
The machine must be handled with a fork-lift truck or transpallet.

REQUEST FOR START-UP
Rev. 19 561 0151 08 - EN
6 - 18
INSTALLATION WITH BASE - MACHINE SUPPORT
If the device is installed on a support (e.g. product Smeg B6040) with height "HB" (base height), all the dimensions of the height
with respect to the support surface outlined in this document are to be increased of the same "HB" amount.
HMi = Hi + HB
Where:
Hi = generic dimension indicated in the document
HB = height of the machine base support
HMi = dimension recalculated for machine installed on the base

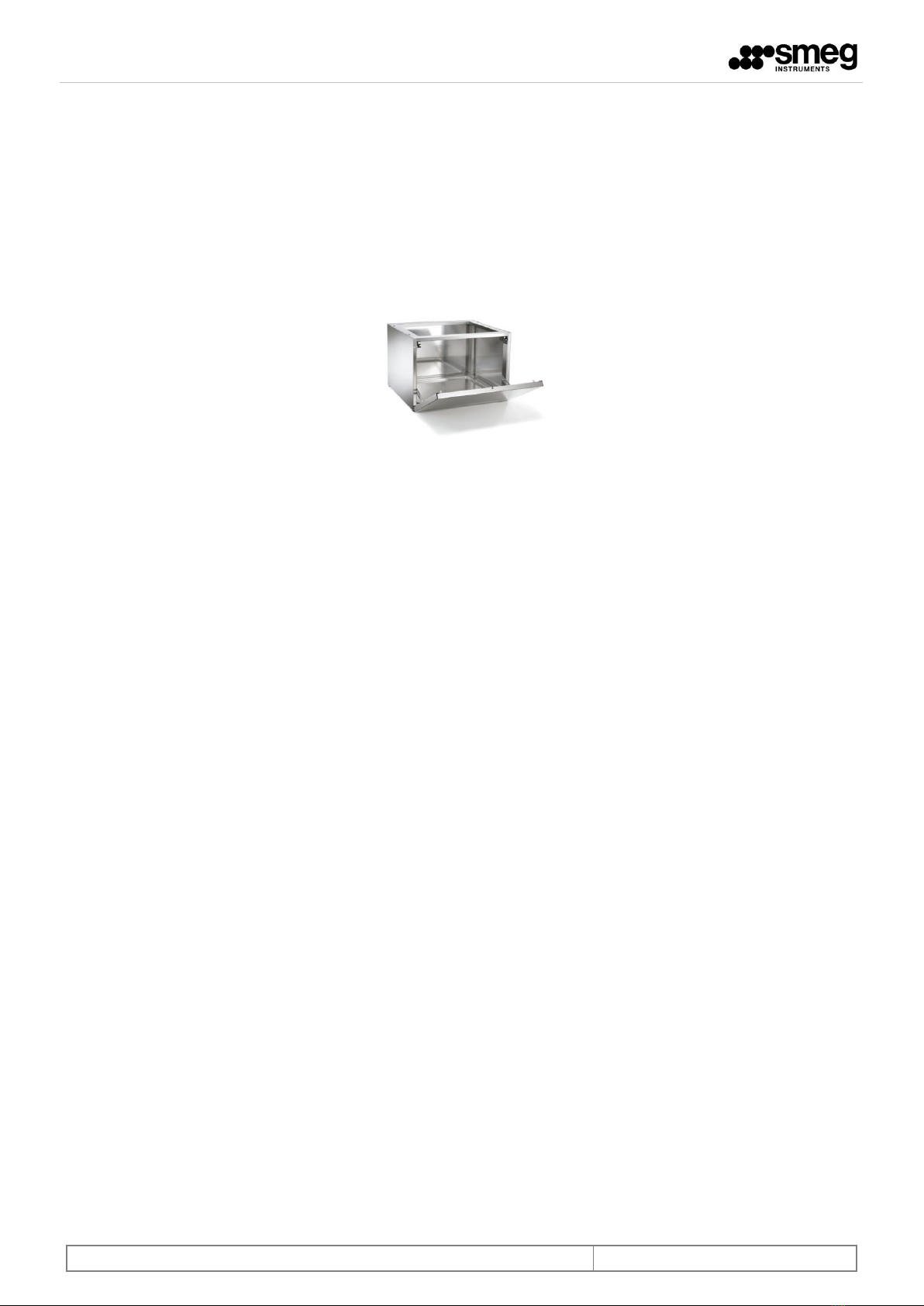

fig. 4–Base Smeg B6040L.

REQUEST FOR START-UP
Rev. 19 561 0151 08 - EN
7 - 18
4ELECTRICAL SYSTEM REQUIREMENTS
Systems necessary to be installed in the room - see also the manual of the model to be installed.
CAUTION
It is essential that the electrical system to which the machine is connected complies with current
regulations. All electrical testing operations and equipment electrical installation should be made
by qualified personnel.
The competent personnel is responsible to check that the earthing is efficient.
The machines are designed for connection to the electricity grid with the following voltages (depending on the model
chosen).
FAMILY
MODEL /
VARIANT
(suffix to the model
name)
CONNECTION
DESCRIPTION
REQUIRED PHASES AND
VOLTAGE
MAX POWER
OVERCURRENT PROTECTION
DEVICE
GW2145,
WD2145
STANDARD
(e.g. WD2145 cod.
860453)
230V Single phase
230V 1N~ / PE / 50Hz / 14A
3.3 kW
Fuses, 16A installed on the
machine
UK
(e.g.WD2145 cod.
860476)
230V 1N~ / PE / 50Hz / 13A
3.0 kW
FUS. 13 A “BS1362” on plug UK
“BS1363”.
STANDARD
60Hz
220V Single phase
220V 1N~ / PE / 60Hz / 14A
3.1 kW
Fuses, 16A installed on the
machine
GW0160,
GW1160,
WD1160,
GW4060,
WD4060,
PW4060,
GW4190,
WD4190
STANDARD (es.
WD4060)
Three-phase 400V
400V 3N~ / PE / 50Hz / 12A
7.0 kW
Fuses, 16A installed on the
machine
-3
(e.g.GW4060-3)
230V three phase
without neutral
230V 3~ / PE / 50Hz / 19A
7.0 kW
Fuses, 20A installed on the
machine
B1
(es.WD4060B1)
single-phase 230V
"full power"
230V 1N~ / PE / 50Hz / 30A
7.0 kW
Fuses, 30A installed on the
machine
-1
(e.g. GW4060-1)
230V Single phase
230V 1N~ / PE / 50Hz / 12A
2.8 kW
Fuses, 16A installed on the
machine
-6
(e.g. GW4060-6)
three phase
380-400V, 60Hz
380-400V 3N~ / PE / 60Hz /
12A
7.0 kW
Fuses, 16A installed on the
machine
-36
(e.g. GW4060-36)
220-230V, 60Hz three
phase without neutral
220-230V 3~ / PE / 60Hz /
19A
7.0 kW
Fuses, 20A installed on the
machine
-16
(e.g. GW4060-16)
220-230V, 60Hz
Single phase
220-230V 1N~ / PE / 60Hz /
12A
2.8 kW
Fuses, 16A installed on the
machine
-U
(North America Mod.
e.g. GW4060U)
North American
models, 208V
convertible
(* default connection)
208V 3~ / PE / 60Hz / 17A *
6000W
Fuses, 30A installed on the
machine
208V ~ / PE / 60Hz / 29A
6000W
GW3060,
GW4090,
WD5090
STANDARD (e.g.
WD4060)
Three-phase 400V
400V 3N~ / PE / 50Hz / 12A
7.0 kW
Circuit breaker required on the
building side, [3P+N, 16 A]
-3
(e.g. WD4060-3)
230V three phase
without neutral
230V 3~ / PE / 50Hz / 19A
7.0 kW
Circuit breaker required on the
building side, [3P, 20 A]
-1
(e.g. WD4060-1)
230V Single phase
230V 1N~ / PE / 50Hz / 12A
2.8 kW
Circuit breaker required on the
building side, [1P+N, 16 A]
-6
(e.g. GW1060-6)
three phase 400V,
60Hz
400V 3N~ / PE / 60Hz / 12A
7.0 kW
Circuit breaker required on the
building side, [3P+N, 16 A]
-36
(e.g. GW1060-36)
230V, 60Hz three
phase without neutral
230V 3~ / PE / 60Hz / 19A
7.0 kW
Circuit breaker required on the
building side, [3P, 20 A]
-16
(e.g. GW1060-16)
230V, 60Hz
Single phase
230V 1N~ / PE / 60Hz / 12A
2.8 kW
Circuit breaker required on the
building side, [1P+N, 16 A]
GW6290
STANDARD
Three-phase 400V
400V 3N~ / PE / 50Hz / 32A
18.5 kW
Circuit breaker required on the
building side, [3P+N, 40 A]
-6
(e.g. GW6290-6)
Three-phase 380-400V
60Hz
380-400V 3N~ / PE / 60Hz /
32A
18.5 kW

REQUEST FOR START-UP
Rev. 19 561 0151 08 - EN
8 - 18
ELECTRICAL CONNECTION
The device is supplied without plug, with cable with pre-insulated terminals pins.
Only The “45cm” machines are supplied with plug (Schuko plug except for the machines for the UK
market, supplied with UK three-pole fuse approved plug).
The electrical connection of the device must be carried out:
1. For all the models of the series GW3060, GW4090, WD5090, GW6290: With a permanent
connection.
2. For all the models of the series GW0160, GW1160, WD1160, GW4060, WD4060, PW4060,
GW4190, WD4190 : With a suitable plug. Suggested: industrial plug (e.g. IEC60309 plug). The
plug and its installation shall be borne by the user.
3. For the “45cm” machines models: using the supplied plug.

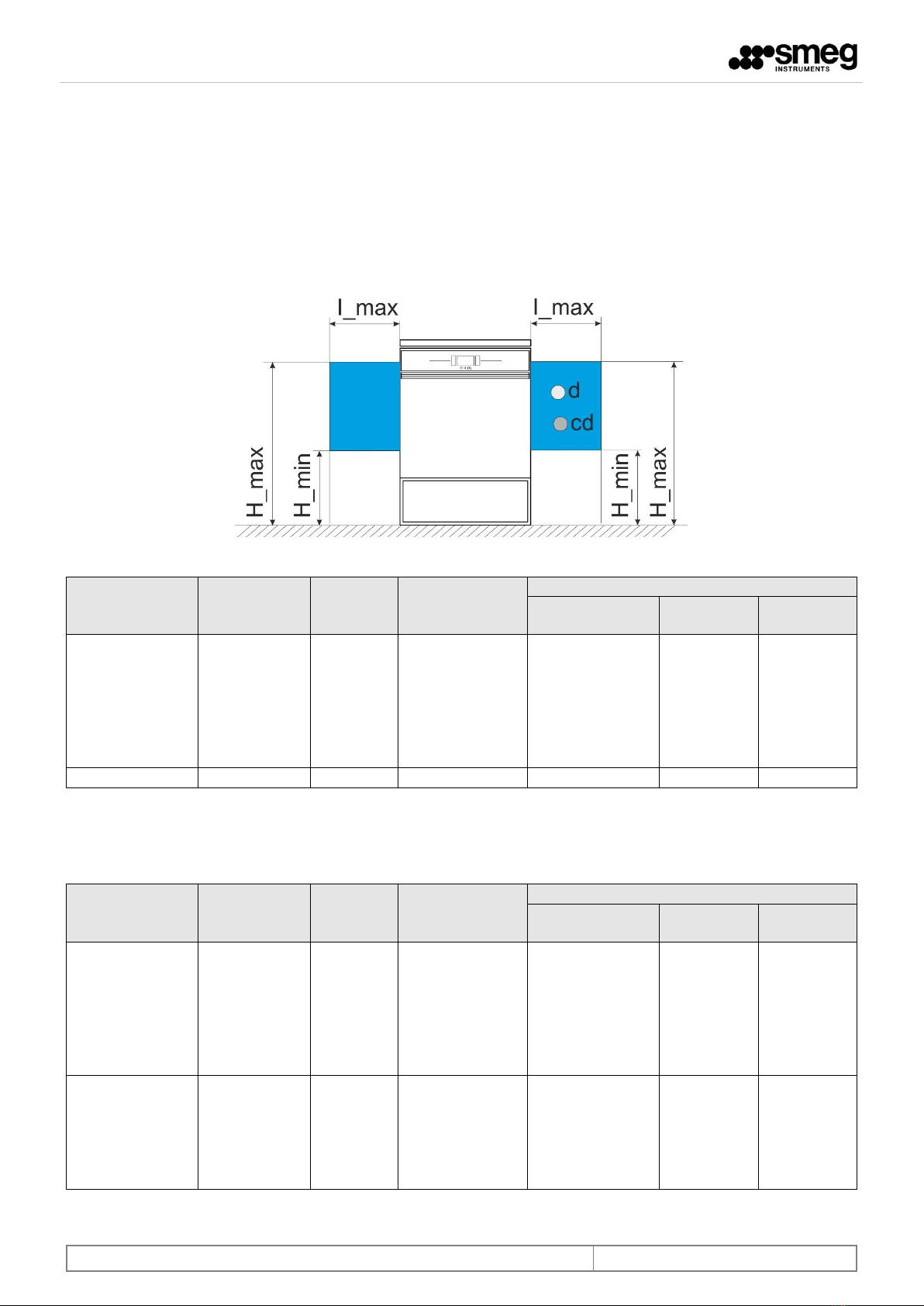

The recommended area for the electrical connection of the device, according to the accessibility of the
connection and the length of the supplied electric cable is marked in the image as "Electrical Connection
Area".
D_max = maximum distance from the sides of the device.
H_min and H_max = minimum and maximum height with respect to the machine support surface.
The following dimensions must be respected:
D_max = 500mm
H_min = 850mm –H_max = 1500mm
GW6290 series only - The following dimensions must be respected:
D_max = 700mm
H_min = 850mm –H_max = 1800mm

REQUEST FOR START-UP
Rev. 19 561 0151 08 - EN
9 - 18
POWER CABLE
Characteristics of the power cable supplied with the equipment:
45cm Models (2145):
- UK market: H05V2V2-F 3 x 1.5 mm2
- Other markets: H05V2V2-F 3 x 2.5 mm2
Characteristics of the power cable supplied with the equipment:
- 5 x 10 mm2 (5G10), FG16OR16 0,6/1 kV, IMQ mark (GW6290 series)
- H07RN-F 5 x 2.5 mm2 (5G2,5), 450/750 V (three-phase version)
- H07RN-F 4 x 2.5 mm2 (4G2,5), 450/750 V (three-phase without neutral version)
- H07RN-F 3 x 2.5 mm2 (3G2,5), 450/750 V (single-phase version)
- SJT 4 x 10 AWG, 300V (208V version, North American Models)
- H07RN-F 3 x 6 mm2 (3G6), 450/750 V (single-phase version "full power" 230V 7.0 kW)
ELECTRICAL MAINS SWITCH
A disconnecting device, on the building side, shall be provided for every equipment installed.
Disconnecting device characteristics:
a) the disconnecting means shall disconnect all current-carrying conductors
b) Il must be easily accessible for the user.
c) Easy to operate (without the use of a TOOL);
d) it shall be in close proximity to the equipment
e) it shall be marked as the disconnecting device for the equipment.
OVERCURRENT PROTECION DEVICE
For all the models not provided with an overcurrent protection device, an overcurrent protection
device is required on the building side (circuit breaker or fuses in all supply conductors, calculated
on the basis of the electrical characteristics listed above in the table).
It is always recommended to use an overcurrent protection device for all models.

REQUEST FOR START-UP
Rev. 19 561 0151 08 - EN
10 - 18
5HYDRAULIC ARRANGEMENT
Key to abbreviations used for water connections.
INITIALS
LOAD / UNLOAD
WATER TYPE
cw
FILLING
cold water hose - cw (cold water)
hw
FILLING
hot water hose - hw (hot water)
dw
FILLING
demineralized water hose under pressure - dw (demineralized water)
d
DRAIN
machine drain hose - d (drain)
cd
DRAIN
steam condenser drain hose - cd (condenser drain)
5.1 WATER FILLING
5.1.1 WATER INLETS CONNECTION
The machine is equipped with one or filling hoses, depending on the type of model.
The hoses are designed to be connected to taps with 3/4'' gas threaded bushing.
Use the filter provided, "A" in the image, when connecting the ends of the filling hose.
The GW1160 series models, GW4060, GW4190 with "W suffix" (eg. GW4060WS1) provide 3 water inlet (cold, hot,
demineralized). "W" for "warm" - hot.
fig. 5–When connecting the filling hose install the filters provided.
SERIES
MODELS /
VARIANTS
N. FILLING
CONNECTIONS
CONNECTION TYPE
cw
dw
hw
GW2145
All models
2


-
GW1160
Standard
2


-
GW1160
“W”
3



GW3060
All models
3



GW4060
Standard
2


-
GW4060
“W”
3



PW4060
All models
2


-
GW4090
All models
3



GW4190
Standard
2


-
GW4190
“W”
3



GW6290
All models
3



WD2145
All models
2


-
WD1160
All models
2


-
WD3060
All models
3



WD4060
All models
2


-
WD4190
All models
2


-
WD5090
All models
3




REQUEST FOR START-UP
Rev. 19 561 0151 08 - EN
11 - 18
5.1.2 FILLING TAPS POSITIONING
The taps for the water filling must be positioned close to the appliance, in a position accessible to the user. With reference to
the following figure, the values recommended are:
I < 50 cm HC < 80 cm
fig. 6–Schematic drawing. The filling connections can be provided on the right or left side of the appliance, always taking into account the maximum
distance indicated by the product “I”.
Note to prevent the risk of clogging or damage: if the water pipe is new or has been inactive for a long time, before connecting
the water supply make sure that the water is clear and free of impurities.
CAUTION
If there is not a double hot/cold water supply, the two supply hoses (cold and hot) must be connected together through a
special Y (see image below).
fig. 7 –"Y" connection of the water filling with filters positioning.

REQUEST FOR START-UP
Rev. 19 561 0151 08 - EN
12 - 18
5.1.3 SYSTEM REQUIREMENTS
Ensure that:
1. the water supply pressure is within the required limits: min. 2 bar - max 5 bar.
2. The hot water temperature must not be higher than 50 ° C - for models with built-in water softener. Higher
temperatures may damage the efficiency of the water softener incorporated causing damage to the resins contained
in it.
3. GW6290 series only (without built-in water softener): The hot water temperature must not exceed 60 ° C.
4. The water supply taps must be accessible.
5. These appliances are equipped with backflow prevention devices compliant with EN 61770, in accordance with the
requirements of EN 61010-2-040. If required by local regulations, the technician who plumbs in the appliance must
include an additional suitable backflow prevention device, at the customer’s expense.
5.1.4 CHARACTERISTICS OF WATER SUPPLY
REQUIRED WATER SUPPLY - Synthetic table
Water type
1 –Cold Network CW
(compulsory)
2 –Hot Network HW
3 –Demineralized DW
Pressure Range
200 kPa –500 kPa (2 bar –5 bar)
Threaded connection type
3 / 4 ”
Required flow rate [min –max]
2 –12 litres / min.
Fe2+ / Fe3+ [max.]
0.5 ppm
-
GW6290 only
Min. - Max. temperature
8 –35 °C
8 –60 °C
8 –60 °C
Other models - Under bench
Min. - Max. temperature
8 –35 °C
8 –50 °C
8 –50 °C
Max. Conductivity
-
-
30 μS/cm
Microbial contamination limits
Minimum microbiological quality required:
“drinking water type” (ref. limits provided by
Legislative Decree 31/2001, European Directive
98/83/CE)
-
Cw: WATER MAINS - essential:
For the operation of the machine it is required that the connection is to a water mains of "drinkable" quality having a hardness
of max. of 42°f (8°f for GW6290) and with the total content of dissolved iron, Fe2+ and Fe3+, not greater than 0.5 ppm.
Note: for all machines equipped with steam condenser it is advisable to use purified water, preferably with a maximum
hardness of 20 ° f.
Hw: HOT MAINS WATER - optional and available only on some models:
Connection to a water mains of "drinkable" quality having a hardness of max. 42°F (8°f for GW6290) and with the total content
of dissolved iron expressed as Fe2+ and (+) Fe3+ not greater than 0.5 ppm.
NOTE
In case the water supply contains iron Fe2+/Fe3+ in a quantity exceeding 0.5 ppm and / or the supply water has a hardness
greater than 42°f (French degrees) it is necessary to undertake a pretreatment of the water by installing upstream an iron
removal and/or softening system.
[Models GW6290 do not have an integrated softener: the maximum water hardness allowed is therefore 8°f.]

REQUEST FOR START-UP
Rev. 19 561 0151 08 - EN
13 - 18
Dw: DEMINERALIZED WATER- optional (highly recommended):
If available, the demineralized water (conductivity < 30 µS) is recommended to have an optimal washing from the chemical
point of view, for a better elimination of the residues of the salts present in the water supply mains; the lack of this connection
does not affect the removal of dirt.
WARNING - NO DEMINERALIZED WATER
If demineralized water is not available on the system, do not connect the related hose to cold and/or
hot water inlet taps. Leave the "demineralized water" hose not connected.
It is necessary to adequately correct the machine SETTINGS - by the Authorized Service Center.
5.1.5 “PAD” ACCESSORY FOR DEMINERALIZED WATER NOT UNDER PRESSURE
The connection to a line of demineralized water not under pressure (e.g. gravity tank), is possible only by installing a special
booster pump.
Each model must be equipped with its own specific pump - see table below.
This pump ensures that the demineralized water enters with sufficient pressure for proper operation of the machine.
The PAD and PAD1 accessories are mounted externally and hooked on the back of the machine.
The PAD2 accessory is mounted outside the appliance. On certain models the PAD2 requires necessarily the use of
the kit “PAD2R”, see the Table below.
SERIES
TYPE OF PAD WHICH CAN BE USED
“GROUND” TANK
“RAISED” TANK
GW2145
-
PAD1
GW0160
PAD2 + PAD2R
PAD1
GW1160
PAD2 + PAD2R
PAD1
GW3060
PAD2
PAD
GW4060
PAD2 + PAD2R
PAD1
PW4060
PAD2 + PAD2R
PAD1
GW4090
PAD2
PAD
GW4190
PAD2 + PAD2R
PAD1
GW6290
PAD2
-
WD2145
-
PAD1
WD1160
PAD2 + PAD2R
PAD1
WD3060
-
-
WD4060
PAD2 + PAD2R
PAD1
WD4190
PAD2 + PAD2R
PAD1
WD5090
-
-
CAUTION
- FOR THE INSTALLATION OF "PAD" and "PAD1" MAKE SURE THAT:
The supply pressure of the PAD is less than 1 bar and greater than 0.1 bar.
- "PAD" and "PAD1" IN COMBINATION WITH TANK NOT UNDER PRESSURE
With reference to the following image, the tank must be at a distance L such that:
L > 100 cm
The value represents the distance between the support surface of the machine and the lower support
surface of the tank. This height ensures an inlet pressure to the PAD of approximately 0.1 bar.
- "PAD2" IN COMBINATION WITH A TANK NOT UNDER PRESSURE
With the installation of PAD2, the tank not under pressure can be at the same level of the support
surface of the appliance, with reference to figure L ≥ 0.

REQUEST FOR START-UP
Rev. 19 561 0151 08 - EN
14 - 18

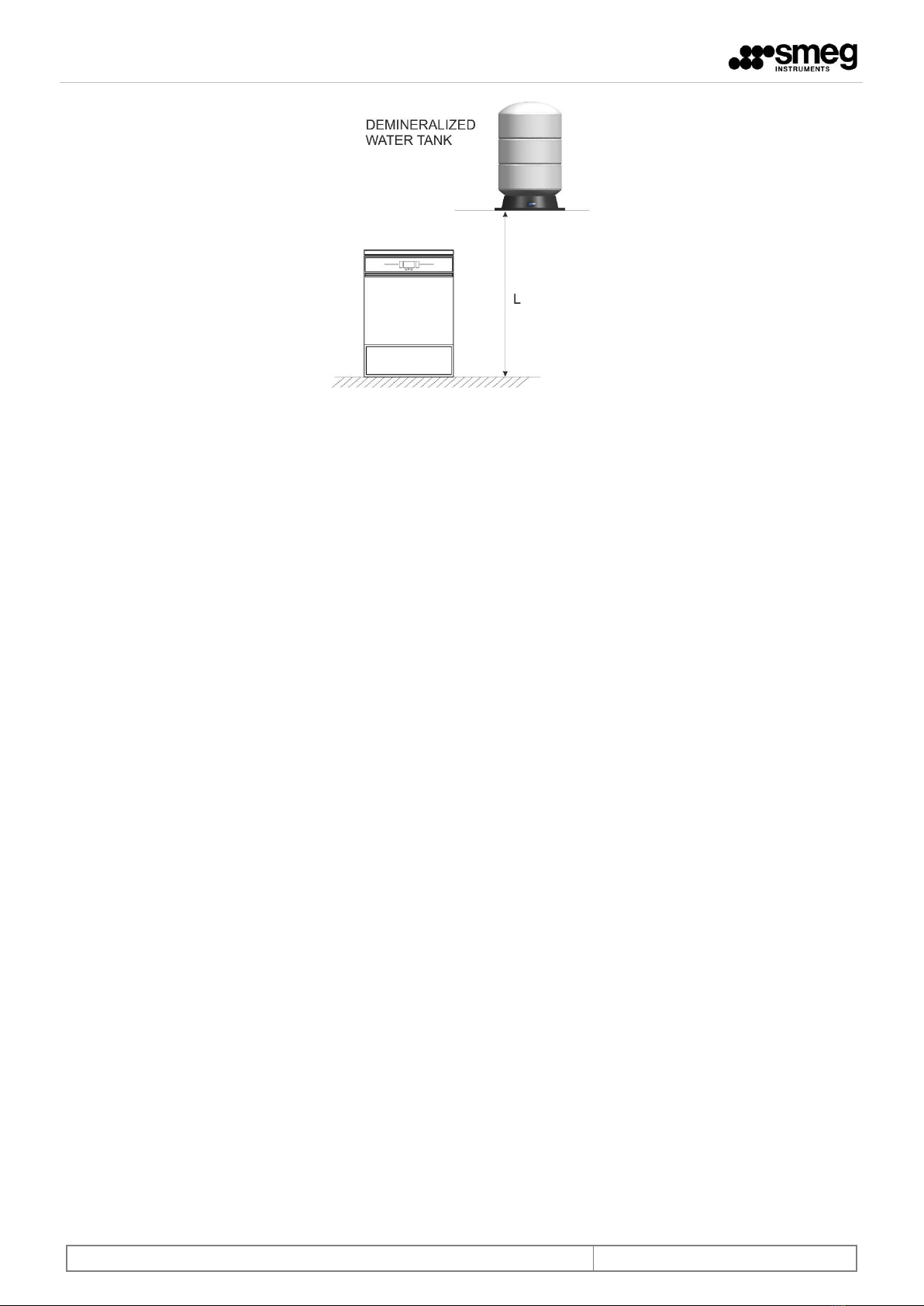

fig. 8 –Tank not under pressure, height with respect to the supporting surface of the device.

REQUEST FOR START-UP
Rev. 19 561 0151 08 - EN
15 - 18
5.2 WATER DRAIN
Drain hoses of the machine: Rubber terminal with hose connector diameter 21mm (1/2").
The machine is equipped with one or more drain hoses, depending on the model.
The drain hoses are referred to as:
- d- machine drain hose –d(drain)
- cd - steam condenser drain hose (not always installed) –cd (condenser drain)
Dimension “I” –the distance of the drain from the appliance side, for all the models, must be: I < 50 cm
Dimension "H" –the height from the support surface of the machine: H_min < H < H_max
fig. 9–Schematic drawing. The hydraulic drain connections can be arranged on the right or left of the unit, always taking into account the maximum distance
indicated by the product “I”.
SERIES
MODELS
/ VARIANTS
N. of
DRAIN
HOSES
“I” max [cm]
DRAIN TYPE AND DIMENSION “H” [cm]
Type
H_min
H_max
GW2145
GW0160
GW1160
GW4060
GW4190
GW3060
GW4090
Standard
1
50
d
65
80
GW6290
All models
1
50
d
95
105
Note: For the GW laboratory machines, only the variants equipped with steam condenser are equipped with an additional
drain pipe. They are conventionally identified with the suffix "C" for "Condenser" (Eg GW4060C, GW3060SC, etc.).
SERIES
MODELS
/ VARIANTS
N. of
DRAIN
HOSES
“I” max [cm]
DRAIN TYPE AND DIMENSION “H” [cm]
Type
H_min
H_max
GW2145
GW0160
GW1160
GW4060
GW4190
GW3060
GW4090
“C”
(e.g.
GW4060C)
2
50
d + cd
65
80
WD2145
WD1160
WD4060
WD4190
WD3060
WD5090
Tutti
2
50
d + cd
65
80

REQUEST FOR START-UP
Rev. 19 561 0151 08 - EN
16 - 18

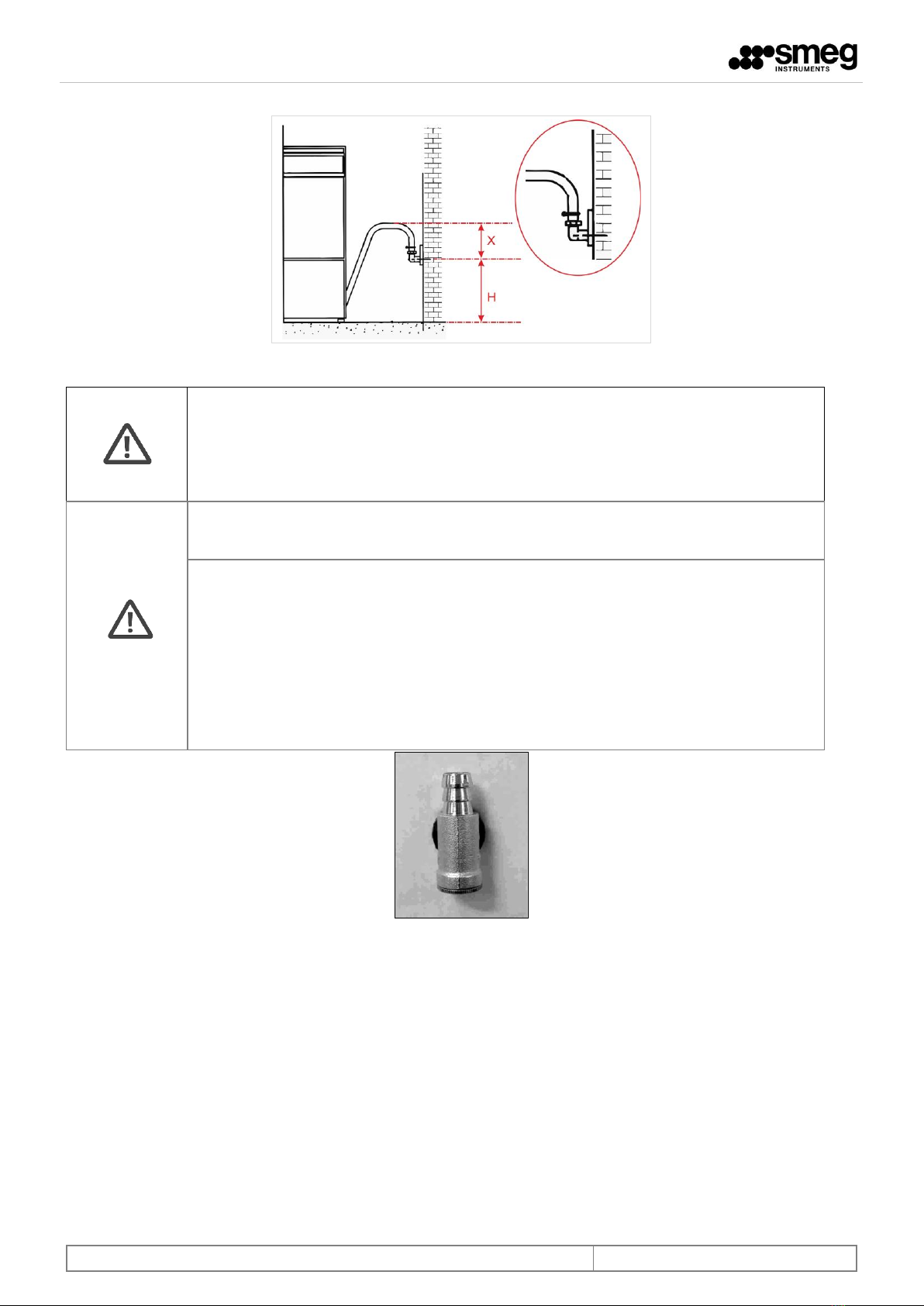

fig. 10 –Drain connection.
CAUTION
The dimension “Hin the figure must always be within the limits shown in the table: H_min and
H_max (for example for WD4060: H_min=65cm, H_max=80cm).
Dimension "X": The dimension "X" between the discharge connection and the highest part of the
tube should always be less than 20cm: X < 20cm.
Use only original Smeg parts.
CAUTION
The drain must comply with international regulations: our company accepts no liability for
pollution caused by improper use of the appliance.
DRAINAGE TRAP
The drainage trap in the system must preferably be composed of:
- a water tight seal (generally of a depth not less than 50 mm);
- a part which is easily removable for cleaning.
Requisite 5.25.1 EN ISO 15883-1
“The design of the drainage trap shall include the following:
a) a water seal (usually of a depth no less than 50 mm);
NOTE Local regulations applicable to the water seal can exist.
b) a trap which is removable for cleaning or is fitted with an accessible cleaning port.
NOTE This can be provided as part of the building installation.”
fig. 11 –Adapter with connector for 1/2" hose.
General guidelines for installing the drain
The use of an drain with syphon is recommended. During the installation procedure, the following precautions should be
observed:
Since the temperature of drain water is 95°C, the end of the drain hose must be installed permanently to the hose
connector, using the straps provided.
The drain hose must not have sharp bends leading to bottlenecks.
The end of the drain hose must be placed, with respect to the support surface of the machine, at a height conforming to
the specifications.
In no event the end of the hose shall be submerged in water.
The inner diameter of the drain duct must be at least 40 mm.
It is recommended to install a drain duct with 50 mm diameter.
Extensions must not be made on the drain hose that comes with the machine. Any extensions may cause reflux problems
in the tank.

REQUEST FOR START-UP
Rev. 19 561 0151 08 - EN
17 - 18
5.3 STEAM DRAIN CONNECTION –GW6290 MODELS ONLY
The machine is fitted with double steam drain duct: the environments must be prepared to connect the drain ducts of the
machine, located at the top of the appliance.
The two ducts are equipped with rubber sleeves for connection to the external suction system.
Please note
In the event that the external air and steam venting system creates a vacuum in suction (this happens in the case of systems
with forced air extraction or in systems with venting chimneys with a high height): it is necessary to set up a chimney circuit
breaker, so as to avoid to create a depression in the washing chamber that would compromise the temperatures and therefore
the correct execution of the cycle. Contact the authorized technical assistance for information and clarifications.
Air / steam exhaust
Connection Type
Two stainless steel Ducts Outer diam. = 40mm - high side,
on the back
Air flow
Max 300 m³/h
Temperature
Max 110°C
fig. 12 –Top view. Position of the two drain ducts, upper part, top view of the machine. Dimensions in mm.
fig. 13 –If the exhaust system creates a depression (eg due to forced aspiration):
the chimneys must be separated considering a recommended distance Dof 30mm.
This solution may need to be adapted based on actual local installation conditions.

REQUEST FOR START-UP
Rev. 19 561 0151 08 - EN
18 - 18
Smeg S.p.A.
Via Leonardo da Vinci, 4
42016 Guastalla –Reggio Emilia - Italy
www.smeg-instruments.com
International Customers
Please contact your Local Smeg Distributor or write an email to service.instrument[email protected]
