Smeg UG411DSUK User manual

1
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
SUMMARY
1PRODUCT IDENTIFICATION ..................................................................................................................................3
1.1 APPLICATION, GENERAL FUNCTIONS ANDINTENDED USE.............................................................................3
1.2 NAME AND ADDRESSOF MANUFACTURER ORDISTRIBUTOR.........................................................................3
SMEG S.P.A..............................................................................................................................................................3
1.3 DECLARATION OFCONFORMITY TO PRODUCT STANDARDS...........................................................................3
1.4 DESCRIPTION OF THE APPLIANCE..................................................................................................................4
2SYMBOLS USED IN THE MANUAL.........................................................................................................................4
3SAFETY PRECAUTIONS AND INSTRUCTIONS.........................................................................................................5
3.1 CORRECT INSTALLATION...............................................................................................................................5
3.2 SAFE USE......................................................................................................................................................6
3.3 CORRECT MAINTENANCE..............................................................................................................................6
4PRODUCT CHARACTERISTICS................................................................................................................................7
4.1 OVERALL DIMENSIONS FOR BUILT-UNDER INSTALLATION .............................................................................7
4.2 TECHNICAL CHARACTERISTICS.......................................................................................................................8
5PREPARING THE APPLIANCE FORUSE..................................................................................................................9
5.1 POSITIONING AND INSTALLATION.................................................................................................................9
5.2 CONNECTION TO THE WATER SUPPLY.........................................................................................................10
5.3 DRAINCONNECTION...................................................................................................................................10
5.4 CONNECTION TO THEELECTRICITY SUPPLY..................................................................................................11
6FIRST START-UP.................................................................................................................................................12
6.1 FIRST START-UP..........................................................................................................................................12
6.2 PREPARING FOR USE ( IMPORTANT )..........................................................................................................12
6.3 USING THE WATER SOFTENER (ON MODELS WITH THIS FEATURE ONLY).....................................................12
7CONTROL PANEL................................................................................................................................................13
LIGHTL2 ................................................................................................................................................................13
GREENLIGHT: DISHWASHER READY........................................................................................................................13
BLUE LIGHT: DISHWASHER IN OPERATION (WASHING IN PROGRESS, FILL IN PROGRESS ....)....................................13
RED LIGHT: INDICATES A MALFUNCTION................................................................................................................13
7.1 SET-UP (AUTHORISED STAFFONLY)............................................................................................................14
7.2 MODIFIABLE PARAMETERS.........................................................................................................................15
7.3 STARTING THE PERISTALTIC PUMPS – RAPID FILLING OF DETERGENT AND RINSE AID DELIVERY CIRCUIT......18
8MALFUNCTIONS SHOWN ON THE DISPLAY (FOR THE TECHNICIAN) ...................................................................19
9INSTRUCTIONS FOR THE USER ...........................................................................................................................21
LIGHTL2 ................................................................................................................................................................21
GREENLIGHT: DISHWASHER READY........................................................................................................................21
BLUE LIGHT: DISHWASHER IN OPERATION (WASHING IN PROGRESS, FILL IN PROGRESS ....)....................................21
RED LIGHT: INDICATES A MALFUNCTION................................................................................................................21
9.1 BEFORE WASHING ......................................................................................................................................22
9.2 FIRST USE EACHDAY (TANK AND BOILEREMPTY)........................................................................................23
9.3 OPERATING ANOMALIES.............................................................................................................................24
9.4 PROGRAM CHANGE....................................................................................................................................24
10 CHOSING THE PROGRAM...............................................................................................................................25

2
11 BASKETS PROVIDED.......................................................................................................................................26
12 MAINTENANCE AN CLEANING........................................................................................................................27
12.1 CLEANING THE FILTER DURING THE DAY .....................................................................................................28
12.2 TOTAL PUMP-OUTAT THE END OF THE DAY................................................................................................28
12.3 TOPPING UP WITH REGENERATING SALT (FOR MODELS WITH SOFTENER)...................................................29
12.4 ROUTINEINSPECTIONOF THE SPRAY ARM (ONCE AWEEK )........................................................................29
12.5 LENGTHY PERIODS OUT OF USE...................................................................................................................29
13 TROUBLESHOOTING.......................................................................................................................................29
14 MALFUNCTIONS SHOWN ON THE DISPLAY (FOR THE USER)...........................................................................32
SMEG thanks you for choosing one of its products.
This manual is an integral part of the appliance. Take good care of it and keep it to hand throughout the
appliance’s life cycle, since it contains important information about assembly,safety, use and maintenance.
In the event that the appliance is sold on, consign this manual to the new owner.
Before putting the appliance into operation, read all the instructions in this manual carefully to become familiar with the right
conditions for the properuse ofyour professional dishwasher.

3
1PRODUCT IDENTIFICATION
1.1 Application, general functions and intended use
This dishwasher is intended for professional use in the restaurant and institutional catering sector and
complies with the relevant safety regulations. However, misuse may cause injury and/or damage, and
therefore the dishwasher must only be used by suitably trained staff.
This dishwasher is designed for use in non-mobile premises and is intended only for washing cutlery and
dishes (plates, ovenware, cups, glasses, bowls, etc.) stable at the temperature and humidity generated by
the appliance. Any other type of use is not permitted andmay be dangerous.
Persons whose physical, sensory or mental capabilities, inexperience or lack of knowledge render them
unable to use the dishwasher safely must not use it without the supervision and guidance of a responsible
person.
The manufacturer is not liable for any injury or damage caused by failure to comply with the instructions
given in this manual, misuse, tampering with even a single part of the appliance, or the use of non-genuine
spare parts.
1.2 Name and address of manufacturer or distributor
Smeg S.p.A.
Via Leonardo da Vinci, 4 - 42016 Guastalla (RE) Tel. [phone] - Fax + 39 0522 821453
Internet: www.smegfoodservice.com, email: foodse[email protected]
Our Sales Department staff will be able to provide you with information about prices and special offers.
Our After-Sales Department will be able to provide you with guidance about keeping your device
functioning correctly and put you in touch with your nearest authorised Service Centre. Our entire product
offering can be viewed at our website.
1.3 Declaration of conformity to product standards
Thisappliance complies with the relevant safety regulations and conforms tothe requirements of directives
2006/42/EC and 2004/108/EC.
The dishwasher is also marked in compliance with European Directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE).
For information on the treatment, recovery and recycling of this product, contact the local
authority, domestic waste collection service, or your Smeg reseller.
Make sure that this product is scrapped correctly to safeguard the environment and health.

4

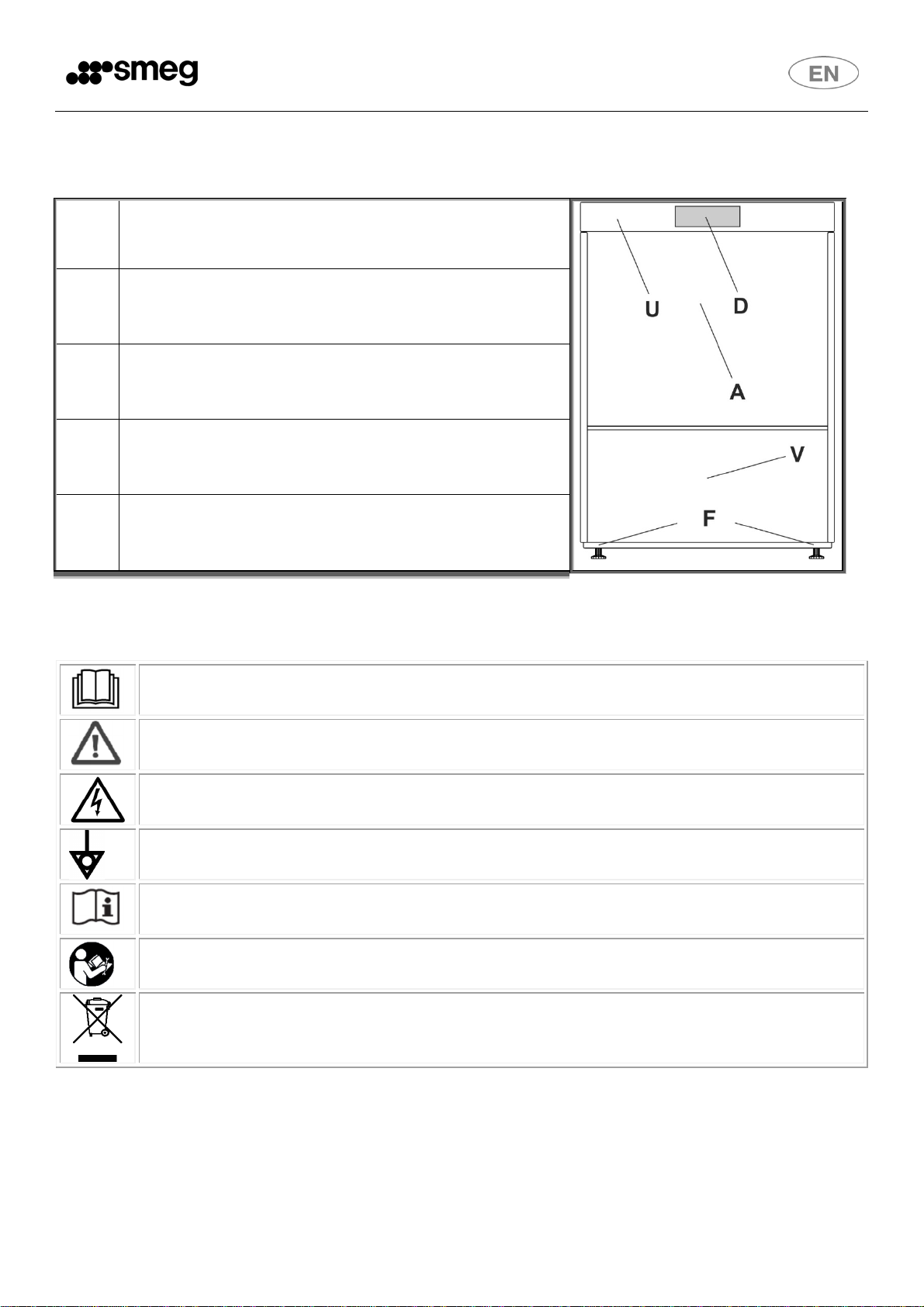

1.4 Description of the appliance
U COVER (TOP)
D DISPLAY AND CONTROL PANEL
A FRONTLOADING/UNLOADING DOOR
V SERVICE COMPARTMENT
F ADJUSTABLE FEET
2SYMBOLS USED IN THE MANUAL
This symbol instructs the user to read the instructions in the manual with care.
This symbol appears next to information important for the safety of people and the
appliance.
This symbol is applied to some parts which contain live electrical components and indicates
the risk of electric shock.
This symbol is applied close to the terminal used to earth the appliance's electrical system.
This symbol appears next to important information. Read the instructions provided with care
and comply with the procedures and rules described.
This symbol appears next to information and technical instructions intended for the qualified
staff who are to install, commission and test the appliance and carry out any repairs.
This symbol indicates that at the end of its working life, the appliance must be consignedto a
disposal plant for recovery and recycling in accordance with the relevant legislation in the
country of installation. Contact a specialist centre for disposal.

5
3SAFETY PRECAUTIONS AND INSTRUCTIONS
The precautions and instructions below contain important information and must be read withcare.
The manufacturer does not accept responsibility for damage caused by failure to comply with the safety
precautions and instructions.
3.1 Correct installation
The dishwasher must be installed by an authorised technician.
When handling and installing the dishwasher, always wear the most suitable personal
protection equipment (PPE) for the task in hand.
Do not install a dishwasher which has been damaged during transport. If in doubt, consult
your dealer.
If the power supply cable is damaged, do not run the dishwasher.
Do not install the dishwasher in areas subject to freezing temperatures or in atmospheres
with explosion risk (ATEX).
Any accessories may only be installed on the appliance if authorised by the manufacturer.
Do not install the dishwasher next to appliances which irradiate strong heat (e.g. gas burners,
stoves, etc.) since they could cause damage.
If the dishwasher is installed above the ground, make sure that the stand and dishwasher are
secured properly and do not constitute a hazard.
Electrical safety is only ensured if the dishwasher is connected to an earth conductor
compliant with the relevant electrical regulations. If in doubt, have the system inspected by a
qualified electrician.
A circuit breaker and overcurrent protection device (magnetothermal switch or fuses) must
be installed in an easily accessible position on the dishwasher's power supply line. This
device must only serve the dishwasher and must be suitable for its rated electrical
characteristics.
Do not connect the dishwasher to the electrical mains by means of adapters or extensions,
since they do not guarantee the safety required.
If the dishwasher is connected to the electrical mains by means of a plug, it must be of the
same type as the power socket, suitable for the appliance's rated electrical characteristics
and compliant with the relevant national regulations on electrical systems. The power plug
must be easily accessible after the appliance has been installed.
Only use new hoses for connection to the water supply. Old hoses or hoses salvaged from
previous installations must not be used.
The drain connection must be made in accordance with the relevant national regulations.
Substandard connections may cause flowback and in some cases pollution.

6
3.2 Safe use
The staff assigned to use the dishwasher must be suitably trained and instructed.
The appliance is not suitable for use by juveniles or persons with reduced physical, sensorial
or mental capacities, or those without the necessary knowledge and experience. Such
persons may only use the appliance under the supervision of a person responsible for their
safety.
Do not leave the dishwasher door open. Risk of tripping or injury against the edges of the
door.
Do not sit or lean on the open door. This may tip over or damage the appliance.
The water inside the dishwasher is not drinkable.
Do not use the dishwasher for washing or soaking foods.
Do not use the water inside the dishwasher for defrosting foods, even if they are in airtight
containers.
When using the dishwasher, remember that the plates are very hot at the end of a wash
cycle.
Knives and pointed kitchen equipment must be placed in the basket with their tips
downwards, or horizontally, taking care not to allow them to protrude from the basket
The dishwasher is only intended for use with water and detergents suitable for washing in
professional dishwashers. The use of other products may damage both the dishes and the
appliance.
Do not operate the dishwasher with organic solvents or flammable liquids. Never load dishes
dirty with ash, wax or paint.
When handling detergents comply strictly with the instructions provided by the detergent
producer.
Always keep the detergent safety datasheets within reach so that the operator can consult
them easily if necessary.
Swallowing or inhaling detergents may cause serious injury to the nose, mouth and throat.
If detergent has been inhaled or swallowed, seek medical advice immediately.
3.3 Correct maintenance
Do not clean the machine with a water jet machine, high-pressure or steam cleaners.
Before performing any maintenance procedure on the appliance disconnect it from the mains
electricity supply. Touching live electrical components, even accidentally, may be very
dangerous.
Never open the dishwasher's case. Electric shock hazard. Only the authorised technician
may access the internal parts of the dishwasher.
The dishwasher may only be repaired by the authorised service organisation. Substandard
repairs may cause damage or danger for the user.
No alterations or changes of any kind to the appliance's electrical circuits or mechanical
structure are permitted. The manufacturer declines all responsibility for damage arising from
unauthorised alterations.
Replace any faulty parts only with genuine spare parts. The manufacturer declines all liability
for damage resulting from the use of non-genuine spare parts.
The power supply cable, if fitted, must be replaced by the manufacturer or an authorised
service centre in accordance with the technical data specified on the wiring diagram
supplied with the appliance, to prevent all risks.

7
4PRODUCT CHARACTERISTICS
4.1 Overall dimensions for built-under installation
R LOWER BACK PANEL EELECTRICITY SUPPLY CABLE
CFILLER HOSE PPERISTALTIC HOSES
QEARTH TERMINAL SDRAIN HOSE
TEXTERNAL DISPENSER POWER CABLE ENTRY POINT

8
4.2 Technical characteristics
Electricity supply - See technical data plate and
electrical wiring diagram
supplied with the appliance
Intake water pressure -
Intake water temperature -
Use - Indoor
Max. working altitude m 2000
Working ambient temperature °C 10 - 35
Relative humidity 80% for temperatures up to
25°C with linear decrease to
50% at the temperature of
35°C
Intake water hardness
(models with softener) °f ≤ 60
Intake water hardness
(models without softener) °f ≤ 15
Water intake flow rate
(models with rinsing pump) L/min min 6
Water intake flow rate
(models without rinsing pump) L/min min 12
Intake hose connection - threaded 3/4 “
Drain minimum diameter mm 25
Drain height (above appliance installation surface) mm max 600
Rinse cycle water consumption L 2.3
Boiler capacity L 4
Tank capacity L 8
Noise level LpA < 60 dB(A)
Degree of protection IPX 4
Net weight kg ˜ 55
Power supply cable type ◄HAR►H07RN-F

9
5PREPARING THE APPLIANCE FOR USE
Convey the dishwasher to the installation site, remove the packaging and check the appliance and
components for damage; any damage found must be reported to the transporter in writing. The packaging
components (plastic bags, expanded polystyrene, nails, etc.) must not be left within reach of children and
pets since they are potentially dangerous. All packaging materials used are environment-friendly. They can
be kept without constituting any hazard, or may be disposed of at a specialist waste disposal centre. The
plastic components suitable for recycling are marked as follows:
PE -polyethylene: external packaging film, bag containing the instructions, protective bags.
PP - polypropylene: straps used to close the packaging.
PS -expanded polystyrene: cornerguards, top of packaging.
Wooden and cardboard components can be disposed of in accordance with the local regulations.
5.1 Positioning and installation
Place the dishwasher in the chosen point and remove the protective film. Level the dishwasher (withthe
aid of a spirit level) on its four feet, adjusting them to ensure that it is stable. If the dishwasher is installed
above the ground, make sure that the stand and dishwasher are secured properly and do not constitutea
hazard.
All operations described in this section must be carried out and/or checked by the qualified
staff who install and commission the dishwasher.
The systems and premises in which the dishwasher is installed must comply with the relevant
regulations.
If the dishwasher is installed next to another appliance, also check the recommendations
provided by the manufacturer of the adjacent appliance.
Installations other than those described must first be approved by the manufacturer.
Use only professional furnishings and units in the vicinity of the dishwasher. Any other types
of furnishing may be damaged.

10
5.2 Connection to the water supply
Check that the intake water pressure, flow rate and temperature are as stated in the dishwasher's
technical characteristics. If the dynamic pressure exceeds the limit stated in the
technical characteristics, a pressure reducer must be installed. If the pressure is
lower, it might be necessary to fit a special pump to ensureoptimal
performance. Connect the water intake hose to a connector with ¾” gas
threaded fitting, inserting the filter "A" provided. The tap must be easily
accessible after installation of the appliance.
5.3 Drain connection
The dishwasher is fitted with a drain pump and can operate with drain connections on the floor or wall.
Before connecting the hose, check that the diameter and height of the wall drain connection are as stated
in the dishwasher's technical characteristics. When connecting the dishwasher's drain hose, take care to
avoid kinks, sharp bends or crushing. Since the drain water temperature can be very high, the end ofthe
drain hose must be fixed to the drain connection using the hoseclamps provided.
Only use new hoses for connection to the water supply. Old hoses or hoses salvaged from
previous installations must not be used.
If the water supply system has been unused for a long time or if work has been done on it,
before connecting the appliance's intake hose run the water to flush the air and dirt from the
pipes.
FOR MODELS WITH A WATER SOFTENER
An “approved” double check valve or some other noless effective device providing backflow
prevention protection to at least fluid category two shall be fitted at the point of connection
between the water supply and the fitting or appliance.
FOR MODELS WITHOUT A WATER SOFTENER
An “approved” single check valve or some other no less effective device providing backflow
prevention protection to at least fluid category two shall be fitted at the point of connection
between the water supply and the fitting or appliance.
The drain connection must be made in accordance with the relevant national regulations.
Substandard connections may cause flowback and in some cases pollution.
No extensions must be added to the drain hose supplied with the appliance. Any extensions
might cause drainage problems.
