Smeg PL8605XTD User manual

installation
and operating
instructions
PL8605XTD
dishwasher
smeg
technology with style
���
�
�
�

Contents

1. Safety and operating instructions AAAAAAAAAAAAAAAAAAAAAAAAAAA
2. Installation and hook-up AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
3. Description of the controlsAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
4. Operating instructions AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
5. Cleaning and maintenance AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
6. Troubleshooting AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
Thank you for choosing this product.
We advise you to carefully read all the instructions contained in this
manual, in order to understand how to operate your dishwasher safely
and correctly.
The manual is divided into paragraphs, which provide a step by step
description of the dishwasher functions, with clear instructions
accompanied by detailed illustrations.
Recommendations are given for the correct use of the baskets, spray
arms, containers, filters, washing programs, and for operating the
controls.
Follow the recommended cleaning procedures to ensure that your
dishwasher always remains in perfect working order.
This manual provides a quick and easy reference for answering all your
questions concerning the use of your new dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the qualified
technician who must carry out the installation, hook-up and testing of
the appliance.
USER INSTRUCTIONS: these consist of recommendations for using the
appliance, a description of its controls and of the correct cleaning and
maintenance procedures.

Safety instructions

1. Safety and operating instructions
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST
ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE
USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS
CONTAINED IN THIS MANUAL.
INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN
COMPLIANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR DOMESTIC USE, AND COMPLIES WITH THE EEC
DIRECTIVES 72/23, 89/336 (INCLUDING 92/31) CURRENTLY IN FORCE,
INCLUDING THE PREVENTION AND ELIMINATION OF RADIO FREQUENCY
INTERFERENCE.
THE APPLIANCE IS DESIGNED FOR THE FOLLOWING PURPOSE: WASHING
AND DRYING OF DISHES; ANY OTHER USE SHALL BE CONSIDERED
IMPROPER. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
USES OTHER THAN THOSE DESCRIBED ABOVE.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER
AND MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE
DOOR. THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST
NEVER BE REMOVED.
DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED
WITHIN THE HOME. SEPARATE THE VARIOUS MATERIALS WHICH MAKE
UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE
COLLECTION CENTRE.
THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN
ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO
PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE
APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.
IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR,
ENSURE THAT THE OPENINGS ON ITS UNDERSIDE ARE NOT
OBSTRUCTED.
ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID
WASTING ELECTRICITY.
OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE
MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET,
AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR
CHILDREN (LOCKS, DOORS, ETC.).

Safety instructions

THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE
2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
(WEEE). BY ENSURING THIS PRODUCT IS DISPOSED OF CORRECTLY,
YOU WILL HELP PREVENT POTENTIAL NEGATIVE CONSEQUENCES FOR
THE ENVIRONMENT AND HUMAN HEALTH, WHICH COULD OTHERWISE BE
CAUSED BY INAPPROPRIATE WASTE HANDLING OF THIS PRODUCT.
THE SYMBOL ON THE PRODUCT, OR ON THE DOCUMENTS
ACCOMPANYING THE PRODUCT, INDICATES THAT THIS APPLIANCE MAY
NOT BE TREATED AS HOUSEHOLD WASTE. INSTEAD IT SHALL BE
HANDED OVER TO THE APPLICABLE COLLECTION POINT FOR THE
RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT.
DISPOSAL MUST BE CARRIED OUT IN ACCORDANCE WITH LOCAL
ENVIRONMENTAL REGULATIONS FOR WASTE DISPOSAL. FOR MORE
DETAILED INFORMATION ABOUT TREATMENT, RECOVERY AND
RECYCLING OF THIS PRODUCT, PLEASE CONTACT YOUR LOCAL CITY
OFFICE, YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP
WHERE YOU PURCHASED THE PRODUCT.
IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE
ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP.
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING
TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER.
THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE
WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OR BY A
QUALIFIED TECHNICIAN.
THE APPLIANCE IS INTENDED FOR USE BY ADULTS. DO NOT ALLOW
CHILDREN TO COME NEAR OR PLAY WITH THE DISHWASHER. KEEP
CHILDREN AWAY FROM DETERGENTS AND FROM THE OPEN
DISHWASHER DOOR. THE PACKAGING MATERIALS (PLASTIC BAGS,
POLYSTYRENE, METAL BARS, ETC.) MUST NOT BE LEFT WITHIN THE
REACH OF CHILDREN.
KEEP CHILDREN AWAY FROM THE OPEN DISHWASHER. THE APPLIANCE
MAY CONTAIN RESIDUES OF DETERGENT WHICH CAN CAUSE
IRREVERSIBLE DAMAGE TO THE EYES, MOUTH, AND THROAT, AS WELL
AS POSSIBLE DEATH BY SUFFOCATION.
DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE
WHICH MAY CAUSE AN EXPLOSION.
DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.
LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY
CAUSE THE APPLIANCE TO OVERTURN, PUTING PEOPLE AT RISK.
NEVER LEAVE THE DISHWASHER DOOR OPEN; PEOPLE MIGHT TRIP
OVER IT.

Safety instructions

DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE
THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM
AND BEFORE THE DRYING CYCLE.
KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED
IN THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE
TOP BASKET. TAKE CARE NOT TO CUT YOURSELF AND ENSURE THAT
THEY DO NOT PROJECT FROM THE BASKET.
AQUASTOP MODELS
THE AQUASTOP DEVICE PREVENTS FLOODING IN THE EVENT OF A
WATER LEAK. WHEN THE AQUASTOP DEVICE IS TRIPPED, CALL IN A
QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT.
IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A
SOLENOID VALVE INSIDE THE WATER INTAKE HOSE. DO NOT CUT THE
HOSE AND DO NOT ALLOW THE SOLENOID VALVE TO DROP INTO
WATER. IN THE EVENT OF DAMAGE TO THE WATER INTAKE HOSE,
DISCONNECT THE APPLIANCE FROM THE ELECTRICAL POWER SUPPLY
AND FROM THE WATER SUPPLY.
IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK
TEST OF THE APPLIANCE FOLLOWING THE INSTRUCTIONS BELOW. IF
THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT
FROM THE ELECTRICAL POWER SUPPLY AND CALL THE NEAREST
TECHNICAL SERVICE CENTRE. DO NOT ATTEMPT TO REPAIR THE
APPLIANCE.
THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE
REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL
EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED
EXCLUSIVELY BY A TRAINED AND AUTHORISED TECHNICIAN: REPAIRS
CARRIED OUT BY UNAUTHORISED PERSONS WILL INVALIDATE THE
WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.
The manufacturer declines all responsibility for damage to persons or property
resulting from failure to observe the above precautions, from tampering with
even a single component of the appliance, or from the use of non original
spare parts.

Installation instructions

2. Installation and hook-up
Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation. The back or
sides of the dishwasher may be placed up against walls or other
furniture units. If the dishwasher is installed near a heat source, fit the
special insulating panel to prevent overheating and malfunction of the
appliance. To ensure stability, install integrated or built-under
dishwashers only under continuous worktops, and screw them to the
adjacent units. To facilitate the installation procedure, the intake and
drain hoses can be positioned in any direction; make sure that the hoses
are not kinked, crushed or pulled too tightly. Make sure to tighten the
locking ring-nut once the pipes have been placed in the direction
required. A hole at least 8 cm in diameter is required to allow the power
supply cable and pipes to pass.
Level the appliance on the floor using its adjustable feet. This operation
is essential for ensuring correct operation of the dishwasher.
Building-in a dishwasher underneath a ceramic hob is absolutely
forbidden.
A dishwasher can be built-in underneath a conventional hob provided
there is no break in the kitchen worktop, and the dishwasher and hob
are installed and secured correctly, so that no hazards are
generated.
For free-standing models only
-Installing a hob on top of a free-standing dishwasher is absolutely
forbidden.
-If the appliance is not built-in and is therefore accessible on one
side, the door hinge area must be covered for safety reasons (injury
hazard). The covering fixtures are available as an accessory from
specialist dealers or the After-Sales Service.
-To build in the dishwasher, the special kit must be purchased from
authorised dealers or the After-Sales Service.

Installation instructions

2.1 Water supply connection
Preventing the risk of clogging or damage: if the water pipe is new or
has not been used for a long time, before connecting to the water supply
check that the water is clear and free of impurities, to prevent damage to
the appliance. The dishwasher must always be connected to the water
system with new hoses; old or used hoses must never be reused.

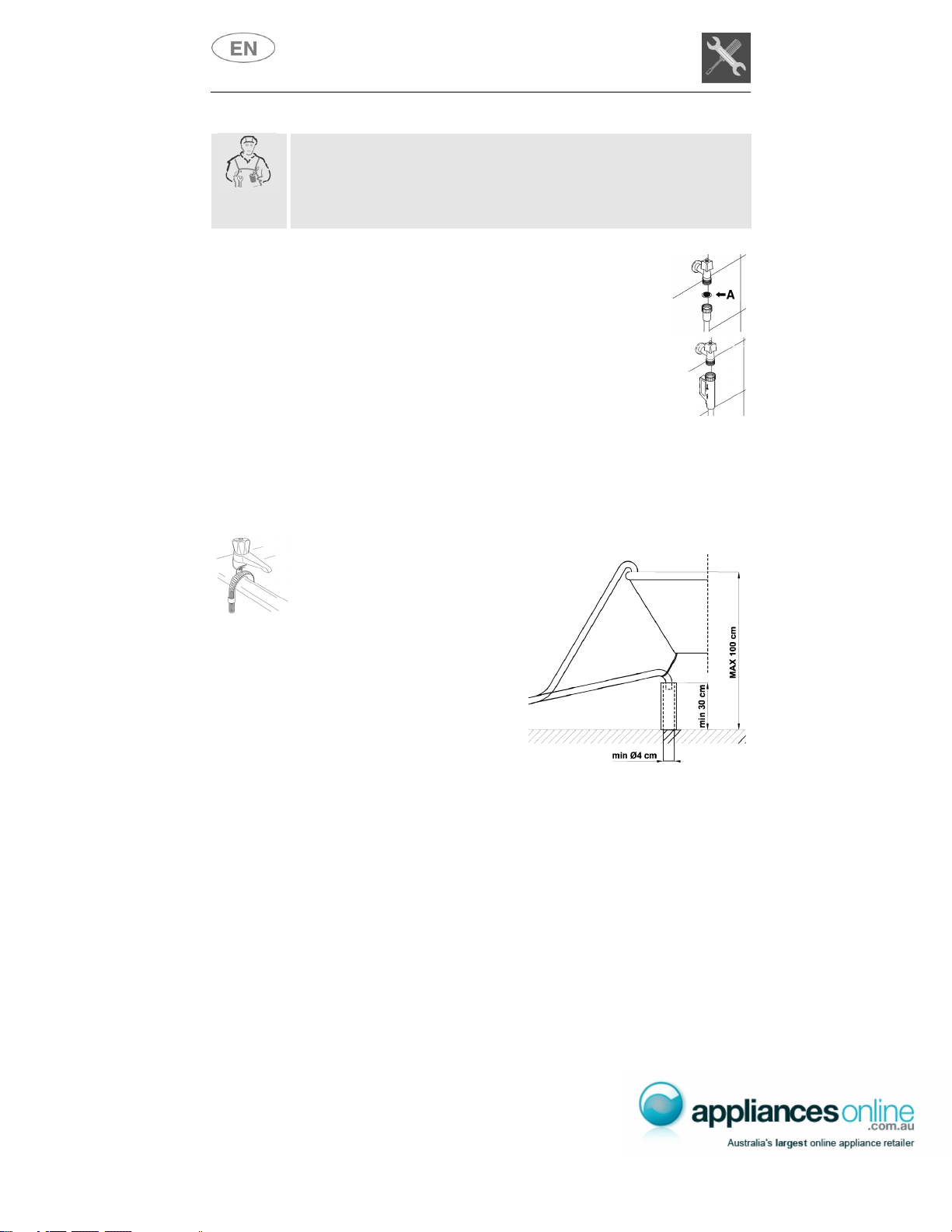

CONNECTING TO THE WATER SUPPLY
Connect the intake hose to a cold water supply with ¾”
gas thread, inserting the filter Asupplied with the
dishwasher. Take care to screw the hose firmly into
place with your hands and then complete by
tightening about ¼ of a turn with pliers.
In dishwashers equipped with the ACQUASTOP
device, the filters is already fitted inside the threaded
ring.
The dishwasher can also be connected to a hot water supply not
exceeding 60°C. Supplying the appliance with hot water cuts down the
washing time by approximately 20 minutes, but slightly reduces its
effectiveness. Make the connection to the domestic hot water supply using
the same procedure described for connecting to the cold water supply.
DRAIN CONNECTION
Insert the dishwasher’s drain hose
into a drain pipe having a diameter
of at least 4 cm, or alternatively,
place it inside the kitchen sink
using the plastic support provided,
taking care not to crush or
excessively bend the hose. It is
important to prevent the hose from
coming loose and falling. For this
purpose, the plastic support is
equipped with a hole for tying it to
the wall or water tap.
The free end should be positioned at a height of between 30 and 100
cm,and should never be submerged in water. If a horizontal drain
extension hose is used (for a maximum of 3 m) the drain hose can be
placed at a maximum height of 85 cm from the ground.

Installation instructions

2.2 Electrical connection and precautions
CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH
THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON
THE INNER EDGE OF THE DOOR.
THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET
OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN
FORCE.
THE PLUG MUST BE ACCESSIBLE AFTER INSTALLATION.
NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY
LEAD.
IN THE EVENT OF DAMAGE TO THE SUPPLY CORD, HAVE IT REPLACED
BY THE MANUFACTURER OR AN AUTHORIZED TECHNICAL SERVICE
CENTRE.
DO NOT USE ADAPTORS OR SHUNT CONNECTIONS IN ORDER TO AVOID
THE POSSIBILITY OF OVERHEATING OR BURNING.
In the event of damage to the supply cord, have it replaced by the
manufacturer or an Authorized Technical Service Centre in order to
avoid any risk.

User instructions
10
3. Description of the controls
3.1Front panel
All the dishwasher controls are grouped on the front panel.
1ON/OFF BUTTON
2SELECTION PROGRAM BUTTONS (P1…P5)
3½ LOAD WASH BUTTON (on some models only)
4"2/1" OPTIONBUTTON(on some models only)
5DELAY PROGRAM BUTTON (on some models only)
6 START/STOP BUTTON
7POWER ON LIGHT
8PROGRAMS INDICATOR LIGHTS
9INFORMATION DISPLAY
10 RECESSED DOOR HANDLE
3.2 Informationdisplay
The dishwasher is equipped with a practical
DISPLAY which provides information on the
programmed dishwasher functions.
1.45
Time to endTime to end
1/2
2/1

User instructions
11

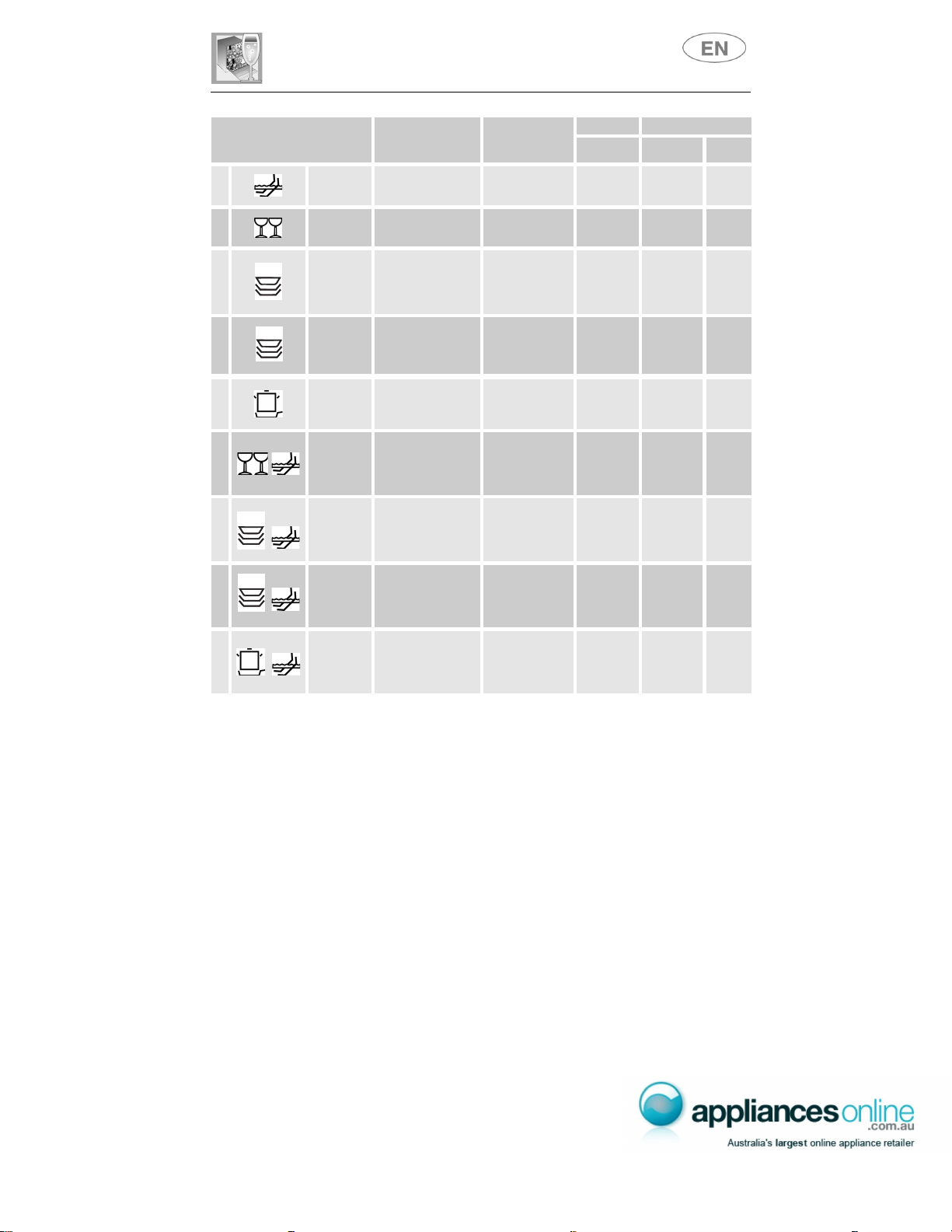

DURATION CONSUMPTION
PROGRAMME,
NUMBER & SYMBOL
LOAD CROCKERY
AND CUTLERY
PROGRAM
PROGRESS MINUTES WATER
LITRES (1)
POWER
KWh (2)
1SOAK
Pans and dishes
awaiting a
further wash
Cold prewash (**) 70,03
2QUICK Dishes
with light dirt
Wash at 38°C
Cold rinse
Rinse at 58°C
(**) 150,92
3NORMAL
(*) ECO
Wash immediately
after use for dishes
with normal dirt
Cold prewash
Wash at 40°C
Cold rinse
Rinse at 45°C
Dry
123 16,9 0,74
4DAILY
Wash immediately
after use for dishes
with normal dirt
Wash at 65°C
Cold rinse
Rinse at 68°C
Dry
(**) 16,5 1,54
5INTENSIVE
Very dirty
pans and dishes,
even with
dried-on dirt
Wash at 70°C
2 cold rinses
Rinse at 70°C
Dry
(**) 20 1,60
6DELICATE Dishes
with normal dirt
Cold prewash
Wash at 45°C
Cold rinse
Rinse at 68°C
Dry
(**) 191,32
7
ECO Dishes
with normal dirt
Cold prewash
Wash at 55°C
Cold rinse
Rinse at 68°C
Dry
(**) 161,45
8
NORMAL
Normally soiled
dishes, including
dried-on residue
Cold prewash
Wash at 65°C
Cold rinse
Rinse at 68°C
Dry
(**) 20 1,50
9SUPER
Very dirty
pans and dishes,
even with
dried-on dirt
Prewash at 45°C
Wash at 70°C
2 cold rinses
Rinse at 70°C
Dry
(**) 241,85
Only run the soak program with half loads.
The HALF LOAD option (3) is available for all programs except the soak program.
(*) Reference program as AS/NZS 2007.(**) See display.
(1) Average power consumption with the softener set on level 2.
(2) The cycle duration and power consumption may vary according to the water and room
temperatures, and the type and amount of dishes.
65°C
Eco
65°C
Eco

User instructions


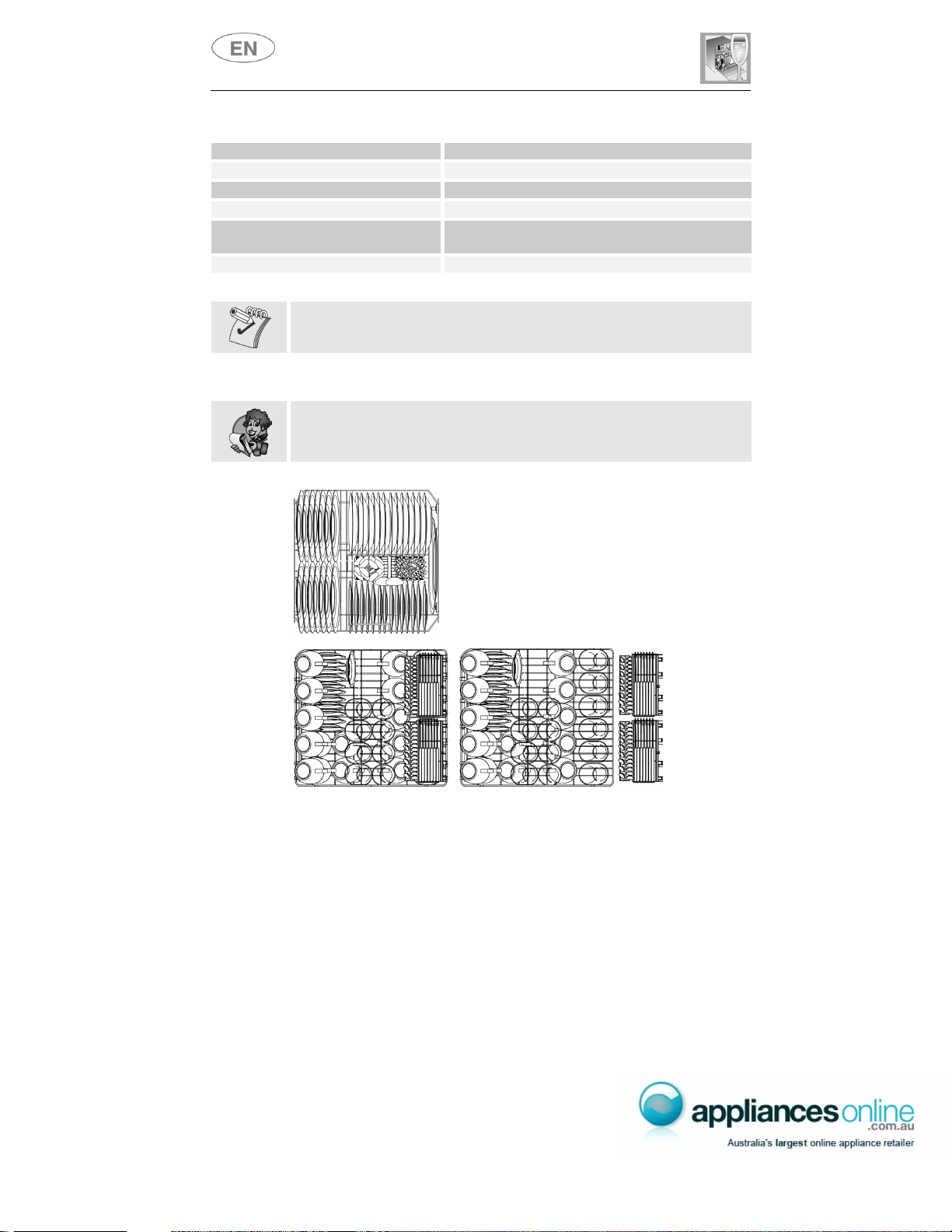

TABLE FOR CERTIFICATION BODIES
Reference standard AS/NZS 2007
Reference program (*) NORMALECO
Load 14 place-settings
Type of detergent in accordance with AS/NZS 2007
Amount of detergent pour 10g of cleaner on to the appliance door
and 20g into the dispenser
Rinse aid setting 4/6
The door can be opened at the end of the cycle approximately 50 mm
for improved drying performance.
AS/NZS 2007 cycle test conditions:
The upper basket must be set in the low position.
Lower basket: the grid "A" ("lower basket" section) must not be raised.
Upper basket: on the left, there are two saucers underneath the cups.
AS/NZS 2007

User instructions

In the front there are one or two supports (depending on the models) for
small plates (B). To use them, they have to be turned towards the front
of the dishwasher.

User instructions
14

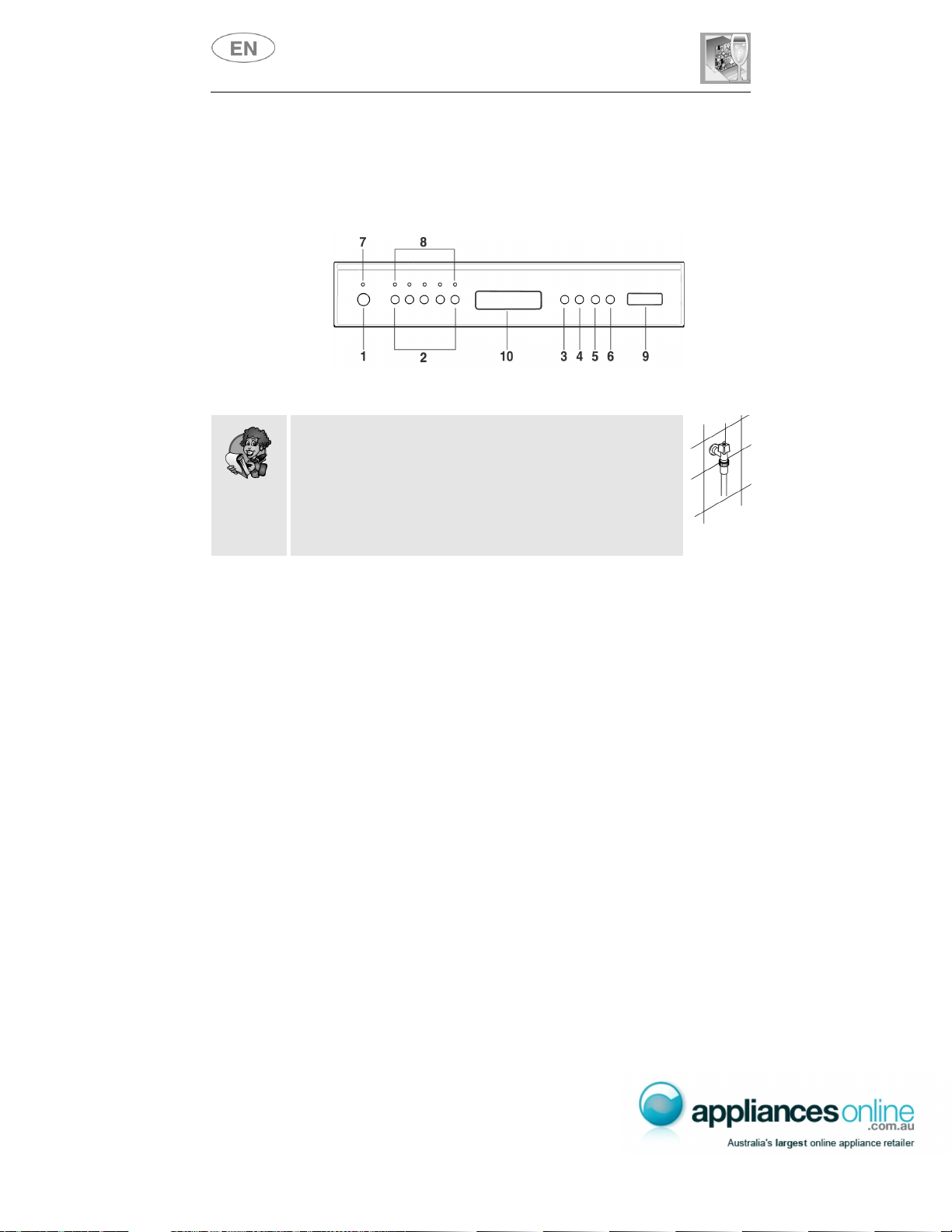

3.3 Washingprograms
The dishwasher is equipped with a control panel and an INFORMATION
DISPLAY (9) from which it is possible to carry out all the power switch-
on, switch-off and programming operations.
Before starting a washing program make sure that:
•The water supply tap is open.
•The correct amount of detergent has been added to the
dispenser.
•The baskets have been correctly loaded.
•The spray arms are able to rotate freely and without
obstruction.
•The dishwasher door is securely closed.
LIGHTING
Pressing the ON/OFF button (1) will start the dishwasher and will lit up
the dishwasher pilot light (7). After approximately 3 second from this
operation the DISPLAY (9) will be turned on with a visualization that will
depend upon the state of the dishwasher.

User instructions
15
PROGRAMMING
In this dishwasher model all the programming operations are possible
only with closed door. With open door, on the DISPLAY (9) will appear
the symbols -- and the PILOT LIGHT PROGRAMS (8) remains out.
SELECTION PROGRAM
The program selection is possible
through the relative buttons (2).
By pressing the relative button of desired program (see table) it will lid up
the relative pilot light to confirm that the operation did occurred on the
DISPLAY (9) will appear a program duration forecasting (“h.mm”).
START PROGRAM
At this point, in order to start the machine, it is only enough to press the
START/STOP (6) for some seconds until the writtin “Time to end” start
to flash and confirmation “beep” is heard. From this moment the cycle
dration on the DISPLAY (9) starts to decrease.
This phase, that updates itself during the cycle, is “indicative” since it is
influenced by the washing conditions such as dishwasher type and
quantity, entry temperature etc. For this reason it is normal to see the
updating during a program (increment and decrease of minutes)
specially in the passage from one phase to the other (for example, from
washing to rinse).
END PROGRAM
The end of the program is indicated by a short signal acoustic and from
the “End” visual notification on DISPLAY (9). By pressing one of the
buttons, the “End” visual signal will vanish from the display and the
dishwasher is ready to continue a new cycle, the same thing happens
when closing or opening the door or by switching on-off the machine.
INTERRUPTING A PROGRAM
In order to interrupt a running program it is necessary:
•to press the
START/STOP (6) for some seconds until when the
writting “Time to end” remains lit on the display (confirmation beep).
At this point,it is possible to start the cycle again, otherwise:

User instructions
16
TO CHANGE A PROGRAM
To change the running program it is necessary:
•to interrupt the running program (see “INTERRUPTING A PROGRAM”);
•select the new program;
•to press again the START/STOP button (6) to make start the new
program.

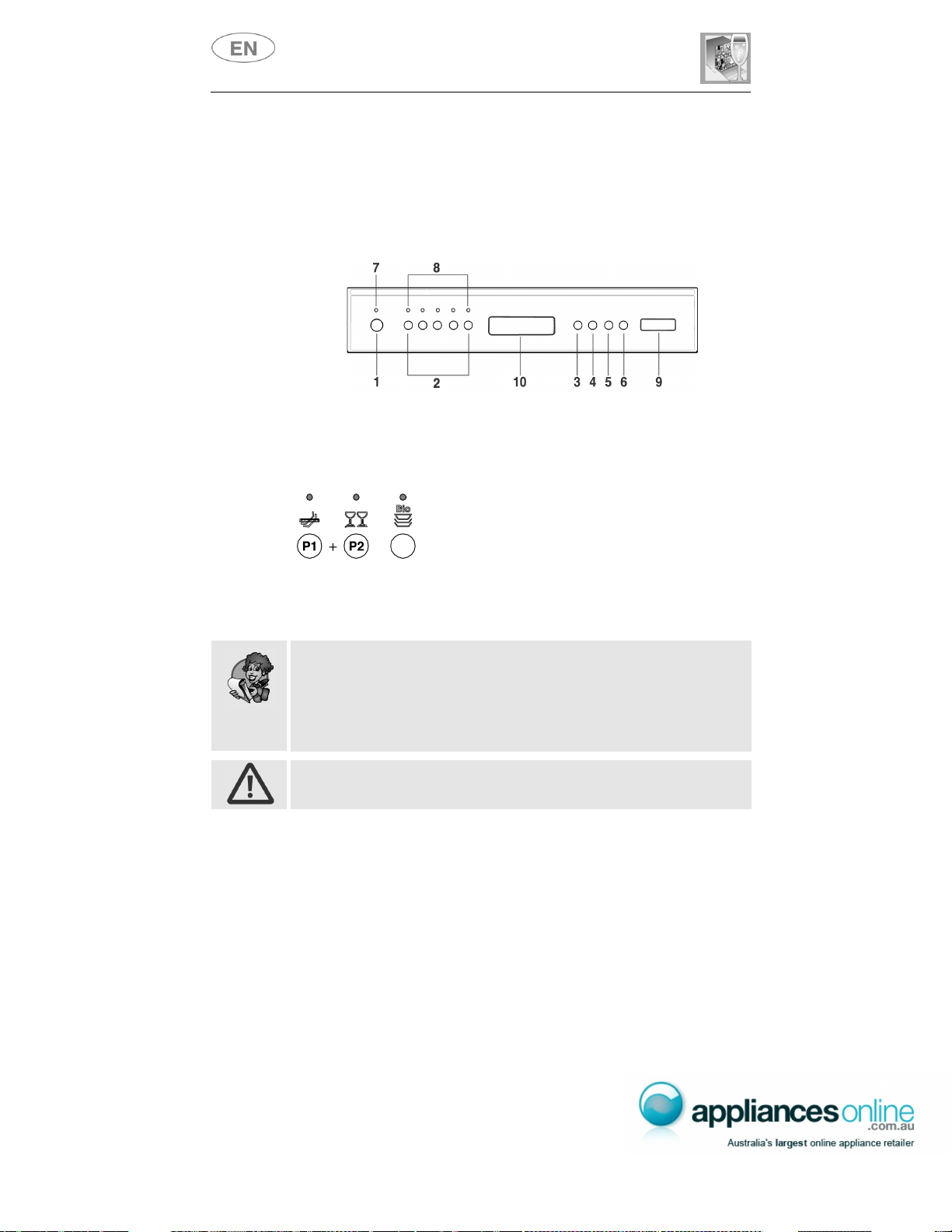

STOPPING A PROGRAM
To stop a program in progress, it must first be interrupted (see
"INTERRUPTING A PROGRAM").
Now press buttons P1+P2 simultaneously and
the first three program lights will come on.
The display will show "P0" and the dishwasher will immediately switch to
the end of the cycle and drain the tank (during this process, the "Time to
end" message will flash). When the drain procedure ends, the end of
cycle message "End" appears on the display.
In case that the door is opened during the operation, to the next door
closing it is going to be necessary to start the program as shown in
paragraph “START PROGRAM”. The program will resume from the point in
which it was interrupted.
In case that the tub temperature is higher than 50°C the program
will start about 30 seconds later.
The washing cycle will not take place if the dishwasher door is left open or
not properly closed.

User instructions
17
DELAYING THE PROGRAM (on some models only)
(available in all programs except the soak program)
The PROGRAM DELAY button (5) can be pressed to delay the start of
the program by up to 12 hours. This means that the dishwasher can be
operated at the time of day of your choice.
The first time the PROGRAM DELAY button (5) is pressed the display
will show 12 hours, the maximum delay time before the program will
start. Each subsequent time the button is pressed the delay time will be
reduced, until the desired delay time is reached.
Particularly, on the display it will have the following
indications.
Chosen the delay, proceed with the program start, press the button
START/STOP (6) for same seconds until the clock symbol start to
flaash.
The machine will perform a dish pre-washing, and when finish, the “delay
program” will enter in function as it was first set.
In case you want to put to zero the “delay program” within the running
program it is necessary:
•to press the
START/STOP (6) button for some seconds until the
clock symbol remain lid up on the display;
•to press the
DELAY PROGRAM (5) more times until the reset of the
delay program (clock symbol shut off);
•to press the
START/STOP (6) button to make start the program.
N.B.: It is not possible to select the “delay program” when the program
have already began.
"2/1" OPTIONBUTTON (on somemodels only)
(available in all programs except the soak program)
By pressing the button (4)you activate the "2/1" option,confirmed when
the relative light comes on. This option has been studied for the use of
dishwashing powder or tablets with integrated substances in place of
rinse-aid known on the market as “2in 1” or “double action" products;
in this case the dishwasher will use the product in an optimal way avoiding
salt and rinse-aid consumption, which could already be found in
the dishwasher.
Note:When selecting the "2/1"button, it isnormal that therinse-aid
light remain on, if thecontainer are empty.

User instructions
18

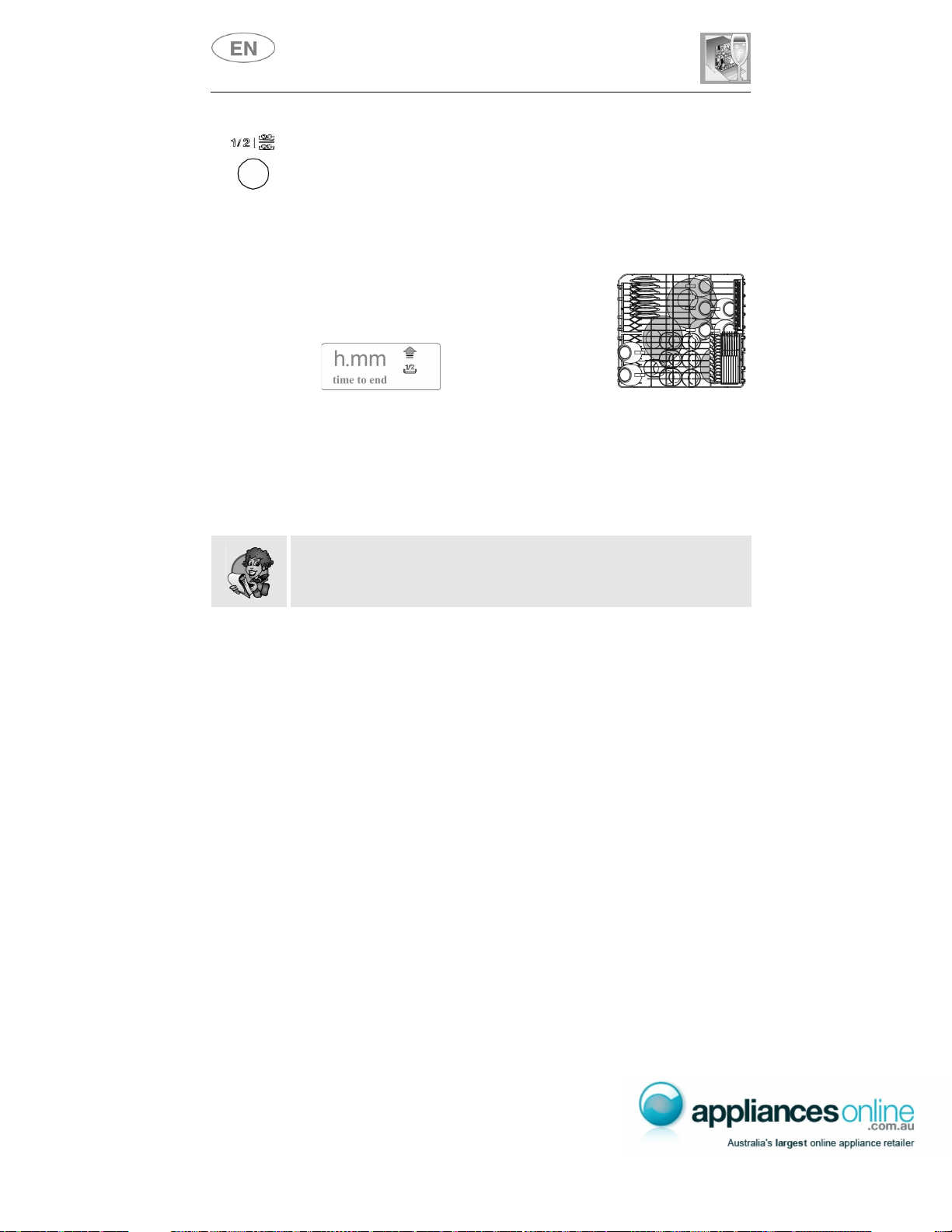

HALF LOAD WASH FUNCTION (on some models only)
This function is recommended for loads of up to 7 place-settings, and
cuts down on the use of water and electricity.
By pressing the ½ LOAD WASH (3) button it is possible to select only
upper basket washing.
After having the program selected, continue as follows:
•by pressing for one time the ½ LOAD
WASH (3) button, it will select the upper
basket and on the display will compare the
following visualization;
•by pressing a second time the ½ LOAD WASH (3) button it will bring
back to the full load washing mode.
One half of the cutlery basket can be placed in the top basket.
WARNING: do not load dishes and cutlery into the lower basket,
because the water spray will only reach the top basket.

User instructions
19
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
•Always try to run the dishwasher fully loaded.
•Do not wash the dishes in running water.
•Use the washing program that is most appropriate for each type of
load.
•Do not carry out any preliminary rinsing.
•If available, connect the dishwasher to a hot water supply up to
60°C.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to
save on electricity, observe the following:
•separate the more delicate items from dishes that are more
resistant to aggressive detergents and high temperatures;
•do not pour the detergent directly on the dishes.
REMOVING THE DISHES
At the end of the washing program, wait at least 20 minutes before
removing the dishes, to allow them to cool down. To prevent any water
droplets on the upper basket from falling on the dishes in the lower
basket, it is advisable to unload the lower basket first, and then the
upper basket.

User instructions
20
4. Operating instructions
Once the dishwasher has been correctly installed, prepare for use as
follows:
•Add the rinse aid and detergent.
4.1 Using the rinse aid and detergent dispensers

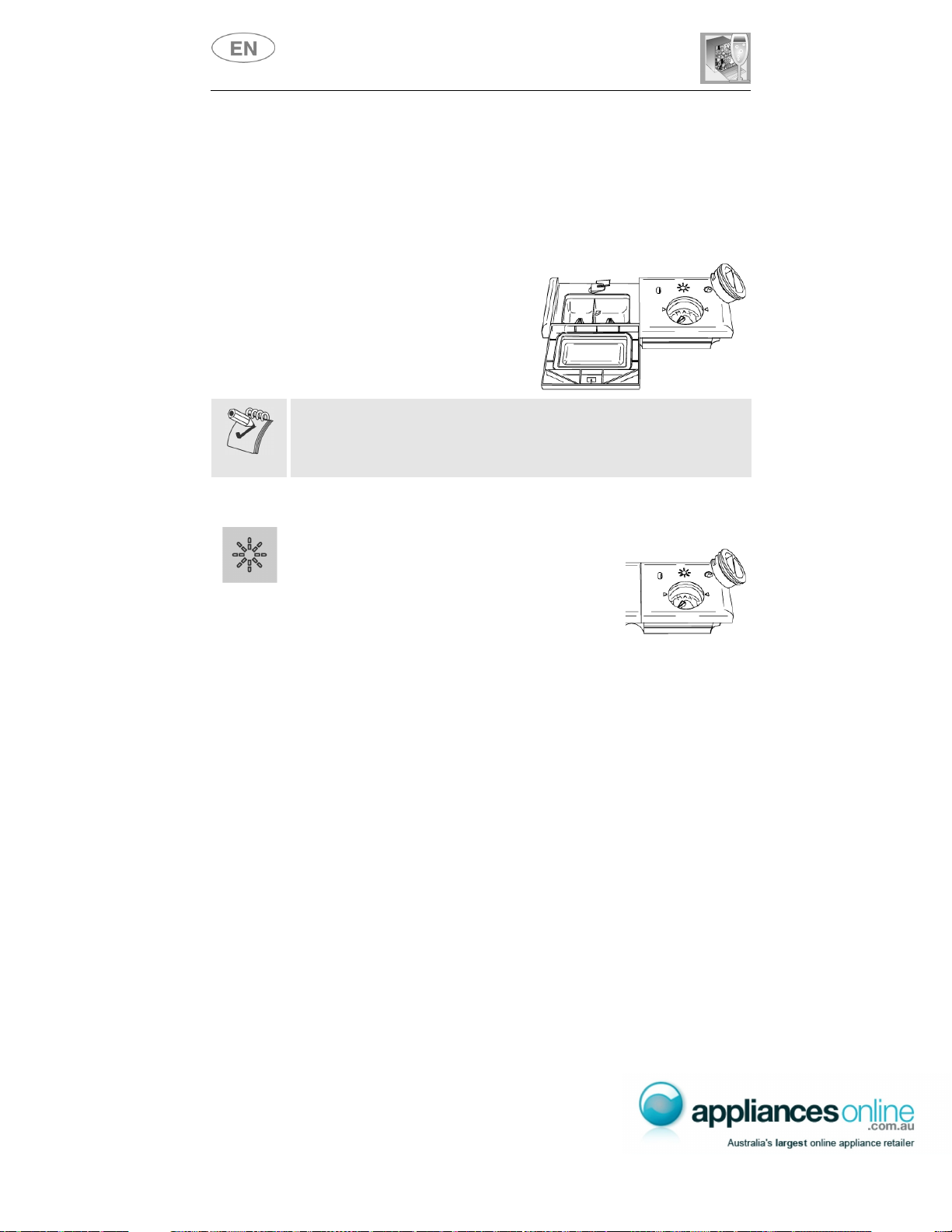

The detergent and rinse aid
dispensers are situated on the inner
part of the door: the detergent
dispenser is on the left, and the
rinse aid dispenser is on the right.
With the exception of the SOAK program, before every washing cycle it
is necessary to add the required amount of detergent to the detergent
dispenser. The rinse aid, on the other hand, should only be added as
required.
ADDING THE RINSE AID
The rinse aid helps the dishes dry faster and
prevents the formation of scale deposits and
staining; it is automatically added to the water
during the final rinse cycle, from the container
situated on the inner side of the door.
To add rinse aid:
•Open the door.
•Rotate the container cap anticlockwise by ¼ of a turn and remove it.
•Add the rinse aid until the container is full (approximately 140 cc).
The optical level indicator on the side of the cap should be
completely obscured. Refill the rinse aid when the optical level
indicator becomes clear again, or when the rinse aid warning light
illuminates.
•Replace the cover and turn it in a clockwise direction.
•Use a cloth to remove any spillage of rinse aid which might lead to
the formation of excess foam.

User instructions
21
ADJUSTING THE RINSE AID DISPENSER SETTING
The dishwasher is factory set for medium water hardness. However it
possible to change the setting by turning the dispenser’s selector to the
desired position: the amount of rinse aid dispensed is proportional to the
selector position.
•To adjust the rinse aid setting, rotate the dispenser cap through a
quarter turn in an anticlockwise direction and remove it.
•Then use a screwdriver to rotate the rinse aid selector to the desired
position.
•Replace the cap, turning it clockwise.
•The amount of rinse aid must be increased if the washed dishes
appear dull or feature circular stains.
•If, on the other hand, the dishes are sticky or have white streaks, it
is necessary to reduce the rinse aid setting.
ADDING THE DETERGENT
To open the detergent dispenser cap, lightly press
the button P. Add the detergent and close the cap
carefully.
During the washing cycle, the dispenser will be
opened automatically.
•Use only detergents specially formulated for dishwashers. For
optimal washing results it is important to use a good quality
detergent.
•The detergent packs must be sealed and stored in a dry place to
prevent the formation of lumps which may negatively affect washing
results. Once opened the detergent packs should not be kept for too
long, otherwise the detergent loses its effectiveness.
•Do not use detergents formulated for washing dishes by hand,
because they produce a great deal of foam and may negatively
affect the operation of the dishwasher.
•Add the correct amount of detergent. An insufficient amount of
detergent will result in a partial removal of dirt from the dishes,
whereas an excessive amount is wasteful and does not improve the
washing results.
