Smeg Universale PL65233XIN User manual

Contents
1
1. Description of the controls _______________________________ 2
2. Operating instructions __________________________________ 10
3. Cleaning and maintenance ______________________________ 27
4. Troubleshooting ______________________________________ 33
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need to use your dishwasher safely, correctly and in the
most satisfactory manner.
Following the cleaning instructions provided here will keep your
dishwasher's performance at peak levels in the long term.
USER INSTRUCTIONS: these consist of recommendations for using the
appliance, a description of its controls and of the correct cleaning and
maintenance procedures.

User instructions
2
1. Description of the controls

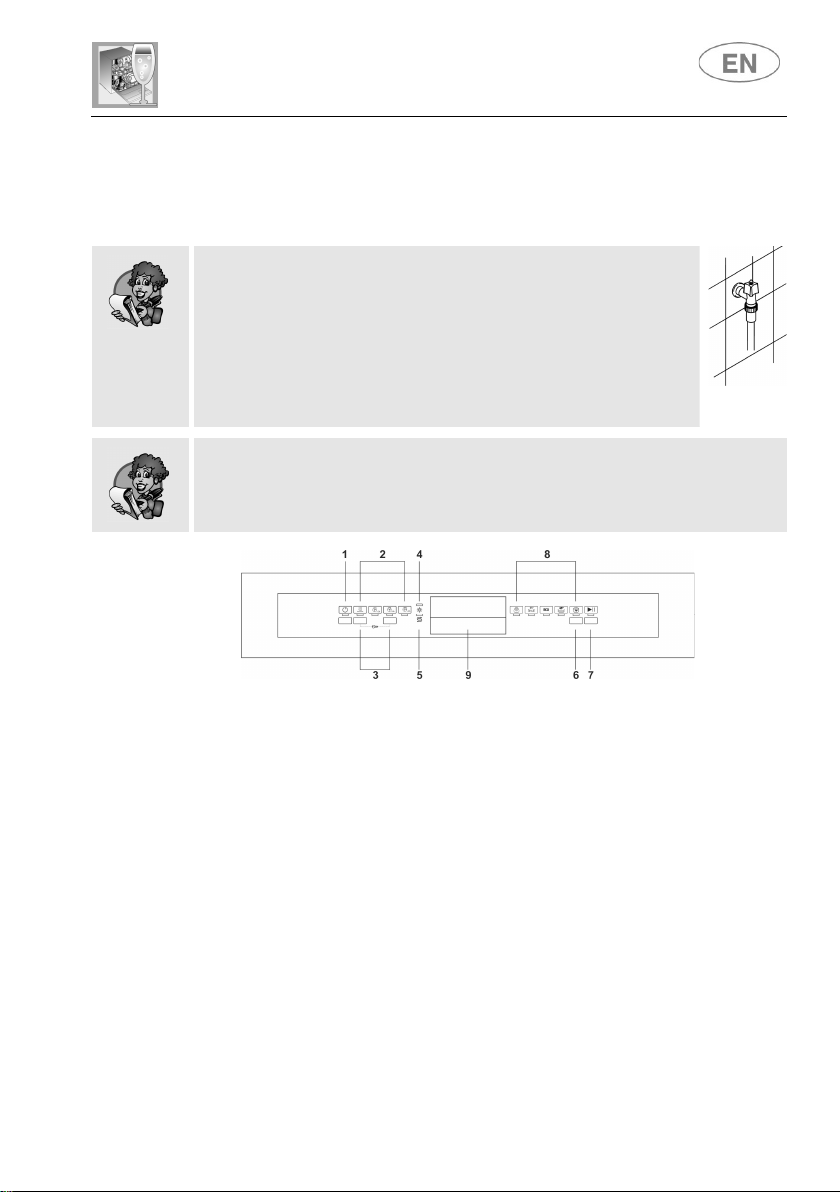

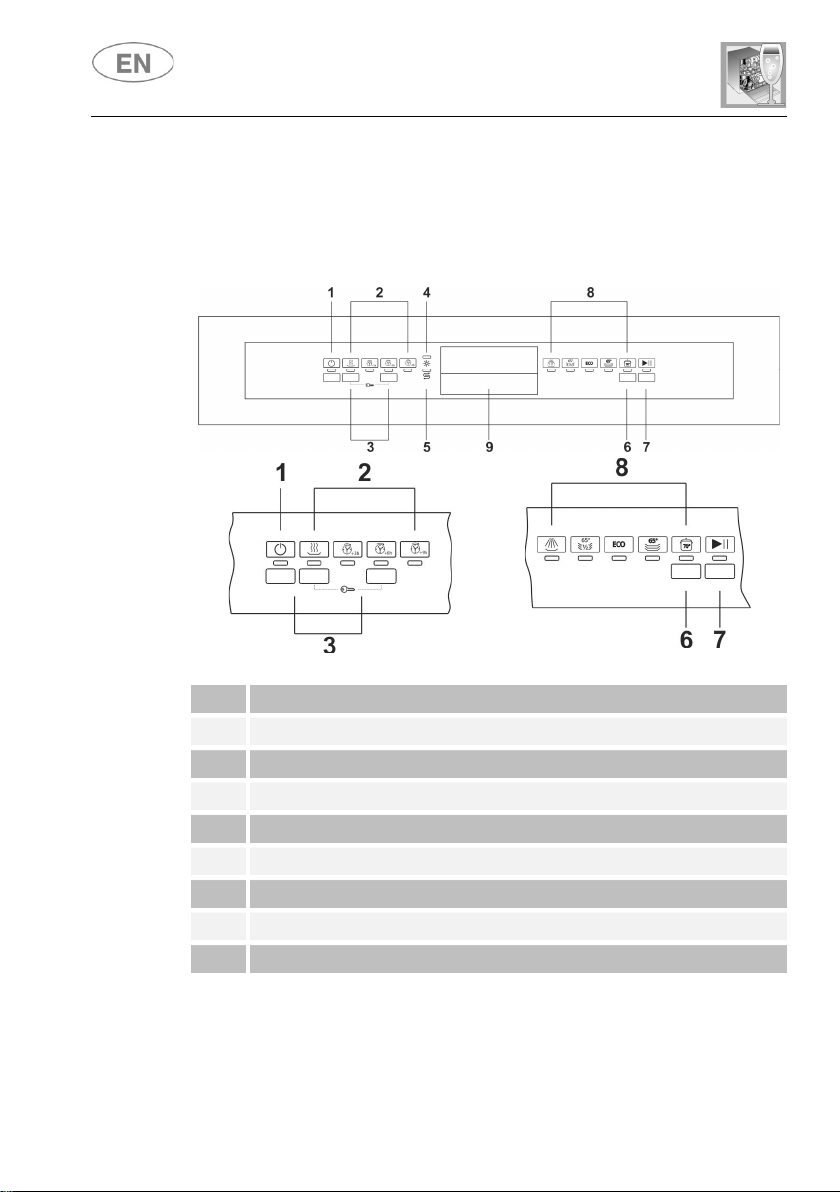

1.1 Front panel
All the dishwasher controls are grouped on the front panel. Programming
and option selection are only possible with the door closed.
1 ON/OFF BUTTON AND WARNING LIGHT
2 OPTION SELECTION BUTTONS AND WARNING LIGHTS
3 “CHILD LOCK” ACTIVATION BUTTONS
4 NO RINSE AID LIGHT (some models only)
5 SALT WARNIN LIGHT (on some models only)
6 PROGRAM SELECTION BUTTONS
7 START/PAUSE BUTTON
8 PROGRAM INDICATOR LIGHTS
9 HANDLE TO OPEN THE DOOR
N.B.: symbols and styling are guideline and may vary depending on
the model or version of the dishwasher purchased.

User instructions
3
PROGRAMS TABLE
PROGRAMME
NUMBER
& SYMBOL
LOAD CROCKERY AND
CUTLERY
PROGRAM
PROGRESS
DURATION
CONSUMPTION
MINUTES
(1)
WATER
LITRES
POWER
KWh (1)
1 SOAK
Recommended for rinsing
dishes while waiting for
another wash cycle.
Cold prewash 15 3,5 0,02
2 ½ LOAD
****
Recommended if you
have to wash just a few
normally soiled dishes,
washed immediately after
use
Wash at 65°C
Cold rinse
Rinse at 70°C
Dry
80 11 1,20
3 (*)
EN 50242
Wash cycle with lower
water and energy
consumption,
recommended for
washing normally soiled
dishes, even with dried-on
residues.
Cold prewash
Wash at 45°C
Rinse at 55°C
Dry
D ** ** **
4 MIX 65°
IEC/DIN***
Wash cycle for normally
soiled mixed loads such
as dishes and pans, even
with dried-on residues.
Cold prewash
Wash at 65°C
Rinse at 70°C
Dry
95 13,5 1,35
5 INTENSE 70°
****
Program suitable for
heavily soiled plates, pots
and pans, even with
dried-on residues.
Hot prewash
Wash at 70°C
Cold rinse (2)
Rinse at 70°C
Dry
130 15,5 1,60
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.
DRY
ASSIST Only at the end of the Eco program will Dry assist be activated.

User instructions
4
NOTES AND REFERENCES
Only run the soak program with half loads.
Options cannot be used with the soak program.
* Standard programme under
EN 50242
.
** See information sheet provided
***
IEC/DIN
reference programme.
**** Reference program for laboratories: Detergent: 20g in the dispenser + 10g in
the
door
or tablet.
Configuration
: see photo in “Using the baskets”.
(1) Program consumption and duration figures have been measured in accordance
with the EN 50242 standard. Values may vary depending on intake water and
room temperatures and the type and quantity of dishes loaded.
(2) 1 or 2 cold rinses depending on the model.
REFERENCES for the ENERGY LABEL supplied with the dishwasher:
- Annual energy consumption is based on 280 standard wash cycles with cold
water and consumption of low-energy operating modes. Actual consumption
depends on the way in which the appliance is used.
- Water consumption is based on 280 standard wash cycles. Actual
consumption depends on the way in which the appliance is used.
- Information refers to the EN 50242 STANDARD programme (identified in the
programmes table), which is the most effective in terms of combined energy
and water consumption. The programme is recommended for dishes with a
normal level of dirt.
- Drying efficiency class on a scale from “G” (minimum efficiency) to “A”
(maximum efficiency).
Notice for testing institutes
Testing institutes are provided with guidelines for
comparative tests (e.g. according to EN60436).
If the form for the testing institutes is missing from
the documentation, please request the guidelines
by contacting us at the following e-mail address:
[email protected]
When making a request, please specify the model
(MOD) and the serial number (S/N) indicated on the
plate on the side of the door.

User instructions
5
1.2 Washing programs
The dishwasher is equipped with a control panel and an INFORMATION
DISPLAY from which it is possible to carry out all the power switch-on,
switch-off and programming operations.
Before starting a washing program make sure that:
 The water supply tap is open.
 The correct amount of detergent has been added to the
dispenser.
 The baskets have been correctly loaded.
 The spray arms are able to rotate freely and without
obstruction.
 The dishwasher door is securely closed.
Warning:
during the initial phase of the washing program, the operation of sprayers
is not perceived because they start rotating about 5 minutes after the start.
This is the normal operation of the washing cycle.
SWITCHING ON
When the ON/OFF button (1) is pressed, the dishwasher switches on.
The indicator lights will display the dishwasher's "status".
PROGRAMMING
Programming operations are only possible with the door closed.
As long as the door is open, the
PROGRAMS (
8
)
lights remain off.
PROGRAM SELECTION
Press the PROGRAM SELECTION button (6) several times until the light of
the program required comes on.

User instructions
6
DRY ASSIST
If there is a “D” in the “DURATION” column of the programs table, the door
opens automatically at the end of the cycle. This allows the dishes to be
dried perfectly even at low rinse temperatures, and therefore significant
energy savings. The door opens slowly by a few centimetres at the end of
the wash cycle. The dishwasher remains inactive between the final rinse
and the end of the cycle to allow the load to be properly dried. The program
is interrupted if the door is opened during this stage. A short beep is
emitted and cycle lights 4 and 5 flash to indicate that the cycle has
finished.
There must be sufficient space available for the door to open. The
door must not be forced open and closed before the wash cycle has
ended.

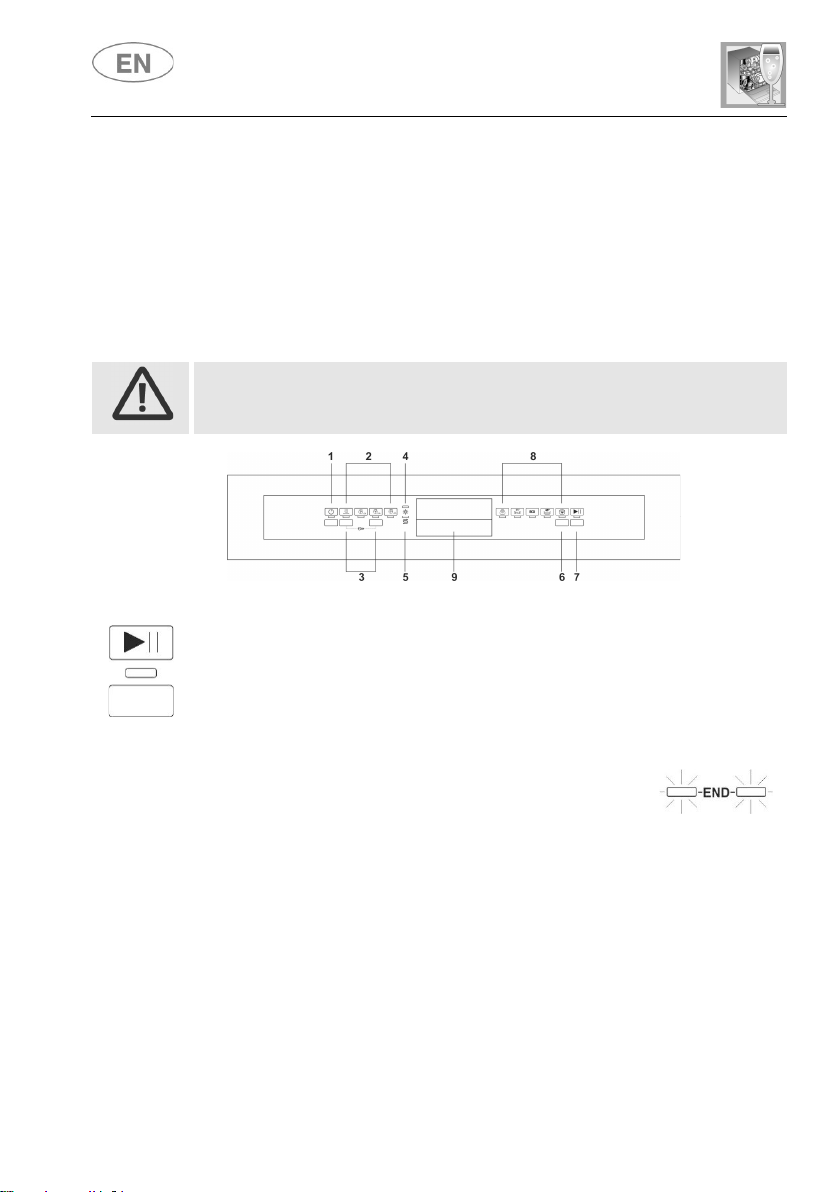

STARTING THE PROGRAM
To start the dishwasher, press the START/PAUSE button (6) for a few
seconds, until the light of the selected program starts to flash (confirmation
beep).
The light will flash as long as the program is in progress, to indicate that it
is being performed.
END OF PROGRAM
At the end of the program the beeper sounds briefly and
the program
lights
4
and
5
(marked "end") flash.
INTERRUPTION A PROGRAM
To interrupt a program in progress:
 press the START/PAUSE button (6); the light of the program in
progress remains on (confirmation beep);
 you may now restart the program by pressing button (6) again until it
restarts, or change or annul the program (see "CHANGING A PROGRAM",
or "
A
NNULLING A PROGRAM").

User instructions
7
CHANGING A PROGRAM
To change the running program it is necessary:
 to interrupt the running program (see “INTERRUPTION A PROGRAM”);
 select the new program;
 start the program (see “
S
TARTING THE PROGRAM”).
ANNULLING A PROGRAM
To annul the program, keep the START/PAUSE button (7) pressed until
the program is interrupted (light on and confirmation beep).
Press button (7) again and keep it pressed until the
lights
4
and
5
(marked "end") come on.
The water in the tank will be pumped out and the program will end at the
point where it was interrupted.
In case that the door is opened during the operation, to the next door
closing it is going to be necessary to start the program as shown in
paragraph “STARTING THE PROGRAM”. The program will resume from the
point in which it was interrupted.
In case that the tub temperature is higher than 50°C the program will
start about 60 seconds later.

User instructions
8

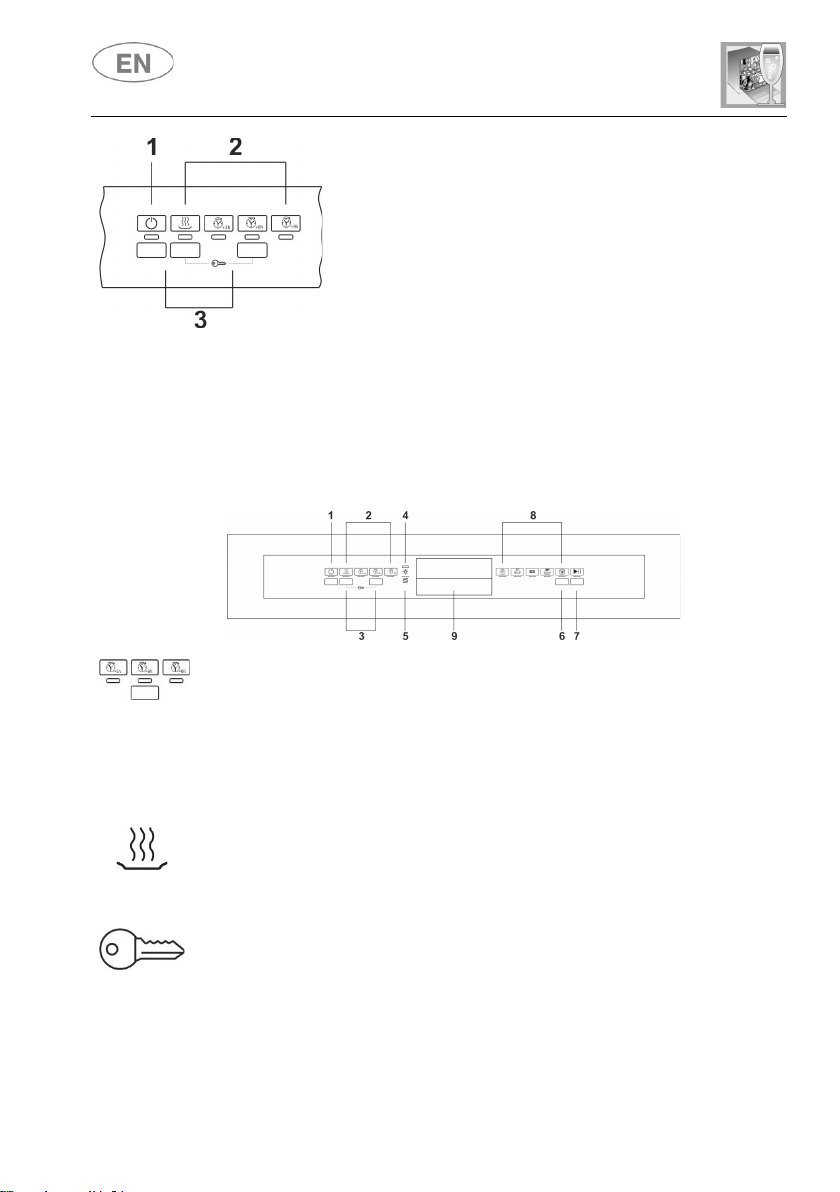

OPTION SELECTION
Options are selected by pressing the relative button
by the symbol of the option required; the light
comes on to confirm that the option has been
activated.
 It is not possible to select any options when the soak program is being
used.
 All options except "Flexi Tabs" are disabled at the end of the wash cycle.
To disable the “Flexi Tabs” option, press the relative button (the light goes
out).
 All options, including "Flexi Tabs" are disabled when a program is
CANCELLED
after it has begun.
PROGRAM DELAY
Allows you to program the dishwasher cycle to start during the required
time period (e.g. night). Press the DELAY button to delay the start for up
to 3, 6, 9 hours. To cancel the setting, press the button several times until
the lights switch off. The option cannot be selected once the cycle is
running. After the door has been closed, the dishwasher will carry out a
pre-wash cycle, after which the set “cycle delay” option will be activated.
EXTRA DRY
Adds a hot rinse cycle that ensures improved drying. Suitable for loads that
contain dishes that are difficult to dry such as pots, non-stick pans and
plastic containers.
“CHILD LOCK” OPTION
By pressing the indicated buttons at the same time, the controls are
locked, which is confirmed when the warning light on display turns on. This
option stays active until the buttons are pressed again.

User instructions
9
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
 Always try to run the dishwasher fully loaded.
 Do not wash the dishes in running water.
 Use the washing program that is most appropriate for each type of
load.
 Do not carry out any preliminary rinsing.
 If available, connect the dishwasher to a hot water supply up to 60°C.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:
 separate the more delicate items from dishes that are more resistant
to aggressive detergents and high temperatures;
 do not pour the detergent directly on the dishes.
ENERGY MANAGEMENT
At the end of the program the warning lights of programs no. 4 and 5
flash for 5 minutes; afterwards, the washing machine switches off
automatically in order to reduce standby power consumption.
In order to switch it on again, it is necessary to press the ON/OFF button.
REMOVING THE DISHES
At the end of the washing program, wait at least 20 minutes before
removing the dishes, to allow them to cool down. To prevent any water
droplets on the upper basket from falling on the dishes in the lower basket,
it is
advisable
to unload the lower basket first, and then the upper basket.

User instructions
10
2. Operating instructions
Once the dishwasher has been correctly installed, prepare for use as
follows:
 Adjust the water softening system;
 Add the regenerating salt;
 Add the rinse aid and detergent.
2.1 Using the water softening system
The amount of scale contained in the water
(water hardness index) can cause whitish
staining on the dry dishes, which tend to
become dull over time. The dishwasher is
equipped with an automatic softening
system which uses a special regenerating
salt to reduce the hardness of the water.
The dishwasher is factory set for water
hardness level 3 (average hardness ).

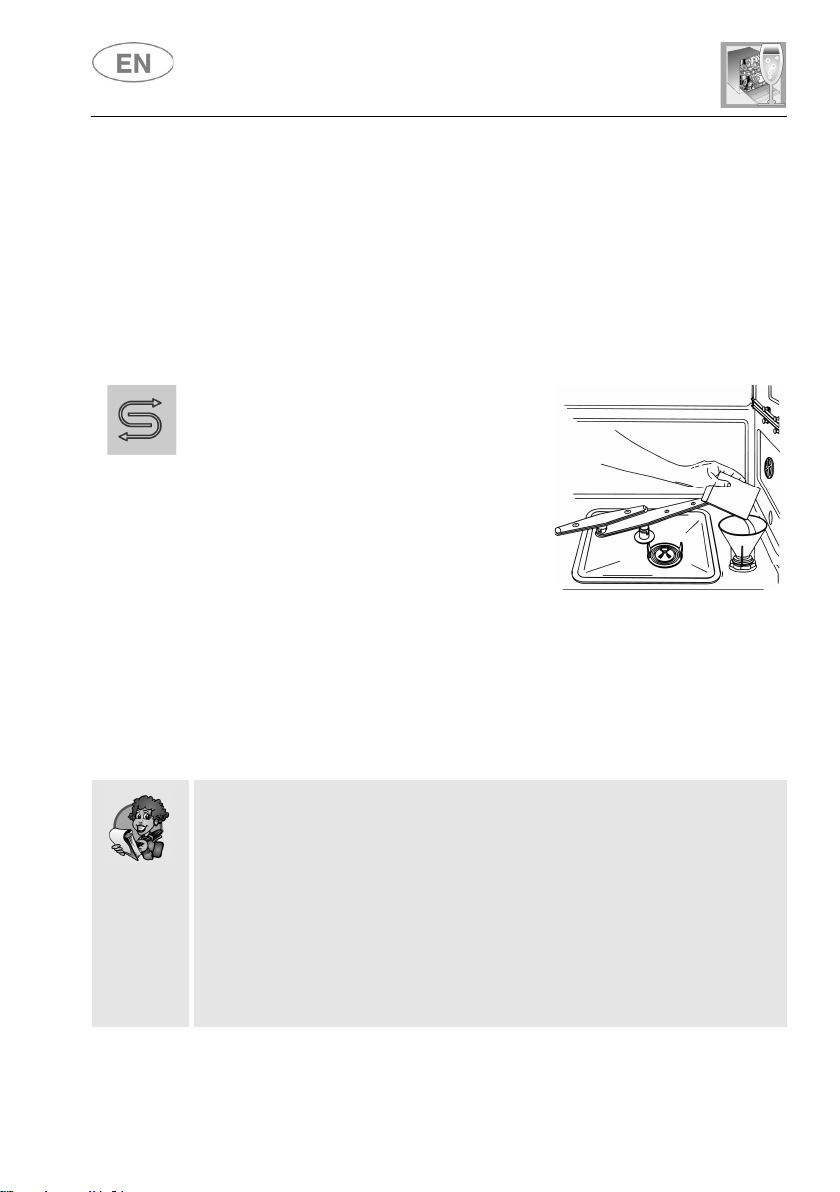

When using water of medium hardness, the regenerating salt container
should be refilled after approximately 20 washing cycles. The salt
container can hold approximately 1 Kg of salt in grains. The container is
situated at the bottom of the dishwasher. After removing the lower basket,
unscrew the salt container cap by turning it anticlockwise and pour in the
salt using the funnel supplied with the dishwasher. Before replacing the
cap, remove any salt residues from around the opening.
 When using the dishwasher for the first time, in addition to the salt it
is also necessary to add one litre of water to the container.
 Each time the salt container is refilled, make sure that the cap is
securely closed. The mixture of water and detergent must never
penetrate the salt container, as this would compromise the operation
of the regeneration system. In the event of this occurring, the warranty
will be invalidated.
 Only use regenerating salt specially formulated for domestic
dishwashers. If using salt tablets, do not fill the container
completely.
SALT

User instructions
11
 Do not use table salt as it contains insoluble substances which, over
time, may damage the water softening system.
 When necessary, refill the regenerating salt container before
starting the washing program. In this way, the excess saline
solution will be immediately removed by the water; the prolonged
presence of salt water inside the tank may lead to corrosion.
Be careful not to confuse the salt and detergent packages; adding
detergent to the salt container will damage the water softening system.
ADJUSTING THE WATER SOFTENER
The setting can be adjusted using the PROGRAM SELECTION
BUTTON (6). Keep the button pressed until the WATER HARDNESS
ADJUSTMENT INDICATOR LIGHT (5) flashes. The SELECTED
PROGRAM INDICATOR LIGHTS (8) indicate the current setting. Each
press of the button modifies the setting according to the sequence in the
following table:
>
After carrying out the adjustment or displaying the current setting, if you
do not touch the button for a few seconds the dishwasher will
automatically exit from adjustment mode and return to the standard
operating mode.

User instructions
12
WATER HARDNESS TABLE
WATER HARDNESS
SETTINGS
German
degrees (°dH)
French
degrees (°dH)
0 – 6 0 – 11 H0 All lights off
(no salt)
7 – 10 12 – 18 H1 One light on
11 – 15 19 – 27 H2 Two lights on
16 – 21 28 – 37 H3 Three lights on
22 – 28 38 – 50 H4 Four lights on
29 - 50 51 – 90 H5 Five lights on
Contact your local water board for information on the hardness of your
water supply.
Default settings:
H3
-
16
-
21°dH
–
28
-
37°dF
2.2 Using the rinse aid and detergent dispensers
The detergent and rinse aid
dispensers are situated on the inner
part of the door: the detergent
dispenser is on the left, and the rinse
aid dispenser is on the right.
With the exception of the SOAK program, before every washing cycle it is
necessary to add the required amount of detergent to the detergent
dispenser. The rinse aid, on the other hand, should only be added as
required.

User instructions
13

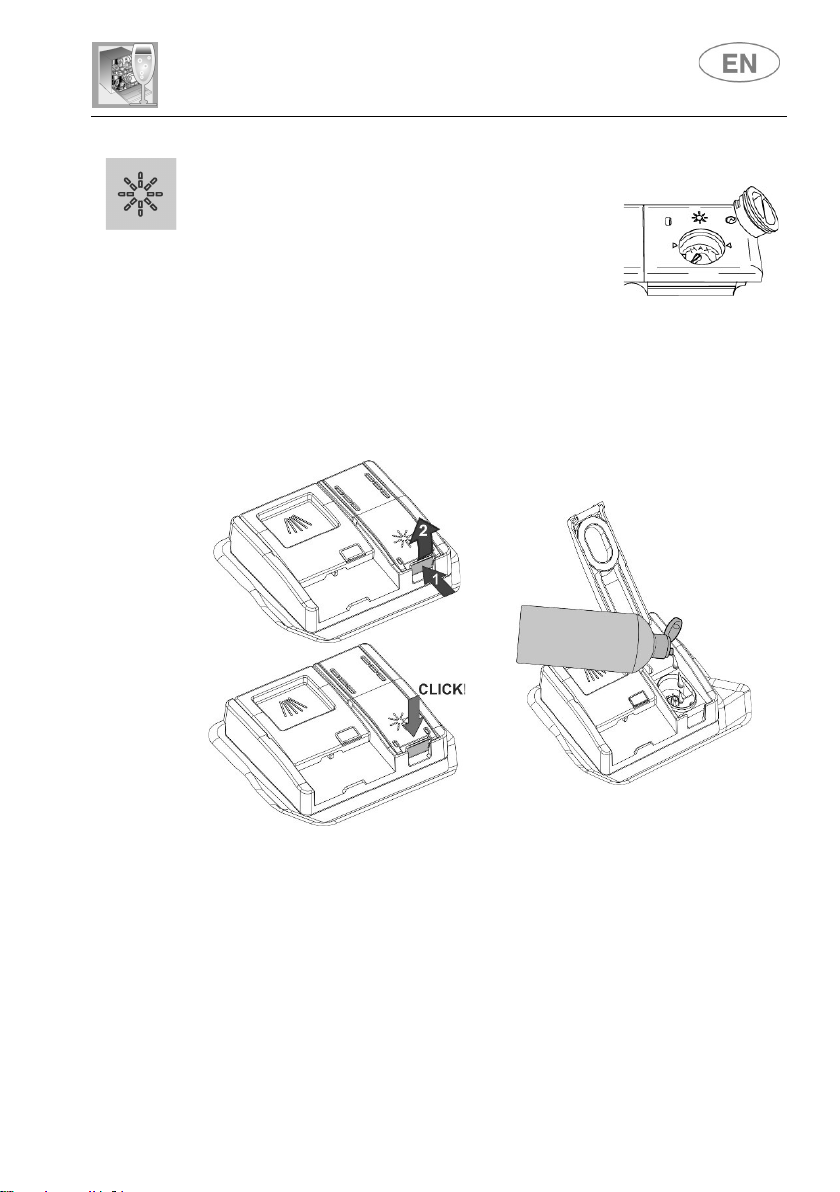

ADDING THE RINSE AID
The rinse aid helps the dishes dry faster and
prevents the formation of scale deposits and
staining; it is automatically added to the water
during the final rinse cycle, from the container
situated on the inner side of the door.
To add rinse aid:
 Open the dispenser by pressing and lifting the tab on the cover.
 Fill the dispenser with rinse aid. Top up again when the rinse aid
indicator light turns on.
 Close the cover, a click indicates when it is closed.
 Use a cloth to remove any spillage of rinse aid which might lead to
the formation of excess foam.

User instructions
14

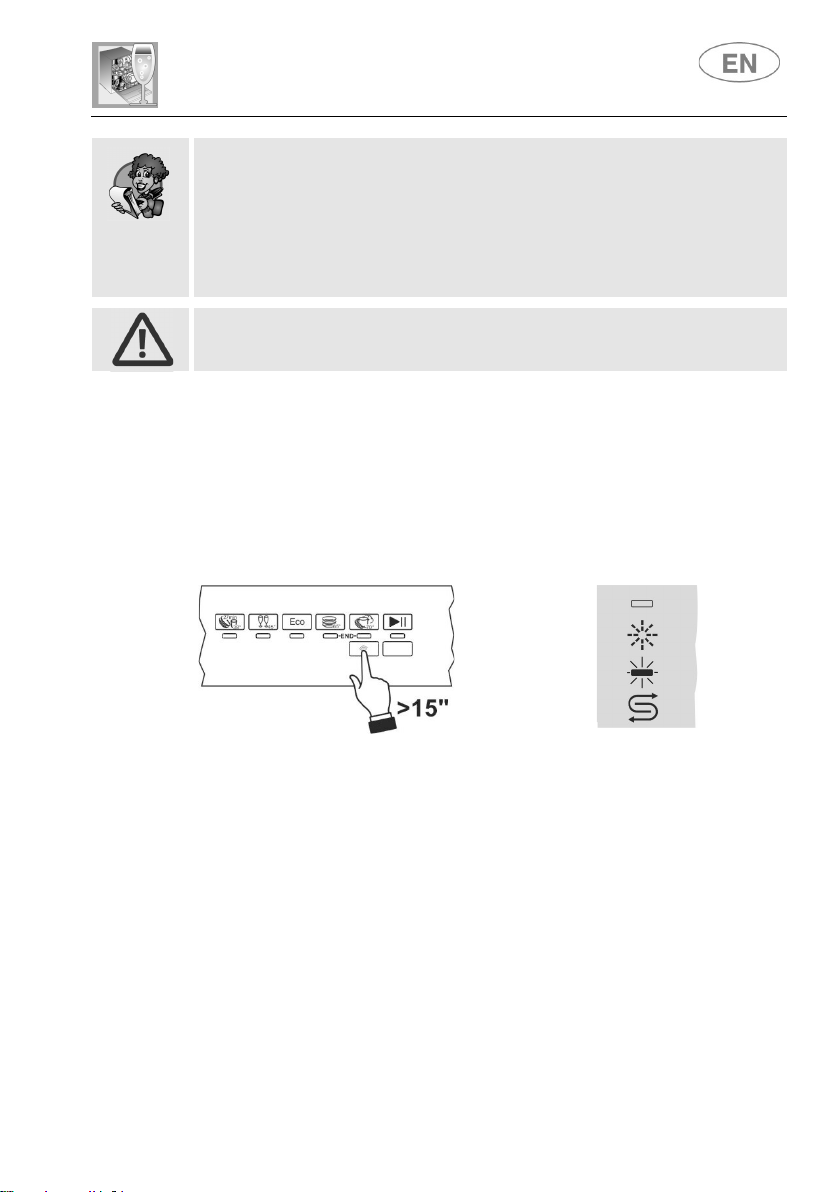

ADJUSTING THE RINSE AID DISPENSER MODE
Press and hold the PROGRAM SELECTION (6) button, after
approximately 15 seconds the salt light flashes, keep it pressed until the
rinse aid light (4) flashes and the program indicator lights (8)
indicate the current setting.
Then press the PROGRAM SELECTION (6) button several times to
select the required dosage according to the following table:
>
After carrying out the adjustment or displaying the current setting, if you
do not touch the button for a few seconds the dishwasher will
automatically exit from adjustment mode and return to the standard
operating mode.
RINSE AID ADJUSTMENT TABLE
0 – not
dispensed
b0 All indicator lights off
Minimum. 2 ml b1 One indicator light on
3 ml b2 Two indicator lights on
4 ml b3 Three indicator lights on
5 ml b4 Four indicator lights on
Maximum. 6 ml b5 Five indicator lights on
Default settings:
b4
-
5 ml
 The amount of rinse aid must be increased if the washed dishes
appear dull or feature circular stains.
 If, on the other hand, the dishes are sticky or have white streaks, it is
necessary to reduce the rinse aid setting.

User instructions
15

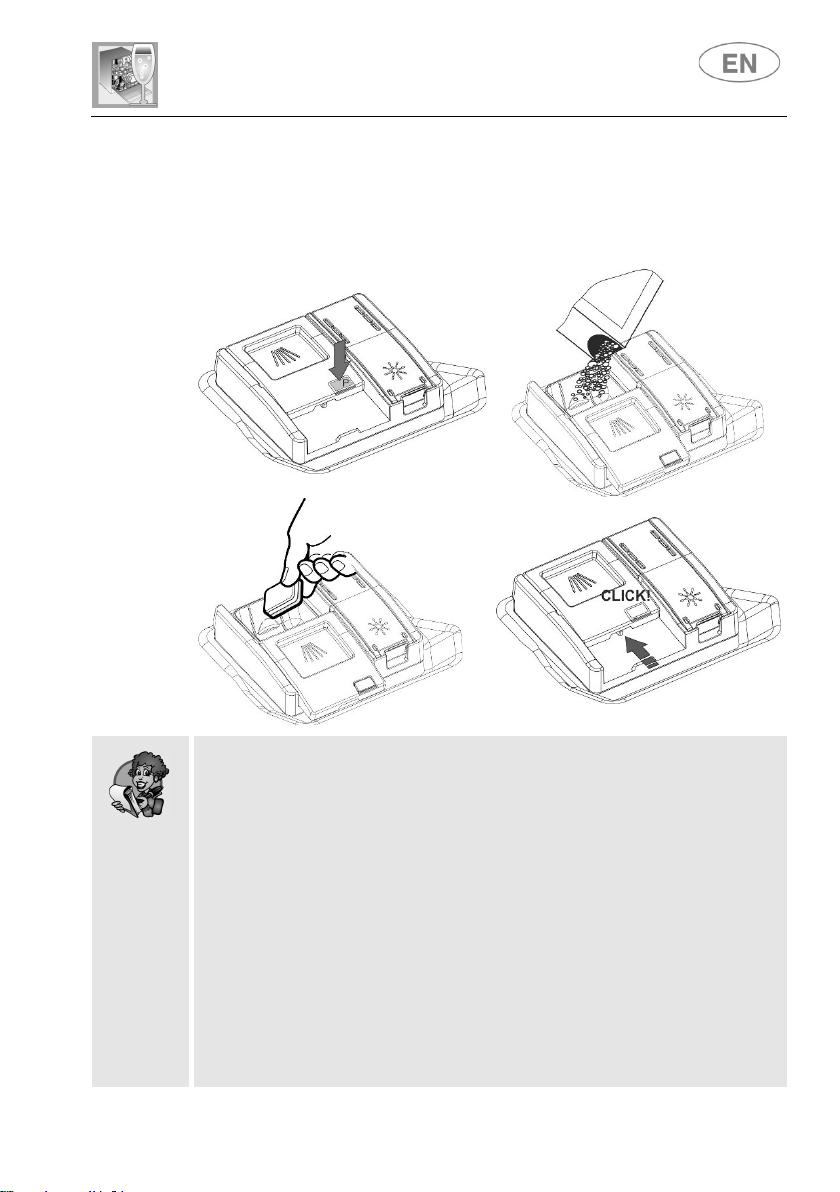

ADDING THE DETERGENT
To open the detergent dispenser cover, lightly press button P. Add the
detergent or tablet and close the cover by sliding it until it stops, indicated
by a click.
The dispenser will open automatically during the wash cycle.
Only add the detergent (also in tablet form) if the dispenser is dry
 When a program with hot prewash is selected (see program table),
extra detergent must be placed in the cavity G/H (depending on
models).
 Use only detergents specially formulated for dishwashers. The
detergent packs must be sealed and stored in a dry place to prevent
the formation of lumps which may negatively affect washing results.
Once opened the detergent packs should not be kept for too long,
otherwise the detergent loses its effectiveness.
 Do not use detergents for washing dishes by hand because they may
affect the operation of the dishwasher.
 Add the correct amount of detergent. An insufficient amount of
detergent will result in a partial removal of dirt from the dishes,
whereas an excessive amount is wasteful and does not improve the
washing results.
 For the safeguarding of the environment we recommend the use of
phosphate- and chlorine free detergents.

User instructions
16
The introduction of detergent into the rinse aid dispenser, even in
liquid form, will damage the dishwasher.
2.3 General warnings and recommendations
Before using the dishwasher for the first time, it is advisable to read the
following recommendations concerning dish types to be washed and their
loading.
There are generally no constraints on the washing of domestic dishes,
but in certain cases it is necessary to take their characteristics into
account.
Before loading the dishes into the baskets it is necessary to:
 remove coarse food remains: e.g. bones, fish-bones, etc. which may
clog the filter or damage the wash pump.
 soak any pots or pans with burnt-on food remains on the bottom to
facilitate removal, then load them into the LOWER BASKET.
There is no need to pre-wash the dishes under running water before
loading them into the baskets since this only wastes water.
Correct loading of the dishes helps ensure optimal washing results.

User instructions
17
WARNING!
 Make sure that the dishes are securely in place so that they cannot
tip over or obstruct the rotation of the spray arms during the washing
cycle.
 Do not place very small objects in the baskets as these could fall and
obstruct the spray arms or the wash pump.
 Containers such as cups, bowls, glasses and pots should always be
loaded with the opening facing downwards and with any cavities at
an angle, to allow the water to drain out.
 Do not stack dishes or place them in such a way that they cover one
other.
 Do not place glasses too close together because they may knock
against each other and break, or there might be staining at the point
where they touch.
MAKE SURE that the items being washed are dishwasher-safe.
Items which are not dishwasher-safe:
 Wooden dishes, pots or pans: these may be damaged by the high
washing temperatures.
 Handcrafted items: these are rarely suitable for washing in a
dishwasher. The relatively high water temperatures and the
detergents used may damage them.
 Plastic dishes: heat resistant plastic dishes must be washed in the
upper basket.
 Dishes and objects in copper, tin, zinc or brass: these tend to
stain.
 Aluminium dishes: items made from anodised aluminium may lose
their colour.
 Silverware: silver items may stain.
 Glass and crystal: in general, glass and crystal objects can be
washed in the dishwasher. However, certain types of glass and
crystal may become dull and lose their clearness after many
washings. Therefore, for these items we recommend using the least
aggressive program available.
 Decorated items: the decorated objects available on the market are
generally able to withstand washing in the dishwasher, although the
colours may fade after a great many washes. If in doubt as to the
fastness of the colours, it is advisable to wash just a few items at a
time for approximately one month.

User instructions
18
2.4 Using the baskets
The dishwasher has a capacity of 13 place-settings, including serving
dishes.
LOWER BASKET
The lower basket receives the full force of the lower spray arm, and should
therefore be used for the “toughest” items with a heavier degree of soiling.
All types and combinations of loads are
permitted, provided that the dishes, pots and
pans are arranged with all the soiled surfaces
exposed to the water jets coming from the
bottom.
With fixed supports
To make the most of the space inside the
basket when loading large items, certain
models are equipped with tip-up supports for
plates in 2 or 4 sections.
With tip
-
up supports
BOTTOM BASKET INSERTS
Some models are equipped with bottom basket inserts which improve
the drying of dishes. The inserts are supplied in the accessories bag; to
use them, simply fit them into place as shown.

User instructions
19
LOADING THE LOWER BASKET
Carefully load flat plates, soup plates, dessert and serving dishes,
positioning them vertically. Pots, pans and their covers must be loaded
upside down. When loading soup plates and dessert bowls, be sure to
leave a gap between them.
Loading examples:
UPPER BASKET
The upper basket should be loaded with small or medium-sized items
such as glasses, small plates and saucers, tea or coffee cups, shallow
bowls and light objects. If the upper basket is used in the lowermost
position, it can also be loaded with serving dishes, provided they are only
lightly soiled.
LOADING THE UPPER BASKET
Load plates facing forward; cups, bowls etc. must always be facing
downwards. The left side of the basket can be loaded with cups and
glasses on two levels. In the centre section, plates and saucers can be
loaded vertically into the supports provided.
Loading examples:

User instructions
20

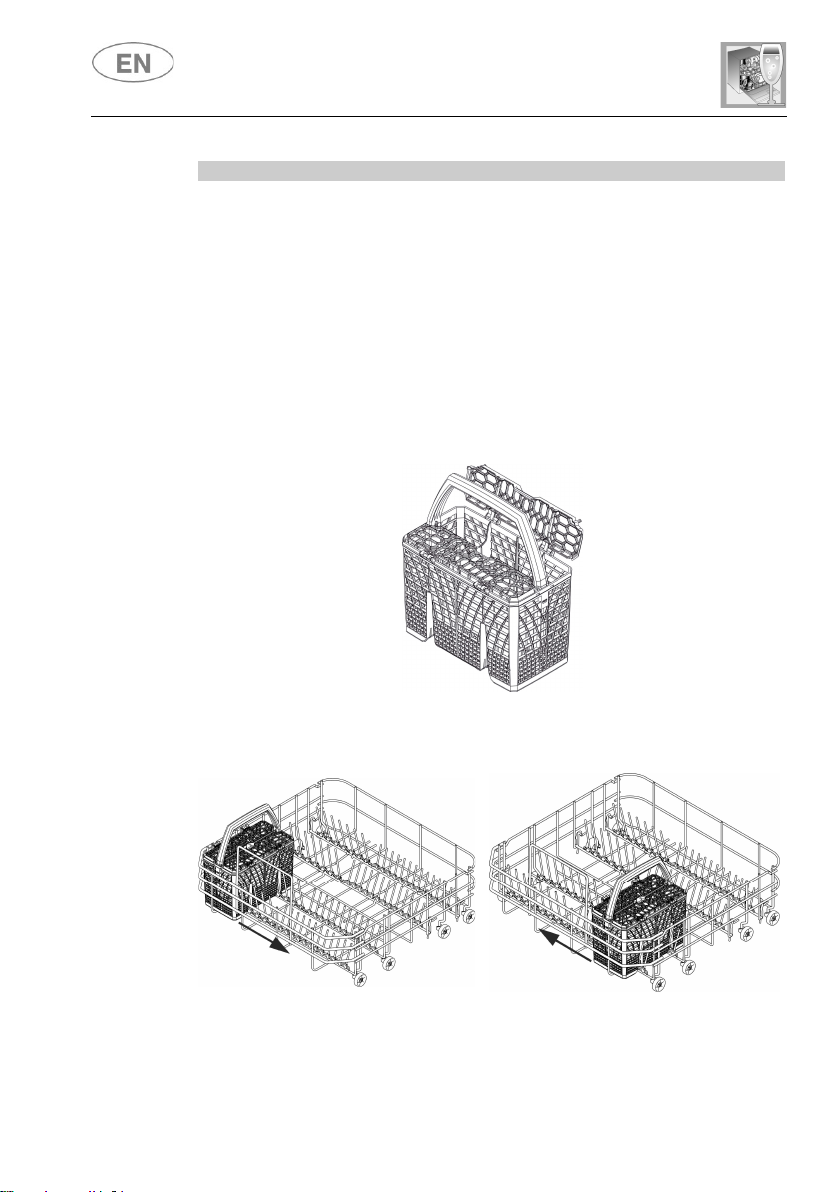

CUTLERY BASKET
The basket is suitable for all types of cutlery, except long items that may
interfere with the upper spray arm. The cutlery should be arranged in the
spaces in the upper racks to allow the water to pass effectively between
the items.
Forks and spoons should be positioned with the handle facing
downwards, taking care not to injure yourself with the prongs of the forks.
Knives should be placed in the tray on the upper rack or in the cutlery
drawer, if present (depending on the model), otherwise position them with
the handles facing upwards.
Ladles, wooden spoons and kitchen knives can be placed on the upper
rack, making sure that the blades of the knives do not protrude from
the basket. The upper racks can be opened in order to insert, for example,
small items.
The cutlery basket slides across the dishwasher and can be placed in
any position
to allow optimal use of the space in the bottom basket.
