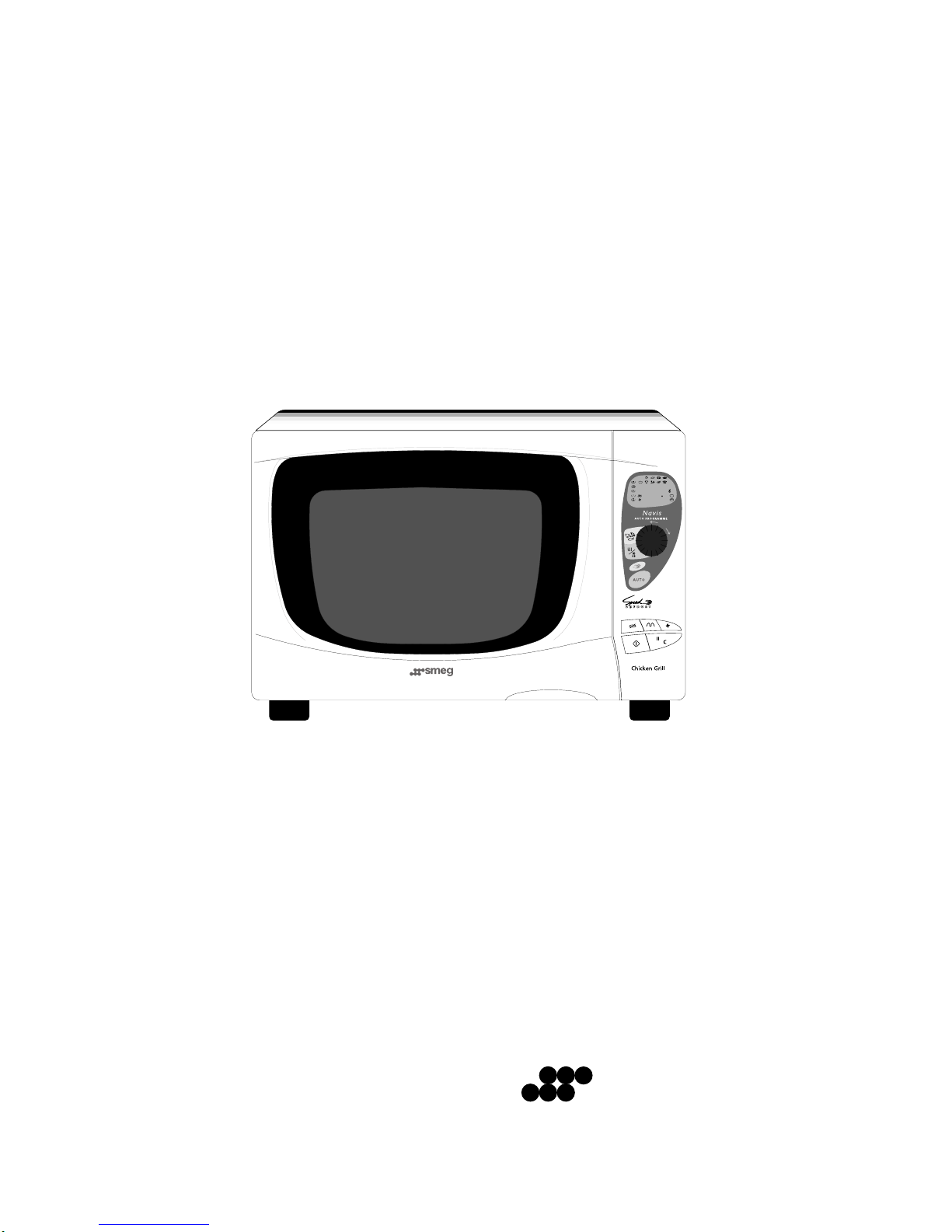

Smeg S30AS User manual

Microwave oven
s
e
m
g
C
12:30
200˚ C
Instruction manual

2
Table of contents
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Important instructions . . . . . . . . . . . . . . . . . . . . . . . .4
General description . . . . . . . . . . . . . . . . . . . . . . . . .5
The control panel . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Setting the clock / Microwave power settings . . . . . . . . . . .7
The display & the selector knob . . . . . . . . . . . . . . . . .8
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Programming / AUTO programming . . . . . . . . . . . . . .10
“Speed DEFROST” . . . . . . . . . . . . . . . . . . . . . . . . . .11
The grill function / The microwave + grill function . . . .12
Programming the grill & rotisserie . . . . . . . . . . . . . . .13
The fan functions . . . . . . . . . . . . . . . . . . . . . . . . . .14
Programming the fan function . . . . . . . . . . . . . . . . .15
Programming the fan + microwave function . . . . . . . . .16
Using the rotisserie . . . . . . . . . . . . . . . . . . . . . . . . .17
Programming the rotisserie . . . . . . . . . . . . . . . . . . . .18
Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . .20
Care & cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . .22
After-sales service . . . . . . . . . . . . . . . . . . . . . . . . . .23
Please read this user manual carefully. It contains important
instructions concerning installation, use and security measures.

3
Leave sufficient space around the oven :
- 5 cm between the sides of the oven
and any walls or objects
- 14 cm above the oven
- 10 cm behind the oven.
LOCATION
BEFORE CONNECTION
Installation
5 cm
14 cm
10 cm
5 cm
• The oven is meant to be set on a work surface at least 85 cm above floor level.
• Place the oven on a flat and horizontal surface, away from any source of heat or
steam. To ensure the stability of the microwave oven, the front left foot
is adjustable (5 positions). Turn it to raise or lower the appliance.
• Make sure that air may circulate freely around the oven.
• Make sure that nothing obstructs the ventilation
louvers at the back of the appliance.
• Make sure the electrical plug will be accessible after installation.
• Make sure that your oven has not suffered any damage during transport (deformed door
or door seal, etc.). If you see any signs of damage, contact your dealer before use.
• Check the power voltage. If there is a PERMANENT undervoltage (200-210 volts), consult your
electrical installer.
• Your installation must be protected by a 16 Amp thermal fuse.
• It is mandatory to use a power point with a ground terminal, connected in accordance with
current safety regulations.
• In your electrical installation, provide a device that is accessible to the installer, capable of
separating the appliance from the mains power and whose contact opening is at least 3 mm
at all of the poles.
• Never operate the oven if the supply cord and/ or its plug are damaged. In case of damage,
call in a specialised technician trained by the manufacturer.
ELECTRICAL CONNECTION

4
Important instructions
•Your appliance is designed exclusively for the domestic purposes of defrosting, heating
or cooking foods. The manufacturer bears no responsibility in the case of improper
usage.
•To avoid deterioration of your microwave oven, never operate it empty or without the
turntable.
•Never tamper with the lock mechanism of your microwave oven; this could cause
damage requiring repair by an authorised technician.
•Before use, make sure that the containers are appropriate for microwave usage (e.g.:
heat resistant glass, porcelain, etc.).
•It is not advisable to use metal recipients, forks, spoons, knives, metal ties or staples for
deep-freeze bags.
•For baby food and children’s food, it is essential :
- to remove the nipple before heating up baby bottles, shake the contents and test
the temperature on the back of your hand before feeding.
- to stir and verify the temperature of children’s foods before serving to avoid causing
serious internal burns.
•WARNING : Do not allow children to use the microwave oven without supervision
unless they have been thoroughly instructed in the proper use and the dangers of
improper operation.
•It is advisable to cover food in most cases. It will be tastier and your oven will stay cleaner.
However, be sure to remove the cap or lid before cooking foods or heating liquids in
a sealed bottle or container, which could otherwise explode.
•The heating or cooking of boiled, coddled eggs or fried eggs by microwave is pro-
hibited. They can burst and cause serious burns or irreparable damage to your oven.
•When heating liquids, the boiling point may be reached without the typical bubbles
appearing on the surface. To prevent liquids from boiling over and possible burns, wait
20 seconds before removing the containers from the appliance or adding anything
to the liquids, to avoid sudden spurting of the liquid.
•For small amounts (one sausage, a single croissant, etc.), place a glass of water
alongside the food item.
•Time settings that are too long may dry out and burn the food. To avoid such inci-
dents, never use the same cooking times as those recommended for traditional
ovens.
•Be sure to watch closely when heating or cooking foods in disposable plastic or paper
containers or any other combustible material, due to fire hazard.
•If smoke appears, keep the oven door closed and disconnect the oven or turn it off.

5
5
General description
•THE TURNTABLE :
ensures equal cooking of food throughout with no need to intervene.
- It may be used as a cooking dish.
- Rotation is controlled by the drive shaft and the wheel support.
- The turntable rotates in both directions.
- If it does not turn, verify that all components are properly positioned.
- For easy removal, wells are provided on either side.
•TURNTABLE OFF :
stops the turntable from revolving in order to use platters which require the entire oven
space. When off, remember to turn the recipient or stir the contents.
•THE WHEEL SUPPORT :
Do not try to rotate the roller ring manually, as you could damage the drive system. If it
does not turn smoothly, make sure that there is nothing in the well beneath the turn-
table.
•Speed DEFROST STICKER : position the sticker as shown above.
TurntableDrive shaft Wheel
support
Identification
label GrillSpeed DEFROST sticker

6
6

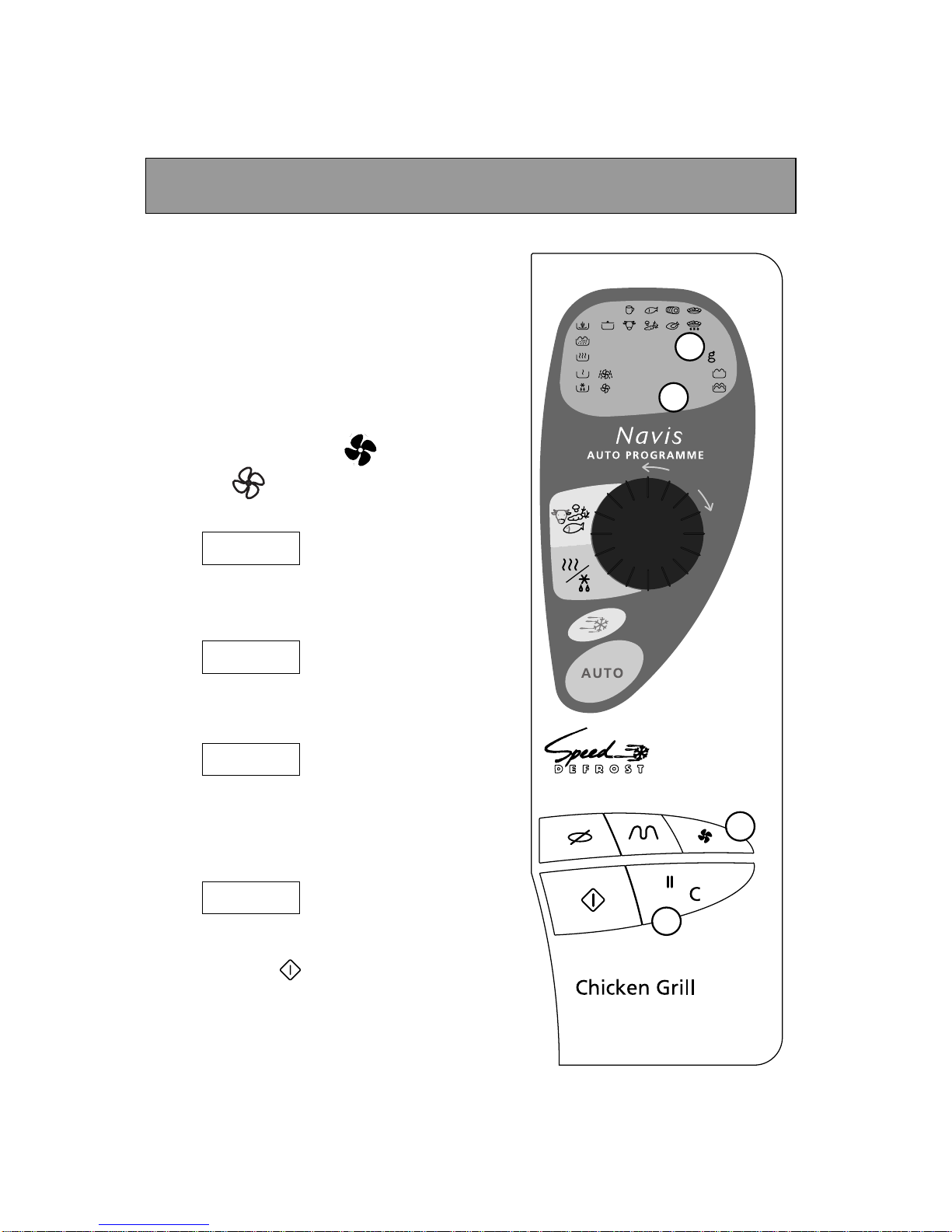

The control panel
ADisplay window :
to simplify programming, the display
indicates : the time of day, the types of
food and functions, the minutes /
seconds or weight programmed.
BThe selector knob :
to choose the food type, function, pro-
gramme time or weight.
CFOOD TYPE key :
to choose the food type, with the selec-
tor knob.
DFUNCTION key :
to choose the appropriate function, with
the selector knob.
E”Speed DEFROST” key :
to quickly defrost all types of frozen food.
F“AUTO” key :
automatically sets the correct programme
time according to a specified food type
and weight.
GSTOP-TURNTABLE key :
to stop the turntable from revolving.
HGRILL key :
to select low or high grill.
I FAN key :
to cook as if with a traditional oven.
JSTART key :
to start all programmes.
KPAUSE/CANCEL key :
to interrupt (press once) or cancel a pro-
gramme (press twice). Also used to set
the clock.
++
C
B
G
F
A
K
D
E
C
H
J
I
4 0 : 0 0
2 2 0 ° C

7
7
Microwave power settings
When you select the type of food, the appropriate
power setting is automatically programmed.
After first plugging in your microwave oven or after a power outage,
the clock reads 00:00 and the two dots flash.
To set the clock :
- Press the PAUSE / CANCEL key for 5 seconds.
The 4 numbers flash, and a tone sounds indicating the hour must be set.
- Turn the selector knob to display the correct time.
- Validate by pressing the PAUSE / CANCEL key .
Your clock is set.
0 0 : 0 0
1 2 : 0 0
0 0 : 0 0
Setting the clock
POWER SETTING APPLICATION
DEFROST 150W To defrost all frozen food or to top off
cooking of delicate dishes or cook very slowly.
SIMMER 500W
HEAT 700W To heat up all liquids and all fresh or frozen
pre-cooked dishes.
HIGH COOK 900W To cook vegetables and soup.
Microwave output power : 900 W
To cook fish and poultry.
To finish programmes begun with the HIGH COOK
power setting, for instance beans, lentils, or
dairy products.
(This power setting is available
when you programme with the function key.)

8
8
The display and the selector knob guide you in your choice of :
food types
functions DEFROST SIMMER HEAT COOK
MICROWAVE ROTISSERIE FAN FAN +
+ GRILL MICROWAVE
the 2-position grill LOW GRILL HIGH GRILL
the weight for Automatic programming
the programme time (or clock)
The food type or function being selected will blink in the display.
12:00
beverages beef,
lamb
vegetables poultry frozen
ready-
made
dishes
fresh
ready-
made
dishes
pork,
veal
fish
turkey
C
H
O
I
X
The display & the selector knob
12:30
200°C

9
9
You may choose amongst the following programmes :
Express programme
▼▼Set the programme time (ex. 2 minutes) with the selector knob.
The functions & blink alternatively to indicate
that the express programme (900 W) is set.
▼▼Press START .
Programming
2 : 0 0
Your microwave oven is now plugged in and the clock is set.
Open the door with the handle. Set the dish inside, close the door.
If the door is not properly shut, the appliance will not operate.
The following keys are used for the various programmes :
•
3 beeps announce the end of a programme. The beeps are repeated every minute for 10 minutes
until you open the door.
•
If you think there is insufficient space for the dish to turn freely inside the oven, press the STOP
TURNTABLE key before or during the programme.
•
If there is an error in the programming, press the CANCEL key twice.
SPEED DEFROST
AUTOMATIC
FUNCTION
FOOD TYPE

10

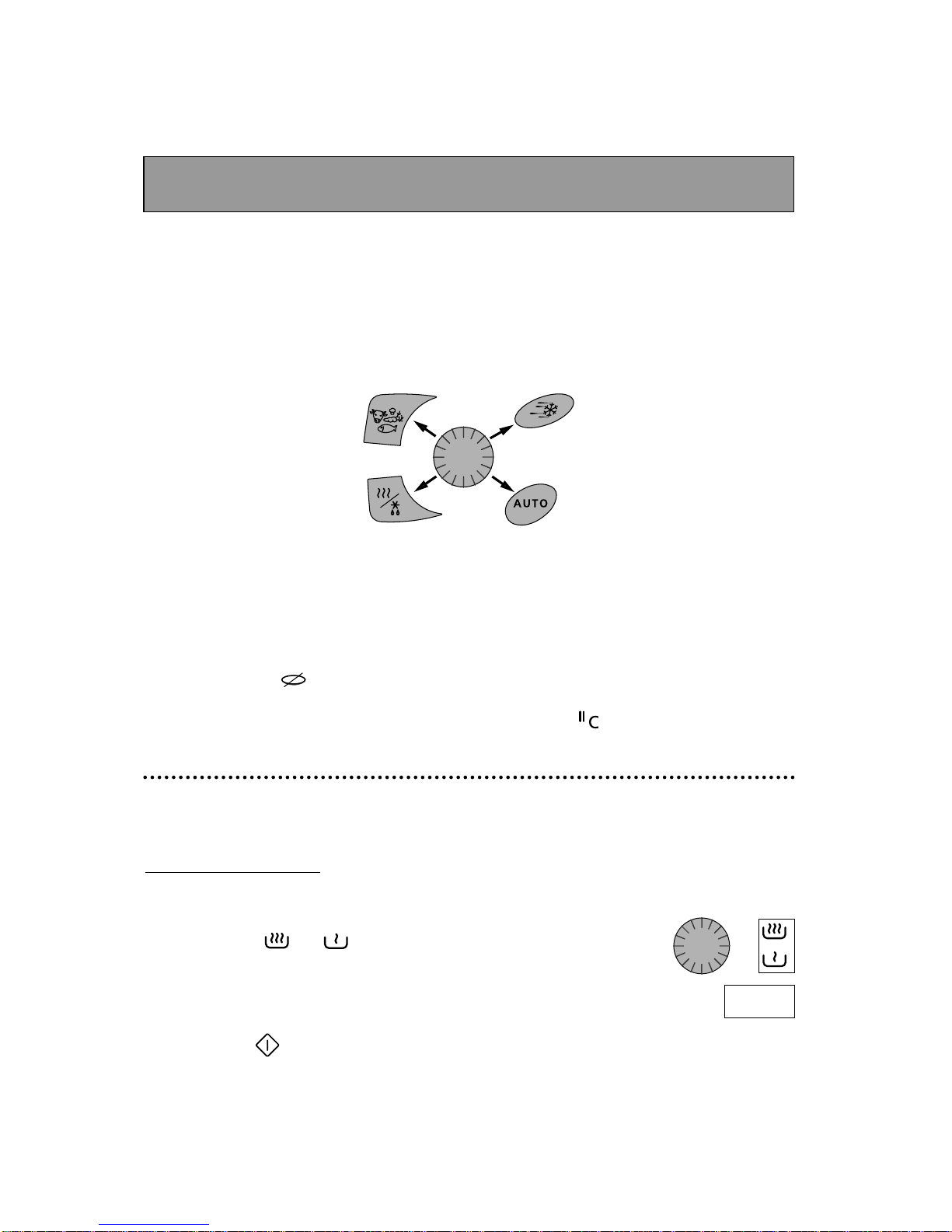

Automatic programming
With the AUTO key, the programme time is set automatically
according to the weight of your food item.
▼▼Press the FOOD TYPE key, make your selection.
▼▼Press the FUNCTION key, make your selection.
▼▼Press the AUTO key ; flashes,
use the selector knob to indicate the weight of your food item.
▼▼Press START .
The appropriate time is programmed automatically.
10
5 0
Programming

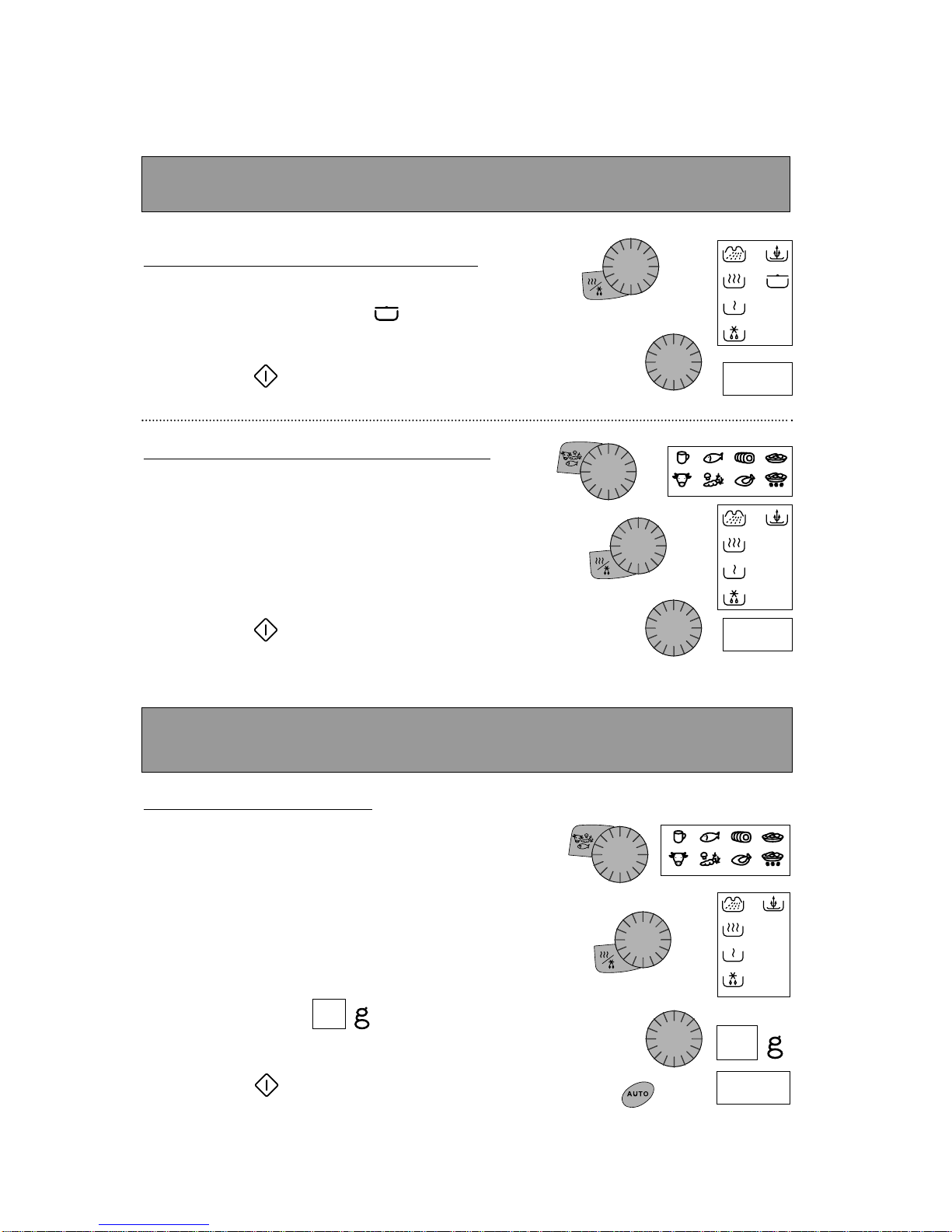

Programming with the function key
▼▼Press the FUNCTION key, make your selection.
With this key,the
SIMMER setting is available.
▼▼Wait until
00:00 flashes, set the programme time with the selector knob.
▼▼Press START .
Programming with the food type key
▼▼Press the FOOD TYPE key, make your selection.
▼▼Press the FUNCTION key, make your selection;
the correct microwave power setting will be programmed
according to the food type selected.
▼▼Wait until
00:00 flashes, set the programme time with the selector knob.
▼▼Press START .
5 : 0 0
7 : 0 0
Auto Programming
5 0
9 : 0 0

11
Speed DEFROST
With the Speed DEFROST key you can quickly defrost all types of frozen
food. To guarantee quality results, use Speed DEFROST for dishes weighing
up to 500g. To defrost food items over 500g, use the FUNCTION key (as
described on the preceding page).
▼▼For quick defrosting of meat, poultry, fish, vegetables and beverages, press the Speed
DEFROST key once :
is displayed.
▼▼For quick defrosting of bread, rolls and pastry, press the Speed DEFROST key twice :
is displayed.
▼▼Wait until flashes.
▼▼Use the selector knob to enter the weight of your food item (up to 500g).
▼▼Press START .
The defrost time corresponding to the given weight is automatically calculated.
Necessary time may vary according to the initial temperature of the food (the defrost
times were calculated for food frozen at -18°C).
The defrost time is displayed and the programme begins.
When using Speed DEFROST or the defrost function a beep indicates the mid-
point of the programme (the oven continues to operate). To obtain the best results,
turn the food at this time, close the door and press the START key to continue the
second half of the programme.
1 0 0
S J 2
S J 1

12
This function enables you to use the microwaves and grill simultaneously, for rapid
cooking.
The grilling racks
with the grill or grill + microwave functions :
choose the rack according to the dish you wish to grill
- high rack to brown dishes which are rather flat
- low rack as required for other dishes, ex. roasts.
with the fan or fan + microwave functions :
always set your dishes on the low rack.
When used with the simple or combined microwave functions, the racks must be posi-
tioned on the center of the turntable. Metal dishes may be used on the racks only with
the simple GRILL function.However, you can heat a dish in an aluminum tray if it is iso-
lated from the rack atop a plate.
the high rack
The microwave + grill function
This function enables you to brown dishes such as gratins or meat.
It may be used before or after cooking, as called for in the recipe.
•The grill folds down for easy cleaning :
1-Horizontal position: for cooking au gratin, grilled food laid flat.
2-Vertical position : for cleaning the oven and for the rotisserie function.
Always allow the grill to cool off 25 minutes before touching it.
•After grilling make sure to use an oven mitt to handle dishes, and remember to use
only oven proof cookware such as ceramic dishes or heat resistant glass.
•The dual level grill offers you a choice between : HIGH GRILL (press the GRILL
key once) and LOW GRILL (press twice).
As a rule, use the HIGH GRILL level to grill meat and fish and the LOW GRILL level
with the simultaneous microwave + grill function for gratins and to brown delicate
dishes.
The grill function
Grill Positions
1
2
the low rack

13
Using the dual-level grill
•
Press the GRILL key once to select HIGH GRILL , press twice to select LOW GRILL .
Set the programme time and press START .
Press the GRILL key a third time to stop the grill functioning.
Using the microwave + grill functions simultaneously
or the rotisserie function :
•
Select the FOOD TYPE with the selector knob. Select the FUNCTION , microwave
+ grill or rotisserie . The appropriate microwave power setting and the grill level will be
automatically adjusted according to your food type. Wait until
00:00 flashes. Set the programme
time and press START .
•
In the event the food item you wish to cook does not correspond to any of the proposed food
categories, select the microwave + grill or rotisserie function. A medium microwave
power setting andthe high grill level will be programmed. Set the programme time and press
START .
Programming the grill & rotisserie

14
The fan functions
2 convection cooking functions are available :
the fan function
• to cook and brown food just as in a traditional convection oven
the fan + microwave function
•to combine microwave power with fan cooking, for considerable time
savings.
•The cooking temperature may be set from
50° - 250° C by 5° steps.
•Cooking time may be set from
0 - 90 by 1 minute steps.
•You may modify the cooktime at any point during the programme.
•It is always preferable to set a minimal cooktime and extend if necessary; check the
browning of your dishes to avoid overcooking.
•Remember to always place your dishes on the low
rack when using the fan function or fan + micro-
wave function . This will ensure even heat distri-
bution thereby providing optimal cooking results.
Never use metal dishes when cooking with the fan +
microwave function.
•Use only heat-resistant ovenware.
•The glass pie dish : it may be used for all pastries,
quiches, pizzas, or as a roasting pan. You may also
place it under the rack when grilling in order to catch
drippings.
•When cooking with the fan + microwave function ,
do not use any metallic dishes.
•Always use an oven mitt to remove your dish as it may become quite hot.
•If you wish to defrost frozen food after using one of the fan functions, for better
results, first let the microwave oven cool down for about ten minutes.
Pointers
the low rack
the glass pie dish

15
Programming the fan function
Example : to bake an apple pie
Using your favorite recipe, prepare the pie in the
glass pie dish. Set the dish on the rack in the low
position and place together on the turntable.
Programming with the fan key
➤ Press the fan key is displayed;
flashes, requesting that
you select the cook tem-
perature.
➤ Programme 220 ° with the selector
is displayed
➤ Wait until
flashes in the display
window, requesting the
cooktime.
Programme 40 min with the selector.
is displayed
➤ Press START , the turntable revolves,
the oven light comes on.
175°
40:00
220°
00:00
➤At the end of the cooktime, remember to use an oven mitt to remove the dish.
C
1
4
3
2
4 0 : 0 0
2 2 0 ° C

16
Programming the fan + microwave function
Set the roast in a non-metallic roasting pan, dress and season to taste. Put the pan on the
rack in the low position and place together on the center of the turntable.
You may programme the fan function 3 different ways :
with the Auto key : all you need to enter is the weight of the food
and the appropriate programme is set automatically.
▼▼Press the FOOD ITEM key, select BEEF from amongst the choices.
▼▼Press the FUNCTION key, select the fan + microwave function.
▼▼Press the Auto key, the appropriate temperature for the roast is set
automatically. 50 flashes, requesting you enter the weight :
for the 1-kilo roast beef, enter 1000.
▼▼Press START, the cooking time and temperature necessary for the roast
are displayed, (ex. 30 min, 200°), the programme starts.
You choose the cooktime yourself according to personal preference.
▼▼Press the FOOD ITEM key, select BEEF from amongst the choices.
▼▼Press the FUNCTION key, select the fan + microwave function.
▼▼The appropriate temperature for the roast is set automatically and is dis-
played, flashes, requesting you programme the time, ex. 30 min.
▼▼Press START, the programme starts.
with the FUNCTION key : enter a tailor-made programme by selecting
the function, temperature and cooking time you wish.
▼▼Press the FUNCTION key, select the fan + microwave function.
▼▼flashes, requesting you set the temperature , ex. 200°.
▼▼When flashes, enter the programme time, ex. 30 minutes.
▼▼Press START , the programme starts.
Example : to cook a 1 kg roast beef
175°
00:00 200°
00:00
30:00
200°
30:00
30:00
200°

17
Preparation
•Set the grill to the vertical position.
•Tie the legs of the chicken and make sure that the
wings and legs are pressed against the body.
•Salt and pepper the inside of the chicken.
•Do not add shortening or water to the juices or
to the chicken, either before or during the pro-
cess, to avoid splattering of grease.
•Remove any metal ring or rings on the wings of
the chicken.
•Insert the spit into the ceramic holder in the cen-
ter of the glass dish.
•Place the bound chicken head down on the spit,
centering it while pushing the two forks into the
breasts, press down firmly over the spit, folding
the croup into the body cavity.
•Set the glass dish on the middle of the turntable.
Ceramic
holder
Tines
Spit
Glass
dish
Example : to roast a chicken (1 kg)
Using the rotisserie

Programming
➤Press the FOOD TYPE key :
select poultry
➤Press the FUNCTION key :
select the rotisserie
function
➤Press the AUTO key:
programme 1000
➤Press START ,
is displayed, the turntable
revolves, the oven light comes on.
➤Be sure to use an oven mitt to remove the dish.
18
25:54
Example : to cook a 1 kg chicken
Programming the rotisserie
C
1
2
3
4
25:54
1000

19
You may also select your food type, select the rotisserie function ,
then set your programme time .
The table below lists recommended roasting times.
Food item
Chicken 1 kg - 1,5 kg 25/35 min
Lamb or 800 g - 1 kg 28/35 min
beef roast
Turkey, pork 800 g - 1 kg 35/45 min
or veal roast
Display Weight Time
Tips
• Programming with the AUTO key is recommended when using the rotisserie function.
• The time may vary according to the thickness and weight of the meat, the initial tem-
perature and individual preference. It is preferable to programme a minimal time and
extend cooktime at the end if necessary.
• Cook roasts without an outer layer of fat to avoid splattering. The spit is not recom-
mended for cooking pork roasts as they are liable to heavily soil the cook area.
• Grease the spit and tines before positioning the chicken to ensure easy removal after
roasting.
• Make sure the food is properly centered on the spit.
• Be sure to clean the microwave oven after each use.
Programming the rotisserie

20
Recommendations
WHILE THE OVEN IS OPERATING :
•If you programmed either by entering the time or by using the AUTO key,
➢you may change the programme length at any time.
•You may stop or start the turntable revolving during a programme by pressing the
TURNTABLE STOP key .
•To change the food type or FUNCTION selection, press the CANCEL key twice
and programme again.
•If you open the door before the end of the programme, shut the door and press the
START key to continue the programme.
•If you remove a dish before the end of the programme, press the CANCEL key
twice to erase the programme.
REMARKS :
•If you wait longer than 3 minutes to press the START key after having entered a
programme, it will be cancelled (the clocktime will be displayed).
