Smeg CSA19ID-6 User manual

Contents
1. INSTRUCTIONS FOR SAFE AND PROPER USE________________ 4
2. INSTALLATION OF THE APPLIANCE_________________________ 6
3. ADAPTATION TO DIFFERENT TYPES OF GAS _______________ 11
4. FINAL OPERATIONS_____________________________________ 13
5. DESCRIPTION OF CONTROLS ____________________________ 15

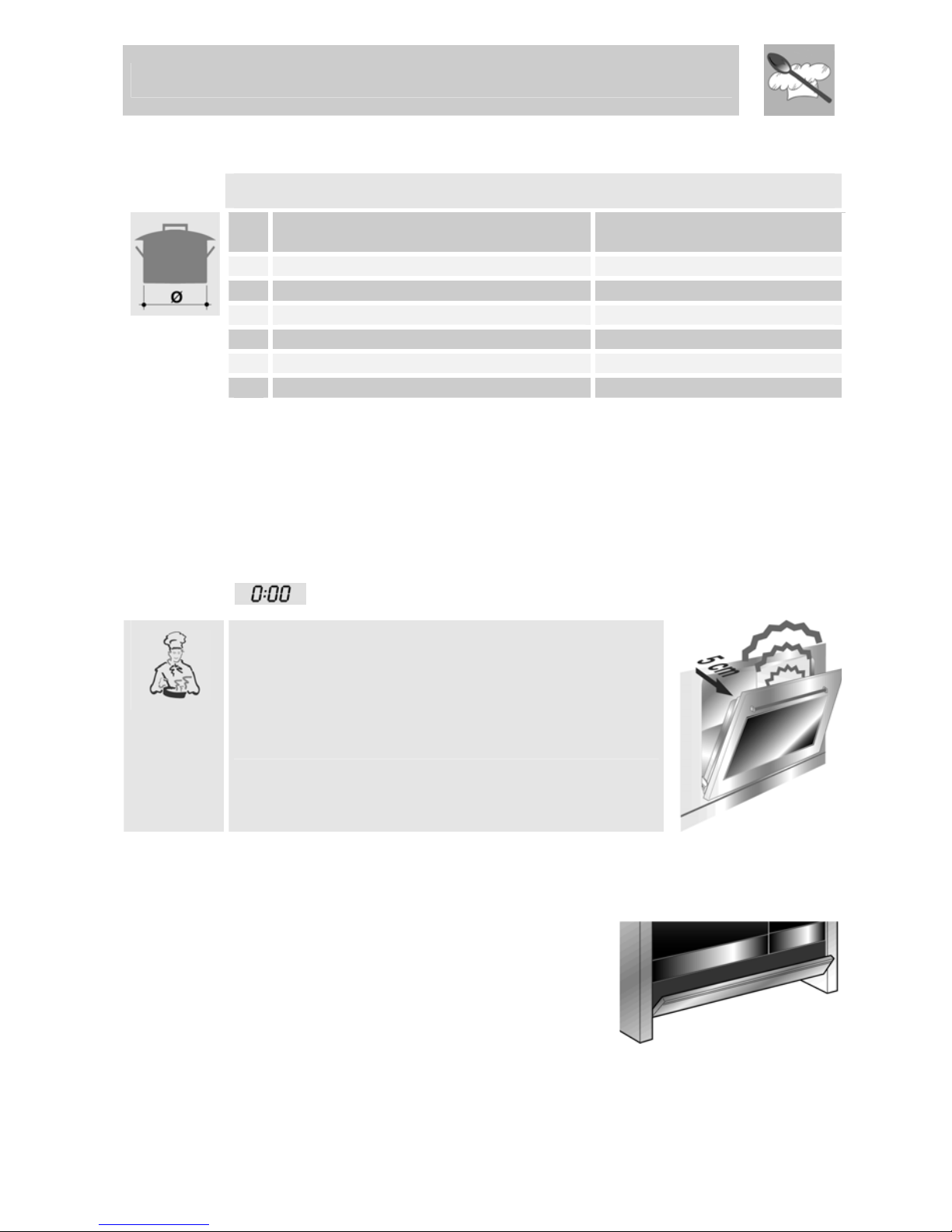

6. USE OF THE HOB _______________________________________ 20
7. USE OF THE OVENS_____________________________________ 21

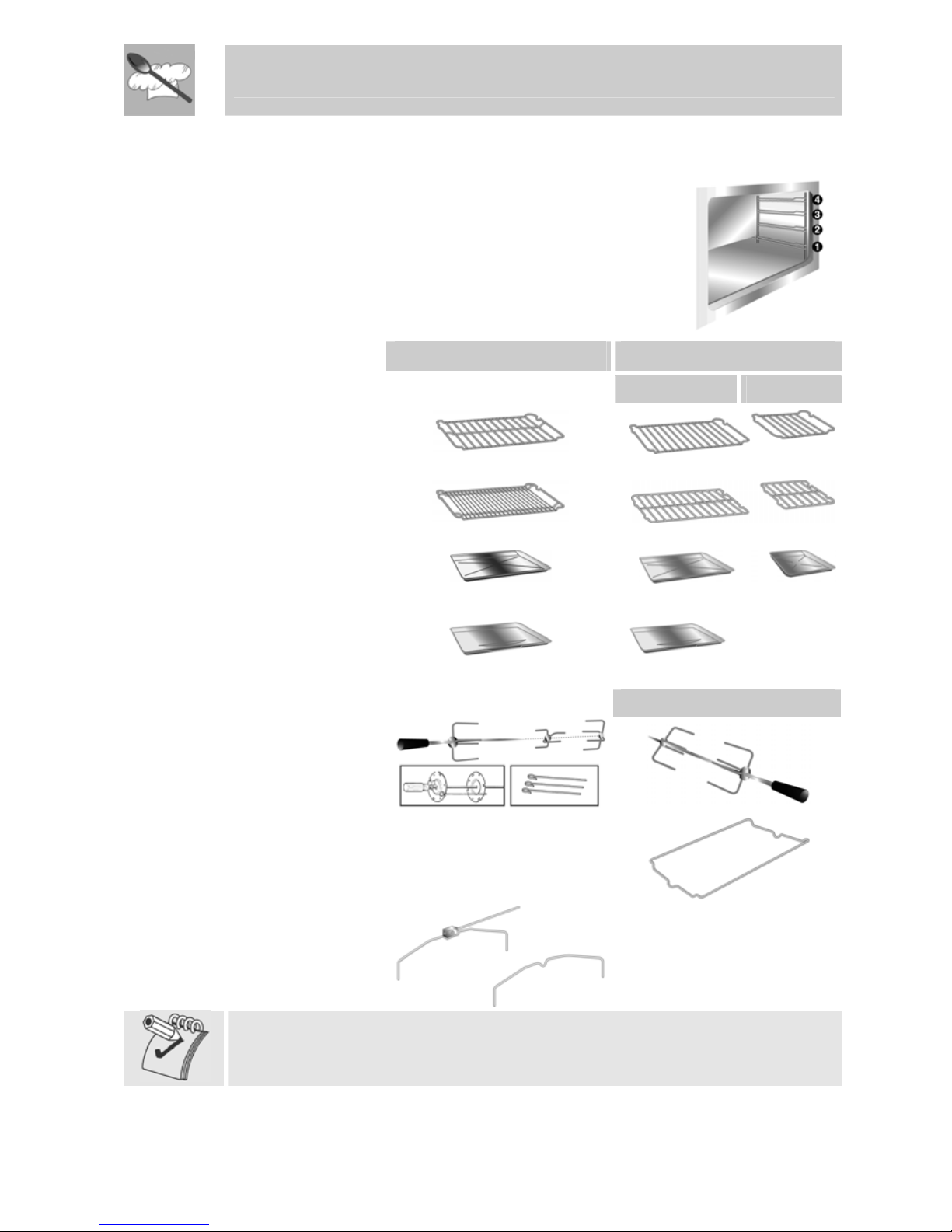

8. AVAILABLE ACCESSORIES _______________________________ 22
9. COOKING HINTS________________________________________ 23
10. CLEANING AND MAINTENANCE ___________________________ 30
11. EXTRAORDINARY MAINTENANCE _________________________ 32
12. PROBLEMS AND CAUSES ________________________________ 34
Thank you for choosing our product.
We advise you to read this manual carefully. It contains all necessary
instructions for maintaining unaltered the appearance and functional
qualities of the cooker.
INSTRUCTIONS FOR THE INSTALLER: these are for the qualified
technician who must carry out a suitable check of the gas system,
install the appliance, set it functioning and carry out an inspection test.
INSTRUCTIONS FOR THE USER: these contain user advice,
description of the commands and the correct procedures for cleaning
and maintenance of the appliance.
3

Introduction
1. INSTRUCTIONS FOR SAFE AND PROPER USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND
THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE
PLACE FOR THE WHOLE WORKING LIFE OF THE COOKER. WE ADVISE
READING THIS MANUAL AND ALL THE INSTRUCTIONS THERE IN BEFORE
USING THE COOKER.
INSTALLATION MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN
ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR DOMESTIC USES AND CONFORMS TO CURRENT
REGULATIONS IN FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY
OUT THE FOLLOWING FUNCTIONS: COOKING AND HEATING-UP OF FOOD.
ALL OTHER USES ARE CONSIDERED IMPROPER.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER
USE.
DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE
THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST
SPECIAL GARBAGE COLLECTION CENTRE.
IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED
ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.
IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION
TEST OF THE APPLIANCE, FOLLOWING THE INSTRUCTIONS BELOW.
SHOULD THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE
SUPPLY AND CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE POSITION
(OFF) WHEN YOU FINISH USING THE HOB.
NEVER PUT INFLAMMABLE OBJECTS INTO AN OVEN: IF THEY CATCH FIRE
THEY COULD CAUSE A FIRE IN THE HOME.
4

Introduction
THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND
BRAND NAME IS POSITIONED VISIBLY IN THE STORAGE COMPARTMENT.
THE PLATE MUST NOT BE REMOVED.
DO NOT PUT PANS WITHOUT PERFECTLY SMOOTH AND FLAT BOTTOMS
ON THE HOB GRIDS.
DO NOT USE CONTAINERS OR BROILERS THAT EXTEND BEYOND THE
OUTER PERIMETER OF THE HOB.
THE APPLIANCE IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW
CHILDREN OR INFIRM PERSONS TO GO NEAR OR PLAY WITH IT.
DURING USE THE APPLIANCE BECOMES HOT. CARE SHOULD BE TAKEN
TO AVOID TOUCHING THE HEATING ELEMENTS INSIDE THE OVEN. KEEP
CHILDREN AWAY FROM THE OVEN.
REPLACED APPLIANCES MUST BE TAKEN TO A SPECIAL GARBAGE
COLLECTION CENTRE.
THIS APPLIANCE IS DESIGNED FOR COOKING FOOD AND IT SHALL NOT
BE USED AS A SPACE HEATER.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT
IS IN OPERATION.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND
PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.
The manufacturer declines all responsibility for damage to persons
or things caused by non-observance of the above prescriptions or by
interference with any part of the appliance or by the use of non-original
spares.
5

Instructions for the installer
2. INSTALLATION OFTHE APPLIANCE
It is the law that all gas appliances are installed by authorised persons.
Clearance around the cooker must comply with the requirements of
AGA601.
2.1 Electrical connection
Make sure that the power line voltage matches the specifications
indicated on the rating plate located inside the storage compartment.
This rating plate must never be removed.
On the power line, install a two-pole cut-off device with contact cut-off
distance greater than or equal to 3 mm, located in an easily accessible
position near the unit.
If the power cable is replaced, the wire section
on the new cable must not be less than
2.5 mm2(3 x 2.5 cable), keeping in mind that
the end to be connected to the cooker must
have the ground wire (yellow-
g
reen) longer by
at least 20 mm. Use only the special cables
available at our Service Centres.
The manufacturer declines all responsibility for damage to persons
or things caused by non-observance of the above prescriptions or by
interference with any part of the appliance.

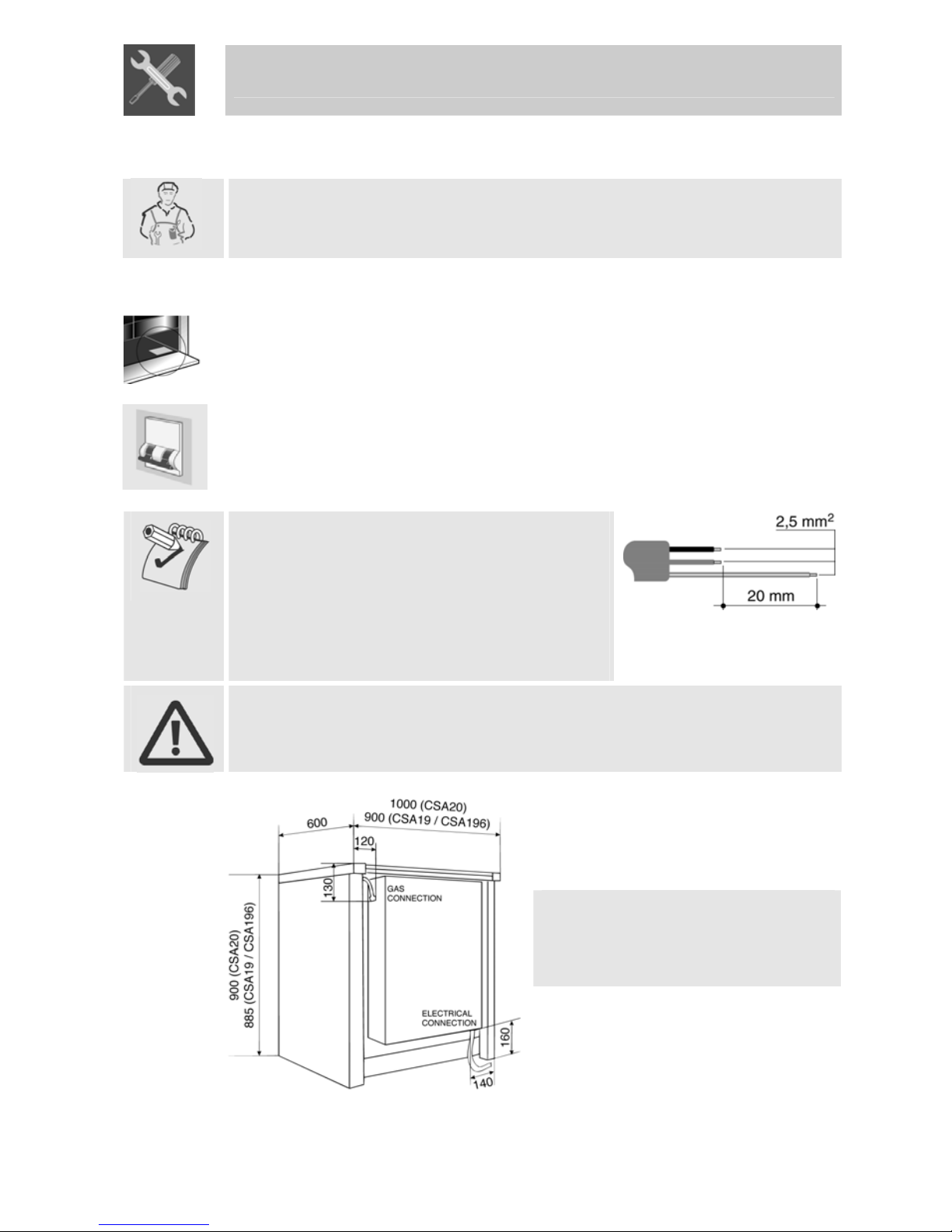

Overall dimensions: location of
gas and electrical connection
points (all measures in mm).
6

Instructions for the installer
2.2 Gas connection
This appliance is suitable for installation with Natural
Gas or LPG. Refer to page 12 for the relevant burner
pressure and appropriate injector sizes. When the
appliance is to be connected to Natural Gas then the
pressure regulator supplied must be fitted to the gas
inlet. A test point (for checking the gas pressure) is
supplied either with the regulator or as a separate fitting
in the case of LPG appliances.
Connection of the appliance to the gas supply must be in
accordance with the requirements of AS5601. A ½” BPS
connector at the inlet is recommended and the gas
supply line to the appliance must be of adequate length
to allow sufficient withdrawal of appliance for service or
disconnection and be:
(a)- annealed copper pipe; or
(b)- a hose assembly complying with requirements of AS 1869 - class B
or equivalent.
The cooker must be installed with provision to allow the gas to be turned
off and disconnected for servicing and removal of the appliance as
required from the gas supply.
Before the cooker is operated make certain all relevant parts are placed
in the correct position.
When the installation is completed the installation connections of cooker
will require to be leak tested, the burner operating pressure and flame
checked and adjusted.
Warranty service calls do not cover these adjustments!
To check the operating pressure of the appliance it is recommended at
least 2 large size burners are used. Ensure appliance is secured to wall
when installation is completed.

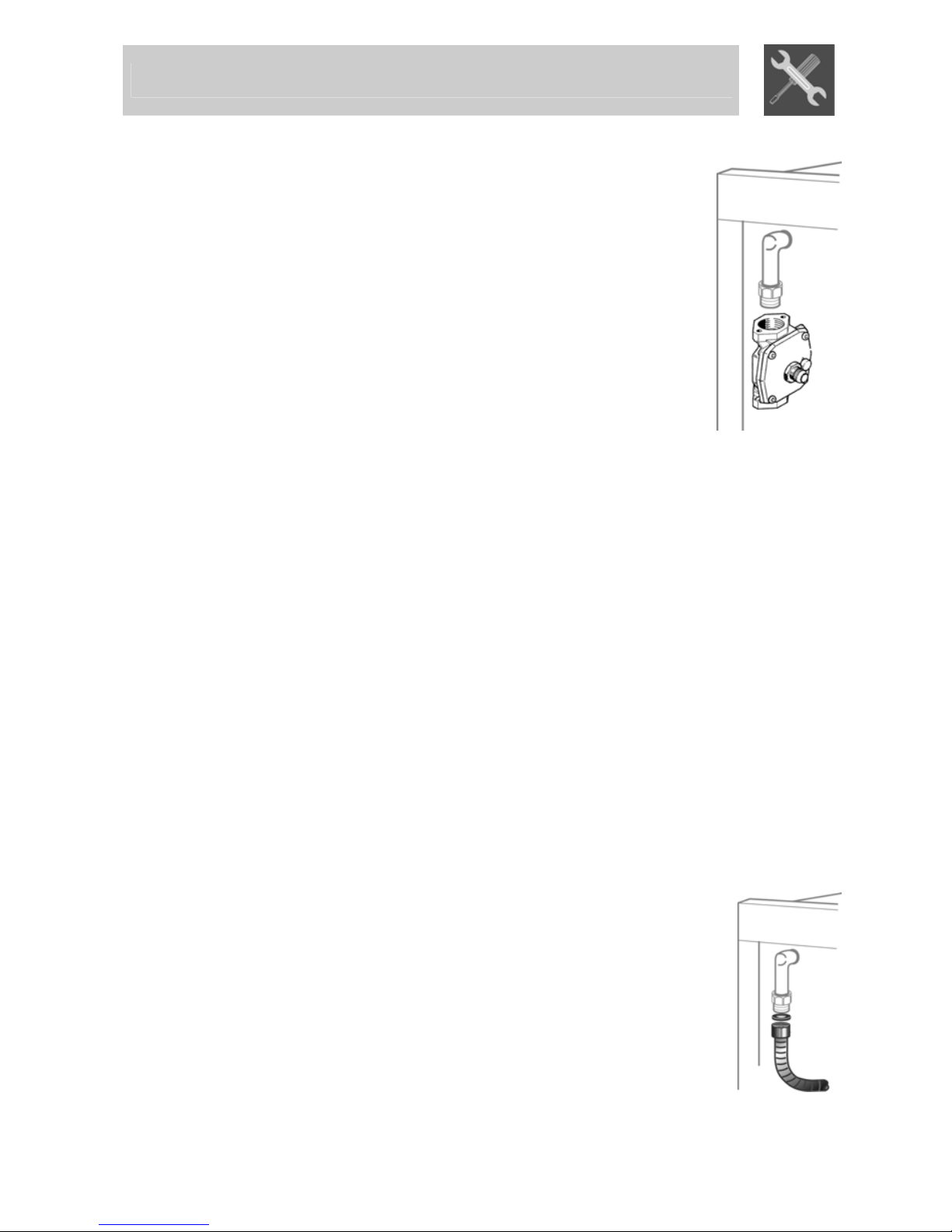

N.G. The regulator supplied must be fitted to the ½ BSP thread at the
rear of the appliance. An approved manual shut-off valve must be
installed. The N.G. regulator must be checked and adjusted to 1.0kPa
after installation.
L.P.G. Can be connected to the inlet fitting directly. The
pressure must be checked to ensure it is operating at
2.75kPa.
7

Instructions for the installer
2.3 Room ventilation
Caution – This cooker may only be installed and operated in rooms
permanently ventilated in accordance with current regulations. For
proper operation of a gas appliance it is essential for the air necessary
for combustion of the gas to be able to flow naturally into the room. Air
must flow directly into the room through openings in its outside walls.
This (these) opening (s) must have a free passage cross-section of at
least 100 cm2, or 200 cm2for appliances not equipped with gas safety
device. These openings must be constructed so that they cannot be
obstructed indoors or outdoors, and should preferably be close to the
floor on the side opposite to the combustion gas discharge point. If it is
not possible to make the openings in the room where the cooker is
installed, the necessary air may be taken from an adjoining room,
proveded it is not a bedroom or a room with fire risk.

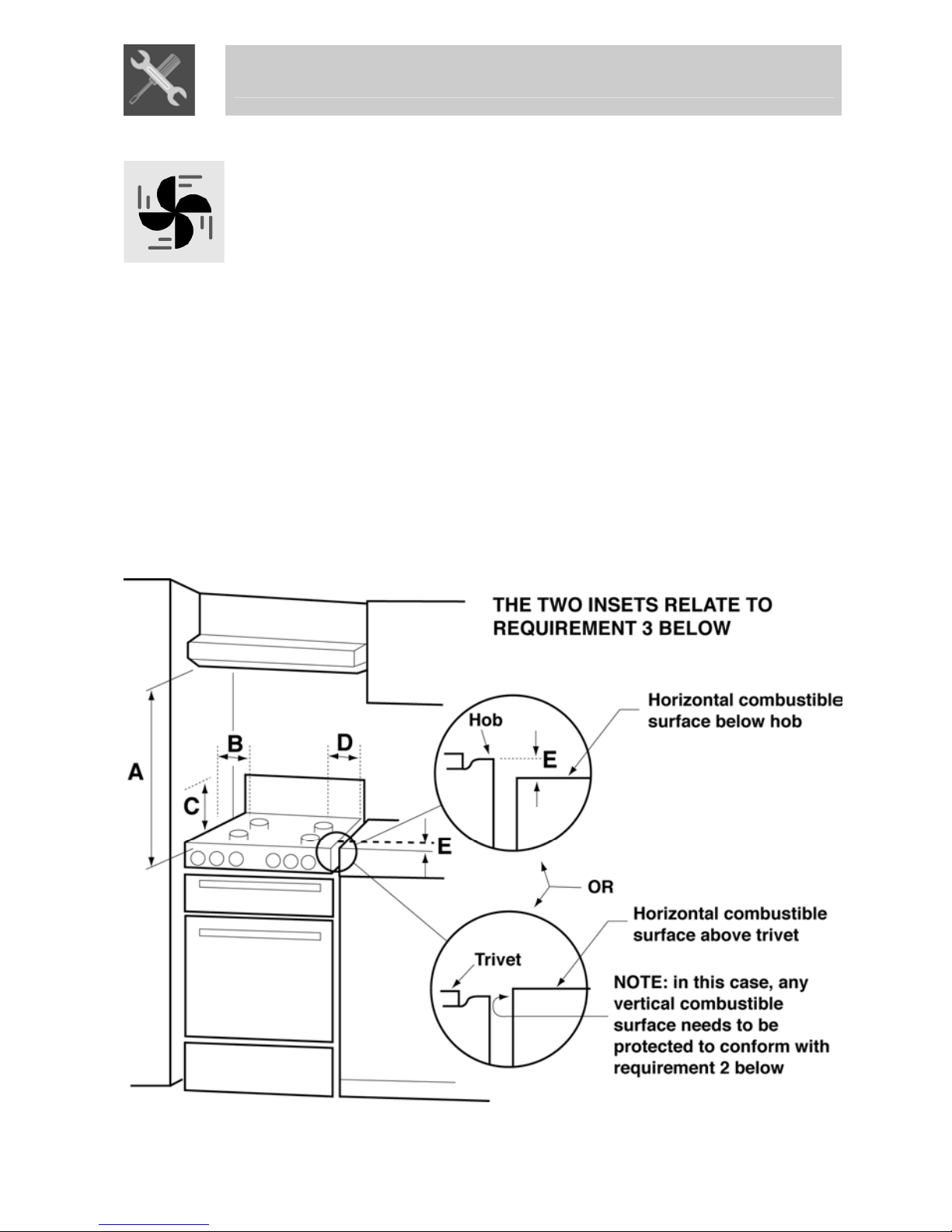

2.4 Clearance above and around domestic cookers
Extract from AGA601
8

Instructions for the installer
REQUIREMENTS
1Overhead clearances – (Measurement A)
Range hoods and exhaust fans shall be installed in accordance with
the manufacturer’s instructions. However, in no case shall the
clearance between the highest part of the hob of the cooking
appliance and a range hood be less than 600 mm or, for an overhead
exhaust fan, 750 mm.
Any other downward facing combustible surface less than 600 mm
above the highest part of the hob shall be protected for the full width
and depth of the cooking surface area in accordance with Clause
5.12.1.2. However, in no case shall this clearance to any surface be
less than 450 mm.
2Side clearances – (Measurements B& C)
Where B, measured from the periphery of the nearest burner to any
vertical combustible surface, is less than 200 mm, the surface shall
be protected in accordance with Clause 5.12.1.2 to a height Cof not
less than 150 mm above the hob for the full dimension (width or
depth) of the cooking surface area. Where the cooking appliance is
fitted with a ‘splashback’, protection of the rear wall is not required.
3Additional requirements for Freestanding and Elevated Cooking
Appliaces – (Measurements D& E)
Where D, the distance from the periphery of the nearest burner to a
horizontal combustible surface is less than 200 mm, then Eshall be
10 mm or more, or the horizontal surface shall be above the trivet.
See insets above.
NOTES
1Requirement 3 does not apply to a freestanding or elevated
cooking appliance which is designed to prevent flames or the
cooking vessels from extending beyond the periphery of the
appliance.
2The ‘cooking surface area’ is defined as that part of the
appliance where cooking normally takes place and does not
include those parts of the appliance containing control knobs.
3For definition of hob, see Clause 1.4.64.
4For definition of trivet, see Clause 1.4.109.
5Consideration is to be given to window treatments when
located near cooking appliances. See Clause 5.3.4.
9

Instructions for the installer
2.5 Instruction for wall fixing
1) Fix the screw to the wall and hook the chain (B);
2) Hook the chain to the hole positioned at the rear of the cooker by the
gas pipe (A);
3) Once the chain is in position, push the cooker against the wall;
4) The height of the screw hole from floor level must not exceed 800
mm (C).
A
B
C
1
0

Instructions for the installer
3. ADAPTATIONTO DIFFERENTTYPES OF GAS
Before performing any cleaning or maintenance work, detach the
appliance from the electrical socket.

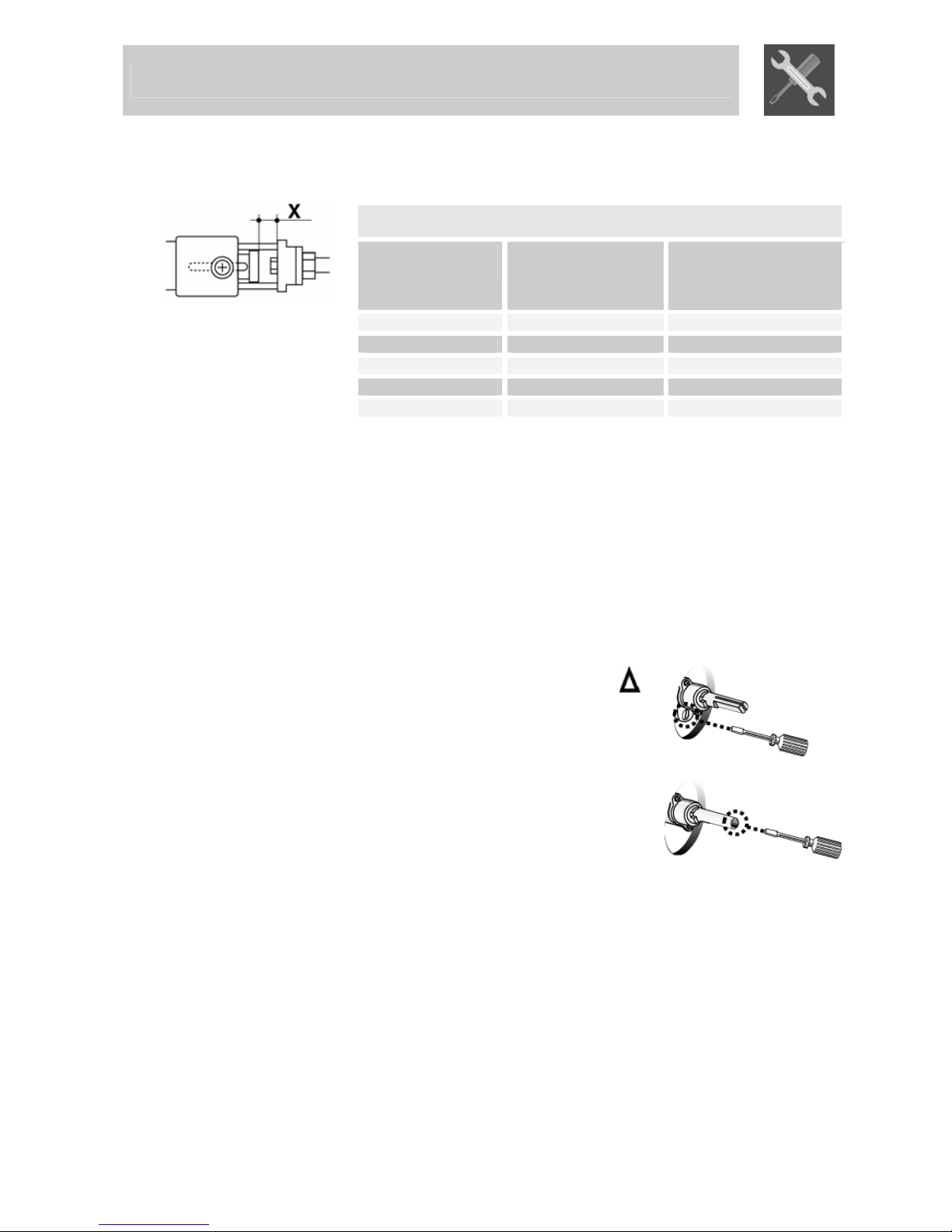

The hob of the cooker is adjusted for use with natural gas at a pressure of
1.0kPa. If used with other types of gas, you have to replace the nozzles and
regulate the primary air to the burners. Then adjust the minimum flame on the
gas taps. For nozzle replacement and burner adjustment you must raise the
hob as described in the following paragraph.
3.1 Raising of the hob
Remove the grids, first the middle one then the ones at the sides; remove all
the burner caps, the flame cap crowns and the burners.
1. Remove the programmer buttons;
2. Remove the knobs;
3. Unscrew the front panel fixing screws and remove it after disconnecting
the thermostat tell-tale light faston;
4. Loosen the screws of the hinge on the back of the cooker;
5. Raise the surface from the front end;
6. Place the surface support brackets in the front groove of the side;
7. Proceed to replacement of the burner nozzles in accordance with the
appropriate gas table;
8. Adjust the primary air as described in paragraph “3.2 Adjustment for
LPG”;
9. After adjustment, fully tighten the fixing screws.
11

Instructions for the installer
3.2 Adjustment for LPG
Loosen screw Aand push air regulator Bto
the bottom. With a 7 mm wrench, remove
nozzle Cand replace it with the proper one
(follow the instructions on the reference
tables for the type of gas to be used). The
torque wrench setting of the nozzle must not
exceed 3 Nm. Adjust the air by sliding
regulator Buntil reaching distance “X”
shown in the table in paragraph “3.4
Regulation of primary air”. Lock regulator B
by tightening screw A.

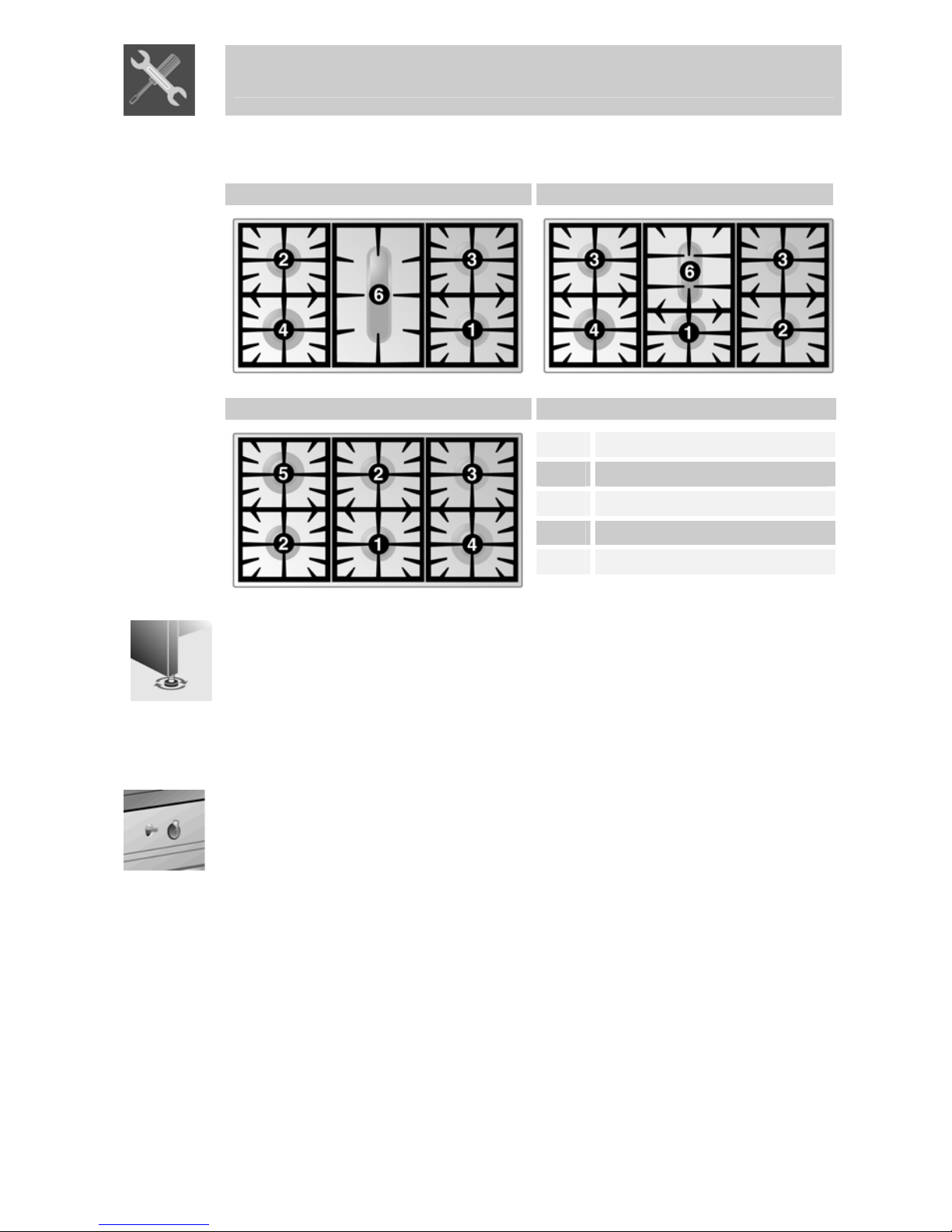

Model CSA19 Models CSA196 / CSA20
LPG – 2.75 kPa LPG – 2.75 kPa
Burner
Nominal gas
consumption
(MJ/h)
Turn-down gas
consumption
(MJ/h)
Injector
(mm)
Nominal gas
consumption
(MJ/h)
Turn-down gas
consumption
(MJ/h)
Injector
(mm)
Auxiliary 4.80 1.5 0.60 5.30 1.5 0.62
Semi rapid 5.80 1.5 0.67 6.60 1.5 0.70
Rapid 9.30 3.2 0.85 9.00 3.2 0.82
Wok 13.00 5.4 1.00 15.00 5.4 1.05
Fish burner (*) 9.20 3.2 0.85 6.60 2.9 0.70
(*) Models CSA19 / CSA196
3.3 Adjustment for natural gas
The hob has been tested for natural gas at a pressure of 1.0kPa. To
allow the unit to work with this type of gas, perform the same operations
described in paragraph “3.2 Adjustment for LPG”, but choose the nozzles
and adjust the primary air for natural gas, as shown in the following table
and in paragraph “3.4 Regulation of primary air”.
Model CSA19 Models CSA196 / CSA20
NG – 1.00 kPa NG – 1.00 kPa
Burner
Nominal gas
consumption
(MJ/h)
Turn-down gas
consumption
(MJ/h)
Injector
(mm)
Nominal gas
consumption
(MJ/h)
Turn-down gas
consumption
(MJ/h)
Injector
(mm)
Auxiliary 5.30 1.4 1.04 5.30 1.4 1.00
Semi rapid 6.60 1.4 1.15 6.60 1.4 1.15
Rapid 9.00 2.4 1.35 9.00 2.4 1.35
Wok 12.50 4.3 1.65 15.00 4.3 1.75
Fish burner (*) 10.20 3.2 1.45 6.60 2.9 1.15
(*) Models CSA19 / CSA196
1
2
