Smeg SFA4130VC User manual

EN
INSTRUCTION MANUAL
BUILT-IN OVEN
SFA4130VC
SFA4130VCB
SFA4130VCN
SFA4395VCX

ENGLISH
1Dear customer, we would like to thank you for your confidence in us.
By choosing one of our products, you have opted for solutions where research for beauty meets innovative
technical design to provide unique objects which become pieces of furniture.
We hope you get the most out of your household appliance.
Kindest regards.
1

Contents
3
EN
1 Instructions 4
1.1 General safety instructions 4
1.2 Manufacturer liability 5
1.3 Appliance purpose 5
1.4 Disposal 5
1.5 Identification plate 6
1.6 This user manual 6
1.7 How to read the user manual 6
2 Description 7
2.1 General Description 7
2.2 Control panel 8
2.3 Other parts 9
2.4 Available accessories 9
2.5 Other cooking containers 10
3 Use 11
3.1 Instructions 11
3.2 First use 12
3.3 Using the accessories 12
3.4 Using the oven 13
3.5 Cooking advice 32
3.6 Special functions 33
3.7 Preset recipes 42
3.8 Personal recipes 50
3.9 Settings 55
4 Cleaning and maintenance 61
4.1 Instructions 61
4.2 Cleaning the surfaces 61
4.3 Removing the door 61
4.4 Cleaning the door glazing 62
4.5 Removing the internal glass panes 62
4.6 Cleaning the oven interior 64
4.7 Cleaning the reservoir 67
4.8 Vapor Clean 70
4.9 Extraordinary maintenance 72
5 Installation 74
5.1 Electrical connection 74
5.2 Cable replacement 74
5.3 Positioning 75
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com

Instructions
4
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Children must be kept away from the
appliance.
• Never touch the heating elements
during use.
• Keep children below the age of 8
away from the appliance unless they
are constantly supervised.
• Children must not play with the
appliance.
• Never rest metallic objects such as
knives, forks, spoons and lids on the
appliance during use.
• Switch off the appliance immediately
after use.
• Never try to put out a fire or flames
with water: Turn off the appliance
and smother the flames with a fire
blanket or other appropriate cover.
• Cleaning and maintenance must not
be carried out by unsupervised
children.
• Do not clean the appliance
immediately after turning it off – wait
for it to cool down first.
• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.
• Do not modify this appliance.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in the
appliance.
• Do not try to repair the appliance
yourself or without the intervention of
a qualified technician.
• If the power supply cable is
damaged, contact technical support
immediately and they will replace it.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring powders,
stain removers and metallic sponges)
on glass parts as this could cause
them to break.
• Use wooden or plastic utensils.
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not obstruct ventilation openings
and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils could
be released.

Instructions
5
EN
• Never leave objects on the cooking
surface.
• Do not use the appliance to heat
rooms for any reason.
• Do not remove the seal on the face
of the oven.
For this appliance
• Ensure that the appliance is switched off
before replacing the bulb.
• Do not rest any weight or sit on the open
door of the appliance.
• Take care that no objects are stuck in the
doors.
1.2 Manufacturer liability
The manufacturer declines all liability for
damage to persons or property caused by:
• Use of the appliance other than that
specified;
• Failure to comply with the instructions in
the user manual;
• Tampering with any part of the
appliance;
• The use of non-original spare parts.
1.3 Appliance purpose
• This appliance is intended for cooking
food in the home environment. Every
other use is considered improper.
• This appliance may be used by children
over the age of 8 and by persons with
reduced physical, sensory or mental
capacity, or without sufficient experience
or knowledge, provided that they are
supervised or instructed by adults who
are responsible for their safety.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.4 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.

Instructions
6
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packaged in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
1.5 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.6 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user’s reach for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice

Description
7
EN
2 Description
2.1 General Description
1 Control panel
2 Oven light
3 Seal
4 Door
5 Fan
6 Evaporation tray
7 Water supply tube
8 Rack support frames
Frame shelf

Description
8
2.2 Control panel
1 Return knob
This knob allows you to return to the
previous item in the appliance's menu. It
also allows you to turn the oven light on or
off manually.
2 Display
Displays the current time, the cooking
parameters and all the appliance’s
functions.
3 Control knob
This knob allows you to turn the appliance
on and off and select the various available
functions.
Turn the knob right or left to change/select
the required item. Press to confirm.
Keep the knob pressed in for at
least 5 seconds to immediately
complete any cooking operation.

Description
9
EN
2.3 Other parts
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the oven and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue for a
brief period of time even after the appliance
has been turned off.
Interior lighting
The appliance’s interior lighting comes on:
• When the door is opened.
• When any function is selected, with the
exception of the Descaling ,
Sabbath and Vapor Clean
functions;
• Turning the return knob to the right or left
when no function is selected (turn the
temperature knob to the right or left
again to switch off the internal lighting).
In order to save energy, the light turns off
after a minute at the start of cooking (this
function can be deactivated via the
secondary menu).
2.4 Available accessories

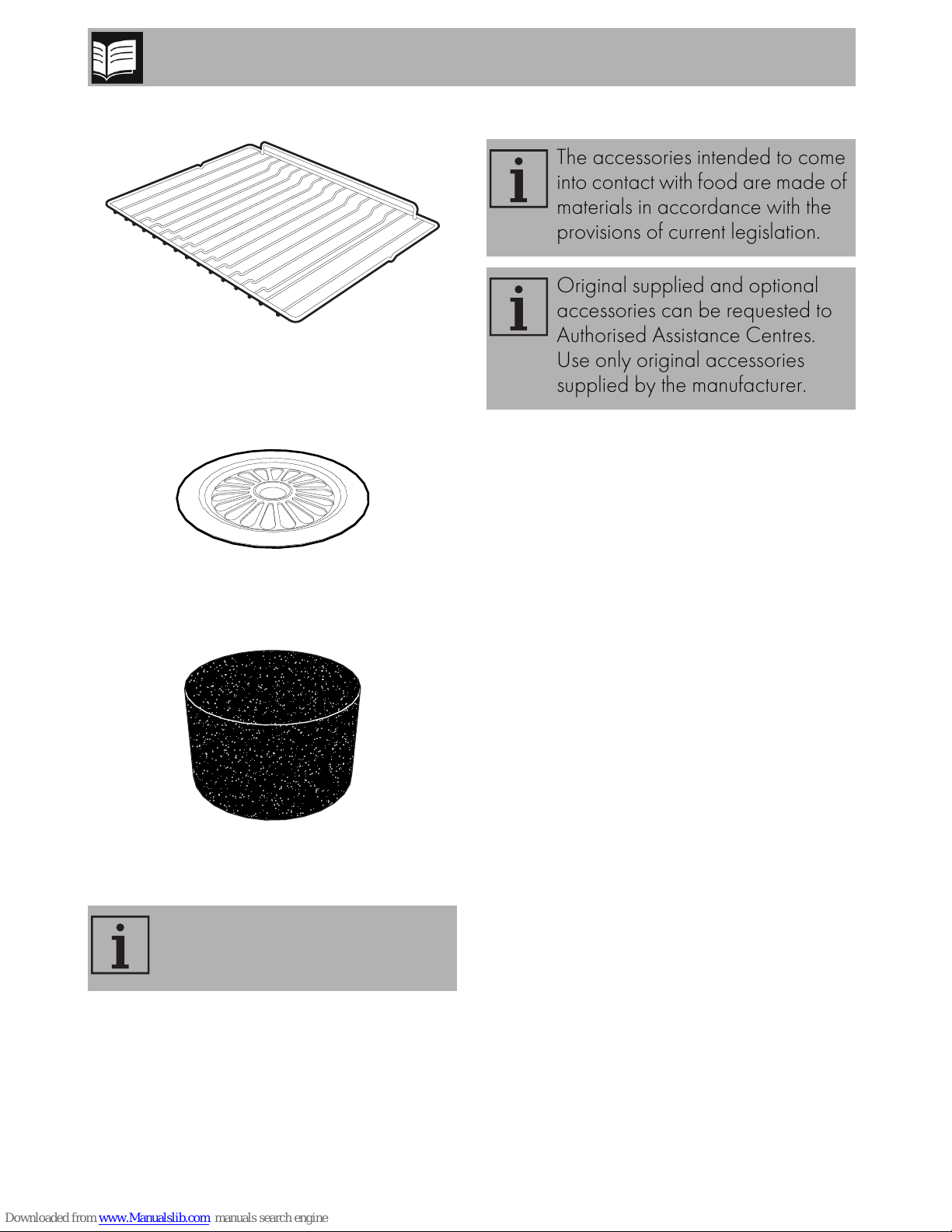

Perforated tray
Useful for steaming fish and vegetables.
Tray
Useful when cooking cakes (with cooking
times of less than 25 minutes or without
steam), rice, beans and cereals. It is also
essential for collecting liquids produced by
steaming or defrosting foods contained in
the perforated tray above.
When the door is open, it is not
possible to turn off the interior
lighting.

Description
10
Rack
Useful for supporting containers with food
during cooking.
Evaporation tray cover
Evenly distributes steam inside the oven.
Sponge
Useful for removing condensation and the
remaining water from the oven.
2.5 Other cooking containers
• You may also use your own containers
for cooking, as long as they are resistant
to high temperatures.
• For steam cooking, the use of metal
containers is recommended. Metal
facilitates better distribution of heat to the
foods.
• It is normal for metal containers to
deform somewhat during high-
temperature cooking, but they will return
to their original shape when they cool.
• Thick ceramic plates may require more
heat than normal. Longer cooking times
may be necessary.
Some models are not provided
with all accessories.
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
aa
aa
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
aa
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
aa
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
aa
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
aa
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
aa
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
aa
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
aa
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
aa
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
aa
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
aa
a
a
a
a
a
aa
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
aa
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
The accessories intended to come
into contact with food are made of
materials in accordance with the
provisions of current legislation.
Original supplied and optional
accessories can be requested to
Authorised Assistance Centres.
Use only original accessories
supplied by the manufacturer.

Use
11
EN
3 Use
3.1 Instructions
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands by wearing oven
gloves when moving food inside the
oven.
• Open the appliance door carefully
during or after cooking.
• Take care because steam may not be
visible at certain temperatures.
• Do not cook dishes containing large
quantities of strong alcoholic beverages.
Alcohol vapours in the oven could catch
fire.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Keep children away from the appliance
when it is in use.
Improper use
Risk of damage to enamelled
surfaces
• When steaming, always place the tray
below the perforated tray in order to
catch any drips.
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• The base of the oven and the
evaporation tray must always be left
free.
• Dishes must be heat and steam resistant.
• Do not use silicone moulds when
steaming.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not pour water directly onto very hot
trays.

Use
12
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty oven at the maximum
temperature for at least 20 minutes to
burn off any residues left by the
manufacturing process (see 3.4 Using
the oven).
5. You must set the current time in order to
start using the appliance (see “Setting the
time”).
3.3 Using the accessories
Racks
The racks must be inserted into the side
guides until they come to a complete stop.
• The mechanical safety locks that prevent
the rack from being taken out
accidentally have to face downwards
and towards the oven back.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the appliance.
• Do not use or leave flammable materials
near the appliance.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking. Gently insert the racks into the
oven until they come to a stop.
Clean the racks and trays before
using them for the first time to
remove any residues left by the
manufacturing process.

Use
13
EN
Trays
The tray must be inserted in the groove in
the rack.
In particular, the perforated tray must be
inserted in the groove in the rack above it.
In this way it is possible to collect the liquids
separately from the food that is being
cooked (configuration 2 + 1, see “Preset
recipes table”).
3.4 Using the oven
Setting the time
When using the appliance for the first time,
or after a power failure, the symbol
will flash on the display. In order
to be able to start any cooking operation,
the current time must be set (if the oven is
being turned on for the first time, it is also
recommended you set the required
language).
Press the control knob to enter the settings
menu.
The appliance language is set to
“English” by default.
When first connecting or after the
power has been cut for a time it
will be necessary to wait a few
seconds before you can interact
with the appliance.

Use
14
Steam function settings
1. Place the food inside the oven.
2. Press the control knob to activate the
appliance.

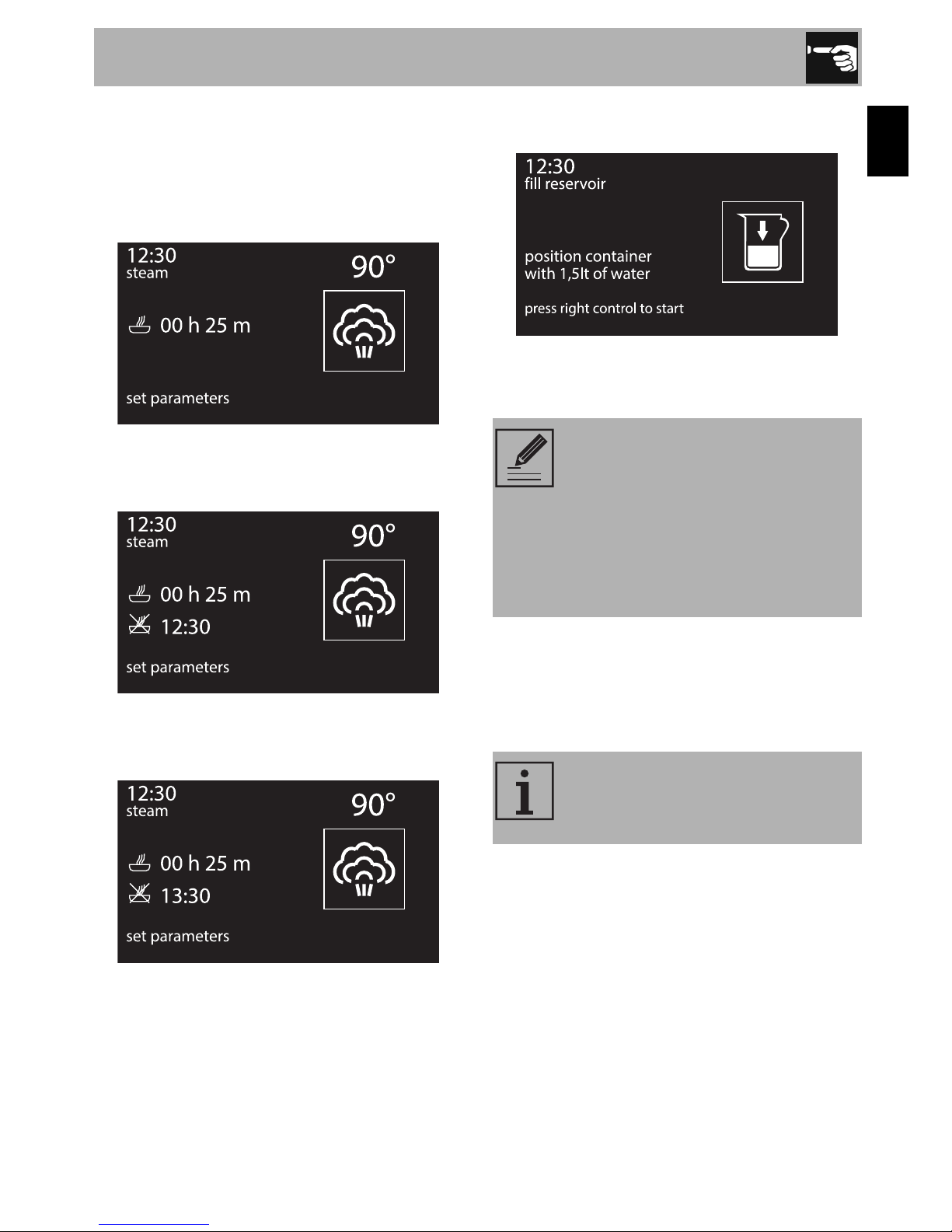

3. From the main menu, turn the control
knob to select “cooking functions”.
4. Press the control knob to confirm the
selection.
5. Turn the control knob to select the
“steam” function.
6. Press the control knob to confirm the
selected function. The display shows the
screen for setting the steaming
parameters.
7. Turn the control knob to modify the
cooking temperature.
8. Press the control knob to confirm the
cooking temperature set (for example
90°C).
Do not place food or any other
object directly on the bottom of the
oven. The base of the oven and
the evaporation tray must always
be left free.
The lowest temperature that can
be set is 30°C. The value varies by
5°C each time the control knob is
turned.

Use
15
EN
9. Turn the control knob to modify the
cooking duration.
10. Press the control knob to confirm the
cooking time set (for example 25
minutes).
11. If you wish to set an end of cooking
time, turn the control knob to set
programmed cooking.
12. Press the control knob to confirm the
end of cooking time (for example
13:30).
13. If you do not wish to set an end of
cooking time, wait a few seconds.

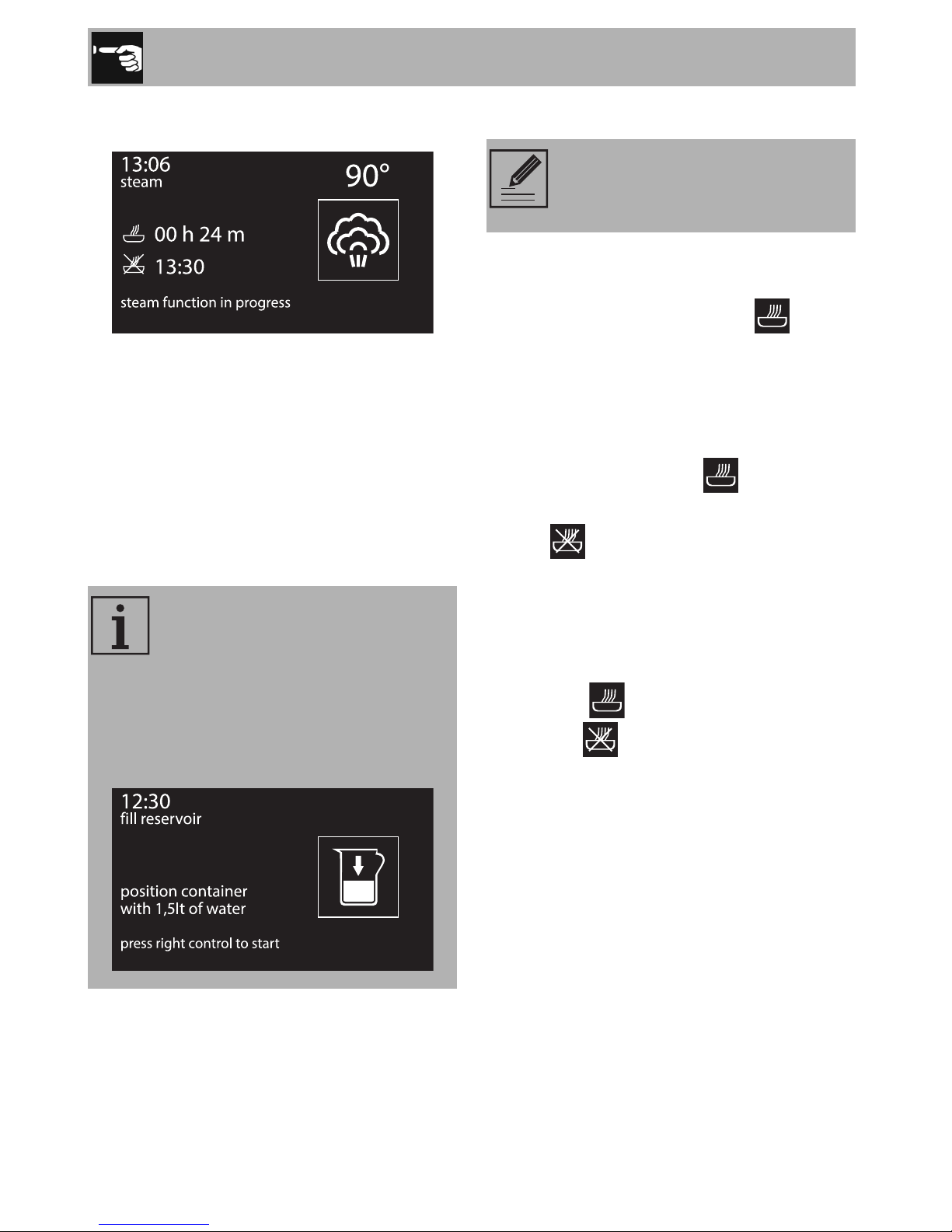

A request to fill the reservoir with water is
shown on the display.
Filling the reservoir
14. Fill a container (e.g. a jug) with sufficient
water for the cooking duration.
15. Open the oven door.
16. Rest the container on the open door.
• Use cold tap water which is not
too hard, softened water or still
mineral water.
• Do not use distilled water, tap
water with a high chloride
content (> 40 mg/l), or other
liquids.
Note: the container with the water
must have a gross weight lower
than 5 kg.

Use
16
17. Extract the tube from its seat and
immerse its end in the container until it
reaches all the way to the bottom.
18. Press the control knob to start filling the
appliance’s reservoir with water.
19. When finished, the display indicates
that you can start to use the steam
function.
20. Shake the tube in order to remove any
remaining water.
The appliance will automatically
draw the quantity of water
necessary for cooking on the basis
of the set duration.
In the event that the water runs out,
the appliance will automatically
stop the cooking process, a
buzzer will sound and the display
will show a request to fill the
reservoir with water.

Use
17
EN
21. Return the tube to its original position,
remove the container of water and close
the door.
22. Press the control knob to start the steam
function.
Preheating stage
Steaming is always preceded by a
preheating stage, which allows the
appliance to heat up to cooking
temperature.
This stage is indicated by a progressive
increase in the temperature level reached.
At the end of preheating the temperature
reaches the maximum set level.
When the door is closed, an
automatic system will automatically
draw in any residual water in the
tube to avoid drips.
If programmed cooking has been
set (in our example ending at
13:30), cooking will start at a time
according to the set parameters.
Cooking can be interrupted at any
time by pressing and holding the
control knob for a few seconds.
Each time the door is opened, the
function in progress will stop and
then automatically restart when the
door is closed again.
If cooking has just been performed
with temperatures greater than
100°C, you must wait for the oven
to cool in order to use the steam
function.

Use
18
A buzzer sounds to indicate that cooking
starts automatically.
Modifying the set data
During operation, it is possible to modify the
cooking duration:
23. When the appliance is cooking, press
the control knob.
24. Turn the control knob right or left to alter
the preset cooking time.
Modifying programmed cooking
25. When the appliance is waiting to start
cooking, press the control knob. The
timed cooking indicator light will
start flashing.
26. Turn the control knob right or left to alter
the preset cooking time.
27. Press the control knob again. The timed
cooking indicator light switches off
and the programmed cooking indicator
light starts flashing. The display
shows the end of cooking time.
28. Turn the control knob to the right or left
to delay the end of cooking time.
29. After a few seconds the timed
cooking and programmed
cooking indicator lights stop flashing
and programmed cooking restarts with
the new settings.
If a longer length of time is set
compared to the previous one,
such that the quantity of water in
the reservoir is insufficient, when
the reservoir is empty, the display
will show a message indicating
that water should be added.
If programmed cooking is set, after
modifying the cooking time, the
end of cooking time must be re-set.

Use
19
EN
End of the steam function
At the end of the cooking cycle, “steam
function ended” appears on the display
and a buzzer sounds that can be
deactivated by pressing the control knob.
30. Stand to the side of the appliance and
open the door ajar for a few seconds to
allow excess steam to escape.
31. Fully open the door when safe to do so
and cautiously remove the food from the
oven.
Removing the residual water
At the end of steaming, the appliance
prompts for the water to be emptied from
the reservoir.
32. Remove the cover from the evaporation
tray and dry it with the sponge supplied.
To select another cooking cycle,
turn the control knob to the right or
the left.
It is recommended to empty the
reservoir after each cooking
cycle in order to prevent residue
build up.
Note: The evaporation tray cover
may be very hot: use appropriate
protection.

Use
20
33. We recommend positioning the
supplied sponge inside the evaporation
tray.
34. Press the control knob to start emptying
the remaining water from the reservoir.
The residual water is discharged into the
evaporation tray: as well as facilitating
removal, this contributes to cooling down
the oven more quickly.
If the remaining quantity of water is over
500 ml, the water will be discharged into
the evaporation tray in two different steps to
facilitate drying. The display indicates “STEP 1”,
when the first stage has finished, and
draining will stop. You have to press the
control knob again to complete the draining
with “STEP 2”.
When finished, “reservoir emptying ended”
appears on the display.
35. Press the control knob to confirm.
36. Squeeze out the water from the sponge
into a separate container.
37. Also remove condensation from the
base and walls of the oven, the door
glass and drip tray and the front of the
appliance.
If you do not wish to empty the
reservoir, keep the control knob
pressed down for a few seconds.
Take care: the water may be very
hot.
