Smeg Single Oven SC170 User manual

Contents
1. INSTRUCTIONS FOR SAFE AND PROPER USE_______________ 29
2. INSTALLATION _________________________________________ 31
3. DESCRIPTION OF CONTROLS ____________________________ 34
4. USE OF THE OVEN______________________________________ 40
5. AVAILABLE ACCESSORIES _______________________________ 42
6. COOKING HINTS________________________________________ 43
7. CLEANING AND MAINTENANCE ___________________________ 47
8. EXTRAORDINARY MAINTENANCE _________________________ 52
INSTRUCTIONS FOR THE INSTALLER: these are intended for the
qualified technician who must install the appliance, set it functioning
and carry out an inspection test.
INSTRUCTIONS FOR THE USER: these contain user advice,
description of the commands and the correct procedures for cleaning
and maintenance of the appliance.
28

Introduction
1. INSTRUCTIONS FOR SAFE AND PROPER USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND
THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE
PLACE FOR THE WHOLE WORKING LIFE OF THE OVEN. WE ADVISE
CAREFUL READING OF THIS MANUAL AND ALL THE INSTRUCTIONS
THEREIN BEFORE USING THE OVEN. INSTALLATION MUST BE CARRIED
OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE
REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC
USES AND CONFORMS TO CURRENT REGULATIONS IN FORCE. THE
APPLIANCE HAS BEEN BUILT TO CARRY OUT THE FOLLOWING
FUNCTIONS: COOKING AND HEATING-UP OF FOOD. ALL OTHER USES
ARE CONSIDERED IMPROPER.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER
USE.
DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE
THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST
SPECIAL GARBAGE COLLECTION CENTRE.
IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED
ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.
WHEN LINKING UP TO MAINS BY PLUG AND SOCKET, MAKE SURE THAT
BOTH ARE COMPATIBLE AND CONNECT BY MEANS OF A POWER CABLE
COMPLYING WITH APPLICABLE REGULATIONS.
THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN
BUILT IN.
NEVER UNPLUG BY PULLING ON THE CABLE.
DO NOT OBSTRUCT VENTILATION OPENINGS AND HEAT DISPERSAL
SLITS.
IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION
TEST OF THE OVEN, FOLLOWING THE INSTRUCTIONS BELOW. SHOULD
THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE SUPPLY AND
CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
29

Introduction
ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE “ZERO” (OFF)
POSITION WHEN YOU FINISH USING THE OVEN.
NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD BE
ACCIDENTALLY LIGHTED AND CAUSE FIRES.
DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO
TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.
THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND
BRAND NAME IS POSITIONED VISIBLY ON THE OVEN DOOR FRAME.
THE PLATE MUST NOT BE REMOVED.
THE USE OF THIS APPLIANCE IS NOT PERMITTED TO PEOPLE (INCLUDING
CHILDREN) OF REDUCED PHYSICAL AND MENTAL ABILITY, OR LACKING IN
EXPERIENCE IN THE USE OF ELECTRICAL APPLIANCES, UNLESS THEY
ARE SUPERVISED OR INSTRUCTED BY ADULTS OR PEOPLE
RESPONSIBLE FOR THEIR SAFETY.
THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE
2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
(WEEE).
THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF
RETURN AND RECYCLING ON WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND
PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.
The manufacturer declines all responsibility for damage to persons
or things caused by non-observance of the above prescriptions or by
interference with any part of the appliance or by the use of non-original
spares.
30

Instructions for the installer
2. INSTALLATION
2.1 Electrical connection
Check that mains voltage and power cable ratings are as per the
indications provided on the label attached to the oven door frame.
This label must never be removed.
It is obligatory for the electrical system to be grounded according to the
methods required by safety rules.
If a plug and socket connection is being used make sure that the plug
and socket are compatible. Avoid use of adapters and shunts as these
could cause overheating and risk of burns.
If a fixed connection is being used fit power line with an omnipolar circuit
breaker with a contact opening gap equal to or greater than 3 mm in an
easily accessible position in proximity to the oven.
For operation on 220-240V ∼ :use an
H05RR-F / H05RN-F / H05V2V2-F type
three-core cable (3 x 1.5 mm2).
The cable end to be connected to the
appliance must be provided with an ground
wire (yellow-green) at least 20 mm longer.
The manufacturer declines all responsibility for damage to persons
or things caused by non-observance of the above prescriptions or by
interference with any part of the appliance.
31

Instructions for the installer
32

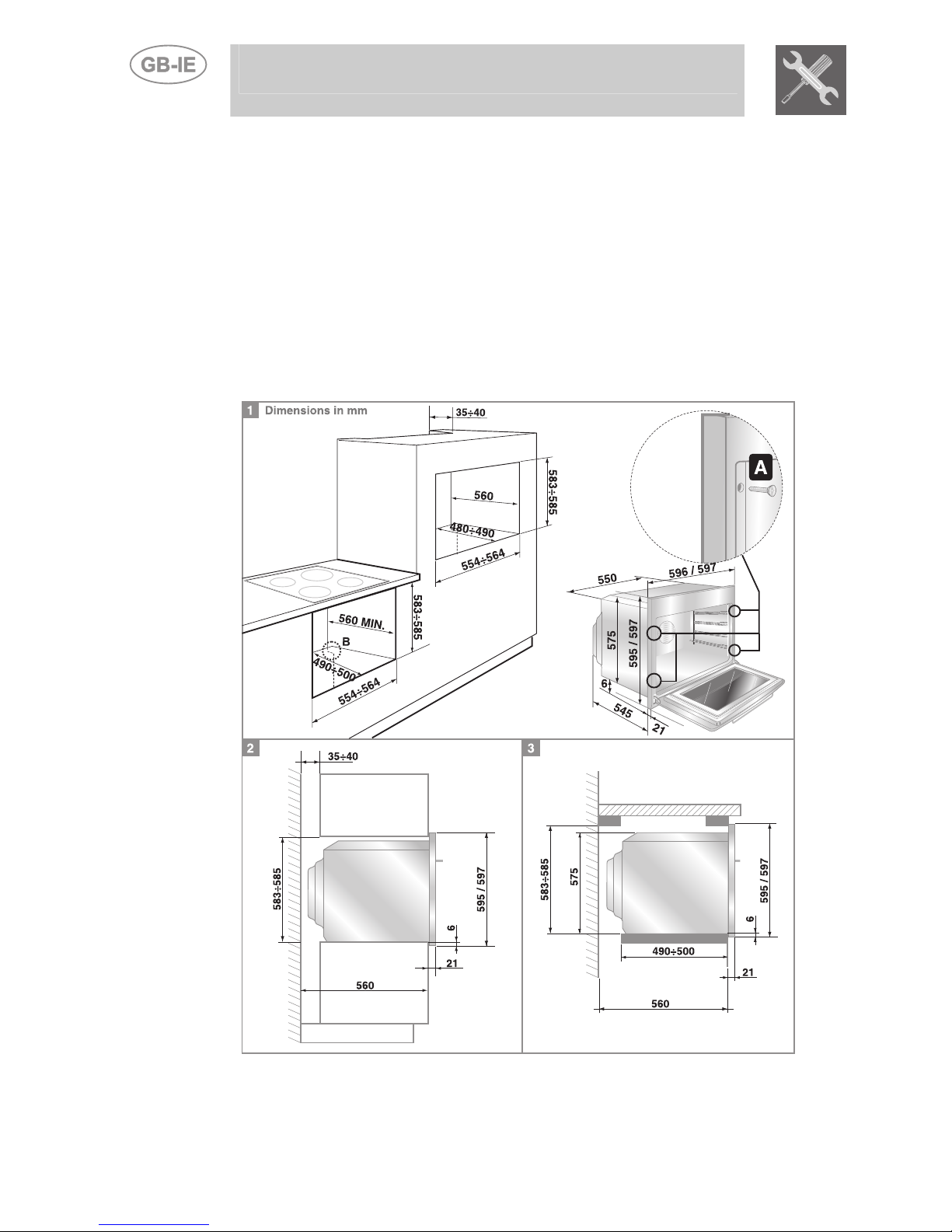

2.2 Mounting the oven
The oven is designed for mounting into any piece of furniture as long as
heat-resistant. Proceed according to the dimensions shown in Figures 1,
2and 3. For installing under a work top, follow the dimensions given in
Figure 1-3. For installing under a work top with combined heating plates,
ensure a minimum clearance from any side walls of at least 110 mm as
shown in Figure 1.
For installing in a column, follow the dimensions given in Figure 1-2
allowing for a clearance of 80 to 90 mm at the top and sides of the
column. Tighten the four screws Ainside the frame to secure (Fig. 1).
For installing beneath a non-integrated top, allow for a rear and bottom
clearance as shown in Figure 1(ref. B). See relevant instructions for
fitting and securing the cook top.

Instructions for the installer
Never use the oven door to lever the oven into
place when fitting.
Avoid exerting too much pressure on the oven door
when open.
33

Instructions for the user
34

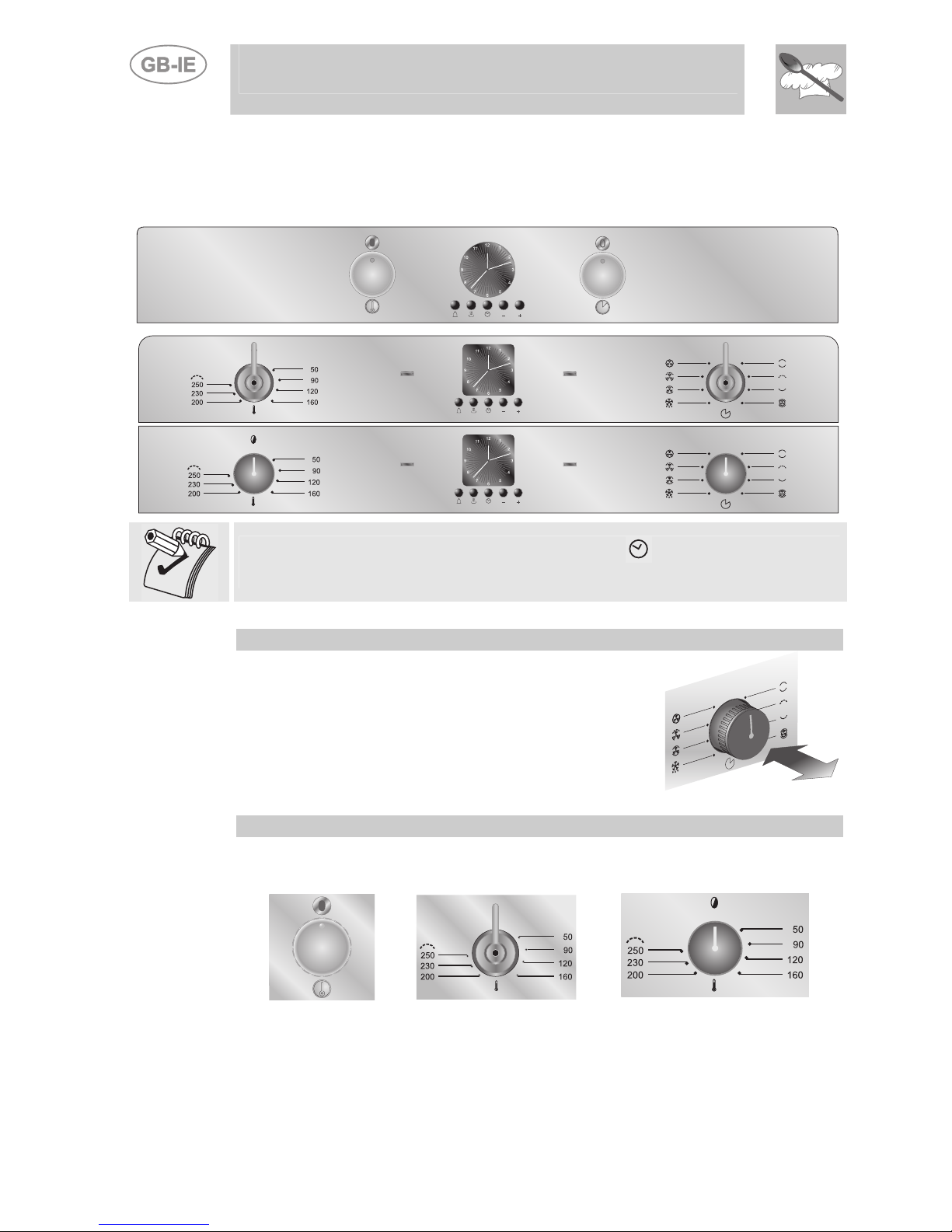

3. DESCRIPTION OF CONTROLS
3.1 Front control panel
All the oven controls are grouped together on the front panel.
The user has only to press the central key for 1 - 2 seconds to
enable use of the oven on first use or after a power blackout.
RETRACTABLE KNOBS (on some models only)
In order to use the control knobs they have to be
extracted from their housing: just press them and
they will pop out in the ON position.
During operation they could go back in their
housing; just push them fully in until they stop.
THERMOSTAT KNOB
The cooking temperature is selected by turning the knob clockwise to the
desired setting, between 50° and 250°C.

Instructions for the user

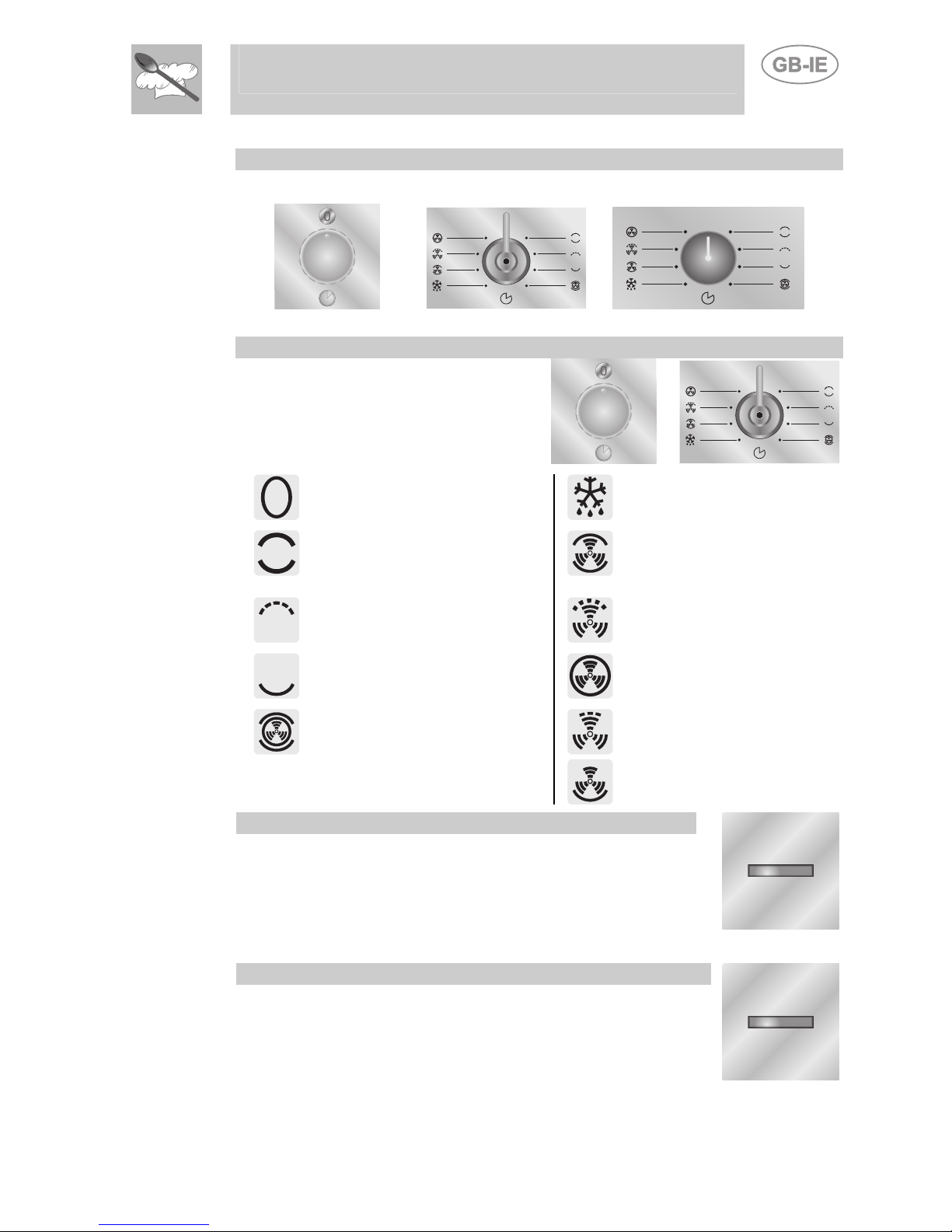

FUNCTIONS SWITCH KNOB
Turn the knob in either direction to select a function from the following:
FUNCTION SWITCH KNOB
Rotate the knob in either
direction to select desired
function from the following:
NO FUNCTION SET DEFROSTING
UPPER AND LOWER
HEATING ELEMENT
UPPER AND LOWER
HEATING ELEMENT +
VENTILATION
GRILL ELEMENT FULL GRILL ELEMENT +
VENTILATION
LOWER HEATING
ELEMENT
VENTILATED
HEATING ELEMENT
UPPER AND LOWER HEATING
ELEMENT + VENTILATED
HEATING ELEMENT
GRILL ELEMENT +
VENTILATION
LOWER HEATING
ELEMENT + VENTILATION
THERMOSTAT INDICATOR LIGHT (RED)
When this light comes on, the oven is heating up.
When this light goes out, the preset heating
temperature has been reached.
When the light flashes, the temperature inside the
oven is steady.
PILOT LIGHT (GREEN)
This light comes on when any of the oven elements is
receiving power.
35

Instructions for the user
36

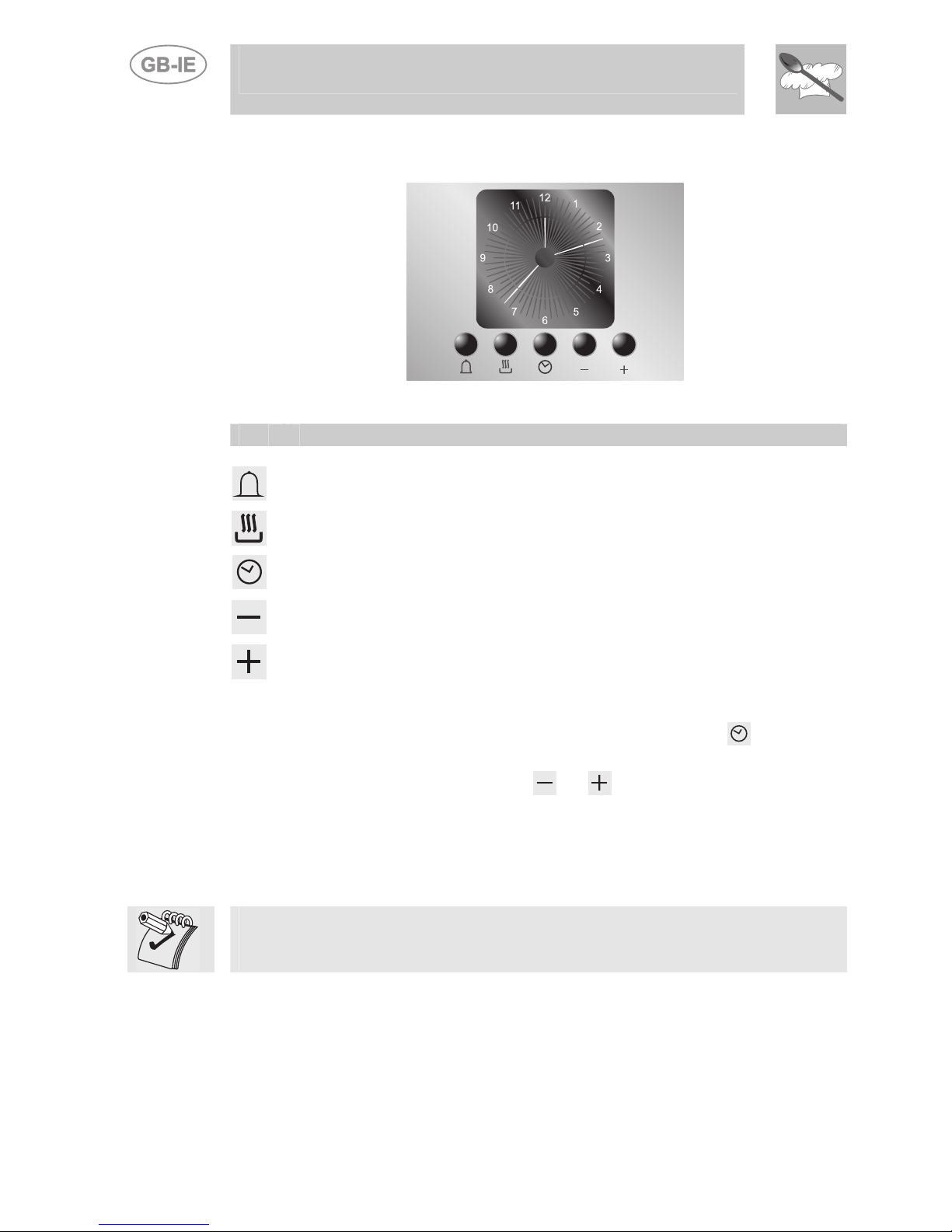

3.2 Electronic Analogue Clock (on some models only)
LIST OF FUNCTIONS
MINUTE-MINDER BUTTON
AUTOMATIC SWITCH-OFF TIMING BUTTON
TIME SETTING AND RESET
VALUE DECREASE BUTTON
VALUE INCREASE BUTTON
3.2.1 Setting the time
When the oven is used for the first time, or after a power blackout, the
display flashes on and off at regular intervals. Press the key for 1/2
seconds to stop the display flashing and start setting of the current time.
Press the value modification keys or to increase or decrease by
one minute for each time a key is pressed.
Press one of the two value modification keys until the current time
appears. The clock will start from the time set 6/7 seconds after the last
key is pressed.
At the end of each programmed cooking operation, the clock gives 8
beeps, repeated 3/4 times at intervals of about 1 and a half minutes.
The beeps can be stopped at any moment by pressing any key.

Instructions for the user
3.2.2 Minute-minder
This function does not stop cooking but just triggers the beeps.
-When the key is pressed the display
illuminates, appearing as shown in figure 1;
1
2
-Press the or keys within 6/7 seconds to
set the minute-minder. Whenever a key is
pressed, 1 outside segment, representing 1
cooking minute will light up (figure 2 shows 10
cooking minutes).
-The countdown will start 6/7 seconds after the
last key is pressed; at the end of it, you will hear
the beeps.
-During cooking with countdown, the current
time can be displayed by pressing the key
once; press again to return to the minute-
minder display.
-At the end of the countdown, the oven has
to be switched off by hand, by turning the
thermostat and the function selector to 0.
37

Instructions for the user
38

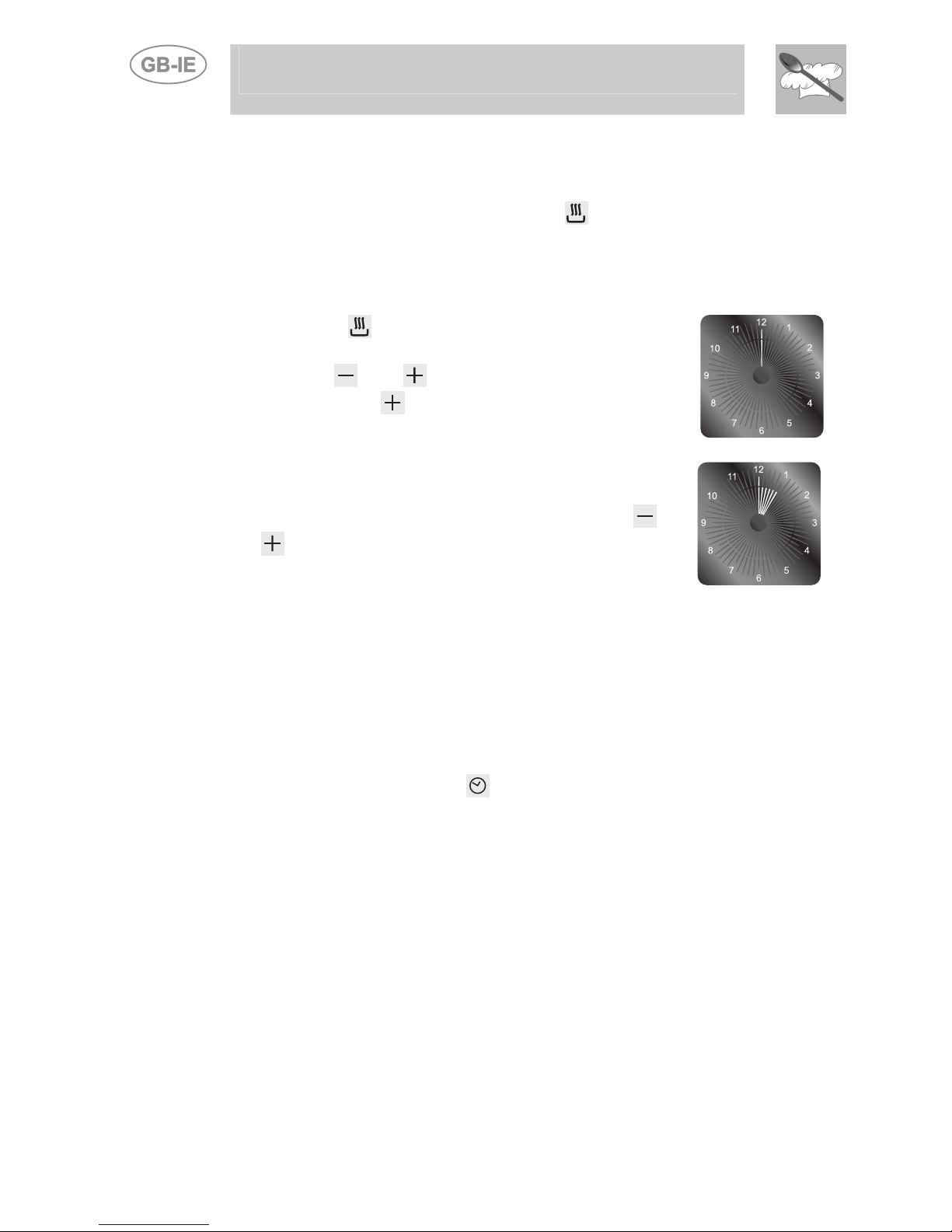

3.2.3 Programming
Cooking duration time: the 2nd button can be used to set the cooking
time. Before setting it, turn the thermostat to the cooking temperature of
choice and the function selector knob to any setting. To set the cooking
time, proceed as follows:
- Press the
1
key for 1/2 seconds; the pointer will
move to position 12 (Fig. 1).
- Use the and keys to set the cooking time;
whenever the key is pressed, 1 minute will be
added to the cooking time, and every 12 minutes a
new inside segment will light up (figure 2 shows a
cooking time of 1 hour).
2
- Once the required time has been set, cooking will
start about 6 seconds after the last time the or
. key is pressed.
- Once cooking has started, the display will show
the current time, represented by the constantly on
segments, and the minutes left until cooking
finishes, represented by the flashing segments
(every flashing segments indicates 12 minutes of
cooking time left).
- When the end of the cooking time is reached, the timer will switch off
the oven heating elements, the beeps will start and the numbers on
the dial will flash.
- The cooking time can also be reset by deleting the program set;
pressing the central key for 1 or 2 seconds will delete the time set
and the oven will have to be switched off by hand.
Caution: cooking times of more than 6 hours cannot be set.

Instructions for the user

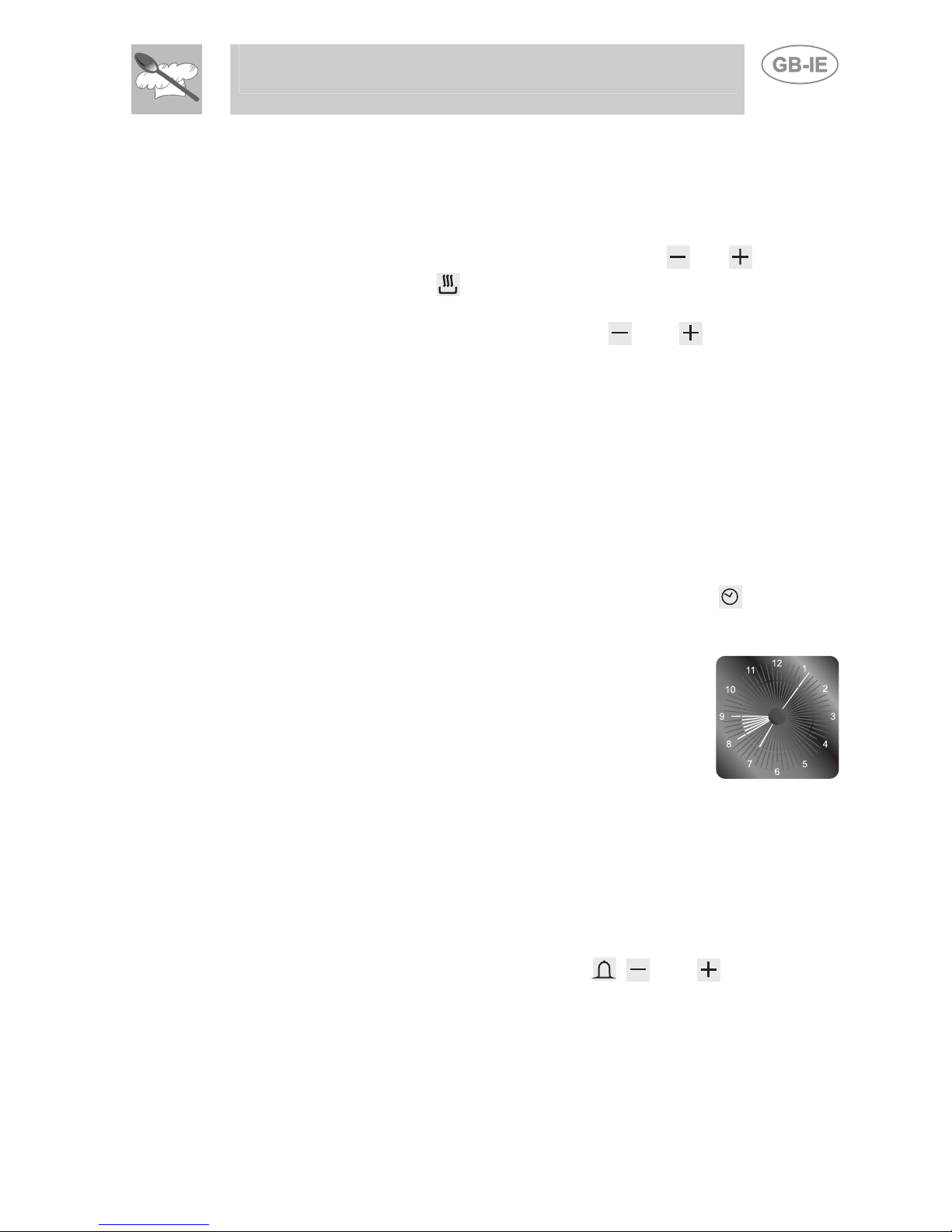

Cooking start: as well as setting a cooking duration time, the user can
also set the cooking start time (up to 12 hours after the current time). To
set the cooking start/end time, proceed as follows.
- Set the cooking duration time as described in the previous point.
- Within 6/7 seconds after the last time the or keys are
pressed, press the key to set the cooking start time. The display
will show the current time with the inside segments indicating the
cooking end time illuminated. Use the and keys to set the
cooking start time.
- 6/7 seconds after the last time a key is pressed, the display will
show the current time and the cooking start and end times, indicated
by the illuminated inside segments. The segments on the display
will be constantly on until the current time is the same as the
cooking start time; as soon as the current time reaches the cooking
start time set, all the inside segments will start to flash, indicating
that the oven has started cooking.
- When the end of the cooking time is reached, the timer will switch
off the oven heating elements, the beeps will start and the numbers
on the dial will flash.
- To reset the entire program set, keep the central key pressed for
1 or 2 seconds:if cooking has already started the oven will have to
be switched off by hand.
- The image on the right shows an example of
programming: the current time is 7.06 and
cooking is programmed to start at 8 o'clock
and finish at 9.
- At 8 o'clock, the inside segments between 8
and 9 will start to flash and the hour pointer will
remain still.
Caution: for the oven to start cooking after the programming procedure
just described, the thermostat and function selector must be properly set
on the temperature and function required.
3.2.4 "DEMO" Function
Models with analogue/digital programmer feature a "DEMO" function
which deactivates the heating elements while leaving the other functions
unchanged. To activate it, simply press the , , and keys and keep
them held down for 3-4 seconds. A confirmation buzzer will inform the
user that the function is active. When the “DEMO” function is active, the
number 6 on the clock flashes at regular intervals. To deactivate it, simply
repeat the same procedure.
39

Instructions for the user
40
4. USE OF THE OVEN
In models equipped with analogue digital timer, the user has only to
press the central key for 1/2 seconds to enable use of the oven on first
use or after a power blackout.
4.1 Warnings and general advice
Before using the oven for the first time, pre-heat it to maximum
temperature long enough to burn any manufacturing oily residues which
could give the food a bad taste.
During cooking, do not cover the bottom of the oven with aluminium or
tin foil and do not place pans or oven trays on it as this may damage the
enamel coating. If you wish to use greaseproof paper, place it so that it
will not interfere with the hot air circulation inside the oven.
To prevent any steam in the oven creating
problems, open the door in two stages: half open
(5 cm approx.) for 4-5 seconds and then fully
open. To access food, always leave the door
open as short a time as possible to prevent the
temperature in the oven from falling and ruining
the food.

Instructions for the user
4.2 Cooling system (on some models only)
The oven features cooling fan which switch on
together with the oven.
Fan operation causes a normal flow of air which
exits at the bottom part of the oven front which
may continue for a brief period of time even after
the oven has been turned off.
4.3 Cooling system (on some models only)
The oven is equipped with a cooling system
which automatically comes on upon the oven
being turned on.
Fans cause a steady outflow of air from above
the door which may continue for a brief period of
time even after the oven has been turned off.
4.4 Oven light
On all models, it is switched on by turning the function selector knob to
any function. On some models it also switches on when the oven door is
opened.
4.5 Warnings
•Cooking procedures in this mode must never last more than 60
minutes.
•During and after use the accessible parts of the oven may be very
hot, and children must always be kept at a distance.
•During cooking, do not cover the bottom of the oven with aluminium
or tin foil and do not place pans or oven trays on it as this may
damage the enamel coating. If you wish to use greaseproof paper,
place it so that it will not interfere with the hot air circulation inside
the oven.
•When using the oven, remove all unused baking sheets and shelves
from the interior.
41

Instructions for the user
42
5. AVAILABLE ACCESSORIES
The oven features 4 support positions for
plates and racks of different height.
Grill: useful for holding cooking vessels.
Plate grill: for placing above plate for
cooking foods that might drip.
Oven plate: useful for catching fat from
foods on the grill above.
Pastry plate: for baking cakes, pizza and
oven desserts.
Roof liner/Grill guard: removing this
simplifies cleaning procedures inside the
oven.
Some models do not feature all accessories.
Accessories available on request
Original accessories may be ordered from any Authorised Service
Centre.

Instructions for the user
6. COOKING HINTS
In fan-assisted mode preheating should be carried out at 30/40°C above
the cooking temperature. This considerably shortens cooking times and
reduces power consumption, as well as giving better cooking results.
Keep the oven door closed during cooking
6.1 Traditional cooking
FUNCTION SWITCH
THERMOSTAT SWITCH
50 ÷250° C
This traditional cooking method, in which heat comes from above and
below, is suitable for cooking food on a single level. You have to pre-
heat the oven until the set temperature is reached. Place the food in the
oven only after the thermostat indicator light has turned off. very fatty
meats may be put in when the oven is still cold. Put frozen meat in
immediately, without waiting for it to thaw. The only precaution you need
to take is to set the temperature about 20°C lower and cooking time
about 1/4 longer than you would for fresh meat.
6.2 Hot-air cooking
FUNCTION SWITCH
THERMOSTAT SWITCH
50 ÷250°C
This system is suitable for cooking on several levels, including different
types of food (fish, meat etc.), without the tastes and smells mingling. Air
circulation in the oven ensures a uniform distribution of heat. Pre-heating
is not necessary.
43

Instructions for the user
44
Multiple cooking is possible as long as the cooking temperature of the
different foods is the same.

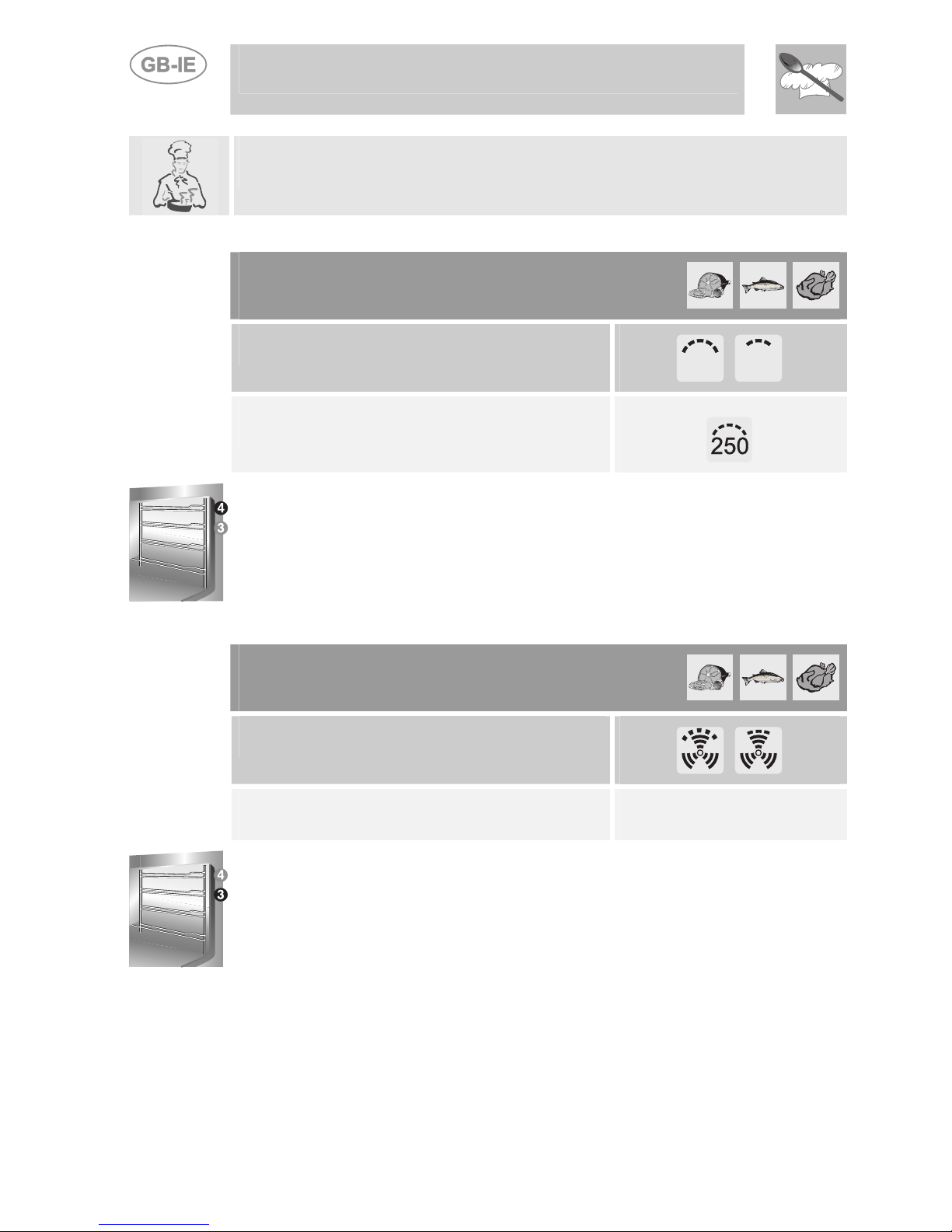

6.3 Grill cooking
FUNCTION SWITCH
THERMOSTAT SWITCH
.
Permits rapid browning of foods. You are advised to place the pan in the
highest guide. For short-term cooking of small quantities, place the grid
in the fourth guide from the bottom. For long-term cooking and grills, put
the grid in the lowest guide in accordance with the size of the pieces.
Keep the oven door closed during cooking.
6.4 Hot-air grilling
FUNCTION SWITCH
THERMOSTAT SWITCH 220
Ensures uniform heat distribution with greater heat penetration into the
food. Food will be lightly browned on the outside and remain soft inside.
Keep the oven door closed during cooking. Heating up time must
not exceed 60 minutes.

Instructions for the user
6.5 Recommended cooking table
Cooking times, especially meat, vary according to the thickness and
quality of the food and to consumer taste.
TRADITIONAL COOKING
LEVEL
FROM BELOW
TEMPERATURE
(°C)
TIME
IN MINUTES (*)
FIRST COURSES
LASAGNE
OVEN-BAKED PASTA
2 - 3
2 - 3
210 - 230
210 - 230
30
40
MEAT
ROAST VEAL
ROAST BEEF
ROAST PORK
CHICKEN
DUCK
GOOSE - TURKEY
RABBIT
LEG OF LAMB
2
2
2
2
2
2
2
2
170 - 200
210 - 240
170 - 200
170 - 200
170 - 200
140 - 170
170 - 200
170 - 200
30 - 40 / KG.
30 - 40 / KG.
30 - 40 / KG.
45 - 60
45 - 60
45 - 60
50 - 60
40 - 50
FISH 1 - 2 170 - 200 ACCORDING TO
DIMENSIONS
PIZZA 1 - 2 210 - 240 40 - 45
DESSERTS
SHORT PASTRY
CIAMBELLA
BRIOCHES
FRUIT CAKE
PARADISE CAKE
APPLE CAKE
RICE CAKE
1 - 2
1 - 2
1 - 2
1 - 2
1 - 2
1 - 2
1 - 2
170 - 200
165
170 - 200
170 - 200
170
190
180
15 - 20
35 - 45
40 - 45
20 - 30
60
60
60
(*) = WITH PREHEATED OVEN
GRILLING
LEVEL
FROM BELOW
TIME IN MINUTES
FIRST SURFACE SECOND SURFACE
PORK CHOPS
FILLET OF PORK
FILLET OF BEEF
LIVER
VEAL ESCALOPES
HALF CHICKEN
SAUSAGES
MEAT-BALLS
FISH FILLETS
TOAST
4
3
3
4
4
3
4
4
4
4
7 - 9
9 - 11
9 - 11
2 - 3
7 - 9
9 - 14
7 - 9
7 - 9
5 - 6
2 - 4
5 - 7
5 - 9
9 - 11
2 - 3
5 - 7
9 - 11
5 - 6
5 - 6
3 - 4
2 - 3
45

Instructions for the user
46
HOT-AIR COOKING
LEVEL
FROM BELOW
TEMPERATURE
(°C)
TIME
IN MINUTES
FIRST COURSES
LASAGNE
OVEN-BAKED PASTA
CREOLE RICE
2
2
2
190 - 210
190 - 210
190 - 220
20 - 25
25 - 30
20 - 25
MEAT
ROAST VEAL
ROAST PORK
ROASTED BEEF
FILLET OF BEEF
ROAST LAMB
ROAST BEEF
ROAST CHICKEN
ROAST DUCK
ROAST TURKEY
ROAST RABBIT
ROAST HARE
ROAST PIGEON
2
2
2
2
2
2
2
2
2
2
2
2
150 - 170
150 - 160
160 - 170
160 - 180
130 - 150
170 - 180
170
160 - 170
150 - 160
150 - 160
160 - 170
140 - 170
65 - 90
70 - 100
65 - 90
35 - 45
100 - 130
40 - 45
70 - 90
100 - 160
160 - 240
80 - 100
30 - 50
15 - 25
FISH 2 - 3 150 - 170 ACCORDING
TO DIMENSIONS
PIZZA
BREAD
TOAST
2 - 3
2 - 3
1 - 2
210 - 240
190 - 210
220 - 240
30 - 50
40
7
DESSERTS
CIAMBELLA
FRUIT CAKE
BRIOCHES
SHORT PASTRY
RICE CAKE
APPLE CAKE
PARADISE CAKE
2 - 3
2 - 3
2 - 3
2 - 3
2 - 3
2 - 3
2 - 3
150 – 160
150 – 160
150 – 160
150 – 160
150 – 160
150 – 160
150 – 160
35 - 45
40 - 50
40 - 60
25
65
65
65

Instructions for the user

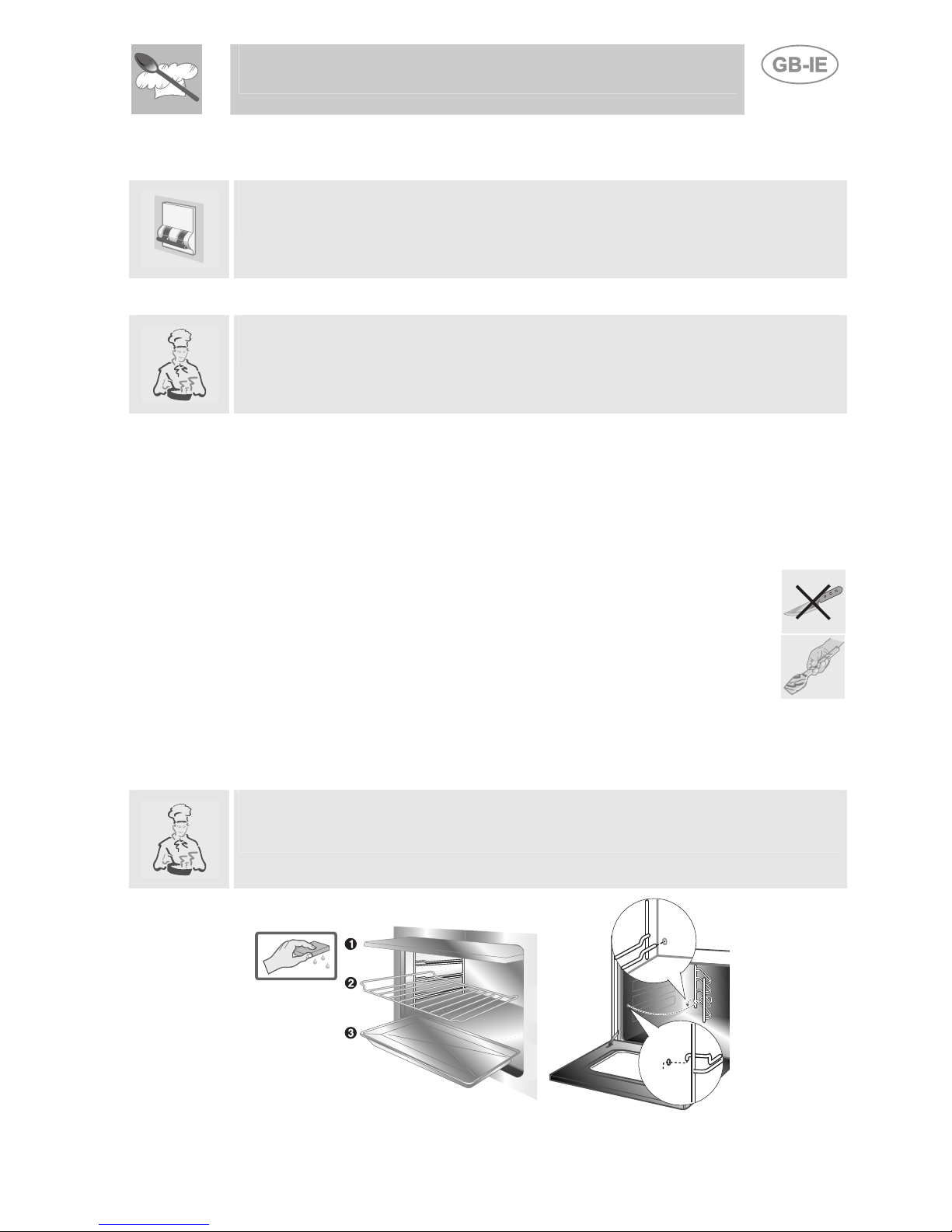

7. CLEANING AND MAINTENANCE
Before performing any operations requiring access to powered
parts, switch off the power supply to the machine.
7.1 Cleaning stainless steel
To keep stainless steel in good condition it should be cleaned regularly
after use. Let it cool first.
7.1.1 Ordinary Daily Cleaning
To clean and preserve the stainless steel surfaces, always use only
specific products that do not contain abrasives or chlorine-based acids.
How to use: pour the product on a damp cloth and wipe the surface,
rinse thoroughly and dry with a soft cloth or deerskin.
7.1.2 Food stains or residues
Do not use metallic sponges or sharp scrapers: they will
damage the surface.
Use normal non-abrasive products for steel, and a wooden or
plastic tool if necessary.
Rinse thoroughly and dry with a soft cloth or deerskin.
Do not allow residues of sugary foods (such as jam) to set
inside the oven. If left to set for too long, they might damage the
enamel lining of the oven.
7.2 Cleaning of the oven (without self-cleaning panels)
For best oven upkeep clean regularly after having allowed to cool. Take
out all removable parts.
47
