Smeg SFP4390X User manual

Contents
41
EN
1 Instructions 42
1.1 General safety instructions 42
1.2 Manufacturer liability 43
1.3 Appliance purpose 43
1.4 Disposal 43
1.5 Identification plate 44
1.6 This user manual 44
1.7 How to read the user manual 44
2 Description 45
2.1 General Description 45
2.2 Control panel 46
2.3 Other parts 47
2.4 Available accessories 47
3 Use 49
3.1 Instructions 49
3.2 First use 49
3.3 Using the accessories 50
3.4 Using the oven 52
3.5 Cooking advice 59
3.6 Special functions and automatic programs 60
3.7 Secondary menu 65
4 Cleaning and maintenance 67
4.1 Instructions 67
4.2 Cleaning the surfaces 67
4.3 Ordinary daily cleaning 67
4.4 Food stains or residues 67
4.5 Removing the door 68
4.6 Cleaning the door glazing 68
4.7 Removing the internal glass panes 69
4.8 Cleaning the inside of the oven 70
4.9 Pyrolytic: Automatic oven cleaning (on some models only) 72
4.10 Extraordinary maintenance 74
5 Installation 76
5.1 Electrical connection 76
5.2 Cable replacement 76
5.3 Positioning 77
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com

Instructions
42
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
• Never touch the heating elements
during use.
• Keep children under eight years of
age at a safe distance if they are not
constantly supervised.
• Children must never play with the
appliance.
• Never rest metallic objects such as
knives, forks, spoons and lids on the
appliance during use.
• Switch off the appliance immediately
after use.
• Never try to put out a fire or flames
with water: Turn off the appliance
and smother the flames with a fire
blanket or other appropriate cover.
• The appliance must never be
cleaned by unsupervised children.
• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.
• Do not modify this appliance.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in the
appliance.
• Do not try to repair the appliance
yourself or without the intervention of
a qualified technician.
• If the power supply cable is
damaged, contact technical support
immediately and they will replace it.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring powders,
stain removers and pan scourers) on
glass parts.
• Use wooden or plastic utensils.
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not obstruct ventilation openings
and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils could
be released.
• Never leave objects on the cooking
surface.
• Do not use the appliance to heat
rooms for any reason.

Instructions
43
EN
For this appliance
• Ensure that the appliance is switched off
before replacing the bulb.
• Do not rest any weight or sit on the open
door of the appliance.
• Take care that no objects are stuck in the
doors.
1.2 Manufacturer liability
The manufacturer declines all liability for
damage to persons or property caused by:
• Use of the appliance other than that
specified;
• Non-observance of the user manual
provisions;
• Tampering with any part of the
appliance;
• Use of non-original spare parts.
1.3 Appliance purpose
• This appliance is intended for cooking
food in the home environment. Every
other use is considered improper.
• This appliance may be used by children
aged at least 8 and by persons of
reduced physical, sensory or mental
capacity, or lacking in experience in the
use of electrical appliances, provided
that they are supervised or instructed by
adults who are responsible for their
safety.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.4 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
Power voltage
Danger of electrocution
• Disconnect the mains supply.
• Unplug the appliance.

Instructions
44
Our appliances are packed in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
1.5 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.6 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user’s reach for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the
packaging plastic bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice

Description
45
EN
2 Description
2.1 General Description
1 Control panel
2 LH light
3 RH light (on some models only)
4 Seal
5 Door
6 Oven fan
7 Rack/tray support frames
8 Pizza plate (on some models only)
Frame shelf

Description
46
2.2 Control panel

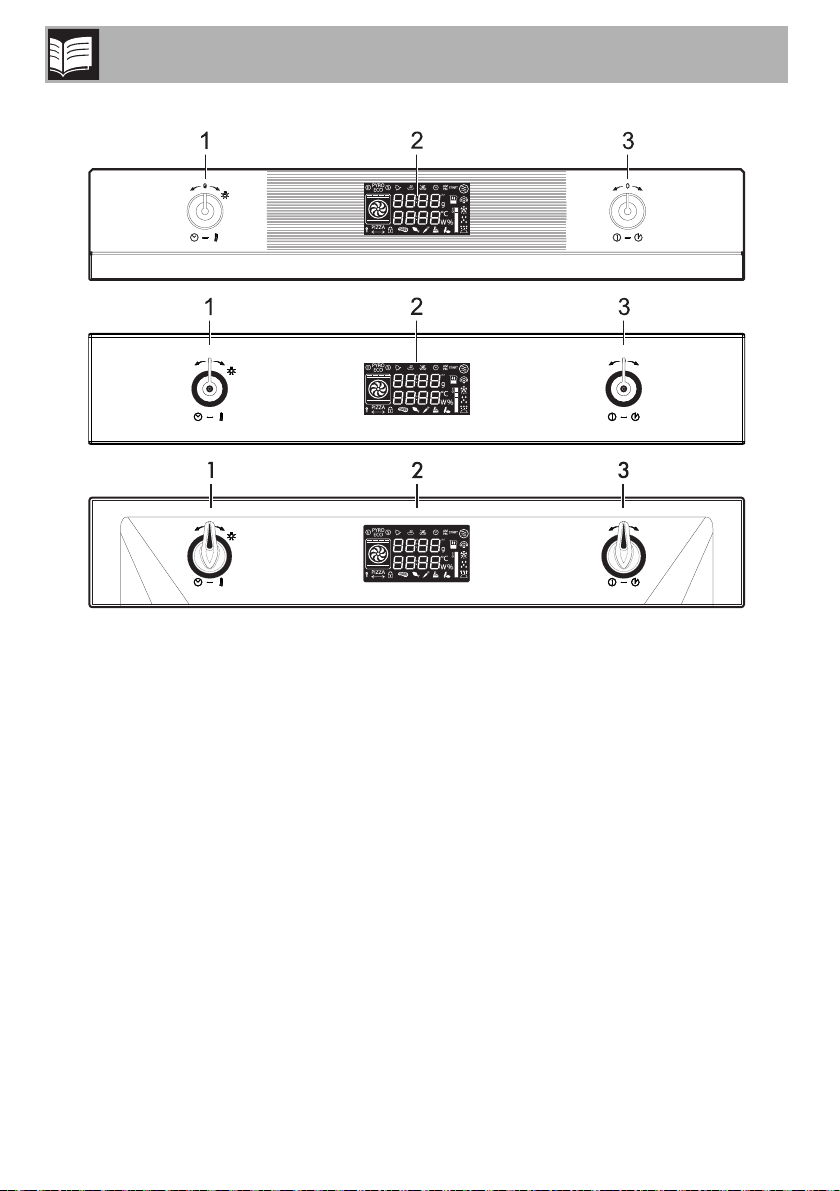

Temperature knob (1)
This knob can be used to select:
• The cooking temperature
• The duration of a function
• Programmed cooking procedures
• The current time
• The turning on or off of the light inside the
appliance.
Display (2)
Displays the current time, the selected
cooking temperature, power and function
and any time set.
Function knob (3)
This knob can be used to:
• Turn the appliance on and off
• Select a function
• Start or stop a function.

Description
47
EN
2.3 Other parts
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the oven and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue for a
brief period of time even after the appliance
has been turned off.
Interior lighting
The oven light comes on when the door is
opened or any function is selected, except
for , and .
Turn the temperature knob briefly to the right
to activate or deactivate internal lighting.
2.4 Available accessories
Rack
Useful for supporting containers with food
during cooking.
Tray rack
To be placed over the top of the oven tray;
for cooking foods which may drip.
Some models are not provided
with all accessories.

Use
48
Oven tray
Useful for collecting fat from foods placed
on the rack above.
Deep tray
Useful for collecting fat from foods placed
on the rack.
Pizza plate
Specially designed for cooking pizza and
similar dishes.
Pizza spatula
For easily placing the pizza on the pizza
plate.
Pizza plate cover
To be placed in the housing on the base of
the oven in place of the pizza plate when
this is not being used.
The oven accessories intended to
come into contact with food are
made of materials that comply with
the provisions of current legislation.
Supplied original and optional
accessories can be requested to
Authorised Assistance Centres.
Use only original accessories
supplied by the manufacturer.

Use
49
EN
3 Use
3.1 Instructions
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands wearing heat
resistant gloves when moving food
inside the oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Do not allow children to get near the
oven when it is in operation.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the oven.
• Do not use or leave flammable materials
near the oven.
• Do not use plastic kitchenware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the oven unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.
Improper use
Risk of damage to enamelled
surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not pour water directly onto very hot
trays.

Use
50
3.3 Using the accessories
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being taken out
accidentally have to face downwards
and towards the oven back.
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.

Use
51
EN
Cover and pizza plate (on some models
only)
With the oven cold, remove the cover from
the bottom and insert the pizza plate. Make
sure that the plate is inserted correctly in the
recess provided.
For cooking, use the special function
.
Pizza spatula (on some models only)
Always hold the pizza spatula by the
handle to put food in and take it out of the
oven. You are advised to dust the steel
surface lightly with flour to make it easier to
slide fresh products on and off, as they
could stick to the steel due to their moisture
content.
Improper use
Risk of damage to surfaces
• Do not use the pizza plate other than as
described, for example do not use it on
gas or glass ceramic hobs or in ovens
which are not designed for this purpose.
• If you like oil on your pizza, it is best to
add it after removal from the oven since
oil stains on the pizza plate are unsightly
and may reduce its efficiency.
• If the pizza plate is not in use, cover the
bottom of the oven with the cover
provided.

Use
52
3.4 Using the oven

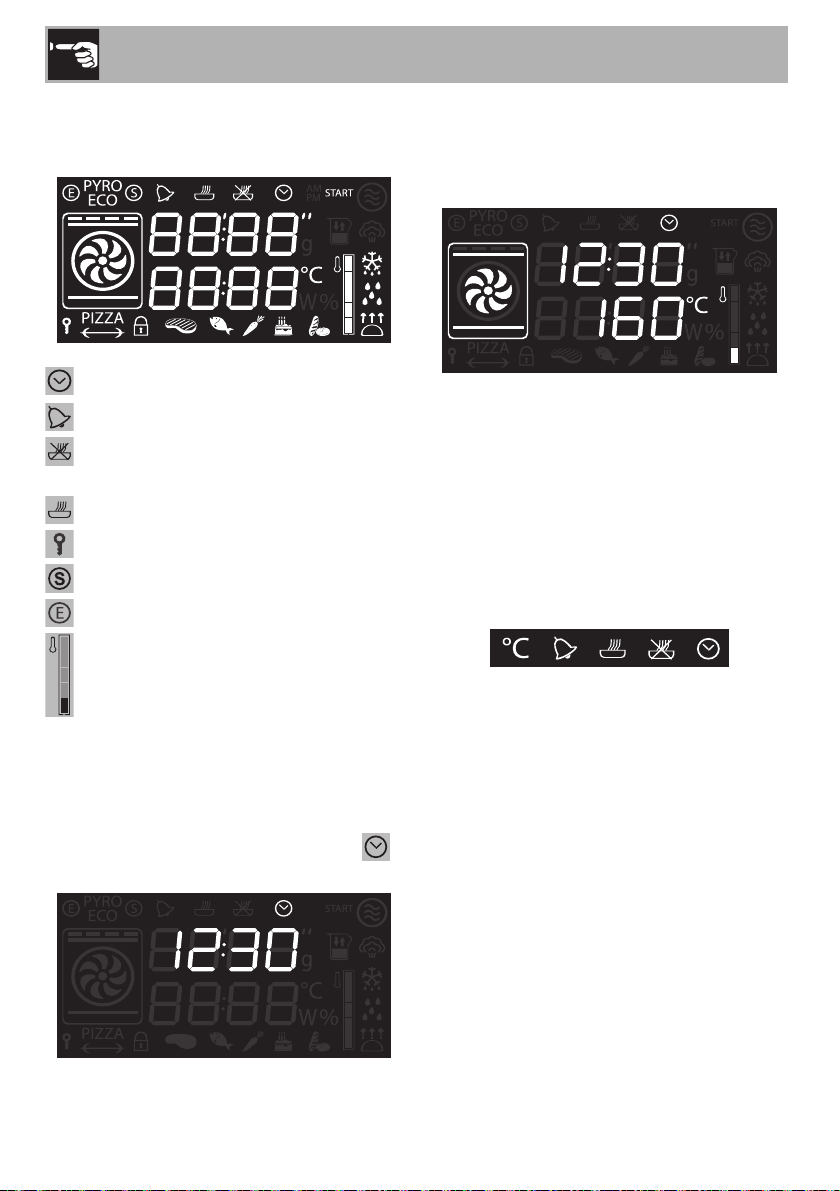

Display
Clock indicator light
Minute minder timer indicator light
Timed cooking with delayed start
indicator light
Timed cooking indicator light
Child lock indicator light
Showroom indicator light
Eco-logic indicator light
Temperature level reached
Operating modes
Stand-by: When no function is selected, the
display shows the current time and the
symbol.
ON: When a function is activated, the
display shows the parameters set such as
temperature, duration and temperature
reached.
Each time the temperature knob is pressed
during a function, the parameters will be
cycled through in the following order.
In all modes it is possible to modify the
value by turning the temperature knob to the
left or right. Keep the knob turned to
produce a faster increase or decrease.
1. Temperature
2. Minute minder timer duration.
3. Function duration.
4. Programmed cooking duration (if timed
cooking has been selected).
5. Time display.

Use
53
EN

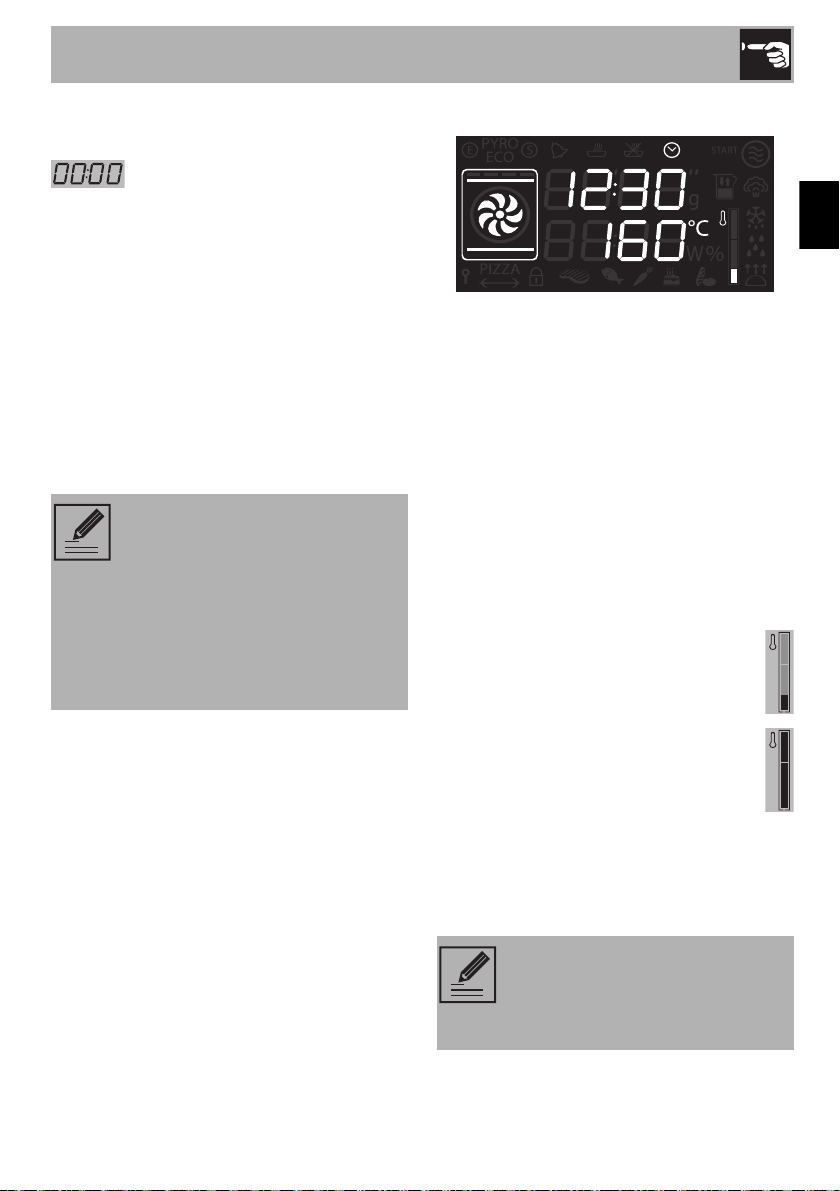

Setting the time
On the first use, or after a power failure,
will be flashing on the appliance's
display. To be able to start any cooking
function, the current time must be set.
1. Turn the temperature knob to set the
displayed time (keep the knob turned to
produce a faster increase or decrease).
2. Press the temperature knob.
3. Turn the temperature knob to set the
minutes (keep the knob turned to
produce a faster increase or decrease).
4. Press the temperature knob to finish
adjustment.
Cooking functions
1. Select a traditional cooking function with
the function knob.
2. Press the temperature knob if you wish to
change the default temperature.
3. Turn the knob to set the temperature.
4. Press the function knob to start traditional
cooking.
Preheating stage
In the combined and traditional functions,
cooking itself is preceded by a preheating
stage, which allows the oven to reach the
cooking temperature more quickly.
The temperature level reached
indication flashes to indicate that this
stage is in progress.
When the preheating stage is complete,
temperature level reached indication
will remain lit steadily and a buzzer
sounds to indicate that the food can be
placed inside the oven. The appliance now
waits for confirmation to proceed with
cooking (some functions only); introduce the
food and press the function knob to
continue.
It may become necessary to
change the current time, for
example for daylight saving time.
From the stand-by position, keep
the temperature knob turned to the
right or left until the hours flash.
It is not possible to change the time
if the oven is ON.
Cooking can be interrupted at any
time by pressing and holding the
function knob down for at least 3
seconds.

Use
54
Functions list
Eco
The combination of the fan and the
circulaire heating element, in ECO
mode, is particularly indicated for
cooking on a single shelf, with
reduced power consumption.
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes and in any case
particularly suitable for fatty meats
such as goose and duck.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and, in combination
with the rotisserie (where fitted),
gives the food an even browning at
the end of cooking. Perfect for
sausages, spare ribs and bacon.
This function enables large
quantities of food, particularly meat,
to be grilled evenly.
Lower element
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.
Fan assisted
The operation of the fan, combined
with traditional cooking, ensures
consistent cooking even with
complex recipes. Perfect for biscuits
and cakes, even when
simultaneously cooked on several
levels. (For multiple-level cooking,
we recommend using the 2nd and
4th shelves).
Fan with grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. shin of pork).
Fan + lower element
The combination of the fan with just
the lower heating element allows
cooking to be completed more
rapidly. This system is
recommended for sterilising or for
finishing off the cooking of foods
which are already well-cooked on
the surface, but not inside, which
therefore need a little more heat.
Perfect for any type of food.

Use
55
EN

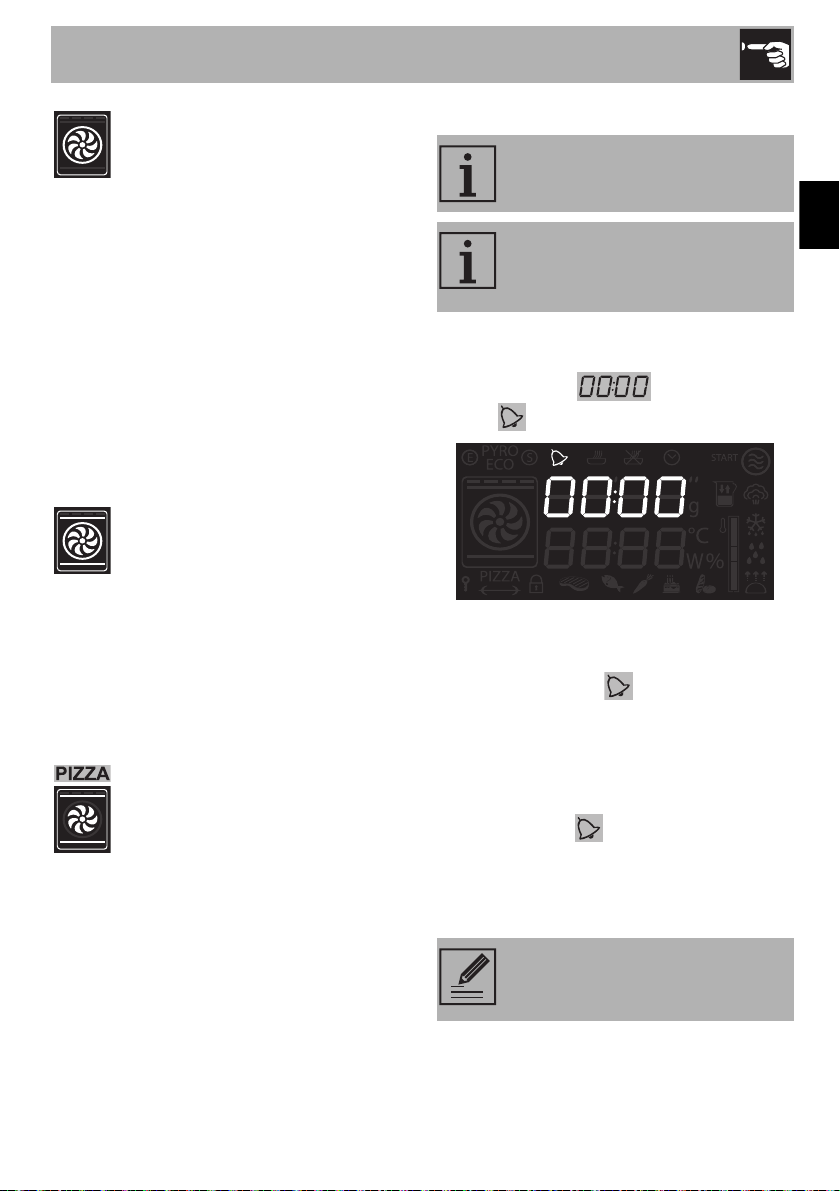

Minute minder
1. Press the temperature knob once (twice if
cooking is already in progress). The
display shows and the indicator
light flashes.
2. Turn the knob to set the duration (from 1
minute to 4 hours). After a few seconds,
the indicator light stops flashing and
the countdown starts.
3. Select the required cooking function and
wait for the buzzer to sound, indicating
that the cooking time is over. The
indicator light flashes.
4. Turn the knob to select another minute
minder. Or else press the temperature
knob to stop the buzzer.
Circulaire
The combination of the fan and the
circulaire heating element
(incorporated in the rear of the
oven) allows you to cook different
foods on several levels, as long as
they need the same temperatures
and type of cooking. Hot air
circulation ensures instant and even
distribution of heat. It will be
possible, for instance, to cook fish,
vegetables and biscuits
simultaneously (on different levels)
without odours and flavours
mingling.
Turbo
The combination of fan assisted
cooking and traditional cooking
allows different foods to be cooked
on several levels extremely quickly
and efficiently, without odours and
flavours mingling. Perfect for large
volumes that call for intense
cooking.
Pizza
The operation of the fan, combined
with the grill and the lower heating
element, ensures consistent cooking
even with complex recipes. Perfect
not just for pizzas, but also for
biscuits and cakes.
This function only activates the
buzzer, without stopping cooking.
The minute minder can be
activated both during cooking and
when the appliance is in standby.
You must set the value to zero to
remove the minute minder.

Use
56

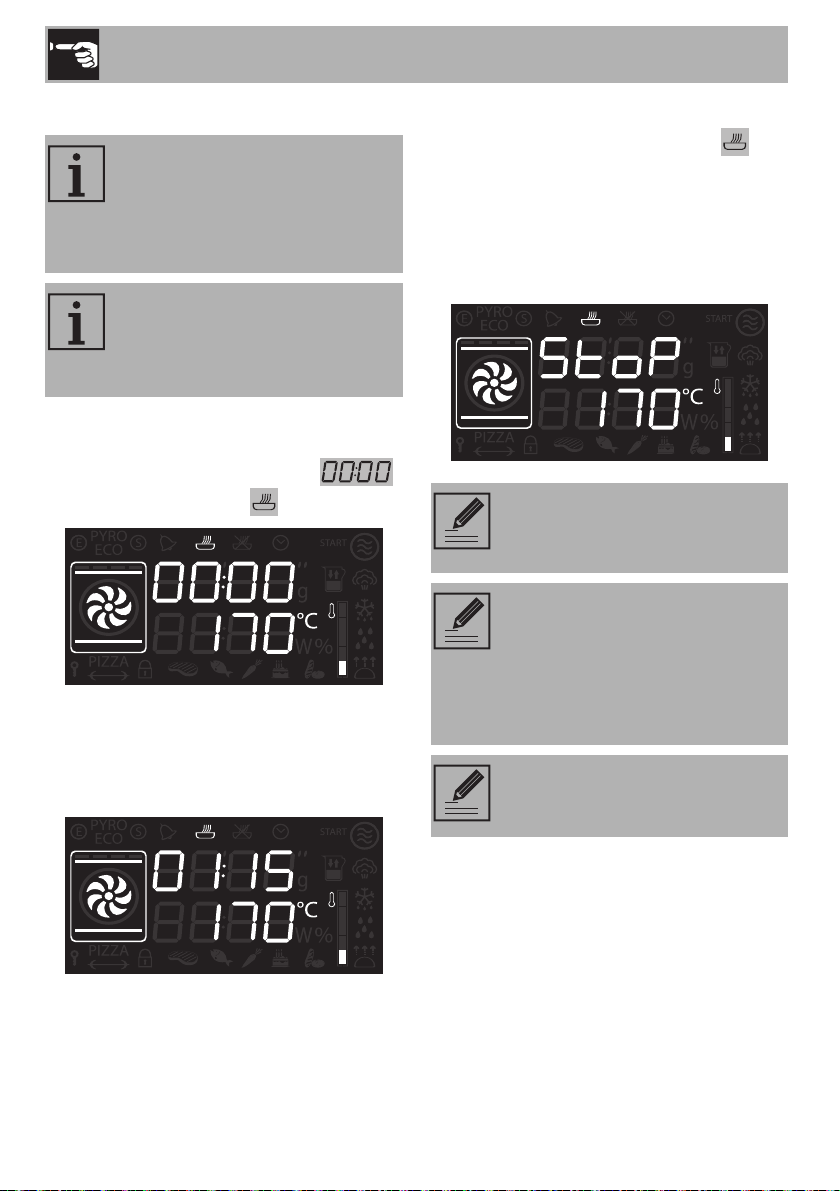

Timed cooking
1. After selecting a cooking function and
temperature, press the temperature knob
three times. The display shows
and the indicator light flashes.
2. Turn the temperature knob right or left to
set the cooking duration from 00:01 to
12:59. Keep the knob turned to produce
a faster increase or decrease.
3. A few seconds after the required
duration is set, the indicator light
stops flashing and timed cooking starts.
4. At the end of the cooking time STOP
appears on the display and a buzzer
sounds that can be deactivated by
pressing the temperature knob.
Timed cooking is the function
which allows a cooking operation
to be started and then ended after
a specific length of time set by the
user.
Activation of timed cooking
cancels any minute minder timer
which may previously have been
set.
To select a further timed cooking,
turn the temperature knob right or
left again.
To extend the cooking time
manually, press the temperature
knob again. The appliance
resumes its normal operation with
the previously selected cooking
settings.
Press and hold the function knob
down to switch off the appliance.

Use
57
EN

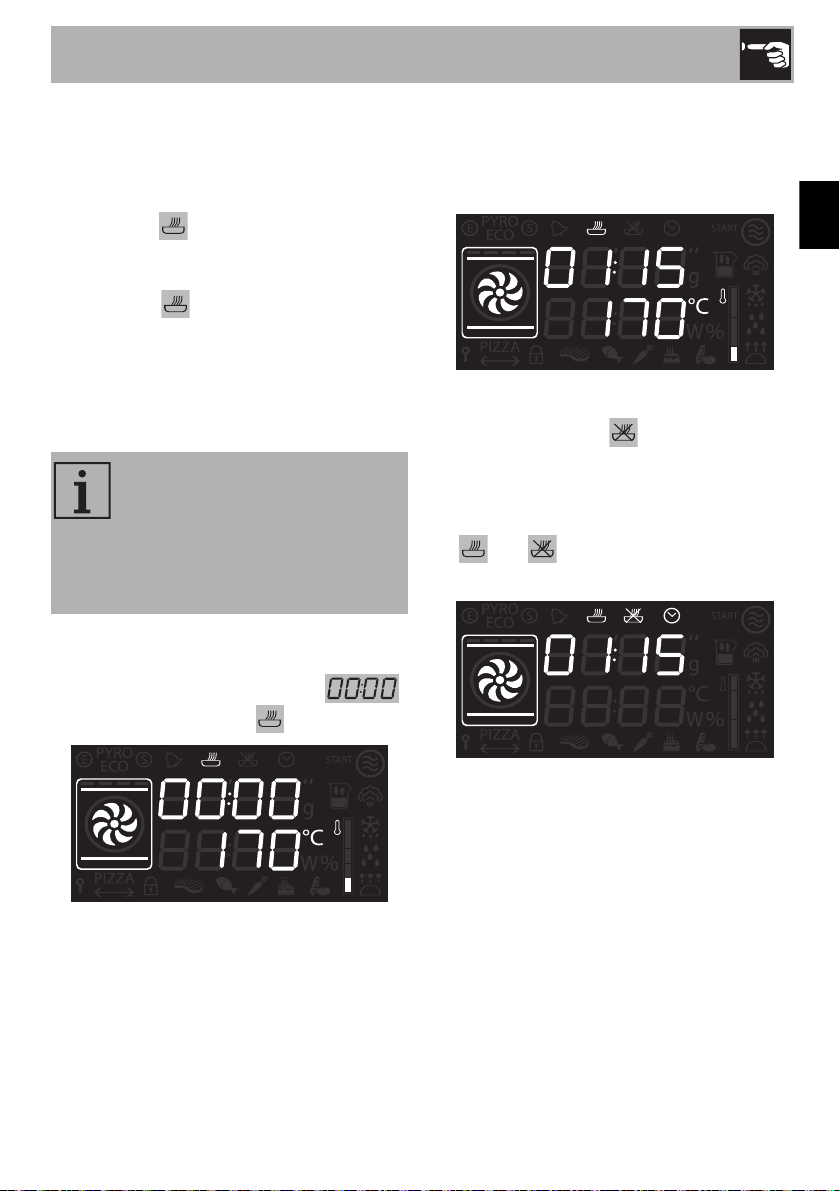

Modifying the data set during timed
cooking
During operation, it is possible to modify
timed cooking duration:
1. When the indicator light is steady
and cooking is in progress inside the
appliance, press the temperature knob
twice. The indicator light will start
flashing.
2. Turn the temperature knob right or left to
alter the pre-set cooking time.
Programmed cooking
1. After selecting a cooking function and
temperature, press the temperature knob
three times. The display shows
and the indicator light flashes.
2. Turn the knob right or left to set the
cooking duration from 00:01 to 12:59.
Keep the knob turned for a fast increase
or decrease.
3. Press the temperature knob a fourth time.
The indicator light flashes. Turn the
knob right or left to set the cooking end
time.
4. After a few seconds the indicator lights
and stop flashing. The appliance
waits for the set start time.
Programmed cooking is the
function which allows cooking to
be stopped at an established time
depending on the time set by the
user, after which the oven will
switch off automatically.

Use
58
5. At the end of the cooking time STOP
appears on the display and a buzzer
sounds that can be deactivated by
pressing the temperature knob.
Modifying the data set during
programmed cooking
During operation, it is possible to modify the
programmed cooking duration:
1. When the indicator lights and
are lit steadily and the appliance is
waiting for cooking to start, press the
temperature knob twice. The
indicator light will start flashing.
2. Turn the temperature knob right or left to
alter the pre-set cooking time.
3. Press the temperature knob again. The
indicator light switches off and the
indicator light starts flashing. The
display shows the cooking end time.
4. Turn the temperature knob right or left to
delay the cooking end time.
5. After a few seconds the indicator lights
and stop flashing and
programmed cooking resumes its
operation with the new settings.
To extend the cooking time
manually, press the temperature
knob again. The appliance
resumes its normal operation with
the previously selected cooking
settings.
Press and hold the function knob
down to switch off the appliance.
For safety reasons, it is not possible
to set the end of cooking time by
itself without setting the cooking
duration.
After modifying the cooking
duration, the end of cooking time
must be re-set.

Use
59
EN
3.5 Cooking advice
General advice
• Use a fan assisted function to achieve
consistent cooking at several levels.
• It is not possible to shorten cooking times
by increasing the temperature (the food
could be overcooked on the outside and
undercooked on the inside).
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; If not, it
needs another few minutes cooking.
Advice for cooking with the Grill and the
Fan with grill
• Meat can be grilled even when it is put
into the cold oven or into the preheated
oven if you wish to change the effect of
the cooking.
• With the Fan with grill function, we
recommend that you preheat the oven
before grilling.
• We recommend placing the food at the
centre of the rack.
Advice for cooking desserts/pastries and
biscuits
• Use dark metal moulds: They help to
absorb the heat better.
• The temperature and the cooking time
depend on the quality and consistency
of the dough.
• To check whether the dessert is cooked
right through: At the end of the cooking
time, put a toothpick into the highest point
of the dessert. If the dough does not stick
to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes
out of the oven, on the next occasion
reduce the set temperature by about
10°C, selecting a longer cooking time if
necessary.
Advice for defrosting and proving
• Place frozen foods without their
packaging in a lidless container on the
first shelf of the oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on
the second level and a tray on the first
level. In this way, the liquid from the
defrosting food drains away from the
food.
• The most delicate parts can be covered
with aluminium foil.
• For successful proving, a container of
water should be placed in the bottom of
the oven.

Use
60
To save energy
• Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the appliance clean
at all times.
• (Where fitted) When it is not being used,
remove the pizza plate and put the
cover back in its slot.
3.6 Special functions and automatic
programs

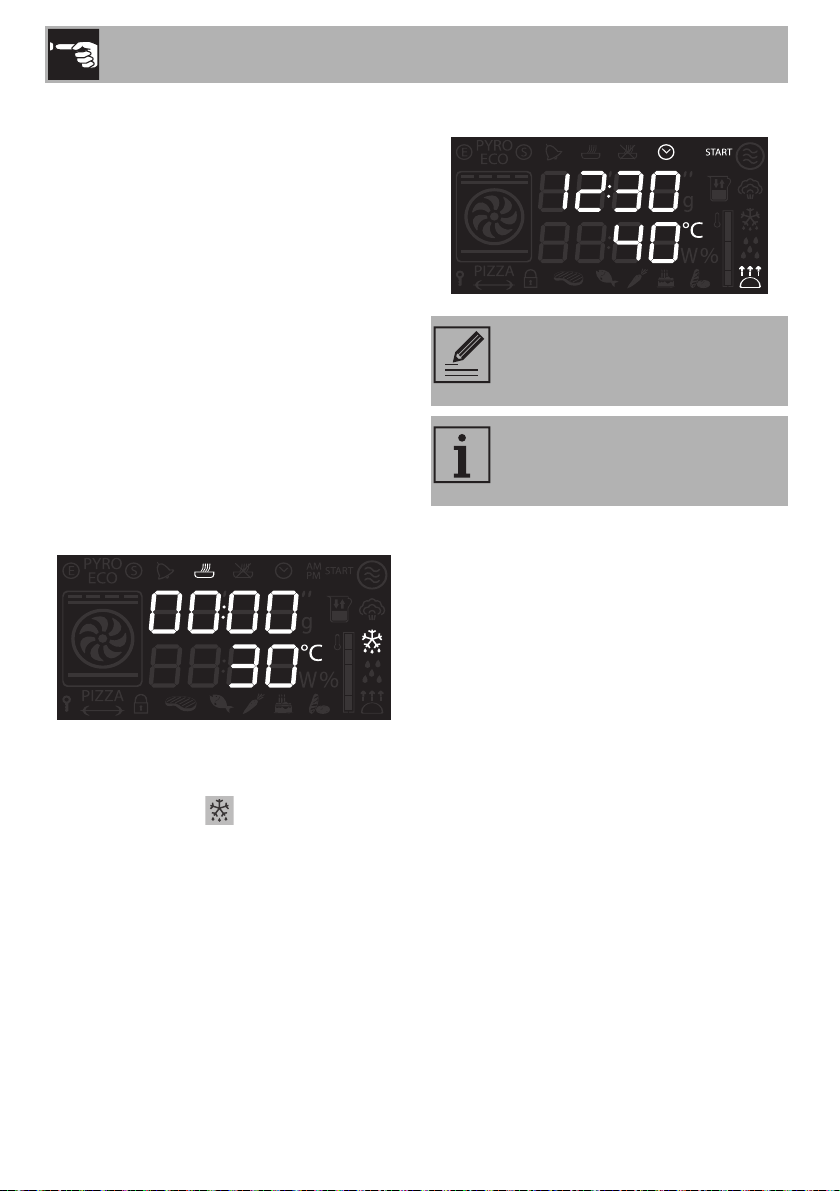

Defrost by time
1. Place the food inside the oven.
2. Select the timed defrosting function,
indicated by the symbol, using the
function knob.
3. Press the temperature knob to set the
duration.
4. Turn the knob to adjust the value (from 5
seconds to 99 minutes).
5. Press the function knob to start defrosting.
6. At the end, the word STOP will be
displayed.
Proving
1. Position the dough for proving on the
second shelf.
2. Press the function knob to select and
activate proving.
It is not possible to modify the
temperature of the proving
function.
For successful proving, a container
of water should be placed in the
bottom of the oven.
