Smeg SOP6102S2PN User manual

PRECAUTIONS - 55914779671/D
e
PRECAUTIONS 55
General safety instructions 55
Appliance purpose 59
This user manual 59
Manufacturer’s liability 59
Identification plate 60
Disposal 60
To save energy 60
Light sources 60
How to read the user manual 60
DESCRIPTION 61

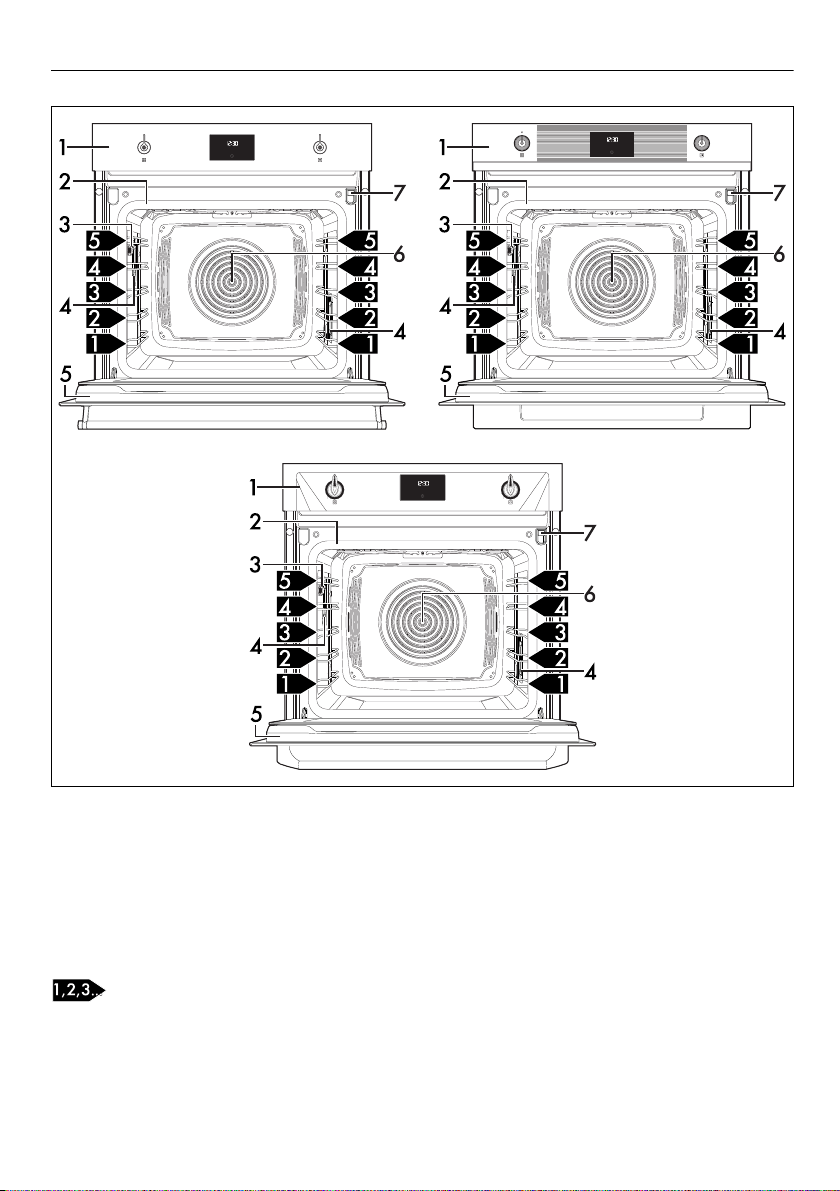

General Description 61
Control panel 62
Other parts 62
Accessories 63
Optional accessories (can be purchased separately)
64
Advantages of assisted steam cooking 64
USE 64
Preliminary operations 64
Using the accessories 65
Digital programmer 65
First use 65
Using the oven 66
Cooking advice 72
Using the temperature probe (on some models only)
73
Cooking advice 75
Mini guide to accessories 77
Discover the recipes 77
Information for Supervisory Bodies 77
Special functions 77
Secondary functions 81
Settings 82
CLEANING AND MAINTENANCE 85
Cleaning the appliance 85
Cleaning the door 85
Cleaning the oven cavity 87
Special cleaning functions 88
Vapor Clean (on some models only) 88
Pyrolytic (on some models only) 89
Descaling 90
Cleaning the reservoir and the water circuit 94
Extraordinary maintenance 96
INSTALLATION 96
Electrical connection 96
Positioning 97
We advise you to read this manual carefully, which contains all the instructions for maintaining the
appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com
PRECAUTIONS
General safety instructions
Risk of personal injury
• ATTENTION: during use, the
appliance and its accessible
parts become very hot.
Children must be kept away
from the appliance.
• ATTENTION: during use, the
appliance and its accessible
parts become very hot. Never
touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or
flames with water: turn off the
appliance and smother the
flames with a fire blanket or
other appropriate cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use
of electrical appliances,
provided that they are
supervised or instructed by
adults who are responsible for

56 - PRECAUTIONS 914779671/D
their safety.
• Children must not play with the
appliance.
• Keep children under the age of
8 at a safe distance unless they
are constantly supervised.
• Keep children under the age of
8 away from the appliance
when it is in use.
• Cleaning and maintenance
must not be carried out by
unsupervised children.
• The cooking process must
always be monitored. A short
cooking process must be
continuously surveyed.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released, as these
could then heat up and catch
fire. Be very careful.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed
during cooking.
• If you need to move food or at
the end of cooking, open the
door 5 cm for a few seconds,
let the steam come out, then
open it fully.
• Do not insert pointed metal
objects (cutlery or utensils) into
the slots in the appliance.
• Switch off the appliance
immediately after use.
• DO NOT USE OR STORE
FLAMMABLE MATERIALS
NEAR THE APPLIANCE.
•DONOTUSEAEROSOLSIN
THE VICINITY OF THIS
APPLIANCE WHILST IT IS IN
USE.
• DO NOT MODIFY THIS
APPLIANCE.
• Installation and servicing should
be carried out by qualified
personnel in accordance with
current standards.
• Do not try to repair the
appliance yourself or without
the assistance of a qualified
technician.
• Do not pull the cable to unplug
the appliance.
Risk of damaging the appliance
•Donotuseabrasiveor
corrosive detergents (e.g.
scouring powders, stain
removers and metallic
sponges), rough or abrasive
materials or sharp metal
scrapers on glass parts as this
could cause scratch the surface
and break the glass. Use
wooden or plastic utensils.
• Do not sit on the appliance.
• Do not use cleaning products
containing chlorine, ammonia
or bleach on parts made of
steel or that have metallic
surface finishes (e.g. anodizing,
nickel- or chromium-plating).
• Racks and trays should be
inserted as far as they will go
into the side guides. The
mechanical safety locks that

PRECAUTIONS - 57914779671/D
e
prevent them from being
removed must face downwards
and towards the back of the
oven cavity.
• Do not use steam jets to clean
the appliance.
• Do not spray any spray product
near the appliance.
• Do not obstruct ventilation
openings and heat dispersal
slots.
• Fire hazard: never leave
objects in the oven cavity.
• DO NOT FOR ANY REASON
USE THE APPLIANCE AS A
SPACE HEATER.
• Do not use plastic cookware or
containers when cooking food.
• Do not place sealed tins or
containers in the oven cavity.
• Remove all trays and racks
which are not required during
cooking.
• Do not cover the bottom of the
oven cavity with aluminium or
tin foil sheets.
• Do not place pans or trays
directly on the bottom of the
oven cavity.
• If necessary, you can use the
tray rack (supplied or sold
separately, depending on the
model) by placing it on the
bottom as a support for
cooking.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air
circulation inside the oven
cavity.
• Do not use the open door to
rest pans or trays on the internal
glass pane.
• Never use the oven door to
lever the appliance into place
when fitting.
• Avoid exerting too much
pressure on the door when
open.
• Do not use the handle to lift or
move this appliance.
For pyrolytic appliances
• When the pyrolitic function is in
use, the surfaces could reach
temperatures that are higher
than usual. Keep children at a
safe distance.
• Before starting the pyrolytic
cycle, remove any food
residues or large spills from
previous cooking operations
from the inside of the oven.
• Before starting the pyrolytic
cycle, remove all accessories
from the oven cavity.
• Before starting the pyrolytic
cycle, switch off the burners or
electric hot plates of the hob
installed above the oven.
Installation and maintenance
• THIS APPLIANCE MUST NOT

58 - PRECAUTIONS 914779671/D
BE INSTALLED IN A BOAT OR
CARAVAN.
• The appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cut-out with the help of
a second person.
• To prevent any possible
overheating, the appliance
should not be installed behind
a decoration door or a panel.
• Installation and servicing should
be carried out by qualified
personnel in accordance with
current standards.
• Have the electrical connection
performed by authorised
technical personnel.
• The appliance must be
connected to ground in
compliance with electrical
system safety standards.
• Use cables withstanding a
temperature of at least 90 °C.
• The tightening torque of the
screws of the terminal supply
wires must be 1.5 - 2 Nm.
• If the power cable becomes
damaged, contact technical
support immediately to arrange
for it to be replaced in order to
avoid possible hazards.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any
operation on the appliance,
switch off the power supply.
• ATTENTION: ensure that the
appliance is switched off
before replacing the bulb, to
prevent electric shocks.
• Disconnect the appliance after
the installation, through an
accessible plug or switch in
case of fixed connection.
• Fit the power line with an all-
pole circuit breaker with a
contact separation distance
sufficient to provide complete
disconnection in category III
overvoltage conditions,
pursuant to installation
regulations.
• This appliance can be used up
to a maximum altitude of 4,000
metres above sea level.
For this appliance
• WARNING: ensure that the
appliance is switched off
before replacing the bulb, to
prevent electric shocks.
• Do not rest any weight or sit on
the open door of the
appliance.
• Take care that no objects are
stuck in the doors.
• Do not install/use the
appliance outdoors.
• (on some models only) Only
use the temperature probe
provided or recommended by
the manufacturer.

PRECAUTIONS - 59914779671/D
e
• For cooking with the Direct
Steam function, take great care
not to exceed the maximum
capacity of the tray (250 ml).
Temperature probe (if present)
• Do not touch the rod or the tip
of the temperature probe after
use.
• Wear oven gloves when
handling the temperature
probe.
• Take care not to scratch or
damage enamelled or chrome-
plated surfaces with the tip or
the plug of the temperature
probe.
• Do not insert the temperature
probe into openings and slots
on the appliance.
• When the temperature probe is
not in use, make sure that the
protective metal cap is properly
closed.
• Do not pull the cable to remove
the temperature probe from the
socket or from the food.
• Make sure that the temperature
probe or its cable do not get
caught in the door.
• Make sure that the temperature
probe or its cable do not come
into contact with heating
elements inside the oven.
• No part of the temperature
probe should be allowed to
come into contact with the walls
of the oven cavity, the heating
elements, the racks or the trays
when they are still hot.
• The probe should not be kept
inside the appliance.
• Do not use the temperature
probe during the pyrolytic
cycle.
Appliance purpose
This appliance is intended for
cooking food in the home
environment. Every other use is
considered inappropriate. It
cannot be used:
• in employee kitchens, shops,
offices and other working
environments.
• in farms/farmhouses.
• by guests in hotels, motels and
residential environments.
• In bed and breakfast
accommodation.
This user manual
• This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user's reach for the
whole working life of the appliance.
• Read this user manual carefully before using
the appliance.
• The explanations in this manual include
images, which describe all that regularly
appears on the display. However, it should
be kept in mind that the appliance may be
equipped with an updated version of the
system, and as such, all that appears on the
display may differ from those in the manual.
Manufacturer’s liability
The manufacturer declines all liability for
damage to persons or property caused by:
• use of the appliance other than that
specified;
• failure to comply with the instructions in the
user manual;
• tampering with any part of the appliance;
• use of non-original spare parts.

60 - PRECAUTIONS 914779671/D
Identification plate
The identification plate bears the technical data,
serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
Disposal
This appliance conforms to the WEEE
European directive (2012/19/EU) and
must be disposed of separately from
other waste at the end of its service life.
The appliance does not contain substances in
quantities sufficient to be considered hazardous
to health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power cable and remove it.
• Deliver the appliance to the appropriate
recycling centre for electrical and electronic
equipment waste, or return it to the retailer
when purchasing an equivalent product, on
a one for one basis.
Our appliances are packaged in non-polluting
and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
To save energy
• Only preheat the appliance if the recipe
requires you to do so. The preheating stage
can be disabled for all functions (see
chapter “Preheating”) apart from the PIZZA
(preheating cannot be disabled) and ECO
functions (no preheating stage).
• When using the functions (including the
ECO function), avoid opening the door
during cooking.
• Unless otherwise indicated on the package,
defrost frozen foods before placing them in
the oven.
• When cooking several types of food it is
recommended to cook the foods one after
the other to make the best use of the already
hot oven.
• Use dark metal moulds: They help to absorb
the heat better.
• Remove all trays and racks which are not
required during cooking.
• Stop cooking a few minutes before the time
normally used. Cooking will continue for the
remaining minutes with the heat which has
accumulated inside the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the oven clean at all
times.
Light sources
• This appliance contains user-replaceable
light sources.
• The light sources contained in the appliance
are declared suitable for operation at
ambient temperature ≥300°C and intended
for use in high temperature applications such
as ovens.
• This appliance contains light sources of
efficiency class "G".
How to read the user manual
This user manual uses the following reading
conventions:
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part of it
unattended.
• Do not let children play with the plastic
bags. Warning/Caution
Information/Advice

DESCRIPTION - 61914779671/D
e
DESCRIPTION
General Description
1 Control panel
2 Seal
3 Temperature probe socket (on some models
only)
4 Light bulb
5 Door
6 Fan
7 Filling tray
Frame shelf

62 - DESCRIPTION 914779671/D
Control panel
1 Function knob
This knob can be used to:
• turn the appliance on and off;
• select a function.
2 Digital programmer
Displays the current time, the selected cooking
temperature, power and function and any time
set.
3 Temperature knob
This knob can be used to set:
• the cooking temperature;
• the duration of a function;
• programmed cooking cycles;
• the current time;
• temporarily start or stop a function.
Other parts
Shelves
The appliance features shelves to position trays
and racks at different heights. The insertion
heights are indicated from the bottom upwards.
Cooling fan
The fan cools the appliance and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue for a short
period of time even after the appliance has
been turned off.
Turn the Function knob to the position 0
to immediately complete any cooking
operation.

DESCRIPTION - 63914779671/D
e
Oven lighting
The appliance’s interior lighting comes on:
• when the door is opened;
• when any function is selected, apart from the
- - - functions
(depending on the models).
Accessories
• Not all accessories are available on some
models.
• The accessories intended to come into
contact with food are made of materials that
comply with the provisions of current
legislation.
• Original supplied and optional accessories
can be requested to Authorised Assistance
Centres. Use only original accessories
supplied by the manufacturer.
Funnel
Used for filling the reservoir with water.
Rack
Used for supporting containers with food during
cooking.
Tray
Useful for cooking cakes, pizzas, oven-baked
desserts and biscuits.
Deep tray
Useful for collecting fat from foods placed on
the rack above and for cooking pies, pizzas,
baked desserts, biscuits, etc.
Tray rack
To be placed over the top of the tray; for
cooking foods which may drip.
Protective cover (on some models only)
Used to cover and protect the temperature
probe socket when the temperature probe is not
in use.
Temperature probe (on some models only)
With the temperature probe, you can cook
according to the temperature measured at the
centre the food.
When the door is open, it is not possible
to turn off the interior lighting.

64 - USE 914779671/D
Optional accessories (can be
purchased separately)
Jug
Useful for containing liquids during filling and
emptying of the reservoir.
PPR2 or STONE(refractory stone)
Ideal accessory for baking bread (pizza,
bread, focaccia...), but you can also use it for
more delicate preparations such as biscuits.
BBQ (teflon-coated barbecue grill pan)
Double-use accessory: the striped side is
recommended for grilling meat (fillets,
hamburgers...), while the smooth surface can be
used for cooking vegetables, fruit, fish...
AIRFRY (oil-free frying grill)
Recommended accessory for air-frying
previously breaded, precooked and/or frozen
food (chips, potato or meat croquettes, small
mozzarella bites...).
Advantages of assisted steam
cooking
The assisted steaming cooking system cooks
any type of food much smoother and faster and
finds its main applications for:
• Braising and stewing
•Cookingsauces
•Cookingaugratin
•Roasting
•Lowtemperaturecooking
• Regenerating
• Multi-mode cooking
Variations in temperature and humidity levels
allow the wished gastronomic result to be
achieved.
The addition of steam allows the use of less fat in
favour of a healthier and more genuine cuisine.
It also minimizes the loss of weight and volume
in food while cooking.
Assisted steam cooking is particularly suitable
for cooking meat: in addition to making it very
soft, it maintains it bright and makes it more
succulent.
Also recommended for baking leavened and
bread dough. The humidity in fact lets the dough
grow and develop while cooking before
creating the outer crust. The result is a lighter and
more digestible mixture, recognizable by thicker
pockets.
USE
Preliminary operations
• Remove any protective film from the outside
or inside of the appliance, including
accessories.
• Remove any labels (apart from the technical
data plate) from the accessories and
shelves.
• Remove and wash all the appliance
accessories (see chapter "CLEANING
AND MAINTENANCE").
See General safety instructions.

USE - 65914779671/D
e
First heating
1. Set a cooking time of at least one hour (see
paragraph "Using the oven").
2. Heat the empty oven compartment at the
maximum temperature to burn off any
residues left by the manufacturing process.
When heating the appliance
• air the room;
•don'tstay.
Using the accessories
Racks and trays
Racks and trays have to be inserted into the side
guides until they come to a complete stop.
• The mechanical safety locks that prevent the
rack from being removed accidentally must
face downwards and towards the back of
the oven cavity.
Tray rack
The tray rack has to be inserted into the tray. In
this way fat can be collected separately from
the food which is being cooked.
Digital programmer
The parameters and values for the currently
selected function will be indicated on the
display. To use it, simply turn the functions and
temperature knobs and/or press the buttons on
the lower part of the display, depending on the
operations to be performed by the appliance.
First use
On the first use, or after a long power failure,
and the button flash on the
appliance display. To be able to start any
cooking function, the current time must be set.
Time setting
1. Press the button.
2. Turn the temperature knob to select the time
format to display ( or ).
3. Press the button to confirm the
modification and go on to adjust the time.
4. Turn the temperature knob to set the current
time.
Gently insert racks and trays into the
oven until they come to a stop.
Clean the trays before using them for
the first time to remove any residues left
by the manufacturing process.
If the time is not set, the oven will not
switch on.
When the version is selected,
the display shows (morning) or
(afternoon).

66 - USE 914779671/D
5. Press the button to set the current time
and go to the selection of minutes.
6. Turn the temperature knob to select the
minutes of the current time.
7. Press the button to confirm.
Modifying the time
1. In the main menu, hold down the
button for a few seconds.
2. Modify the time as described in point 2 in
the previous chapter.
Using the oven
Steam-assisted cooking
1. Turn the knob to the function with steam that
you want to use (e.g + ). The
indicator light flashes.
Reservoir filling
2. Open the door and pull the filling drawer
out of its housing.
3. Insert the funnel provided in the filling
drawer.
4. Pour the water (using a bottle or a
measuring jug) until the max. level indicator
light comes on (the reservoir contains
about 800 ml of water).
It may become necessary to change the
current time, for example for daylight
saving time.
When the current time is visible, after 2
minutes from the last knob operation it is
displayed with low brightness.
To cancel the operation, turn the
function knob or hold down the button
for a few seconds.
See General safety instructions.
Use cold tap water which is not too
hard, softened water or still mineral
water.

USE - 67914779671/D
e
5. At the end, remove the funnel and place the
filling drawer back in its place.
If there is too much water in the reservoir, the
excess water will drain into the cooking
compartment:
• in this case dry with a cloth or sponge
before a cooking.
• It is recommended to drain the 200 ml
reservoir through the reservoir drain function.
6. Close the door.
the wording and the
button flash to indicate that the function can be
started.
Setting a steam-assisted cooking
1. Turn the temperature knob to set the cooking
temperature (from 100°C to 250°C) (for
example "190°C").
fig. 1
2. Press the button on the display. The
indicator light flashes.
3. Turn the temperature knob to set the cooking
time (from 1 minute to 13 hours) (e.g. "1
hour").
4. Press the button on the display. The
indicator light flashes.
5. Turn the temperature knob to set the cooking
steam percentage (from 20% to 40°C) (for
example "25°C").
6. Press the button to start the function.
Preheating stage
Cooking itself is preceded by a preheating
stage, which allows the appliance to heat to the
cooking temperature more quickly.
This stage is indicated by the switching on of the
indicator light and by a progressive
increase in the temperature level reached
.
At the end of preheating:
• the indicator light switches off;
Do not use distilled water, tap water
with a high chloride content (> 40 mg/
l), or other liquids.
When the door is opened, the function
in progress is interrupted.
The function resumes automatically
when the door is closed.
You can skip the preheating phase by
holding down the button for a few
seconds.

68 - USE 914779671/D
• the appliance beeps;
•thewords andthe
button flash to indicate that the food can be
introduced into the oven cavity.
Cooking phase
1. Open the door
2. Place the dish with the food to be cooked
into the oven cavity.
3. Close the door.
or
• If the dish with the food is already inside the
oven cavity, press the button to start
cooking.
4. Check the cooking status of the food by
turning on the internal light.
Cooking is indicated by the progressive
decrease in time on the numerical display and
the progressive decrease in the segment bar
.
End of cooking
At the end of the cooking process an acoustic
signal sounds and the display shows .
1. Turn the function knob to position 0 to exit
the function.
2. Open the door
3. Remove the food from the oven cavity.
4. Close the door.
Reservoir draining
After cooking:
1. Open the door
2. Place the deep pan on the third shelf from
the bottom. Push it against the rear wall of
the oven cavity.
3. From position 0, turn the function knob to the
left by one position. The button flashes.
The appliance suggests the reservoir drain
function.
4. Press the button to confirm the function.
5. Press the button again to start the
function.
The water starts to flow into the deep pan from
the drain pipe on the right side of the rear wall
of the oven cavity.
6. Wait for the end of the drain flow.
At the end an acoustic signal sounds and the
display shows .
7. Turn the function knob to position 0 to exit
the function.
Before draining the reservoir, wait for
the oven to cool down, leaving the
door open. To make sure that the water
remaining in the reservoir is not too hot,
wait at least 40 minutes.
It is recommended to drain at the end of
each cooking, to prevent any residue of
unused water from remaining inside the
reservoir.

USE - 69914779671/D
e
8. Drain the water from the deep pan.
List of steam assisted cooking functions
FAN-ASSISTED+STEAM ASSISTED
FAN-ASSISTED+STEAM-ASSISTED
TURBO+STEAM-ASSISTED
FAN-ASSISTED GRILL+STEAM-ASSISTED
Traditional cooking
1. Turn the function knob to the right or to the
left to select the wished function (for
example "FAN-ASSISTED ").
The button and the text
start flashing.
After a long period of inactivity it is
recommended to make a reservoir
filling and draining cycle to rinse the
steam circuit.
Take care: the water may be very hot.
The drained water cannot be used for
other cooking.
Assisted-steam cooking at 40%: the
steam is delivered constantly throughout
the cooking time and is recommended
for long cooking of meat, fish, timbales,
tarts, lasagna, etc... Particularly suitable
for cooking fish and meat with a high fat
content. The steam melts them while
keeping the food soft, making it more
digestible and nicely browned on the
surface.
Assisted steam function at 20%: the
steam is delivered in small pulses. It is
recommended for baking cakes and
bread-type products (bread, focaccia,
etc...) where the amount of steam must
be minimal to allow the food to lose its
moisture and cook internally. The steam
facilitates leavening during the first few
minutes of baking, creating a shiny,
crisp surface.
Steam-assisted cooking is
recommended only for the first 5-10
minutes, then switch to the
corresponding function without steam to
complete cooking.
This function is also indicated for the
preparation of products breaded with
egg and breadcrumbs, as it restores
crunchiness to the breadcrumb coat,
thus simulating the result of frying, but
more digestible.
The operation of the fan, combined with
traditional cooking, ensures consistent
cooking even with complex recipes.
Perfect for roasts.
The combination of the fan, the
circulaire heating element and the
steam is particularly suitable for
preparing roast meats, chicken and
baked goods such as bread and
leavened sweets.
The combination of fan assisted
cooking and traditional cooking allows
different foods to be cooked on several
levels extremely quickly and efficiently,
without odours and flavours mingling.
Perfect for large volumes that call for
intense cooking.
To obtain a rotisserie effect, set the
temperature to maximum. When the
appliance reaches maximum
temperature, return the temperature to
normal. This procedure seals the liquids
inside the meat, and reduces shrinkage.
The air produced by the fan softens the
strong heatwave generated by the grill,
perfectly grilling even very thick cuts of
meat such as steaks, pork chops, etc...
Cooking functions can be interrupted at
any time by turning the function knob to
the 0 position.

70 - USE 914779671/D
2 Turn the temperature knob to the right or to
the left to select the wished temperature (for
example "200°C").
3. Press the button to start the function.
Preheating stage
Cooking itself is preceded by a preheating
stage, which allows the appliance to heat to the
cooking temperature more quickly.
This stage is indicated by the switching on of the
indicator light and by a progressive
increase in the temperature level reached
.
At the end of preheating:
• the indicator light switches off;
• the appliance beeps;
•thewords andthe
button flash to indicate that the food can be
introduced into the oven cavity.
Cooking phase
1. Open the door
2. Place the dish with the food to be cooked
into the oven cavity.
3. Close the door.
or
• If the dish with the food is already inside the
oven cavity, press the button to start
cooking.
4. Check the cooking status of the food by
turning on the internal light.
End of cooking
5. To end cooking, turn the function knob to
position 0 to exit the function.
Timed cooking
1. After selecting a cooking function and
temperature, press the key.
The indicator light flashes on the display.
2. Turn the temperature knob to set the cooking
time (from 1 minute to 13 hours) (e.g. "25
minutes").
3. Press the button to modify the cooking
duration.
4. Press the button to start the function.
At the end of preheating:
5. Place the food inside the oven cavity.
6. Press the button to start cooking.
Timed cooking is indicated by the progressive
decrease in time on the numerical display and
the progressive decrease in the segment bar
.
At the end of the cooking process an acoustic
signal sounds and the display shows .
7. Return the function knob to the 0 position.
When the door is opened, the function
in progress is interrupted.
The function resumes automatically
when the door is closed.
You can skip the preheating phase by
holding down the button for a few
seconds.
Timed cooking is the function which
allows a cooking operation to be
started and then ended after a specific
length of time set by the user.
Bear in mind that a few minutes for oven
preheating must be added to the
cooking time.

USE - 71914779671/D
e
To delete a timed cooking
1. Press the button for a few seconds.
2. Turn the temperature knob counter-
clockwise until the cooking time is reset.
3. Press the button to confirm.
Programmed cooking
1. After selecting a cooking function and
temperature, press the key.
The indicator light flashes on the display.
2. Turn the temperature knob to set the cooking
time (from 1 minute to 13 hours) (e.g. "25
minutes").
3. Press the button.
The indicator light flashes on the display.
4. Turn the temperature knob to set the end-of-
cooking time (e.g. "13:15").
5. Press the button to confirm end-of-
cooking time.
6. Press the button to start the function.
The appliance waits for the set start time.
At the end of the cooking process an acoustic
signal sounds and the display shows .
7. Return the function knob to the 0 position.
To delete a programmed cooking
1. Press the button for a few seconds.
The indicator light flashes on the
display.
2. Press the key shortly. The indicator light
flashes on the display.
3. Turn the temperature knob counter-
clockwise until the cooking time is reset.
4. Press the button to confirm.
Minute minder timing during a cooking
process
1. Press the button. The indicator light
flashes on the display.
1. Press the button. The display shows
and the indicator light
flashing.
2. Turn the temperature knob to set the duration
of the minute minder (from 1 minute to 13
hours).
Programmed cooking is the function
which allows a time-controlled cooking
operation to be stopped at an
established time depending on the time
set by the user, after which the
appliance will switch off automatically.
For safety reasons, it is not possible to
set the end of cooking time by itself
without setting the cooking duration.
The minutes required for preheating are
already included in the end-of-cooking
time.
In this way, only the programmed
cooking is cancelled. Timed cooking
starts immediately with the preheating
phase.
To stop every cooking process, always
return the function knob to the 0
position.
The minute minder timer does not stop
the cooking operation but rather informs
the user when the set time has run out.

72 - USE 914779671/D
3. Press the button to confirm.
4. At the end of the minute minder timer, an
acoustic signal sounds and the indicator
light flashes on the display.
5. Press the button to quit the function.
List of traditional cooking functions
STATIC
FAN-ASSISTED
THERMALLY-VENTILATED
GRILL
BASE
ECO
Cooking advice
General advice
• Use a fan-assisted function to achieve
consistent cooking at several levels.
• It is not possible to shorten cooking times by
increasing the temperature (the food could
be overcooked on the outside and
undercooked on the inside).
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Turn the food to brown both sides.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; If not, it needs
another few minutes cooking.
Advice for cooking with the Grill
• Meat can be grilled even when it is put into
the cold oven or into the preheated oven if
you wish to change the effect of the
cooking.
• When using the fan-assisted with grill
function(if any), we recommend that you
preheat the oven before grilling.
• We recommend placing the food at the
centre of the rack.
• With the Grill function, we recommend that
you set the temperature to the maximum
value to optimise cooking.
Advice for cooking desserts/pastries and
biscuits
• Use dark metal moulds: They help to absorb
the heat better.
• The temperature and the cooking time
depend on the quality and consistency of
the dough.
Not all functions are available on some
models.
Traditional cooking suitable for the
preparation of one dish at a time. Ideal
for cooking roasts, fatty meats, bread,
pies.
Intense and uniform cooking. Ideal for
biscuits, cakes and multilevel cooking.
The heat is distributed quickly and
evenly. Suitable for all dishes, ideal for
cooking on several levels without mixing
odours and flavours.
It allows to obtain excellent grilling and
grating results. Used at the end of
cooking, it gives a uniform browning to
the dishes.
The heat only comes from the bottom of
the cavity. Perfect for cakes, pies, tarts
and pizzas.
This function is particularly suitable for
cooking on a single shelf with low
energy consumption.
It is recommended for all types of food,
excluding those that can create a lot of
humidity (such as vegetables).
To obtain maximum energy savings and
reduce cooking times, it is
recommended to place food in the
oven without preheating.
When using the ECO function, avoid
opening the door during cooking.
In the ECO function cooking times (and
any preheating) are longer and may
depend on the amount of food in the
cooking compartment.
The ECO function is a delicate cooking
function and is recommended for food
withstanding temperatures lower than
210°C; in case of cooking at higher
temperatures, select another function.

USE - 73914779671/D
e
• To check whether the dessert is cooked right
through: At the end of the cooking time, put
a toothpick into the highest point of the
dessert. If the dough does not stick to the
toothpick, the dessert is cooked.
• If the dessert collapses when it comes out of
the oven, on the next occasion reduce the
set temperature by about 10°C, selecting a
longer cooking time if necessary.
Advice for cooking with two shelves:
• We suggest to arrange two racks (they can
be requested to Authorised Service
Centres).
• To facilitate the air flow, place the moulds/
casseroles in the centre of the racks and
make sure that their width/diameter does
not exceed 30 cm.
• Place the racks leaving one free shelf
between them.
• Depending on the food and the increased
load inside the cavity, cooking on two levels
may take a few minutes longer than on a
single shelf.
• The functions indicated for cooking on two
shelves are THERMALLY-VENTILATED and
THERMALLY-VENTILATED BASE.
Advice for steam cooking
• For bread-type products (bread, focaccia,
etc.) and frozen desserts, where steam is
useful during the first few minutes of cooking,
we recommend setting a steam function for
the first 5-10 minutes and then switching to
ventilated mode to complete cooking.
• For steam heating insert in a cold oven.
Advice for defrosting and proving
• Place frozen foods without their packaging
in a lidless container on the first shelf of the
oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on the
second level and a tray on the first level. In
this way, the liquid from the defrosting food
drains away from the food.
• The most delicate parts can be covered with
aluminium foil.
• For successful proving, a container of water
should be placed in the bottom of the oven.
To save energy
• Stop cooking a few minutes before the time
normally used. Cooking will continue for the
remaining minutes with the heat which has
accumulated inside the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the appliance clean at all
times.
Advice on using the probe (if fitted)
The probe can also be used during normal
timed cooking:
1. Insert the probe into the food you are
cooking, and connect it to its socket.
2. Press the button and check the
temperature of the food in the Instantaneous
temperature field.
Using the temperature probe (on
some models only)
The temperature probe enables you to cook
roasts, loin steaks and other cuts and sizes of
meat with great precision. The probe ensures
that the food is perfectly cooked by monitoring
the core temperature of the food. The core
temperature is measured by a sensor inside the
tip of the probe.
Positioning the probe
1. Place the food on a tray.
2. Insert the tip of the probe into the food
before you place it in the oven.
3. For best results, make sure that the
temperature probe is placed transversely in
the thickest part of the food and for least 3/
4 of its length. Make sure that it does not
touch the tray underneath and that it does
not protrude from the food.
See General safety instructions.
In order for the probe to measure the
core temperature of the food precisely,
its tip must not be in contact with bones
or fat.

74 - USE 914779671/D
Setting cooking parameters when using the
temperature probe
With cold oven:
1. Select a cooking function (for example
"FAN ASSISTED ").
2. Turn the temperature knob to set the cooking
temperature (for example "190°C").
3. Open the appliance door.
4. Insert the tray on which the food has been
placed into the appropriate guides.
5. Insert the plug of the temperature probe into
the socket at the side, using the probe to
open the protective cover.
The indicator light flashes on the display.
6. Close the door.
7. Press the button on the display to
change the target temperature.
8. Turn the temperature knob to set the target
temperature (for example "80°C").
9. Press the button to confirm the set
target temperature.
10. Press the button to start the function.
The appliance will begin preheating.
When cooking is started:
The recommended minimum
temperature for cooking with the probe
is 120°C, with the exception of slow
temperature cooking.
Caution: during use, the accessible
parts become very hot. Protect your
hands wearing heat resistant gloves
while connecting the temperature
sensor and when moving food inside
the oven.
The temperature range that can be
selected is from a minimum of 50°C to
a maximum of 90°C.
It the temperature of the oven is set too
low, the appliance automatically sets
the minimum temperature necessary in
order to reach the selected target
temperature.
For best results, it is recommended to set
a cooking temperature higher than the
target temperature.
During cooking with a probe, if for any
reason you need to disconnect the
probe without changing the knobs or
the display, the function proceeds as
normal cooking.
You can skip the preheating phase by
holding down the button for a few
seconds.
