Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
Therefore, read this entire user manual carefully before using the product and
keep it as a reference. If you handover the product to someone else, give the user
manual as well.
The user manual will help you use the product in a fast and safe way.
• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
4
1 Your cooler/freezer 5
2 Important Safety Warnings 6
Intended use .....................................6
General safety ..................................6
For products with a water dispenser;10
Child safety......................................10
Compliance with WEEE Directive and
Disposing of the Waste Product: .....10
Package information........................11
HC warning .....................................11
Things to be done for energy saving 11
3 Installation 12
Points to be paid attention to when the
relocation of the cooler/freezer.........12
Before you start the cooler/freezer, ..12
Electrical connection........................12
Disposing of the packaging .............13
Disposing of your old cooler/freezer.13
Placing and Installation ....................13
Adjusting the legs ............................14
Changing the door opening direction14
Door Open Warning.........................14
4 Preparation 15
5 Using your cooler/freezer 16
Icematic and ice storage container ..18
Dual cooling system: .......................19
Freezing fresh food..........................19
Recommendations for preservation of
frozen food ......................................20
Defrosting........................................20
Placing the food ..............................20
Deep-freeze information ..................21
6 Maintenance and cleaning 22
Protection of plastic surfaces ..........22
7 Troubleshooting 23
CONTENTS

EN
5
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
1Your cooler/freezer
1. Control Panel
2. Flap (Fast-Freeze compartment)
3. Ice cube tray & Ice bank
4. Drawers
5. Adjustable front feet
1
2
3
5
4

EN
6
2Important Safety Warnings
Please review the
following information.
Failure to observe this
information may cause
injuries or material
damage. Otherwise, all
warranty and reliability
commitments will become
invalid.
The service life of your
product is 10 years. During
this period, original spare
parts will be available
to operate the product
properly.
Intended use
This product is intended
to be used
• indoors and in closed
areas such as homes;
• in closed working
environments such as
stores and offices;
• in closed
accommodation areas
such as farm houses,
hotels, pensions.
• It should not be used
outdoors.
General safety
• When you want to
dispose/scrap the
product, we recommend
you to consult the
authorized service
in order to learn the
required information and
authorized bodies.
• Consult your authorized
service for all your
questions and problems
related to the refrigerator.
Do not intervene or let
someone intervene to
the refrigerator without
notifying the authorised
services.
• For products with a
freezer compartment;
Do not eat cone ice
cream and ice cubes
immediately after you
take them out of the
freezer compartment!
(This may cause frostbite
in your mouth.)
• For products with a
freezer compartment;
Do not put bottled
and canned liquid
beverages in the

EN
7
freezer compartment.
Otherwise, these may
burst.
• Do not touch frozen food
by hand; they may stick
to your hand.
• Unplug your refrigerator
before cleaning or
defrosting.
• Vapor and vaporized
cleaning materials
should never be used in
cleaning and defrosting
processes of your
refrigerator. In such
cases, the vapor may
get in contact with the
electrical parts and
cause short circuit or
electric shock.
• Never use the parts on
your refrigerator such as
the door as a means of
support or step.
• Do not use electrical
devices inside the
refrigerator.
• Do not damage the
parts, where the
refrigerant is circulating,
with drilling or cutting
tools. The refrigerant
that might blow out
when the gas channels
of the evaporator, pipe
extensions or surface
coatings are punctured
causes skin irritations
and eye injuries.
• Do not cover or block
the ventilation holes on
your refrigerator with any
material.
• Electrical devices must
be repaired by only
authorised persons.
Repairs performed by
incompetent persons
create a risk for the user.
• In case of any failure or
during a maintenance or
repair work, disconnect
your refrigerator’s mains
supply by either turning
off the relevant fuse
or unplugging your
appliance.
• Do not pull by the cable
when pulling off the plug.
• Place the beverage with
higher proofs tightly
closed and vertically.
• Never store spray
cans containing
flammable and explosive
substances in the
refrigerator.

EN
8
• Do not use mechanical
devices or other means
to accelerate the
defrosting process,
other than those
recommended by the
manufacturer.
• This product is not
intended to be used by
persons with physical,
sensory or mental
disorders or unlearned
or inexperienced people
(including children)
unless they are attended
by a person who will
be responsible for their
safety or who will instruct
them accordingly for use
of the product
• Do not operate a
damaged refrigerator.
Consult with the service
agent if you have any
concerns.
• Electrical safety of your
refrigerator shall be
guaranteed only if the
earth system in your
house complies with
standards.
• Exposing the product
to rain, snow, sun and
wind is dangerous with
respect to electrical
safety.
• Contact authorized
service when there is a
power cable damage to
avoid danger.
• Never plug the
refrigerator into the wall
outlet during installation.
Otherwise, risk of death
or serious injury may
arise.
• This refrigerator is
intended for only storing
food items. It must not
be used for any other
purpose.
• Label of technical
specifications is located
on the left wall inside the
refrigerator.
• Never connect your
refrigerator to electricity-
saving systems; they
may damage the
refrigerator.
• If there is a blue light on
the refrigerator, do not
look at the blue light with
optical tools.
• For manually controlled
refrigerators, wait for at
least 5 minutes to start
the refrigerator after
power failure.

EN
9
• This operation manual
should be handed in to
the new owner of the
product when it is given
to others.
• Avoid causing damage
on power cable when
transporting the
refrigerator. Bending
cable may cause fire.
Never place heavy
objects on power cable.
• Do not touch the plug
with wet hands when
plugging the product.
• Do not plug the
refrigerator if the wall
outlet is loose.
• Water should not be
sprayed on inner or outer
parts of the product for
safety purposes.
• Do not spray substances
containing inflammable
gases such as propane
gas near the refrigerator
to avoid fire and
explosion risk.
• Never place containers
filled with water on top
of the refrigerator; in
the event of spillages,
this may cause electric
shock or fire.
• Do not overload the
refrigerator with food.
If overloaded, the food
items may fall down and
hurt you and damage
refrigerator when you
open the door.
• Never place objects on
top of the refrigerator;
otherwise, these objects
may fall down when
you open or close the
refrigerator's door.
• As they require a precise
temperature, vaccines,
heat-sensitive medicine
and scientific materials
and etc. should not be
kept in the refrigerator.
• If not to be used for a
long time, refrigerator
should be unplugged.
A possible problem in
power cable may cause
fire.

EN
10
• The plug's tip should be
cleaned regularly with a
dry cloth; otherwise, it
may cause fire.

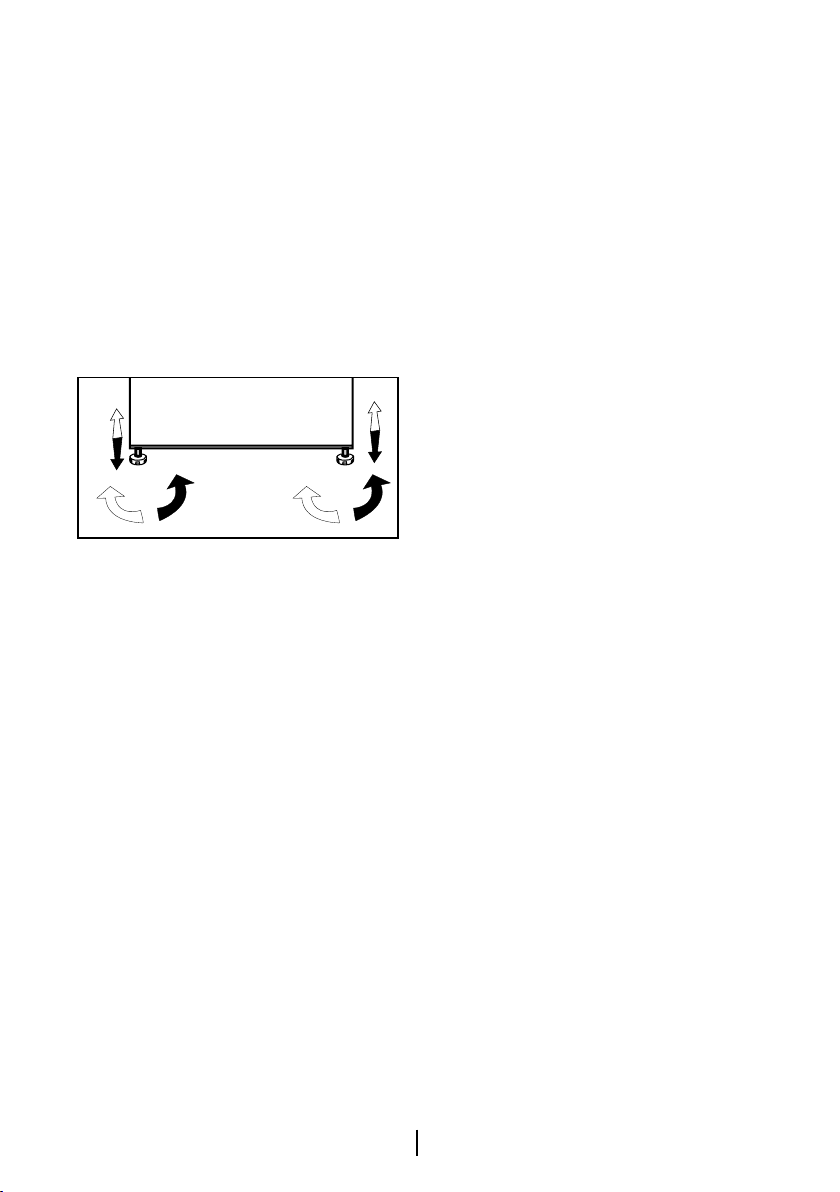

• Refrigerator may move
if adjustable legs are not
properly secured on the
floor. Properly securing
adjustable legs on the
floor can prevent the
refrigerator to move.
• When carrying the
refrigerator, do not hold
it from door handle.
Otherwise, it may be
snapped.
• When you have to place
your product next to
another refrigerator or
freezer, the distance
between devices
should be at least 8cm.
Otherwise, adjacent side
walls may be humidified.
For products with a
water dispenser;
• In order to operate
the water circuit
of the refrigerator
smoothly, the water
mains pressure must
be between 1-8 bars.
For conditions where
water mains pressure
exceeds 5 bars a
pressure regulator
should be used. If the
water mains pressure
exceeds 8 bars then
the refrigerator’s water
circuit should not be
connected to the water
mains. If you lack the
knowledge of how to
measure the water
mains pressure, please
seek a professional
support.Use drinking
water only.
• Use only potable water.
Child safety
• If the door has a lock, the key should
be kept away from reach of children.
• Children must be supervised to
prevent them from tampering with the
product.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies
with EU WEEE Directive
(2012/19/EU). This product
bears a classification
symbol for waste electrical
and electronic equipment
(WEEE).
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable

EN
11
for recycling. Therefore, do not dispose
the product with normal domestic
waste at the end of its service life. Take
it to a collection point for the recycling
of electrical and electronic equipment.
Please consult your local authorities
to learn the nearest collection point.
Help protect the environment and
natural resources by recycling used
products. For children's safety, cut
the power cable and break the locking
mechanism of the door, if any, so that it
will be non-functional before disposing
of the product.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.
Do not forget...
Any recycled substance is an
indispensable matter for nature and our
national asset wealth.
If you want to contribute to the re-
evaluation of the packaging materials,
you can consult to your environmentalist
organizations or the municipalities
where you are located.
HC warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the product
catch a fire and ventilate the room in
which the unit is placed.
Ignore this warning if your
product's cooling system contains
R134a.
Type of gas used in the product is
stated in the type label which is on the
left wall inside the refrigerator.
Never throw the product in fire for
disposal.
Things to be done for energy
saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
• Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators. Keep your
refrigerator at least 30cm away from
heat emitting sources and at least
5cm from electrical ovens.
• Pay attention to keep your food in
closed containers.
• For products with a freezer
compartment; You can store
maximum amount of food items in
the freezer when you remove the
shelf or drawer of the freezer. Energy
consumption value stated for your
refrigerator has been determined
by removing freezer shelf or drawer
and under maximum load. There
is no harm to use a shelf or drawer
according to the shapes and size of
food to be frozen.
• Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.

EN
12
3Installation
BIn case the information which are
given in the user manual are not
taken into account, manufacturer will
not assume any liability for this.
Points to be paid attention
to when the relocation of the
cooler/freezer
1. Your cooler/freezer should be
unplugged.Before transportation
of your cooler/freezer, it should be
emptied and cleaned.
2. Before it is re-packaged, shelves,
accessories, crisper, etc. inside your
cooler/freezer should be fixed with
adhesive tape and secured against
impacts. Package should be bound
with a thick tape or sound ropes
and the transportation rules on the
package should be strictly observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the cooler/
freezer,
Check the following before you start
to use your cooler/freezer:
1. Attach 2 plastic wedges as illustrated
below. Plastic wedges are intended
to keep the distance which will
ensure the air circulation between
your cooler/freezer and the wall.
(The picture is drawn up as a
representation and it is not identical
with your product.)
2. Clean the interior of the cooler/
freezer as recommended in the
“Maintenance and cleaning” section.
3. Connect the plug of the cooler/
freezer to the wall socket. When the
fridge door is opened, fridge internal
lamp will turn on.
4. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give rise
to noise, even if the compressor is
not running and this is quite normal.
5. Front edges of the cooler/freezer
may feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.
• The power plug must be easily
accessible after installation.
• Electrical safety of your cooler/freezer
shall be guaranteed only if the earth
system in your house complies with
standards.

EN
13
• The voltage stated on the label
located at left inner side of your
product should be equal to your
network voltage.
• Extension cables and multi plugs
must not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated before
it is repaired! There is the risk of
electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with the
waste instructions stated by your local
authorities. Do not throw away with
regular house waste, throw away on
packaging pick up spots designated by
the local authorities.
The packing of your cooler/freezer is
produced from recyclable materials.
Disposing of your old cooler/
freezer
Dispose of your old cooler/freezer
without giving any harm to the
environment.
• You may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your cooler/freezer.
Before disposing of your cooler/
freezer, cut out the electric plug and, if
there are any locks on the door, make
them inoperable in order to protect
children against any danger.
Placing and Installation
AIf the entrance door of the room
where the cooler/freezer will be
installed is not wide enough for the
cooler/freezer to pass through, then
call the authorized service to have them
remove the doors of your cooler/freezer
and pass it sideways through the door.
1. Install your cooler/freezer to a place
that allows ease of use.
2. Keep your cooler/freezer away from
heat sources, humid places and
direct sunlight.
3. There must be appropriate air
ventilation around your cooler/
freezer in order to achieve an efficient
operation. If the cooler/freezer is to be
placed in a recess in the wall, there
must be at least 5 cm distance with
the ceiling and at least 5 cm with the
wall. Do not place your product on
the materials such as rug or carpet.
4. Place your cooler/freezer on an even
floor surface to prevent jolts.

EN
14
Adjusting the legs
If your cooler/freezer is unbalanced;
You can balance your cooler/freezer
by turning its front legs as illustrated
in the figure. The corner where the leg
exists is lowered when you turn in the
direction of black arrow and raised
when you turn in the opposite direction.
Taking help from someone to slightly
lift the cooler/freezer will facilitate this
process.
Changing the door opening
direction
Door opening direction of your
refrigerator can be changed according
to the place you are using it. If this is
necessary, please call your nearest
Authorized Service.
Door Open Warning
(This feature is optional)
An audio warning signal will be given
when the door of your product is left
open for at least 1 minute. This warning
will be muted when the door is closed
or any of the display buttons (if any) are
pressed.

EN
15
4Preparation
• Your cooler/freezer should be
installed at least 30 cm away from
heat sources such as hobs, ovens,
central heater and stoves and at least
5 cm away from electrical ovens and
should not be located under direct
sunlight.
• The ambient temperature of the room
where you install your cooler/freezer
should at least be 10°C. Operating
your cooler/freezer under cooler
conditions is not recommended with
regard to its efficiency.
• Please make sure that the interior
of your cooler/freezer is cleaned
thoroughly.
• If two cooler/freezers are to be
installed side by side, there should be
at least 2 cm distance between them.
• When you operate your cooler/freezer
for the first time, please observe the
following instructions during the initial
six hours.
• The door should not be opened
frequently.
• It must be operated empty without
any food in it.
• Do not unplug your cooler/freezer.
If a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
• Original packaging and foam
materials should be kept for future
transportations or moving.

EN
16
5Using your cooler/freezer
2
1
4
3
8
11
12
7
6
5
9
10
Indicator Panel
1. Quick Freeze Function:
Quick Freeze indicator turns on when
the Quick Freeze function is on. Press
QuickFreeze button again to cancel this
function. QuickFreeze indicator will turn
off and normal settings will be resumed.
QuickFreeze function will be cancelled
automatically 34 hours later if you do not
cancel it manually. If you want to freeze
plenty amount of fresh food, press
QuickFreeze button before you place
the food into the freezer compartment.
If you press the QuickFreeze button
repeatedly with short intervals, the
electronic circuit protection will be
activated and the compressor will not
start up immediately.
2. Quick Freeze Indicator
This icon flashes in an animated
style when the QuickFreeze function is
active.

EN
17
3. Freezer Set Function:
This function allows you to make
the freezer compartment temperature
setting. Press this button to set the
temperature of the freezer compartment
to -18, -20, -22 and -24 respectively.
4- Freezer Compartment
Temperature Setting Indicator
Indicates the temperature set for the
Freezer Compartment.
5. Eco-Fuzzy (Special Economic
Usage) Function:
Press Eco-Fuzzy button to activate the
Eco Fuzzy Function. Cooler/freezer
will
start operating in the most economic
mode at least 6 hours later if the door
is not opened and any buton is not
pressed.The
economic usage indicator will turn
on when the function is active. Press
Eco Fuzzy button again to activate the
Eco-Fuzzy function.
6. Eco-Fuzzy (Special Economic
Usage) Indicator:
This icon lights up when the Eco-
Fuzzy Function is active.
7. High Temperature/Error Warning
Indicator:
This light comes on during high
temperature failures and error warnings.
8. Economic Usage Indicator:
Economic Usage Indicator turns on
when the Freezer Compartment is set
to -18°C. It turns off when the qfreeze
function is on.
9-Energy Saving Function
When you press this button, Energy
saving icon will light up and Energy
Saving Function will be activated. If
energy saving function is active, all
icons on the display other than energy
saving icon will turn off. When the
Energy Saving Function is active, if
any button is pressed or the door is
opened, Energy Saving Function will
be exited and the icons on display will
return to normal.If you press this buton
again, Energy Saving icon will turn off
and Energy Saving Function will not be
active.
10-Energy Saving Indicator
This icon lights up when the Energy
Saving Function is selected
11-Key Lock Mode
Press Key Lock button concurrently
for 3 seconds. Key lock icon will light
up and key lock mode will be activated.
Buttons will not function if the Key Lock
mode is active.
Press Key Lock button
concurrently for 3 seconds again. Key
lock icon will turn off and the key lock
mode will be exited.
12-Key Lock Indicator
This icon light up when the Key Lock
mode is activated.

EN
18
Icematic and ice storage
container
*optional
Using the Icematic
Fill the Icematic with water and place
it into its seat. Your ice will be ready
approximately in two hours. Do not
remove the Icematic from its seating to
take ice.
Turn the knobs on the ice reservoirs
clockwise by 90 degrees.
Ice cubes in the reservoirs will fall
down into the ice storage container
below.
You may take out the ice storage
container and serve the ice cubes.
If you wish, you may keep the ice
cubes in the ice storage container.
Ice storage container
Ice storage container is only intended
for accumulating the ice cubes. Do not
put water in it. Otherwise, it will break.

EN
19
Dual cooling system:
Your refrigerator is equipped with
two separate cooling systems to
cool the fresh food compartment and
freezer compartment. Thus, air in the
fresh food compartment and freezer
compartment do not get mixed.
Thanks to these two separate cooling
systems, cooling speed is much higher
than other refrigerators. Odors in the
compartments do not get mixed. Also
additional power saving is provided
since the defrosting is performed
individually.
Freezing fresh food
•Wraporcoverthefoodbefore
placing them in .
•Hotfoodmustcooldowntothe
room temperature before putting
them in the refrigerator.
•Thefoodstuffthatyouwantto
freeze must be fresh and in good
quality.
•Foodstuffmustbedividedinto
portions according to the family’s
daily or meal based consumption
needs.
•Foodstuffmustbepackagedinan
airtight manner to prevent them from
drying even if they are going to be
kept for a short time.
•Materialstobeusedfor
packagings must be resistant to
cold and humidity and they must
be airtight. The packaging material
of the food must be at a sufficient
thickness and durability. Otherwise
the food hardened due to freezing
may puncture the packaging. It is
important for the packaging to be
closed securely for safe storage of
the food.
•Frozenfoodmustbeused
immediately after they are thawed
and they should never be re-frozen.
•Pleaseobservethefollowing
instructions to obtain the best results.
1. If the fridge has a quick freeze
function, activate the quick freeze
function when you want to freeze the
food.
2. Do not freeze too large quantities
of food at one time. The quality of
the food is best preserved when it
is frozen right through to the core as
quickly as possible.
3. Take special care not to mix
already frozen food and fresh food.
4. Make sure raw foods are not in
contact with cooked foods in the
fridge.

EN
20
Freezer
Compartment
Setting
Fridge
Compartment
Setting Remarks
-18°C 4°C This is the normal recommended setting.
-20, -22 or
-24°C 4°C These settings are recommended when the ambient temperature exceeds 30°C.
Quick Freeze 4°C
Use when you wish to freeze your food in a
short time. If is recommended to be used to
maintain the quality of meat and fish products.
-18°C or
colder 2°C
If you think that your fridge compartment is
not cold enough because of the hot conditions
or frequent opening and closing of the door.
-18°C or
colder Quick Fridge
You can use it when your fridge compartment
is overloaded or if you wish to cool down
your food rapidly. It is recommended that you
activate the quick freeze function 4-8 hours
before placing the food.
Recommendations for
preservation of frozen food
•Pre-packedcommerciallyfrozen
food should be stored in accordance
with the frozen food manufacturer's
instructions in a frozen food storage
compartment.
•Toensurethatthehighquality
supplied by the frozen food
manufacturer and the food retailer is
maintained, following points should
be noted:
1.Put packages in the freezer as
quickly as possible after purchase.
2.Ensure that contents of the package
are labeled and dated.
3. Do not exceed "Use By", "Best
Before" dates on the packaging.
Defrosting
The freezer compartment defrosts
automatically.
Placing the food
Freezer
compartment
shelves
Various frozen
food such as meat,
fish, ice cream,
vegetables and etc.
Egg section Egg
Fridge
compartment
shelves
Food in pans,
covered plates and
closed containers
Door shelves
of fridge
compartment
Small and
packaged food and
drinks (such as milk,
fruit juice and beer)
Crisper Vegetables and
fruits
Freshzone
compartment
Delicatessen
products (cheese,
butter, salami and
etc.)

EN
21
Deep-freeze information
Food must be frozen as rapidly as
possible when they are put in the
freezer in order to keep them in good
quality.
The TSE norm requires (according to
certain measurement conditions) the
refrigerator to freeze at least 4.5 kg of
foodstuff at 32°C ambient temperature
to -18°C or lower within 24 hours for
every 100-liters of freezer volume.
It is possible to preserve the food
for a long time only at -18°C or lower
temperatures.
You can keep the freshness of food
for many months (at -18°C or lower
temperatures in the deep freeze).
WARNING! A
• Foodstuff must be divided into
portions according to the family’s daily
or meal based consumption needs.
•Foodstuffmustbepackagedinan
airtight manner to prevent them from
drying even if they are going to be kept
for a short time.
Materials necessary for packaging:
•Coldresistantadhesivetape
•Self-adhesivelabel
•Rubberrings
•Pen
Materials to be used for packaging
the foodstuff must be tear-proof and
resistant to cold, humidity, dour, oils
and acids.
Foodstuff to be frozen should not be
allowed to come in contact with the
previously frozen items to prevent their
partial thawing. Thawed out food must
be consumed and must not be frozen
again.
