Smeg FD239A User manual

DOUBLE DOOR REFRIGERATOR
instuction booklet
Guide d’utilisation
FRIGORÍFICO
RÉFRIGÉRATEUR DEUX PORTES
FRIGORIFICO DE DOS PUERTOS
Manual de instrucciones
DE PORTA DUPLA
Manual de Instruções
FRIGORIFERO A DUE PORTE
Manuale di istruzioni

UK- 1-
Contents
BEFOREUSINGTHEAPPLIANCE........................................................2
SafetyInstructions.........................................................................................2
Safetywarnings.............................................................................................3
Installingandoperating yourfridge.................................................................4
Beforeusingyourfridge.................................................................................4
THEVARIOUSFUNCTIONANDPOSSIBILITIES..................................5
Thermostatsetting.........................................................................................5
Superswitch.................................................................................................6
Accessoires..................................................................................................6
Makingice cubes.........................................................................................................6
Icetray...........................................................................................................................7
Magicshelf....................................................................................................................7
Bottleholder.................................................................................................................7
ARRANGINGFOODINTHEAPPLIANCE..............................................8
Refrigeratorcompartment...............................................................................8
Freezercompartment.....................................................................................8
CLEANINGANDMAINTENANCE...........................................................9
Defrosting.....................................................................................................10
Replacing thelightbulb.................................................................................11
SHIPMENTANDREPOSITIONING......................................................11
Repositioningthe door..................................................................................11
BEFORECALLINGYOURAFTERSALES SERVICE..........................12

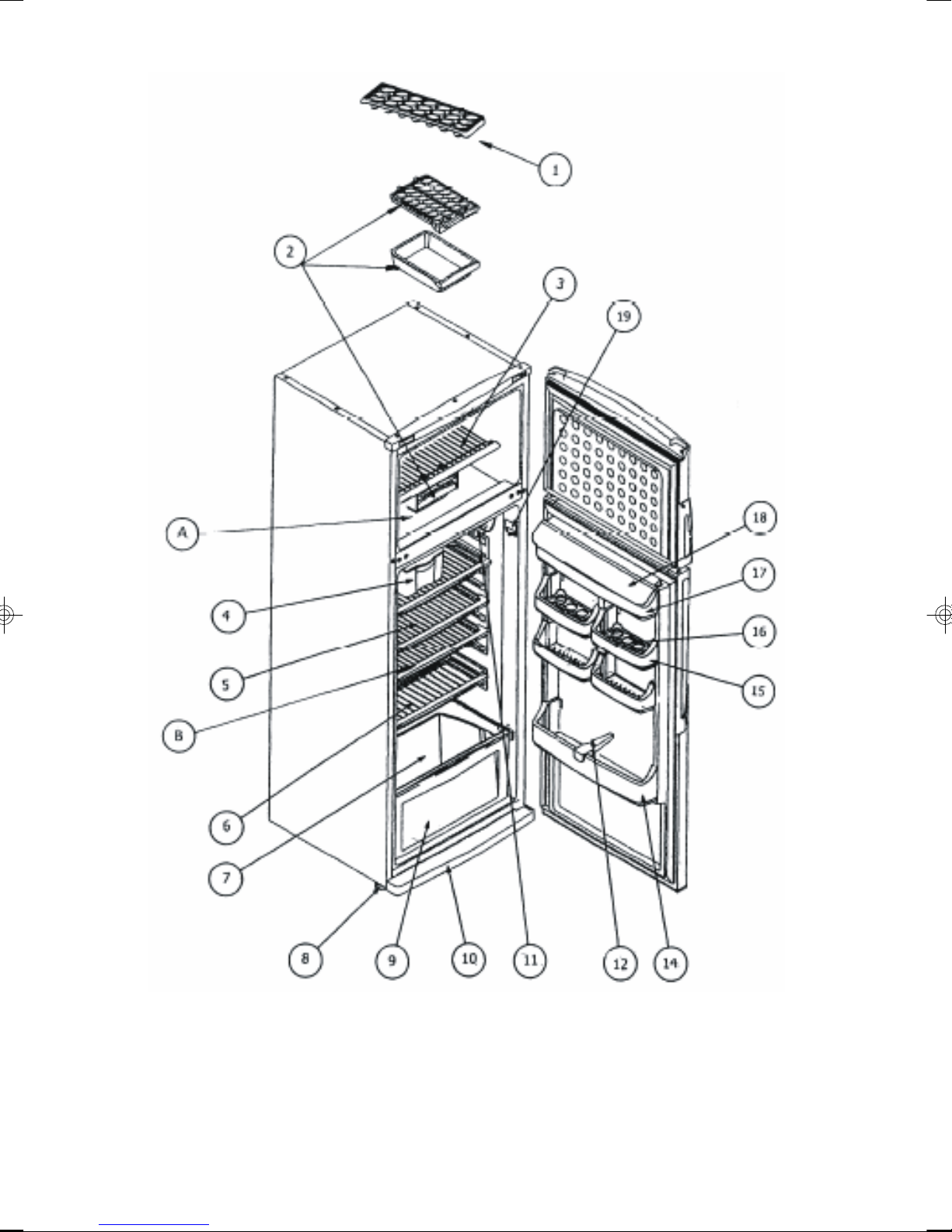

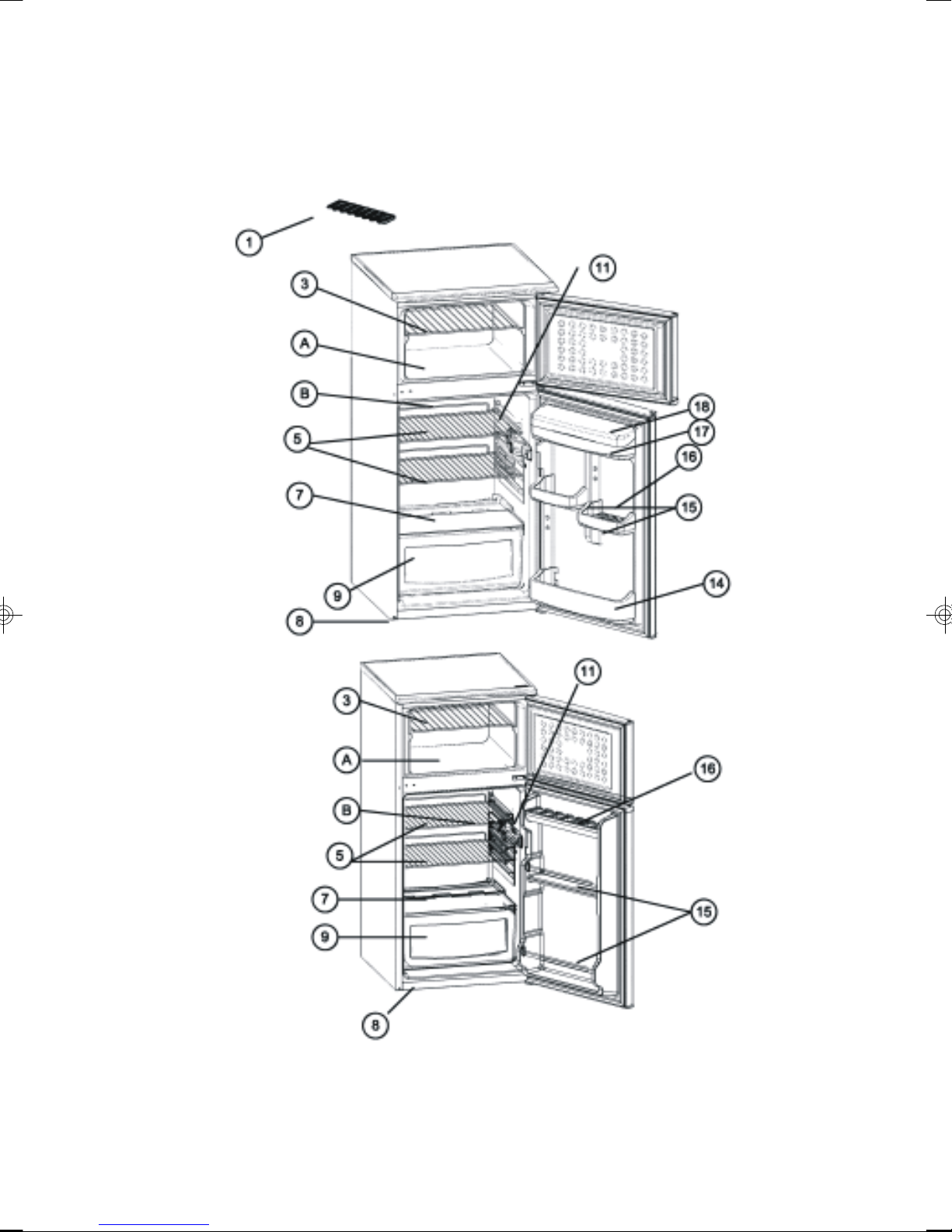

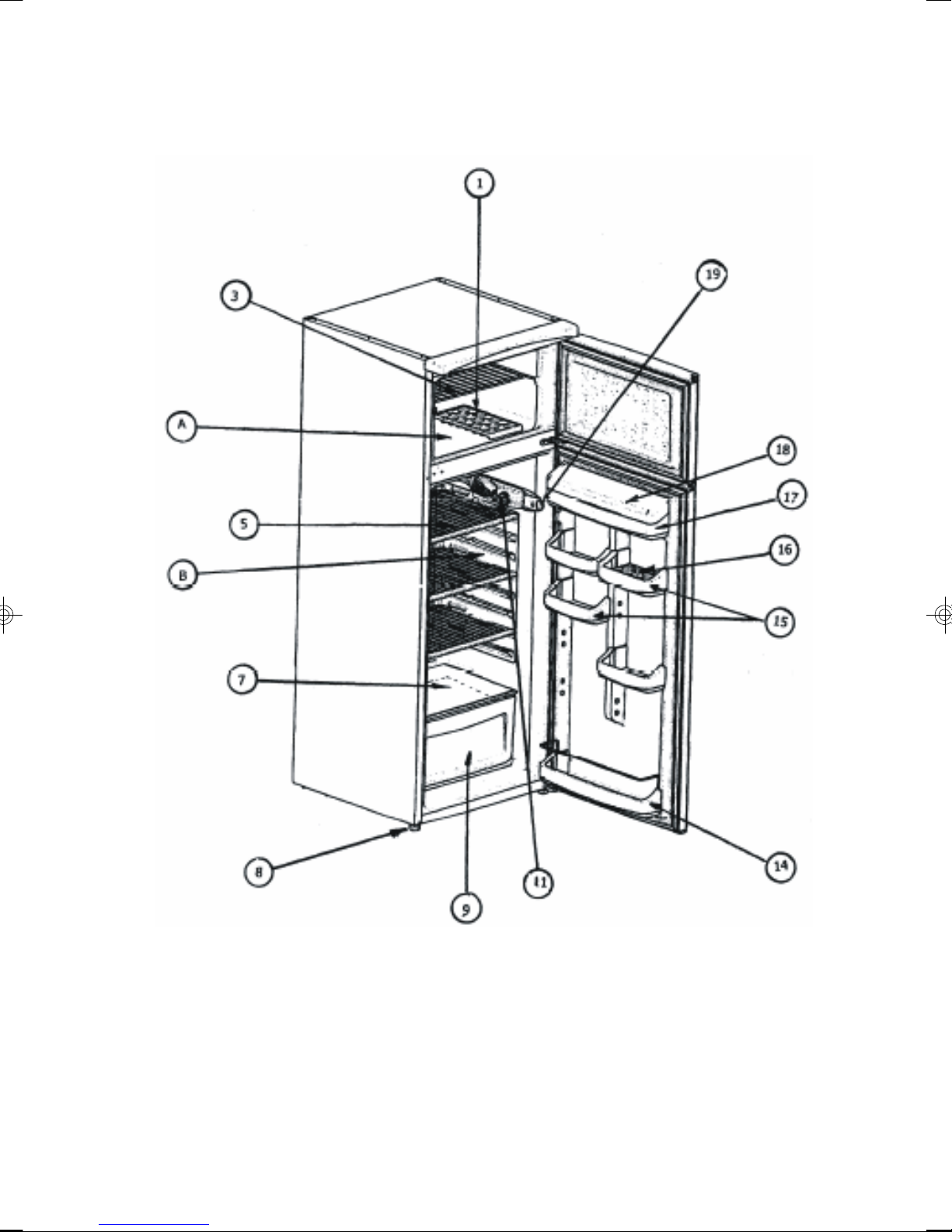

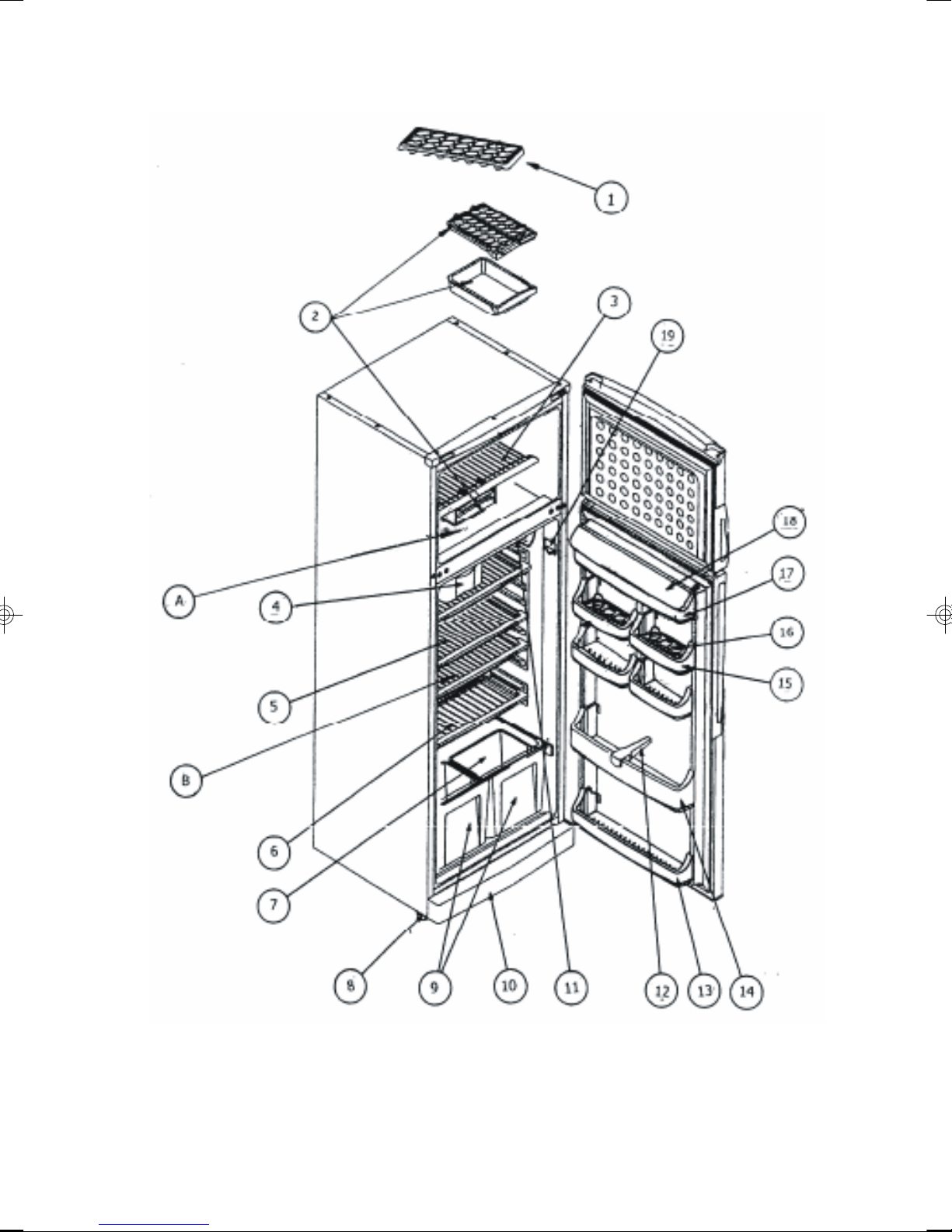

THEPARTSOFTHEAPPLIANCEANDTHECOMPARTMENTS.......13
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

UK- 2-
PART-1. BEFOREUSINGTHEAPPLIANCE
SafetyInstructions
•Ifthemodelcontains R600a-seenameplateunder refrigerant(thecoolantisobutane),
naturalsgasthat, isveryenvironmentallyfriendlybutalsocombustible.When
transportingand installingtheunitcaremustbetakentoensurethatnoneofthe
refrigerationcircuitcomponentsbecomedamaged.Intheeventofdamageavoid
naked flamesorignition sources andventilatethe roominwhichthe unitisplaced
forafewminutes.
Warning: Keep ventilation openings inappliance enclosureorinstructureforbuilding
in,clearofobstruction.
•Donotusemechanicaldevices orotherartificialmeans toacceleratethedefrosting
process.
•Donotuseelectricalappliances intherefrigeratororfreezercompartmentofthe
appliance.
•Ifthisappliance istoreplaceanoldrefrigeratorwithalock;breakorremovethe lock
as asafetymeasurebeforestoring it, toprotectchildren whileplaying mightlock
themselvesinside.
•Oldrefrigeratorsandfreezerscontaininsulationgasesand refrigerant,which must
bedisposedofproperly.Entrustthedisposalofascrapunitcategoricallyto
competenceofyourlocalwastedisposalservice andcontactyourlocalauthorityor
yourdealerifyouhave anyquestions.Pleaseensurethatthepipeofworkofyour
refrigerating unitdoes notgetdamagedpriortobeing picked-up bytherelevant
wastedisposalservice.
Importantnote:
Pleasereadthisbookletbeforeinstalling and switching on thisappliance.The
manufacturerassumesnoresponsibilityforincorrectinstallationandusage asdescribed
inthisbooklet.
ConformityInformation
•TropicalClassisdefined fortheenvironmenttemperaturesbetween16°Cand43°C
inaccordance withtheTS EN ISO15502Standards.
•TheapplianceisdesignedincompliancewiththeEN15502,IEC60335-1/
IEC60335-2-24,2004/108/EC standards.
•Theappliancecomplieswiththe “EEE”Regulation.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

UK- 3-
Safetywarnings
Notice: Donotusemechanicaldevicesorotherartificialmethodstoquickentothe
defrosting.Donotuse electricaldevices onthefood storageareasofyourappliance.
Keeptheventilationareasofyourapplianceopen.Donotdamage yourfridge'srefrigerant
circuit.
•Donotusemultiplereceptaclesorextensioncord.
•Donotplugindamaged,tornoroldplugs.
•Donotpull, bend ordamagethe cord.
•Thisapplianceisdesignedforusebyadults,donotallow
children toplaywiththeapplianceorletthemtohangoverthe
door.
•Donotplug-inorout theplugfromthereceptaclewithwethands
topreventelectrocution!
•Donotplaceglassbottlesorbeveragecans inthefreezer
department.Bottlesorcansmay explode.
•Donotplaceexplosiveorflammablematerialinyourfridge for
yoursafety.Placedrinkswithhigheralcoholamountvertically
andbyclosing theirneckstightlyinthe fridge department.
•Whentakingicemadeinthefreezerdepartment, do nottouch it,
icemaycauseiceburns and/orcuts.
•Donottouch frozengoodswithwethands!Donot eatice-cream
andicecubesimmediatelyafteryoutakethemoutof thefreezer
department!
•Donotre-freeze the frozengoods afterbeing melted.Thismay
cause healthissues likefood poisoning.
•Donotcoverthebodyortopoffridgewithlace.Thiseffectstheperformanceofyour
fridge.
•Fixtheaccessoriesinthefridgeduring transportation topreventdamageto
accessories.
•Yourfridgeisnotintendedforuse byphysically,mentallyorsensiblyhandicapped
peopleorbypeoplewithlessexperienceandknowledge(including children).These
peoplemaybeallowedtouse the appliance underthe supervision ofaresponsible
persongivingnecessaryinstructions.Youshouldsupervisechildrentopreventthem
playing withtheappliance.
•Powercordshouldbereplacedbyan authorizedtechnicianwhen itisdamaged.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

UK- 4-
Installingandoperatingyourfridge
•Beforemakingtheconnectiontothe powersupply,ensurethatthe voltage onthe
nameplatecorrespondstothe voltageofelectricalsystematyourhome.
•Operating voltage foryourfridge is220-240Vat50Hz.
•You canofferhelpfromtheservice toinstalland switchingontheappliancewithout
anycost.
•Mainscordofyourfridgehas agroundedplug.Thisplugshouldbeusedwitha
grounded receptaclethathas a16 amperfuseminimum.Ifyoudon’thavea
receptacleconfirmingwiththis,pleasehaveitdonebyaqualifiedelectirician.
•Wedonottake theresponsibilityofthedamagesthatoccurdue
toungroundedusage.
•Placeyourfridge inaplacethat itwouldnotbeexposedtodirect
sunlight.
•Yourappliance shouldbe atleast50 cmaway fromstoves,ovens
andheatercores,and shouldbeatleast5cmaway from
electricalovens.
•Itshouldneverbeusedoutdoorsorleftunderthe rain.
•Fitthe plasticwall spacerstothecondenseratthe back ofthe
refrigeratorinordertopreventcleaning tothewall forgood
performance.
•Whenyourfridgeisplacednexttoadeepfreezer,thereshould
be atleast2cmbetween themtopreventhumidityon the outer
surface.Donotplace anythingonyourfridge,andinstallyour
fridgeinasuitableplaceso thatatleast15 cmisavailableon
the upperside.
•Ifyou willplace yourfridgenexttoyourkitchen cabinets,leavea
space of2cmbetweenthem.
•Installthedistance adjustmentplastic(the part withblackvanes
attherear) byturningit90°topreventthecondenserfrom
touchingthewall.
•Theadjustablefrontlegsshouldstabilizedinanappropriateheighttoallowyour
fridgeoperateinastableand properway.Youcanadjustthelegs byturningthem
clockwise(orintheoppositedirection). Thisshouldbedonebeforeplacingfood in
thefridge.
•Beforeusingyourfridge,wipeall partswithwarmwateraddedwithateaspoonfulof
sodiumbicarbonate,andthen rinse withcleanwateranddry.Placeallpartsafter
cleaning.
Beforeusingyourfridge
•Whenitisoperatedforthefirsttimeoraftertransportation,keep
yourfridgeintheuprightposition for3hoursand plugiton to
allowefficientoperation.Otherwise,youmay damage the
compressor.
•Yourfridgemayhaveasmellwhenitisoperatedforthefirsttime;the smell willfade
awaywhenyourfridgestartstocool.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

UK- 5-
PART-2. THEVARIOUSFUNCTIONAND POSSIBILITIES
Thermostatsetting
•Thermostatautomaticallyregulates theinsidetemperatureofthe refrigerator
compartmentand freezercompartment.Byrotating theknob fromposition1to5,
coldertemperaturescanbe obtained.«0»positionshowsthermostatisclosedand
nocoolingwill beavaible.
•Forshort-termstorageoffoodinthefreezercompartment,youcansettheknob
between1and3position.
•Forlong-termstorageoffood inthefreezercompartment, youcansetknop 3-4
position.
Notethat; theambianttemperature,temperatureofthefreshlystoredfoodand how
oftenthe doorisopened,affectsthetemperatureintherefrigeratorcompartment. If
required,changethetemperaturesetting.
Onlyfor
183/238/248 Lt.
Ifyourfridgeisnotcoolingenough;
Yourfridgeisdesigned tooperateintheambienttemperatureintervalsstatedinthe
standards,accordingtotheclimateclass statedintheinformation label. Wedonot
recommendoperatingyourfridge out of statedtemperaturesvaluelimitsintermsofcooling
effectiveness.
ClimateClassAmbientTemperature(°C)
T
Between 16 and 43 (°C)
ST
Between 16 and 38 (°C)
N
Between 16 and 32 (°C)
SN
Between 10 and 32 (°C)
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

UK- 6-
Accessoires
Makingicecubes
•Pull thelevertowardyou andtakeoutthe ice makingtray
•Fill thewaterinlevelofline.
•Holdtheleftendoftheleverandsettheice-trayontheicebox
•Whenicecubes areformed,twistthelevertodropoff icecubesinto
theicebox.
Donotfill the iceboxwithwaterinordertomakeice.Itcanbebroken.
Superswitch
•Normallysetthisswitchto‘ ’position.Exceptwhen the
ambienttemperatureislowlike inwinter.(ie.below16°C)or
whenthefreezertemperatureneedstobe maintainedlower.In
thatcase,turntheswitch to‘ ’positionON.
•Tosetsuperswitch ON thatisonthe thermostatbox,press
theredswitch downto ’position.Theredswitch willlit.
•Whenthefreezercompartmentiscooleddowntosufficient
temperature,orthe weathergetshot,turnthesuperswitch off
tosaveelectricalconsumption.
•Whenyoufirstswitchontheappliance,forstartingasuitable
cooling,the applianceshouldwork24hourscontinuouslyuntil
itcoolsdowntosufficienttemperature.
•Inthistimedonotopenthe doorso oftenandplace alotof
foodinsidetheappliance.
If theunit isswitchedoff orunplugged, you mustallowatleast5minutes before
restartingorre-plugged the unitinordernottodamagethecompressor.
(Insome models)
(If superswitchisavaible)
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

UK- 7-
Icetray
•Filltheicetray withwaterand placeinfreezercompartment.
•Afterthewatercompletelyturnedintoice,you cantwistthe trayasshownbelowto
gettheicecube.
Magicshelf
Magicshelfwhich ison theCrisperCover(safetyglass)(see part 7-page13)was
designedtogiveyou moreplace andcomfortplacingthe thingsintheappliance.This
shelfismobilesoyoucan arrangelongorbigcontainerson the crispercover.
Bottleholder
Inordertopreventthebottles tosliporfalloveryoucan usethebottle
holder.You canalso preventmaking noisethatwillbe donewhenyouopen
orclose the door.
(Insome models)
(Insome models)
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

UK- 8-
PART-3. ARRANGINGFOODINTHEAPPLIANCE
Refrigeratorcompartment
•Toreducehumidityand consequentincrease of frostneverplaceliquidsinunsealed
containers intherefrigerator.Frost tendsto concentratein thecoldest parts ofthe
evaporatorandin timewill require more frequentdefrosting.
•Neverplace warmfood in therefrigerator.Warmfoodshouldbeallowedto coolat
roomtemperatureand shouldbearrangedto ensure adequate aircirculationin the
refrigeratorcompartment.
•Nothingshouldtouchonthebackwall asitwill cause frost andthepackages can
stick on theback wall. Donotopenthe refrigeratordoortoofrequently.
•Arrangethemeatandcleanedfish(wrappedinpackages or sheetsofplastic) which
you willusein1-2days,inthebottomsection of therefrigeratorcompartment(thatis
above the crisper)asthisisthecoldestsection andwillensurethe beststoring
conditions.
•Youcan putthe fruitsandvegetablesinto crisperwithoutpacking.
Freezercompartment
•The useoffreezeris,storingofdeep-frozen orfrozenfoodsforlong periodsoftime
andmakingice cubes.
•Tofreeze fresh food, ensurethat asmuch ofthesurface as possibleoffoodtobe
frozenisincontactwiththecoolingsurface.
•Do not putfreshfoodwithfrozenonsidebysideasitcanthawthefrozen food.
•Whilefreezingfreshfoods(i.emeat,fishand mincemeat), dividetheminpartsyou
will use in onetime.
•Once theunithas beendefrosted replace thefoods into freezer andremember to
consumethem in as short period of time.
•Neverplacewarmfoodin thefreezercompartment.Asitwilldisturb thefrozenfoods.
•For storingthefrozenfoods;the instructionsshown onfrozen food packages should
always befollowed carefullyand ifnoinformationisprovidedfood should not be
storedformorethan3months fromthepurchaseddate.
•Whenbuyingfrozen foodsensurethatthesehave been frozen atsuitabletempera-
turesandthatthe packingisintact.
•Frozenfoodsshouldbetransported inappopriate containers to maintainthe quality
ofthefood andshouldbe returnedtothe freezingsurfaces oftheunitintheshortest
possibletime.
•Ifapackage of frozenfood showsthesignof humidityandabnormalswellingitis
probablethat ithas beenpreviously stored at anunsuitabletemperature andthat
thecontents havedeteriorated.
•Thestroragelife offroozenfoods dependsontheroom temperature,thermostat
setting, howoftenthedoorisopened,thetypeoffoodandthelengthof time required
totransporttheproduct from theshoptoyour home.Alwaysfollow the instruductions
printed onthepackageandnever exceed themaximumstoragelife indicated.
Notthat; if youwanttoopen againimmediatelyafterclosing the freezerdoor,it will not
beopenedeasily.It’squitenormal!Afterreachingequilibriumcondition,the doorwillbe
openedeasily.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

UK- 9-
PART-4. CLEANINGAND MAINTENANCE
•Youshouldcleanthe condenser withbroomatleast once
ayearinordertoprovideenergysaving andincrease
the productivity.
•Make suretounplug thefridge beforestarting toclean it.
•Donotwashyourfridgebypouring water.
•You canwipetheinnerand outersideswithasoftcloth
oraspongeusing warmandsoapywater.
•Removethe partsindividuallyandcleanwithsoapywater.
Donotwash inwashingmachine.
•Neveruse flammable,explosiveorcorrosivemateriallike
thinner,gas,acidforcleaning.
Make surethatyourfridgeisunpluggedwhilecleaning.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

UK-10-
Defrosting
Refrigeratorcompartment;
•Defrosting occursautomaticallyinrefrigeratorcompartmentduring operation ; the
defrostwateriscollectedbytheevaporatingtray andevoparatesautomatically.
•Theevaporatingtrayandthedefrostwaterdrainholeshouldbecleanedperiodically
withdefrostdrainplug topreventthewaterfromcollecting on thebottomofthe
refrigeratorinstead offlowingout.
•You canalso pour1/2glass ofthewatertodrainholetoclean inside.
Freezercompartment;
The frost, accumulatedinthefreezercompartment,shouldbe removed periodically.
(Use theplasticscraperprovided)Thefreezercompartmentshouldbecleanedinthe
way asthe refrigeratorcompartment,withthe defrostoperations ofthe compartmentat
leasttwice ayear.
Forthis;
•Theday beforeyoudefrost,setthethermostatdialto“5”position tofreeze the foods
completely.
•During defrosting,frozenfoodsshouldbewrapped inseverallayersofpaperand
keptinacoolplace.Theinevitablerise intemperaturewillshortentheirstorage life.
Remembertousethesefoods withinarelativelyshortperiodoftime.
•Setthermostatknobtoposition«0»orunplugtheunit;leavethe dooropenuntil
completelydefrosted.
•Toacceleratethedefrosting process oneormorebasinsofwarmwatercan be
placedinthefreezercompartment.
•Drythe inside ofthe unitcarefullyand setthe thermostatknob toMAX position.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

UK-11-
Replacingthelightbulb
Toreplacethebulbinfreezerandfridgedepartments;
1- Unplug yourfridge.
2- Removethecoveroftheboxfromtheclawsusingascrewdriver.
3- Replacewithabulbofmaximum15 Watts.
4- Install thecover.
5- Waitfor5minutesbeforere-plugging andbring the thermostattoitsoriginalposition.
PART-5.
•Originalpackage and foammay be keptforre-transportation(optionally).
•Youshouldfastenyourfridgewiththickpackage,bandsorstrong cordsand follow
theinstructions fortransportationonthepackageforre-transportation.
•Removemovableparts(shelves,accessories,vegetablebinsetc.) orfixtheminto
thefridgeagainstshocksusingbandsduringre-positioning and transportation.
•Carryyourfridgeintheuprightpositio.
Repositioning thedoor
Youcanreposition thedoorsofyourfridge.ContactnearestAuthorizedservicefor
this.
(Insomemodels)
SHIPMENTAND REPOSITIONING
Onlyfor
183/238/248 Lt.
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

UK-12-
PART-6. BEFORECALLINGYOUR AFTERSALES SERVICE
Ifyourrefrigeratorisnotworking properly,itmaybe aminorproblem,thereforecheck
thefollowing,beforecallingan electriciantosave timeandmoney.
What todoif yourrefrigeratordoesnotoperate;
Check that ;
•Thereisnopower,
•Thegeneralswitchinyourhomeisdisconnected,
•The thermostatsettingison«0»position,
•Thesocketisnotsufficient. Tocheckthis,pluginanotherappliancethatyouknow
whichisworkingintothe samesocket.
What todoifyourrefrigeratorperformspoorly;
Check that ;
•You have notoverloadedthe appliance ,
•The doorsareclosedperfectly,
•Thereisnoduston the condenser,
•Thereisenoughplaceattherearandsidewalls.
Ifthereisnoise;
Thecoolinggaswhichcirculatesintherefrigeratorcircuitmaymakeaslight
noise(bubblingsound)evenwhenthecompressorisnotrunning.Donotworrythisis
quitenormal.Ifthese soundsaredifferentcheckthat;
•Theapplianceiswell leveled
•Nothingistouching therear.
•The stuffsonthe appliance arevibrating.
If thereiswaterinthe lowerpart of therefrigerator;
Check that ;
Thedrainholefordefrostwaterisnotclogged(Use defrostdrainplug toclean the
drainhole)
Recommendations
•Inordertoincrease spaceandimprovetheappearance,the«coolingsection»of
thisapplianceispositionedinsidetheback wall oftherefrigeratorcompartment.
Whentheapplianceisrunning, thiswalliscovered withfrostor water drops,according
toweatherthecompressorisrunningornot. Donotworry.Thisisquitenormal. The
appliance shouldbe defrosted onlyifanexcessivelythicklayerformsonthewall.
•If theapplianceisnotusedforlong time(forexampleduringthe summer
holidays)Defrostandcleantherefrigeratorleaving thedooropentopreventthe
formation ofmidewandsmell.
•Tostoptheappliance completely,unplugfrommainsocket(forcleaningandwhen
thedoorsareleft open)
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

UK-13-
A) FREEZERCOMPARTMENT
B) REFRIGERATORCOMPARTMENT
1) ICETRAY
2) ICEBOX
3)FREEZERSHELF
4)MEATTRAY/COVER
5)REFRIGERATORSHELF
6)MAGICSHELF
7)CRISPERCOVER
8)LEVVELINGFEET
9)CRISPER
10)KICKPLATE
11)THERMOSTATBOX
12)BOTTLEHOLDER
13)BOTTOMSHELF
14)BOTTLESHELF
15)EGGSHELF
16)EGGHOLDER
17)BUTTERCHEESESHELF
18)BUTTERCHEESESHELFCOVER
19) LAMPSWITCH
PART-7. THEPARTSOFTHEAPPLIANCEAND
THECOMPARTMENTS
Thispresentation isonlyforinformationaboutthepartsoftheappliance.
Partsmayvaryaccording tothe appliancemodel.
See inpage:66 -70
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

-66-
248/238 LT
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

-67-
332LT
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

-68-
356LT
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

-69-
449LT
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

-70-
183LT
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

52032542
