Smeg FA160X User manual

Code : C600-58
FA160X FA161MX FA162MX
Read this user guide thoroughly and carefully before using for
your safety and optimal performance of refrigerator.

1
Be sure to keep for safety 1~3
Installation Guide 4
Control Panel 5
Temperature Control 6
How to change Interior Light Bulb 7

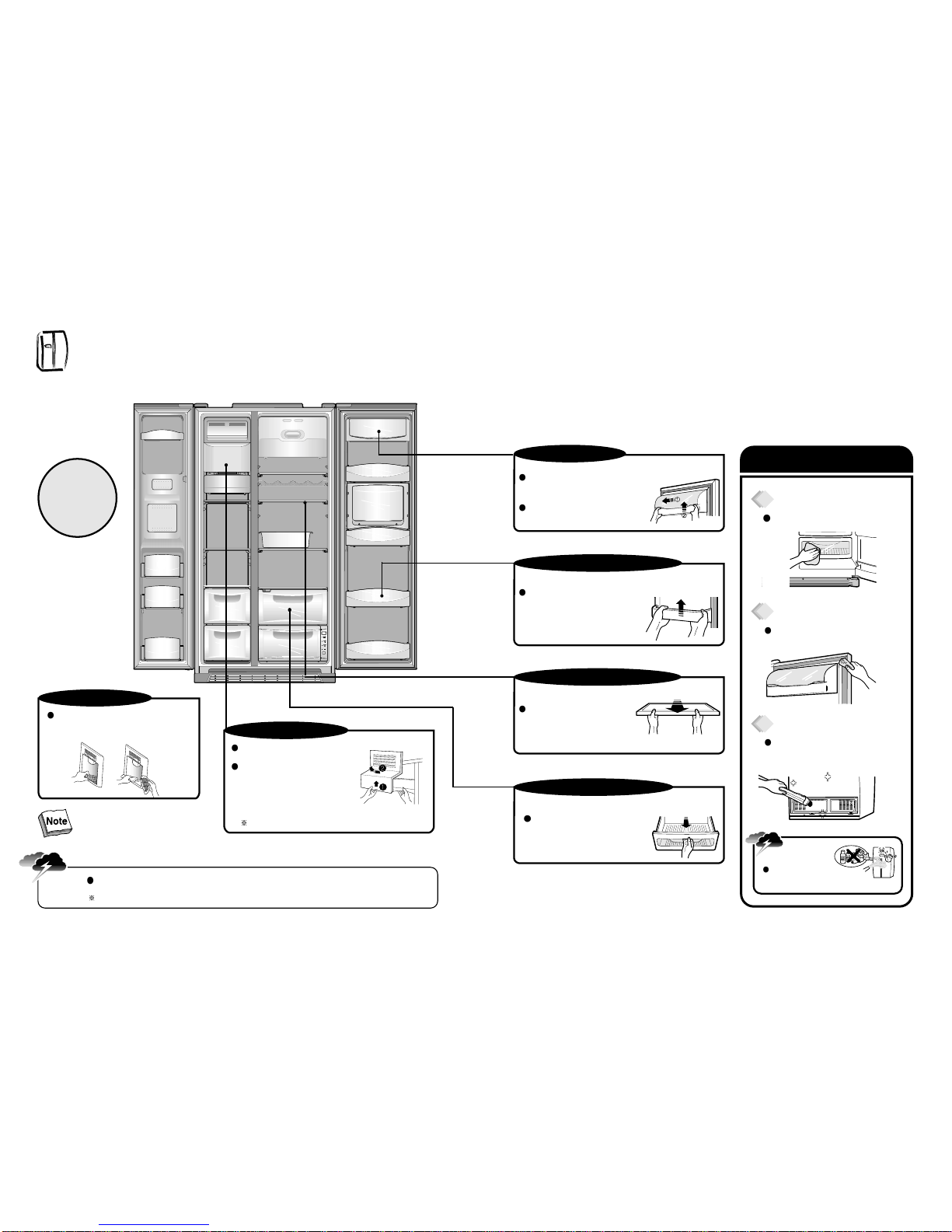

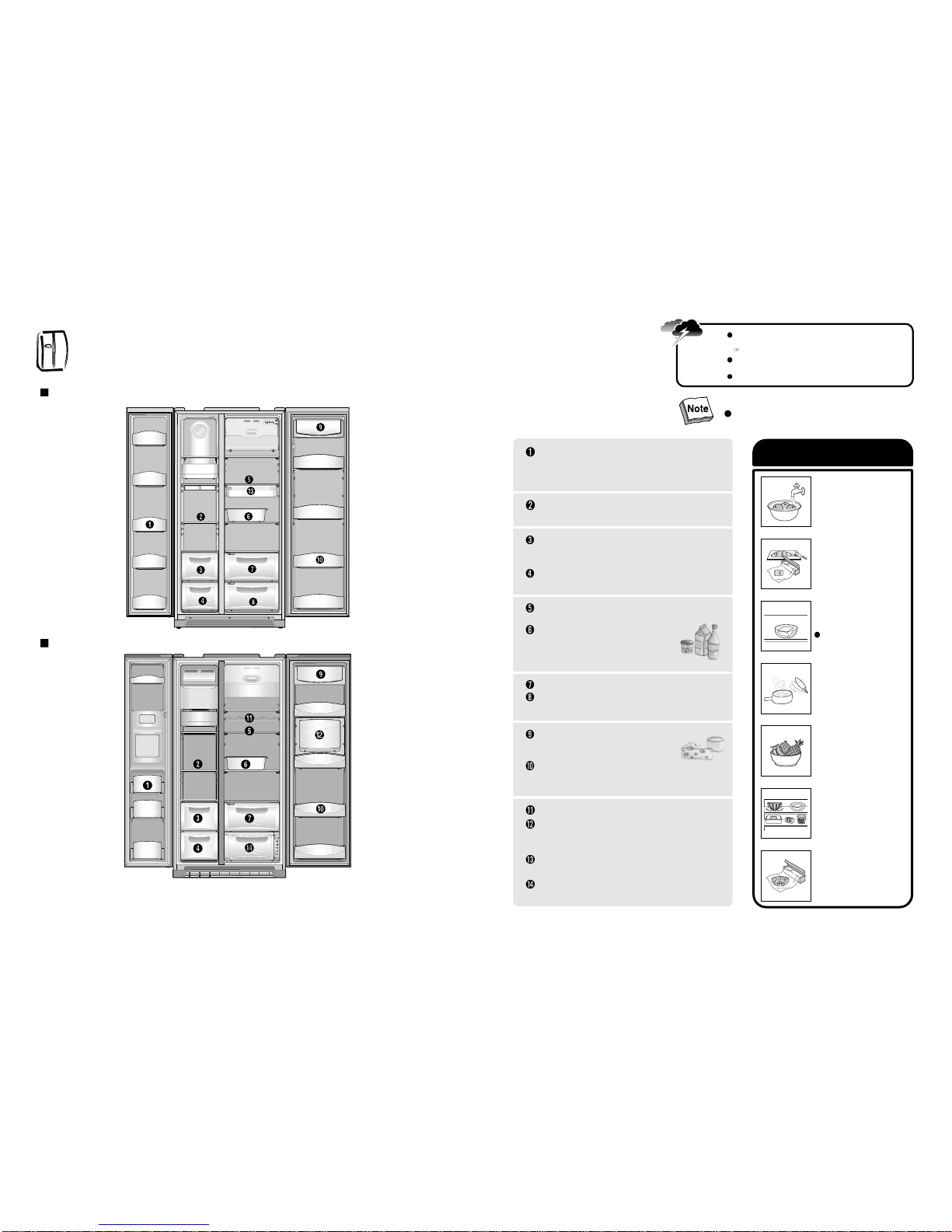

How to use interior Parts 8~10
How to use the Dispenser 10
How to use Automatic Icemaker 11
Care & Cleaning 12~13
Before You Call for Service... 14
Something strange?
Don’t worry. Here is the answer 15

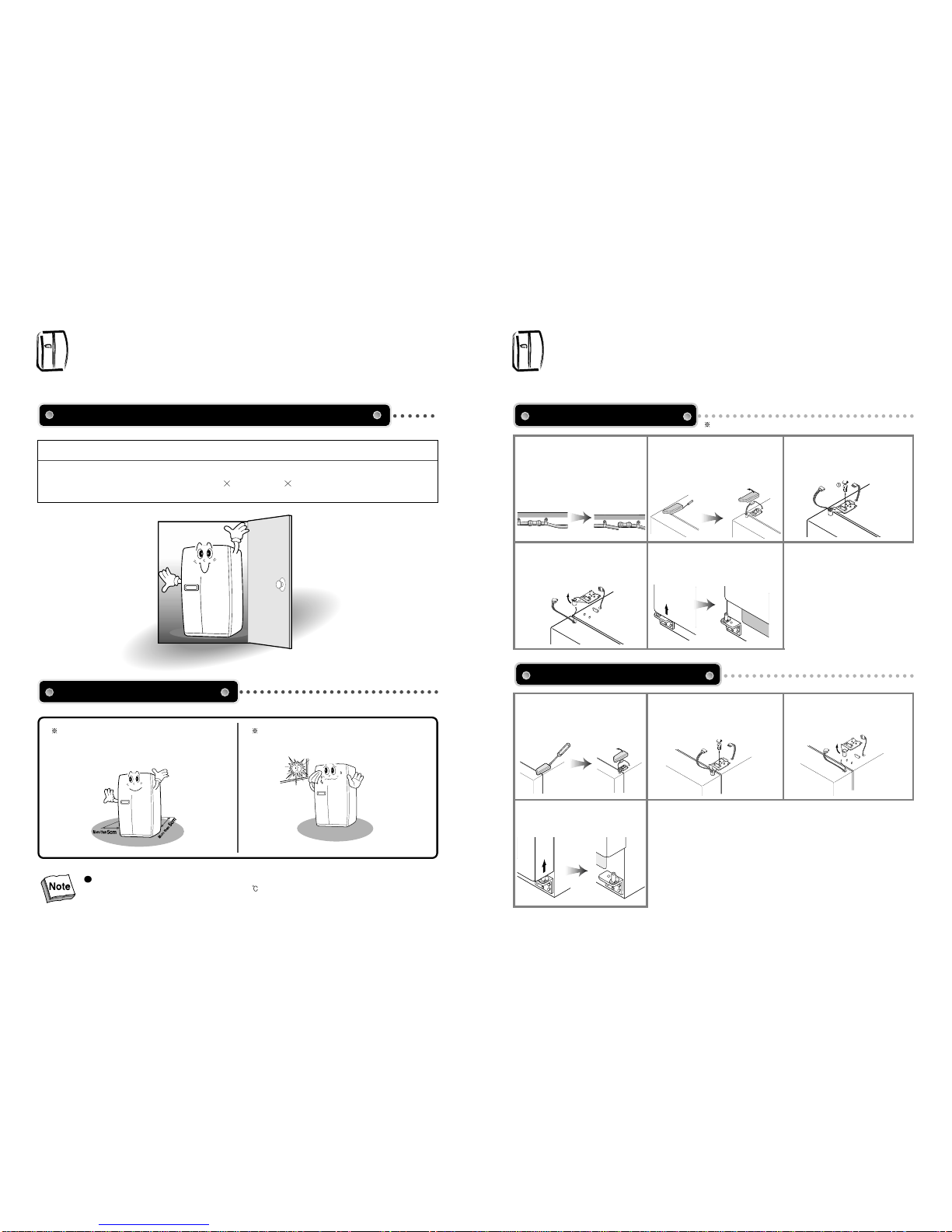

Installation Preparation 16
If the refrigerator can not pass through a door
during installation, follow these steps 17~18
Refrigerator Leveling &
Door Adjustment(if needed.) 19
How to install Water Line 20~21
Contents
Be sure to keep for safety !
Read these safety instructions thoroughly and carefully before using. Please keep this user guide to
hand for future reference.
WARNING CAUTION
Indicates the possibility of danger of
death or serious injury Indicates the possibility of risk of personal injury or material damage
DO NOT remove or disassemble!
Be sure to unplug from receptacle(outlet/mains)!
NO., DO NOT...
Be sure to keep and follow!
Other Signs
WARNING
Do not plug several appliances into the
same wall outlet (receptacle).
It can be a cause of overheating and/or fire.
Use an exclusive grounding receptacle for
the refrigerator.
Never let the power cord be crushed
by the refrigerator itself or other (heavy)
objects.
Never bend power cord excessively.
If the cord is damaged or peeled, it can be a
cause of fire and electric shock.
Never use a damaged power cord or plug,
or loose main socket .
There is a risk of fire, electric shock or
serious injury.
Never unplug by pulling only the power cord
wire. Always grip the plug firmly.
Never hold the power cord or plug with wet
hands.
There is a risk of electric shock.
Be sure to ground. Check if your wall outlet
is grounded (earthed) .
There is a risk of electric shock hazards.
1. If the supply cord becomes damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Caution

2 3
Do not store medicine, academic research
samples which require strict temperature
control in the refrigerator.
Never insert fingers or hands into the bottom
of refrigerator, especially into the bottom
back.
You can be hurt by sharp metal edges or can
receive an electric shock.
Do not change fuse or light bulb on your
own. Call the service agent to change them. When you find the power cord damaged or cut, call the service agent immediately.
When you get rid of your old refrigerator, be
sure to remove the door packings first.
Children can be entrapped and suffocated in
an abandoned refrigerator.
Leave it just a few days! is very dangerous.
Be sure to unplug when the refrigerator is
not used for a long time. Never touch foods and containers especially of metal with wet hands in the
freezer compartment.
You can be hurt by chilblains or cold bum.
Never eat any decayed or deteriorated food at all.
Foods stored too long in the refrigerator can be
decayed or deteriorated .
Never place bottles and containers of glass
in the freezer compartment.
Glass containers and bottles can be broken
so can hurt you.
WARNING
CAUTION
When moving the refrigerator (horizontally
or tilted), more than 2 persons are required
to hold it.
( One to hold top back handles, the other,
bottom holder. )
If other parts gripped, it is very dangerous
and likely to slip.
Be sure to turn up the wheel first before
moving the refrigerator.
The wheels can damage or scratch the floor.
If you move it a long distance, never forget
to fasten the interior parts tightly with tapes.
The parts can collide and break each other.
Do not install the refrigerator on a wet
floor or in a place with much humidity
moisture.
Electric insulation gets weakened,
resulting in a risk of electric shock
hazards.
Let the cord from the plug outlet be
directed Downwards.
If it is directed up, the cord near the plug is
bent and can be damaged, which can
cause an electric shock or fire.
Check if plug is loose from the wall outlet.
Electric insulation gets weakened,
resulting in a risk of electric shock
hazards.
Never let the power cord touch or pass over
heating appliances.
Power cord can be damaged, resulting in a
risk of electric shock hazards.
Do not place containers with water or
liquid on top of refrigerator.
Water can be poured into the refrigerator
and can cause electric shock hazards or
damage.
Never pour or spray water into the
refrigerator (both interior and exterior).
Electric insulation gets weakened, resulting
in a risk of electric shock hazards.
Do not move or remove compartment
shelves/pockets while foods and
containers are on them.
Hard container (of glass, metal etc.) can
fall to hurt you and can break shelf glass
and interior parts.
Do not let children hang on the refrigerator
doors.
Refrigerator can fall and do harm to them.
Never repair or disassemble or amend the
refrigerator on your own
There is a risk of personal injury or damage
to the refrigerator. It is recommanded that
any service be carried out by a qualified
person.
Never store any flammable gas or liquid
in the refrigerator.
Never use flammable gas, benzene, thinner,
gasoline, spray etc. near the refrigerator.
There is a risk of fire, explosion and
personal injury or damage.
If a gas leak is found near the refrigerator
or inthe kitchen, ventilate it immediately
without touching power plug or
refrigerator.
WARNING

54
Control Panel
Never install the refrigerator on a wet, watery floor or where water can easily gather.
Check the following before power connection.
Connect power plug only to a grounded wall receptacle (an earthed mains).
Do not plug refrigerator power together with other appliances to a same receptacle(socket).
Do not use an adapter plug or an extension cord.
Do not let power cord be crushed down by other (heavy) objects .
If you hear a strange noise or strong chemical odour or find smog etc. from the refrigerator after
power plugin, pull out the plug immediately and call the service agent.
Wait about 5 minutes before you plugin again in order to prevent any
damage to the compressor and electrical devices of refrigerator.
Wait 2~3 hours until the inside gets cold enough after the first power plugin, then store foods inside.
(There can be some peculiar smell of plastic parts at initial operation of refrigerator after plugin.
The smell fades away as the refrigerator works and doors are opened and closed.)
Precautions in installation and power connection
To prevent fire, electric shock or leakage
Precautions in use
To prevent personal injury, fire, electric shock etc. read this user guide carefully before use and keep it at
hand for any reference.
❈Read these safety instructions carefully before use and follow precautions for your safety.
Accessories
Installation Guide
Egg case Filter Box Water supply Kit User guide
Dispenser Models Only
Interior lights of refrigerator turn off when the doors are open for more than 10 minutes.
In case either freezer or refrigerator door is open for more than a minute, door alarm rings for 5 minutes with
1 minute interval.
It shows that the digital control system is working the
refrigerator.
(The icon is always on while the refrigerator is working.)
As long as the refrigerator is working deodorization is
always on.
After 6 month of first power input, “FILTER CHANGE”
icon is ON.
When the time comes to change the filter or reset
push “RESET WATER FILTER”button for 5 seconds
after change, then “FILTER CHANGE”icon is OFF.
Children may push any button on the panel for fun,
resulting in disorder of temperature and function of
refrigerator.
- Press this button to lock out this possibility and to
keep temperature and function setting.
- Push Lock button again for more than a second to
stop it.
For your convenience you can select WATER /
CUBED ICE or CRUSHED ICE.
A rectangle line around the icon lights up to indicate
your selection is ON.
To obtain the water or ice, push the pad smoothly
with your cup and your selection will come out 1~2
seconds later.
- Try to avoid placing the rim of your glass near the
bottom of the pad, otherwise Water or Icecubes
may spill or splash.
- You will hear a snap sound 2 seconds after the
icecubes come out. This is from the shut off ice-out
valve.
- Wait 2~3 seconds after pushing the pad to get all
the available water or ice cubes.
When cleaning the icecubes case assembly or
when you do not use for a long period of time,
remove the icecubes in the ice storage case and
press the button to stop making icecubes.
Dispenser Model
Basic Model

6 7

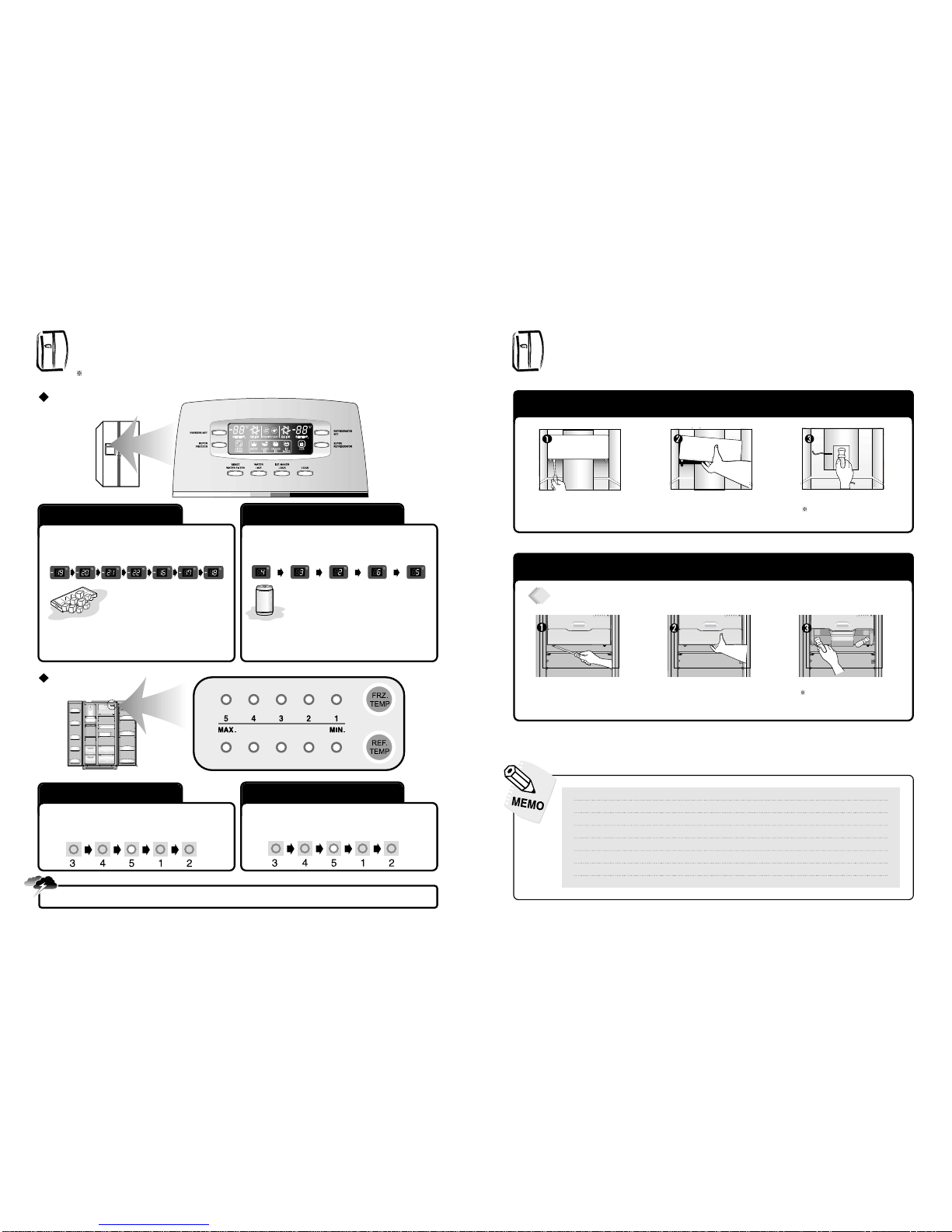

Temperature Control
When this refrigerator is first plugged in, the temperature mode is set to [Middle].
Push the FREEZER SET. button and the setting
temperature changes as the figure shows. Push the REFRIGERATOR SET. button and the setting temperature changes as the figure shows.
>>> Sequential Temperature Change <<< >>> Sequential Temperature Change <<<
Foods in the refrigerator can be frozen if the ambient temperature of the refrigerator is below 5°c.
When you want faster freezing, push the SUPER
FREEZER. button. Just push the button once
again when you want to stop the mode.
Faster Freezing...
When you want faster refrigerating, push the
SUPER REFRIGERATOR. Just push the button
once again when you want to stop the mode.
Faster Cooling or
Refrigeration
Freezer Compartment Refrigerator Compartment
Push the FRZ. TEMP button and the setting
temperature changes as the figure shows. Push the REF. TEMP button and the setting temperature changes as the figure shows.
>>> Sequential Temperature Change <<< >>> Sequential Temperature Change <<<
Freezer Compartment Refrigerator Compartment
Caution
Dispenser Model
Basic Model
How To change the lnterior Light Bulb
Change of Freezer Lights
Remove the 2 screws
retaining the light cover. Hold the botton of the light cover and pull
forward to remove.
Change the light bulb.
Follow the reverse order
of disassembing after
changing the light
Remove the screws
retaining the light cover.
Hold the bottom of cover and
pull forward to remove.
Change the light bulbs.
Follow the reverse order
of disassembing when
assembling back.
Change of Refrigerator Lights
Refrigerator Top Lights
The lamp shall be replaced only by a service agent or similarly qualified person.
