4BEFORE USING THE APPLIANCE
General warnings
WARNING: Keep vantilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING: Do not use electrical appliances inside the
food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: In order to avoid any hazards resulting from
the instability of the appliance, it must be xed in accor-
dance with the following instructions:
• If your appliance uses R600a as a refrigerant (this
information will be provided on the label of the cooler)
you should take care during transportation and
installation to prevent the cooler elements from being
damaged. R600a is an environmentally friendly and
natural gas, but it is explosive. In the event of a leak
due to damage of the cooler elements, move your
fridge away from open ames or heat sources and
ventilate the room where the appliance is located for
a few minutes.
• While carrying and positioning the fridge, do not
damage the cooler gas circuit.
• Do not store explosive substances such as aerosol
cans with a ammable propellant in this appliance.
• This appliance is intended to be used in household
and domestic applications such as:
- staff kitchen areas in shops, ofces and other work-
ing environments.

EN
5
BEFORE USING THE APPLIANCE
- farm houses and by clients in hotels, motels and oth-
er residential type environments.
- bed and breakfast type environments;
- catering and similar non-retail applications.
• If the socket does not match the refrigerator plug,
it must be replaced by the manufacturer, a service
agent or similarly qualied persons in order to avoid
a hazard.
• A specially grounded plug has been connected to the
power cable of your refrigerator. This plug should be
used with a specially grounded socket of 16 amperes.
If there is no such socket in your house, please have
one installed by an authorised electrician.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
• If the supply cord is damaged, it must be replaced
by the manufacturer, an authorised service agent or
similar qualied persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes
exceeding 2000 m.

EN
6BEFORE USING THE APPLIANCE
Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock
before discarding it, because children may get trapped
inside it and may cause an accident.
• Old fridges and freezers may contain isolation material
and refrigerant with CFC or HFC. Therefore, take care not
to harm environment when you are discarding your old
fridges..
Please ask your municipal authority about the disposal of the
WEEE reuse, recycle and recovery purposes.
Notes:
• Please read the instruction manual carefully before
installing and using your appliance. We are not
responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction
manual, and keep this manual in a safe place to resolve
the problems that may occur in the future.
• This appliance is produced to be used in homes and it
can only be used in domestic environments and for the
specied purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the
appliance to be cancelled and our company will not be
responsible for losses incurred.
• This appliance is produced to be used in houses and it is
only suitable for cooling / storing food. It is not suitable for
commercial or common use and/or for storing substances
except for food. Our company is not responsible for losses
to be incurred in the contrary case.

EN
7
BEFORE USING THE APPLIANCE
Safety warnings
• Do not connect your Fridge Freezer to the mains
electricity supply using an extension lead.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow
children to play with the appliance or let them hang off the
door.
• Never touch the power cord/plug with wet hands as this
could cause a short circuit or electric shock.
• Do not place glass bottles or beverage cans in the ice-
making compartment as they can burst as the contents
freeze.
• Do not place explosive or ammable material in your
fridge. Place drinks with high alcohol content vertically in
the fridge compartment and make sure that their tops are
tightly closed.
• When removing ice from the ice-making compartment, do
not touch it. Ice may cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-
cream or ice cubes immediately after you have taken them
out of the ice-making compartment.
• Do not re-freeze frozen goods after they have melted. This
may cause health issues such as food poisoning.
• Do not cover the body or top of fridge with lace. This affects
the performance of your fridge.
• Secure any accessories in the fridge during transportation
to prevent damage to the accessories.

EN
8BEFORE USING THE APPLIANCE
Installing and operating your fridge
Before using your fridge, you should pay attention to the
following points:
• The operating voltage for your fridge is 220-240 V at 50Hz.
• The mains cord of your fridge is tted with a grounded
plug. This plug should be used with a grounded receptacle
that has a 16 ampere fuse minimum. If you don’t have
a receptacle which conforms to this, contact a qualied
electrician.
• We do not accept responsibility for any damages that
occur due to ungrounded usage.
• Place your fridge where it will not be exposed to direct
sunlight.
• Your appliance should be at least 50 cm away from stoves,
gas ovens and heater cores, and at least 5 cm away from
electrical ovens.
• Your fridge should never be used outdoors or exposed to
rain.
• When your fridge is placed next to a deep freezer, there
should be at least 2 cm between them to prevent humidity
forming on the outer surface.
• Do not place anything on your fridge, and install your fridge
in a suitable place so that at least 15 cm of free space is
available above it.
• Use the adjustable front legs to make sure your appliance
is level and stable. You can adjust the legs by turning them
in either direction. This should be done before placing food
in the fridge.
• Before using your fridge, wipe all parts with a
solution of warm water and a teaspoon of sodium
bicarbonate, then rinse with clean water and dry.
Place all parts in the fridge after cleaning.
• Install the plastic distance guide (the part with black vanes
at the rear) by turning it 90° (as shown in the gure) to
prevent the condenser from touching the wall.
• The refrigerator should be placed against a wall with a free
space not exceeding 75 mm.

EN
9
BEFORE USING THE APPLIANCE
Information about New Generation Cooling
Technology
Fridges with new generation cooling technology have a
different working system than static fridges. In normal fridges,
humid air that enters into fridge and the water vapor that comes
out from the foods, accumulates frost formation in freezer
compartment. In order to melt this frost, in other words defrost,
the fridge has to be stopped. During the stopping period, to
keep the foods cold, user has to extract the food to outside of
fridge and user has to clear the ice during this period.
In the fridges with new generation cooling technology, situation
in the freezer compartment is completely different. With the
aid of fan, cold and dry air is blown out through many points
into the freezer compartment. As a result of the homogenously
blown cold air, even in the spaces between shelves, foods are
frozen equally and correctly. On the other hand there will be
no frost formation.
In the refrigerator compartment, there will be nearly same
conguration with freezer compartment. Air, that is emitted
with the fan, located at the top of refrigerator compartment,
is cooled while passing through the gap behind the air duct.
At the same time, air is blown out through the holes on the air
duct so that cooling process is successfully completed in the
refrigerator compartment. Holes on the air duct are designed
such that the air distribution becomes homogenous in this
compartment.
As there is no air passage between freezer and refrigerator
compartment, there will be no odor mixing.
As a result of these, your fridge with new generation cooling
technology, gives you, ease of use beside the huge volume
and esthetic appearance.
Before Using your Fridge
• When using your fridge for the rst time, or after
transportation, keep it in an upright position for at least 3
hours before plugging into the mains. This allows efcient
operation and prevents damage to the compressor.
• Your fridge may have a smell when it is operated for the
rst time. This is normal and the smell will fade away when
your fridge starts to cool.

EN
10
This presentation is only for information about the parts of the
appliance. Parts may vary according to the appliance model.
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
1
2
4
5
6
7
8
9
10
A
B
12
13
14
15
3
11
16

EN
11
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS

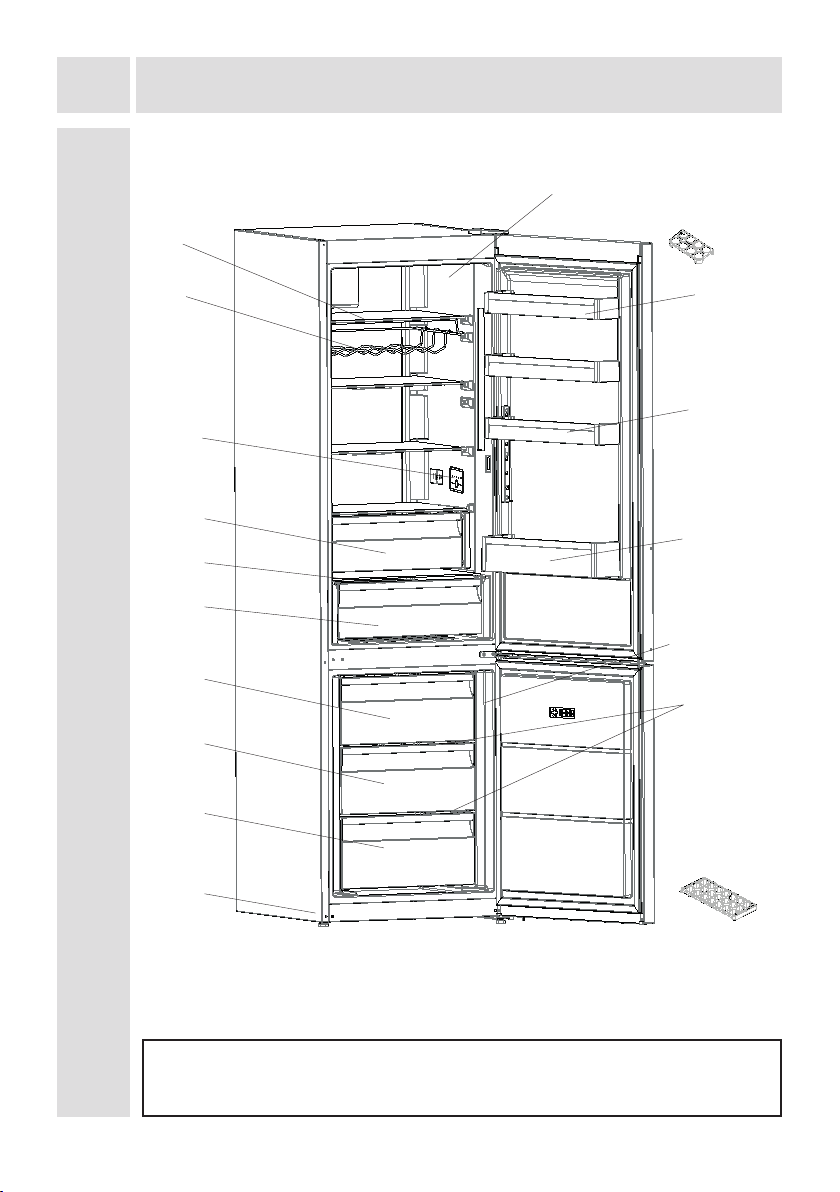

A) Fridge compartment
B) Freezer compartment
1) Fridge shelves
2) Wine rack *
3) Interior display / In room control
4) Chiller *
5) Crisper cover
6) Crisper
7) Freezer top basket
8) Freezer middle basket
9) Freezer bottom basket
10) Leveling feet
11) Ice trays
12) Freezer glass shelves
13) Bottle shelf
14) Adjustable door shelf * / Door shelf
15) Door shelf
16) Egg holder
* In some models
This presentation is only for information about the parts of the
appliance. Parts may vary according to the appliance model.

EN
12 THE VARIOUS FUNCTION AND POSSIBILITIES
Display and control panel
Operating your fridge
Cooler temperature settings
• InitialtemperaturevalueforCoolerSettingIndicatoris6oC.
• Presssetbuttononce,thesetvaluewillstarttoblink.
• Ifyoukeeppressingsetbutton,lowertemperatureswillbeselected.
(8,6,5,4,2,superandeco)
• Ifnobuttonispressedfor1second,yourchoicewillbeset,itwillblink
3times.Buzzerwillsoundbeepbeep.
• ThetemperaturevalueselectedbeforeSuperCoolModeorEconomy
Modeis activatedwill remainthe samewhen themode isover or
cancelled.Theappliancecontinuestooperatewiththistemperature
value.
C
o
8 6 5 4 2
ItisEconomymode
indicator.
ItisSupercoolmode
indicator.
Setbutton
Thermostatsetlevel
indicator
ButtonLED

EN
13
THE VARIOUS FUNCTION AND POSSIBILITIES
Super cool mode
How would it be used?
Press set button until super cool symbol will be seen on the screen.
Buzzer will sound beep beep. Mode will be set.
During this mode:
• Economy mode can not be selected.
• Super cool mode can be cancelled by the same operation of
selecting.
Economy mode
How would it be used?
Press set button until eco symbol will be seen on the screen. Buzzer
will sound beep beep. Mode will be set.
During this mode:
• Super cool can be selected. Economy mode is automatically
cancelled and the selected mode is activated.
• Eco mode can be cancelled by the same operation of selecting.
Door open alarm function
If cooler or freezer door is opened more than 2 minutes , appliance
sounds ‘beep beep’.
Warnings about Temperature Adjustments
• Temperature adjustments should be made according to the frequency
of door openings and the quantity of food kept inside the fridge.
• Do not pass to another adjustment before completing an adjustment.
• Your fridge should be operated up to 24 hours according to the
ambient temperature without interruption after being plugged in to be
completely cooled. Do not open doors of your fridge frequently and do
not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the
compressorofyourfridge,whenyoutaketheplugo󰀨andthenplug
it on again to operate it or when an energy breakdown occurs. Your
fridge will start to operate normally after 5 minutes.

EN
14 THE VARIOUS FUNCTION AND POSSIBILITIES
• Yourfridgeisdesignedtooperateintheambienttemperatureintervals
statedinthestandards,accordingtotheclimateclassstatedinthe
informationlabel. Wedonot recommendoperating yourfridge out
ofstatedtemperaturesvaluelimitsintermsofcoolinge󰀨ectiveness.
• Thisapplianceisdesignedforuseatanambienttemperaturewithin
the10°C-43°Crange.
Accessories
Freezer box
Thefreezerboxallowsfoodsaremaintainedmoreregularly.
Removing The freezer box;
• Pulltheboxoutasfaraspossible
• Pullthefrontofboxupandout.
!Maketheinverseofthesameoperationfortheresettingthesliding
compartment.
Note:AlwaysKeepthehandleofboxwhileremovingthebox.
Climate Class Ambient Temperature oC
TBetween16and43(°C)
ST Between16and38(°C)
NBetween16and32(°C)
SN Between10and32(°C)
Freezerboxes

EN
15
THE VARIOUS FUNCTION AND POSSIBILITIES

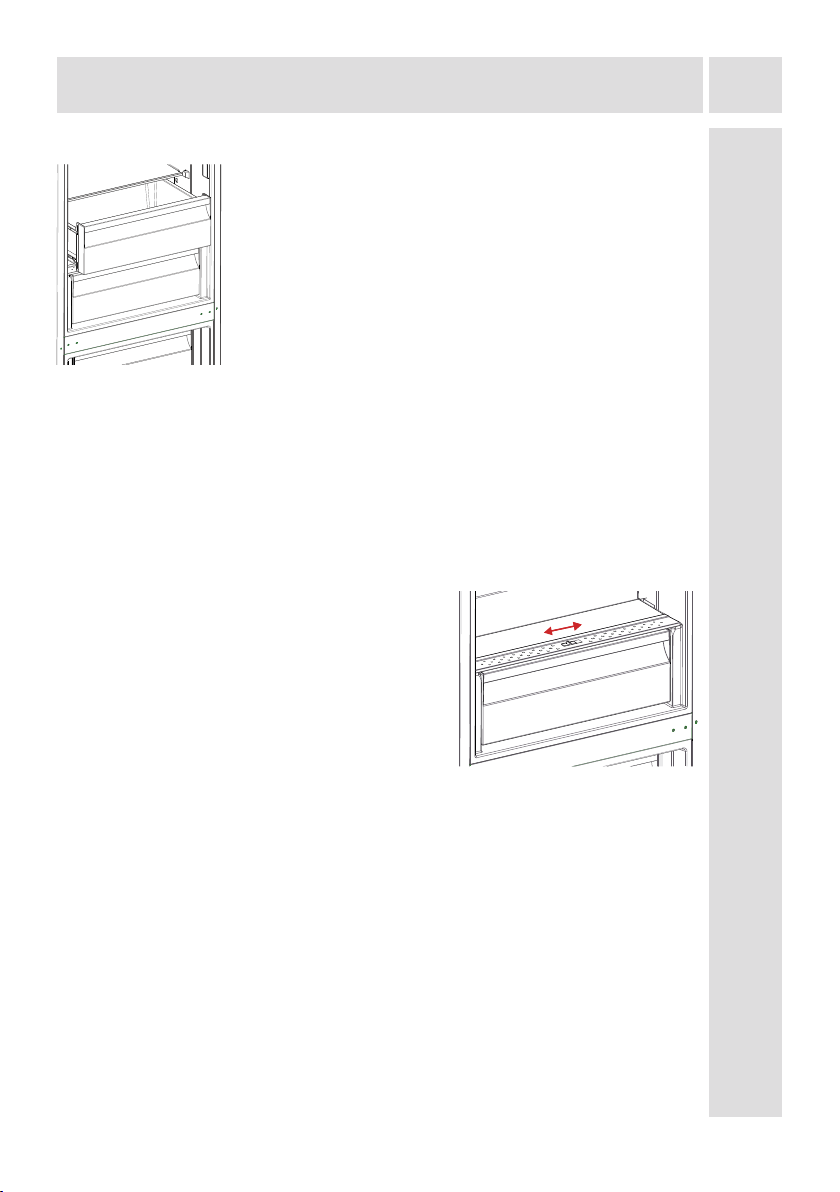

Chiller Shelf
Keeping food in the Chiller compartment instead
of the freezer or refrigerator compartment allows
food retain freshness and avour longer, while
preserving its fresh appearance. When chiller tray
becomes dirty, remove it and wash it with water.
(Water freezes at 0°C, but foods containing salt or
sugar freeze at temperature lower than that)
Normally people use the chiller compartment for
raw sh, lightly pickled, rice, etc...
Do not put foods you want to freeze or ice trays in order to make ice.
Removing the Chiller shelf
• Pull the chiller shelf out toward you by sliding on rails.
• Pull the chiller shelf up from rail to remove.
Humidity Controler
When the humidity controler in the closed position, it allows fresh fruit and
vegetables to be stored longer.
In case of the crisper is totally full, the fresh
dial is located in front of crisper, should
be opened. By means of this the air in the
crisper and humidity rate will be controlled
and endurance life will be increased.
If you see any condensation on glass shelf,
humidity control should be taken into the
open positions.
(In some models)
(In some models)

EN
16

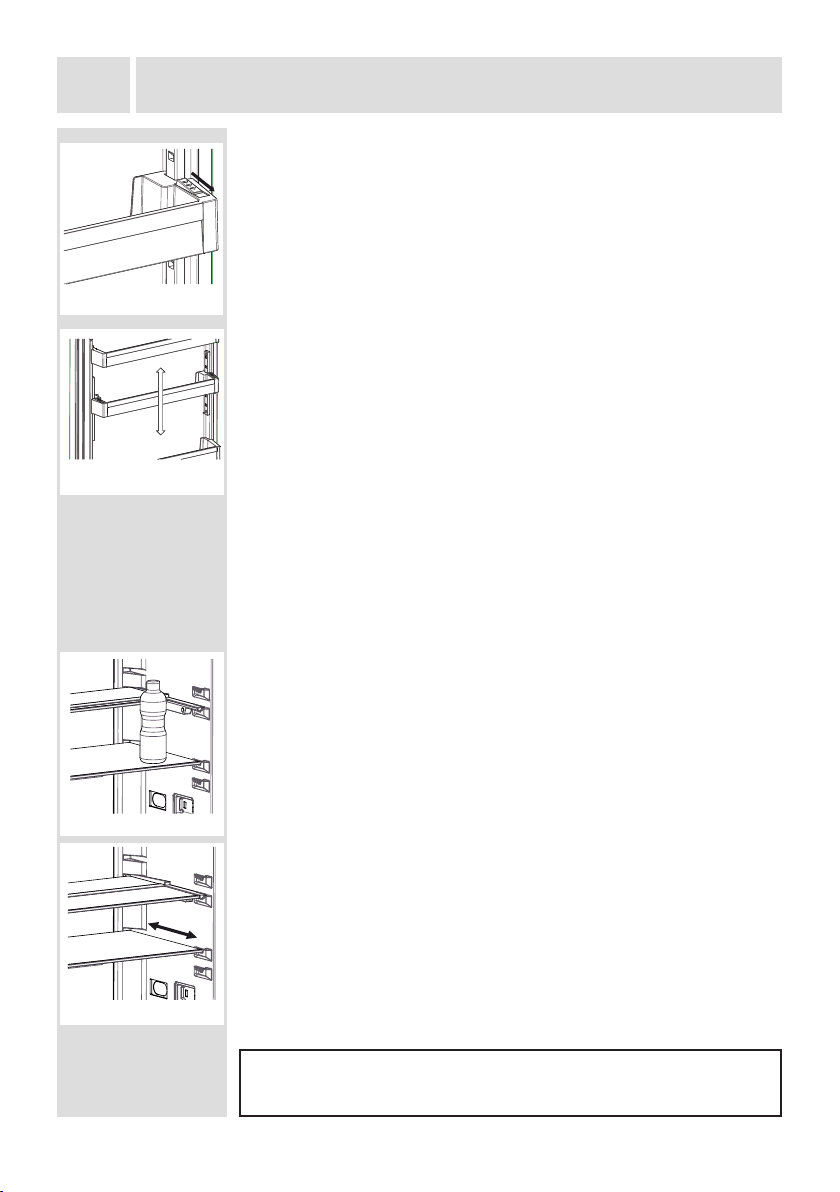

Adjustable Door Shelf
Six different height adjustments can be made to provide
storage areas that you need by adjustable door shelf.
To change the position of adjustable door shelf ;
Hold the bottom of the shelf and pull the buttons on the side of
the door shelf direction of arrow (Fig.1).
Position door shelf the height you need by moving up and
down. After you get the position that you want the door shelf,
release the buttons on the side of the door shelf (Fig.2) Before
releasing the door shelf, move up down and make sure the
door shelf is xed.
Note: Before moving door shelf is loaded, you must hold the
shelf by supporting the bottom. Otherwise, door shelf could fall
off the rails due to the weight. So damage may occur on the
door shelf or rails.
Adjustable Glass Shelf
Adjustable glass shelf mechanism provides higher storage
spaces with a simple movement. To cover the glass shelf,
push it.
You can load your food as you want in the resulting extra
space. To bring the shelf in its original position, pull it toward
you.
THE VARIOUS FUNCTION AND POSSIBILITIES
Visual and text descriptions on the accessories section may
vary according to the model of your appliance.
Figure -1
Figure -2
Figure -2
Figure -1
(In some models)
(In some models)

EN
17

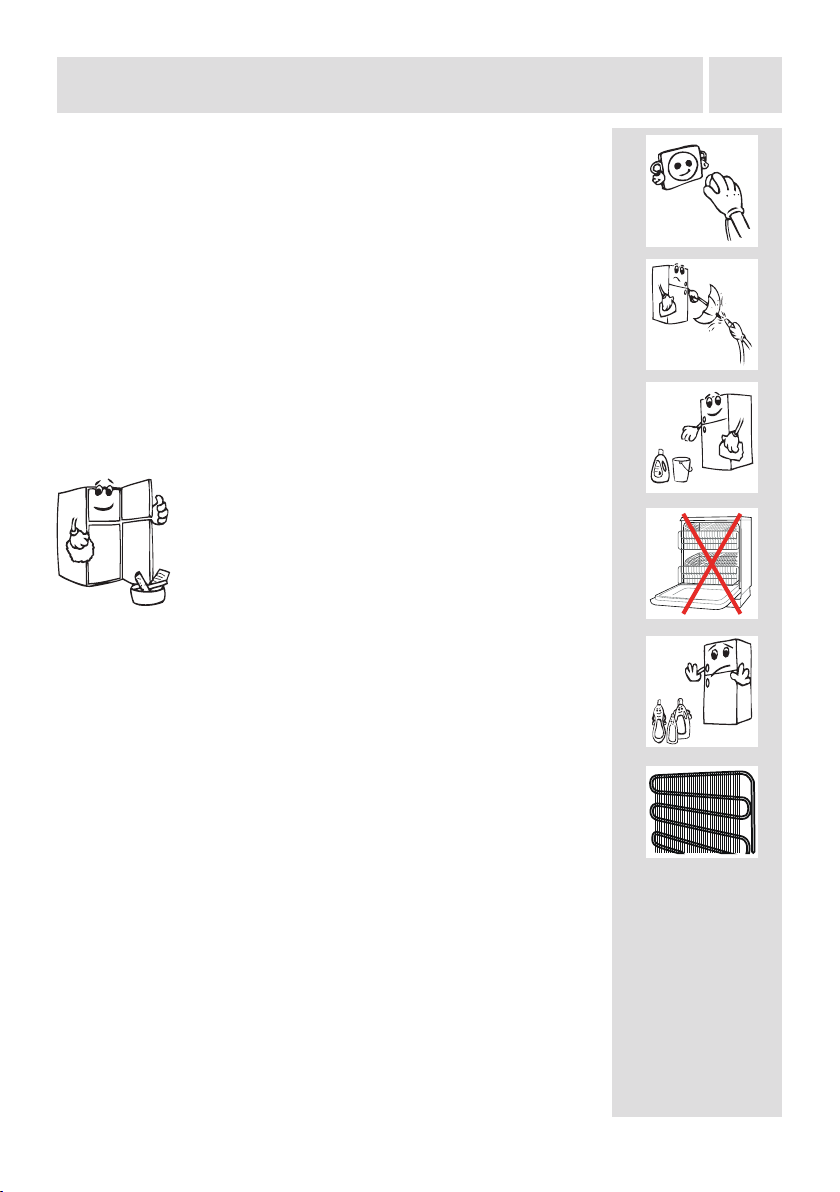

CLEANING AND MAINTENANCE
• Disconnect the unit from the power supply before
cleaning.
• Do not clean the appliance by pouring water.
• Make sure that no water enters the lamp housing and
other electrical components.
• The refrigerator should be cleaned periodically using a
solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap
and water Do not clean them in the dishwasher.
• Do not use abrasive products, detergents or soaps. After
washing, rinse with clean water and dry carefully. When
you have nished cleaning, reconnect the plugto the mains
supply with dry hands.
• Clean the condenser with a broom at least twice a year.
This will help you to save on energy costs and increase
productivity.
THE POWER SUPPLY MUST BE DISCONNECTED.

EN
18 CLEANING AND MAINTENANCE
Defrosting
Your refrigerator has fully automatic defrosting. The water
formed as a result of defrosting passes through the water
collection spout, ows into the vaporisation container below
the condenser and evaporates there.
• Make sure you have disconnected the plug of your
refrigerator before cleaning the vaporization container.
• Remove the vaporization container from its position by
unscrewing the screws as indicated. Clean it with soapy
water at specic time intervals. Thus, the odor formation
will have been prevented.
Replacing LED Lighting
If your refrigerator has LED lighting contact the help desk as
this should be changed by authorized personnel only.
Evaporating
tray

EN
19
ARRANGING FOOD IN THE APPLIANCE
Refrigerator compartment
• For normal operating conditions, adjusting the temperature value of
the cooler partition of the fridge to 4°C will be enough.
• To reduce humidity and consequent increase of frost never place
liquids in unsealed containers in the refrigerator. Frost tends to
concentrate in the coldest parts of the evaporator and in time will
require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be
allowed to cool at room temperature and should be arranged to
ensure adequate air circulation in the refrigerator compartment.
• Nothing should touch on the back wall as it will cause frost and the
packages can stick on the back wall. Do not open the refrigerator
door too frequently.
• Arrange the meat and cleaned sh(wrapped in packages or sheets
of plastic) which you will use in 1-2 days,in the bottom section of
the refrigerator compartment(that is above the crisper) as this is the
coldest section and will ensure the best storing conditions.
• You can put the fruits and vegetables into crisper without packing.
Some recommendations have been specied below for the placement
and storage of your food in the cooling compartment.
NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.
Food Maximum Storing
time
Where to place in the
fridge compartment
Vegetables and
fruits 1 week Vegetable bin
Meatandsh 2 - 3 Days
Wrapped in plastic foil or
bags or in a meat container
(on the glass shelf)
Fresh cheese 3 - 4 Days In special door shelf
Butter and
margarine 1 week In special door shelf
Bottled products
milk and yoghurt
Until the expiry date
recommended by
the producer In special door shelf
Eggs 1 month In the egg shelf
Cooked food All shelves

EN
20 ARRANGING FOOD IN THE APPLIANCE
Freezer compartment
• Please use the deep freeze compartment of your refrigerator for
storingthefrozenfoodforalongtimeandforproducingice.
• Togetmaximumcapacityforfreezercompartment,pleasejustuse
glass shelves for upper and middle section. For bottom section,
pleaseuselowerbasket.
• For optimum appliance performance to reach maximum freezing
capacity,Settherefrigeratorat4oCfor24hoursbeforeplacingfresh
foodintothefreezer.
• Afterplacingfreshfoodintothefreezer,changethesettingto2oCfor
24hoursisgenerallysu󰀩cient.After24hours,youcanreducethe
settingifrequired.
• Please do not place the food you shall newly freeze nearby the
alreadyfrozenfood.
• Youshould freezethe foodtobe frozen(meat,minced meat,sh,
etc.)bydividingthemintoportionsinsuchawaythattheycanbe
consumedonce.
• Pleasedonotrefreezethefrozenfoodoncetheyarethawed.Itmay
poseadangerforyourhealthsinceitmightcauseproblemssuchas
foodpoisoning.
• Donotplacethehotmealsinyourdeepfreezebeforetheybecome
cold.Youwouldcausetheotherfoodfrozenbeforehandinthedeep
freezetobecomeputreed.
• Whenyoubuyfrozenfood,makessurethattheywerefrozenunder
appropriateconditionsandthepackageisnottorn.
• Whilestoringthefrozenfood,thestorageconditionsonthepackage
shouldcertainlybeobserved.Ifthereisnotanyexplanation,thefood
mustbeconsumedwithintheshortesttimepossible.
• If there had been humidication in the frozen food package and it
hasafoulsmell,thefoodmighthavebeenstoredunderunsuitable
conditionspreviouslyandgonerotten.Donotpurchasethistypeof
foods!
• The storage durations of frozen food change depending on the
ambienttemperature,thefrequentopeningandclosingofthedoors,
thermostatsettings,foodtypeandthetimeelapsedfromthepurchase
timeofthefoodtothetimeitisplacedintothefreezer.Alwaysabide
bytheinstructionsonthepackageandneverexceedtheindicated
storageduration.
