Smeg FD270B User manual

•Manual de instrucciones.
•Manual de instruções.
•Mode d’emploi.
•Operating instructions.
•Bedienungsanleitung.
•Manuale di istruzioni.

ENGLISH
1
CONTENS
If your old refrigerator has a manual or automatic door locking
device DO NOT FORGET TO DESTROY OR INCAPACITATE
THE LOCKING SYSTEM before throwing it away, in order to
prevent children from locking themselves inside whilst
playing.
DO NOT DAMAGE THE PIPES to avoid an uncontrolled
leakage of coolant into the atmosphere.
WARNING
Page
Installation ............................................................ 2
General Description.............................................. 3
Using the refrigerator ........................................... 4
Using the freezer................................................... 6
Cleaning and Maintenance .................................. 10
Changing the direction of the doors .................... 11
Problems ..............................................................13
Electrical diagram ............................................... 14
Specifications....................................................... 14

2
INSTALLATION
RECOMMENDATIONS
Allow air to circulate behind the
refrigerator.
Do not cover the front grill or top of the
refrigerator with any object. If the
refrigerator is placed underneath a
cupboard, leave a space for air to
circulate.
As far as possible avoid locating near to
heat sources.
If the refrigerator needs to be laid down for
unpacking or to change the direction of the
doors, ONLY LAY IT DOWN ON THE REAR
SECTION.
NOTE: The door hinges are on the right. If this is inconvenient
the hinges can be changed to the other side. Instructions are contained in the
section on changing the direction of door opening.
IMPORTANT. Ensure that the refrigerator is
well seated on the ground (without
movement) and is properly levelled (without
tilting) by adjusting the levelling feet.
This refrigerator operates at 220/230 v. If the
voltage in your home is different, a
transformer should be used with an outpout
of not less than 700 W.
Use an EARTHED plug.
NOTE: The manufacturer will not accept any
liability in the event that these
recommendations are not followed.
BEFORE CONNECTING TO THE POWER
1.- Clean the inside of the refrigerator.
2.- Wait for 2 hours before connecting, to ensure proper functioning.
3.- Connect to the power.

ENGLISH
3

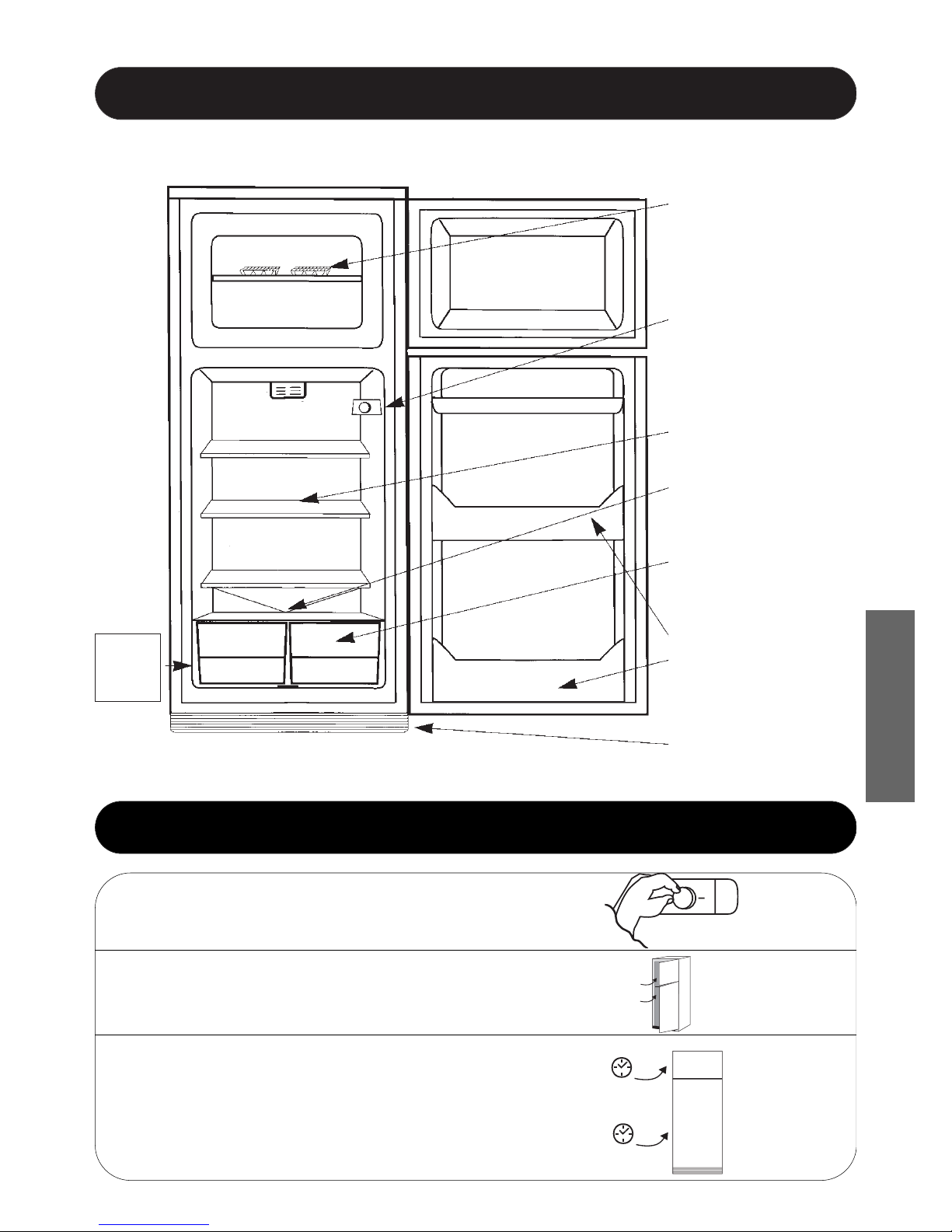

GENERAL DESCRIPTION
STARTING UP
Move the thermostat control
to an intermediate position.
Close the doors.
Food can be placed in the
refrigerator three hours
later. Wait hor 24 hours
before freezing fresh food.
1
2
3
MED
24h.
3h.
REFRIGERATOR FREEZER
Water collection
trays.
Ice cube holders.
Combined
thermostat control
and lamp.
Trays.
Bottle shelves.
Fruit and vegetable
compartments
Ventilation grill.
Placa
Características
Técnicas

4

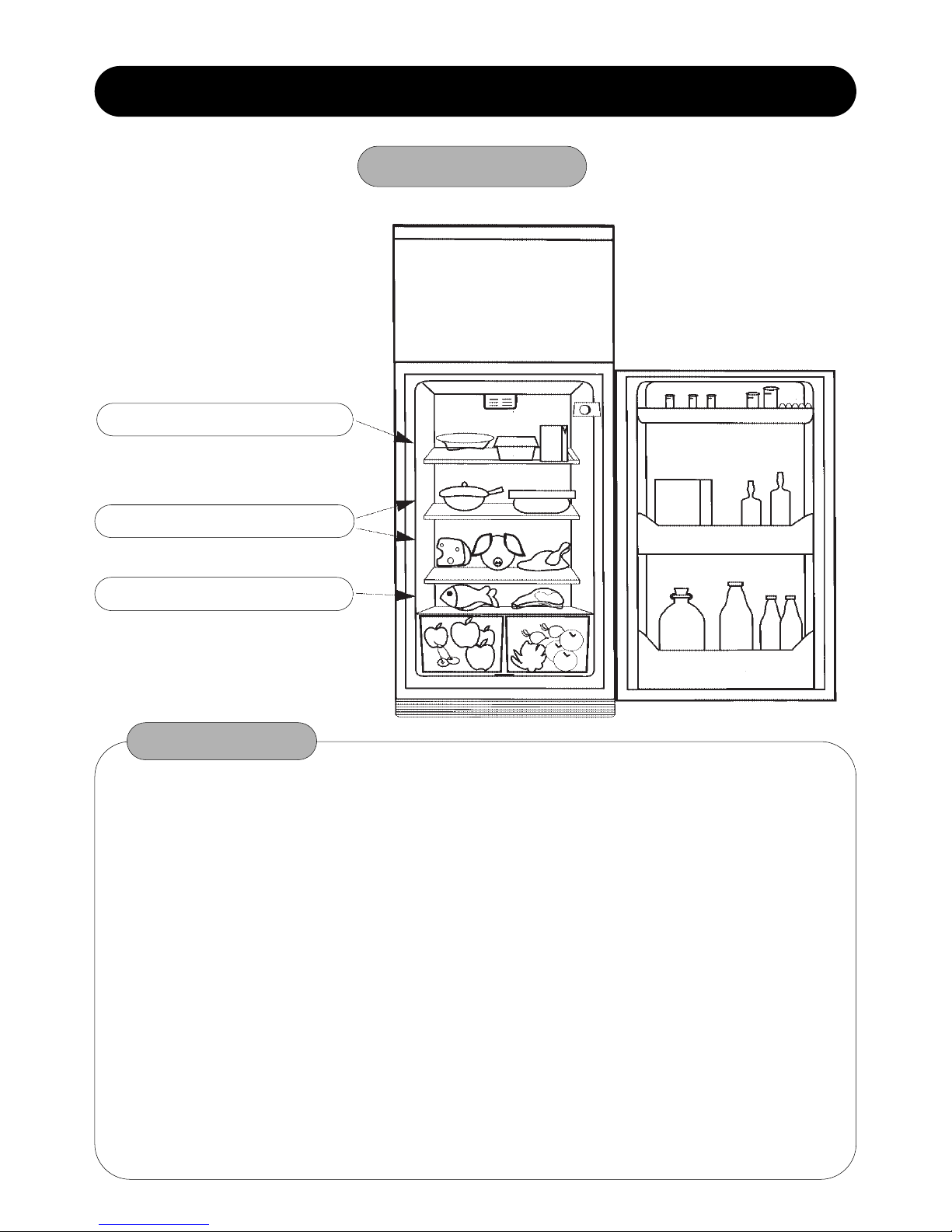

USING THE REFRIGERATOR
FOOD
ATTENTION
• The temperature inside the refrigerator can be selected by turning the
thermostat control.
• Remenber that the temperature is not totally uniform within the
interior as a whole and different sections are more suitable for different
types of food (as shown in the diagram).
• The temperature inside the refrigerator can be affected by the
ambient temperature, the location of the refrigerator and the frequency
with which the door is opened. In the event of very high room
temperatures, midrange setting of the thermostat will generate the best
results.
• Do not place uncovered liquids or hot food in the refrigerator.
• NEVER place volatile, inflammable or explosive liquids in the
refrigerator, such as solvents, alcohols, acetone or petrol as there will
be a risk of explosion.
• Meat and fish should be wrapped to avoid smells developing.
LEAST COLD AREA
INTERMEDIATE AREA
COLDEST AREA

ENGLISH
5
USING THE REFRIGERATOR
DEFROSTING
The refrigerator has an automatic defrosting system and it is
not therefore necessary to take any action.
The back wall of the
refrigerator is normally
covered with drops of water or
ice. This is completely NORMAL
and is part of the automatic
defrosting process.
Ensure that foods does not
touch the back wall. The trays
have a limit point for this
purpose which should not be
exceeded.

USING THE FREEZER
FREEZING FRESH FOOD
All the baskets in the freezer section of this refrigerator are
in the 4 star category and up to 4 kg of fresh food can be
frozen in 24 hours.
NOTE
ADVICE
• Wrap products to be frozen in aluminium foil or place them in sealed
containers.
• Prepare foods in single consumption portions.
• Never refreeze food which has been defrosted.
• Label food with detalis of the contents and date frozen.
• Do not place food to be frozen in direct contact with food already
frozen.
• Do not place fizzy drinks in the freezer section.
• Ice-cream, etc. should not be consumed at low a temperature.
6

ENGLISH
7
FISH AND SHELLFISH
Lobsters 3
Shrimps 3
Cold 2
Sardines and similar 3/4
Trout 2/3
Salmon 2/3
Sole 3
Turbot 2/3
MEAT
Beef 10/12
Mutton 6/8
Veal 9
Pork 6
Fillets/Chops 4
Liver/Kidneys 10
Brain/Tongue 2
Mincemeat, sausages 2
Rabbit 5/7
POUTRY AND GAME
Chickens 10
Turkey (in portions) 7
Duck, goose 5
Hare 6
Partidrige-Quail 8
Pheasants 7/8
Big game 10
READY TO SERVE FOOD
Tomato sauce 3
Stock 3
Beef, veal pork or chicken stews 2/3
Assorted vegetables 3
Stewed meat 3
Hamburguers 2
Stuffed peppers 2
Espinach 2
Brench beans 2
Tarts, confectionery, etc 5/6
Fruit salad 3
Sandwiches 6
SORT OF FOOD
Number
of months
• When you buy frozen food in your shop, try to introduce the products
into the freezer as soon as possible.
• Observe the preservation time that appear on the product packing,
taking into account this a freezer.
• When freezing food by yourself, consult the list of preservation times.
meses
6
FAGOR
Min Min Max
Predilect
DUOELECTRONIC
DIRECTIONS FOR USE YOUR FREEZER
FROZEN FOOD PRESERVATION
A FEW HINTS
CONSERVATION TIMES
VEGETABLES
Salt-wort 12
Artichoke 12
Carrots 12
Cauliflower 6/8
Brussels sprouts 6
Asparragus 12
Cabbage 6/8
Beans 12
Mushrooms 6
Parsley 12
Peppers 12
Spinach 12
Broad beans 12
FRUITS
Apricots 8
Cherises, plums, raspberries, 10
gooseberries, blackberries
Peaches 10/12
Strawberries 12
Stewed fruit (apples, pears) 10
Grapes 10/12
Fruit juices 10
Pineaple 10/12
BREAD CONFECTIONERY
Biscuits-tarts 6
Flaky pastry tart 1
Pastry (unbaked) 3
Bread and rolls 2
EGGS AND DAIRY PRODUCE
Eggs (shelled) 6
UHT Milk 3
Burter 6
Cheese (samall portions) 6/8
Fresh cream 3
SORT OF FOOD
Number
of months

8
1
2
3

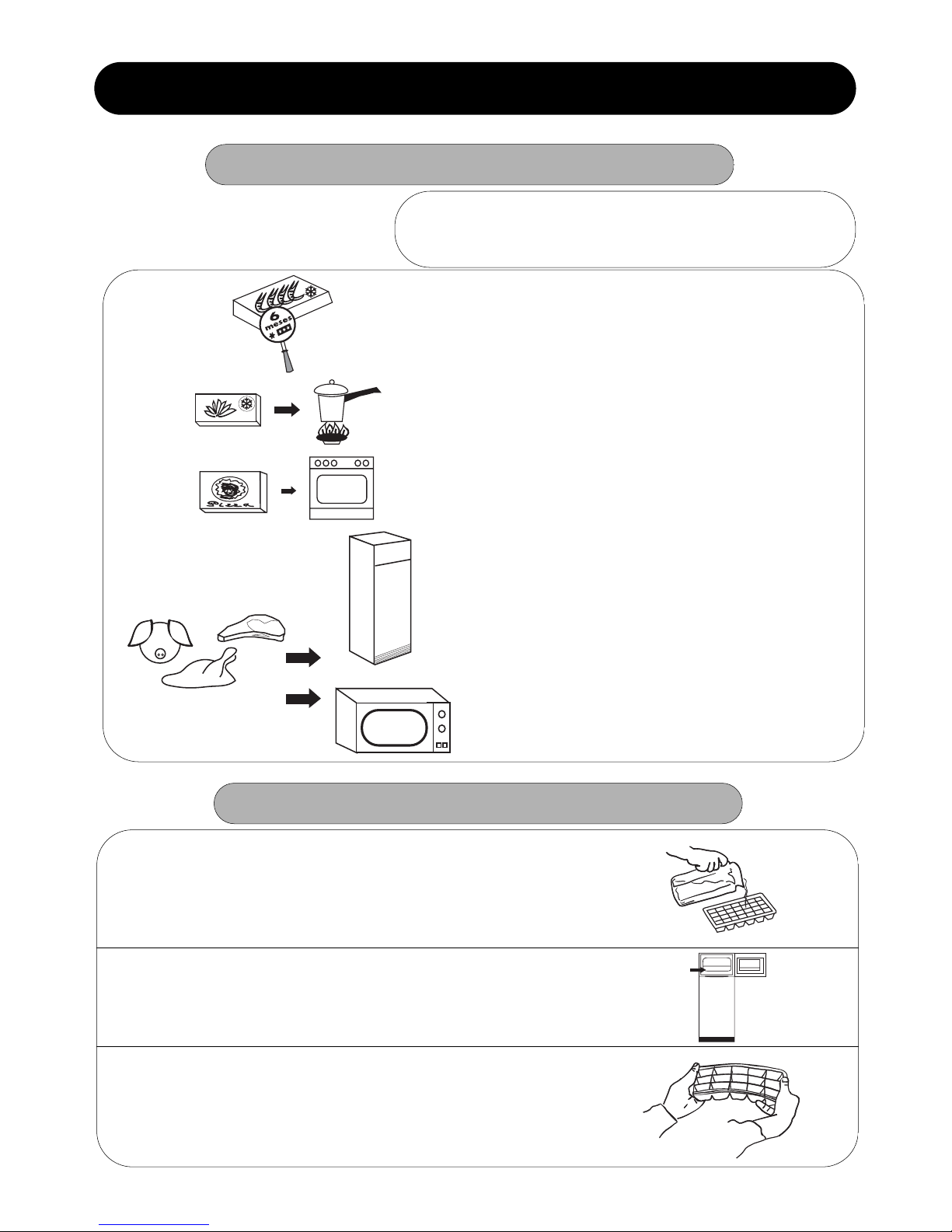

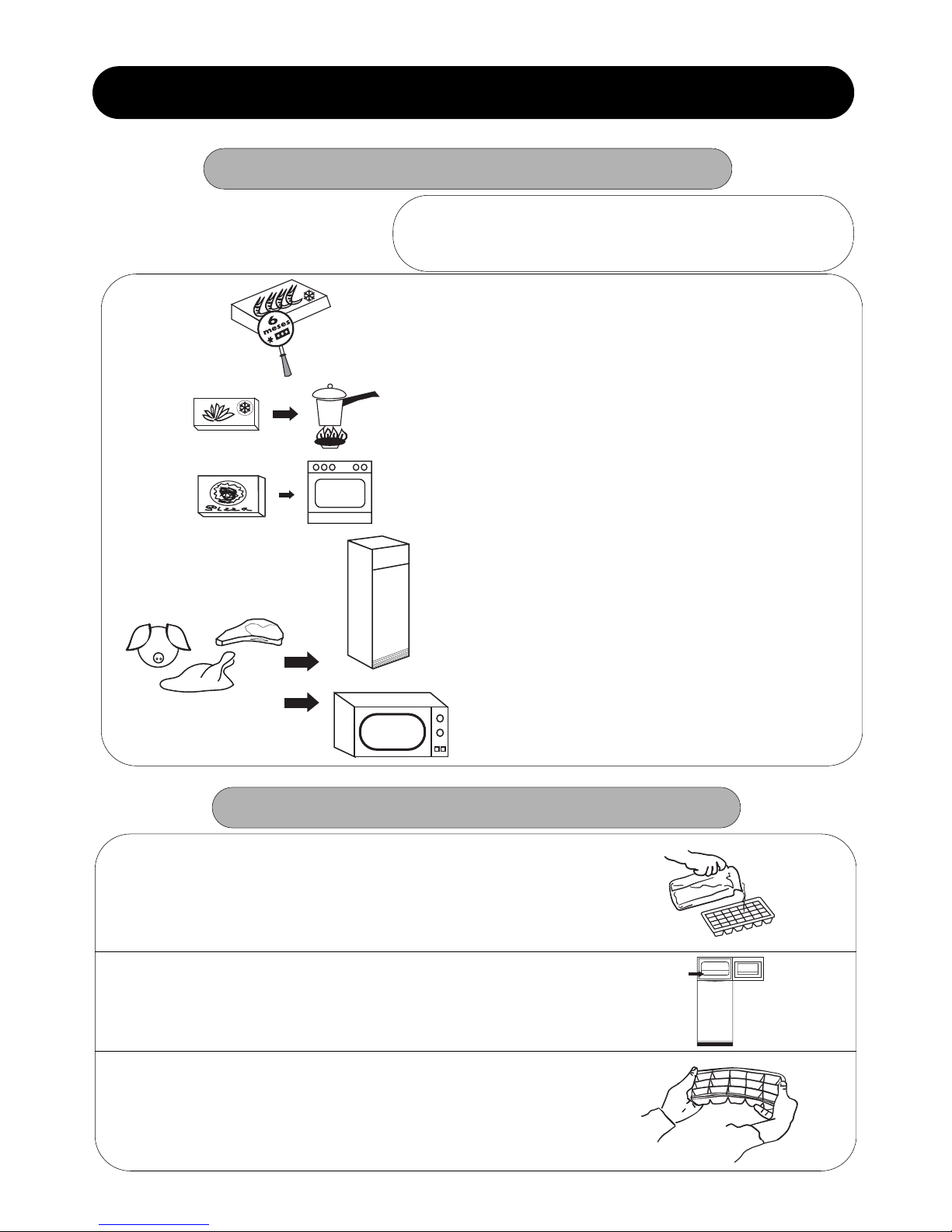

USING THE FREEZER
DEFROSTING FOOD
The same method should not be
used for defrosting all types of food.
If you purchase frozen food from
stores, follow the instructions on
the packaging.
Green vegetables should be
cooked without defrosting.
Pre-cooked and ready prepared
food can generally be cooked
without defrosting.
Meat and fish should be slowly
defrosted in the refrigerator over
several hours. If you have a
microwave oven, defrosting can to
a large extent be accelerated.
Fill the trays inside the freezer
three quarters full of water.
Place the trays in the freezer,
preferably in the top section.
Once frozen, the ice cubes can be
removed by gently twisting the
trays.
MAKING ICE CUBES

9

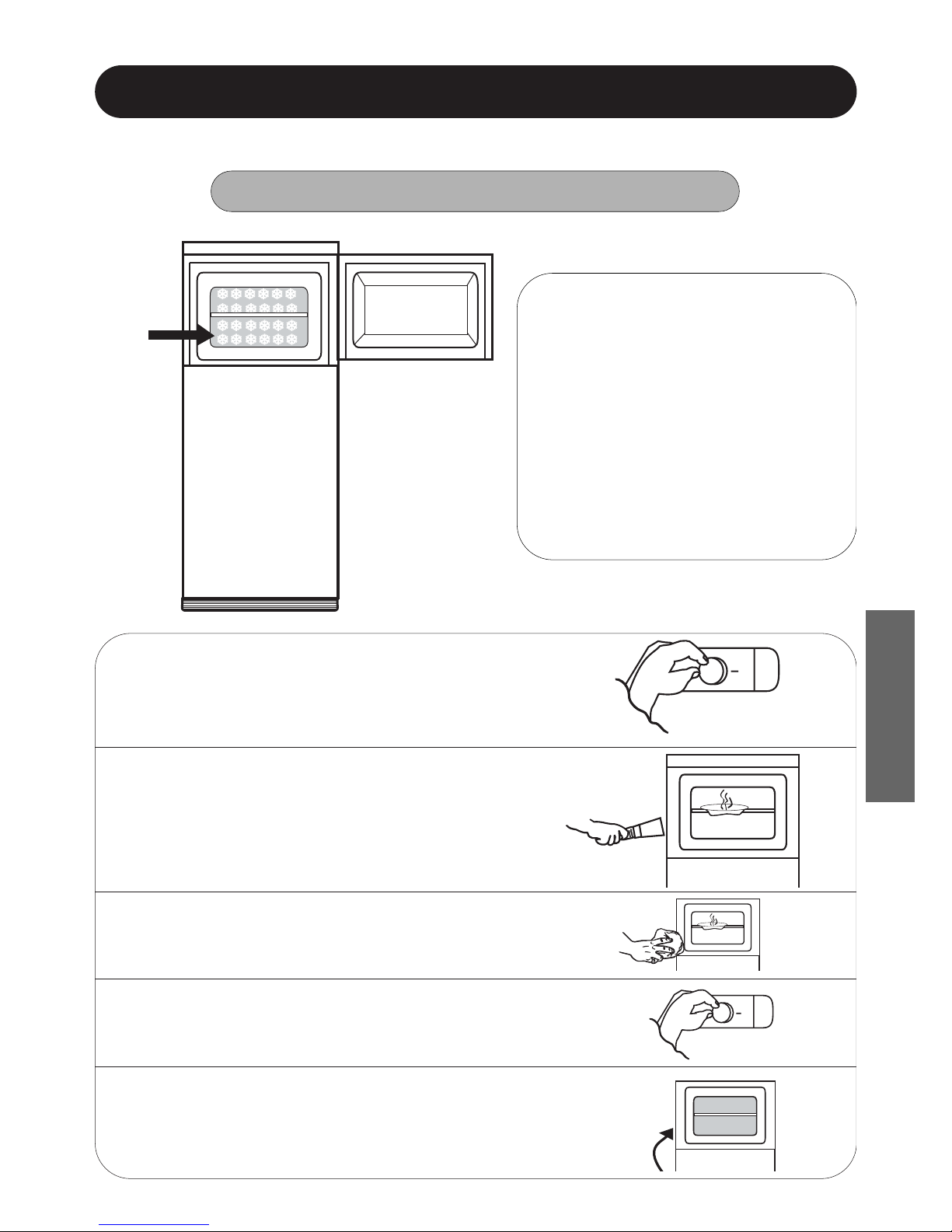

USING THE FREEZER
DEFROSTING AND CLEANING
A layer of ice or frost will in
time form on the walls of the
freezer.
This will lead to an increased
power consumption.
In order to avoid this, the
layer of ice should be
removed at least twice each
year.
Move the thermostat control to the
STOP position and the freezer will be
turned off.
A scraper can be used to help remove
the ice, or a container of hot water can
be placed inside. Do not use sharp
objects or electric heating devices.
Collect the water which forms with an
absorbent cloth and clean and dry the
inside thoroughly.
Move the thermostat control to the
normal operating position.
Two hours later the frozen food can be
replaced in the freezer.
1
2
3
4
5
STOP
MED
ENGLISH

4
USING THE REFRIGERATOR
FOOD
ATTENTION
• The temperature inside the refrigerator can be selected by turning the
thermostat control.
• Remenber that the temperature is not totally uniform within the
interior as a whole and different sections are more suitable for different
types of food (as shown in the diagram).
• The temperature inside the refrigerator can be affected by the
ambient temperature, the location of the refrigerator and the frequency
with which the door is opened. In the event of very high room
temperatures, midrange setting of the thermostat will generate the best
results.
• Do not place uncovered liquids or hot food in the refrigerator.
• NEVER place volatile, inflammable or explosive liquids in the
refrigerator, such as solvents, alcohols, acetone or petrol as there will
be a risk of explosion.
• Meat and fish should be wrapped to avoid smells developing.
LEAST COLD AREA
INTERMEDIATE AREA
COLDEST AREA

ENGLISH
5
USING THE REFRIGERATOR
DEFROSTING
The refrigerator has an automatic defrosting system and it is
not therefore necessary to take any action.
The back wall of the
refrigerator is normally
covered with drops of water or
ice. This is completely NORMAL
and is part of the automatic
defrosting process.
Ensure that foods does not
touch the back wall. The trays
have a limit point for this
purpose which should not be
exceeded.

USING THE FREEZER
FREEZING FRESH FOOD
All the baskets in the freezer section of this refrigerator are
in the 4 star category and up to 4 kg of fresh food can be
frozen in 24 hours.
NOTE
ADVICE
• Wrap products to be frozen in aluminium foil or place them in sealed
containers.
• Prepare foods in single consumption portions.
• Never refreeze food which has been defrosted.
• Label food with detalis of the contents and date frozen.
• Do not place food to be frozen in direct contact with food already
frozen.
• Do not place fizzy drinks in the freezer section.
• Ice-cream, etc. should not be consumed at low a temperature.
6

ENGLISH
7
FISH AND SHELLFISH
Lobsters 3
Shrimps 3
Cold 2
Sardines and similar 3/4
Trout 2/3
Salmon 2/3
Sole 3
Turbot 2/3
MEAT
Beef 10/12
Mutton 6/8
Veal 9
Pork 6
Fillets/Chops 4
Liver/Kidneys 10
Brain/Tongue 2
Mincemeat, sausages 2
Rabbit 5/7
POUTRY AND GAME
Chickens 10
Turkey (in portions) 7
Duck, goose 5
Hare 6
Partidrige-Quail 8
Pheasants 7/8
Big game 10
READY TO SERVE FOOD
Tomato sauce 3
Stock 3
Beef, veal pork or chicken stews 2/3
Assorted vegetables 3
Stewed meat 3
Hamburguers 2
Stuffed peppers 2
Espinach 2
Brench beans 2
Tarts, confectionery, etc 5/6
Fruit salad 3
Sandwiches 6
SORT OF FOOD
Number
of months
• When you buy frozen food in your shop, try to introduce the products
into the freezer as soon as possible.
• Observe the preservation time that appear on the product packing,
taking into account this a freezer.
• When freezing food by yourself, consult the list of preservation times.
meses
6
FAGOR
Min Min Max
Predilect
DUOELECTRONIC
DIRECTIONS FOR USE YOUR FREEZER
FROZEN FOOD PRESERVATION
A FEW HINTS
CONSERVATION TIMES
VEGETABLES
Salt-wort 12
Artichoke 12
Carrots 12
Cauliflower 6/8
Brussels sprouts 6
Asparragus 12
Cabbage 6/8
Beans 12
Mushrooms 6
Parsley 12
Peppers 12
Spinach 12
Broad beans 12
FRUITS
Apricots 8
Cherises, plums, raspberries, 10
gooseberries, blackberries
Peaches 10/12
Strawberries 12
Stewed fruit (apples, pears) 10
Grapes 10/12
Fruit juices 10
Pineaple 10/12
BREAD CONFECTIONERY
Biscuits-tarts 6
Flaky pastry tart 1
Pastry (unbaked) 3
Bread and rolls 2
EGGS AND DAIRY PRODUCE
Eggs (shelled) 6
UHT Milk 3
Burter 6
Cheese (samall portions) 6/8
Fresh cream 3
SORT OF FOOD
Number
of months

8
1
2
3
USING THE FREEZER
DEFROSTING FOOD
The same method should not be
used for defrosting all types of food.
If you purchase frozen food from
stores, follow the instructions on
the packaging.
Green vegetables should be
cooked without defrosting.
Pre-cooked and ready prepared
food can generally be cooked
without defrosting.
Meat and fish should be slowly
defrosted in the refrigerator over
several hours. If you have a
microwave oven, defrosting can to
a large extent be accelerated.
Fill the trays inside the freezer
three quarters full of water.
Place the trays in the freezer,
preferably in the top section.
Once frozen, the ice cubes can be
removed by gently twisting the
trays.
MAKING ICE CUBES

ENGLISH
9
USING THE FREEZER
DEFROSTING AND CLEANING
A layer of ice or frost will in
time form on the walls of the
freezer.
This will lead to an increased
power consumption.
In order to avoid this, the
layer of ice should be
removed at least twice each
year.
Move the thermostat control to the
STOP position and the freezer will be
turned off.
A scraper can be used to help remove
the ice, or a container of hot water can
be placed inside. Do not use sharp
objects or electric heating devices.
Collect the water which forms with an
absorbent cloth and clean and dry the
inside thoroughly.
Move the thermostat control to the
normal operating position.
Two hours later the frozen food can be
replaced in the freezer.
1
2
3
4
5
STOP
MED

10

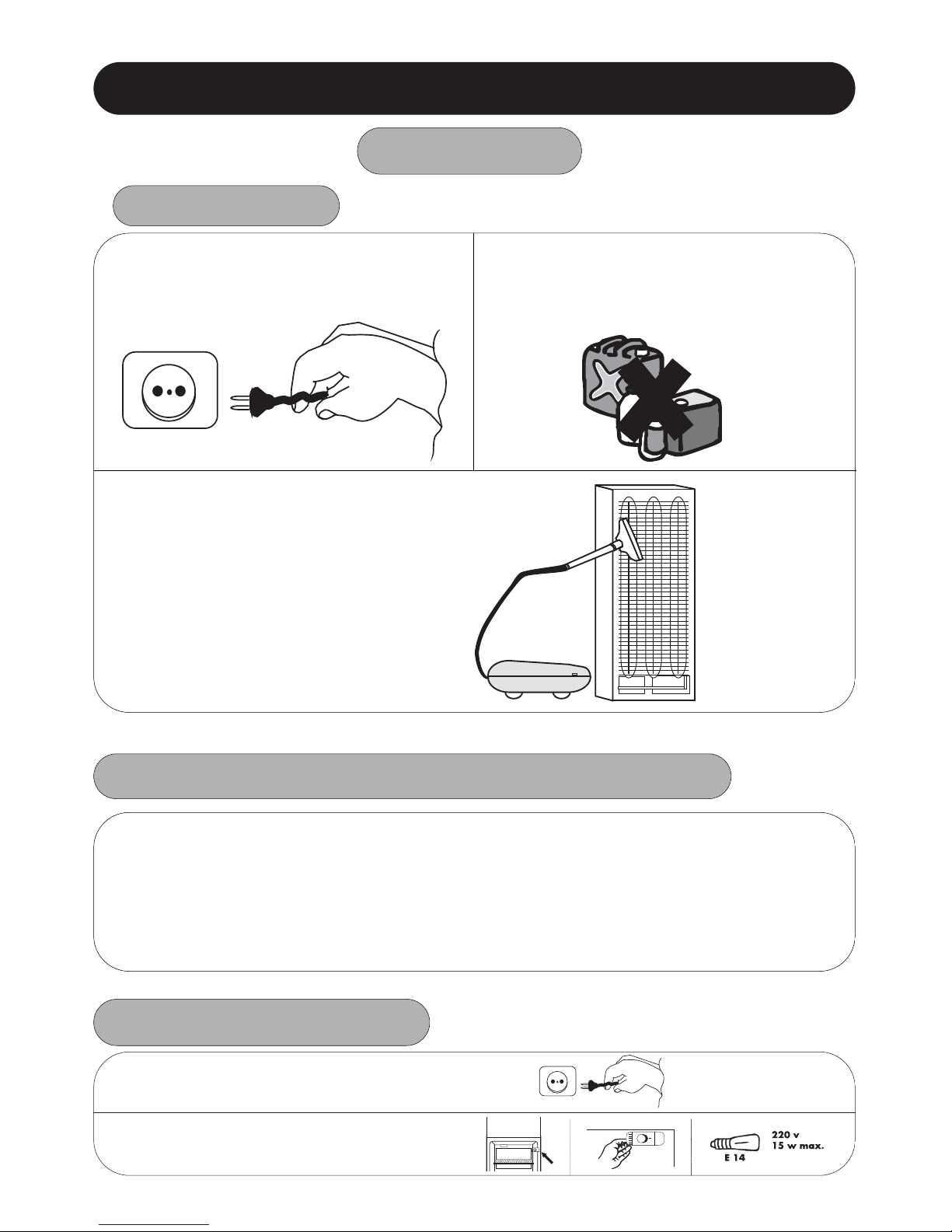

CLEANING AND MAINTENANCE
CLEANING
ADVICE
The refrigerator should be
disconnected before cleaning the
inside.
Do not use abrasive products,
solvents, metal cleaning products or
undiluted detergents.
TEMPORARILY TURNING OFF THE REFRIGERATOR
• Disconnect the refrigerator.
• Remove food and clean and dry the inside.
• Leave the door open to avoid the formation of offensive odours.
• Follow the same procedure in the event of a prolonged power cut or
refrigerator breakdown.
CHANGING THE BULB
1- Disconnect the refrigerator.
2- Remove the old bulb and replace
with a similar type.
The grill on the rear
part of the refrigerator
should be cleanned
once a year with a
vacuum cleaner. Dirt
will prevent proper
functioning increase
electricity
consumption.

ENGLISH
11
CHANGINC THE DIRECTION OF DOOR OPENING
Lay the fridge down on its back.
Remove the lower skirting, if any, from
the refrigerator, as shown in the
diagram. Then remove the left part of
the skirting as shown to locate the
lower hinge as shown in the diagram.
Remove the bottom hinge by undoing
the 3 screws (A) holding it in place.
Take out the pin (B) on the right-hand
side and fit it to the left-hand side of
the hinge. Undo the 2 screws (C) and
screw them in the right-hand side.
Take off the bottom door.
Remove the middle hinge, by
removing the strip protecting and
hiding the screws and then undoing
the screws. Also remove the left-hand
side cover and fit it where the hinge
was before. Take off the top door.
Take out the pin (D) on the right-hand
side and fit on the left-hand side.
1
2
3
4
5D

12
Remove the cover of the left-hand side
lower door spindle and place it on the
right-hand side (Panellable models do
not have this cover).
Put the top door back on, fitting it on
the pin on the left-hand side.
Fit the middle hinge on the left-hand
pin on the top door and screw it to the
fridge. Put the bottom door on, fitting
it on the middle hinge pin. Then
replace the strip to protect and hide
the screws.
Fit the bottom hinge on the left-hand
side and secure it with the 3 screws.
Replace the lower skirting.
If you fridge accepts panels, the
door handles should be changed
from one side to the other.
9
10
11
6
7
8

ENGLISH
13
PROBLEMS
PROBLEM POSSIBLE REASON SOLUTION
The refrigerator is not working
The refrigerator does not get
properly cold
Drops of water on the rear wall
of the refrigerator
Water shows up of the bottom
of the refrigerator
A large amount of ice forms on the
walls and shelves of the freezer
The refrigerator light does not
come on
Noisy operation
A bubbling noise
Food dries out
Unpleasant shell inside the
refrigerator
The plug is not properly connected to the
power supply.
Electricity is not reaching the plug
because a fuse has blown or an automatic
circuit breaker has opened.
The thermostat is set too low.
The door has not been closed properly or
is opened too often.
The ventilation grill or the opening to the
rear of the rear part of the refrigerator has
been obstructed.
The refrigerator is in direct sunlight or
exposed to a heat source.
Automatic defrosting cycle.
Food or a container has been placed in
contact with the rear wall of the
refrigrator.
The freezer door is obstructed and does
not close properly.
The plug is not properly connected to the
power supply.
Electricity is not reaching the plug
because a fuse has blown or an automatic
circuit breaker has opened.
The bulb is loose.
The bulb has blown.
The refrigerator has not been properly
levelled.
Operating cycle.
Food is not wrapped or placed in a
container.
Food is not properly wrapped or in a
container.
The inside of the refrigerator needs
cleaning.
Connect the plug.
Change the fuse or reset the automatic
circuit breaker.
Turn the thermostat to a colder position.
Ensure that the door does not remain open
for too long.
Keep these areas free as indicate in the
Installation section of this manual.
Change the location of the refrigerator or
protect it from heat sources.
Do not worry -this is completely normal
(see section on Using the Refrigerator in
this manual).
Do not place food or containers in contact
with the rear wall to avoid spillage of water
formed when defrosting.
Make sure that doors close properly by
keeping them free from dirt and
obstructions.
Connect the plug.
Change the fuse or reset the automatic
circuit breaker.
Insert properly.
Change the bulb as indicated in this
manual.
Level the refrigerator as indicated in the
Installation section of this manual.
Do not worry -this is completely normal.
Wrap or place food in sealed containers.
Wrap food or place it in a sealed
container.
Clean the refrigerator as shown in this
manual.
TECHNICAL SERVICE
If you have carried out the above checks and the problem persists DO NOT CARRY OUT ANY REPAIRS
YOURSELF.
Contact your nearest Technical Service.
