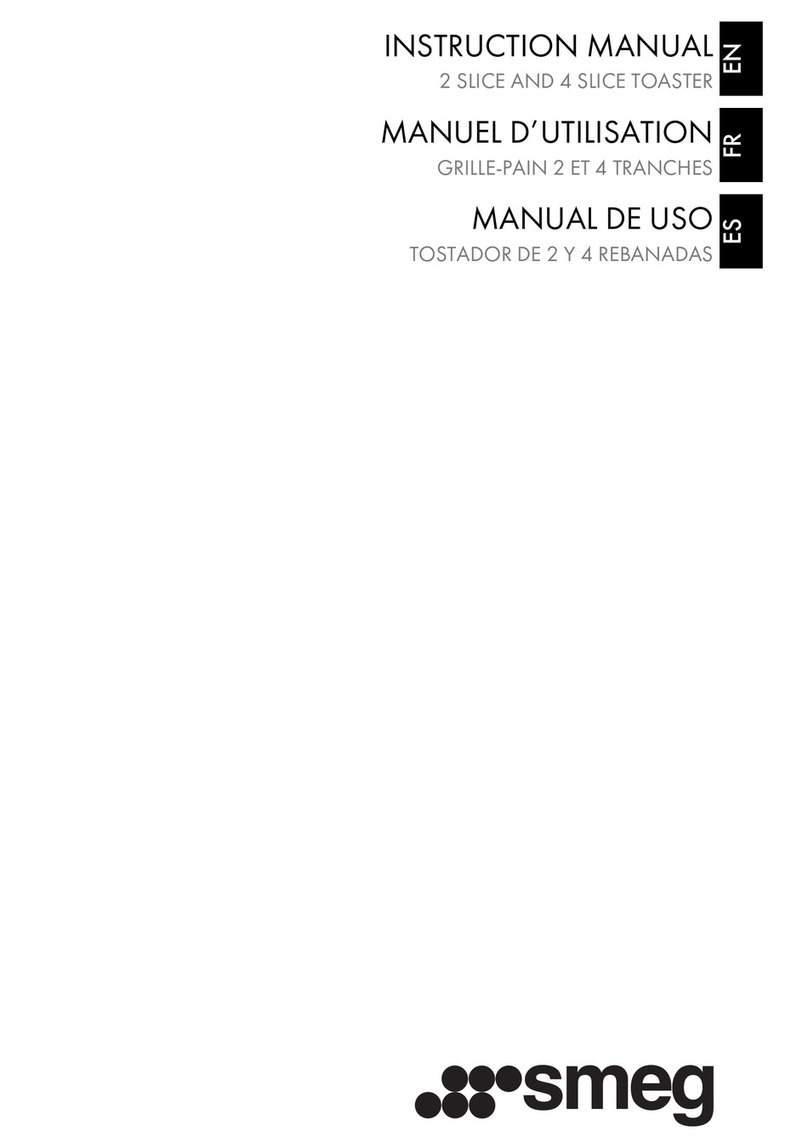

Smeg TSF01 User manual

INSTRUCTION MANUAL
EN
2 SLICE AND 4 SLICE TOASTER
MANUEL D’UTILISATION
FR
GRILLE-PAIN 2 ET 4 TRANCHES
MANUAL DE USO
ES
TOSTADOR DE 2 Y 4 REBANADAS

INSTRUCTION MANUAL
EN
2 SLICE AND 4 SLICE TOASTER
MANUEL D’UTILISATION
FR
GRILLE-PAIN 2 ET 4 TRANCHES
MANUAL DE USO
ES
TOSTADOR DE 2 Y 4 REBANADAS
Important information for the user
Informations importantes pour l’utilisateur
Información importante para el usuario
Instructions / Instructions / Instrucciones
Description / Description / Descripción
Use / Usage / Uso
Cleaning and maintenance / Nettoyage et entretien / Limpieza y mantenimiento
Safety instructions / Directives de sécurité / Instrucciones de seguridad
Information / Informations / Información
Advice / Conseil / Recomendaciones

Model: TSF01-02
6 7
21
2
13
5
8 9
4
A
14
15
10
11
12
13
B C
D
E

9
EN
Description
2 Product description
(Fig. A - B)
1) Extra-wide slots with self-centering racks
2) Breadlift
3) Control panel
4) Crumb tray
5) Cable compartment (under base)
6) TSSR01 Sandwich racks (optional
accessory suitable for TSF01 Toaster)
7) TSSR02 Sandwich racks (optional
accessory suitable for TSF02 Toaster)
8) TSBW01 Bun Warmer (optional
accessory suitable for TSF01 Toaster)
9) TSBW02 Bun Warmer (optional
accessory suitable for TSF02 Toaster)
10) Defrost function button
11) Browning control knob
12) Browning indicator
13) Stop function button
14) Bagel function button
15) Reheat function
2.1 Control panel (Fig. B)
• Defrost function button (10 - Fig. B)
This function is useful when using frozen
bread. During toasting the defrost button will
light up to indicate that the cycle is activated.
• Browning control knob (11 - Fig. B)
This control is used to select one of the 6
different browning levels or the Reheat
function. During toasting the central LED
lights up to indicate that the toasting cycle is
activated.
• Browning indicator (12 - Fig. B)
The Browning indicator shows the selected
browning level or the selected Reheat
function.
• Stop function button (13 - Fig. B)
The Stop button can be used to cancel or
stop the toasting cycle at any time.
• Bagel function button (14 - Fig. B)
This feature will toast one side of a bagel or
any other kind of bread, without toasting the
other side. During toasting the Bagel button
will light up to indicate that the function has
been activated.
• Reheat function (15 - Fig. B)
This function is used to reheat cold toast or
to continue a toasting cycle if the result is not
satisfactory. During toasting the central LED
lights up to indicate that the cycle is activated.

10
Use
3 Use
Volts: 120 Volts AC only.
Hertz: 60 Hz
Tips and suggestions
Your toaster has a 3-prong
grounded plug. To reduce the risk
of electrical shock, this plug will fit
in an outlet only one way. If the plug
does not fit in the outlet, contact a
qualified electrician. Do not modify
the plug in any way.
• If the power supply cord is too short, have
a qualified electrician or serviceman install
an outlet near the appliance.
• A short power supply cord (or detachable
power supply cord) should be used to
reduce the risk resulting from becoming
entangled in or tripping over a longer
cord.
• Longer detachable power supply cords or
extension cords are available and may be
used if care is exercised in their use.
• If a longer detachable power supply cord
or extension cord is used:
- The marked electrical rating of the cord
set or extension cord should be at least
as great as the electrical rating of the
appliance.
- The cord should be arranged so that
it will not drape over the countertop or
tabletop where it can be pulled on by
children or tripped over unintentionally.
- If the appliance is of the grounded
type, the extension cord should be a
grounding-type 3-wire cord.
3.1 Before first use
1) Remove all stickers and any packing or
printed material that might have fallen
inside during shipping or handling. Do
not probe inside the toaster with a metal
object.
2) Clean the outside of the toaster with a
damp cloth.
3) Use the toaster for the first time without
any bread in it.
4) Turn the browning control to the
maximum position and press the breadlift
down. In this way you will burn off any
dust that has fallen into the toaster during
production or transport.
During first use there may be
some smoke and odors.
Tips and suggestions
• Remember that the type of
bread you use will impact the
toasting times. The fresher the
bread you use, the longer it will
take to toast. Different kinds of
bread have different moisture
content and will require different
browning levels. For example,
fruit breads generally toast
much quicker, and freshly baked
breads will take longer as they
have a greater moisture content.

11
EN
Use
6) If needed, select the additional functions
Defrost (10 - Fig. B)or Bagel (14 - Fig. B)
or the two combined.
7) The heating element is now activated.
The bread will be centered in the
breadlift automatically for toasting.
8) The toasted bread will pop up
automatically when the toast is ready.
9) If the toast is not brown enough and
requires just a little extra time, use the
reheat button to extend the toasting time.
3.3 Special functions
Canceling/stopping the toasting cycle
At any time, it is possible to cancel or stop
the toasting cycle by pushing the button
(13 - Fig. B).
Defrost (10 - Fig. B)
This function gently defrosts frozen bread
and toasts it to the selected browning level.
To activate it, insert the bread into the slot,
select the desired browning level, press the
breadlift down until it clicks, then push the
defrost button, which will light up. Toasting
time will be automatically increased to allow
the bread to defrost and brown correctly.
When the toast pops up automatically, the
light of the defrost button will switch off.
Bagel (14 - Fig. B)
This special function is ideal for toasting one
side only, for bagels, flat bread, English
muffins, baguettes, etc. To use the function,
simply insert the bread into the slot with the
side that you want toasted facing the outside.
Select the desired browning level, press the
breadlift down until it clicks, then push the
Bagel function button, which will light up.
Tips and suggestions
• The first batch of toast you make
enables the heating elements
to reach the correct toasting
temperature. Please note that
further batches of toast could
take less time.
For best results:
• Toast only one type of bread at
a time.
• Toast bread slices of the same
thickness.
• Use bread slices no thicker than
one inch.
• If you are using handcut bread,
try to cut slices as evenly as
possible. Uneven slices will toast
unevenly.
• Be aware that if you use very thin
or broken slices of bread, they
will burn.
3.2 Operation
If necessary, shorten the cord by wrapping it
under the base (5 - Fig. A).
1) Plug in the toaster.
2) Insert the bread in the slot (Fig. C).
3) Remember that as bread is not normally
square, you may need to turn the bread
on its side to get a better fit and optimize
the toasting surface area.
4) Choose the desired browning level
(Browning levels 1 to 6, from light
to dark) or the “Reheat function”
(15 - Fig. B).
5) Push the lever down until it clicks to
activate the toasting cycle (Fig. C).

12
Use
When the bread is toasted, it will pop up
automatically and the Bagel function light
will switch off.
Reheat (15 - Fig. B)
This function allows you to reheat cold toasts
or to continue a toasting cycle if the result
is not satisfactory. To activate it, insert the
bread into the slot, select the Reheat function
on the browning control knob and press
the breadlift down until it clicks. The central
light of the browning control knob will light
up. When the toast is ready, it will pop up
automatically and the light of the control
knob will switch off.
Defrost or Reheat can be selected
at the same time as the Bagel
function.
3.4 Using optional accessories
(6,7,8,9 - Fig. A)
Accessories may differ according
to the model.
Sandwich racks (1-Fig. D)
The sandwich racks are ideal for toasting
filled sandwiches, or for easier handling of
smaller items such as bagels.
• TSSR01 model suitable for TSF01 Toaster
(6 - Fig. A)
• TSSR02 model suitable for TSF02 Toaster
(7 - Fig. A).
Tips and suggestions
• Lightly butter the outside of the
bread, this prevents burning and
helps with the warming of the
filling. Do not butter the inside of
the sandwich.
• For best results use thinly sliced
ingredients and finely grated
cheese.
• For best results use cold meat
(ham, turkey, etc.) at room
temperature, not straight from the
refrigerator.
• Do not overfill the sandwich.
• If using a low browning setting,
the filling might not heat through
correctly. In this case, at the end
of the toasting cycle, leave the
toast inside the toasting slot for
longer, or extend the time by
using the reheat button.
How to use (1 - Fig. D) :
1) Open the rack with the handles.
2) Place the sandwich inside the rack.
3) Close the sandwich rack handles
together to grip the sandwich in the
middle of the racks.
4) Insert the sandwich rack into the slot and
select a browning level. If a little more
browning is required, you can use the
reheat button to extend the toasting time.
5) Push the breadlift down until it clicks to
activate the toasting cycle.
6) When the toasting cycle has ended
remove the sandwich rack from the
toaster.

13
EN
Use / Cleaning and maintenance
Bun Warmer (2 - Fig. D)
The bun warmer is used to warm small bread
rolls, flat bread or pastries.
• TSBW01 model suitable for TSF01 Toaster
(8 - Fig. A)
• TSBW02 model suitable for TSF02 Toaster
(9 - Fig. A).
How to use (2 - Fig. D) :
1) Place the bun warmer on top of the
toaster, making sure the wire feet on the
bottom of the warmer fit into the toaster
slots.
2) Place small bread rolls, flat bread or
pastries on top of the warmer and set the
browning level to ‘1’ (no higher).
3) Lower the breadlift until it clicks to
activate the toasting cycle.
4 Cleaning and
maintenance
4.1 Cleaning the surfaces
To keep the surfaces in good condition, clean
regularly after use. Let them cool first.
Never use products that contain abrasives or
chlorine-based acids.
Pour the product onto a damp cloth and
wipe the surface, then wipe over thoroughly
and dry with a soft cloth or a microfiber cloth
Tips and suggestions
If grease or oil splatters on the
toaster, wipe it off immediately
using a clean, damp cotton cloth.
Any other servicing should be performed by
an authorized service representative.
4.2 Food stains or residues
Do not use metallic sponges or sharp
scrapers as they will damage the surfaces.
Use ordinary non-abrasive products with the
aid of wooden or plastic utensils if necessary.
Wipe over thoroughly and dry with a soft
cloth or a microfiber cloth.

14
Cleaning and maintenance / Troubleshooting
4.3 Cleaning the crumb tray
(Fig. E)
1) Push the Crumb Tray (4 - Fig. A) to unlock
it, then pull to slide it out and empty it.
The Crumb Tray should be emptied after
each use.
Tips and suggestions
The Crumb Tray is hand-washable.
Always dry the tray thoroughly
before putting it back in the toaster.
2) Put the Crumb Tray back in the toaster.
Press it in firmly until it clicks into position.
Do not use the toaster without the Crumb
Tray in the proper position.
3) Do not use any toaster cover.
4.4 Cleaning the optional
sandwich rack and bun
warmer
Wash the sandwich rack and bun warmer by
hand in warm soapy water. After washing,
rinse them and dry them thoroughly with a
soft cloth.
Troubleshooting
If your toaster should fail to operate, check
the following:
• Check that the toaster is plugged into a
grounded 3-prong electrical outlet. If it is,
unplug the toaster.
• Plug in the toaster.
• If the toaster still does not work, check the
household fuse or circuit breaker.
If the problem cannot be solved:
• See the Smeg Warranty and Service
sections.
