Smeg SWM65 User manual

FULL ELECTRONIC
WASHING MACHINE
USER MANUAL

THE CONTENTS
SECTION 1:BEFORE USING
•Safety warnings
•Recommendations
SECTION 2:INSTALLATION
•Removal of transportation screws
•Adjustment of feet
•Electrical connection
•Water supply connection
•Water drain connection
SECTION 3:TECHNICAL SPECIFICATIONS
SECTION 4:CONTROL PANEL
•Start/Pause button
•Function indicator lights
•Function buttons
•Program knob
SECTION 5:WASHING YOUR LAUNDRY
•Before washing
•Running the machine
SECTION 6:MAINTENANCE AND CLEANING
•Water inlet filters
•Pump filter
•Detergent drawer
•Siphon plug
•The cabinet
•The drum
•Remove of your machine from lime
SECTION 7: PRACTICAL INFORMATION
SECTION 8:AVOIDING MINOR FAULTS
SECTION 9:AUTOMATIC FAILURE DETECTION SYSTEM
SECTION 10:INTERNATIONAL WASHING SIGNS
1

SECTION 1:BEFORE USING
SAFETY WARNINGS
•Do not use a multiple socket or extension cord.
•Do not insert a plug with damaged or broken cord into the socket.
•If the cord is damaged it should be replaced by the manufacturer or
appointed service agent in order to avoid a hazard.
•Never remove the plug from the socket by pulling from the cord
section. Remove the plug by holding.
•Do not plug the power supply with wet hands.
•Never touch the machine with wet hands or feet.
•Never open the detergent drawer while the device is running.
•Never force to open the door of the machine while the machine is
running.
•Since the machine can reach high temperatures while running, do not
touch the drain hose and water during draining.
•In case of any failure, first unplug the device and close the water tap.
Do not attempt to repair.Please apply to the nearest authorized
service station.
•Do not forget that the packing material of your machine may be
hazardous for children.
•Do not let your children play with the washing machine.
•Keep your pet away from your machine.
•Your machine should only be used by adults within the information
written in this manual.
•Your machine is designed for use in house environment. Warranty
will be invalid if you use it for commercial purposes.
•The appliance should not be put on a carpet which can block the air
ventilation on the bottom side.
RECOMMENDATIONS
•The detergent or softener in contact with air for a long time will dry
and stick to your detergent drawer.To avoid this put your detergent
and softener into the detergent drawer just before washing.
•It is recommended that you use pre-washing program for only very
dirty clothes.
•Please do not exceed the maximum loading capacity.
2

•If you will not use your machine for a long time, unplug your machine,
close the water supply and leave the door open in order to keep the
inside of the machine dry and for prevention from unpleasant odour.
•As a result of the quality control procedures, a certain amount of
water may remain in your machine. This is not harmful for your
machine.
SECTION 2: INSTALLATION
You must pay attention to the following issues before using your washing
machine.
REMOVAL OF TRANSPORTATION SCREWS
•Transportation screws, which are located at the back side of the
machine, must be removed before running the machine.
•Loosen the screws by rotating counterclockwise by a suitable wrench.
(DIAGRAM-1)
•Remove the screws by pulling them.(DIAGRAM-2)
•To the holes where the transport screws have been removed, insert
the plastic transport screw taps found in the accessories bag.
(DIAGRAM-3)
•The transportation screws, that have been removed from the machine
should be kept in hand for any other transportation necessities.
DIAGRAM-2
DIAGRAM-1 DIAGRAM-3
3

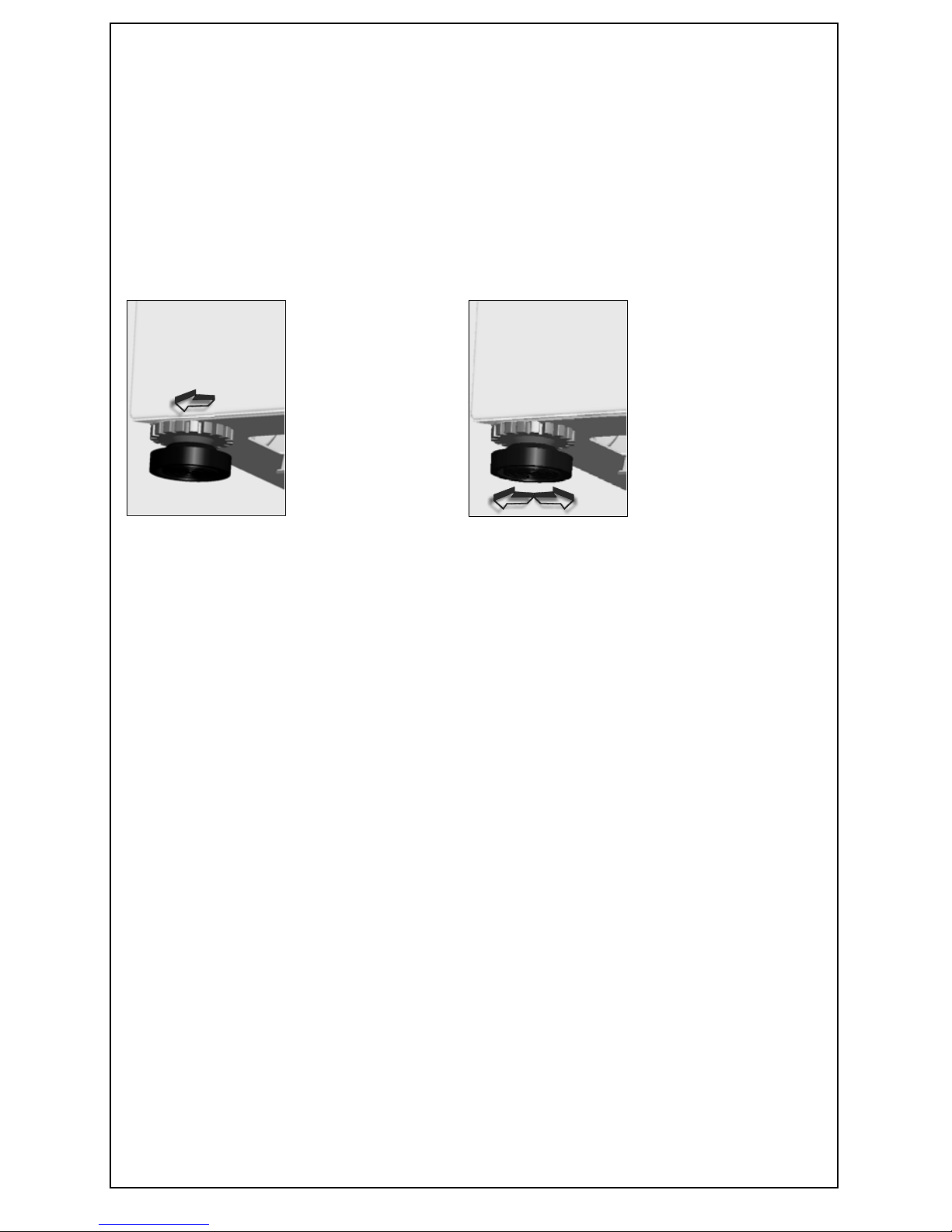

ADJUSTMENT OF FEET
•Do not install your machine on rugs or similar surfaces.
•For your machine to work silently and without any vibration, it should
be settled on a flat, non-slippery and tough ground.
•You can adjust the balance of your machine from its feet.
•First, loosen the plastic adjustment nut.
•Adjust by rotating the feet upwards or downwards.
•After the balance has been reached, tighten the plastic adjustment
nut again by rotating it upwards.
•Never put cartons, wooden blocks or similar materials under the
machine to balance the irregularities on the level of the ground.
ELECTRICAL CONNECTION
•Your washing machine works with 220-240V and 50Hz.
•A special grounded plug has been attached to the network cable of
your washing machine. This plug must definitely be inserted to a
grounded socket with 10 ampere. The fuse flow value of the
electricity line attached to this should also be 10 ampere. If you have
no such sockets and fuses in your house, let it be made by a qualified
electrician.
•Our company will not be responsible for any damages that may
occur as a result of usage without grounding.
•Insert the machine’s plug to a grounded socket which you can
easly reach.

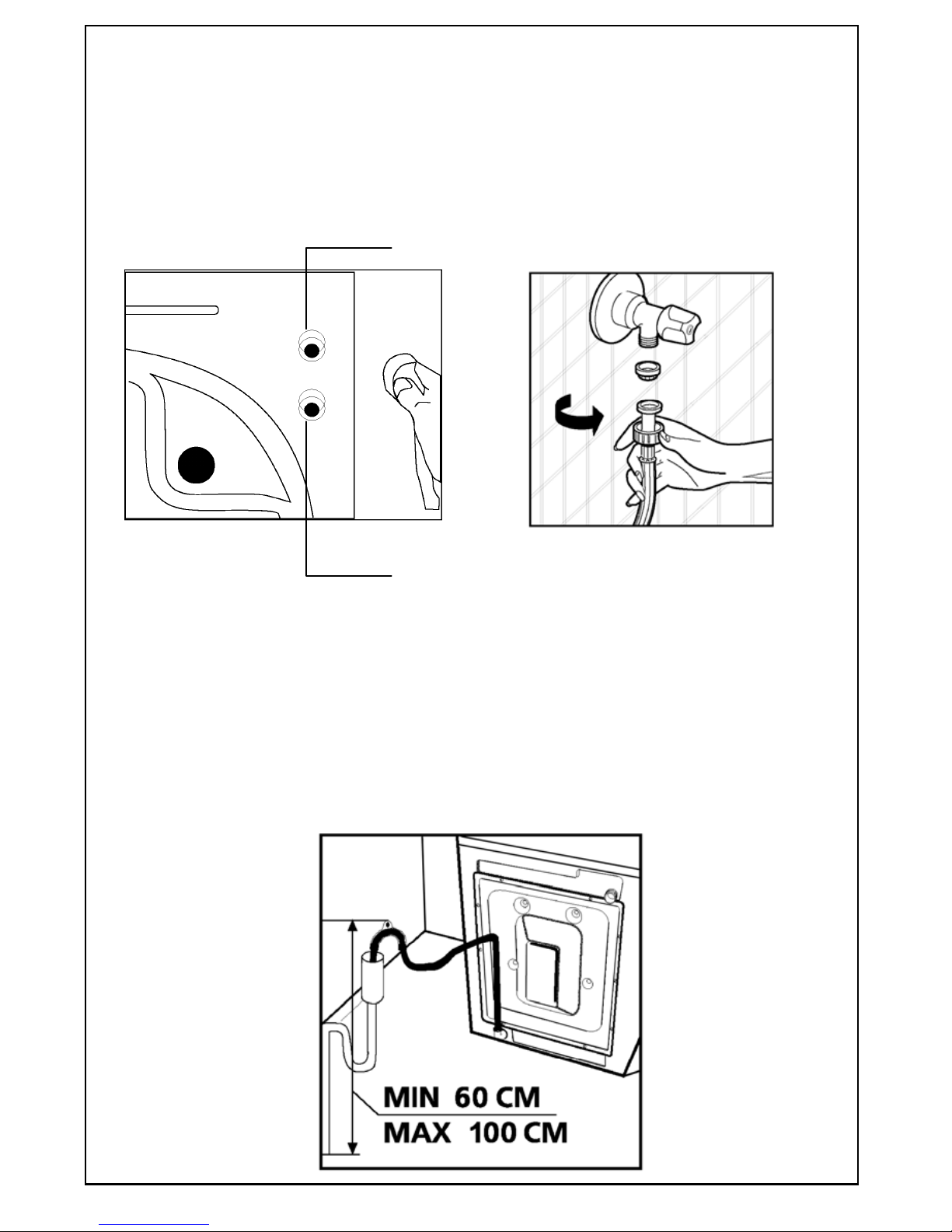

WATER SUPPLY CONNECTION
•Depending on the features your machine,may be with single water
inlet(cold) or double water inlet (cold/hot). The white headed hose is
for cold water inlet and red headed hose is for hot water inlet (valid
for machines with hot&cold water inlet).
•To prevent leakage from the connection joints, 1 (valid for cold water
inlet) or 2 (valid for machines with hot&cold water inlet) seals are
included in the hose packing. Fit these seals at the end of water inlet
hoses on the tap side.
•Connect the white headed hose to the water inlet valve with white
filter and connect the red headed hose to the water inlet valve with
red filter (latter is valid in machines with hot&cold water inlet). Tighten
the plastic parts of the connections with your hand.Please call a
qualified plumber for safer connections.
4

•Water pressure of 1-10 bars from your tap will enable your machine
to work more efficiently.(1 bar pressure means water flow of more
than 8 liters in 1 minute from a fully opened tap).
•After connections are completed, check for the non-leakage of the
connection joints by turning on your tap completely.
•Be sure that water inlet hoses are not folded, broken or crushed.
•Mount the water inlet hoses to a 3”/4, geared water tap.
Cold water inlet (White filter valve)
Hot water inlet (Red filter valve)
WATER DRAIN CONNECTION
•Be sure that water inlet hoses are not folded, twisted, crushed or
elongated by stretching.
•Water drain hose should be mounted at a height of minimum 60 cm,
maximum 100 cm from the ground.
•The end of the water drain hose may directly be fitted to the dirty
water outlet hole or a special apparatus mounted on the outlet
bracket of the wash-stand.
•Never attempt to extend the water drain hose by adding extra parts.
5

SECTION 3: TECHNICAL SPECIFICATIONS
32 LT 40 LT 42 LT 47 LT 52 LT 57 LT
Maximum dry
laundry
capacity (kg) 3,5 5 5 6 7 7,5
Recommended
loading (kg) 3 4,5 4,5 5,5 6,5 7
Height (cm) 85 85 85 85 85 85
Width (cm) 59,6 59,6 59,6 59,6 59,6 59,6
Depth (cm) 37 42 51 54 57 60
Maximum spin
cycle (rpm) 800/ 1000/1200 800/ 1000/1200
600/800/
1000/1200/
1400/1600
600/800/
1000/1200/
1400/1600
600/800/
1000/1200/
1400/1600
600/800/
1000/1200/
1400/1600
1 2 3
4
5
1-Upper tray 5-Kickplate
2-Detergent drawer
3-Control panel
4-Door
These technical specifications written above for single water inlet (cold) and
double water inlet (cold/hot) in machines.
6

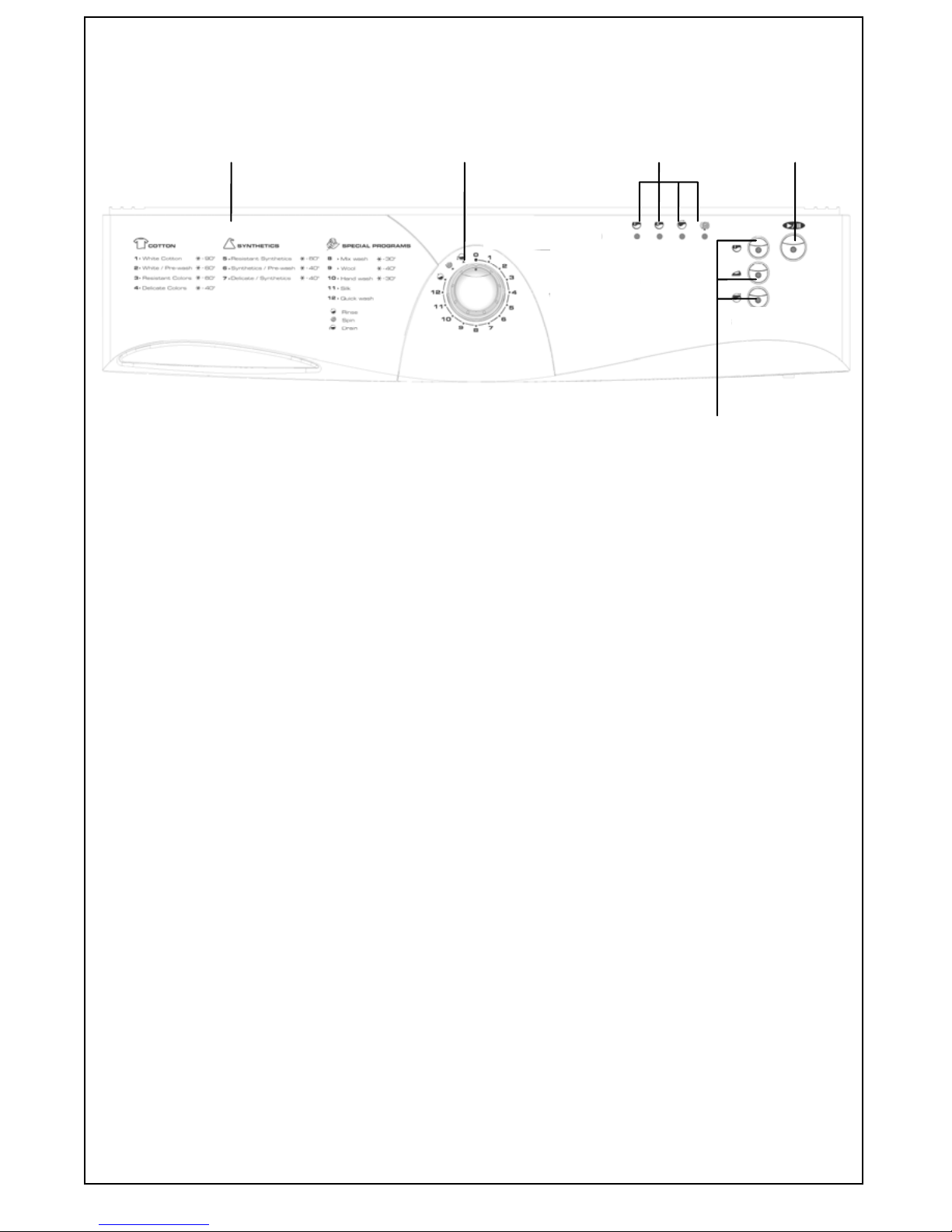

SECTION 4:CONTROL PANEL
1 2 4 5
6
1- Detergent drawer 5- Start/pause and cancel button
2- Program knob 6- Function buttons
4- Washing operation light
7

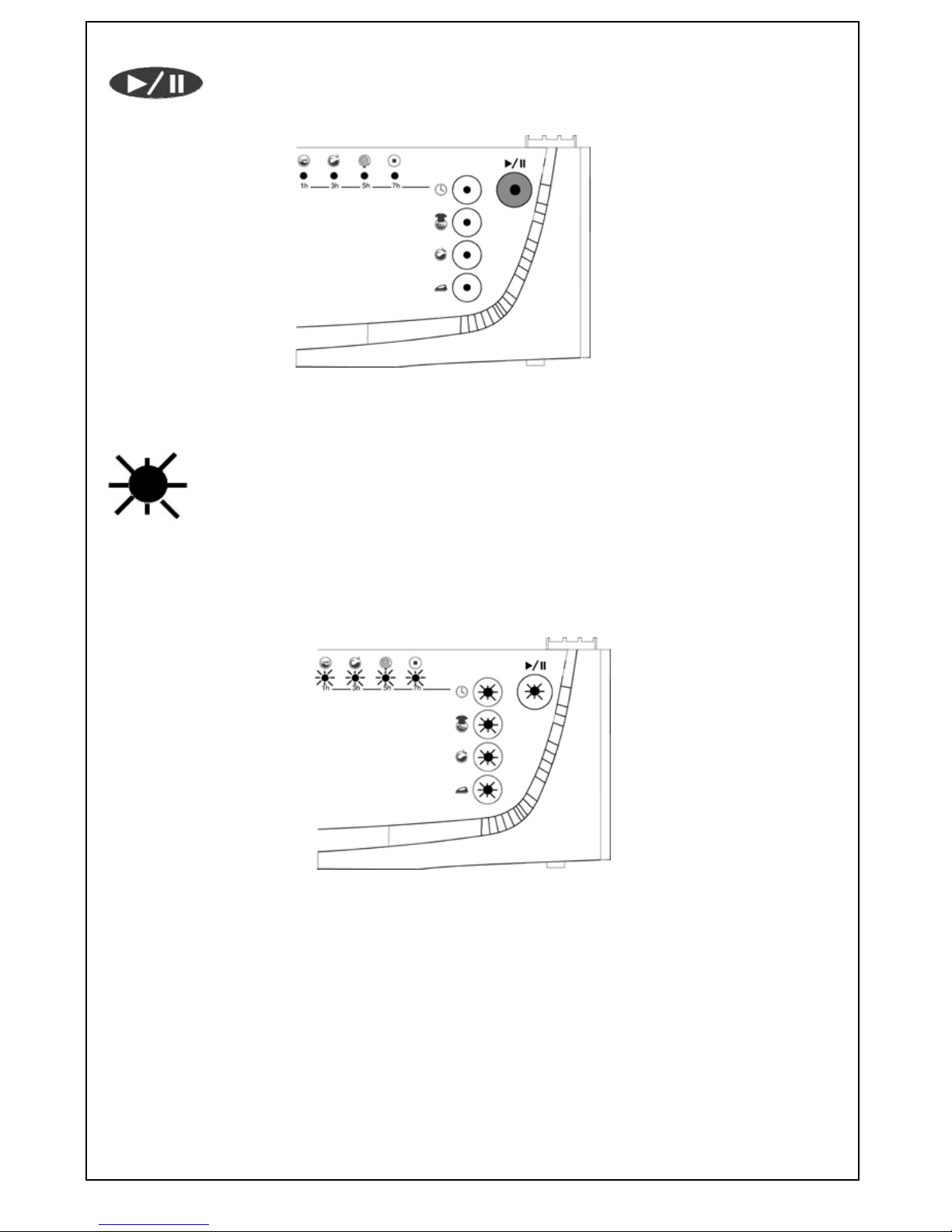

START/PAUSE BUTTON
This button is used for starting a selected programme or putting a
programme in progress on pause.
FUNCTION INDICATOR LAMPS
Pressing the start/hold button or any other function button
switches on the lamps found above the buttons and the control
panel, which indicate the wash stages of programmes. When any
one of these lamps is on it means that certain programme is in
use. The lamp is off when any function button or the start/hold
button is pressed, or the selected function has finished its
operation.
8

FUNCTION BUTTONS
Rinse hold
This function is recommended to be used when the clothes
cannot be taken immediately after the end of the program.
This will prevent occurrence of wrinkles.When this button is
pressed, the last rinsing water is not drained. For the
program to continue from the same point, repress the same
button.
If you do not want your sensitive clothes to be spinned or you
want them to be spinned sensitively, turn the program knob
to O (off) position. Bring the program knob on one of
the draining or spinning programs you desire and press
the start/pause button. If the program you have
selected is a drain program, your machine will
draining the water inside.If you have selected a
spinning program, your machine will perform a spinning
operation and then end the program.

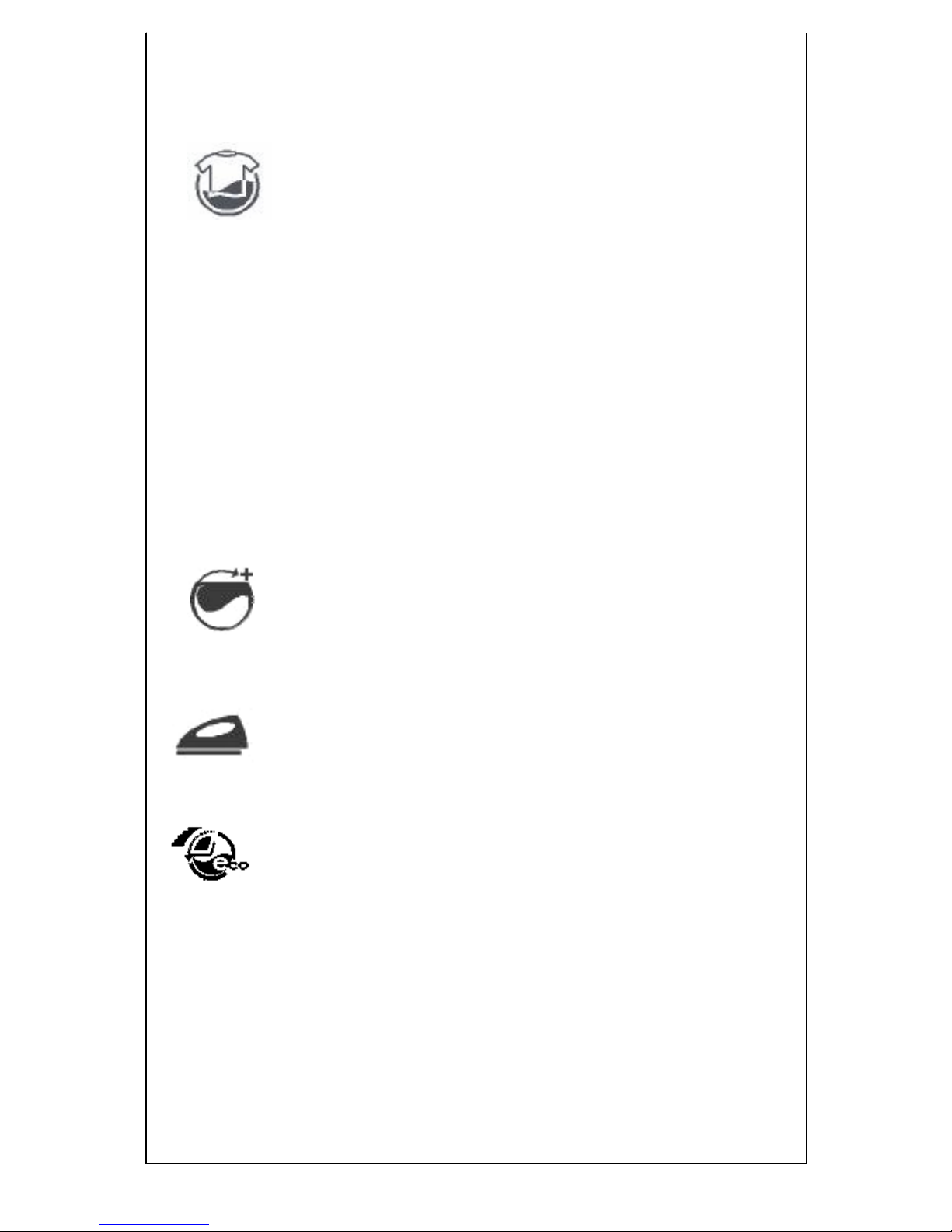

Extra rinse
You can have one more rinsing done in addition to the rinses
which your machine has made in all washing programs by
using this function.
Easy ironing
By using this function, you can ensure your clothes to come
out less wrinkled after the washing.
Economy wash
This function serves for saving energy via decreasing the
temperature value and increasing the wash time of the
selected wash programme by a certain level.
Your machine has also an automatical load detection
system.If you load your machine with half load or less than
half load, your machine can detect this lower load and
change the program flow.If it happens, your “rapid wash”
option lamp will be on to show you that lower load is
detected.If you don’t want your program flow to be
changed,then you can press “rapid wash” option button again
and cancel detection.This time machine will work with normal
program flow and it will not be possible to activate “rapid
wash” for this cycle again.
9

The prewash
With this function you can start an additional wash operation
for heavily soiled laundry. When you use this function you
must put detergent into the prewash compartment of the
detergent drawer. If the additional function features of your
machine contain this option and you will wash your laundry in
a prewash programme, the lamp above the function button
will automatically light up. Even if you press the function
button to cancel this feature it will not be cancelled at a wash
function with a prewash operation.
Plus water
By using this function, you can enable your machine to take
in some more water than the amount in the normal washing
operation. This will decrease the friction that occurs between
your clothes.This function is recommended to be used for
your sensitive clothes or for the ones you desire to be rinsed
really well.
10

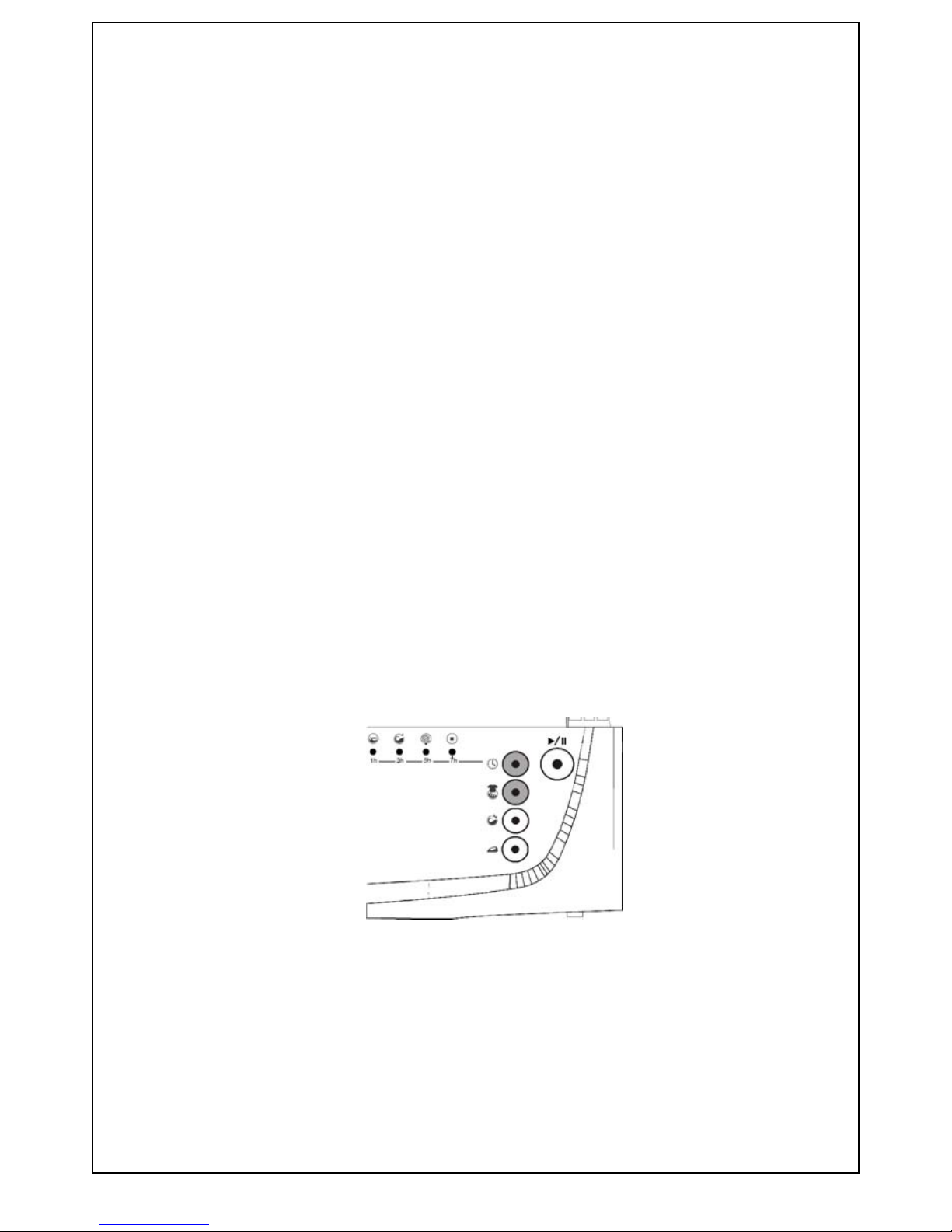

Timer

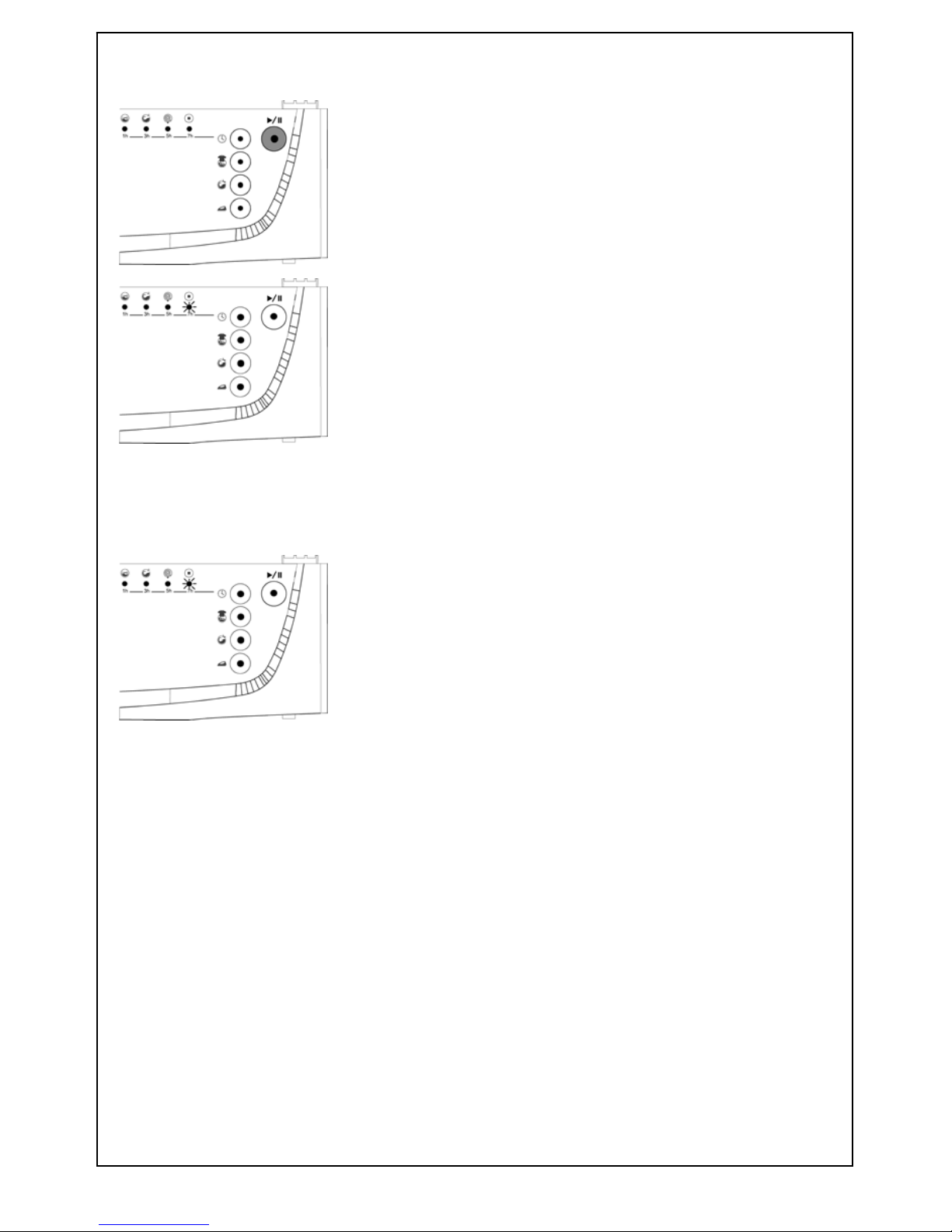

The timer function enables you to set your machine to start its
wash operation with delay. Depending on the delay time you wish
the programme to start at press the function button until the
desired delay timer lamp (1h/3h/5h/7h) lights up on the control
panel. The lamp above the function button will flash. Start the
programme by pressing the start/hold button. If the functıon
button is pressed once more,this option is cancelled and you go
back to the selection mode. After pressing the start/pause button,
the countdown of the time delay begins.When the programme
starts, the start delay indicator light goes off and is replaced by
the programme sequence indication.
WARNING!
If you have forgotten to use an additional function and the machine has
started the wash operation press the button of the additional function
you wish to select; if the indicator lamp above it keeps lighting the
additional function you selected will become active. If the lamp stays lit
for a certain while and then goes out the additional function you
selected will not become active.
NOTE: Our products contain electronic cards and touchscreen buttons.
Lightly pressing on the buttons will suffice to activate the functions.
11

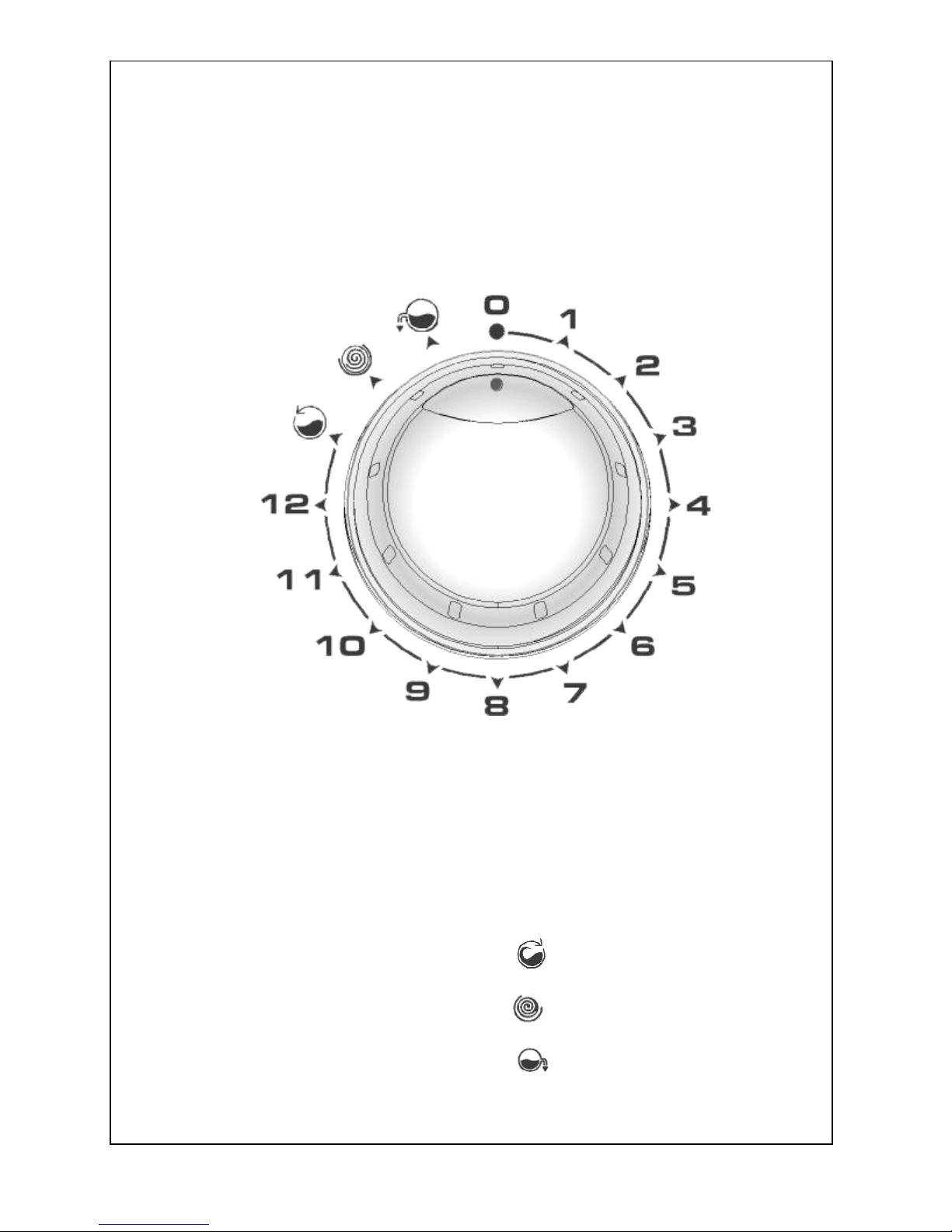

PROGRAM KNOB
With the program knob, you can select the program with which you desire to
wash your clothes. You can adjust the program selection process by turning
the program knob in both directions. You must be careful that the adjustment
sign of the program knob is exactly on the program you want to select. When
you bring the programme knob to STOP (off) position, your machine will carry
out the drain operation in order to finish (cancel) programme cycle.After drain
is finished, machine will go into Standby Mode. You can now select another
programme you wish to start.
STOP
1-Cotton 90° 9-Wool 40°
2-Cotton 60° (prewash) 10-Wool 30°
3-Cotton 60° 11-Wool cold
4-Cotton 40° 12-Quick wash
5-Synthetic 60° Rinsing
6-Curtain wash Spinning
7-Synthetic 40° Draining
8-Synthetic 30°
12

SECTION 5: WASHING YOUR LAUNDRY
•Plug the machine.
•Open the tap water.
First wash cycle
There may be water left inside your machine after factory tests and trials.It is
recommended that the first wash cycle should be made without any laundry
so that carry out this water; pour half a measuring cup of normal allpurpose
detergent into compartment 2 and select cotton program at 90°C.
BEFORE WASHING
Discrimination of your laundry
•Discriminate your clothes according to their types (cotton, synthetic,
sensitive, woolen, etc.),washing temperatures and level of dirtiness.
•Never wash your white and coloured clothes together.
•Since your new coloured clothes may shed dye on the first wash,
wash them separately.
•Be careful that no metal pieces are found on or in the pockets of your
clothes, remove if there is any.
•Zip and button your clothes.
•Remove the plastic or metal hooks of the curtains and laces or place
them inside a washing bag and tie.
13

•Pull the textiles like trousers,knitted fabric,t-shirt and sweat shirt
inside out.
•Wash your small clothes like socks and handkerchiefs in a washing
bag.

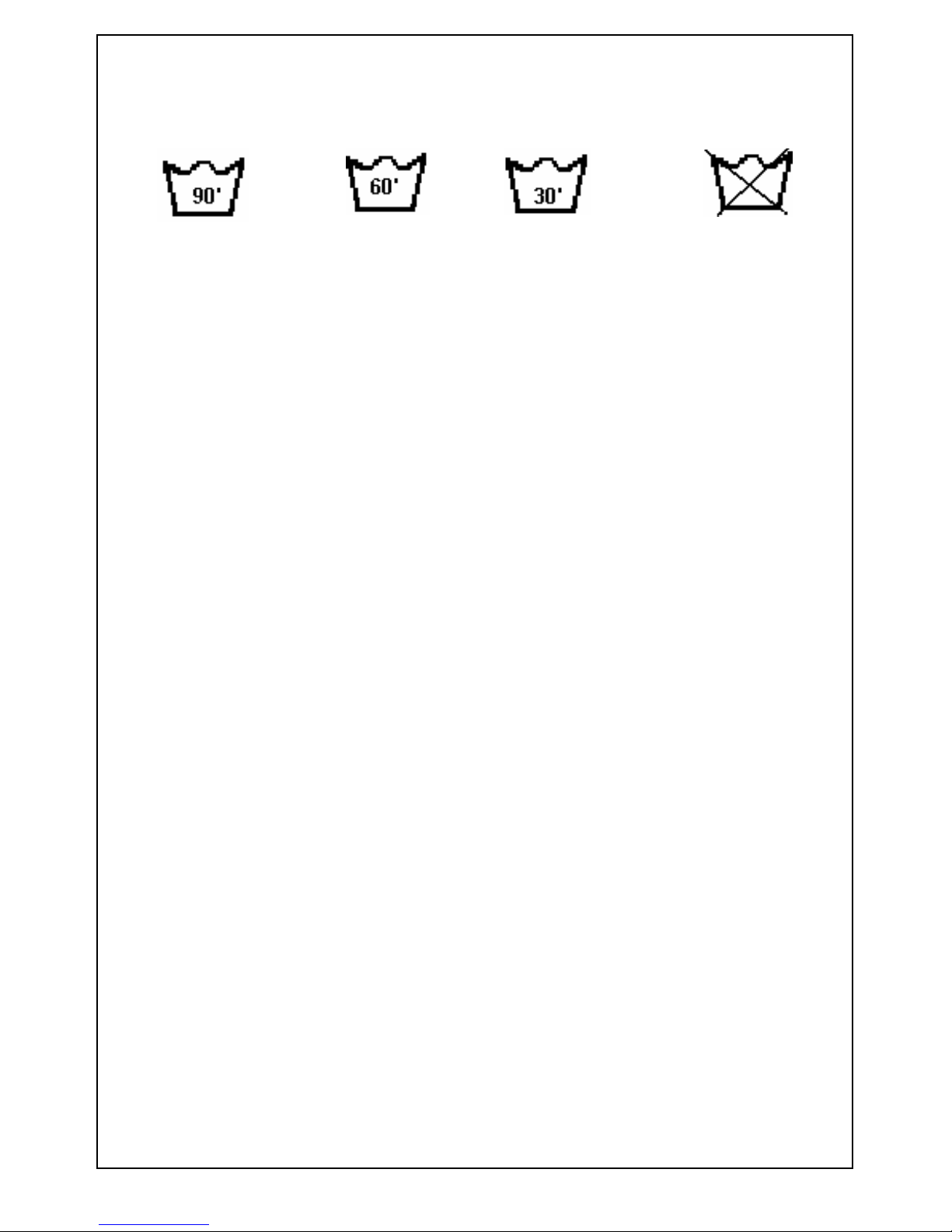

Wash up tol 90 ˚C Wash up to 60 ˚C Wash up to 30 ˚C Not washable in
washingmachine
Placement of the clothes into the machine
•Open the door of your machine.
•Fill your clothes in your machine in a well-spread manner.
•Place each cloth separately.
•When you shut the door of your machine, be careful that no cloth is
jammed between the cover and the gasket.
•Shut the door of your machine tightly otherwise your machine will not
start the washing process.
Filling detergent in the machine
The quantity of the detergent that you will fill in your machine depends on the
following criteria:
•Your detergent consumption will change according to the dirtiness
level of your clothes. For your slightly dirty clothes, do not pre-wash
and put a small amount of detergent in the compartment no.2 of the
detergent drawer.
•For your excessively dirty clothes, select a program with pre-
washing, fill ¼ portion of the detergent you will put in compartment
1 in the detergent drawer and the remaining portion in compartment
2.
•In your machine,use the detergents developed especially for
automatic washing machines. The quantities that will be used for
your clothes are written on the packing of the detergents.
•As the hardness of your water increases, the amount of the
detergent to be consumed will also increase.
•As the amount of your clothes increases, the amount of the
detergent to be consumed will also increase.
•Fill your softener in the softener compartment in your detergent
drawer. Do not exceed the MAX level. Otherwise, the softener will
diffuse in the washing water via the siphon.
•The softeners with high density should be diluted with some water
before filling in the drawer. That is because the softener with high
density obstructs the siphon and prevents the flow of the softener.
14

•
You can use fluid detergents in all programs without pre-washing.
For this, mount the fluid detergent level plate in the second
compartment of the detergent drawer and arrange the amount of
fluid detergent according to the levels on this plate.
RUNNING THE MACHINE
Program selection and features
Select programmes and additional functions appropriate for your laundry with
the help of the tables shown on pages 19.
Just for the fist run please choose a program and press Start/pause button for
4 seconds,before putting your load in.This is necessary for unloading the
water that is left after the production and tests.
Start/Pause button
Pressing this button you can start the programme you selected or put the
programme in progress on pause.
When the programme you selected starts its operation the lamp above the
start/pause button will start lighting.
When you wish to put the selected programme on pause press the
start/pause button once. The lamp above it will start to flash. In order to
restart the programme from the point it was put on pause at you will have to
press the start/pause button once again.
Starting the program
•Adjust the programme button to a programme you wish to select.
•If the programme you selected is a wash
programme the wash operation lamp will
flash.
•If the programme you selected is a rinse/spin or drain programme the
lamps indicating the related selection will flash.
•Start the selected programme by pressing
the start/pause button.
•When you start the programme by pressing
the start/pause button the lamps will light up
indicating that the start/pause button is active
and the wash operation is in progress.
15

Selecting an additional function button
•Adjust the programme button to a programme you wish to select.
•If the programme you selected is a wash
programme the wash operation lamp will light
up.
•If the programme you selected is a rinse/spin or drain programme the
lamps indicating the related selection will light up.
In order to select an additional function:
•Press once the additional function button you
wish to select.
•If the lamp above the function button keeps
lighting it means you have selected the function
you wished to select.
•If the lamp above the function button is flashing it
means you cannot use that additional function for
the wash programme you selected.
•Start the selected programme by pressing the
start/pause button.
•When you start the programme by pressing the
start/pause button the lamps will light up
indicating that the start/pause button is active
and the wash operation is in progress.
16

Cancelling a programme
If you wish a certain programme in progress to finish early:
•Press the start/pause button for 4 seconds.
•Your machine will carry out the drain operation
necessary for the programme to finish, and then
end the programme.
•The programme end lamp will be on.
•You can now select another programme you
wish to select.
Programme end
•Your machine will stop automatically when the programme you
selected has finished.
•The programme end lamp will light up.
•Bring the programme button to the STOP (off) position.
•The door lock of your machine will automatically release about two
minutes after the programme has finished. You can open the door
and take out the laundry by pulling the door handle towards yourself.
•After you have taken out the laundry leave the door open so that the
machine interior can dry.
•Unplug the machine.
•Turn off the water tap.
17

WARNING!
In the event power is cut off at any stage of the wash programmes and then
resupplied after a certain while your machine will continue the programme
from the point it was interrupted at. Such a situation will not cause any harm
to your machine.
In the event power is cut off during the wash operation the door lock
mechanism will release its hold after two minutes. If there is water in the
machine do not open the door or the water will pour out. If you wish to take
out your laundry you can do so by draining the water inside the machine
following the instructions explained in the section “cleaning the pump filter” on
pages 20 and 21.
Child lock
Your machine is equipped with a child lock in order to prevent a programme’s
operation from being affected by a push on a button during a wash operation.
The child lock will become active after the first and second function buttons
on the control panel are pressed at the same time and for longer than three
seconds.
You can notice the activation of the child lock by checking out the programme
wash,rinse and spin lamps which will flash for two seconds. In order to
deactivate it you will have to press the same buttons for longer than three
seconds. If you press any button when child lock is active, button will not be
activated and you can see wash,rinse and spin lamps flashing for two
seconds in order to show child lock is active. You can notice the deactivation
by checking out the programme end lamp which will flash for two seconds.
When the programme has finished, child lock will automatically be
deactivated.
18

Max. Dry Load Capacity (kg)
PROGRAM Detergent
Compart. 32 LT 40 LT 42 LT 47 LT 52 LT 57 LT Type of Laundry Explanations
1-COTTON 90° 2 3,5 5 5 6 7 7,5 Dirty, boil, cotton and linen
textile
2- COTTON 60°
(PREWASH) 1+2 3,5 5 5 6 7 7,5
Very dirty, cotton, coloured
and linen textile
3- COTTON 60° 2 3,5 5 5 6 7 7,5 Dirty, cotton, coloured and
linen textile
4- COTTON 40° 2 3,5 5 5 6 7 7,5 Slightly dirty, paint to get
out, cotton, coloured and
linen textile
Underwears, sheet,
table cloth, t-shirt,
shirt, towel
5-SYNTHETIC 60° 2 2 3 3 3 3,5 4
Dirty, synthetic or synthetic
mixture textile
6-CURTAIN WASH 1+2 2 3 3 3 3,5 4
Very dirty, synthetic or
synthetic mixture textile
7- SYNTHETIC 40° 2 2 3 3 3 3,5 4 Dirty, synthetic or synthetic
mixture textile
Nylon socks, blouse
8- SYNTHETIC 30° 2 2 3 3 3 3,5 4
Slightly dirty, cotton,
coloured and linen textile T-shirt, nylon socks,
shirt,
9-WOOL 40° 2 1 2 2 2 2 2,5
Dirty, hand and machine to
wash wool laundry
10-WOOL 30° 2 1 2 2 2 2 2,5 Very slightly dirty, cold
water, hand and machine
to wash wool laundry
All wool laundry
11-WOOL
COLD 2 1 2 2 2 2 2,5
Very slightly dirty, cold
water, hand and machine
to wash wool laundry Silk mixture laundry
12-QUICK WASH 2 2 2,5 2,5 3 3 3,5 Slightly dirty, cotton,
coloured and linen textile
Underwears, sheet,
table cloth, t-shirt,
shirt, towel
RINSE When you need an additional rinsing to be done to your clothes after the washing process, you can use this program for all kinds of clothes.
SPIN You can use this program, when you need an additional spinning to be done to your clothes after the washing process. Please do not use this
program for your delicate or woolen laundry.
DRAIN This program is used to drain the dirty water inside after the washing process of your machine. If you want the water inside your machine to
be drained before the program ends, you can use this program.
19
