Smiths Sargasso A User manual

Sargasso Range
Installation manual
Issue 001 | January 2018
ENGLISH | UK | IRL | SmithsEP.co.uk
Sargasso A

Declaration of conformity
EC Declaration of conformity
Radiant Heating and Cooling Solutions Ltd
Units 1 -3, Farrow Road, Great Barr
Birmingham, B44 9HE
Mobile: [phone]
Tel: [phone]
This declaration conrms that the Radiant
Heating panel has been manufactured in a
facility certied to the requirements of ISO
9001: 2015 (BSI Certicate FM51223 refers)
and scoped for the Manufacture of Radiant
Heating Panels for the Construction Industry.
The product has been independently tested
(WSP report no 15.55.RHC.101 refers) and
meets the requirements as generally specied
in EN 14037-2: 2016 for:
Free hanging heating and cooling surfaces for
water with a temperature below 120°C.
Pre-fabricated ceiling mounted radiant panels for
space heating.
Test method for thermal output.
This declaration is issued under the sole
responsibility of the manufacturer.
Bob Parker
Sales Director
Date 05.12.17
Introduction
This product has been assembled and prepared
for easy installation.
In the event of any visible damage, please contact
us on [phone].
Please leave this Installation Guide with the owner
of the property.
Contents
Introduction 2
Symbols used in this guide 2
Declaration of conformity 2
Important safety and installation instructions 3
Application 4
Product Information 5
Installation 6
Registering your product 7
Disposal 7
After sales and spares 7
Symbols
This manual contains information and
prescriptions marked by the following symbols.
Ignoring these safety provisions
marked by the symbol “caution:
hazard” may endanger the safety
of people.
The removal of the screws can
cause the output of hot uids
under high pressure from heating
system. Drain the system or close
the isolating valves.
High temperature surface. Take
utmost care to prevent people
from getting in contact with the
hot surfaces of the appliance.
02 | SmithsEP.co.uk | Issue 001 - January 2018

Issue 001 - January 2018 | SmithsEP.co.uk | 03
Important safety and installation instructions
Prior to installation, read these installation and operating instructions. The installation and operation should
also be in accordance with national regulations and accepted codes of good practice.
This product is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the product by a person
responsible for their safety. Children should be supervised to ensure that they do not play
with the product.
To guard against injury, basic safety precautions should be observed, including the
following:
1. Read and follow all safety instructions and all the important notices on the product
before installing, using and maintaining the product. Failure to do so may cause
personal injury or damage to the product or installation.
2. Risk of scalding. To avoid injury before any servicing operation wait until the water has
cooled inside the product. Do not touch the uid or the product when temperature
is higher than 60°C.
3. Improper use.
This is an product to be used in heating systems with clean water without
abrasive particles.
4. Installation.
The product must be mounted in a stable/xed position in a dry, frost-free and
waterproof place, with sufcient ventilation around it. Make sure that the product is
securely and correctly installed before operating it and that there is enough room
around it for maintenance operations, dismantling, checking for free inspection.
Non-observance of the safety instructions results in the loss of any claims to damages.
The indicated limit values are binding and cannot be exceeded for any reason whatsoever.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

04 | SmithsEP.co.uk | Issue 001 - January 2018
Application
Sargasso Radiant Panels sit in a ceiling grid,
or can be suspended from the ceiling, and are
supplied with hot water from a heat source. They
form part of a 2 pipe ‘wet’ heating system. The
hot water is fed to the Sargasso Radiant Panels
and approximately 85% less water is required
compared to a traditional radiator heating system.
The benets of this are that the system heats the
occupants up much quicker than a traditional
radiator system. Cost savings in running such a
system are realised because of the lower water
content and faster heat up of the radiant panels.
Further energy savings are possible through
zoning so that only occupied areas are heated.
Sargasso is primarily designed to be installed as
part of a suspended ceiling, but it can also be
installed directly on or suspended from the ceiling.
Suitable for use in Micro T system and standard
T-Grid ceiling ceilings. Please note that Sargasso
is compatible with regular ceiling proles, but not
compatible with Tegular or Microlook ceilings.
Suitable for installation from gripple wires (not
supplied). Panels longer than 1200mm will require
6 xing locations.
These products are designed for use on standard
two-pipe pumped central heating systems.
Pipe connections are 10mm and may be used as
either ow or return.
The product must be installed in line with best
plumbing practices and with reference to industry
standards, such as the CIBSE Domestic Heating
Design Guide B1: 2016. Isolating valves (not
supplied) should be tted to system ow and
return connections. Failure to t isolating valves
may mean that the product is not serviceable in
the event of failure.
BS EN 12828:2012+A1:2014
Heating systems in buildings. Design for
water-based heating systems
BS EN 14336:2004
Heating systems in buildings. Installation and
commissioning of water based heating systems
BS 7593:2006
Code of practice for treatment of water in
domestic hot water central heating systems

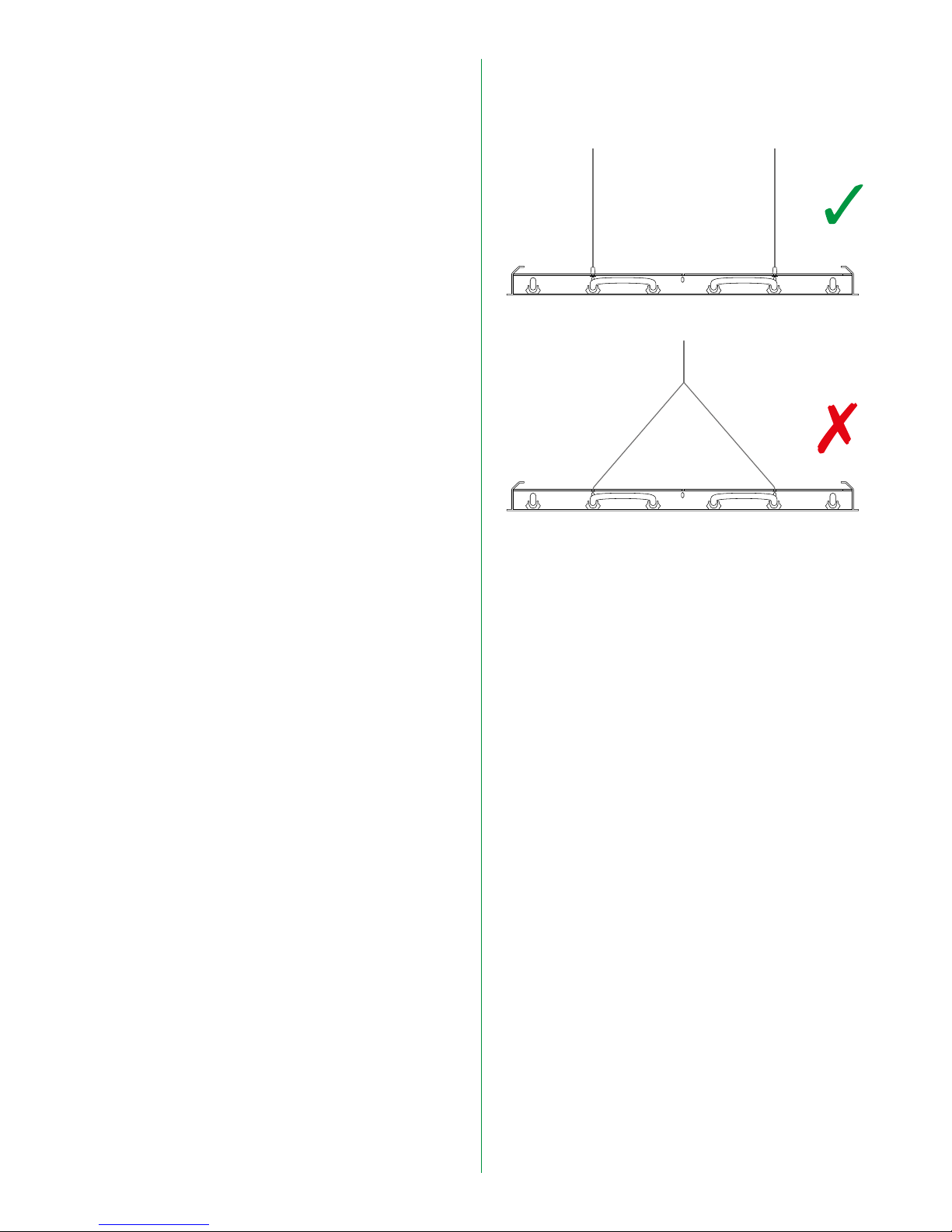

Product mounting options

Issue 001 - January 2018 | SmithsEP.co.uk | 05
Heat output (Watts)
Product performance
Range Type Width Length Operating Weight
(kg)
Weight
kg/m2
Sargasso A Loop 595mm 595mm 4.1 11.2
Sargasso A Loop 595mm 1195mm 8.2 11.2
Sargasso A Loop 595mm 1795mm 12.2 11.2
Sargasso A Loop 595mm 2395mm 16.3 11.2
Sargasso A Loop 595mm 2995mm 20.4 11.2
Model Output at ∆T °C Hangers
required
30 35 40 45 50 55 60 65
600 x 600 105 126 148 170 194 217 242 266 4
600 x 1200 210 252 296 340 388 434 484 532 4
600 x 1800 315 378 444 510 582 651 726 798 4
600 x 2400 420 504 592 680 776 868 968 1064 6
600 x 3000 525 530 740 850 970 1086 1210 1330 6
14
44 25
595
595
1195
1795
2395
2995

06 | SmithsEP.co.uk | Issue 001 - January 2018

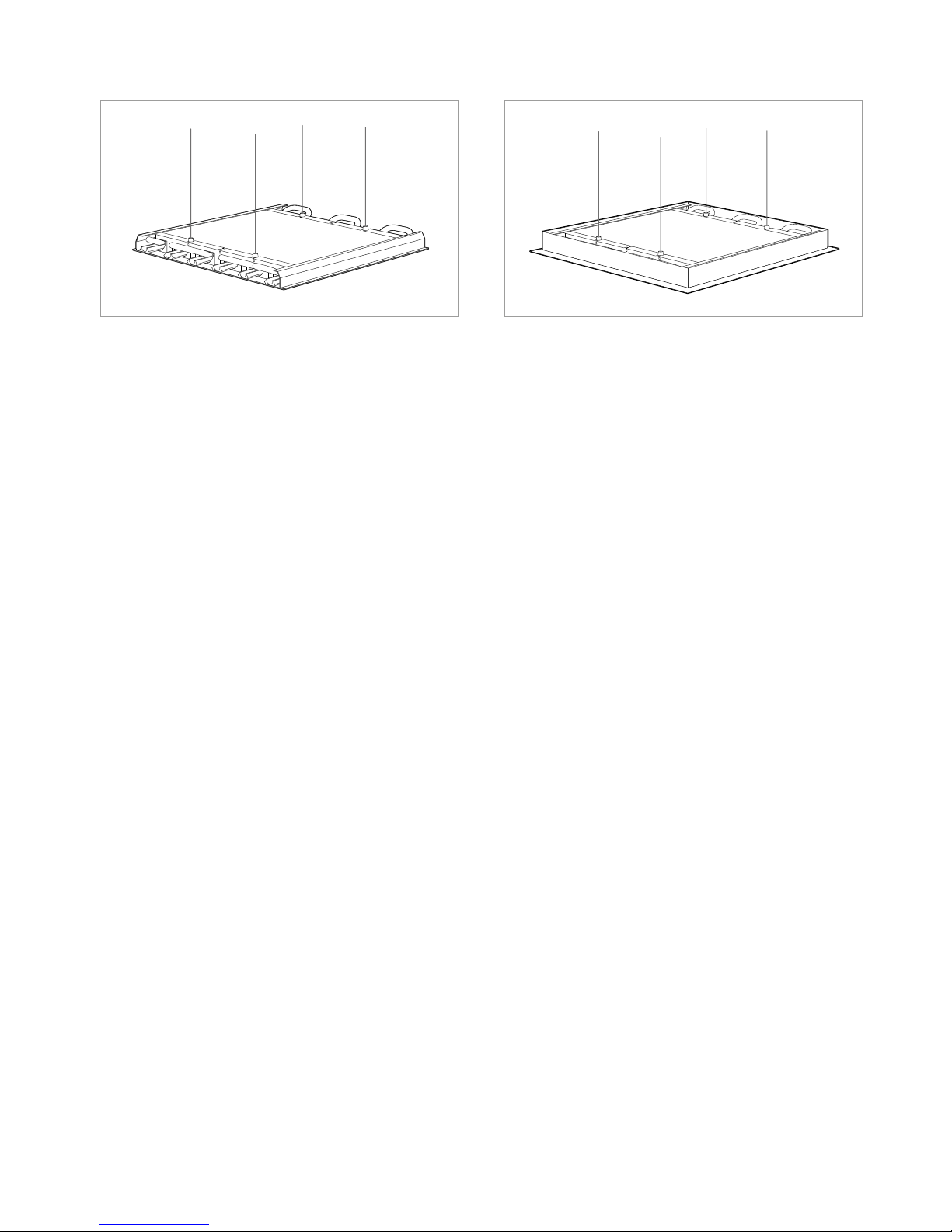

Installation and mounting
Standard ceiling
It is recommended that panels with a length of
600-1800 mm are installed using 4 hanging wires,
panels with lengths of 2400-3000 mm with 6
hanging wires.
When the panels are hung and positioned they
can be connected to the supply by using push-t
elbows and pipe tails (not provided) which is the
preferred method of attachment.
• Fit isolating valves (not supplied) to the system
ow and return pipes. In order to achieve the
highest level of performance we recommend
full bore valves.
• Valves to facilitate balancing of the system may
be advantageous.
• Failure to t isolating valves may mean that the
product is not serviceable in the event
of failure.
• Open the isolating valves and check for leaks.
N.B. either pipe may be used on ow or return.
Plasterboard ceiling
For extra consideration over and above standard
installations are the following points:
• When commencing installation the aperture or
space for the panels should be the stated size
of the panel with no obstruction preventing a
ush t.
• We advise single module installation of
plasterboard models due to expansion.
• Place the panel within the plasterboard void.
• Attach the recommended number of wires
which should be vertically aligned (please note
that the xing supports can be adjusted along
the length of the panels to assist).
• Adjust the wires to achieve the best t within
the ceiling.
Please note that the panels can only sit ush
within a perfectly level ceiling.
• Connection to the panel is recommended
using exible hoses of a specication suitable
for heating systems.
• Place the panel within the plasterboard void
carefully positioning the screw holes depending
on frame used, so that they make a secure
xing (timber joists are ideal).
• Then continue nal xing of the panel ensuring
a straight ush t.

Issue 001 - January 2018 | SmithsEP.co.uk | 07
Thank you for purchasing a Smith’s product. It has
been designed and manufactured to the highest
quality standards to ensure it gives you efcient
and trouble-free service for many years. To back
up our commitment, included with your product
is the following warranty:
Heat Emitter 5 years from date of purchase
This gives you the peace of mind that in the
unlikely event of product failure, we will repair
or replace the product completely free of charge
providing the product has been installed, used
and maintained in accordance with the
instructions. Your statutory rights are not
affected by this warranty.
It is important to register as soon as possible
online at: smithsep.co.uk/product-registration/.
This will ensure you will receive prompt and
efcient service if your product requires attention
within the warranty period. If you do not register
your product, you will be required to produce
proof of purchase prior to receiving service.
For more details please visit our website:
SmithsEP.co.uk
Registering your product Disposal
As part of the policy of continuous product
improvement, Smith’s Environmental Products LTD
reserves the right to alter specication without
prior notice.
If you are purchasing replacement equipment your
retailer may offer a ‘take back’ scheme, or will
be able to give details of the nearest approved
authorised treatment facility. Proper recycling and
waste disposal will help conserve resources whilst
preventing detrimental effects on our health
and the environment.
Approved CQS ISO
9001:2015
After sales and spares
If you experience any problems with the use of
your product, please contact our after-sales ofce
[phone].
For product information, customer services or
sales support call us on [phone]
For the Republic of Ireland, contact MT Agencies
on 01 864 3363
Sales: [e-mail]
General information: [e-mail]
Smith’s Environmental Products Ltd
Blackall Industrial Estate, South Woodham Ferrers,
Chelmsford, Essex CM3 5UW
SmithsEP.co.uk
@SmithsEP_UK
#ThinkSmiths

To view the full product information
download the datasheet at:
www.SmithsEP.co.uk
For product information, customer services or
sales support call us on [phone]
For the Republic of Ireland, contact MT Agencies
on 01 864 3363
Sales: [e-mail]
General information: [e-mail]
Smith’s Environmental Products Ltd
Blackall Industrial Estate, South Woodham Ferrers,
Chelmsford, Essex CM3 5UW
SmithsEP.co.uk
@SmithsEP_UK
#ThinkSmiths
Issue 001 | January 2018
Happy to help
Smith’s Environmental Products Ltd is one of the
leading manufacturers of heating and cooling
products in the UK. We are committed to
achieving the highest standards and our faith is
supported by a free ve year parts and labour
guarantee with every product. Our customer
service is second to none and we are happy to
offer any help and guidance that you might need.
Stockists
All products are available nationally from Builders’
Merchants, Plumbers’ Merchants, Heating
Equipment Distributors and Kitchen Equipment
Distributors. In the event of difculty, please
contact us or visit our website SmithsEP.co.uk for
details of your nearest stockist.
Information and advice
Full technical specications and list prices is
available to download from our website or in
hard copy from our ofce. Also available on our
website are price lists, individual product data
sheets, installation & user guides, where to buy,
who to contact and a media centre.
Alternatively contact our ofce 9.00am to 5.00pm
Monday to Friday.
As part our commitment to continuous
improvement Smith’s Environmental Products may
change the specifications of its products without
prior notification or public announcement.
All descriptions, illustrations, drawings and
specifications in this publication present only
general particulars and shall not form part of
any contract. All dimensions are in mm unless
otherwise stated.
Smith’s, providing comfort for the built environment
