VP4750 User’s Guide
Bluetooth Touchpad Remote
for presentations and desktop control

Table of Contents
Getting Started .......................................................................2
Buttons and Controls ..............................................................3
Windows
Pairing for Windows ................................................5
Using the remote in Windows .................................8
Mac
Pairing on the Mac ..................................................9
Using the remote in OS X .....................................11
Advanced Topics ..................................................................12
Agency Certications ............................................................13
Product Specications ..........................................................15
System Requirements ..........................................................15
Trouble Shooting ..................................................................16
Technical Support ..................................................Back Cover
Page 1

Getting Started
Thank you for purchasing the VP4750 Bluetooth Touchpad
remote by SMK-Link. It’s the perfect tool for giving better pre-
sentations or controlling your computer from across the room.
The VP4750 uses Bluetooth to provide up to 33 feet of range
and a touchpad for the most accurate mouse pointing. Before
you begin, your computer should already have Bluetooth
installed (either internally as on a Mac or high-end laptop or
externally with a Bluetooth dongle).

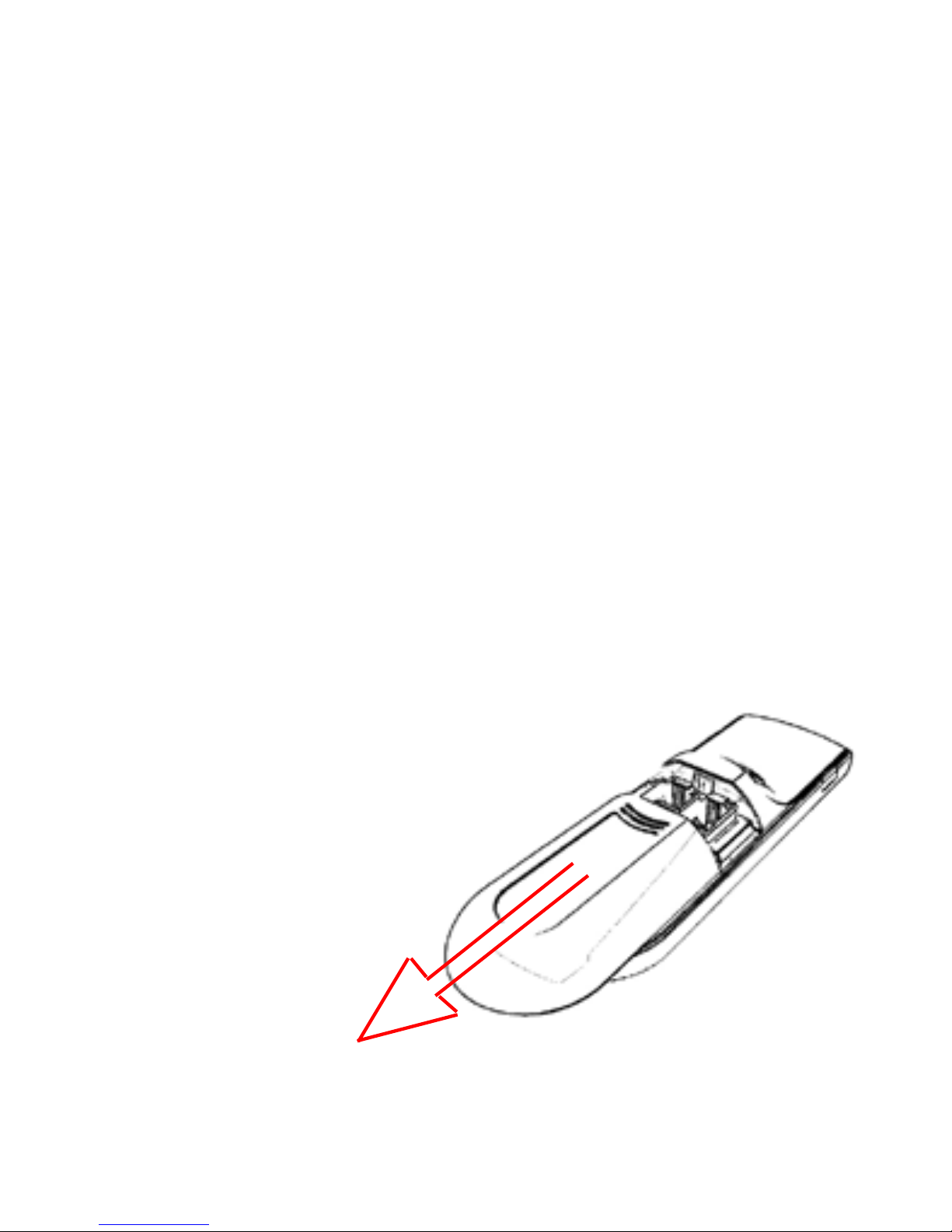

Install Batteries
Remove the battery door from the remote and
install two AAA batteries following the
diagram on the remote.
Page 2

Buttons and controls
Activity LEDBluetooth LED
Next Slide /
Right Arrow
Prev Slide /
Left Arrow
Power SwitchConnect Button
Scroll Strip
Touchpad
Right Mouse Button
Blank Screen
(Presentation)
Left Mouse Button
Page 3

Activity LED
Next Slide /
Right Arrow
Power Switch
Scroll Strip
Bluetooth LED: Shows the status of the Bluetooth connection.
Fast Blinking: In Connect Mode. Off: Not connected
Slow Blinking: Connected.
Activity LED: As you press controls this LED should blink.
Next Slide / Right Arrow: Pressing this button is the same as
pressing the right arrow key on your keyboard. In presentation
software it advances to the next slide.
Prev Slide / Left Arrow: Pressing this button is the same as
pressing the left arrow key on your keyboard. In presentation
software it returns to the previous slide.
Power Switch: Slide this switch to turn the remote On. To turn
Off, slide this switch and hold for 5 seconds.
Connect Button: Press to place remote in connect / discovery mode.
Blank Screen: By default this button sends the “b” key. In
presentation software this blanks the screen.
Touchpad: Move the cursor by sliding your thumb over the
touchpad. Scroll through documents and web pages with the
Scroll Strip. The patented click-trigger on the bottom is the left
mouse button. Right click with the upper button.
Page 4

Pairing for Windows
The rst time you use any Bluetooth device, you must pair it
with your computer. Depending on the drivers and version of
Windows you have, your screens may appear slightly different
but the steps are generally the same. Should you have prob-
lems pairing, please contact Customer Support for assistance.

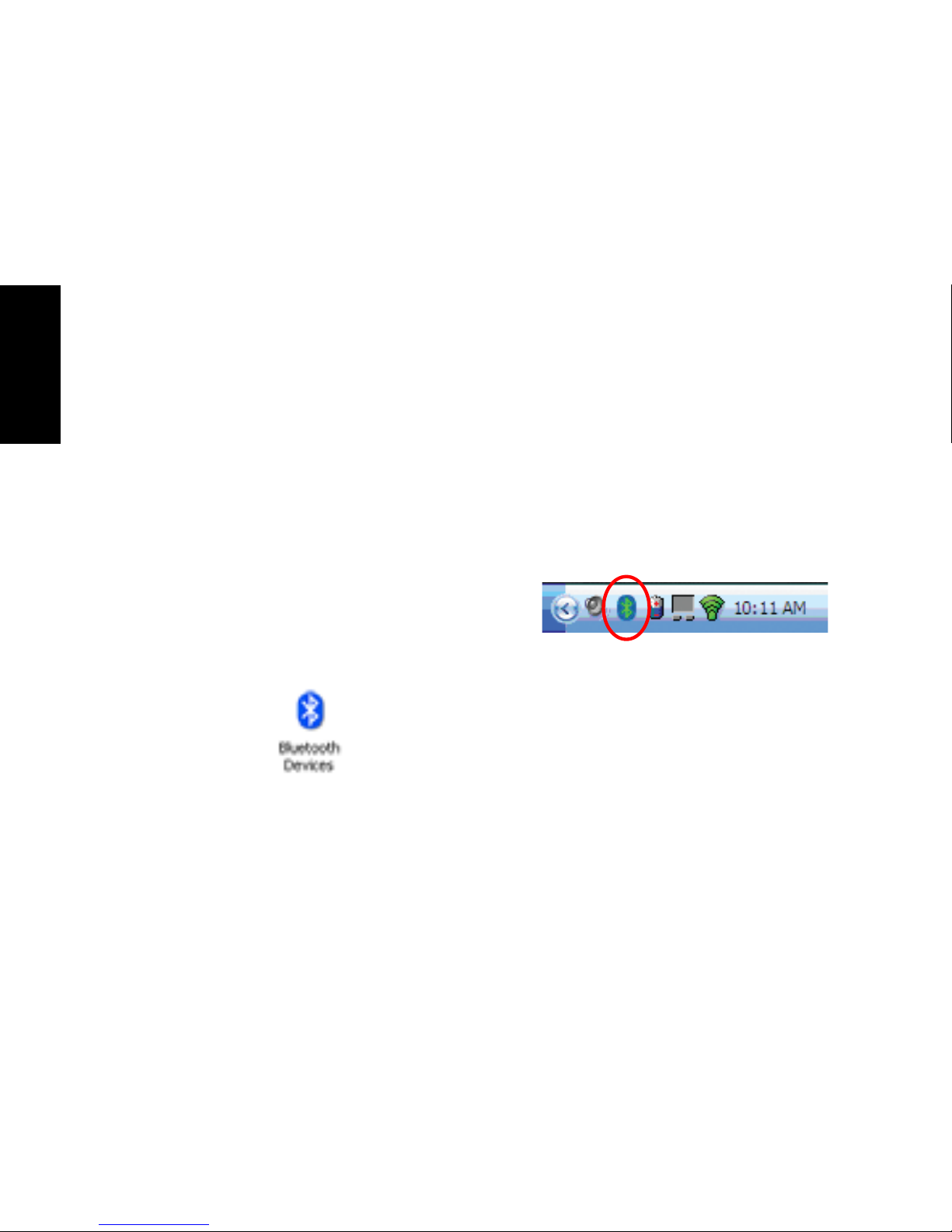

Step 1: Open Bluetooth Settings
Open the Bluetooth Control panel either by double clicking on
the Bluetooth icon in the system tray
or by selecting Start | Control Panel and double clicking on the
Bluetooth icon.
Step 2: Add New Device
Click on Add or New Connection to start the process of pair-
ing the VP4750 to your computer.
PC
Page 5

Step 3: Put VP4750 in to Connect Mode
Turn the remote On by sliding the power switch on the right
side of the remote. Put the remote into connect mode by
pressing the Connect button on the left side of the remote. The
blue LED should immediately begin blinking rapidly.
Step 4: Follow Add New Device Dialog Boxes
Your driver may have a checkbox for “My device is set up and
ready to be found”. If so, check that box and click next. Other
drivers skip this step and just have you click next to begin
searching for devices. This should bring up a list of Bluetooth
devices set into connect mode including nearby computers and
mobile phones.
PC
or
Page 6

Step 5: Final Details
Select the VP4750 from the list of recognized items and click
next. For drivers which need a device type, select Mouse. If
asked for a passkey, select “Do not use passkey” or “Empty
passkey.” Follow the
dialog boxes until
done. You should
now be able to move
the cursor by sliding
your thumb over the
touchpad.
PC
Page 7

PC
Using the remote in Windows
Presentation Software
Give professional presentations with PowerPoint and the
VP4750. Control your slideshows from up to 33 feet away.
Use the touchpad as a mouse to load and start your presenta-
tions. The Next Slide (>), Previous Slide (<) and Blank buttons
will help your presentations look more professional.
Hint: Use the cursor as a virtual laser pointer. A laser pointer
doesn’t show up on a web conference and is hard to see on
plasma displays. Use the cursor to point out important details
that would otherwise be impossible for your audience to see.
Windows Desktop
Use the VP4750 as a mouse to control the windows desktop
from further away. Now you can use your laptop like a home
theatre system to play DVDs or to stream TV shows. Use
it with your desktop to select and play music. Any program
which can be controlled by a mouse, can be controlled with the
VP4750.
Page 8

Pairing on the Mac
The rst time you use any Bluetooth device, you must pair
it with your computer. Pairing is very simple on the Mac,
however, should you have problems, please contact customer
support for assistance.
Step 1: Bring up System Preferences
Bring up System preference either by clicking on it
in the dock or by nding the icon in the applications
folder.
Step 2: Open the Bluetooth Preference Pane
Click on the Bluetooth icon in System Preferences
to begin the process of pairing your VP4750 to your
Mac.
Step 3: Put VP4750 in to Connect Mode
Turn the remote On by sliding the power switch on the right
side of the remote. Put the remote into connect mode by
pressing the Connect button on the left side of the remote. The
blue LED should immediately begin blinking rapidly.
Mac
Page 9

Step 4: Set Up New Device
Click the “Set Up New Device” button then
click continue. When asked for the new device type, select
“Mouse” from the list of choices and click continue.
Your Mac should then nd the VP4750. If it doesn’t, please go
back to step 3 and make sure you are in connect mode. Once
found, click continue to nish pairing your VP4750. Then click
quit when done. You should now be able to move your cursor
by sliding your thumb over the touchpad.
Mac
Page 10

Using the remote in OS X
Presentation Software
The VP4750 works with both Apple Keynote and Microsoft
PowerPoint. Control your slideshows from up to 33 feet away.
Use the touchpad as a mouse to load and start your presenta-
tions. The Next Slide (>), Previous Slide (<) and Blank buttons
will help your presentations look more professional.
Hint: Use the cursor as a virtual laser pointer. A laser pointer
doesn’t show up on a web conference and is hard to see on
plasma displays. Use the cursor to point out important details
that would otherwise be impossible for your audience to see.
Other Software
You can control any software on the Mac which can be con-
trolled by a mouse. This means you can use the DVD player
to watch movies, iTunes to build play lists and play music or
Safari to stream movies or TV shows from across the room.
Unfortunately, Front Row requires the keyboard or infrared
remote, so it will not work with the VP4750.
Mac
Page 11

Advanced Topics
Mouse Speed
The speed of the mouse can be set in your Windows control
panel or the Mouse preference pane of System Preferences.
Sleep Mode
Because Bluetooth is continually transmitting and receiving,
it goes to sleep after 20 minutes of inactivity. When it goes to
sleep it disconnects from your computer and turns itself off. To
wake it up, just press the power button and wait a few seconds
for Bluetooth to reconnect.
Turning Off the Remote
If you do not want to wait for sleep mode to turn the remote Off,
you can also turn off the remote by sliding the power switch
and holding it for 5 seconds.
Advanced Setup
There are various setup options to congure your VP4750. For
a complete list, please visit “www.smklink.com/vp4750”.
Page 12

Agency Certications
USA - FCC CFR 47 Part 15, Subpart B and C
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
Operation with non-approved equipment is likely to result in interference to radio and
TV reception. The user is cautioned that changes and modications made to the equip-
ment without the approval of manufacturer could void the user’s authority to operate
this equipment.
Page 13

Canada - IC RSS-210, ICES-003
This Class B digital apparatus complies with Canadian ICES-003. Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device.
Europe - Declaration of Conformity
We, SMK-Link Electronics declare under our sole responsibility that the product,
VP4750 Bluetooth Touchpad Remote, to which this declaration relates is in conformity
with the following standards or other normative documents:
Art.3.1(a): EN 60950-1:2001
Art.3.1(b): EN 301 489-17 v1.3.2, EN 301 489-1 v1.8.1
Art.3.2: EN 300 328:2006(V1.7.1)
Following the provisions of 1999/5/EC,R&TTE directive.
European RoHS DIR 2002/95/EC
Trademarks
Interlink Electronics and the Interlink Electronics logo are trademarks of Interlink Elec-
tronics and are used under license by SMK-Link Electronics corporation. SMK-Link and
the SMK-Link Logo are trademarks of SMK-Link Electronics corporation. The Bluetooth
word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks
by SMK-Link Electronics, Corp. is under license. All other trademarks and trade names
are those of their respective owners.
Page 14

Specications
Communication Method Bluetooth Standard V2.0 +EDR
Frequency Band RF 2.4 GHz (Bluetooth)
Transmission Distance Up to 33 feet
Power Requirement 3V DC (two AAA sized batteries)
Battery Usage Up to 14 hours (continuous us-
age)
Touchpad Capacitive Touchpad with Scroll
Strip
System Requirements
Operating System Windows XP or Vista
Mac OS X 10.4 or higher
Hardware Built-in or add-on Bluetooth
Dongle (Version 2.0 or higher)
Page 15

Troubleshooting
The controller doesn’t work when I turn the power on.
• If it’s never worked, you may need to insert batteries (p. 2)
or pair the remote with your computer (PC p. 5, Mac p. 9).
• If it worked 20 minutes ago, it may have gone into Sleep
Mode to save power. To check, press the touchpad. If
the green Activity LED does not turn on, slide the power
switch to wake the unit back up.
Movement of the cursor is jerky.
• You may be too far away from the computer. Move closer
and see if the problem gets better.
• You may have too many items nearby using the 2.4 GHz
frequency. Try moving the computer to another location to
see if it improves.
• Your computer may be frozen or processing data. Check
to see if you have the same problem with a wired mouse.
• Your batteries may be getting low. Try another pair.
Page 16

Page 17
When the computer goes into sleep mode, the remote does not
operate or operates erratically.
• Deactive the Bluetooth connection, wait a few seconds
and then re-establish the connection.
The mouse moves too fast / too slow.
• The speed of the mouse can be set in your Windows
control panel or the Mouse preference pane of System
Preferences.
The Scroll Strip does not work.
• Not all programs support scrolling. Try scrolling on a
wired mouse. If the wired mouse doesn’t work, you can
check in the mouse section of Windows control panel to
ensure it hasn’t been disabled. If it hasn’t been disabled,
the program does not support mouse and touchpad scroll-
ing.

Thank You
Thank you for purchasing a VP4750 Bluetooth® Touchpad
Remote. We know you had other choices and we appreciate
that you chose SMK-Link for your wireless needs.
So that we may better serve you in the future, please register
online at “www.smklink.com/register”.
Warranty
30-Day Money Back Guarantee
One Year, Limited Warranty
Contacting Customer
Support
SMK-Link Electronics, Inc.
3601-B Calle Tecate
Camarillo, CA 93012 USA
Telephone [phone] Fax [phone]
www.smklink.com
