SMONEX GNOR01 User manual

ONE SMART BOX
NOT A CHILDREN TOY
AGE 14+
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
Gloomhaven® is a registered trademark of Cephalofair Games. Any mention of Gloomhaven® is for reference purposes only. ALL RIGHTS
RESERVED by their respective trademark holders. No challenge to any intellectual property rights is intended or implied by representa-
tions of compatibility and no endorsements of any of our products by any other company is implied or represented.
Created for:
Gloomhaven
Gloomhaven: Forgotten Circles

Tips and tricks Assembly Supplies
Wood-glue is required when assembling
each tray, for extra strength.
(We recommend Titebond 2 Wood Glue or
Beacon 527)
Please make sure you
dry-assemble each tray correctly before
gluing it together.
Use stationery knife to cut the bits con-
necting the parts to the frame.
Remove the parts from the frame with a
rotating motion along the axis formed by
the bits you just cut.
Use stationery knife to remove any of the
remaining connection bits.
You can fix the box after gluing with
rubber bands. This will save you time and
simplify assembly.
For easier removal of the protective cov-
er-up from acrylic use a hairdryer. Just
heat the acrylic surface a little the cov-
er-up will be removed much easier!
Allow your finished insert to dry
overnight.

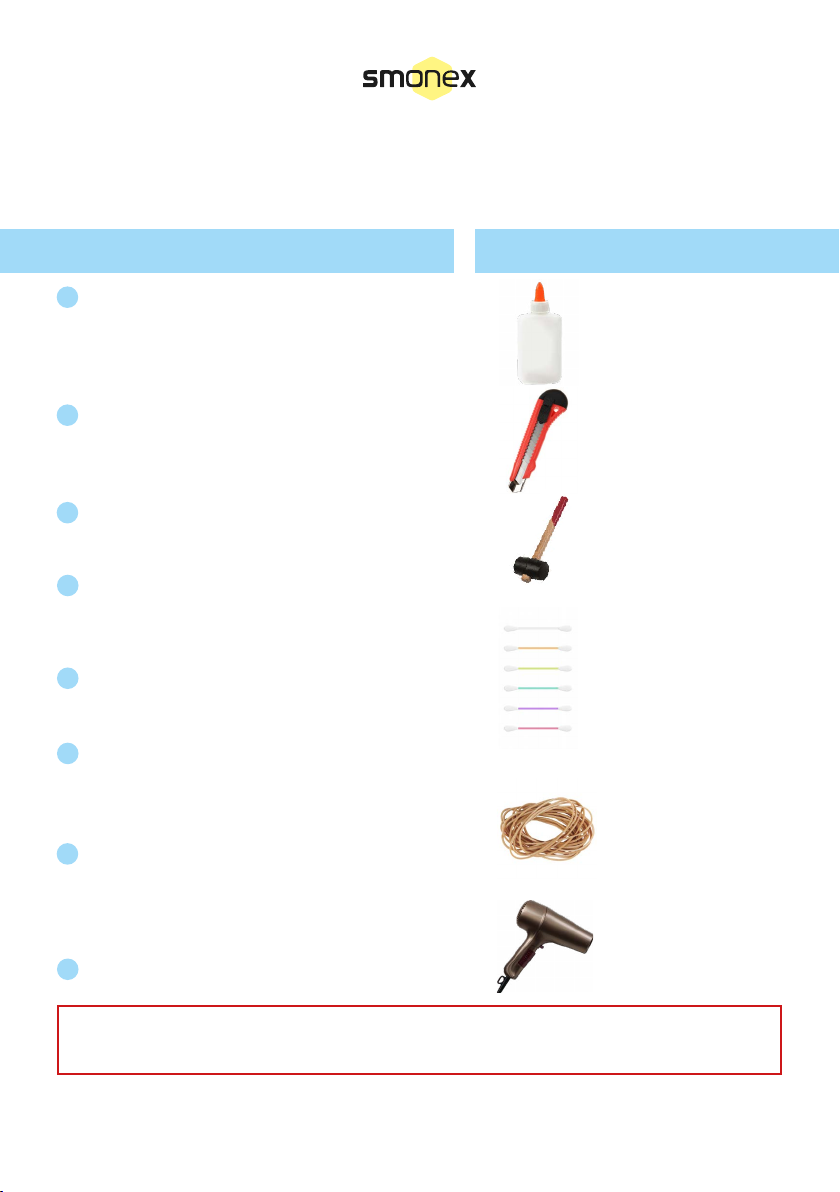

Wood-glue
Stationery knife
Cotton swab
Rubber bands
Hairdryer
This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.
Hammer
IMPORTANT: Assemble each tray one by one. Please DO NOT take out all the parts
from the sheets and mix them. Even though some parts look similar, they are not
interchangeable.
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
1

This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.

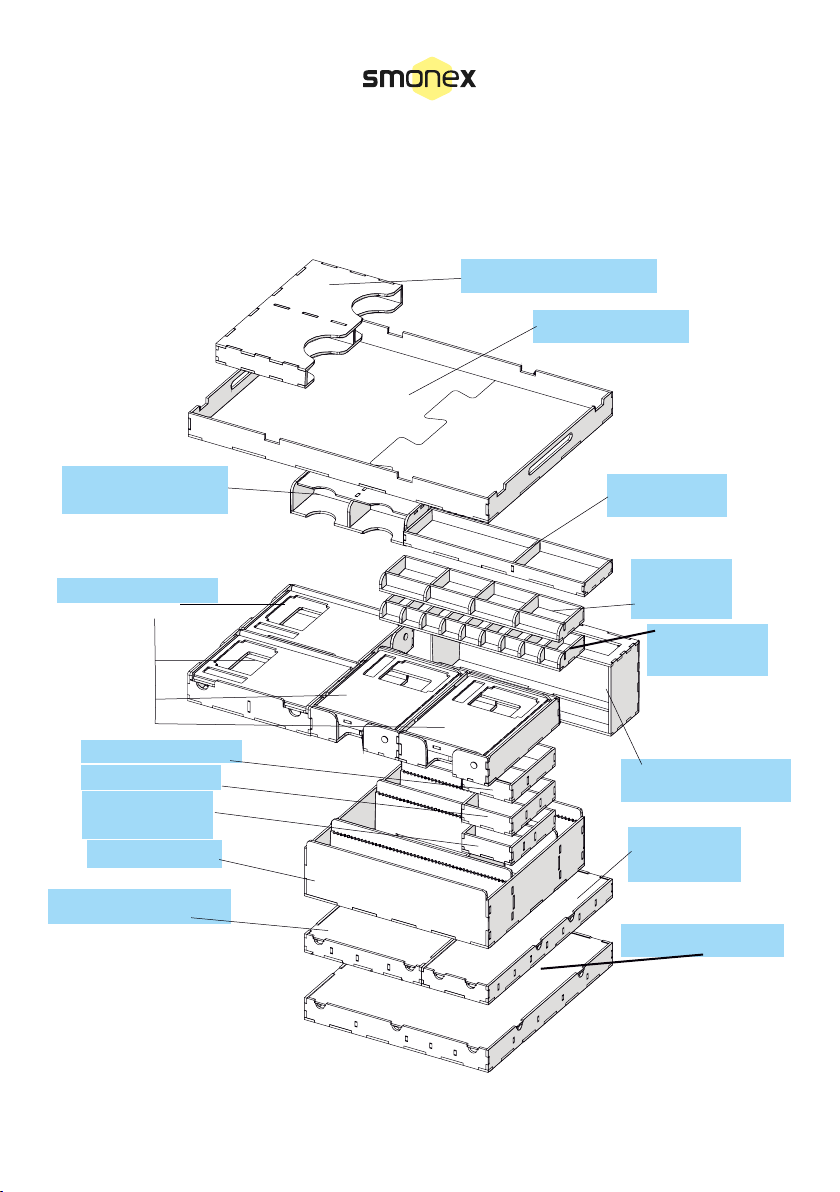

Map Tiles Tray
Summon
Token
Status
Token Tray
Character Tray
Overlay
Tiles Tray
Monsters Tray
Attack Modifier
Cards Holder
Player Boards
Coins Holder
Damage Tray
Objective
Tokens Tray
Cardholder
Big Overlay Tray
Stand Tray
Monster Stat Tray
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
2

This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.
Brief assembly instructions:
Components:
1.Unpack and arrange the sheets in order;
2. Compare the details on the sheets with the details
on the pictures in the instructions;
3. Study the pictures with the disassembled product;
4. Proceed with the assembly, taking out the
necessary parts from the sheet in order.
1
8 9 10 11 Р1 Р2 Р3 Maps tiles
x8 screws
x4 x4
x4
AB C D E F G H I
2 3 4 5 6 7
Components:

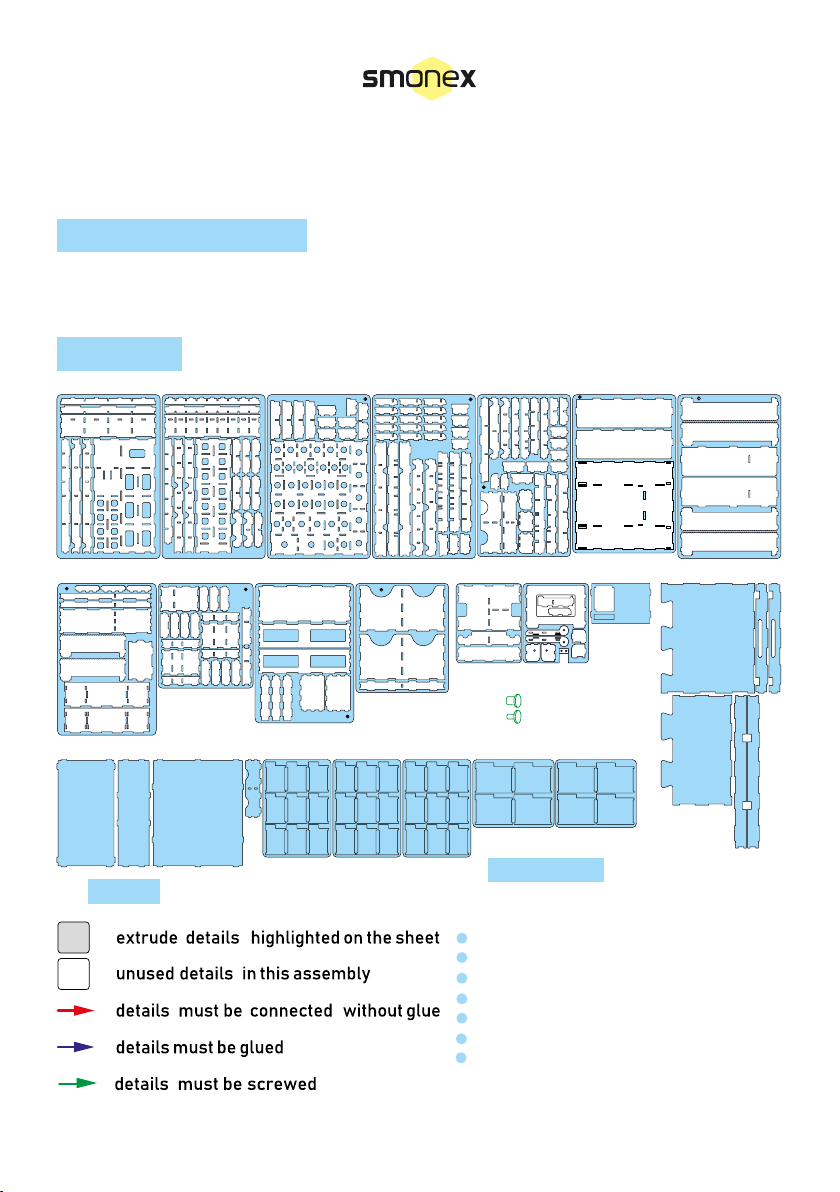

Legend:
19 sheets extrusion molds
5 acrylic sheets extrusion molds (E,F,G,H,I)
8 acrylic covers (A,B,C,D, 4xP3)
6 large parts (for Maps tiles tray)
8 screws
manual
1 sandpaper for stripping parts
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
3

19 sheets extrusion molds
5 acrylic sheets extrusion molds (E,F,G,H,I)
8 acrylic covers (A,B,C,D, 4xP3)
6 large parts (for Maps tiles tray)
8 screws
manual
1 sandpaper for stripping parts
This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.

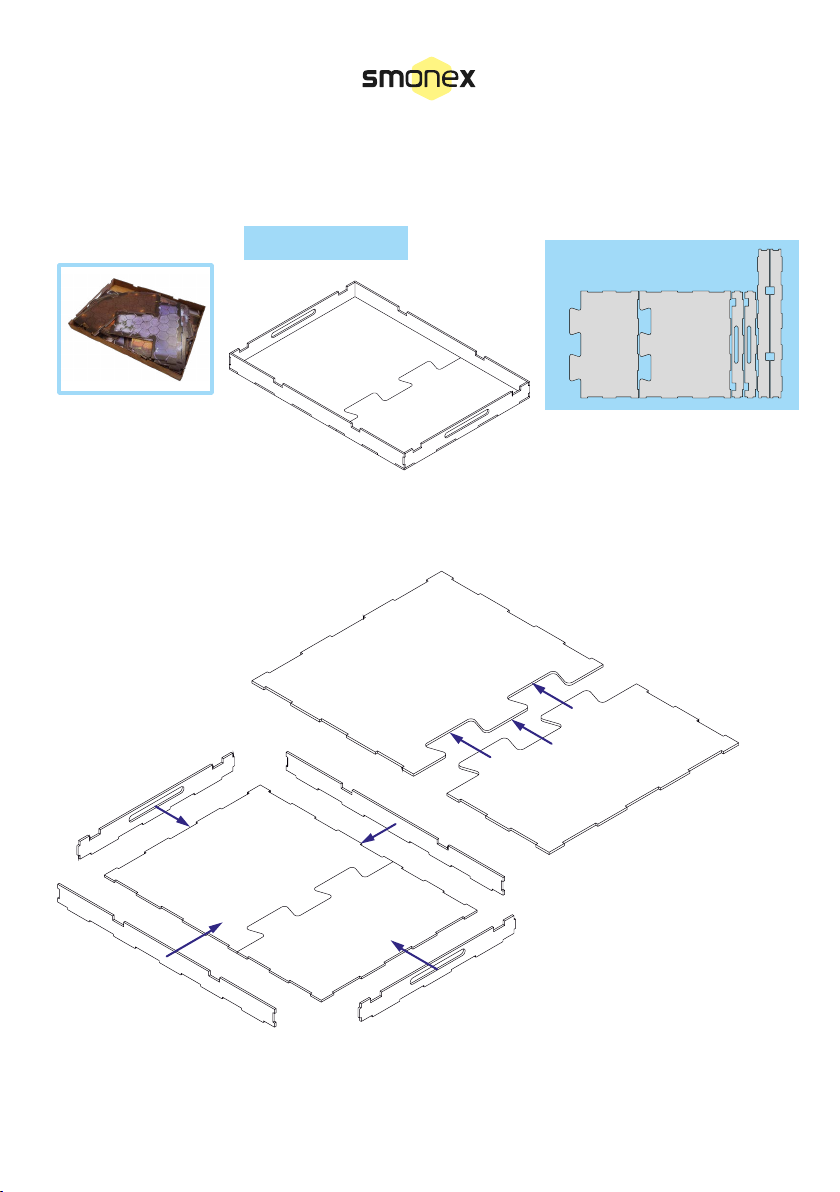

Big Overlay Tiles Tray
Please DO NOT take out all the parts from
the sheets and mix them. It will help you not to
get lost in the lots of components.
Intended for 2-sided overlay tiles storage
(terrain, tables, walls).

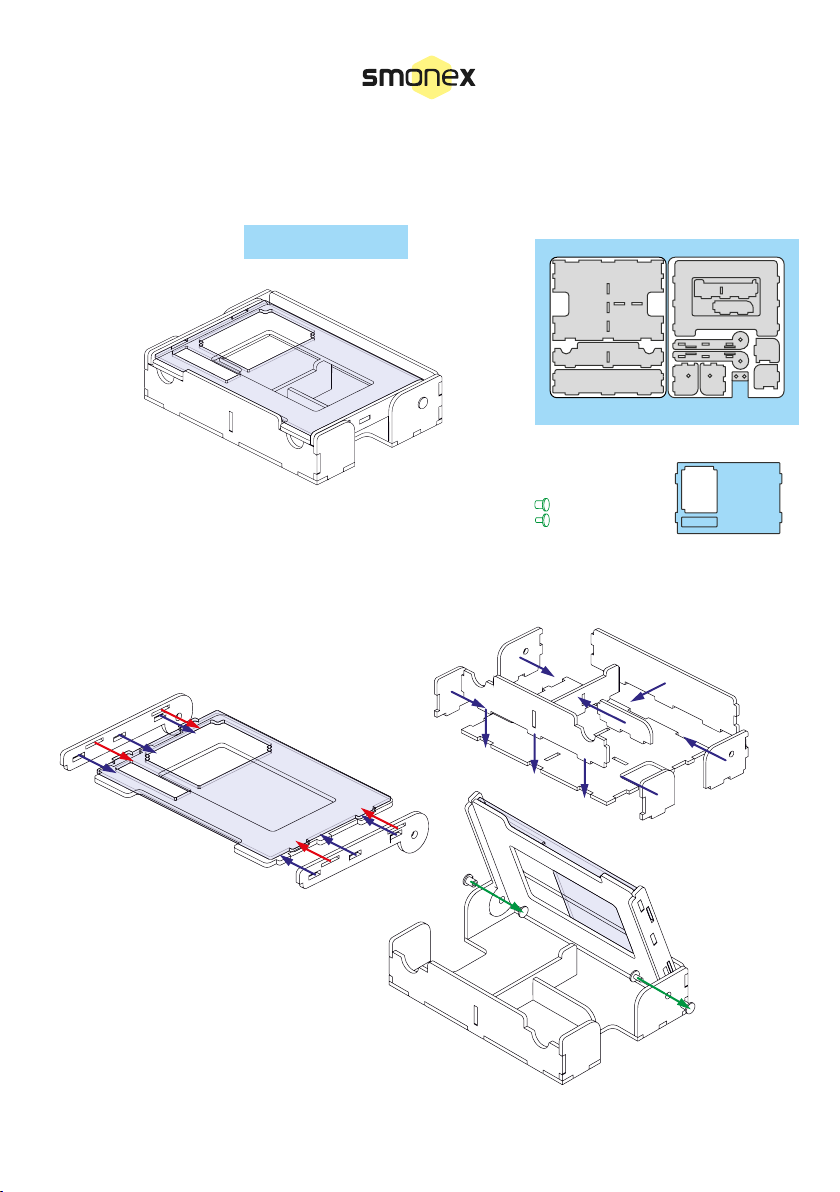

1Step 1
Step 2 1
5
5
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
A
1 5
3 4

This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.

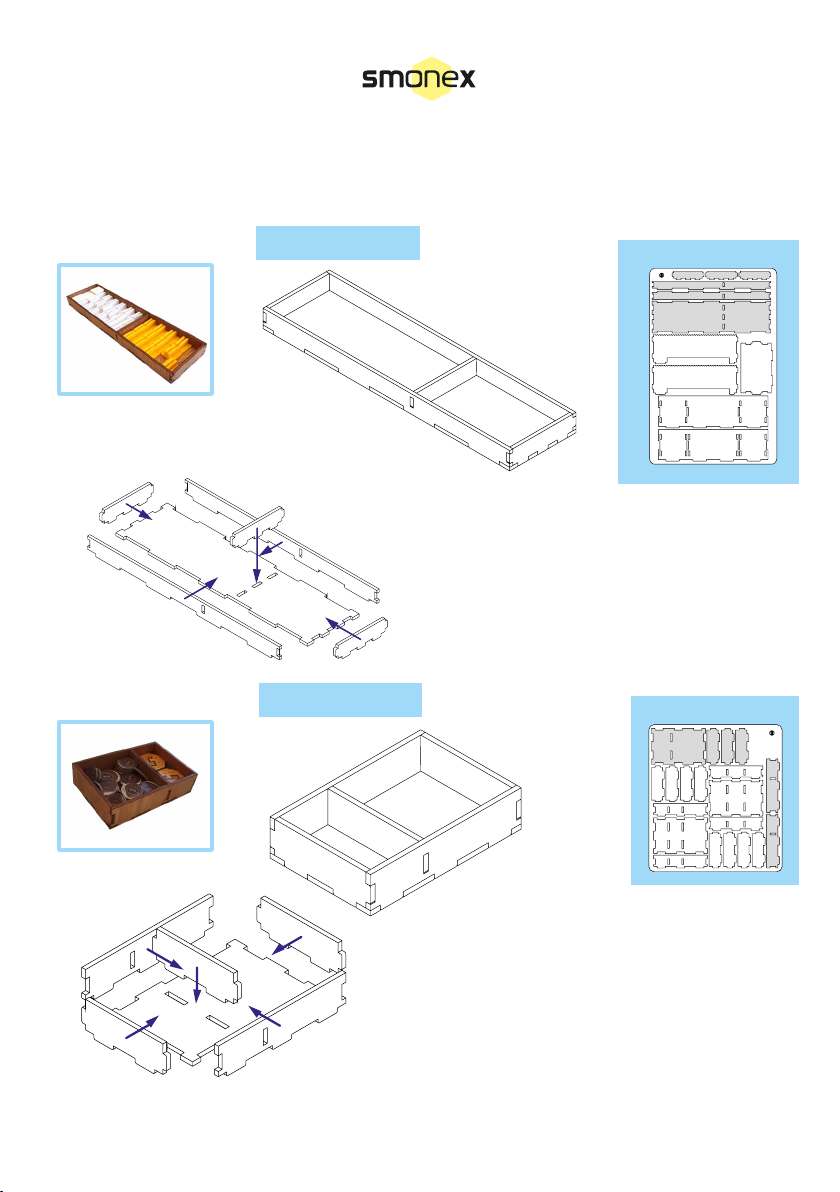

Big Overlay Tiles Tray
After step 3, until the glue
has completely dried, make sure
that Cover A is easily removed and
put back in it’s place. Only after that
remove the protective cover-up.
Step 3
Step 4
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
12A
5

This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.

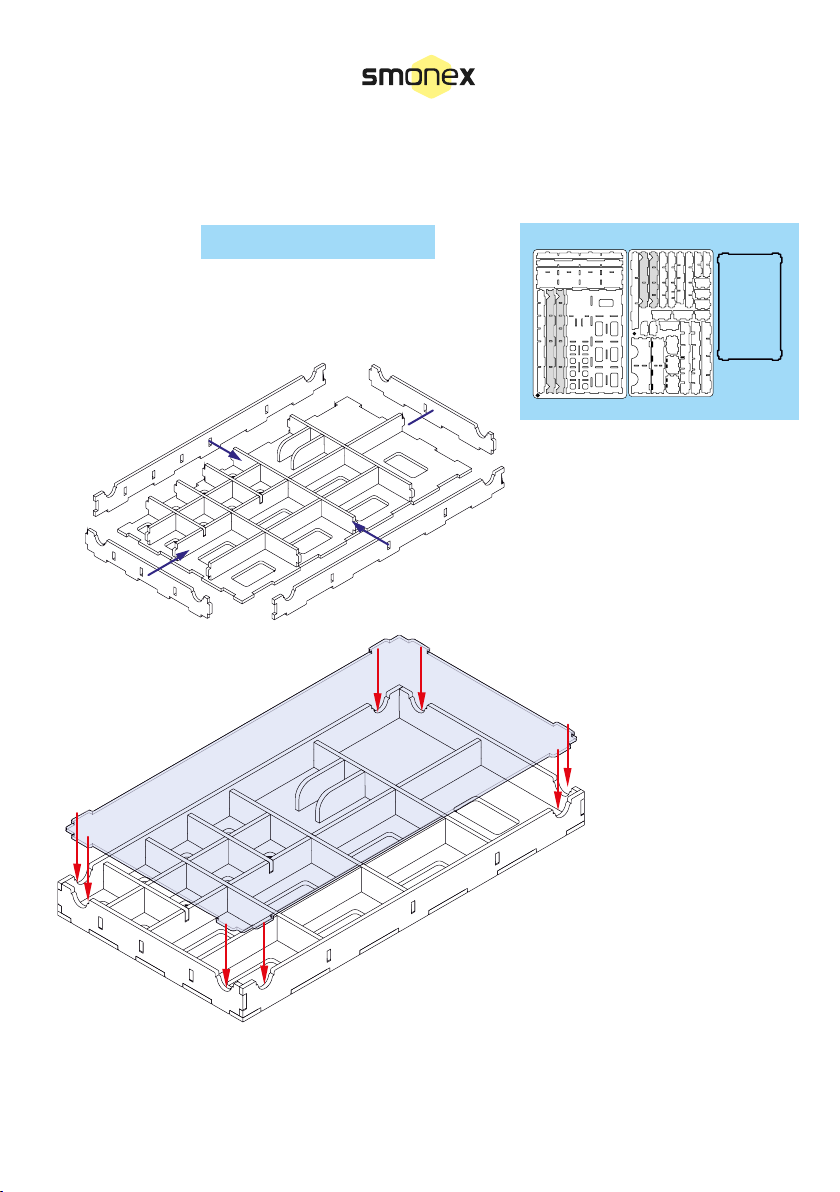

Overlay tiles tray
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
Please DO NOT take out all the
parts from the sheets and mix them.
It will help you not to get lost in the
lots of components.
Intended for 2-sided overlay
tiles storage (obstacles, traps,
treasure).
Please, pay attention, orange detail is different
from the others.
Until the glue has completely dried, make sure that Cover B is easily
removed and put back in it’s place. Only after that remove the protective cover-up.
2
B
Step 1 Step 2
Step 3
Step 4
5 6

This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.

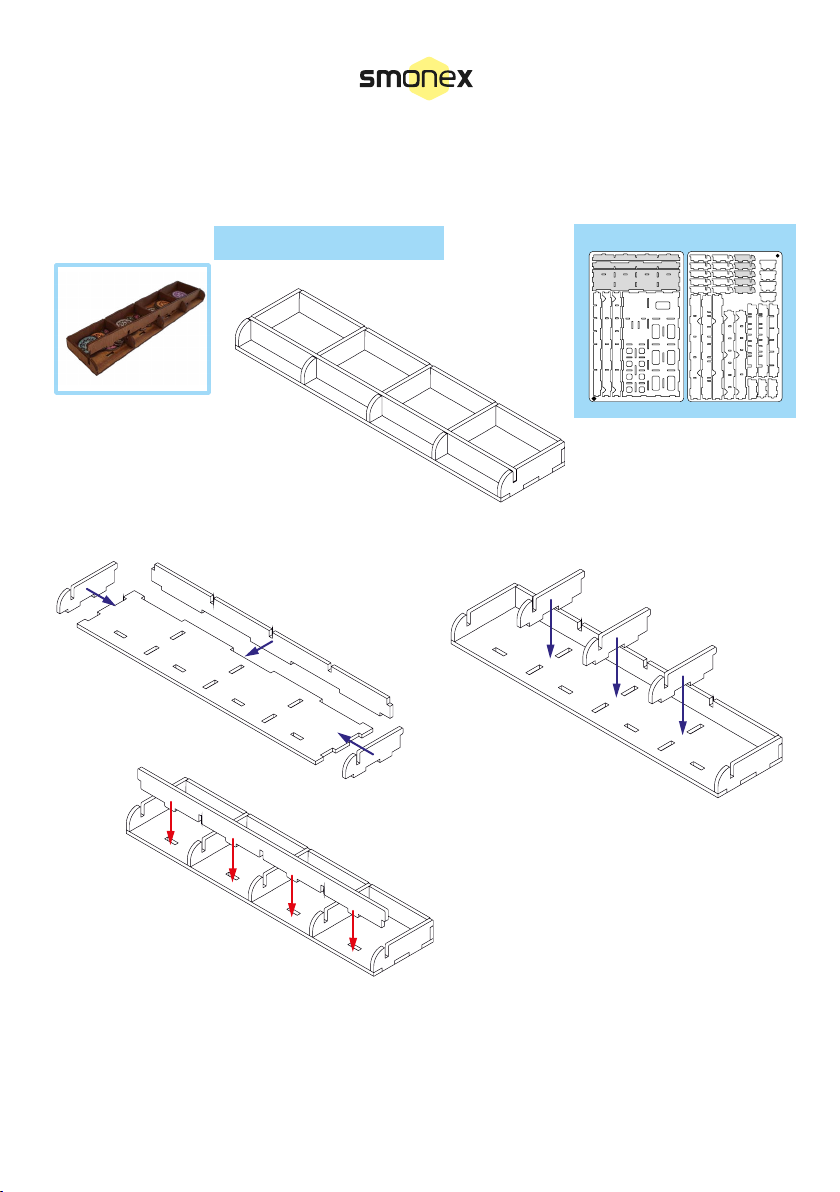

Monsters tray
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
Please DO NOT take out all the
parts from the sheets and mix them.
It will help you not to get lost in the
lots of components.
Intended for monsters storage.

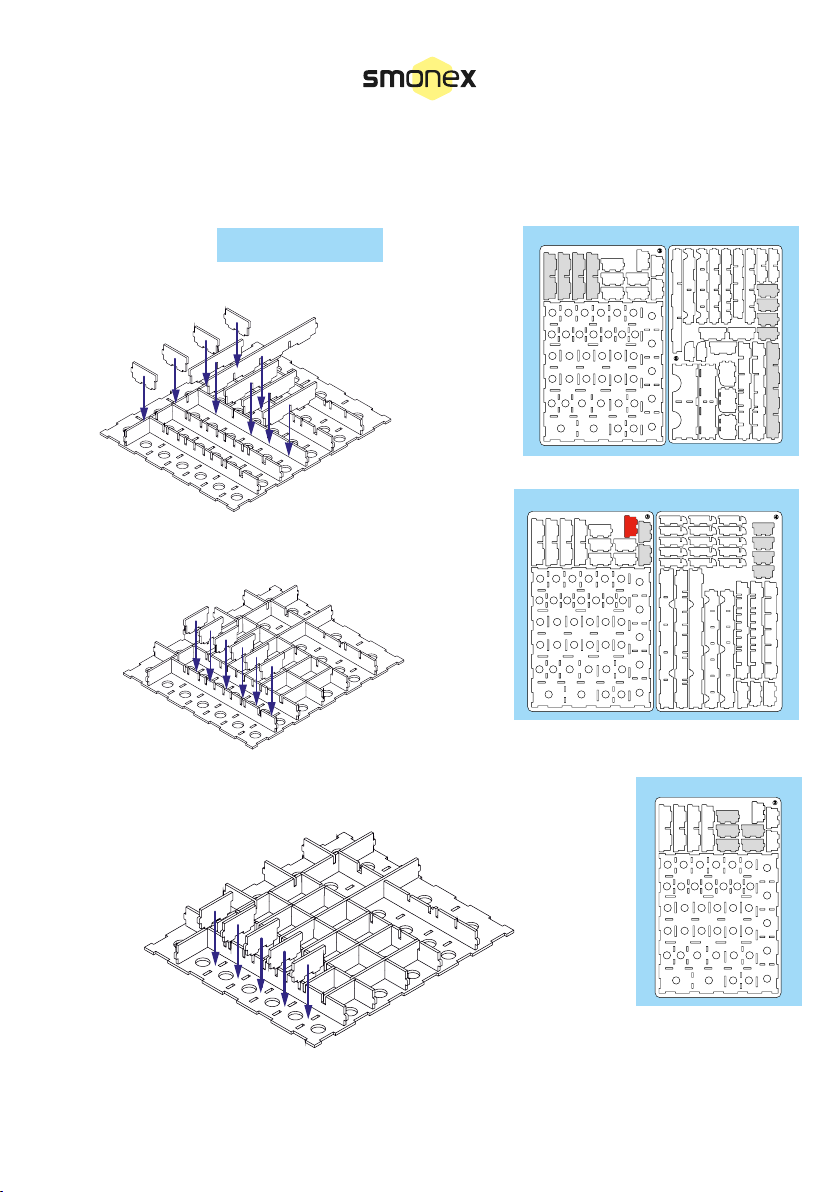

Step 1
5 C
4
4 5
3
3
7 8

This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.
Monsters tray
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
Step 2
3
3
3
4
5
Step 3
Step 4
Red detail is a spare part.
7 8

This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.
Monsters tray
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
4
4
4
5
Step 5
Step 6
Step 7
9 10

This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.
Monsters tray
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
Step 8
Until the glue has completely dried, make sure that Cover C is easily removed and
put back in it’s place. Only after that remove the protective cover-up.
10

Intended for Summon Tokens storage.
Cover shouldn’t be glued. Take it out and install on the bottom
of the box before game for handy use of extracted resources.
This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.
Summon token tray
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
Step 1
Step 3
Step 2
1 4
11 12

Intended for Status Token storage.
Cover shouldn’t be glued. Take it out and install on the bottom
of the box before game for handy use of extracted resources.
Intended for Attack modifier
cards holder storage.
This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.
Status token tray
Attack modifier card holder
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
Step 1 Step 2 Step 3
Step 1
Step 2
2 4
5D
11 12

Intended for the most convenient use
and storage of all your cards in the game.
Acrylic covers are designed to separate
cards by type.
This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.
Cardholder
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
Step 1
6
6
E
7
7
F
H
8
8
G
I
Step 2
Step 3
Please DO NOT take out all the
parts from the sheets and mix them.
It will help you not to get lost in the
lots of components.
13

Squeeze the acrylic details from the sheet, remove
plastic cover and carefully install it in the Cardholder.
This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.
Cardholder
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
Step 4
6
E
7
FH
8
GI
Step 5
Step 6
13 14

Intended for money tokens storage.
Intended for plastic stands storage.
This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.
Stand tray
Coin Holder
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
Step 1
Step 1
8
9
15

Intended for scenario aid tokens,
objective tokens and wood elements
discs storage.
Intended for damage tokens storage.
This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.
Damage tray
Objective tokens tray
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
Step 1
Step 1
9
9
15 16

Intended for monster stat sleeves
and event cards storage.
Intended for character miniatures
boxes storage.
This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.
Character tray
Monster stat tray
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
Step 1
Step 1 Step 2
10
10
11
17

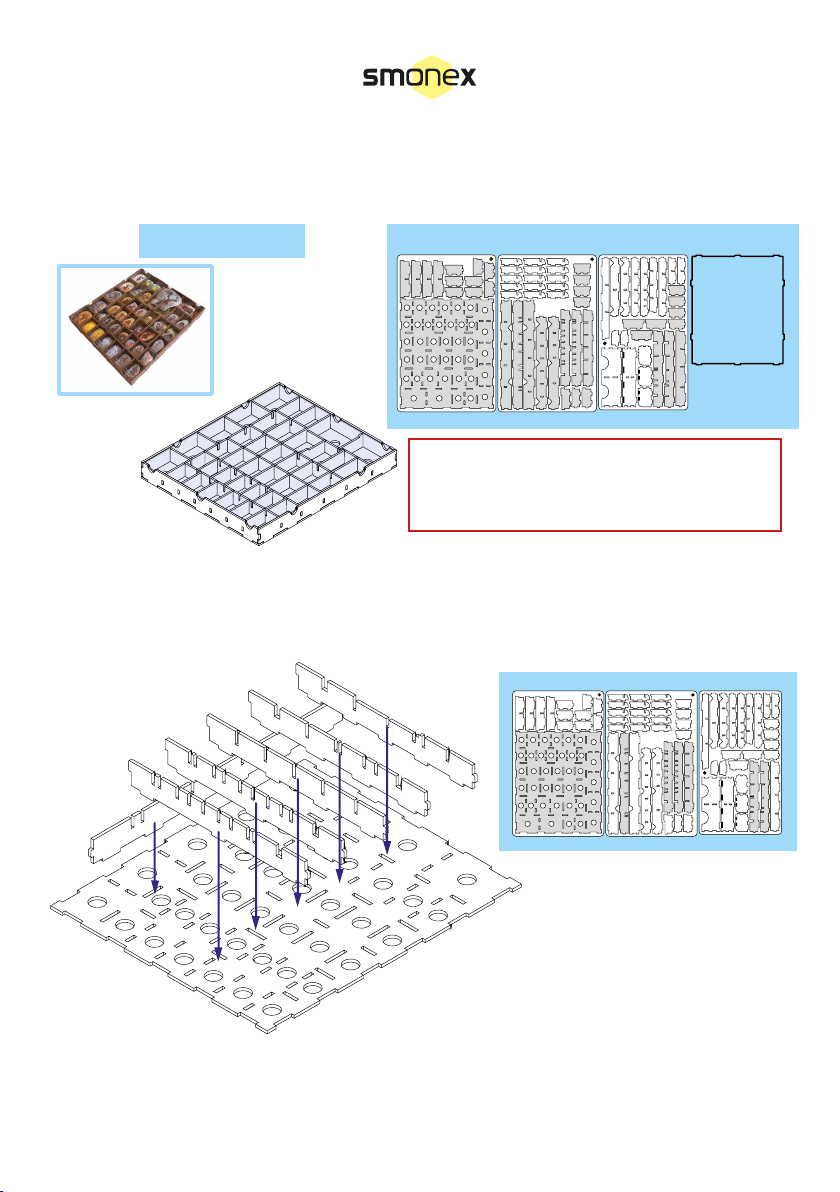

Intended for 2-sided map tiles storage.
Carefully apply glue to the inner ends of the
connecting elements along the entire contact line.
This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.
Map tiles tray
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
Step 2
Step 1
17 18

Intended for comfortable game and saving
results between your games.
Before step 2 remove protective cover-up
from the both sides of the cover.
In the box you will find screws that need
to be screwed in 2 units into each player board
This is a non-licensed product. ALL RIGHTS RESERVED by their respective trademark holders. No challenge to any intellectual property
rights is intended or implied by representations of compatibility and no endorsements of any of our products by any other company is
implied or represented.
Player board x4
Gloomhaven® Organizer
GNOR01
Compatible with Gloomhaven®
Assembly Guide
Step 2
Step 3
x4
P1 P2
P3
x4
Step 1
x8 screws
19
