Smoothskin bare+ User manual

USER GUIDE
10 minutes andvoilà!

2
Welcome to
SMOOTHSKIN BARE+
Congratulations! You’ve opened up a world of unparalleled beauty, smoothness
and convenience. The days of waxing woes are officially behind you! With your new
SMOOTHSKIN BARE+ Intense Pulsed Light (IPL) hair removal system you can look
forward to silky smooth skin that lasts so long you’ll have forgotten all about stubbly
legs and prickly underarms. Wave goodbye to wax strips – SMOOTHSKIN is here to stay!
Come and join the conversation at the beauty room ‘support programme’
www.smoothskin.com where you can swap tips and get expert advice throughout
your treatment.
CONTENTS
CHAPTER PAGE NO. CHAPTER PAGE NO.
1.1 WARNINGS 3
1.2 PRECAUTIONS 6
1.3 EYE SAFETY 7
2.0 INTRODUCTION 9
2.1 YOUR SMOOTHSKIN 9
3.0 HOW IT WORKS 9
3.1 HOW DOES IPL WORK? 9
3.2 WHAT TO EXPECT 9
4.0 HOW TO USE 10
4.1 GETTING STARTED 10
4.2 FEATURES 11
4.3 TREATMENT 11
4.4 TREATMENT METHOD –
STAMP OR GLIDE 12
4.5 SWITCHING OFF 12
5.0 AFTERCARE 12
5.1 POSSIBLE SIDE EFFECTS 12
5.2 SIDE EFFECT TABLE 13
5.3 CLEANING, MAINTENANCE
AND STORAGE 14
5.4 TROUBLESHOOTING 14
6.0 INFORMATION 15
6.1 TECHNICAL
SPECIFICATIONS 15
6.2 DISPOSAL (end of life) 15
6.3 WARRANTY 15

3
DO NOT USE SMOOTHSKIN BARE+ if your skin
has been artificially or naturally tanned recently.
Your skin may be extra sensitive following
sun exposure and particularly susceptible
to side eects of IPL treatment (e.g. burn,
blister, discolour or scar your skin). Also, avoid
unprotected exposure to direct sunlight after your
SMOOTHSKIN BARE+ treatment. Your skin may
be extra sensitive following IPL treatment and
particularly susceptible to sunburn. Use sunscreen
(SPF 15 or greater) or cover the skin.
DO NOT USE SMOOTHSKIN BARE+ directly on
the nipples, genitals or around the anus. These
areas may have a darker skin colour and/or greater
hair density. Using the device in these areas may
cause discomfort/pain or injure (burn, discolour or
scar) your skin.
1.1 WARNINGS
DO NOT USE SMOOTHSKIN BARE+ if you have
very dark skin (see Skin Tone Chart below). Very
dark skin may absorb too much light energy and
injure (e.g. burn, discolour or scar) your skin.
CONTENTS

4
DO NOT USE SMOOTHSKIN BARE+ if you have
a history of skin cancer or pre-cancerous lesions
(e.g. nevi or a large number of moles).
DO NOT USE SMOOTHSKIN BARE+ if you have
any of the following, as SMOOTHSKIN BARE+ may
injure your skin or make existing conditions worse.
You may experience side eects such as burns,
blisters and skin colour changes (hyper- or hypo-
pigmentation) or scarring:
• Dark brown or black spots such as birthmarks,
moles or warts in the area you wish to treat.
• Chronic skin disease (e.g. psoriasis or vitiligo)
or damaged skin (e.g. sunburn, cuts, open
wounds or active infections) in the areas you
wish to treat.
• Varicose veins in the area you wish to treat.
• Tattoos or permanent makeup on the area you
wish to treat. If you have a known sensitivity
to sunlight (photosensitivity) or are taking
medication that makes the skin more sensitive
and causes photo-sensitivity, e.g. Retin A,
Accutane and/or other topical retinoids.
CONTENTS

5
If you are taking a medical product, always check
the instruction leaflet, to see if photosensitivity is
listed as a side eect. If you are still unsure about
using SMOOTHSKIN BARE+ please seek medical
advice.
DO NOT USE SMOOTHSKIN BARE+ if you have
had a skin peel treatment on the area you wish
to treat.
DO NOT USE SMOOTHSKIN BARE+ if you are
pregnant or lactating, as this device has not been
tested with these individuals.
SMOOTHSKIN BARE+ is not intended for use
by persons with reduced physical, sensory or
mental capabilities, unless they have been given
supervision or instruction concerning safe and
proper use of the device by a person responsible
for their safety.
SMOOTHSKIN BARE+ should be kept out of
the reach of children under 16 years of age.
Children should not use, play with, maintain or
clean the device.
The SMOOTHSKIN BARE+ Glass Filter is a critical
component that will get hot during use. DO
NOT touch the Filter during or directly after use.
CONTENTS

6
Regularly inspect the Filter for damage. DO
NOT use SMOOTHSKIN BARE+ if the Filter is
cracked or missing.
Ensure that SMOOTHSKIN BARE+ Treatment
Window is clean and free from debris. Any debris
on or around the Treatment Window during
operation may result in temporary skin changes
such as redness or swelling.
WARNING: Damage of the skin may occur after
prolonged or repeated surface application on one
site. Do not exceed the usage specified in the
treatment regime.
1.2 PRECAUTIONS
SMOOTHSKIN BARE+ is not recommended for use
on red, grey or very light hair as it is not eective
on these hair colours.
Electrical and Fire Safety
As with any electrical device, certain precautions
must be taken in order to ensure your safety.
Danger
DO NOT USE if SMOOTHSKIN BARE+ is
damaged; for example, cracked handset, cable
damage (internal wires visible), cracked or broken
glass on the handset, etc. Internal parts contain
electric charges that are hazardous.
CONTENTS

7
DO NOT USE near bathtubs, showers, basins or
other vessels containing water. If SMOOTHSKIN
BARE+ becomes wet, it should not be used. DO
NOT use if the device has been exposed to water.
NEVER try to open the SMOOTHSKIN BARE+,
as this may expose you to dangerous electrical
components and to pulsed light energy.
DO NOT USE if the handset becomes
uncomfortably hot to touch. This may indicate
that the SMOOTHSKIN BARE+ is damaged.
1.3 EYE SAFETY
SMOOTHSKIN BARE+ emits flashes of Intense
Pulsed Light. Direct exposure is potentially
harmful to your eyes. Take care to follow the
safety precautions below.
The handset can only be activated (flashed) if the
skin tone sensor detects a valid skin tone reading,
and is in full contact with the treatment area.
However:
DO NOT look directly into the treatment window
of the handset when the system has electrical
power and is switched on.
DO NOT attempt to activate (flash) the system
towards the eye.
CONTENTS

8
ONLY attempt to activate (flash) the system when
the front of the handset is in good contact with
the area you wish to treat.
We recommend you look away from the handset
when firing onto your skin.
DO NOT treat areas around the eye (eyebrows
or eyelashes).
SMOOTHSKIN BARE+ can be used to treat the
upper lip, chin, cheek, jawline and neck in women.
DO NOT attempt to activate (flash) SMOOTHSKIN
BARE+ onto any surface other than skin.
SMOOTHSKIN
BARE+ is a single
user device; it is not
gender specific so
it is suitable for
male use.
SMOOTHSKIN
BARE+ is not
recommended for
use on the male
beard as results may
be permanent.
Glass Filter
CONTENTS

9
Skin Tone
Sensor
Activation
Button
Umbilical
Cable
Power Supply
Power Cable
Treatment
Window
3.0 HOW IT WORKS

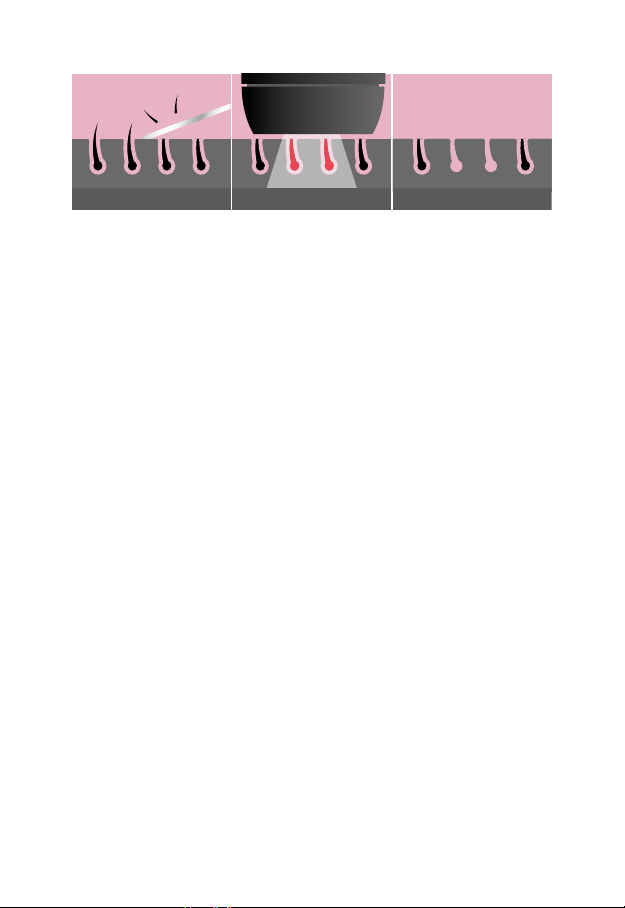

3.1 HOW DOES IPL WORK?
SMOOTHSKIN BARE+ is designed to help break the hair cycle and prevent regrowth. Light energy
is transferred through the skin’s surface and is absorbed by melanin present in the hair shaft. That
light energy is converted to heat energy (below the surface of the skin), which stops the pesky
hairs from growing back. Now you can look forward to seeing the treated hairs naturally fall out
over the course of a few days to 1-2 weeks.
3.2 WHAT TO EXPECT
Interesting fact! Hair grows in 3 distinct and consecutive phases, and not all hairs are in the same
phase at any one time. Because the IPL treatment is only eective in one particular phase (the
Anagen ‘growth phase’ – since you ask), this is why you should follow your treatment regime until
you see the desired results. By following the recommended regime, you’re likely to zap any hairs
you missed in previous treatments. Simple science!
2.0 INTRODUCTION
2.1 YOUR SMOOTHSKIN
She’s a beauty! SMOOTHSKIN BARE+ is powered by Intense Pulsed Light derived from
professional IPL technology. This means when it comes to hair removal, nothing else
comes close.
CONTENTS

FLASHSHAVE PREVENTS REGROWTH
Z
Z
Z
Z
Z
Z
Z
Z
Z
10
The Treatment Regime: First let’s talk about what NOT to expect. As for ALL home-use IPL or
laser treatments (don’t believe anyone who would tell you otherwise), one treatment won’t last
forever. You will need to keep treating the hairs every once in a while to avoid hair growth starting
up again; but the great thing about SMOOTHSKIN BARE+ is that it will prevent hair regrowth as
long as you keep treating regularly, so if you keep it up, you will never have to experience stubbly
legs or underarms again. Hoorah!
To get the most out of your SMOOTHSKIN BARE+, you should use it weekly on each treatment
area, to ensure all hair follicles are treated.
There is no added benefit of using the device more frequently (per body area) due to the normal
hair growth cycle. Using the device more frequently could cause skin irritation.
In the first few weeks following the initial treatments, you will still see some hairs growing. These
will likely be the hairs that were not treated in their growth phase (when IPL is most eective) so
be sure to keep up with the treatments!
Within 4 weeks, you should be seeing a reduction in hair regrowth. There will still be some hairs
that need treating as you need to catch each hair in the right phase, but don’t worry, things will
only get better from here on in - so keep going!
Side Eects: You shouldn’t expect to see any significant side eects from the treatments. If you
do notice anything out of the ordinary, just flick to section 5.2 for a bit more information.
Keeping Continuously Smooth: After 12 weeks, all the hairs should have been treated, and you’ll
just be required to top up ever 2-3 weeks. However, it must be noted that everyone’s length of
treatment is dierent (because we all have dierent skin, hair, lifestyle… even genetics play a role!)
so from now on it’s mostly up to you to define what is the right regime for you.
The secret to staying silky smooth is to keep at it and stick to your treatment regime. With
regular use, you will see fewer and fewer hairs growing back. These hairs should also be finer,
lighter in colour and grow more slowly. As time goes on, you will be able to completely replace
your shaving routine.
Visit the SMOOTHSKIN website (www.smoothskin.com) for further advice and for helpful tips on
how to use and get the best out of your SMOOTHSKIN BARE+.
4.0 HOW TO USE
4.1 GETTING STARTED
1. Before using SMOOTHSKIN BARE+, prepare the area to be treated by making sure it is shaved
(making sure to remove all visible hair prior to every treatment), cleaned and dried. Any
hairs remaining above the surface of the skin may damage the front of your device and could
cause an adverse reaction. Remember, don’t use any gels or creams with
this device!
2. Power on the device. Plug the power supply in using the cable provided. The skin tone sensor
on the front of the handset will illuminate blue and the fan will start up.
CONTENTS

11
4.2 FEATURES
Skin Tone Sensor: SMOOTHSKIN BARE+ has a unique, sophisticated skin tone sensor. During
a treatment, the sensor is continuously active, searching for a valid skin tone. If the skin tone
sensor does not detect a valid skin tone, or is not in full contact with the skin, then the handset
cannot be activated. Make sure the handset is placed flat against your skin, as it will only detect
the correct Skin Tone when pressed against the skin.
Whoa there! One step at a time...
Before your first treatment on each new body area, test your skin (in that area) for a
reaction to SMOOTHSKIN BARE+. The Patch Test area should be approximately 3cm x
2cm (equivalent to 2 flashes side by side).
1. Follow the instructions in the ‘Getting Started’ section to begin as usual.
2. Treat the area.
3. Wait 24 hours.
4. If there’s no reaction after 24 hours, you’re good to go! The ‘patch tested area’
should NOT be re-treated for at least 1 week.
Incorrect
Correct
Skin Detection
Indicator On Indicator O
No Skin Detection
4.3 TREATMENT
• Press the handset firmly against the area to be treated. The indicators around the activation
button will illuminate WHITE when the device is ready to flash.
• Press the activation button. The device will flash, and you will feel a warm sensation.
• Move the handset to the next area to be treated and go again!
Ensure that the ENTIRE AREA receives treatment, and treat any stubborn areas (such as
underarms) with multiple passes (running your device over the same area a maximum of 3 times).
Treatment Window
CONTENTS

12
4.4 TREATMENT METHOD – STAMP OR GLIDE
There are two recommended methods for treatment - ‘Stamp’ or ‘Glide.’ For whichever method
you choose, the handset must be moved between flashes to ensure the area is treated evenly and
no bits are missed.
Stamp Method
Best for small areas such as the underarm and face. Place the
handset on the skin, press and release the activation button.
Remove from the skin before carefully re-applying to the next
treatment area.
Glide Method
This is best for larger areas such as legs. Place the handset on the skin, press and hold down the
activation button, then glide the handset along the skin between flashes. Try to move the handset
at a steady speed that gives full coverage without overlap or missed areas.
4.5 SWITCHING OFF
When you’ve finished your treatment, SMOOTHSKIN BARE+ should be unplugged from the
electrical outlet. Refer to section 5.3 for details of how best to look after SMOOTHSKIN BARE+.
Treatment
Window
Full Coverage Overlapping Missed Areas
The device needs
to recharge between
flashes. This will take about
half a second.
Make sure not to cover the vents on the device whilst
treating, as this can lead to the device overheating.
SMOOTHSKIN BARE+ is an extremely fast and
powerful device, allowing you to complete a whole
body treatment in under 10 minutes.
5.0 AFTERCARE
5.1 POSSIBLE SIDE EFFECTS
SMOOTHSKIN BARE+ is a powerful device. Some people may experience slight discomfort (e.g.
heat or redness of the skin) during use - this is normal. This type of reaction usually disappears
within 24 hours. Side eects or reactions are usually immediate or appear within 24 hours. If you
are concerned, stop using SMOOTHSKIN BARE+ and visit the SMOOTHSKIN website for support
www.smoothskin.com
Vents
CONTENTS

5.2 SIDE EFFECT TABLE
13
SIDE EFFECT HOW TO ASSESS & REACT
Mild pain / discomfort in the area
being treated. This is expected and is normal for all
IPL treatments. You can keep on using
the device as instructed, and the pain
should diminish with continued use.
Warm feeling or tingling sensations
during treatment, which typically
disappear after a few seconds to a
minute and decrease with continued use.
This is expected and is normal for all IPL
treatments. You can keep on using the
device as instructed.
Itchiness in the treatment area. This is quite common for IPL treatments,
and should subside after a short period.
You can keep on using the device as
instructed. Do not scratch the area.
Skin redness during or after treatment
which disappears within minutes.
This is expected and is normal for all IPL
treatments. You can keep on using the
device as instructed once skin redness
has disappeared.
Skin redness which does not disappear
within minutes and lasts 24-48 hours.
Stop using the device immediately and
consult your physician before using
it again.
Pain or discomfort that is intense during
treatment or persists after a treatment.
Stop using the device immediately and
consult your physician before using
it again.
IN VERY RARE CASES HOW TO ASSESS AND REACT
Swelling and redness that does not
disappear within two to three days.
Stop using the device immediately and
consult your physician before using it
again. Please visit the SMOOTHSKIN
website for support.
Temporary changes in skin colour
(lightening or darkening).
If your skin colour changes, stop using
the device immediately and consult your
physician. Please visit the SMOOTHSKIN
website for support.
Blistering or burning of the skin. If your skin colour changes, stop using
the device immediately and consult your
physician. Please visit the SMOOTHSKIN
website for support.
CONTENTS

14
5.3 CLEANING, MAINTENANCE
AND STORAGE
1. After treatment, always switch o SMOOTHSKIN BARE+ by unplugging from the
electrical outlet.
2. After use, the Handset, should be inspected for damage and wiped down with a dry,
lint free cloth.
WARNING: The glass filter can get hot during use. DO NOT touch or clean the filter for at
least 5 minutes after use to allow it to cool down.
NEVER use water or other cleaning fluids, as these can damage the device and cause a
safety hazard.
To ensure maximum performance of
your SMOOTHSKIN BARE+, it is
particularly important to keep the
reflector and skin tone sensor free
from dirt, hair or other debris.
If necessary, the reflector and skin
tone sensor can be carefully cleaned
by using a slightly damp cotton bud.
3. Store SMOOTHSKIN BARE+ in a cool,
dry place. Make sure that the treatment
window and skin tone sensor on the
handset are protected from damage.
4. Regularly check the device (including cords) for visible signs of damage. In case of
damage or cracks, stop using the device - and visit the website for support details.
5.4 TROUBLESHOOTING
PROBLEM SOLUTION
The Activation Button Lights on the
handset do not light up when placed
against your skin.
Make sure the power supply is plugged
in. Ensure the Skin Tone Sensor is fully
pressed against the skin. Your skin could
be too dark for treatment. Check against
the skin tone chart in the front of this
user guide.
The Activation Button on the handset
lights up white when placed on the skin,
but the handset fails to flash when the
Activation button is pressed.
There could be a fault with the device.
Unplug the device and restart. If the
problem persists, visit the website for
support details.
The Activation Button Lights on the
handset are illuminated red continuously,
and the device will not function.
This indicates that there is a fault with
the device. Stop using the device and
visit the website for support details.
The SMOOTHSKIN handset, treatment
window, power supply or cable are
damaged, broken, cracked or appear
defective.
DO NOT USE. If you are in any doubt
about the safety of SMOOTHSKIN BARE+
or suspect it is damaged in any way, it
must not be used, and you should vist
the website for support details.
Skin Tone
Sensor
Reflector
CONTENTS

15
6.1 TECHNICAL
SPECIFICATIONS
SMOOTHSKIN BARE+ is a filtered broadband Intense
Pulsed Light system with the following technical
specifications:
• Repetition Rate: Manually pulsed every 0.6 seconds
• Continuous Operation
• Max Optical Output: 4J/cm2
• Pulse Length: 1msec FWHM
• Wavelength: 515-1100nm
• Power Line Input: 100–240V~, 50/60Hz, 1.7-0.91A
• Operating Temperature: Between 5°C and 40°C
• Operating Humidity: Up to 93%R.H. non condensing
• Operating Pressures: 700hPa to 1060hPa
• Treatment Area (spot size): 3 cm2(30mm x 10mm)
Transport Conditions:
• Temperature: -25°C to +70°C
• Humidity: Up to 93%R.H. non condensing
• Pressures: 500hPa to 1060hPa
SMOOTHSKIN BARE+ has unlimited flashes and is intended
for a single user.
CE marking certifies that this appliance conforms to the
following EEC directives:
• Low Voltage Directive 2014/35/EU
• Electromagnetic Compatibility Directive 2014/30/EU
• Energy related Product Directive 2009 / 125 / EC.
6.0 INFORMATION
NRTL Certification marking
FCC EMC compliance
for North America
Australia Regulatory
Compliance Mark
EAC Conformity Marking
for Custom Union
Trefoil compliance mark
for Ukraine
China RoHS environmental
protection use period
Warning Optical
Radiation from device
may cause eye injury
Type BF Applied Part
Class II Equipment
Follow Instructions for use
WEEE waste disposal mark
of the European Union
European
Conformity Marking
Keep Dry
6.2 DISPOSAL (end of life)
In order to minimise hazards to health and the environment and ensure that materials can be recycled,
this product should be disposed of at a separate collection facility for waste electrical and electronic
equipment. The Wheelie Bin symbol marked on the product is there to remind you.
6.3 WARRANTY
We grant a 2 year warranty on the product starting on the date of purchase. Within the warranty period,
we will check faults in materials or workmanship free of charge and replace the complete device, at our
discretion. This warranty extends to every country where this device is supplied by Cyden Ltd or its
appointed distributor.
This warranty does not cover damage due to improper use, normal wear or use as well as defects
that have a negligible eect on the value or operation of the appliance. The warranty becomes void if
repairs are undertaken by unauthorised persons and if original SMOOTHSKIN BARE+ parts are not used.
To obtain service within the warranty period, please visit our website:
www.smoothskin.com
CONTENTS

16
CyDen Limited
Oce Block A
Bay Studios Business Park
Fabian Way
Swansea SA1 8QB
Wales UK
*Product may vary from illustrations
shown throughout this guide
CM12-1543-01
