SNAIGE CD40DM User manual

Vertical display cooler
Instructions for Use

SAFETY INSTRUCTIONS
Carefully read the Instruction manual! If instructions are not followed, there is a
risk of injury, damage of the appliance and loss of the right to free warranty
service. We recommend to keep the Instruction manual the whole time you have
the appliance. When you sell the appliance pass the Instruction manual to the
new owner of the appliance.
WARNING!
Do not cover the ventilation holes at the top and on the sides of the
appliance.
Do not use any mechanical means or electrical devices to hasten the thawing
process when cleaning the freezer compartment.
Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
If the supply cord is damaged it must be replaced by the manufacturer,
manufacturer service agent or a similarly qualified person, in order to avoid a
hazard.
Disposal of the appliance should be according to national rules.
Do not damage the appliance refrigeration system. It contains the refrigerant
gas R600a. If the refrigeration system is damaged:
•Do not use any open flame.
•Avoid sparks ― do not turn on any electrical appliances or
lighting fixtures.
•Immediately ventilate the room.
The appliance should be used only for storing foodstuffs.
This appliance is not designed for the storage of explosive substances such
as aerosol cans with a flammable propellant.
It is prohibited to store petrol and other flammable liquids near the appliance.
CONNECTION TO THE MAINS
The appliance should only be connected to an earthed socket installed in
accordance with the regulations. Make sure that the supply voltage
corresponds with the voltage marked on the rating label. This product
complies with all binding CE labelling directives.. The earthed electrical
socket by which the appliance is connected to the mains should be in an
accessible place.

IF THE APPLIANCE IS PRODUCED WITH THE SPECIAL SUPPLY CORD
IT CAN BE EXCHANGED ONLY BY THE SAME SPECIAL SUPPLY CORD
PROVIDED BY THE MANUFACTURER.
TO AVOID HAZARDS, DAMAGED POWER SUPPLY CORDS SHOULD BE
REPLACED ONLY BY THE MANUFACTURER, A MAINTENANCE
TECHNICIAN, OR A PERSON WITH AN EQUIVALENT QUALIFICATION.
DO NOT USE extension cords or connectors (adapters) or couplers.
The frequency and power of the electricity supply in your house must
conform to the general data parameters of the appliance as it is shown in the
product label.
When positioning the appliance, be careful that the electrical cord isn’t
squeezed in order to avoid its damage. Do not store heavy objects such as
cooling devices or other devices next the appliance in such a way that they
could squeeze and damage the electrical cord. This can cause a short circuit
and a fire.
Make sure that the plug of the electrical cord is not squeezed by the back
wall of the appliance or otherwise damaged.
A damaged plug can be the cause of a fire!
CAUTION! If the installed interior lighting or the advertising panel’s light-
emitting diode (LED) lamp for the cooling device is not functioning, contact
the maintenance and repair representative for replacements. LAMPS CAN
BE REPLACED ONLY BY THE MAINTENANCE AND REPAIR
REPRESENTATIVE.
•If the appliance is unplugged (for cleaning, moving to another place, etc.), it
may be repeatedly SWITCHED ON AFTER 15 MIN.
•It is forbidden to use a technically damaged appliance.
•Do not place any switched on electrical devices (such as microwave ovens,
hair dryers, irons, electric kettles or other electrical devices) on top of the
appliance because this may cause ignition of plastic parts.
•Do not place any dishes with liquids on top of the appliance and do not keep
flowers in vases or other liquid-filled vessels on the appliance.
•IF THE APPLIANCE IS OUT OF ORDER AND IT IS NOT POSSIBLE TO
REPAIR IT BY MEANS OF GIVEN RECOMMENDATIONS, UNPLUG IT,
OPEN THE DOORS AND CALL THE SERVICE EXPERT. ONLY A
SERVICE REPRESENTATIVE CAN REMEDY ALL TECHNICAL OR
CONSTRUCTION FAULTS.

GENERAL INFORMATION
The cooling appliance is a vertical display cooler with a door made of glass, designed
for the short-term storage and display of fresh food products and for chilling drinks. The
cooling device can be used in catering establishments, shops, bars and clubs. This
cooling device is intended for commercial use only!
THE APPLIANCE IS ECOLOGICALLY CLEAN, CONTAINING NO MATERIALS HARMFUL TO
THE OZONE LAYER: the refrigerant used is R600a, the foaming agent used for the
appliance insulation is cyclopentane C5H10.
THE MANUFACTURER GUARANTEES RELIABLE OPERATION OF THE REFRIGERATOR
WHEN THE AMBIENT TEMPERATURE IS +16 TO +32 DEGREES CELSIUS AND THE
RELATIVE AIR HUMIDITY NOT GREATER THAN 60 PER CENT.
The appliance climate class is 3.
Inside temperature class –S(from –2 °C to +14 °C)
Product data sheet
Data according to requirements of standard EN ISO 23953-2:2005
Model
CD40DM
Total gross volume, L
385
Net volume, L
360
Dimensions (H x W x D), cm
202,5 x 60 x 61
Shelf area, dm2
93
Average air temperature inside the refrigerator, °C
from 0 to +10
Rated current, A
1,5
Voltage used
220 –230 V / 50 HZ
Rated input, W
265
Products temperature ranges, °C
from -2 to +14
Door opening area, m²
0,85
General product exposure area, m²
0,69
Loading of the refrigerator quantity of bottles, pcs..:
0,33 l cans
0,5 l cans
0,5 l PET
426
224
224
Maximum loading of one shelf, kg
40
Energy consumption:
At switched on lighting
At switched off lighting
kWh/24 h.
kWh/year
2,140
781
2,070
756
Nominal imput of luminaire, W
3
NOTE. The manufacturer reserves the right to make future changes to technical
parameters and specifications.

DESCRIPTION OF THE APPLIANCE, BASIC PARTS

1 - THERMOSTAT DIAL. The temperature is indicated on the thermostat dial. Turning
the thermostat dial clockwise reduces the temperature in the chamber.
The thermostat is turned off when it is at 0. When the compressor is turned
off, a voltage is still supplied!
The fan for the refrigerator showcase is activated and operates continuously.
2 - INTERIOR LIGHTING ON/OFF BUTTON. The interior lighting is switched on/off by
pressing this button. Symbol “|”:on; “O”: off.
3 - ADVERTISING PANEL LIGHT ON/OFF BUTTON. The advertising panel lighting is
switched on/off by pressing this button. Symbol “|”:on; “O”: off.
1
Advertising panel
6
Fan
2
Thermostat dial
7
Shelves
3
Interior lighting on/off button
8
Condenser
4
Advertising panel light on/of button
9
Thaw water drip tray
5
LED lighting (ceiling)
10
Compressor

PREPARING THE APPLIANCE FOR OPERATION
It is recommended to prepare the appliance for operation with a helper.
•Remove package. Lift the appliance away from foamed polystyrene base.
•If your appliance is fit with screwed handles. Do not rise or push it taking by handles.
Handles may break.
•Therefore take out adhesive tapes from sides and simply lift the appliance up and take
out the board. Strip adhesive tapes off and open the
•door. Remove the spacer above the door.
•When positioning the appliance in chosen location, it will move more easily into
position if you lift the front a little and incline it backward allowing it to roll on its
casters.
•If the appliance is brought in from the cold (temperature is not higher than +12 °C),
you should wait for two hours before connecting it to the mains.
The appliance should not be connected to the mains until all packing and
transport materials aren’t removed. Suitably dispose the packaging material.
POSITIONING
•Place the appliance in a dry, well ventilated room.
WARNING! The appliance should not be operated in an unheated room
or porch. Place the appliance away from heat sources such as kitchen
stove/oven, radiators, or direct sunlight.
WARNING! The appliance must not touch any pipes for heating, gas or
water supply or any other electrical devices.
•Do not cover the ventilation holes at the top of the appliances
–it must be a good air circulation around the appliance. There
should be a gap of at least 10 cm between the top of the
appliance body and any furniture that may be above it. If this
requirement is not followed, the appliance consumes more
electrical energy and its compressor may overheat.
•If the appliance is placed in a corner, a gap of at least 1 cm
must be left between the appliance body and the wall (see
fig.).

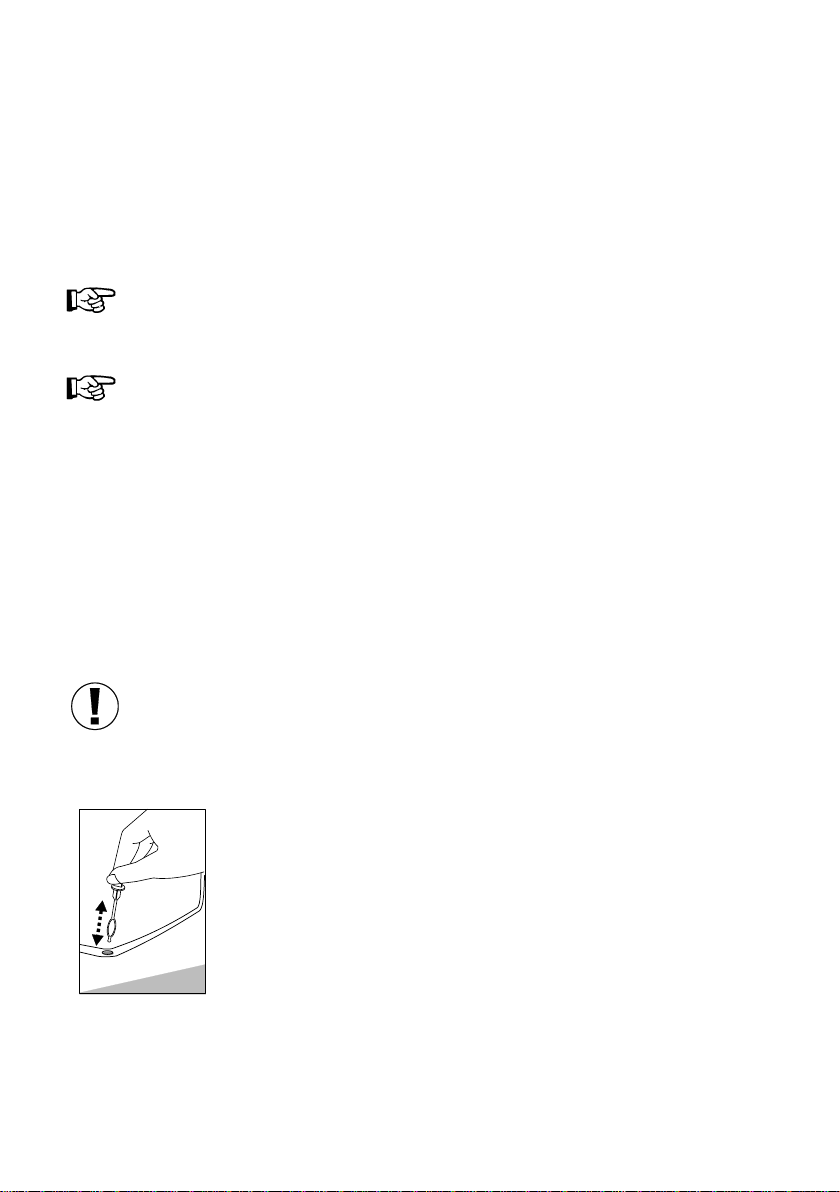

•The appliance must stand on a level surface and must not
touch the wall. If necessary, regulate the height of the
appliance by adjusting the leveling feet: by turning them
clockwise –the front of the appliance rises, by turning them
counter clockwise –it comes down. If the appliance is tilted
slightly backward –the doors will close by themselves.

TEMPERATURE REGULATION
The temperature in the appliance is controlled using the thermostat dial 2(see fig. 1)
by turning it to one side or the other. Turning the thermostat dial clockwise reduces the
temperature in the chamber. The temperature is indicated on the thermostat dial.
The temperature is regulated on the scale of five digits.
0= Compressor is switched off WARNING! Electric current is not switched off.
1= highest temperature (lowest cooling)
5= lowest temperature (highest cooling)
THE TEMPERATURE IN THE APPLIANCE MAY VARY DEPENDING ON AMBIENT
TEMPERATURE, THE AMOUNT OF FOODSTUFFS, THE TEMPERATURE OF THE
FOODSTUFFS, AND HOW OFTEN THE APPLIANCE DOORS ARE OPENED AND
CLOSED.
IF THE ROOM IS COOL, THE APPLIANCE COOLS LESS. THE TEMPERATURE IN
THE APPLIANCE MAY THEREFORE RISE. Use the thermostat wheel to set a
lower temperature.
DEFROSTING
The appliance defrosts automatically. Drops of ice that form on the back wall of the
refrigerator compartment thaw during the time the compressor is not working and the
thaw water runs down the thaw water runoff channel to the tray on top of the
compressor, where it evaporates.
CLEANING AND CARE
REGULARLY CLEAN THE APPLIANCE.
Remember that before cleaning the back part of the appliance body
you must disconnect the appliance from the electrical energy supply
socket by pulling the plug out of the electricity outlet.
•Protect the appliance inner surfaces and plastic parts from fats, acids and sauces. In
case of accidental spills –immediately clean with warm soapy water or dishwashing
detergent. Wipe dry.
•Clean the appliance inner surfaces with warm soapy water.
Dishwashing detergent may also be used. Wipe dry inner and
outer surfaces.
•Regularly clean the hermetic gaskets of the doors. Wipe dry.
•REGULARLY CLEAN THE THAW WATER CHANNEL SPACE WITH
A SPECIAL CLEANER FOR THAT PURPOSE (Fig. 1).
•At least once a year clean dust away from the back part of the
appliance body and the compressor. A soft brush, electrostatic
cloth or vacuum cleaner may be used for cleaning.
•DO NOT use detergents containing abrasive particles, acid, alcohol or benzene for
cleaning the appliance inner and outer surfaces.
•DO NOT use for cleaning cloths or sponges that have coarse surfaces intended
for scrubbing.

•ATTENTION! Outer of the doors –glass –clean with agents intended for glass
cleaning.
•IF THE APPLIANCE IS TO BE LEFT SWITCHED OFF FOR AN EXTENDED PERIOD,
LEAVE ITS DOORS OPEN.
Remarks on the appliance operating noise. As the appliance operates and
goes through the freezing cycle, various noises will be emitted. This is normal
and is not a sign of any malfunction.
•As the refrigerant circulates around the refrigeration system, it causes sounds like
murmuring, bubbling, or rustling.
•Louder sounds like popping or clicking may be heard for a short time as the
refrigerator compressor switches on.
PERATION PROBLEMS AND THEIR SOLUTIONS (TROUBLESHOOTING)
What if …
•The appliance is plugged in to the mains but it does not work. Check that
your house electricity supply installations are in order. Check that the plug is
correctly inserted into the electricity supply socket.
•The noise has become louder. Check that the appliance is standing stable, on a
level place. To make it level, regulate the front feet. Check if the appliance is not
touching any furniture, and that no part of the refrigeration system at the back part
of the appliance body is touching the wall. Pull the appliance away from any furniture
or walls.
•Water has appeared at the bottom of the refrigerator compartment. Check
whether a thaw water channel space isn’t blocked. Clean the thaw water channel
space with a cleaner intended for that purpose.
•Water has appeared under the appliance. The thaw water collection tray has
slipped off the compressor. Place the tray on top of the compressor.
•When the appliance door is opened, the rubber sealing gasket pulls out. The
gasket is smeared with sticky foodstuffs (fat, syrup). Clean the sealing gasket and
the groove for it with warm water containing soap or dishwashing detergent and wipe
dry. Put the rubber sealing gasket back into the place.
•High temperature in appliance, the compressor operation pauses are short.
Ascertain whether the appliance door/doors are shutting tightly, whether the door
wasn’t kept open longer than necessary when taking out or putting in foodstuffs or
whether a large amount of warm food was placed in the appliance.
•The top of the appliance has condensation on it. The ambient relative air
humidity is above 60 %. Ventilate the room where the appliance stands and if
possible remove the cause of the humidity.

CHANGING THE OPENING DIRECTION OF THE DOORS
It is recommended that changing the opening direction of the doors should be done
with a helper. When changing the opening direction of the doors YOU CAN NOT lay the
refrigerator horizontally!
Do the actions below in the order they are listed:
1. Turn off the appliance and pull the plug out of the electricity supply socket.
2. Remove the two screws (8) and separate the bottom bracket (10) together with the
washers and gaskets (9) on the small axle.
3. Remove the two screws (7)and separate the bracket (5) and the gasket (6).
4. Separate the door (4).
5. Remove the 4 screws (1) at the top of the advertising panel, separate the top of the
advertising panel (11), remove the front part of the advertising panel (12), and
then remove 4 screws (13) and separate the advertising panel; then loosen the 2
screws (14) and transfer the upper bracket (15) to the other side. Assemble the
advertising panel in reverse order.
6. Turn the door 180°, insert the upper axle and mount the door on it.

7. Remove the mounting screws (2)from the door, separate the handle (3) and attach
it by screwing the screws into the holes on same side (handles are reinstalled in the
case of doors with an aluminum frame).
8. Using the supplied washers and gaskets, attach the lower bracket (10) on the
opposite side of the cooler, but first attach the bracket axle to the door. Screw in
the bracket (5) on the opposite side of the cooler.
TRANSPORT
THE MANUFACTURER WILL NOT BE RESPONSIBLE FOR ANY DAMAGE OF THE
APPLIANCE THAT RESULTS FROM NON-COMPLIANCE WITH THE
INSTRUCTIONS FOR TRANSPORTATION.
•The appliance should be transported only in the vertical position.
•When being transported, the appliance should be protected from atmospheric
conditions (rain, snow, dampness).
•The appliance should be firmly secured in place while being transported, to avoid
slippage or any shocks in the transport vehicle.
•If the appliance was transported not vertically, it may be connected to the
mains after 4 hours at least. If this is not done, the appliance compressor
may fail.
WARRANTY SERVICE
IF YOUR APPLIANCE IS NOT WORKING PROPERLY, ASCERTAIN WHETHER YOU CAN
REMEDY THE CAUSE OF THE FAULTY FUNCTIONING OF THE APPLIANCE YOURSELF. If
you cannot solve the problem yourself, contact the nearest refrigerator service
representative by telephone or in writing. When making contact necessarily indicate the
refrigerator model and number . You will find this data on the product label, which is
glued to the wall of the refrigerator compartment.
ENVIRONMENTAL PROTECTION INFORMATION
This symbol indicates that once the appliance is no longer needed, it cannot
be disposed together with other miscellaneous municipal waste. It should be
collected and eliminated separately, i.e. in containers specially marked with
this symbol in large-dimension rubbish collection areas. Full information on
where to submit the old appliance safety can be obtained from local
government authorities, the shop where you bought the appliance or the
manufacturer’s representatives.
If you decided to scrap the appliance, make it impossible to use in order to prevent
possible misadventure. Pull out the electric plug from the electricity supply socket and
then cut off the cord. Tear off the gasket. Break the door lock if any.
WARNING! Do not dismantle the appliance yourself. Pass it on to recycling
companies.
