Viking DFUR144 User guide

23-7/16”
(59.5cm)
7-13/16”
(18.3cm)
15-5/8”
(39.7cm)TYP
30-5/16”
(77.0cm)
7-13/16”
(19.8 cm)
TYP15-5/32”
(38.5 cm)
TYP22-1/2”
(57.2cm)
TYP
1-23/32”
(4.4cm) min.
23/32”
(1.8cm)TYP
Back of
overlay panel
Pre-drilled pilot
holes(10places)
5/8”
(1.7cm)min.
to
3/4”
(1.9cm)max.
DFUR154 DFUR144
7-5/32”
(18.2cm)
14-5/16”
(36.4cm)
30-5/16”
(77.0cm)
7-13/16”
(19.8 cm)
TYP15-5/32”
(38.5 cm)
TYP22-1/2”
(57.2cm)
TYP
1-23/32”
(4.4cm)
min.
23/32”
(1.8cm)
TYP
Back of
overlay panel
Pre-drilled
pilotholes
(8places)
5/8”
(1.7cm)min.
to
3/4”
(1.9cm) max.
CUSTOM PANEL–REFRIGERATION
Undercounter/Freestanding 15”/24”W. Beverage Center—
DFUR154/144
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
Dimensions & Specifications
DFUR154 DFUR144
Overall panel width 14-5/16” (36.4 cm) 23-7/16” (59.5 cm)
Overall panel height 30-5/16” (77.0 cm)
Overall panel depth 5/8” (1.7 cm) min. to 3/4” (1.9 cm) max.
Maximum panel weight 20 lbs. (9.1 kg)
DFUR154
DFUR144

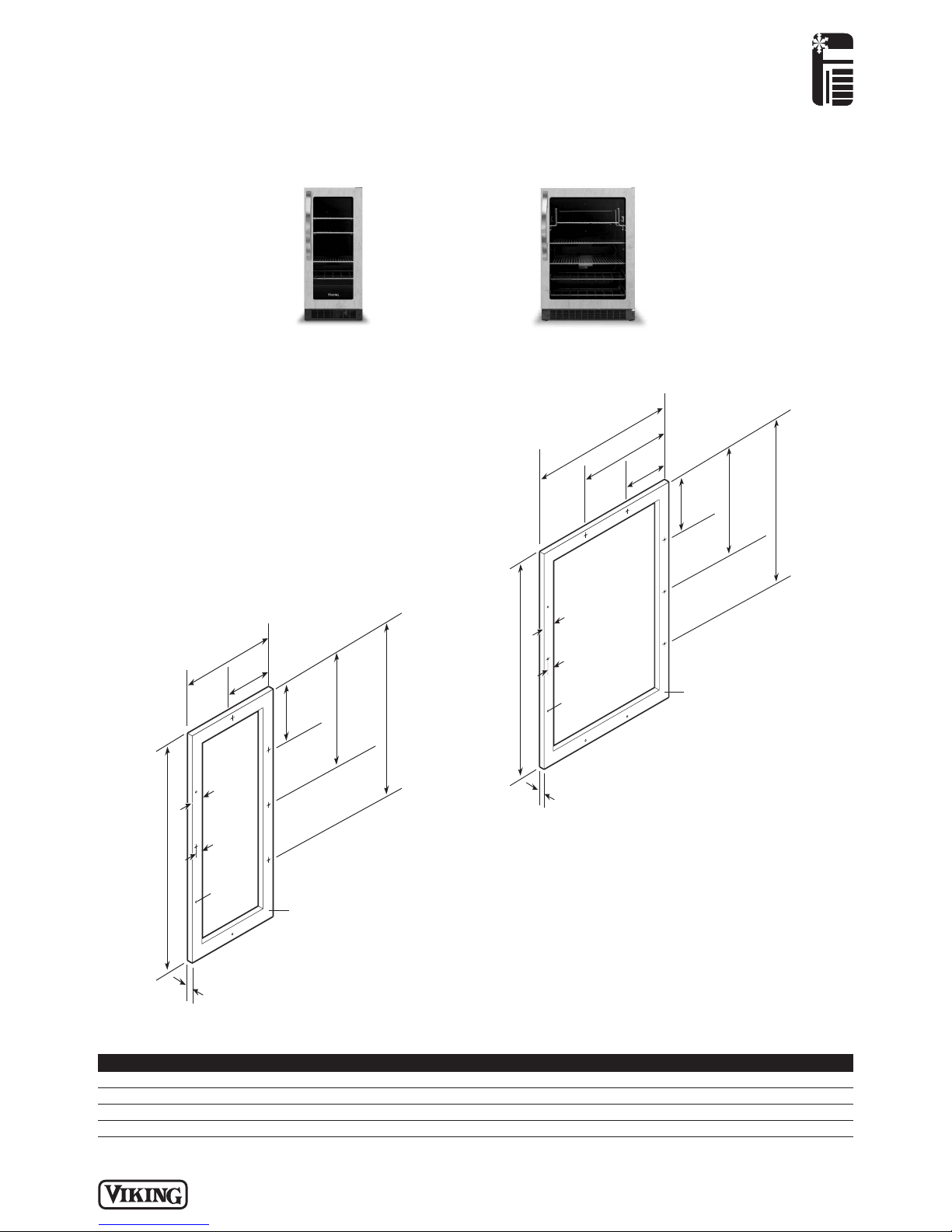

CUSTOM PANEL DIMENSIONS
