Snap-On YA1023A User manual

1
L2697DA 4/13
IT IS RECOMMENDED TO KEEP THIS MANUAL FOR FUTURE REFERENCES.
ATTENTION: PLEASE READ CAREFULLY THE INSTRUCTION MANUAL BEFORE USING.
GARDER SOIGNEUSEMENT CE MANUEL DES INSTRUCTIONS POUR TOUTE RÉFÉRENCE FUTURE.
ATTENTION : LIRE LE MANUEL DES INSTRUCTIONS AVANT D’UTILISER L’APPAREIL
YA1023A Wet/Dry Vacuum

2
NOTES
CATALOG NO. YA1023A
AMPS 8.5
H.P. 1.3
VOLTS 115
CERTIFICATION
This Illustrated parts book covers:
All specications are subject to change without notice.

3

4

5
This appliance must be grounded If it should malfunction or breakdown, grounding provides a path
of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped
with a cord having an equipment grounding conductor and grounding plug. The plug must be inserted
into an appropriate outlet that is properly installed and grounded in accordance with all local codes
and ordinances.
WARNING - Improper connection of the equipment grounding conductor can result in a risk of
electric shock. Check with a qualied electrician or service person if you are in doubt as to whether
the outlet is properly grounded. Do not modify the plug provided with the appliance, if it will not t the
outlet, have a proper outlet installed by a qualied electrician.
This appliance is for use on a nominal 120-volt circuit and has a grounding attachment plug that looks
like the plug illustrated in sketch (A). Male sure that the appliance is connected to an outlet having
the same congurations the plug. No adaptor should be used with this appliance.
Cet appareil doit être relié à la terre. Si il faut un dysfonctionnement ou de panne, mise à la terre
fournit un chemin de moindre résistance au courant électrique réduire le risque de choc électrique.
Cet appareil est équipé d’un cordon muni d’un conducteur de terre et prise de terre. La che doit
être insérée dans une prise correctement installée et mise à la terre conformément à tous les codes
et règlements locaux. AVERTISSEMENT - branchement inadéquat du conducteur de mise à la terre
peut présenter un risque d’électrocution. Vérier avec un électricien qualié ou un technicien, si vous
avez des doutes quant à savoir si la prise est correctement mise à la terre. Ne modiez pas la che
fournie avec l’appareil, si il n’entre pas dans la prise, faites une prise appropriée installée par un élec-
tricien qualié. Cet appareil est destiné à un circuit de 120 volts nominal et a une che mise à la terre
qui ressemble à la che illustrée sur le schéma (A). Assurer que l’appareil est connecté à une prise
ayant mâle...

6
U

7

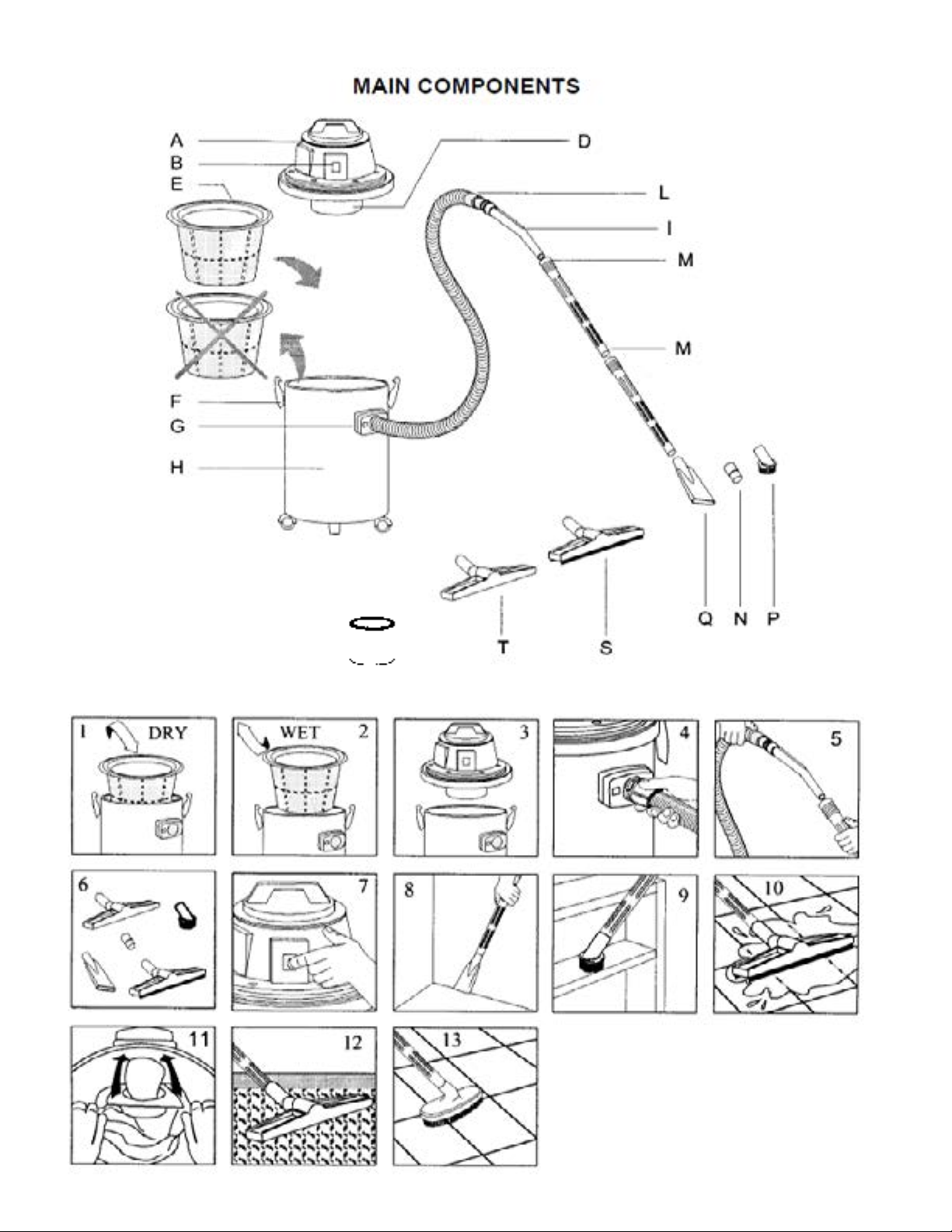

U - CARTRIDGE FILTER
U - FILTRE de CARTOUCHE

8
, AND ATTACH THE CARTRIDGE FILTER (SEE PAGE 9)
, ET ATTACHEZ LE FILTRE DE CARTOUCHE (SEE PAGE 9)

9
FROM PAGE 6
Install the cartridge onto the oat cage and secure it with the lter
locking plate.
This lter must be removed for wet applications.

10

11

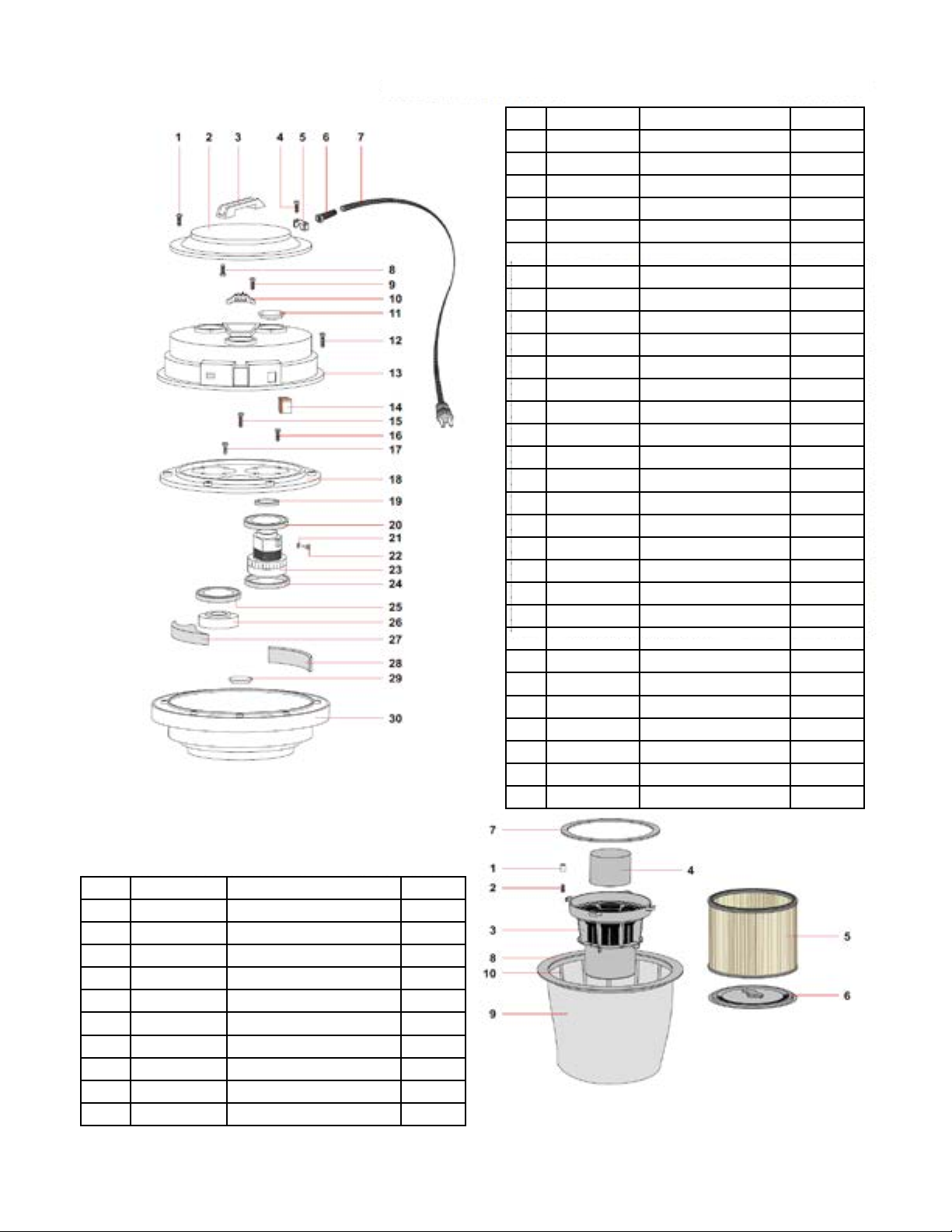

Item Part Number Description Qty
1 YAT24144 Screw M5 x 20 6
2YAT24232 1
3 YAT24144 Screw M5 x 20 1
4 YAT24144 Screw M5 x 20 2
5 YAT24139 Cord Grip 1
6 YAT24138 Strain Relief 1
7 YAT24153 Power Cord 1
8 YAT24144 Screw M5 x 20 1
9 YAT24143 Screw M5 x 14 1
10 YAT24221 Terminal Board 1
11 YAT27432 Vac Head Cover Cap 2
12 YAT24146 Screw M5 x 35 8
13 YAT24231 Vac Head Cover 1
14 YAT24142 Switch 1
15 YAT24224 Screw M5 x 30 1
16 YAT24144 Screw M5 x 20 4
17 YAT24144 Screw M5 x 20 8
18 YAT24261 Bafe Plate 1
19 YAT24478 Gasket 3
20 YAT24483 Gasket 1
21 YAT24145 Washer 1
22 YAT24147 Screw 1
23 14800 Motor 1
24 YAT24483 Gasket 1
25 YAT24483 Gasket 1
26 YAT27428 Motor Gasket 2
27 YAT24253 Foam Bafe, Large 3
28 YAT27427 Foam Bafe, Flat 3
29 YAT27430 Vac head Base Cap 2
30 YAT24220 Vac Head Base 1
VACUUM HEAD
Item Part Number Description Qty
1 YAT27431 Spacer 4
2 YAT24170 Screw M5 x 25 4
3 YAT24167 Float Cage 1
4 YAT24165 Float 1
5 YAT24300 HEPA Cartridge Filter 1
6 YAT27420 Filter locking Plate 1
7 YAT24252 Filter Gasket 1
8 YAT27421 Filter Frame Ring 1
9 YAT27422 Filter 1
10 YAT27243 Filter Frame 1
Top Cover

12

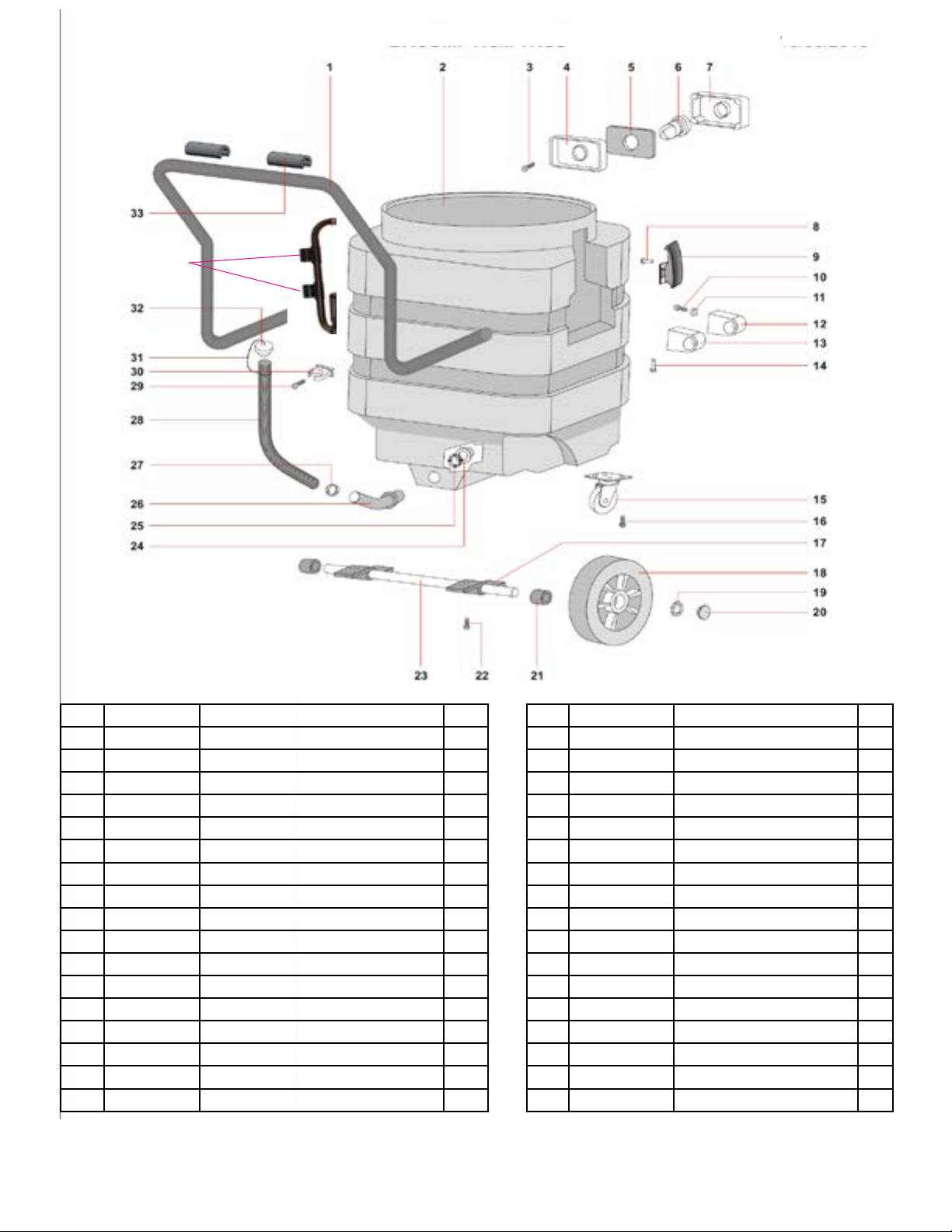

Item Part Number Description QTY
1 YAT24239 Tank Handle 1
2 YAT24266 Tank 1
3 YAT24224 Screw M5 x 30 4
4 YAT27425 Intake 1
5 YAT24168 Gasket 1
6 YAT24163 Deector 1
7 YAT24164 Intake 1
8 YAT24157 Latch Rivet 4
9 YAT24158 Latch 2
10 YAT24146 Screw M5 x 35 8
11 YAT24250 Washer 8
12 YAT24225 Tank Handle Mounting Block Front 2
13 YAT24235 Tank Handle Mounting Block Rear 2
14 YAT24269 Rivet M4.8 x 17 2
15 YAT24240 Caster 2
16 YAT24166 Screw M4 x 15 8
17 YAT24237 Axle Mounting Bracket 2
Item Part Number Description Qty
18 YAT24223 Wheel 2
19 YAT24238 Wheel Retainer 2
20 YAT27424 Wheel Cap 2
21 YAT24242 Spacer 2
22 YAT24144 Screw M5 x 20 8
23 YAT24236 Axle 1
24 YAT24222 Tank Drain Bulkhead Fitting 1
25 YAT24215 Tank Drain Gasket 1
26 YAT24244 Tank Drain Elbow Fitting 1
27 YAT24252 Hose Clamp 1
28 YAT24246 Drain Hose 1
29 YAT27429 Screw M5 x 20 INOX 1
30 YAT24247 Drain Hose Retaining Clip 1
31 YAT24248 Drain Plug Retainer 1
32 YAT24245 Drain Plug 1
33 YAT27426 Handle Grip 2
34 YAT24254 Tool Clip (set of 2) 1
