Snapper 21351D User manual

Parts Manual fo
r
Revision 3,
21" STEEL DECK WALK MOWERS
SERIES 1 & 5
COPYRIGHT
©
2005
McDonough, GA, 30253 U.S.A.
TP 400-5124-3-WB-N
10/14/2005 Manual No. 7006041
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
(
1982 to 1989
)
PUSH MODELS PROPELLED
MODELS
21351 21351P
21351D 21351PD
21351S 21351PS
21355 21355P
21401 21401P
21401S 21401PD-
2
21405 21401PS
21405-
2
21405P
21405S 21405P-2
214X1 21405PS
214XR 214X1P
214X1
S
214X1PR
214X5 214X1PR-2
214X5-2 214X1PS
214X5
R
214X5P
21RX1 214X5P-
2
214X5R-
2
214X5PR
21RX1P 214X5PR-2
G21355 214X5PS
G21405 21RX1P
G214X5-2 G21405P
G21405P
S
G214X5P-
2

Table Of Content
s
TP 400-5124-3-WB-N
Manual No. 700604121" STEEL DECK WALK MOWERS
SERIES 1 & 5 3
PAGE GROUP
4Handles & Controls (Series 1)
8Handles & Controls (Series 5)
12 Cutting Deck, Blade, Interlock
14 Front Wheels, Bracket, Latches
16 Rear Wheels, Brackets, Latches
20 Drive System-Self-Propelled
24 Transmission (Differential) ('88 Models & Earlier)
26 Transmission (Differential) ('89 Models & Later)
28 Side Chute, Adapter
30 Grass Catcher
32 Grass Bag
34 Decals
36 Throttle Controls & Engine Specs
40 Electric Start ('84 Models & Earlier)
42 Electric Start ('85 Models & Later)
44 Mulcherizer
46 Snapperizer
48 Thatcherizer

Handles & Controls (Series 1)
TP 400-5124-3-WB-N
Manual No. 7006041 21" STEEL DECK WALK MOWERS
SERIES 1 & 5
4

Handles & Controls (Series 1)
Footnotes:
TP 400-5124-3-WB-N
Manual No. 700604121" STEEL DECK WALK MOWERS
SERIES 1 & 5 5
Part No Descri
p
tionItem Qt
y
Note
1 7033444 HANDLE, Upper Used On ; Push Models
7036133 HANDLE, Upper Used On ; Push Electric Start
7033444 HANDLE, Upper Used On ; Self-Propelled
2 7036037 HANDLE, Middle
3 7038247 HANDLE, Lower L.H.
4 7038246 HANDLE, Lower R.H.
5 7019714 CONTROL, Blade
6 7033904 CLIP, Blade Control (Same either side)
7 7014305 CABLE, Blade Control For Briggs Engines
7018561 CABLE, Blade Control For Tecumseh Engines
7023093 CABLE, Blade Control For Robin Engines
8 7032826 HANDLE, Wheel Drive Used On ; Self-propelled
9 7014307 GRIP, Handle Used On ; Self-propelled
10 7023134 CABLE, Clutch Pull Used On ; Self-propelled
11 7012121 COVER, Vinyl Used On ; Self-prop.(part of item
10)
12 7012122 SPRING, Clutch Used On ; Self-propelled
13 7038478 SECTOR, Speed Used On ; Self-propelled
14 7012317 LEVER, Speed Control Used On ; Self-propelled
15 7012093 SPRING, Speed Control Used On ; Self-propelled
16 7090188 WASHER, 3/8" Flat
17 7023801 GRIP, Speed Contr. Handle Used On ; Self-propelled
18 7032830 ANCHOR, Speed Control Used On ; Self-propelled
19 7032408 GUIDE, Lower(V-Belt) Used On ; Self-propelled
20 7012255 ROD, Transfer Used On ; Self-propelled
21 7010937 CLIP, Transfer Rod Used On ; Self-propelled
22 7090895 TEE-NUT, 5/16-18 Used On ; Self-propelled
23 7012114 BUSHING, Differential Used On ; Self-propelled
24 7090595 BOLT, 5/16-18x1" Hex Flange Lock Used On ; Self-propelled
25 7090238 CAPSCREW, 5/16-24x1 Used On ; Self-propelled
26 7090799 BOLT,5/16x18x5/8 Carr.
27 7090189 LOCKWASHER, 5/16 I.E.Tooth
28 7091601 NUT, 5/16-18 Hex Flange Lock Was 90585
29 7090222 NUT, 5/16-24 Center Lock Used On ; Self-propelled
30 7090552 CAPSCREW, 1/4-28x1-3/8 Used On ; Grade 5
31 7090053 LOCKWASHER, 1/4 Int. Tooth
32 7090095 NUT, 1/4-28 Hex
33 7090111 CAPSCREW, 1/4-28x1-3/4

Handles & Controls (Series 1)
TP 400-5124-3-WB-N
Manual No. 7006041 21" STEEL DECK WALK MOWERS
SERIES 1 & 5
6

Handles & Controls (Series 1)
Footnotes:
TP 400-5124-3-WB-N
Manual No. 700604121" STEEL DECK WALK MOWERS
SERIES 1 & 5 7
Part No Descri
p
tionItem Qt
y
Note
34 7090950 BOLT, 1/4-20x1-7/8" Carriage Used On ; Push
35 7015693 WING-NUT, 1/4-20 Was 14207, Used On ; Push
36 7014343 BUSHING
37 7091020 PUSH-NUT Was 90489
38 7023792 PIN, Clutch Handle Was 11886 Used On ; Self-
propelled
39 NA DECAL, Blade Control Was 14310
40 7023813 CLIP, Cable/Wiring Was 14374
41 7014734 PUSH-NUT Used On ; Self-propelled
42 7014733 PIN, 3/16x1-3/4" Clevis Used On ; Self-propelled
43 7090010 WASHER, #10 Flat (2) Used On ; Self-propelled

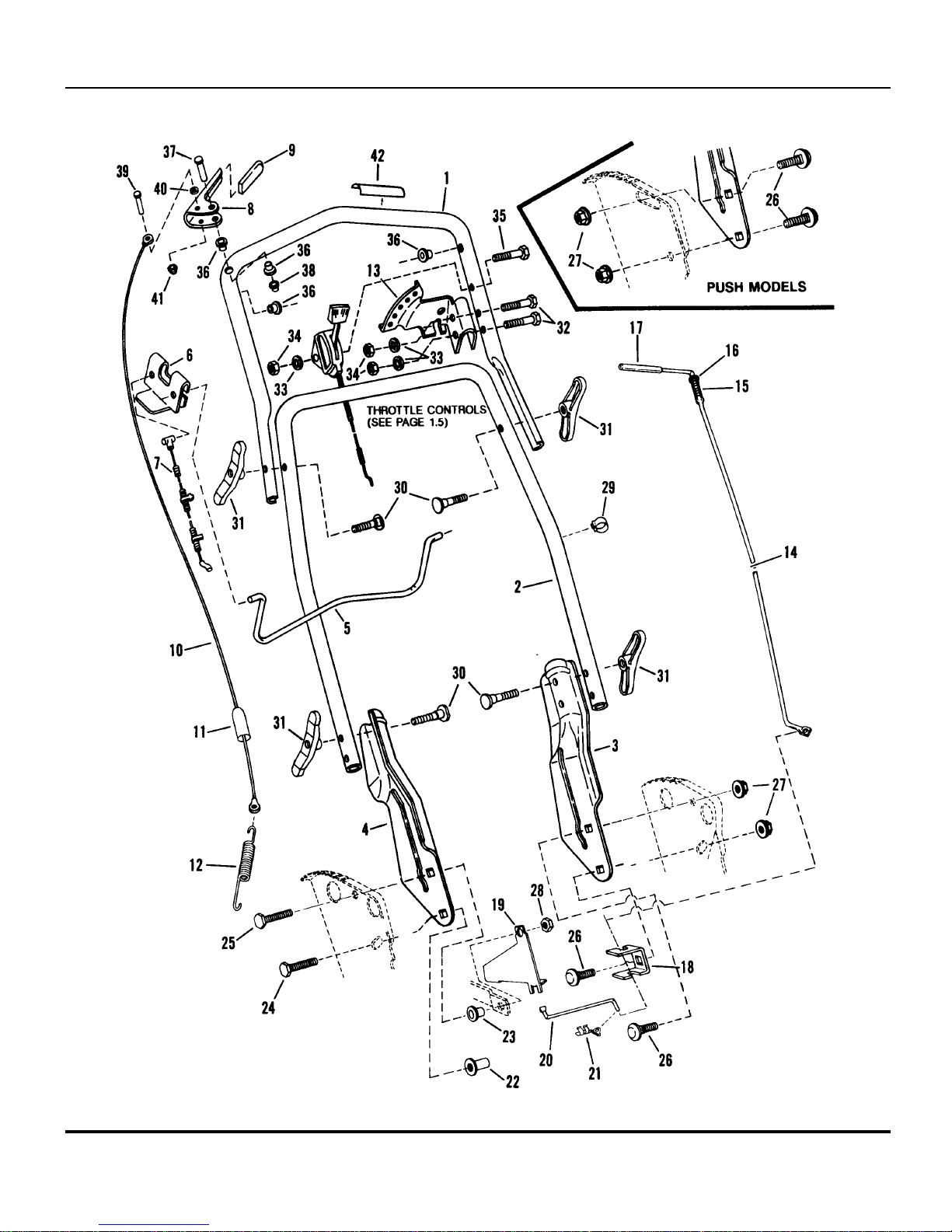

Handles & Controls (Series 5)
TP 400-5124-3-WB-N
Manual No. 7006041 21" STEEL DECK WALK MOWERS
SERIES 1 & 5
8

Handles & Controls (Series 5)
Footnotes:
TP 400-5124-3-WB-N
Manual No. 700604121" STEEL DECK WALK MOWERS
SERIES 1 & 5 9
Part No Descri
p
tionItem Qt
y
Note
1 7036200 HANDLE, Upper Was 36199 Used On ; Push
7036200 HANDLE, Upper Used On ; Self-Propelled
2 7036202 HANDLE, Middle
3 7046502 HANDLE, Lower Left Hand
4 7035342 HANDLE, Lower Right Hand
5 7019714 CONTROL, Blade
6 7033904 CLIP, Blade Control (Same either side)
7 7014305 CABLE, Blade Control Briggs & Stratton Engines
7015636 CABLE, Blade Control Tecumseh Engines (2-cycle)
7015601 CABLE, Blade Control Tecumseh Engines (4-cycle)
7023093 CABLE, Blade Control Robin Engines (was 01-5258)
8 7032826 HANDLE, Wheel Drive Was 32237, Self-propelled
9 7014307 GRIP, Wheel Drive Handle Used On ; Self-propelled
10 7023134 CABLE, Clutch Pull (includes #11) Was 51672, Used On ; Self-
propelled
7023134 CABLE, Clutch Pull (89 Models, Z-BEND) Used On ; Self-propelled
11 7012121 COVER, Vinyl (included on #10) Used On ; Self-propelled
12 7012122 SPRING, Clutch Used On ; Self-propelled
13 7038478 SECTOR, Speed Used On ; Self-propelled
14 7023795 LEVER, Speed Control Used On ; Self-propelled
15 7012093 SPRING, Speed Control Used On ; Self-propelled
16 7090188 WASHER, 3/8" Flat Used On ; All-different locations
17 7023801 GRIP, Speed Control Handle Used On ; Self-propelled
18 7032830 ANCHOR, Speed Control Used On ; Self-propelled
19 7032408 GUIDE, Lower V-Belt Used On ; Self-propelled
20 7012255 ROD, Transfer Used On ; Self-propelled
21 7010937 CLIP, Transfer Rod Used On ; Self-propelled
22 7090895 TEE-NUT, 5/16-18 Used On ; Self-propelled
23 7012114 BUSHING, Differential Used On ; Self-propelled
24 7090595 BOLT, 5/16-18x3/4 Flange Lock Used On ; Self-propelled
25 7090238 CAPSCREW, 5/16-24x1 Used On ; Self-propelled
26 7090799 BOLT, 5/16-18x5/8 Carriage Used On ; All (different locations)
27 7091601 NUT, 5/16-18 Hex Flange Lock Was 90585
28 7090222 NUT, 5/16-24 Center Lock Used On ; Self-propelled
29 7023813 CLIP Cable/Wiring Was 14374, Used On ; All
30 7090965 SCREW, 1/4Cx1-7/8 Curved Head Used On ; All
31 7015693 WING-NUT, 1/4C Used On ; All
32 7090552 CAPSCREW, 1/4-28x1-3/8 Used On ; Self-propelled

Handles & Controls (Series 5)
TP 400-5124-3-WB-N
Manual No. 7006041 21" STEEL DECK WALK MOWERS
SERIES 1 & 5
10

Handles & Controls (Series 5)
Footnotes:
TP 400-5124-3-WB-N
Manual No. 700604121" STEEL DECK WALK MOWERS
SERIES 1 & 5 11
Part No Descri
p
tionItem Qt
y
Note
33 7090053 LOCKWASHER, 1/4 Internal Tooth Used On ; All (different locations
34 7090095 NUT, 1/4-20 Hex Used On ; All (different locations)
35 7090111 CAPSCREW, 1/4-28x1-3/4 Used On ; All (throttle control)
36 7014343 BUSHING Used On ; All
37 7023792 PIN, Clutch Handle Was 11886 Used On ; Self-
propelled
38 7091020 PUSH-NUT (for handle pin) Was 90489 (Used On ; Self-
propelled)
39 7014733 PIN, 1-3/4 LG (Clutch cable) Used On ; Self-propelled
40 7090010 WASHER, #10 Flat Used On ; Self-propelled
41 7014734 PUSH-NUT(for clutch pin) Used On ; Self-propelled
42 NA DECAL, Blade Control Was 14310

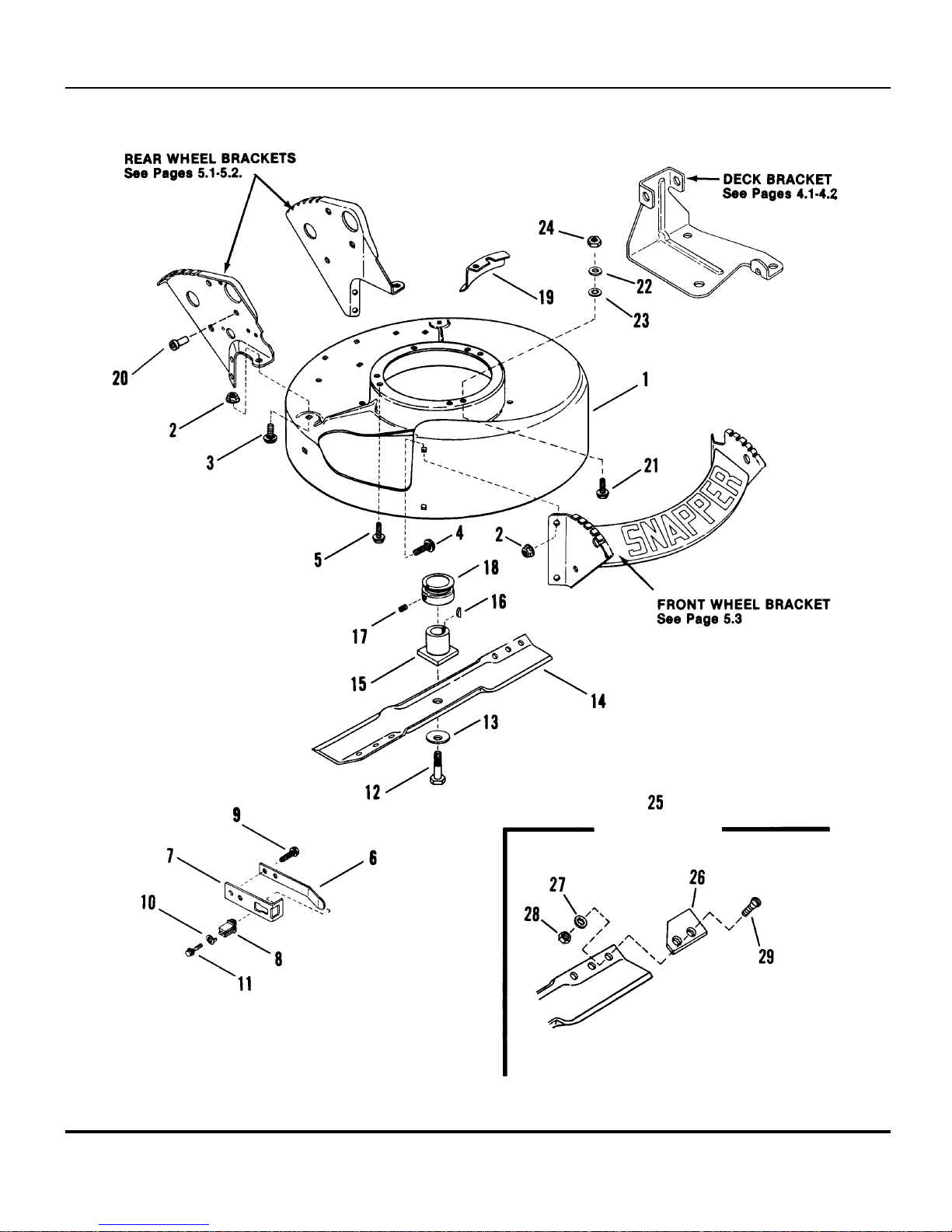

Cutting Deck, Blade, Interlock
TP 400-5124-3-WB-N
Manual No. 7006041 21" STEEL DECK WALK MOWERS
SERIES 1 & 5
12

Cutting Deck, Blade, Interlock
Footnotes:
TP 400-5124-3-WB-N
Manual No. 700604121" STEEL DECK WALK MOWERS
SERIES 1 & 5 13
Part No Descri
p
tionItem Qt
y
Note
1 7057663 DECK, Mower Was 51369 (Includes painted
deck with decals)
7057663 DECK, Mower (Robin)('86 Model Year Only) Was 51605 (Includes painted
deck with decals)
2 7091601 12 NUT, 5/16-18 Hex Flange Lock Was 90585
3 7090731 9 BOLT, 5/16-18x1/2" Short Neck Carriage (Gr.)
4 7091303 BOLT, 5/16-18x1" Short Neck Carriage Was 90383
5 7090324 2 SCREW, 3/8-16x1" Self-tapping (Engine Mounting)
7090595 BOLT, 5/16-18x3/4" Hex Flange Lock
6 7032417 SPRING, Wheel Bracket Type Interlock
7 7032416 BRACKET, Wheel Bracket Type Interlock
8 7012048 INSULATOR, Interlock
9 7091122 2 SCREW, 1/4-20x1/2" Self-tapping Was 90539
10 7090385 WASHER, #8Tab Internal Tooth Lock
11 7090379 SCREW, #8-18x3/4" Hex Head Machine
12 7090167 SCREW, 3/8-24x2" Hex Head Cap (Gr. 5)
13 7012063 WASHER, Cone
14 7026691 BLADE, Cutter(For 3-1/2 HP only) Was 17002
14 7019795 BLADE, Cutter, (4 HP ENGINES)(Replaces 1-9710 & 1-9702)
15 7012927 HUB, Blade Drive (7/8" Dia. I.D.)
7015626 HUB, Blade Drive (25mm Dia. I.D.)
16 7010783 2 KEY, Hi-Pro
17 7090201 SCREW, 5/16-18x5/16" Hex Socket Set
18 7021707 PULLEY, Engine (7/8" I.D. x 1-718" O.D.) (Briggs & Tec.)(Self-Propelled)
7021764 PULLEY, Engine (7/8" I.D. x 2-1/8" O.D.) (Robin & Briggs I.C.)(Self-
Propelled)
7015780 PULLEY, Engine (25mm I.D. x 2-1/8" O.D.) (Briggs 2 Cycle)(Self-Propelled)
19 7031968 SHIELD, Belt Opening Cover (Push Models Only)
20 7012135 BUSHING, Interlock Wire
21 7090700 2 BOLT, 5/16-18x1 1/2" Hex Flange Lock Used on Robin Engines Only.
22 7090188 2 WASHER, 5/16 Flat Used on Robin Engines Only.
23 7090187 2 WASHER, 5/16 Split Lock Used on Robin Engines Only.
24 7091511 2 NUT, 5/16-18 Hex Used on Robin Engines Only.
25 7060785 KIT, air Lift (Includes items 26, 27, 28 & 29)
26 7032558 2 LIFT, Air Included in 7060785 Kit
27 7090391 4 LOCKWASHER
28 7091297 4 NUT, 5/16-24 Hex Was 90223
29 7090228 4 SCREW, 5/16-24 Machine
NOTE: Used on Robin Engines Only.

Front Wheels, Bracket, Latches
TP 400-5124-3-WB-N
Manual No. 7006041 21" STEEL DECK WALK MOWERS
SERIES 1 & 5
14

Front Wheels, Bracket, Latches
Footnotes:
TP 400-5124-3-WB-N
Manual No. 700604121" STEEL DECK WALK MOWERS
SERIES 1 & 5 15
Part No Descri
p
tionItem Qt
y
Note
ARM ASSEMBLY, Right Wheel (Consists of items 8,9,10,
11B,12)
1 7031121 HUB-CAP (Steel Wheels)
7031961 HUB-CAP (Plastic Wheels)
2 7090377 NUT, 7/16-20 Hex Center Lock Was 90394
3 7021119 AXLE
4 7012309 2 BUSHING, Axle
5A 7018189 2 WHEEL, Front 7 x 1.50 Plastic Rim
5B 7012347 2 WHEEL, Front 7 x 1.75 Steel Rim (214 X 1 & 21R X 1 Series)
6 7031961 3 WASHER, Steel
7 7052538 ARM ASSEMBLY, Right Wheel (Consists of items 8,9,10,
11B,12)
Was 50760
7052537 ARM ASSEMBLY, Left Wheel (Consists of items 8,9,10,11A,12) Not shown, Was 50761
8 7015761 BOLT, 5/16-18 Shoulder
9 7012325 LATCH, Height
10 7011093 GRIP
11 7031017 ARM, Right Wheel
11 7031016 ARM, Left Wheel Not shown
12 7011791 RETAINER, 5/16 Bolt
13 7090391 WASHER, 5/16 Internal Tooth Lock
14 7091511 NUT, 5/16-18 Hex Was 90196
15 7047815 BRACKET, Front Wheel

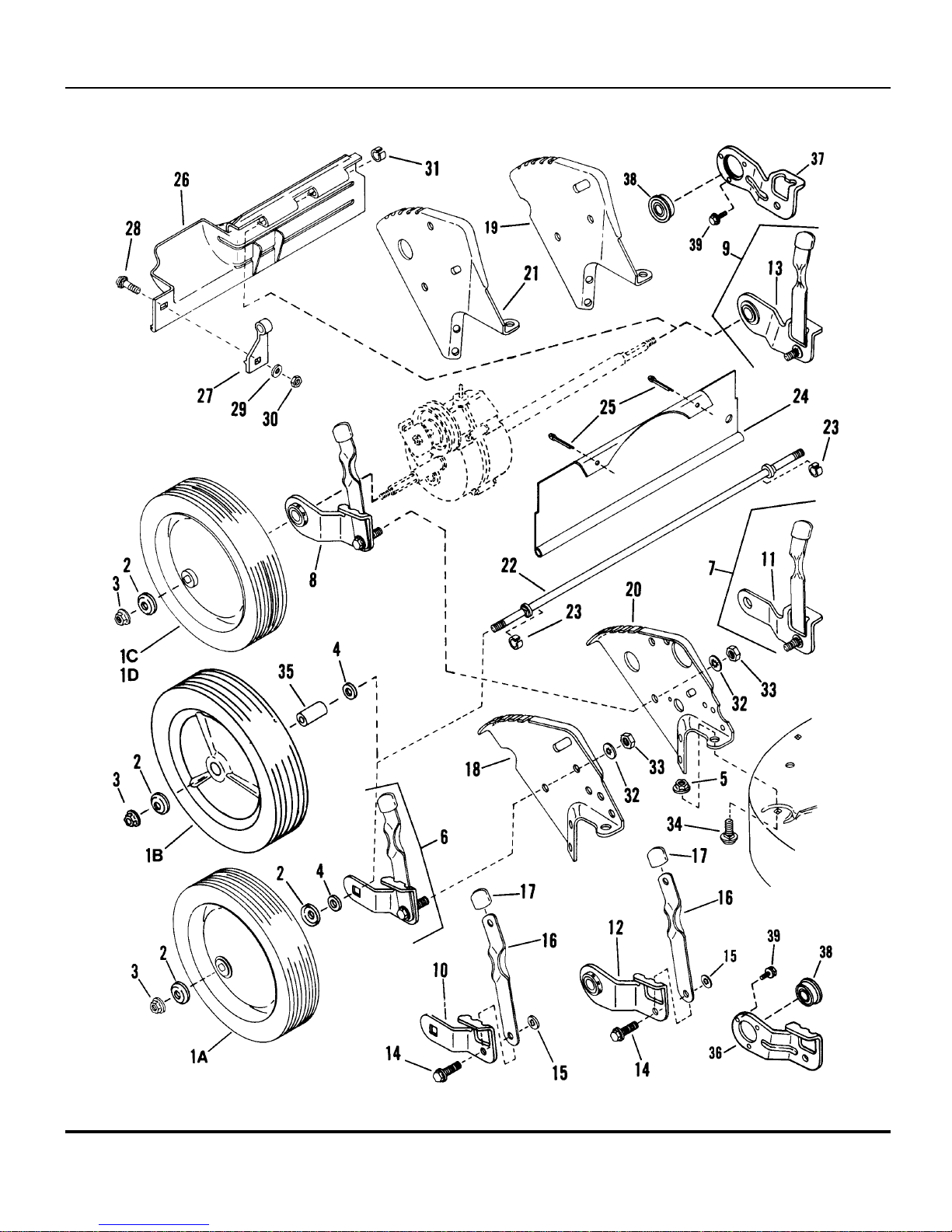

Rear Wheels, Brackets, Latches
TP 400-5124-3-WB-N
Manual No. 7006041 21" STEEL DECK WALK MOWERS
SERIES 1 & 5
16

Rear Wheels, Brackets, Latches
Footnotes:
TP 400-5124-3-WB-N
Manual No. 700604121" STEEL DECK WALK MOWERS
SERIES 1 & 5 17
Part No Descri
p
tionItem Qt
y
Note
1A 7012603 WHEEL, 9 x 1.75 Steel Rim (214 x 1 & 21R x 1 Push Models)
1B 7012345 WHEEL, 9 x 1.95 Steel Rim (214 x 1P4 & 21R x 1P Self
Propelled Models)
1C 7022796 Wheel, 9 x 1.75 Plastic Rim (Push Models) Was 12579
1D 7014604 WHEEL, 9 x 1.75 Steel Rim (Self-Propelled Models)
1E 7022797 WHEEL, 9 x 1.75 Plastic Rim (21355P Self-Propelled) Was 15708
2 7031960 4 HUB-CAP, Deep Dish
3 7090377 NUT, 7/16-20 Hex Center Lock Was 90394
4 7031961 2 WASHER, Steel
5 7091601 NUT, 5/16-18 Hex Flang Lock Was 90585
6 7052538 WHEEL ARM ASSEMBLY (Front Left & Rear Right) Square
opening
Was 50760 Includes items
10,14,15,16,17
7 7052537 WHEEL ARM ASSEMBLY (Front Right & Rear Left) Round
opening
Was 50761 Includes items
11,14,15,16,17
8 7054246 ASSEMBLY, Wheel Arm (Rear Right "P" Models) Was 57402 (Includes
13,14,15,16, & 17)
9 7054247 ASSEMBLY, Wheel Arm (Rear Left "P" Models) Was 57401 (Includes
13,14,15,16, & 17)
10 7031016 ARM (Square Axle End)
11 7031017 ARM (Round Axle End)
12 7052078 ARM & BEARING ASSEMBLY, Rear Right "P" Models Was 51558
13 7052077 ARM & BEARING ASSEMBLY, Rear Left "P" Models Was 51557
14 7015761 BOLT, 5/16-18 x 1 Shoulder
15 7011791 RETAINER, 5/16 Bolt
16 7012325 LATCH, Height Adjusting
17 7011093 GRIP, Latch
18 7036050 BRACKET, Right Rear Wheel (Push Models)
19 7036049 BRACKET, Left Rear Wheel (Push Models)
20 7036048 BRACKET, Right Rear Wheel (Self-prop. "P" Models)
21 7036242 BRACKET, Left Rear Wheel (Self-prop. "P" Models)
22 7021119 AXLE, (Rear on Push Models also front on all)
23 7011780 2 RING (Push Models)
24 7026166 GUARD, Rear Foot Was 37765 (Push Models)
7026166 GUARD, Rear Foot (Push Models) (Plastic) ('89 Models & Later) Was 19068
25 7091809 2 COTTER PIN, 1/8 x 1-1/2 (Steel)('88 Models & Earlier) Was 90297
26 7019522 GUARD, Rear Foot(Self-prop. "P" Models)
27 7012616 SUPPORT, Foot Guard
28 7091604 BOLT, 1/4-20 x 1/2 Short Neck Carriage Gr.5 Was 90005
29 7090053 WASHER, 1/4 Int. Tooth Lock
30 7091576 NUT, 1/4-20 Hex Was 90063
31 7010996 RING
32 7090391 WASHER, 5/16 Int. Tooth Lock

Rear Wheels, Brackets, Latches
TP 400-5124-3-WB-N
Manual No. 7006041 21" STEEL DECK WALK MOWERS
SERIES 1 & 5
18

Rear Wheels, Brackets, Latches
Footnotes:
TP 400-5124-3-WB-N
Manual No. 700604121" STEEL DECK WALK MOWERS
SERIES 1 & 5 19
Part No Descri
p
tionItem Qt
y
Note
33 7091511 NUT, 5/16-18 Hex Was 90196
34 7090731 BOLT, 5/16-18 x 1/2 Short Neck Carriage
35 7012309 BUSHING, Axle (Used within 1A & 1C)
36 7032722 ARM, Wheel Rear Right "P" Models ('89 Models & Later)
37 7032723 ARM, Wheel Rear Left "P" Models ('89 Models & Later)
38 7046983 BEARING Was 18767
39 7040981 3 SCREW, #10-32 x 1/4 Self-Tapping (3)

Drive System-Self-Propelled
TP 400-5124-3-WB-N
Manual No. 7006041 21" STEEL DECK WALK MOWERS
SERIES 1 & 5
20
