Snapper 3011523BV (7800103) User manual

Not for
Reproduction
Parts Manual fo
r
30" STANDARD DEC
K
SERIES 23
REAR ENGINE RIDER
Revision: C 5/23/2011
Briggs & Stratton Yard Power Products Group
Manual No. 7006278
535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967
Descri
p
tionModel No.
84873 301123BV
8487
5
301123BVE
7084941 3011523BV
780010
3
3011523BV
780064
8
3011523BV
84941 3011523BV
708562
3
3012523BVE
780010
5
3012523BVE
780065
0
3012523BVE
85623 3012523BVE
8487
7
301323BVE
708562
5
3013523BVE
780069
7
3013523BVE
8562
5
3013523BVE
8488
2
W301023BVE

Not for
Reproduction

Not for
Reproduction
Table Of Content
s
TP 400-5445-C-RE-N
30" STANDARD DECK
SERIES 23 3
Manual No. 7006278
PAGE GROUP
4Wheels - Front & Rear
6Front End, Steering
8Main Case & L.H. Fender
10 Left Hand Fender & Bearing
12 Differential & R.H. Fender
14 Yoke Lift Components
16 Primary Chain Case & Smooth Clutch
18 Gear Shifter Assembly
20 Fuel Tank & Seat
22 Engine, Muffler & Drive Disc
24 30" Cutting Deck & Deflector
26 30" Deck Recycling Components
28 Belt, Brake & Interlock
30 Rails, Lift Arms & Cam Lift
32 Blade Stop Pedals
34 Spindle
36 Decals
38 Electrical System (Briggs magneto Ground)
40 Electrical System (10, 11 & 12.5HP Briggs)
42 Electrical System (11 & 11.5HP Briggs Recoil Start)
44 Electrical System (13 & 13.5HP Briggs)
46 Wiring Schematic (10, 11 & 12.5HP Briggs)
48 Wiring Schematic (11 & 11.5HP Briggs Recoil Start)
50 Wiring Schematic (13HP Briggs)
52 Wiring Schematic (13.5HP Briggs)

Not for
Reproduction
Manual No. 7006278 30" STANDARD DECK
SERIES 23
4

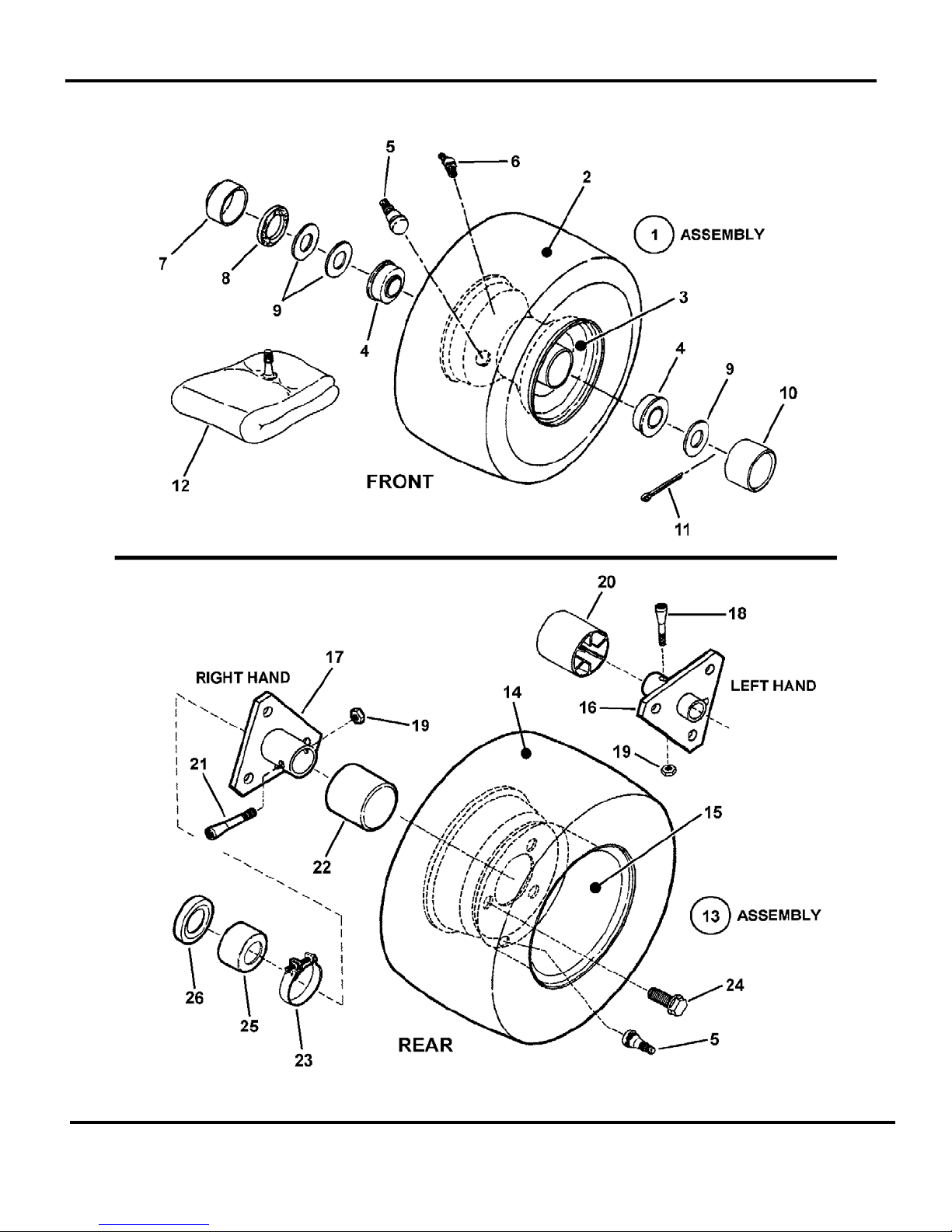

Wheels - Front & Rear

Not for
Reproduction
Footnotes:
Manual No. 700627830" STANDARD DECK
SERIES 23 5
Wheels - Front & Rea
r
Part No Descri
p
tionItem Qty
1 7058943 2 ASSEMBLY, Front Tire & Rim (11.0”) (Complete) (Includes items 2, 3, 4, 5 & 6)
2 7073563 1 TIRE, 11 x 4.00-4 (Kenda)
3 7017146 1 RIM (For 11.0 x 4.0 x 4 Tire)
4 7011807 2 BALL BEARING, Flange (3/4” I.D.)
5 7012234 1 VALVE STEM, Snap In
6 7014669 1 * LUBE Fitting, Straight (for 3/16" hole)
6 7076998 1 * LUBE Fitting, Straight (for 1/4" hole)
6 7010909 1 * LUBE Fitting, 90 Degree, Ball Check (for 1/4" hole)
6 7104428 1 * LUBE Fitting, 90 Degree, Ball Check (for 5/16" hole)
7 7031038 2 CAP, Dust
8 7011032 2 SEAL, Felt
9 7010935 8 WASHER, .77 x 1.13 x .06 Flat
10 7011022 2 HUB CAP
11 7091516 2 COTTER PIN, 5/32 x 1”
12 7010821 2 INNER TUBE (For 4.10/3.50 x 4 Tire)
13 7058951 2 ASSEMBLY, Rear Tire & Rim (Includes Items 5, 14 & 15)
14 7073584 1 TIRE, 16 x 6.50-8 (Kenda)
15 7017147 1 RIM, Extra Wide (For 16/7.50 x 8 Tire)
16 7040434 1 HUB, Rear Wheel LH, 3 Hole 3/4" ID
17 7040433 1 HUB, Rear Wheel RH, 3 Hole 1" ID
18 7011035 1 AXLE BOLT, 5/16-24 x 1-5/8” Tapered (Left Hand)
19 7011201 2 NUT, Wheel Bolt 5/16-24 Hex Center Lock
20 7023522 1 CAP, Hub, L. H. (Long Axle)
21 7011013 1 WHEEL BOLT, 5/16-24 x 2” Tapered (Right Hand)
22 7023895 1 CAP, Hub
23 7012332 4 CLAMP, Right Hand (for 2” Hose)
24 7091502 6 BOLT, 1/2-20 x 3/4” Lug, GR 5
25 7031732 1 CAP, Seal RH 1.0” ID x 1.67” OD (8 & 10 HP)
26 7011817 1 SEAL, 1.22” ID x 1.875” OD
NOTE* Different size holes used, measure hole for proper fit.

Not for
Reproduction
Manual No. 7006278 30" STANDARD DECK
SERIES 23
6

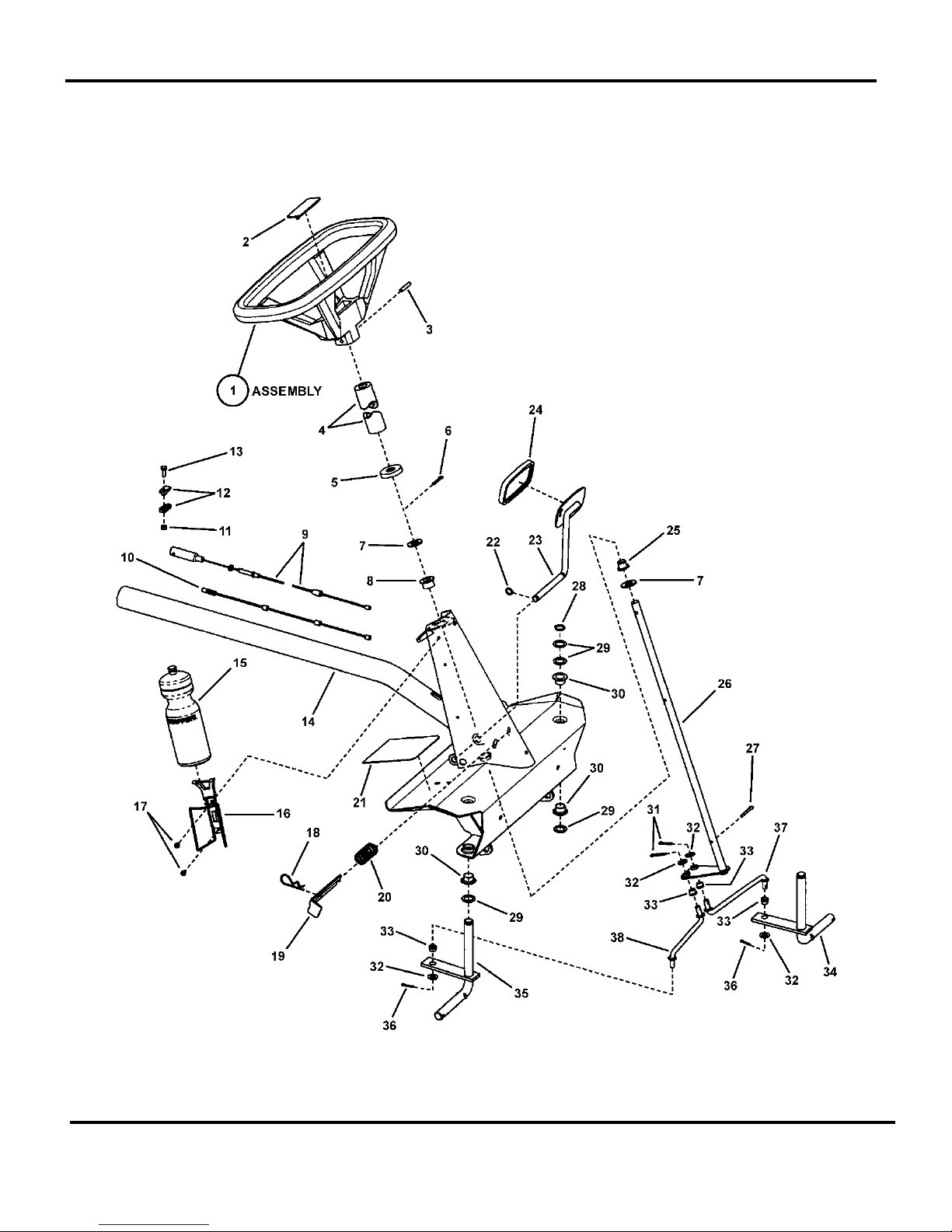

Front End, Steering

Not for
Reproduction
Footnotes:
Manual No. 700627830" STANDARD DECK
SERIES 23 7
Front End, Steering
Part No Descri
p
tionItem Qty
1 7058030 1 ASSEMBLY, Steering Wheel (for 5/8” shaft) Includes item 2
2 7023781 1 LOGO, Steering Wheel
3 7013862 1 ROLL PIN, 1/4 x 1-1/2”
4 7023667 1 FOAM COVER, Steering Shaft
5 7023671 1 COVER, Steering Shaft
6 7090296 1 PIN, 3/16 x 1” Cotter
7 7090183 2 WASHER, .66 x 1.31 x .09 Flat
8 7046158 1 BUSHING, Nylon
9 7101192 1 CABLE, Brake (29” long)
10 7022449 1 CABLE, Clutch/Brake (54.32” long)
11 7090372 1 NUT, 1/4-20 Hex Center Lock, GR 5 or B
12 7034174 2 CONNECTOR, Cable
13 7091495 1 SCREW, 1/4-20 x 3/4” Hex Head Cap, GR 5
14 7054378 1 WELDMENT, Front Axle, Narrow
15 7074561 1 BOTTLE, Water
16 7074560 1 HOLDER, Bottle (Wire)
17 7090913 2 SCREW, #10-24 x 1/2” Hex Washer Self-Tap (Torx)
18 7011714 1 HAIR PIN 2-1/4”
19 7038243D 1 LATCH, Parking Brake
20 7015444 1 SPRING, Parking Brake Latch
21 7014049 2 FOOT PAD, Short (5.5” x 4.7”)
22 7010776 1 RING, 1/2” External Retaining (Heavy Duty)
23 7047888BM 1 WELDMENT, Clutch/Brake Pedal
24 7011815 1 PAD, Pedal
25 7010694 1 BUSHING, Nylon
26 7046232 1 WELDMENT, Steering Shaft
27 7091515 1 PIN, 3/16 x 1-1/2” Cotter or 7090753
28 7010746 2 RING, 3/4” External Retaining
29 7010935 6 WASHER, .77 x 1.13 x .06 Flat
30 7010986 4 BEARING, Nylon
31 7091516 2 PIN, 5/32 x 1” Cotter or 7090364
32 7090122 4 WASHER, 3/8” Flat or 7091514
33 7013321 4 BUSHING, Tie Rod
34 7041687 1 KING PIN Weldment, Left Hand
35 7041688 1 KING PIN Weldment, Right Hand
36 7091598 2 PIN, 1/8 x 3/4” Cotter or 7090365
37 7013023 1 TIE ROD, Left Hand (7.41” long)
38 7012933 1 TIE ROD, Right Hand (7.41” long)

Not for
Reproduction
Manual No. 7006278 30" STANDARD DECK
SERIES 23
8
Main Case & L.H. Fender

Not for
Reproduction
Footnotes:
Manual No. 700627830" STANDARD DECK
SERIES 23 9
Main Case & L.H. Fende
r
Part No Descri
p
tionItem Qty
1 7028990 1 COVER, Battery
2 7028989 1 COVER, Switch
3 7073268 1 COVER, Solenoid
4 7074210 1 BRACKET, Belt Adjuster
5 7091198 2 SCREW, 3/8-16 x 5/8” Hex Washer Self-Tap
6 7090358 1 SCREW, 5/16-24 x 2-1/2” Hex Head Cap, GR 8
7 7031100 1 TUBE CLAMP
8 7010969 2 NUT, 5/16-24 Flange Lock (Large)
9 7074650 1 BUSHING, Pivot
10 7053697 1 WELDMENT, Main Case (Standard)
11 7034299 2 WING, Rear
12 7028200 2 SWIVEL, Adjustable
13 7091503 2 HAIR PIN, 3/32 x 1-1/2”
14 7090793 2 SCREW, 5/16-18 x 3/4” Hex Washer Self-Tap
15 7011791 4 RETAINER, 5/16” Bolt
16 7090188 4 WASHER, 34 x .69 x .08 Flat
17 7091315 7 WASHER, .32 x .58 x .08 Split Lock
18 7091297 7 NUT, 5/16-24 Hex, GR 5
19 7090595 2 BOLT, 5/16-18 x 3/4” Hex Flange Lock, GR 5
20 7073735 1 BRACKET, Switch
21 7011018 1 SHIFT LINK, Short (5/16-24 thread)
22 7090981 2 SCREW, #10-32 x 1/4” Hex Washer Self-Tap
23 7037285 1 FENDER, Left Hand (1.628” I. D. Hole)
24 7030798 2 BUMPER, Rear
25 7036367 1 BUMPER (1-Piece)
26 7091506 4 SCREW, 5/16-18 x 1-1/2” Hex Washer Self-Tap
27 7010153 2 CAP, Bumper
28 7090188 2 WASHER, 34 x .69 x .08 Flat
29 7091867 14 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap
30 7090391 1 WASHER, 5/16” Internal Tooth Lock
31 7012652 2 CLIP, Wire
32 7090206 1 SCREW, 5/16-18 x 3/4” Hex Head Cap, GR 5
33 7091513 4 SCREW, 5/16-24 x 1-3/4” Hex Head Cap, GR 5
34 7091272 7 FASTENER, 1/4” Ratchet
35 7047189 1 BRACKET, Drive Support
36 7090585 6 NUT, 5/16-18 Hex Flange Lock, GR 5
37 7017653 1 BELT GUIDE
38 7033799 1 CROSS BRACE
39 7023676 1 SHIFT LINK, Long (5/16-24 both ends)
40 7041384 1 WELDMENT, Shift Arm

Not for
Reproduction
Manual No. 7006278 30" STANDARD DECK
SERIES 23
10

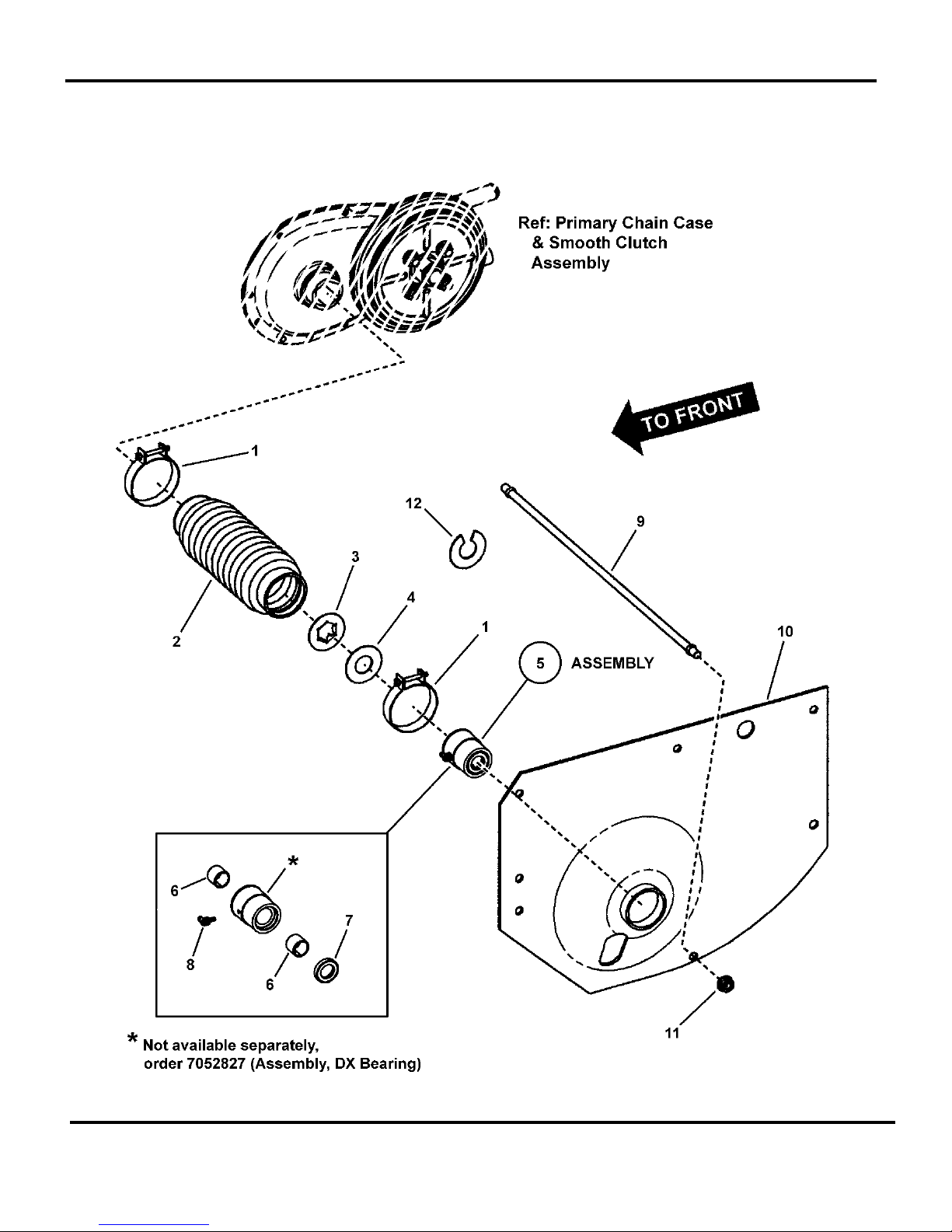

Left Hand Fender & Bearing

Not for
Reproduction
Footnotes:
Manual No. 700627830" STANDARD DECK
SERIES 23 11
Left Hand Fender & Bearing
Part No Descri
p
tionItem Qty
1 7012332 2 CLAMP, 2” ID
2 7075115 1 BOOT, Rear Axle, Thick Flange
3 7011072 1 WASHER, Thrust
4 7011071 1 THRUST WASHER
5 7052827 1 ASSEMBLY, DX Bearing
6 7074182 2 BEARING, 3/4” I.D. DX
7 7074500 1 SEAL, .750 x 1.250 x .250 (Dust/Grease)
8 7075848 1 FITTING, Lube, 45 Degree, 3/16” w/Hex (long shank) or 7013324
9 7011070 1 TIE ROD, (5/16-24 thread- both ends)
10 7037285 1 FENDER, Left Hand (1.628” I. D. Hole)
11 7010969 1 NUT, 5/16-24 Flange Lock (Large)
12 7012271 1 WASHER, Shim or quantity as required

Not for
Reproduction
Manual No. 7006278 30" STANDARD DECK
SERIES 23
12

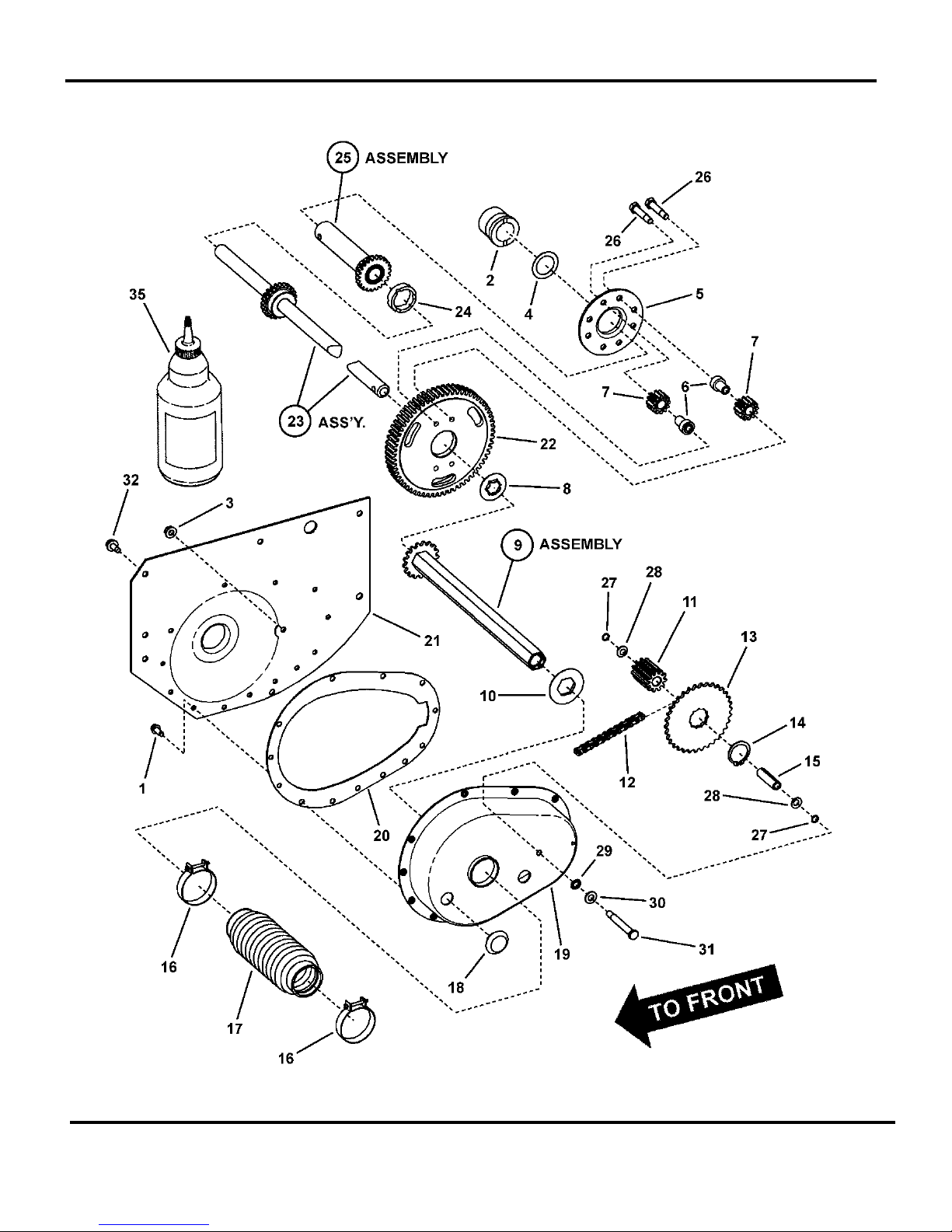

Differential & R.H. Fender

Not for
Reproduction
Footnotes:
Manual No. 700627830" STANDARD DECK
SERIES 23 13
Differential & R.H. Fende
r
Part No Descri
p
tionItem Qty
1 7090362 13 SCREW, 1/4-20 x 5/8” Hex Washer Head Self-Tap
2 7012296 1 BEARING, Axle (R. H. Fender)
3 7010969 1 NUT, 5/16-24 Flange Lock (Large)
4 7031079 1 WASHER, Thrust
5 7038067 1 PLATE, Differential
6 7022115 4 SPACER, Pinion
7 7021127 4 GEAR, Differential Pinion (12T 12P)
8 7011072 1 WASHER, Thrust
9 7051584 1 * ASSEMBLY, Drive Hex Tube
10 7010988 1 WASHER, Nylon
11 7200128 1 GEAR, 11 Tooth, 10 Pitch
12 7010941 1 CHAIN, 46 Pitch (#35 Endless)
13 7021129 1 SPROCKET, 34T, 3/8P
14 7010965 1 RING, 1-3/16” External Retaining
15 7021128 1 SPACER, Differential Case
16 7012332 2 CLAMP, 2” ID
17 7075115 1 BOOT, Rear Axle, Thick Flange
18 7011024 1 PLUG, 1/2” Cup Insert
19 7037279 1 CASE, Transmission
20 7028762 1 GASKET, Transmission Case
21 7037280 1 FENDER, Right Hand (1.62” Dia. Hole)
22 7021158 1 GEAR, 63 Tooth 10 Pitch
23 7075479 1 ASSEMBLY, Long Axle (Includes 23T Gear)
24 7074431 1 SPACER, Differential Case
25 7057398 1 ASSEMBLY, Short Axle (Includes 23T Gear)
26 7012333 4 BOLT, 5/16-24 x 1-5/8” Hex Special Lock (Vibresist)
27 7011156 2 5/16” O-RING
28 7011782 2 WASHER, 5/16” Belleville
29 7090395 1 WASHER, 5/16” External Tooth Lock
30 7090188 1 WASHER, 34 x .69 x .08 Flat
31 7011042 1 SCREW, 5/16-24 x 2-5/8” Hex Head Cap
32 7090361 11 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap
35 7061017 GREASE, “00" Transmission (24 oz. Required)
-- 7060411 1 KIT, Differential (4 Pinion) (Not Shown)
-- 7060662 1 KIT, Differential (8 Pinion w/DX Bearing) (Not Shown)
-- 7060412 1 KIT, Long & Short Axle (Includes items 23, 24 & 25) (Not Shown)
NOTE: * Assembly includes two bearings inside hex tube (p/n 7015140, not shown) & one nylon washer (p/n 7010988,
item 10).

Not for
Reproduction
Manual No. 7006278 30" STANDARD DECK
SERIES 23
14

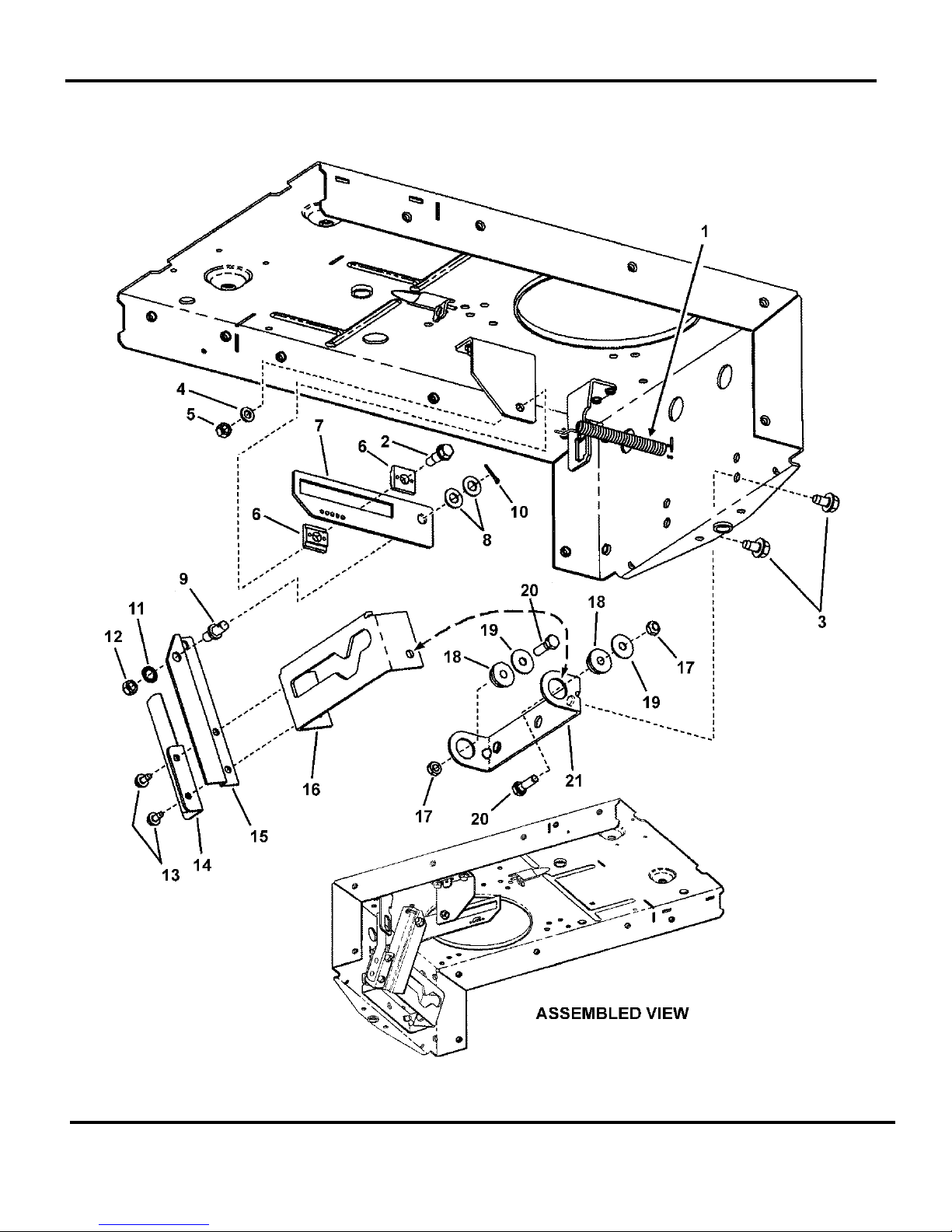

Yoke Lift Components

Not for
Reproduction
Footnotes:
Manual No. 700627830" STANDARD DECK
SERIES 23 15
Yoke Lift Components
Part No Descri
p
tionItem Qty
1 7013885 1 SPRING, Clutch & Brake
2 7014664 1 BOLT, 5/16-18 Shoulder
3 7091198 2 SCREW, 3/8-16 x 5/8” Hex Washer Self-Tap
4 7090187 1 WASHER, 5/16” Split Lock
5 7090196 1 NUT, 5/16-18 Hex, GR 5 or B
6 7014663 2 SLIDE HALF
7 7047190 1 BRACKET, Slide
8 7090122 2 WASHER, 3/8” Flat
9 7015464 1 STUD, Clutch Link (3/8-24 thread)
10 7091597 1 PIN, 3/32 x 3/4” Cotter
11 7090390 1 WASHER, 3/8” Internal Tooth Lock
12 7090155 1 NUT, 3/8-24 Hex, GR 5 or B
13 7090539 2 SCREW, 1/4-20 x 1/2” Hex Washer Self-Tap
14 7059068 1 ASSEMBLY, Leaf Spring
15 7073733 1 ARM, Yoke
16 7046162 1 LIFT, Yoke
17 7011201 2 NUT, Wheel Bolt 5/16-24 Hex Center Lock
18 7011048 2 BEARING, Yoke
19 7011763 2 FENDER WASHER, 5/16”
20 7090238 2 SCREW, 5/16-24 x 1” Hex Head Cap, GR 5
21 7033291 1 COLLAR, Yoke

Not for
Reproduction
Manual No. 7006278 30" STANDARD DECK
SERIES 23
16

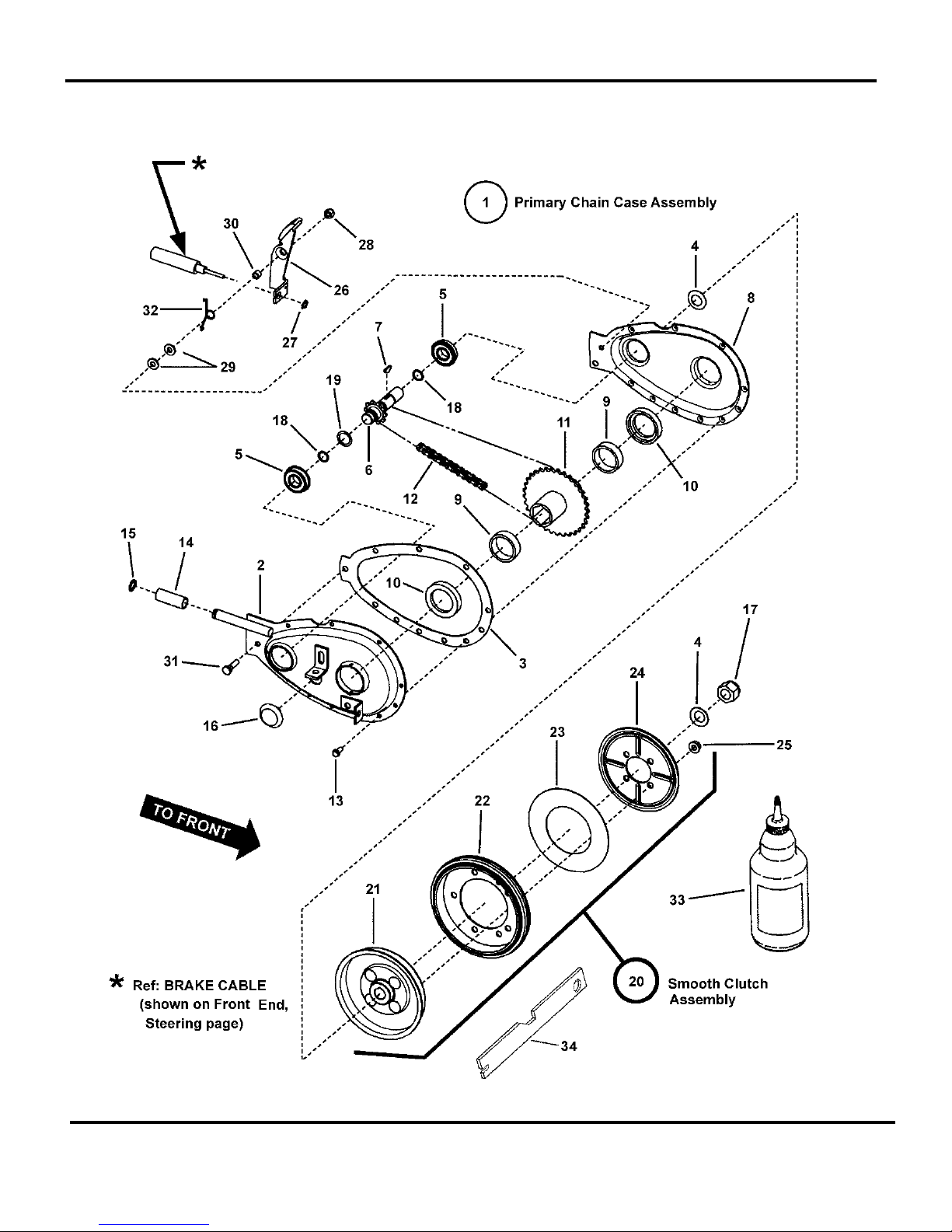

Primary Chain Case & Smooth Clutch

Not for
Reproduction
Footnotes:
Manual No. 700627830" STANDARD DECK
SERIES 23 17
Primary Chain Case & Smooth Clutch
Part No Descri
p
tionItem Qty
1 7052683 1 ASSEMBLY, Primary Chain Case (Includes the following 16 items)
2 7041136 1 WELDMENT, Primary Chain Case Half, Right Hand
3 7028761 1 GASKET, Primary Chain Case
4 7011121 2 WASHER, 5/8” Belleville
5 7010756 2 BEARING, .625 x 1.37 x .435
6 7018963 1 WELDMENT, Sprocket & Shaft
7 7010614 1 KEY, #5 Woodruff
8 7039778 1 PRIMARY CHAIN CASE HALF, Left Hand
9 7010942 2 BEARING, Needle 1.355” ID x 1.6245” OD x .5” Wide
10 7011086 2 THRUST WASHER, Nylon
11 7040355 1 WELDMENT, Hub & Sprocket
12 7010941 1 CHAIN, 46 Pitch (#35 Endless)
13 7090307 10 SCREW, 10-24 x 1/2” Hex Washer Self-Tap
14 7022785 1 ROLLER, 1-3/8 Long
15 7010776 1 RING, 1/2” External Retaining (Heavy Duty)
16 7011024 1 PLUG, 1/2” Cup Insert
17 7091505 1 NUT, 5/8-18 Hex Nyloc
18 7019260 2 O-RING, 1/2 x 5/8”
19 7027981 1 WASHER, Shim .625 x .875
20 7053114 1 ASSEMBLY, Smooth Clutch (non-asbestos) (Includes the following 5 items)
21 7059443 1 HUB, Driven Disc (assembly) replaces 7054243 (voided)
22 7053103 1 DISC, Driven (rubber tire bonded to rim)
23 7014523 1 THRUST WASHER
24 7032331 1 PLATE, Drive Disc
25 7092081 4 NUT, 5/16-24 Hex Flange Lock or 7090480, center lock flange nut
26 7052497 1 ASSEMBLY, Brake Lever (Includes brake pad & rivet)
27 7012313 1 RING, 3/8” External Retaining
28 7090303 1 NUT, 1/4-28 Hex Top Lock
29 7091294 2 WASHER, .28 x .63 x .06 Flat, GR 5
30 7072593 1 SPACER, Brake Arm Pivot (.418/.403 long)
31 7091504 1 SCREW, 1/4-28 x 1” Hex Head Cap, (Washer Face) GR 5
32 7072406 1 SPRING, Torsional Brake Return
33 7061017 GREASE, "00" Transmission (Use 2 oz. maximum)
34 7032392 1 TOOL, Smooth Start Clutch (Recommended for Rubber Disc replacement & Drive Disc
adjustment)

Not for
Reproduction
Manual No. 7006278 30" STANDARD DECK
SERIES 23
18
Gear Shifter Assembly

Not for
Reproduction
Footnotes:
Manual No. 700627830" STANDARD DECK
SERIES 23 19
Gear Shifter Assembl
y
Part No Descri
p
tionItem Qty
1 7023656 1 GRIP, Shift Handle
2 7059212 1 WELDMENT, Shift Handle
3 7023914 1 PIN, 1/4 x 1-3/4” Tapered Clevis
4 7090037 1 PIN, 3/32 x 3/4” Cotter
5 7031036 2 WASHER, Thrust
6 7019245 1 BUSHING, 3/4 x 1.62 Flange (Nylon)
7 7091298 1 NUT, 5/16-18 Hex Nyloc
8 7090361 1 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap
9 7058763 1 * ASSEMBLY, Speed Adjustment Latch
10 7026292 1 SPRING, Extension .055 WD, 8 # Rate, 2 IT, 2 FL
11 7090196 1 NUT, 5/16-18 Hex, GR 5 or B
12 7010754 1 SPRING, Shift Detent
13 7073289 1 LEVER, Over-Ride
14 7091595 1 WASHER, .47 x .92 x .065 Flat
15 7015761 1 SHOULDER BOLT, 5/16-18
16 7019246 1 BUSHING, 3/4, 1" Flange (Nylon)
17 7043201 1 WELDMENT, Arm, Shift Handle (w/grease ftg. Hole)
18 7010817 1 LUBE FITTING, 3/16” Press-In
19 7091315 1 WASHER, .32 x .58 x .08 Split Lock
20 7091297 1 NUT, 5/16-24 Hex, GR 5
NOTE: * Assembly is comprised of: Shift Detent Weldment (7041232), Shoulder Rivet (7029022), Reverse Stop (7073218)
& item 10.

Not for
Reproduction
Manual No. 7006278 30" STANDARD DECK
SERIES 23
20
Fuel Tank & Seat
