Snapper ELT160H422BV User manual

Parts Manual fo
r
Revision 5,
LAWN TRACTORS MANUAL CLUTCH
SERIES 2
COPYRIGHT
©
2006
McDonough, GA, 30253 U.S.A.
TP 400-5080-5-TC-N
7/31/2006 Manual No. 7006432
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
HYDRO DRIV
E
MODEL
ELT160H422BV
LT125H382K
V
LT130H382K
V
LT140H422K
V
LT150H422K
V
LT160H422B
V
LT160H482B
V
RLT140H422KV

Table Of Content
s
TP 400-5080-5-TC-N
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2 3
PAGE GROUP
4Wheels - Front
6Wheels - Rear
8Hood, Bumper, Headlights
10 Engine, Engine Base & Drive Components (Briggs Engines)
14 Engine, Engine Base & Drive Components (Kohler Engines)
18 Steering & Front Axle Parts
22 Dash Panel, Fuel Tank, Battery (Part 1)
24 Dash Panel, Fuel Tank, Battery (Part 2)
26 Transmission Support & Components (Part 1)
28 Transmission Support & Components (Part 2)
30 Rear Fender & Components
32 Seat, Support Components
34 Clutch, Brake & Transmission
38 Transmission Group
42 Transmission - Service Parts List
44 Blade Engagement
46 Implement Lift Parts
48 38" Cutting Deck, Belts, Brakes
54 42" Cutting Deck & Components
58 Belt, Blade Brake Components (42" Deck)
60 48" Cutting Deck, Belts, Brakes
66 Spindle Assembly - 38" Cutting Deck
68 Spindle Assembly - 42" Cutting Deck
70 Spindle Assembly - 48" Cutting Deck
72 Recycling Kit For 42" Models
74 Electrical System (Briggs Engines Only)
76 Electrical System (Kohler Engines Only)
78 Illustrated Diagram Briggs Engine Models
80 Illustrated Diagram Kohler Engine Models
82 Schematic Electrical System (Briggs Engine Only)
84 Schematic Electrical System (Kohler Engines Only)

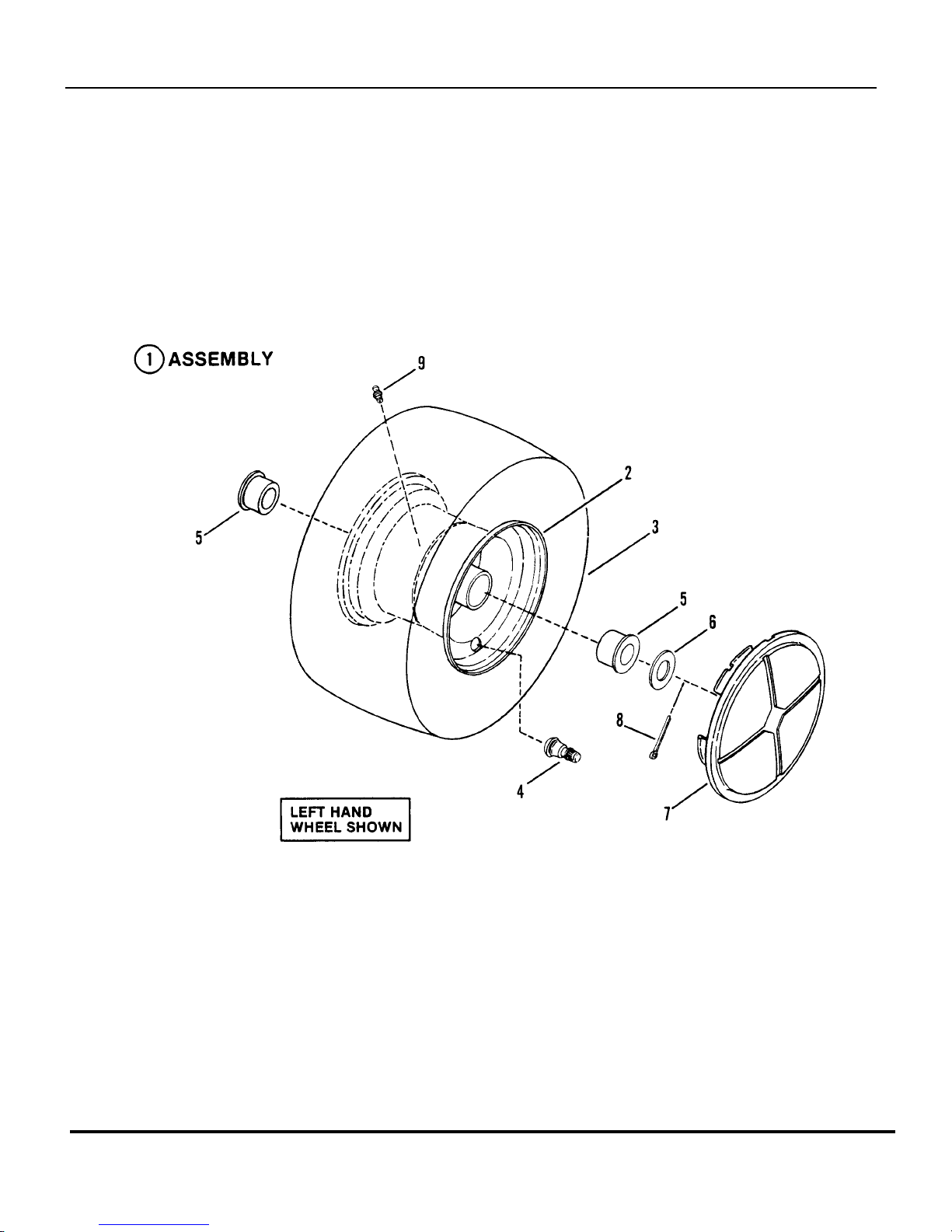

Wheels - Front
TP 400-5080-5-TC-N
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
SERIES 2
4

Wheels - Front
Footnotes:
TP 400-5080-5-TC-N
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2 5
Part No Descri
p
tionItem Qt
y
Note
1 7058517 2 ASSEMBLY, Front Tire & Rim 15x5.50-6.00 Was 53151 (Includes 2, 3, & 4)
2 7022772 2 RIM, 6 x 4.50
3 7072704 2 TIRE, 15-6.00 x 6 Was 26457
4 7012234 2 VALVE, Air (Snap-in)
5 7014483 4 BEARING, Wheel Flanged PM .758 ID x 1.38 OD x 1.0 L
6 7032027 2 WASHER .77 x 1.5 x .06
7 7019417 2 WHEEL-COVER Was 25009
8 7091516 2 COTTER-PIN 5/32 x 1 YZ Was 90364
9 7076998 2 FITTING, Lube 1/4-28 Tapered Thread Was 13876

Wheels - Rear
TP 400-5080-5-TC-N
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
SERIES 2
6

Wheels - Rear
Footnotes:
TP 400-5080-5-TC-N
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2 7
Part No Descri
p
tionItem Qt
y
Note
1 7053152 2 ASSEMBLY, Rear Tire & Rim 20x10.0-8 (Includes items 2, 3, & 4)
2 7026458 2 TIRE, 20-10.00 x 8
3 7024454 2 RIM, Keyed 8 x 6.937 Gray
4 7012234 2 VALVE, Air (Snap-in)
5 7072385 2 SPACER, 3/4" x 2-1/4" O.D. Was 24858
6 7019418 2 COVER, Wheel Was 25010
7 7032027 4 WASHER, 3/4 Flat
8 7017173 2 KEY, 3/16 x 2 1/2" Square
9 7012899 2 RING, Retaining EXT .75 Was 12829

Hood, Bumper, Headlights
TP 400-5080-5-TC-N
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
SERIES 2
8

Hood, Bumper, Headlights
Footnotes:
TP 400-5080-5-TC-N
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2 9
Part No Descri
p
tionItem Qt
y
Note
1 7063298 1 KIT, Hood Assembly, Sloped Mozart (Contains mos items on
page)
Was 26406 or 61383
2 7016766 1 ROD, Hood Support
3 7017359 1 LATCH, Spring
4 7090999 2 SCREW, 1/4-20 x 5/8" Truss Head
5 7076978 6 NUT, 1/4-20 Hex (Nyloc)
6 7024984 2 LOGO - SNAPPER (Chrome)
7 7090803 4 BOLT, 1/4-20 x 5/8" Carriage
8 1 PANEL, Hood (Left Side) (No longer available) Was 24474
9 7024968 1 DECAL, Hood LX130H (Left Hand)
9 7024970 1 DECAL, Hood LX150H (Left Hand)
9 7024974 1 DECAL, Hood RX150H (Left Hand)
9 7024972 1 DECAL, Hood LX170H (Left Hand)
10 7091095 2 RIVET, 1/8" Pop
11 7026476 1 LANYARD, Hood 17.5" (Briggs Engines)
11 7073446 1 LANYARD, Hood 14.5" Was 26192 (Kohler Engines)
12 7091106 5 SCREW, M4.8 x 1.59 x 16.00mm Special
13 1 FOAM, 1/2" x 3/4" x 14.25" (No longer available) Was 26803
14 7026784 1 PLENUM (Briggs 16 HP Only)
15 7029570 1 GRILLE, Hood Was 24472
16 7026482 1 CLIP, "J"
17 7026844 1 FOAM, 2" x 2" x 3.5" (Briggs 16 HP Only)
18 7026180 1 DECAL, Reflect (Left Side)
19 7024475 1 LENS
20 7026179 1 DECAL, Reflect (Right Side)
21 7026377 1 LOGO, Convertible (No longer available) Was 26377
22 7024983 1 LOGO - SNAPPER, 4" (Chrome)
23 7026172 2 BULB, Headlights 1141
24 7024709 2 SOCKET, Headlight Bulb
25 7026171 1 HARNESS, Headlight Wiring
26 1 PANEL, Hood (Right Side) (No longer available)
27 7024967 1 DECAL, Hood LX130H (Right Side)
27 7024969 1 DECAL, Hood LX150H (Right Side)
27 7024973 1 DECAL, Hood RX150H (Right Side)
27 1 DECAL, Hood LX170H (Right Side)(No longer available) Was 24971

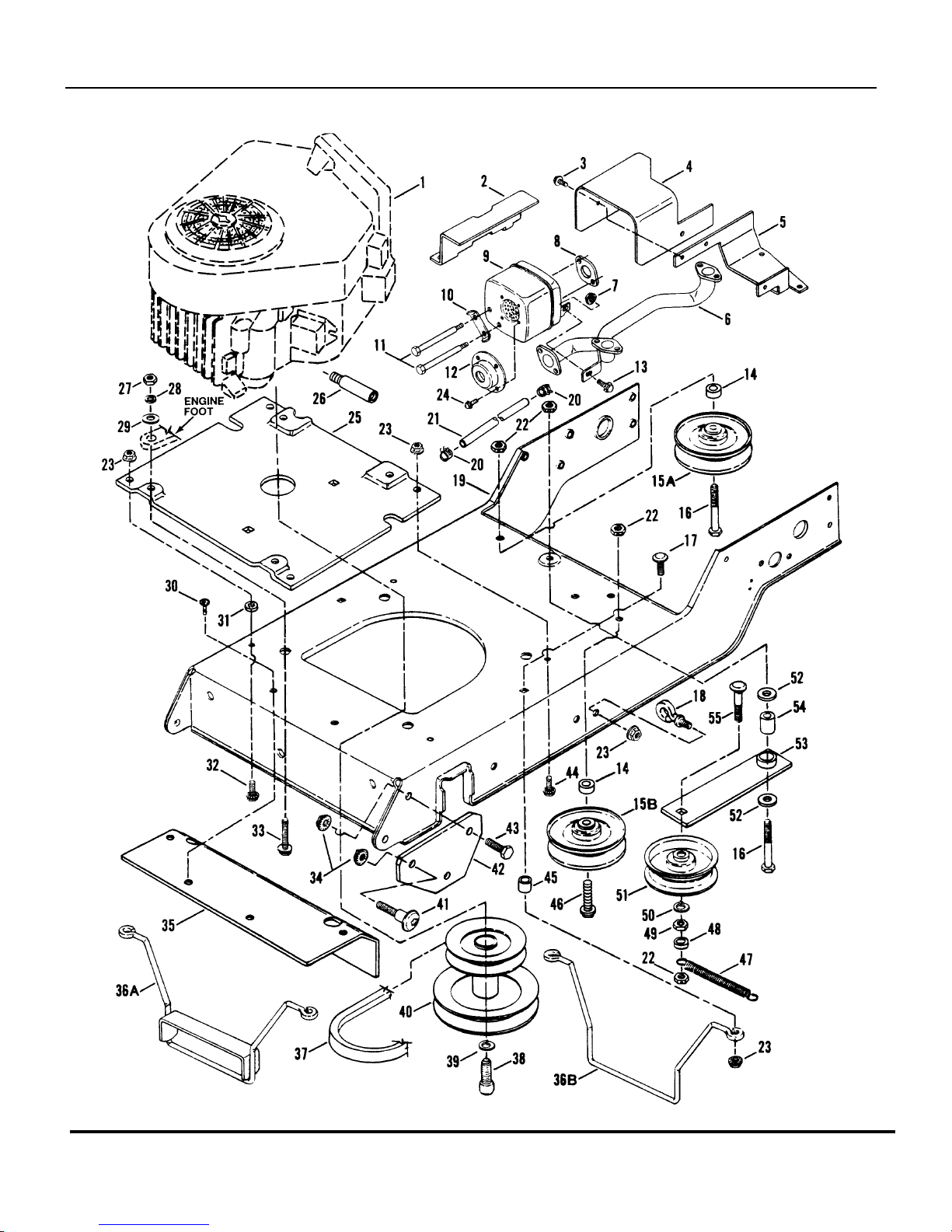

Engine, Engine Base & Drive Components (Briggs Engines)
TP 400-5080-5-TC-N
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
SERIES 2
10

Engine, Engine Base & Drive Components (Briggs Engines)
Footnotes:
TP 400-5080-5-TC-N
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2 11
Part No Descri
p
tionItem Qt
y
Note
1 1 ENGINE, Brigg's & Stratton, 16 HP V-Twin (B&S # 303777-0424-
01)
(B&S # 303777-0424-01)
2 7033983 1 HEAT SHIELD, Manifold
3 7091084 2 SCREW, 1/4-20 x 3/8" Self-Tapping
4 1 HEAT SHIELD, Muffler (No longer available, try using 7034761) Was 33970
5 7033968 1 SUPPORT, Heat Shield
6 1 MANIFOLD, Exhaust (No longer available, try using 7041742) Was 41514
7 7091545 1 NUT, 1/4-20 Hex Flange Lock Was 90477
8 7014509 1 GASKET, Exhaust
9 7024241 1 MUFFLER
10 7024566 1 LOCK, Screw
11 7024161 2 BOLT, 5/16C x 4.1" Hex Head Cap
12 7026778 1 DEFLECTOR, Direct Out
13 7091122 1 SCREW, 1/4-20 x 1/2" Hex Flange, Self-Tapping Was 90539
14 7016719 2 SPACER .750 OD x .390 ID x .5 L
15A 7018573 1 PULLEY, Idler, 3.56" O.D.
15B 7011029 1 PULLEY, Idler, 4" O.D.
16 7090629 2 BOLT, 3/8-16 x 2 1/4" Hex Head
17 7091508 2 BOLT, 5/16-18 x 3/4" Short Neck Carriage Was 90788
17 7091612 2 BOLT, 5/16-18 x 1 1/2" Carriage (38" Models Only) Was 90577
18 7014438 1 EYE-BOLT
19 7033145 1 BASE, Engine
20 7029900 2 CLAMP, Fuel Line .490 x .31 Was 12222
21 7076532 1 LINE, Fuel 10.5" x 1/4" ID
22 7091585 4 NUT, 3/8-16 Hex Center Lock Was 90546
23 7091601 8 NUT, 5/16-18 Hex Flange Lock Was 90585
24 7091581 4 SCREW, 8/18 x 1/2" Hex Head, Self-Tapping Was 90525
25 7033896 1 SUB-PLATE, Brigg's Engine
26 1 OIL DRAIN, Pipe 3.5" Long 1/2" ID .375 NPF (No longer
available)
Was 24318
27 7091511 4 NUT, 5/16-18 Hex Was 90196
28 7090187 4 WASHER, 5/16 Split Lock
29 7090188 4 WASHER, 5/16 Flat
30 7091000 4 SCREW, 5/16-18 x 7/8" Truss Head (Torx) Was 91001
31 7011791 2 RETAINER, 5/16 Bolt
32 7090661 2 BOLT, 5/16-18 x 1" Hex Flange Lock
33 7091540 4 SCREW, 5/16-18 x 1 1/2" Hex Head Cap Was 90211
34 7091619 6 NUT, 3/8-16 Hex Flange Lock Was 90613
35 1 SUPPORT, Axle (No longer available) Was 33100
Purchase engine & engine parts other than those listed, from engine service outlets.

Engine, Engine Base & Drive Components (Briggs Engines)
TP 400-5080-5-TC-N
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
SERIES 2
12

Engine, Engine Base & Drive Components (Briggs Engines)
Footnotes:
TP 400-5080-5-TC-N
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2 13
Part No Descri
p
tionItem Qt
y
Note
36A 7041544 1 GUIDE, Belt (38" Models Only)
36B 7019042 1 GUIDE, Belt (42" & 48" Models)
37 7026118 1 V-BELT, Traction Drive A113.6
38 7090836 1 SCREW, 7/16-20 x 1" Hex Cap, Socket Head
39 7091301 1 WASHER, 7/16 Split Lock Was 90247
40 7019036 1 ASSEMBLY, Engine Pulley
41 7024061 2 SCREW, 3/8-16 x 1 1/4" Shoulder (Torx)
42 7026281 2 BRACKET, Hood
43 7091086 4 SCREW, 3/8-16 x 3/4" Hex Head Cap
44 7090595 2 BOLT, 5/16-18 x 3/4" Hex Flange Lock
45 7024802 2 SPACER, .81 OD X .48 ID x .5 L (38" Models Only)
46 7091580 1 BOLT, 3/8-16 x 1 3/4" Hex Flange Lock Was 90701
47 7027856 1 SPRING, Idler Arm Was 17807
48 7014527 1 SPACER .623 OD x .38 ID x .25 L
49 7091302 1 NUT, 3/8-16 Hex Was 90130
50 7090118 1 WASHER, 3/8 Split Lock
51 7023199 1 PULLEY, Idler, 3 3/4" O.D.
52 7090517 2 WASHER, 3/8" Flat Was 90600
53 7040565 1 ARM, Idler
54 7044752 1 BUSHING, Idler Arm .750 OD x .406 ID x .75 L Was 22062
55 7091008 1 BOLT, 3/8-16 x 2 1/2" Short Neck Carriage
Purchase engine & engine parts other than those listed, from engine service outlets.

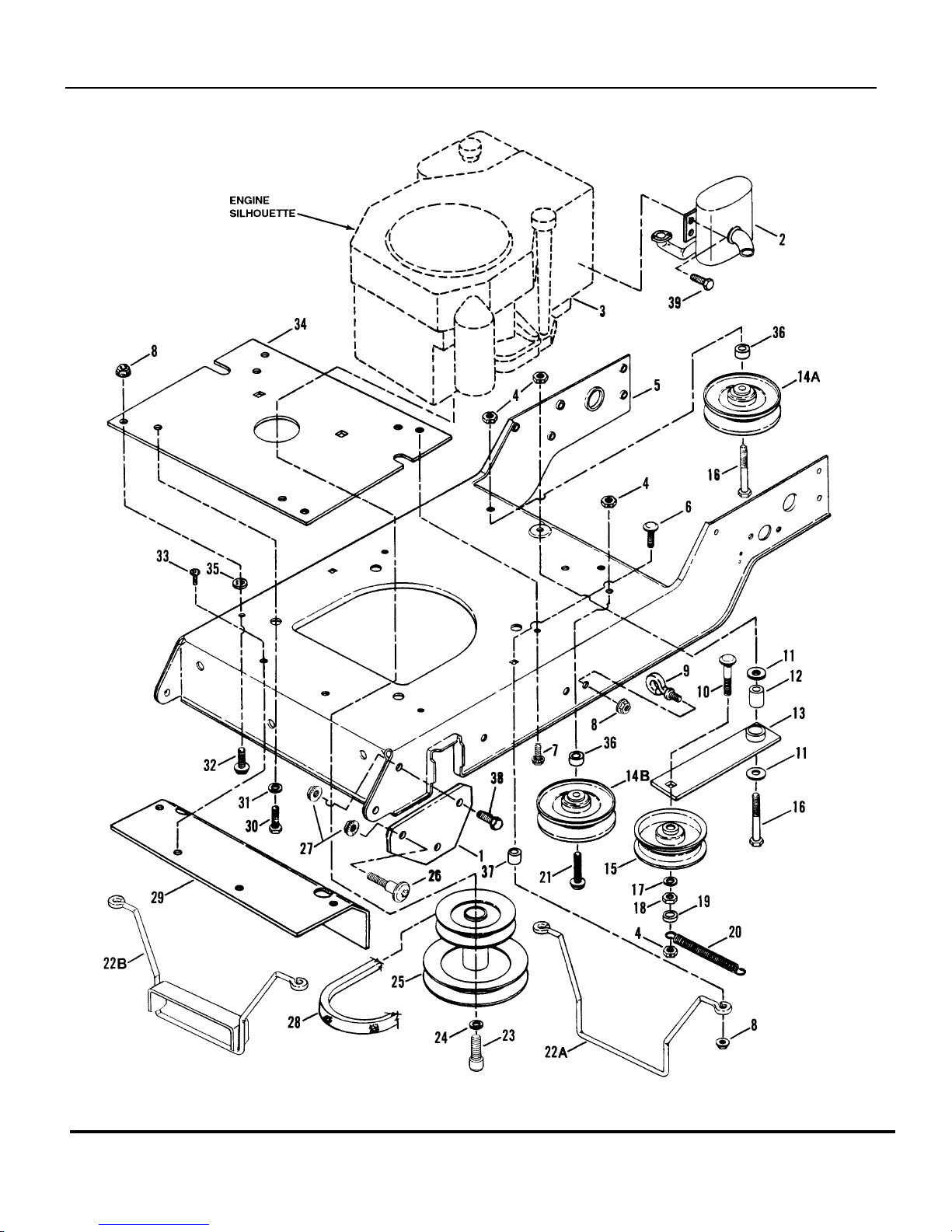

Engine, Engine Base & Drive Components (Kohler Engines)
TP 400-5080-5-TC-N
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
SERIES 2
14

Engine, Engine Base & Drive Components (Kohler Engines)
Footnotes:
TP 400-5080-5-TC-N
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2 15
Part No Descri
p
tionItem Qt
y
Note
1 ENGINE, 16 HP B&S Twin Cyl. (303777-0424-01)
1 7026281 2 BRACKET, Hood
2 7017313 1 MUFFLER, Exhaust
3 1 ENGINE, Kohler 12.5 HP (Kohler # CV12.5S PS1260)
3 1 ENGINE, Kohler 14 HP (Kohler # CV14S PS-1431)
4 7091585 4 NUT, 3/8-16 Hex Center Lock Was 90546
5 7033145 1 BASE, Engine
6 7091508 2 BOLT, 5/16-18 x 3/4" Short Neck Carriage Was 90788
6 7091612 2 BOLT, 5/16-18 x 1 1/2" Carriage (38" Models Only) Was 90577
7 7090595 2 BOLT, 5/16-18 x 3/4" Flange Lock
8 7091601 7 NUT, 5/16-18 Hex Flange Lock Was 90585
9 7014438 1 EYE-BOLT
10 7091008 1 BOLT, 3/8-16 x 2 1/2" Short Neck Carriage
11 7090517 2 WASHER, 3/8" Flat Was 90600
12 7044752 1 BUSHING, Idler Arm .750 OD x .406 ID x .75 L Was 22062
13 7040565 1 ARM, Idler
14A 7018573 1 PULLEY, Idler, 3.56" O.D.
14B 7011029 1 PULLEY, Idler, 4" O.D.
15 7023199 1 PULLEY, Idler, 3 3/4" O.D.
16 7090629 2 BOLT, 3/8-16 x 2 1/4" Hex
17 7090118 1 WASHER, 318 Split Lock
18 7091302 1 NUT, 3/8-16 Hex Was 90130
19 7014527 1 SPACER .623 OD x .38 ID x .25 L
20 7027856 1 SPRING, Idler Arm Was 17807
21 7091580 1 BOLT, 3/8-16 x 1 3/4" Hex Flange Lock Was 90701
22A 7019042 1 GUIDE, Belt (42" & 48" Models Only)
22B 7041544 1 GUIDE, Belt (38" Models Only)
23 7091116 1 SCREW, M10-1.50 x 25mm Hex Head Cap
24 7091301 1 WASHER, SLW 7/16" YZ Was 91117
25 7019036 1 ASSEMBLY, Engine Pulley
26 7024061 2 SCREW, 3/8-16 x 1 1/4" Shoulder (Torx)
27 7091619 6 NUT, 3/8-16 Hex Flange Lock Was 90613
28 7026118 1 V-BELT, Traction Drive A113.6
29 1 SUPPORT, Axle (No longer available) Was 33100
30 7077692 4 BOLT, M8-1.25 x 25mm Hex Head
31 7090187 4 WASHER, 5/16 Split Lock
32 7090661 2 BOLT, 5/16-18 x 1" Hex Flange Lock
33 7091000 2 SCREW, 5/16-18 x 7/8" Truss Head (Torx) Was 91001
Purchase engine & engine parts other than those listed, from engine service outlets.

Engine, Engine Base & Drive Components (Kohler Engines)
TP 400-5080-5-TC-N
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
SERIES 2
16

Engine, Engine Base & Drive Components (Kohler Engines)
Footnotes:
TP 400-5080-5-TC-N
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2 17
Part No Descri
p
tionItem Qt
y
Note
34 7033424 1 SPACER, Kohler Engine
35 7011791 2 RETAINER, 5/16 Bolt
36 7016719 2 SPACER .750 OD x .390 ID x .5 L
37 7024802 2 SPACER, .81 OD X .48 ID x .5 L (38" Models Only)
38 7091086 4 SCREW, 3/8-16 x 3/4" Hex Head Cap
39 7090071 2 SCREW, 1/4-20 x 1/2" Hex Head Cap, Grade 5
Purchase engine & engine parts other than those listed, from engine service outlets.

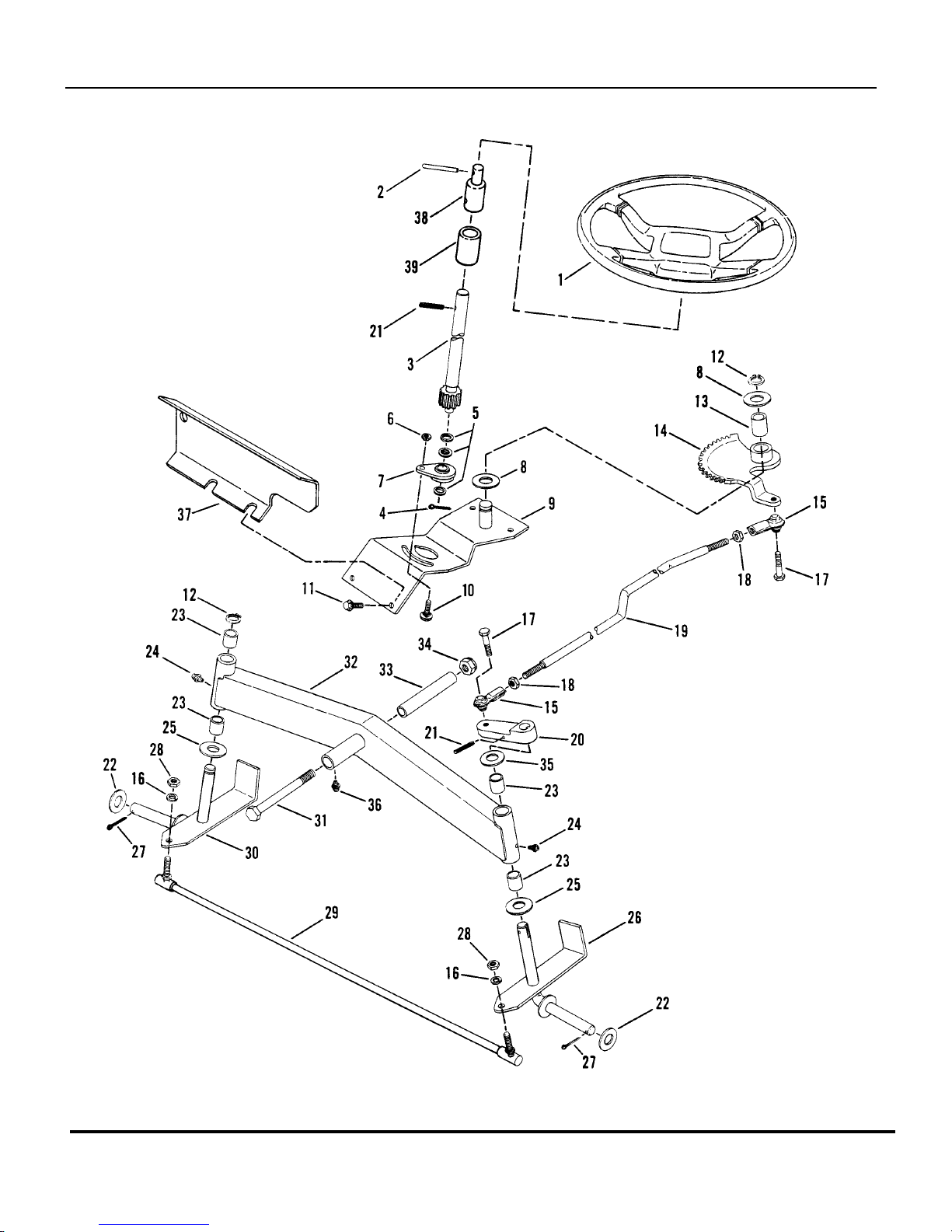

Steering & Front Axle Parts
TP 400-5080-5-TC-N
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
SERIES 2
18

Steering & Front Axle Parts
Footnotes:
TP 400-5080-5-TC-N
Manual No. 7006432LAWN TRACTORS MANUAL CLUTCH
SERIES 2 19
Part No Descri
p
tionItem Qt
y
Note
1 7026448 1 WHEEL, Steering
2 7012765 1 PIN, 1/4 x 2-1/4" Roll
3 7040610 1 SHAFT, Steering
4 7091313 1 PIN, Cotter 3/32" x 1" Was 90038
5 7014296 3 WASHER, Shim .5 x .75 x .03
6 7091584 1 NUT, 1/4-20 Hex Flange Lock Was 90583
7 7052562 1 ADJUSTER, Steering Was 51751
8 7011071 2 WASHER, Thrust
9 7047938 1 ASSEMBLY, Steering Support
10 7091573 1 BOLT, 1/4-20 x 5/8" Short Neck Carriage Was 90551
11 7090361 4 SCREW, 5/16-18 x 5/8" Self-Tapping
12 7010746 2 RING, Retaining EXT .625
13 7015048 1 BEARING, DX, 3/4X1
14 7051752 1 ASSEMBLY, Sector
15 7027936 2 ROD-END, Drag Link .377 ID Ball x 3/8-24 End Was 23200
16 7090118 4 WASHER, 3/8 Split Lock
17 7090163 2 SCREW, 3/8-24 x 1-1/4" Hex Head Cap
18 7090482 4 NUT, 3/8-24 Hex Jam
19 7016062 1 DRAG-LINK
20 7019034 1 ARM, Steering
21 7090842 2 PIN, 1/4 x 1 1/4" Roll
22 7032027 3 WASHER, 49/64 x 1-1/2" O.D. Flat
23 7012706 4 BEARING, Sleeve .875 OD
24 7013864 2 LUBE FITTING, Straight (press-fit for .187 dia. Hole)
25 7031036 2 WASHER, Thrust
26 7040977 1 ASSEMBLY, Spindle (Left Hand)
27 7091516 2 PIN, 5/32 x 1" Cotter Was 90364
28 7091630 2 NUT, 3/8-24 Hex Was 90155
29 7017608 1 TIE-ROD
30 7040976 1 ASSEMBLY, Spindle (Right Hand)
31 7090993 1 SCREW, 1/2-20 x 4 1/2" Hex Head Cap
32 7057536 1 ASSEMBLY, Front Axle (Includes four item 23, two item
24, one item 36)
33 7022070 1 SPACER, Axle Pivot .748 OD x .508 ID x 3.77 L
34 7090819 1 NUT, 1/2-20 Hex Lock
35 7010935 1 WASHER .77 x 1.13 x .06
36 7014871 1 FITTING, Lube 3/16
37 7033264 1 HEAT SHIELD, Fuel Line (Kohler Engines Only)

Steering & Front Axle Parts
TP 400-5080-5-TC-N
Manual No. 7006432 LAWN TRACTORS MANUAL CLUTCH
SERIES 2
20
