snode SNODE8731B User manual

SPINNING BIKE
SNODE8731B
OWNER’S MANUAL
INSTRUCTION MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual
for future reference. The specifications of this product may vary from his photo, subject to change
without notice.

PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
STOP. Contact customer service if you have any questions
regarding assembly or proper operation of the machine.
Email us at:
[email protected]
Or call us at:
1-323-510-1818
Hours:
8:00 am to 5:00 pm (PST) Daily
STOP
ARRÊT
ALTO
Enter into below website to find more innovation products:
www.amazon.com/snode

BLUETOOTH FUNCTION

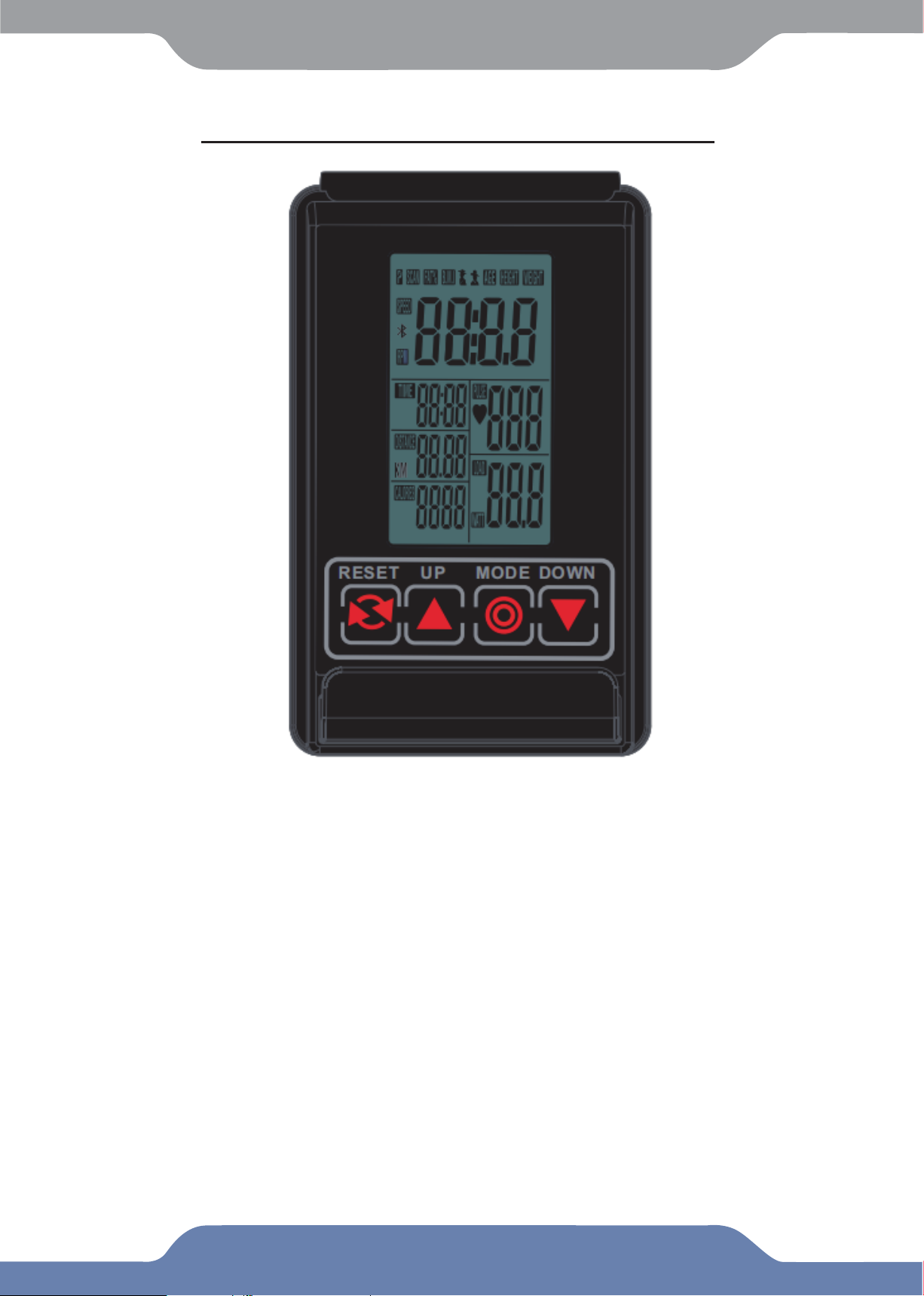

Monitor Operation to Connect Zwift
1. You need to open the bluetooth first in your phone.
2. Enter the Zwift App in your phone and RIDE, the App will search device for pairing.
3. When the device shows up in the App, please kindly connect and then begin. Thanks.
Please Press Mode to Gender, Age, Height, Weight Page.
And then it will show 8888. You need to hold the pulse sensor around 1 minute. The BMI
will show up finally.
Body Fat:

EN:
1
ASSEMBLY INSTRUCTION
ELECTRONIC WATCH MANUAL
ADJUSTMENTS
EXPLOSIVE VIEW
PARTS LIST
IMPORTANT SAFETY GUIDELINES
TROUBLE SHOOTING
EXERCISE INSTRUCTIONS
TRANSPORT & STORAGE
MANUFACTURER’S LIMITED WARRANTY
PARTS REQUEST FORM
8
12
14
4
5
2
15
18
20
21
22
ASSEMBLY INSTRUCTION VIDEO 23
TABLE OF CONTENT
1

IMPORTANT SAFETY GUIDELINES
Safety Precautions – Please Read the Instruction before Using!
Read all instructions before using the equipment. When using the equipment,
basic precautions should always be followed. WARNING - To reduce the risk
of injury to persons, read and under the following:
1. Make sure your equipment is correctly assembled before you use it.
2. Be sure all screws, nuts, and bolts are tightened prior to use.
3. Before using this equipment, we recommend doing warm ups and stretching of the major muscle
groups.
4. Only one person should be using the equipment at a time.
5. Never operate this equipment if it is damaged, if it is not working properly, has been dropped,
or damaged. If a problem is encountered contact Customer Service before using the equipment
again.
6. Always use this equipment on a clear and level surface.
7. For household use only.
8. Do not use outdoors or near water.
9. Use this product only for its intended use as described in this manual. Do not use attachments
not recommended by the manufacturer.
10. DO NOT wear loose clothing when using the equipment.
11. Never drop or insert any object into any opening.
12. If at any time you feel faint, light-headed, or dizziness while operating the equipment, stop
exercising immediately. You should also stop exercising if you are experiencing pain or any discomfort.
13. For any problems contact customer service. Servicing should be performed by an authorized
service representative. Our contact number is on the service page.
14.The electronic watch has many functions,which show values of different exercise degrees.
Warning-heartrate only as a reference which may has inaccurate.
15. ASSEMBLE ALL HARDWARE IN THE ORDER THAT IS SHOWN IN THE ILLUSTRATIONS
16. Warning: - Risk of Personal Injury - Consult with your personal physician to see if this exercise
equipment is appropriate for you. This is especially important for people with pre-existing health
problems. Do not use this equipment without your physician's approval.
17.
Warning: - Risk of Personal Injury – Do not allow children to use this machine.
18.
Warning: - Risk of Personal Injury- Keep children under the age of 13 away from the machine.
19.
Warning: - Risk of Personal Injury- Keep body parts, hair, loose clothing, and jewelry clear
of all moving parts.
20.
Warning: - To reduce the risk of personal injury- Read and understand all read the instructions
before using the bike.
2

SAVE THESE GUIDELINES
3
21.
Warning： -CANCER AND REPRODUCTIVE HARM -- WWW.P65WARNINGS.CA.GOV
Do not use this equipment if you have any of the following conditions or ailments:
Pregnancy
Extreme obesity
Middle ear infection
Hiatus hernia or Ventral hernia
Glaucoma, retinal detachment or conjunctivitis
Use of anticoagulants including Aspirin in high doses.
Spinal injury, Cerebral Sclerosis, or acutely swollen joints
Heart or circulatory disorders for which you are being treated
High blood pressure, Hypertension, Recent stroke or Transient ischemic attack
Bone weaknesses including Osteoporosis, Unhealed fractures, Modular pins, or surgically implanted
orthopedic supports.
Do not exceed the maximum rated weight (load):
The Maximum Weight Capacity for this product is 287lbs / 130kgs.
Retain this owner’s manual and keep the original purchase receipt
for future reference.

EXPLOSIVE VIEW
4

PARTS LIST
1
PART NO. DESCRIPTION QTY
Main Frame
Front Tube
Rear Tube
Seat Post
Handlebar Post
Slider
Seat
Handlebar
Computer
Foot Plug
Step Screw
Hexagon Screw
Foot Pad
Casing
Bearing
Screw
Inside
Self-drilling Screw
Hexagon Screw
Belt
Flat Pad
Belt Pulley
Axle / Achse
Shell
Crank R
Crank L
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25R
25L
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
4 PCS
4 PCS
6 PCS
4 PCS
1 PC
2 PCS
9 PCS
1 PC
9 PCS
1 PC
3 PCS
1 PC
1 PC
3 PCS
1 PC
1 PC
1 PC
5

1
Nut
Nut
Pedal R
Pedal L
Crank Bushing
Curved Gasket
Round Knob
Knob
Nut / Nuss
Tube Clamp
C-clip
Bottle Holder
Brake Limit Tube
Brake Nylon Bushing
Nut
Brake Lever
Screw
Plug
Sensor Cable
Screw
Screw
Plug
Nylon Nut
Brake Knob
Round Pipe Plug
Sensor Cable
26
27
28R
28L
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
2 PCS
2 PCS
1 PC
1 PC
2 PCS
1 PC
1 PC
1 PC
2 PCS
2 PCS
2 PCS
1 PC
1 PC
2 PCS
1 PC
1 PC
1 PC
1 PC
2 PCS
1 PC
1 PC
1 PC
1 PC
1 PC
2 PCS
1 PC
4 PCS
1 PC
3 PCS
6
Screw
Screw
Magnetic Steel Frame Mount

1
Nylon Nut
Magnet
Spring
Flat Pad
Flat Pad
Wheel
Palin
Sensor Cable
Plastic Casing
Plastic Palin
Chain Adjuster
Brake Limit Block
Magnetic Steel Frame
Screw
Flywheel
Nylon Nut
Front Cover Left
Front Cover Right
Flange Nut
Flywheel Axle
Washer
Table Clip
Sensor Sheet
Ipad Holder
Wave Pad
Screw
Wrench
54
55
56
57
58
59
60
61
62
63
64
65R
65L
66
67
68
69
70
71
72
73
74
75
76
77
78
80
81
Wrench
82
3 PCS
1 PC
4 PCS
2 PCS
1 PC
1 PC
1 PC
2 PCS
2 PCS
2 PCS
2 PCS
1 PC
1 PC
2 PCS
4 PCS
2 PCS
2 PCS
1 PC
2 PCS
1 PC
4 PCS
4 PCS
1 PC
1 PC
1 PC
1 PC
Circlip
79 4 PCS
3 PCS
1 PC
1 PC
7
Screw

ASSEMBLY INSTRUCTION
8
STEP 1
Attach the Front tube(2) and the Rear tube(3) to the Main frame(1) with Step screws(11). Tight the Step
screws(11) by using the Hexagon wrench(81).
Attention: keep the bike’s balance by turning the Foot pad(13) and adjust the height of them.

STEP 2
Put the Seat post(4) insert Main frame(1) with the Knob(33). Lock the Slider(6) with the Seat post(4) by
Screw(36), Washer(32) and the Round knob(31). At last, put the Seat(7) on the Slider(6) and tight by
Wrench(82).
9
ASSEMBLY INSTRUCTION

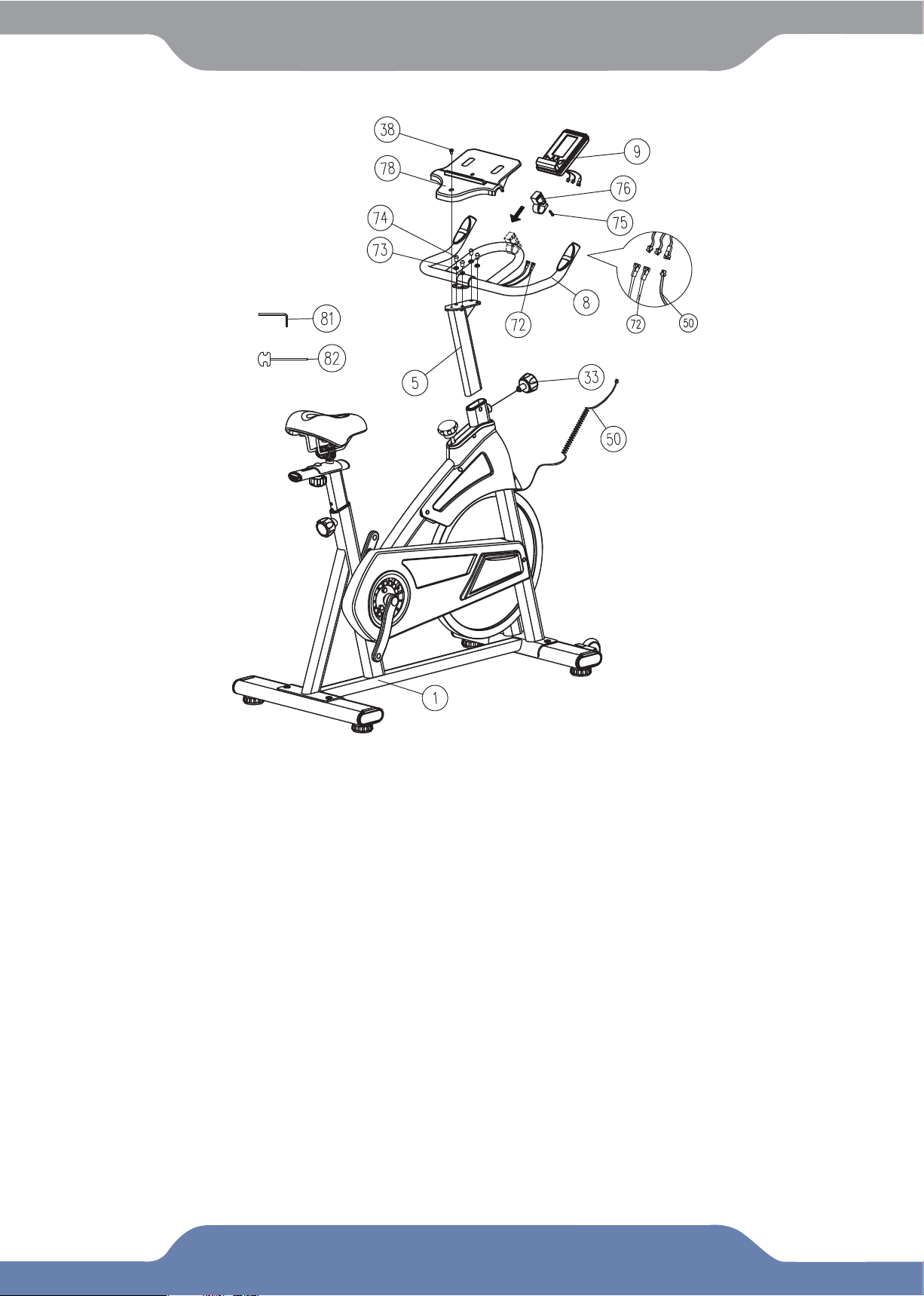

STEP 3
Put the Handlebar post(5) insert the Main frame(1) with the Knob(33) adjust height. Fix the Handlebar(8) on Handlebar
post(5) using Screws(74) and Washer(73). Then cover the iPad holder(78) on Handlebar post(5) by using Screws(75)
and Wrench(82). Fix the Computer holder(76) on Handlebar(8). Then put Computer(9) slip into computer holder, then
insert the Pulse cable(72) and the Sensor cable(50) plug into the lines of Computer(9).
10
Attention: In Step 2 & Step 3, you can adjust the position of handlebars and the seat by turning and pull out knobs.
ASSEMBLY INSTRUCTION

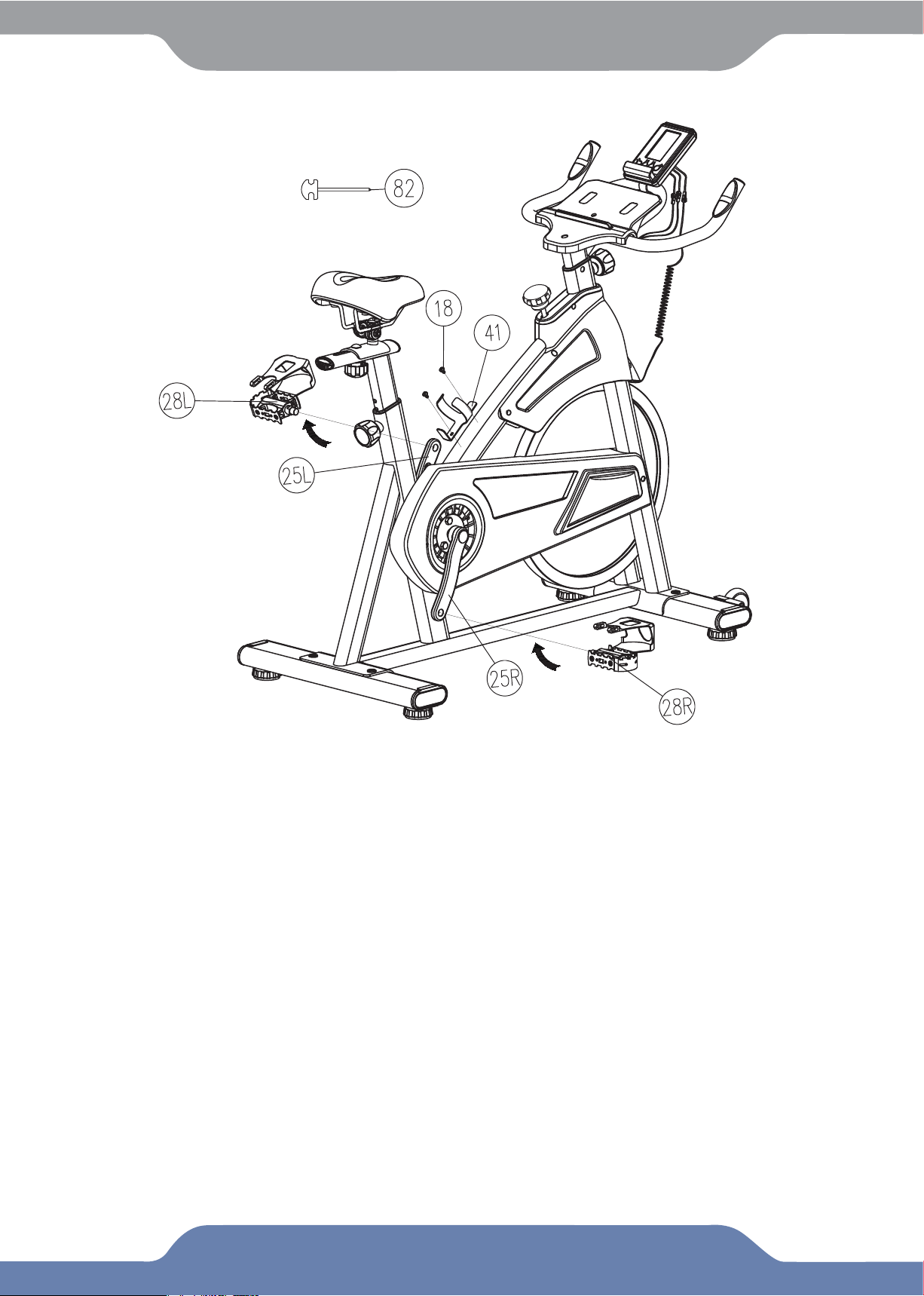

STEP 4
The Pedals(28L&28R) are marked “L” and “R”-left and right. Connect them to their appropriate Crank Set(25L&25R).
The Right crank(25R) is on the right hand side of the cycle as you sit on it. Note that the Right Pedal(28R) should
be threaded on clockwise and the Left Pedal(28L) on anti-clockwise.
11
Attention: The pedal must match the matching crank, L to L, R to R, otherwise the screws of pedals will be damaged.
You just finished the assembly.
ASSEMBLY INSTRUCTION

12

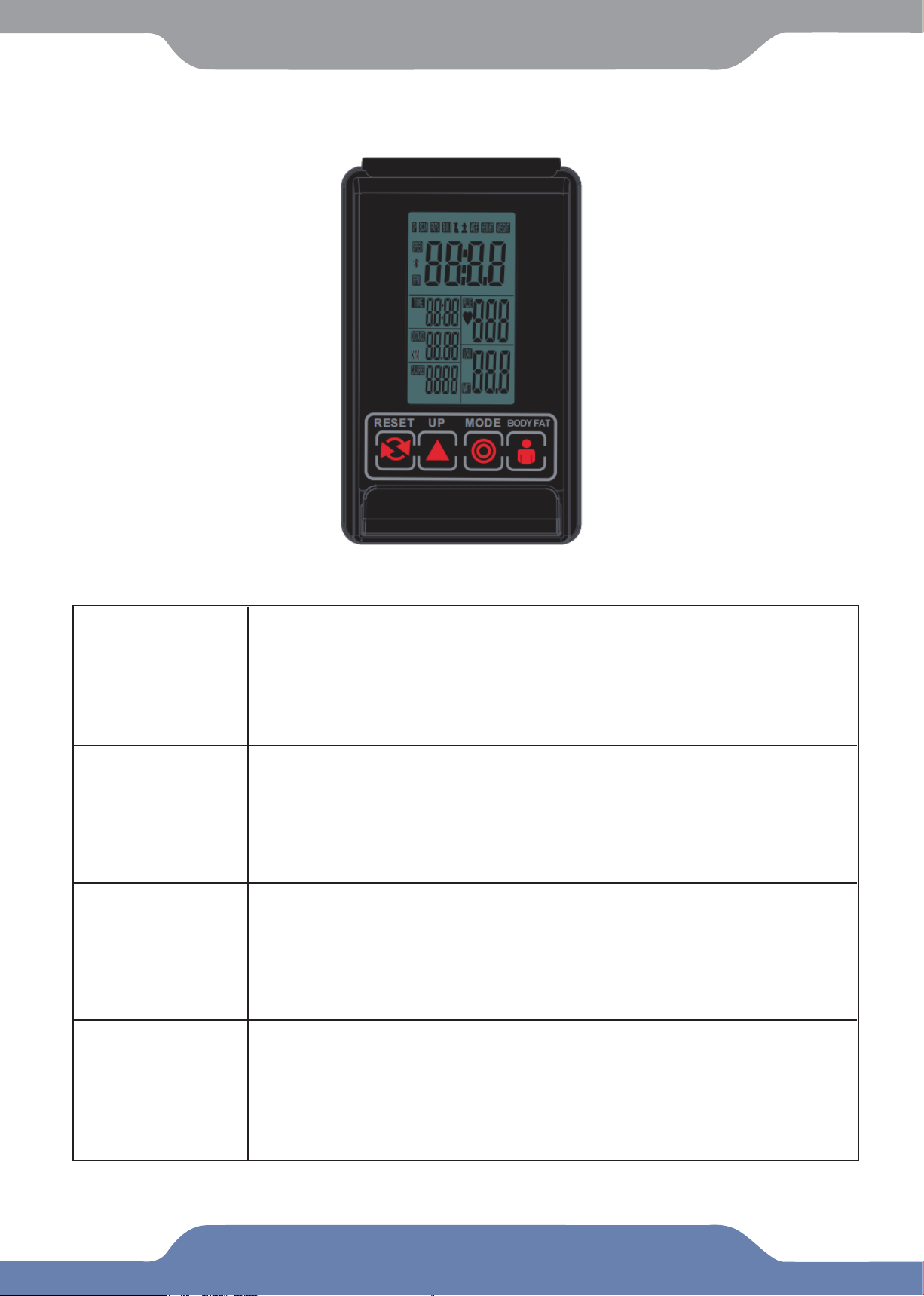

ELECTRONIC WATCH MANUAL
FRONT VIEW
NPEF
SFTFU
VQ
CPEZ!GBU
Up!dipptf!uif!TDBO!ps!MPDL!jg!zpv!ep!xbou!uif!tdbo!npef-
qsftt!uif!NPEF!lfz!xifo!uif!qpjoufs!po!uif!gvodujpo!zpv
xbou!xijdi!cfhjot!cmjoljoh/
Qsftt!uif!SFTFU!lfz!pof!ujnf!dbo!dmfbo!uif!qsftfu!ebub/
Qsftt!uif!SFTFU!lfz!gps!4!tfdpoet!dbo!sftubsu!uif!dpnqvufs/
Bee!pof!voju!cz!qfs!qsfttjoh/!Qsftt!uif!VQ!lfz!gps!b!xijmf
dbo!bee!vojut!rvjdlmz/!Dbo!cf!vtfe!gps!tfu!uif!ebub!pg!UJNF-
EJTUBODF-!DBMPSJFT-!QVMTF/
Qsftt!CPEZ!GBU!pof!ujnf!boe!vtf!uif!VQ0NPEF!lfz!up!tfu!uif
ebub!pg!zpvs!ifjhiu-!bhf!boe!xfjhiu/!Bgufs!uftu-!qsftt!CPEZ
GBU!bhbjo!up!espq!pvu/
KEYS FUNCTIONS

13
ELECTRONIC WATCH MANUAL

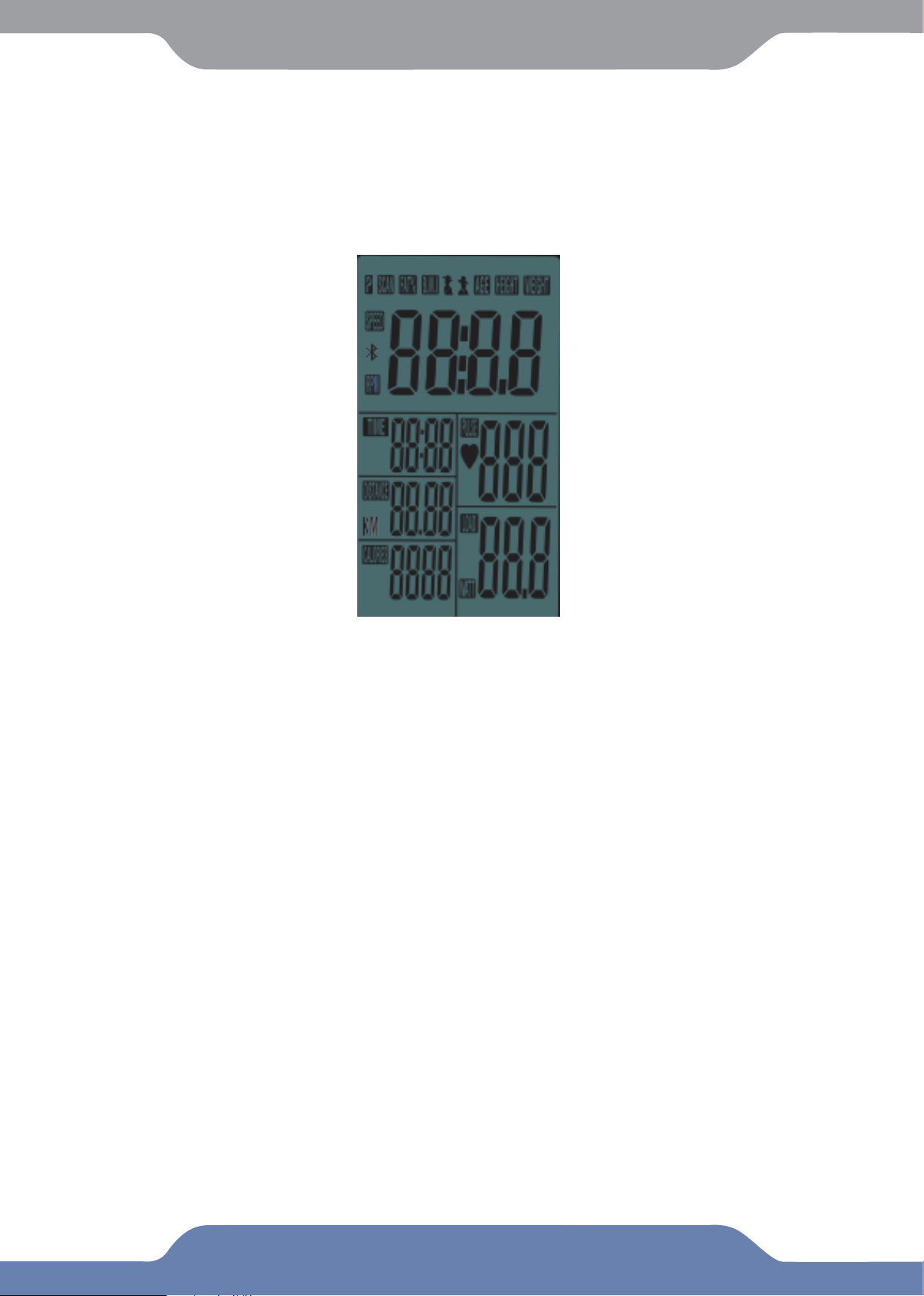

START INSTRUCTIONS
Qvu!cbuufsjft!joup!dpnqvufs-!uifo!uifsf!xjmm!cf!b!wpjdf!＃cffq￥!gps!3!tfdpoet-!boe!uif
tdsffo!xjmm!cf!mjhiufe!boe!tipx!bmm!ebub!gps!3!tfdpoet-!uifo!zpv!dbo!tubsu!up!vtf!uif
dpnqvufs/
Enter the exercise mode
Bgufs!cppujoh-!foufs!uif!npujpo!qjduvsf/
2/Qsftt!uif!NPEF!lfz!up!dipptf!UJNF-!EJTUBODF-!DBMPSJFT!ps!QVMTF/!Qsftt!NPEF
!!!lfz!bhbjo!up!difdl!uif!npef/
3/Xifo!zpv!tubsu!usbjojoh-!ju!xjmm!tubsu!up!sfdpse!zpvs!usbjojoh!ebub/
4/Jg!zpv!offe!up!uftu!ifbsu!sbuf-!qmfbtf!ipme!uif!qvmtf!iboemft!xjui!cpui!iboet-!zpvs!qbmnt
!!!nvtu!cf!dpnqmfufmz!buubdife!up!uif!nfubm!tuffm/
Remark:!
Xifo!uif!ejtqmbz!dbo＂u!tipx!dmfbsmz-!nbzcf!uif!cbuufsjft!bsf!pvu!pg!qpxfs-!qmfbtf!dibohf
uif!ofx!cbuufsjft/
Jg!uif!dpnqvufs!dbo＂u!sfdfjwf!tjhobm-!qmfbtf!difdl!jg!uif!xjsft!bsf!dpoofdufe/!

ADJUSTMENTS
14
Adjusting the Foot Pad(13) on the Front and Rear Tube(2)&(3) as needed to level the bike.
Proper leveling will reduce noises and wobbling.
Sfbs!Uvcf䯒4䯓!
Gspou!Uvcf)3*
Gppu!Qbe䯒24䯓
To increase the tension, turn to Brake Knob(48) in a CLOCKWISE direction.
To decrease the tension, turn to
Brake Knob(48) in a COUNTERCLOCKWISE direction.
Adjusting the Brake Knob
STEP 1
STEP 2
Csblf!lopc)59*!!

ADJUSTMENTS
15

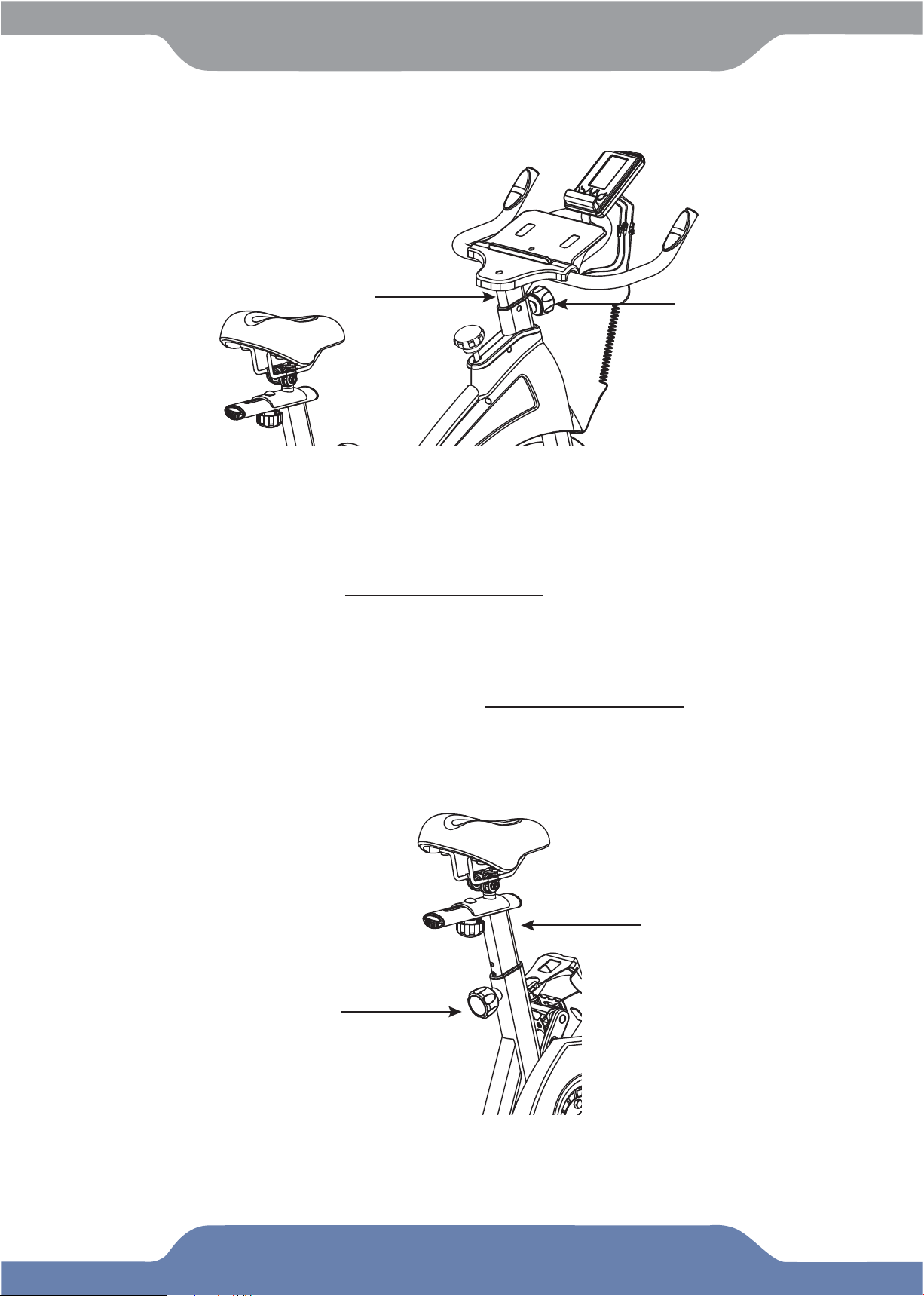

Tip: When adjusting the height of Handlebar Post(5), the MAX line cannot higher than the
edge of plastic bushing.
Adjusting the Handlebar Height
Lopc)44*
Iboemfcbs!qptu)6*!
Loosen the Knob(33) by turning it COUNTER-CLOCKWISE direction until it can be pulled out.
Pull out the
Knob(33) and then slide the Handlebar Post(5) up or down and settle on the
desired height. Lock the
Handlebar Post(5) in place by releasing the Knob(33) and sliding
the
Handlebar Post(5) up or down slightly until the Knob(33) “pops” down into the locked
position. For added safety, Tighten the
Knob(33) in a CLOCKWISE direction.
Lopc)44*!
Tfbu!qptu)5*!!
STEP 3
STEP 4

16
ADJUSTMENTS
Spvoe!lopc)42*!
Tmjefs)7*
Loosen the Round knob(31) by turning it in a COUNTER-CLOCKWISE direction. Slide the Slider(6)
in a forward direction to the suitable position. Lock the Slider(6) in place by turning the Round knob
(31)
in a CLOCKWISE direction.
Adjusting the Seat Forward or Back
STEP 5

TROUBLE SHOOTING
17
1.
PROBLEM: The bike wobbles when in use.
1)
SOLUTION: Turn the Foot Pads (36) on the Rear and Front Tube (38) & (53) or as needed
to level the bike.
2.
PROBLEM: The display on the Computer (1) does not turn on.
1)
SOLUTION: Remove the Computer (1) and verify that the wires from the Computer (1) are
properly connected to the wires of the
Handlebar Post (79) .
3.
PROBLEM: Not displaying/inconsistent/erratic heart rate readings
1)
SOLUTION: Always hold onto the Hand Pulse (81) with both hands. Maintain moderate
pressure when holding onto the
Hand Pulse (81) .
2)
SOLUTION: Make sure the wire connections for the Pulse Wires (80) .
3)
SOLUTION: Wipe your excess moisture off your hands.
4.
PROBLEM: The bike makes a squeaking noise when in use.
1)
SOLUTION: The bolts may be loose on the spin bike. Inspect all of the bolts and tighten
any loose bolts.
MAINTENANCE
1. The bike can be cleaned with a soft clean damp cloth.
2.
Do not use abrasives or solvents on the plastic parts.
3. Wipe your perspiration off the bike after each use.
4. Be careful not to get excessive moisture on the Console display as this might cause an
electrical hazard or the electronics to fail.
5. Keep the bike, especially the computer console out of direct sunlight to prevent screen
damage.
6. Be sure all assembly bolts, nuts, screws, and pedals on the machine are thoroughly tightened
prior to use. Tighten any loose parts.
