SnowEx SS-4000 User manual

Assembly Instructions
© TrynEx International 2013
(REV A) F51067C
1
CUSTOMER COPY
Madison Heights, Michigan 48071
800-SALTERS
www.snowexproducts.com
SS-4000
Serial No. SB4-100000 and higher

2 © TrynEx International 2013 (REV A) F51067C
Table of Contents
Have a question or need assistance?
SnowEx Customer Care
(800) SALTERS
or [phone]
Monday trough Friday 8:00 AM to 4:30 PM EST
Fax: [phone]
E-mail: [e-mail]
Website: www.snowexproducts.com
Introduction .................................................................................................................................................................................................. 3
Fastener Torque Chart ................................................................................................................................................................................... 3
Safety ........................................................................................................................................................................................................... 4
Assembly Instructions .............................................................................................................................................................................. 5-12
Notes ..................................................................................................................................................................................................... 13-15

3© TrynEx International 2013 (REV A) F51067C
Introduction
These assembly instructions have been designed to guide you in assembling your SS-4000 Rotary Sweeper. Follow these instructions with
care to ensure performance and longevity.
Please read and understand the safety warnings associated with the assembly of the equipment before beginning. In addition the safety
information in the these instructions, observe general safety guidelines to maintain your safety and the safety of those around you.
To assemble the SS-4000 you will need a set of metric tools.
THIS SIGN SHOULD ALERT YOU:
This Safety Alert Symbol is used to pinpoint characteristics that, if not carefully followed, can create a safety
hazard. When you see this symbol in this manual or on the machine itself, be alert! Your personal safety and
the safety of others is involved.
Dened below are the Safety Alert Messages.
DANGER
Information that, if not carefully followed, can cause death.
WARNING
Information that, if not carefully followed, can cause serious personal injury or death.
YELLOW
Information that, if not carefully followed, can cause minor injury or damage to equipment.
IMPORTANT
This symbol is used to call out information that is important to follow carefully.
Note: Some of the photos in these instructions show the SS-4000 with the optional Mult-Purpose Brush Kit SBK-020.
In each step, hand-tighten all fasteners until the step is complete, then
tighten to the recommended torque.
To prevent damage to the equipment, do not tighten fasteners with
plastic nuts or directly contacting plastic parts to the recommended
torque. Tighten until it feels tight.
TORQUE CHART FT-LB
Fastener Recommended
Torque
M6 7.8
M8 20.25
M10 42.75
M12 72
M19 250
T20 7.75
RECOMMENDED FASTENER TORQUE

4 © TrynEx International 2013 (REV A) F51067C
Your SS-4000 is manufactured to state-of-the-art technical regulations. Despite this, it is possible that
operation will result in danger to life and limb for the operator or third parties, impairments to the machine
and other physical assets.
The machine is intended exclusively for use for brushing operations in property maintenance and snow
clearance. Examples of intended use are: snow clearing; sidewalk, driveway & parking lot cleaning (with
multi-purpose brushes); spring debris clean-up; dethatching; clearing debris from articial turf; and leaf
clean-up (with Multi-Purpose brushes). Any operation over and above these uses will be considered as a
non-intended use. SnowEx will not be held liable for any resulting damages. The operator alone is respon-
sible for any risk. Intended Use also includes observance of the Owner’s Manual and keeping to all service
and maintenance procedures.
Always keep the Owner’s Manual available at the machine’s place of work. In addition to this Owner’s
Manual, furnish all users with information regarding legal or other important regulations regarding accident
prevention. These duties can include handling hazardous materials; wearing personal safety equipment; and
trafc regulations. You should supplement this Owner’s Manual with instructions covering information related
to use of powered machinery; and operating equipment near people, other machines and trafc.
Do not smoke or have any open ame near the machine. Gasoline vapors could explode.
Only use the machine in perfect condition and according to applicable regulations. Be aware of your sur-
roundings and alert to what you are doing to reduce hazards. You should always repair faults which could
inuence the safety of the machine.
Personnel operating the machine must read the Owner’s Manual before using – especially all safety in-
formation. This includes people who occasionally work on or operate the machine such as for service and
transport. A clear understanding of how to operate the machine will reduce dangers involved with operating
powered equipment.
You must check that personnel operating the machine are paying attention to safety and hazards and under
observance of this Owner’s Manual. Operating personnel may not have long hair, or wear loose clothing or
jewelry, including rings – these items can catch and be pulled in by moving parts.
Keep all safety and hazard information for the machine complete and in readable condition. If the machine is
altered with regard to its safety or changes its operational behavior, stop operation immediately and report
the malfunction to the responsible department or person.
The SS-4000 may only be operated with brushes approved by SnowEx.
Do not carry out any alteration, addition or rebuilding to the machine which could inuence its safe opera-
tion. This especially applies to addition and alteration to safety devices and machine controls, and to welding
work on load-bearing components.
Personal protection equipment must be worn to prevent accidental injury. Observe all safety and hazard
information for the machine.
Rotating brushes cause ying debris, wear safety glasses with side protection.
Wear high-visibility clothing, especially when working around other machines, people and vehicles.
Be aware of and avoid pinch points when assembling and operating. Pinch points can exist around levers
and when putting two parts together (during assembly).
Use barriers and trafc cones when working in areas of pedestrian and vehicle trafc to keep everything at a
safe distance.
Use genuine SnowEx parts for replacement. These meet the specic technical requirements. Observe all
deadlines indicated in the Owner’s Manual for maintenance checks and service
Suitable and adequate mechanic’s equipment is required for performing maintenance and service proce-
dures.
The SS-4000 is powered by gasoline. Know the location of re extinguishers and observe re safety proce-
dures.
This page contains safety information to highlight safety hazards and precautions involved with operating your SS-4000. This page must be
read and understood by all personnel who have any part with the assembly, use and care of this machine.
Safety

5© TrynEx International 2013 (REV A) F51067C
Assembly Instructions
STEP 1
Rest the handlebar on the clamps.
STEP 2
Mount Handlebar to the supports with the knob.
STEP 3
Put the other half of the clamps onto the studs.
STEP 4
Put xing plates on the studs. Position as shown.
Front
Use metric tools to assemble the SS-4000. Two people are necessary for this procedure.

6 © TrynEx International 2013 (REV A) F51067C
Assembly Instructions
STEP 5
Put locknut and washer on the stud.
STEP 8
Put right and left wheels on the drive axle and secure with the linchpin. Put the linchpin through the axle only. This is the freewheel position –
see Owner’s Manual for more information.
STEP 7
Attach Throttle Lever with bolt, washer and locknut
STEP 6
Tighten the nuts so the handlebars will still move, but not fall.

7© TrynEx International 2013 (REV A) F51067C
STEP 10
Attach Support Wheel.
STEP 9
Support the machine at the front with a wooden block. Secure the rear wheels with chocks.
Assembly Instructions
Wheel with fasteners. Push the sleeve through
the wheel.
Position the support
wheel as shown.
Push the hex bolt through
and thread on the nut.
Completed.
Use two wrenches on to
tighten the bolt/nut.

8 © TrynEx International 2013 (REV A) F51067C
STEP 11
Have another person hold the machine rmly by the handlebars.
STEP 12

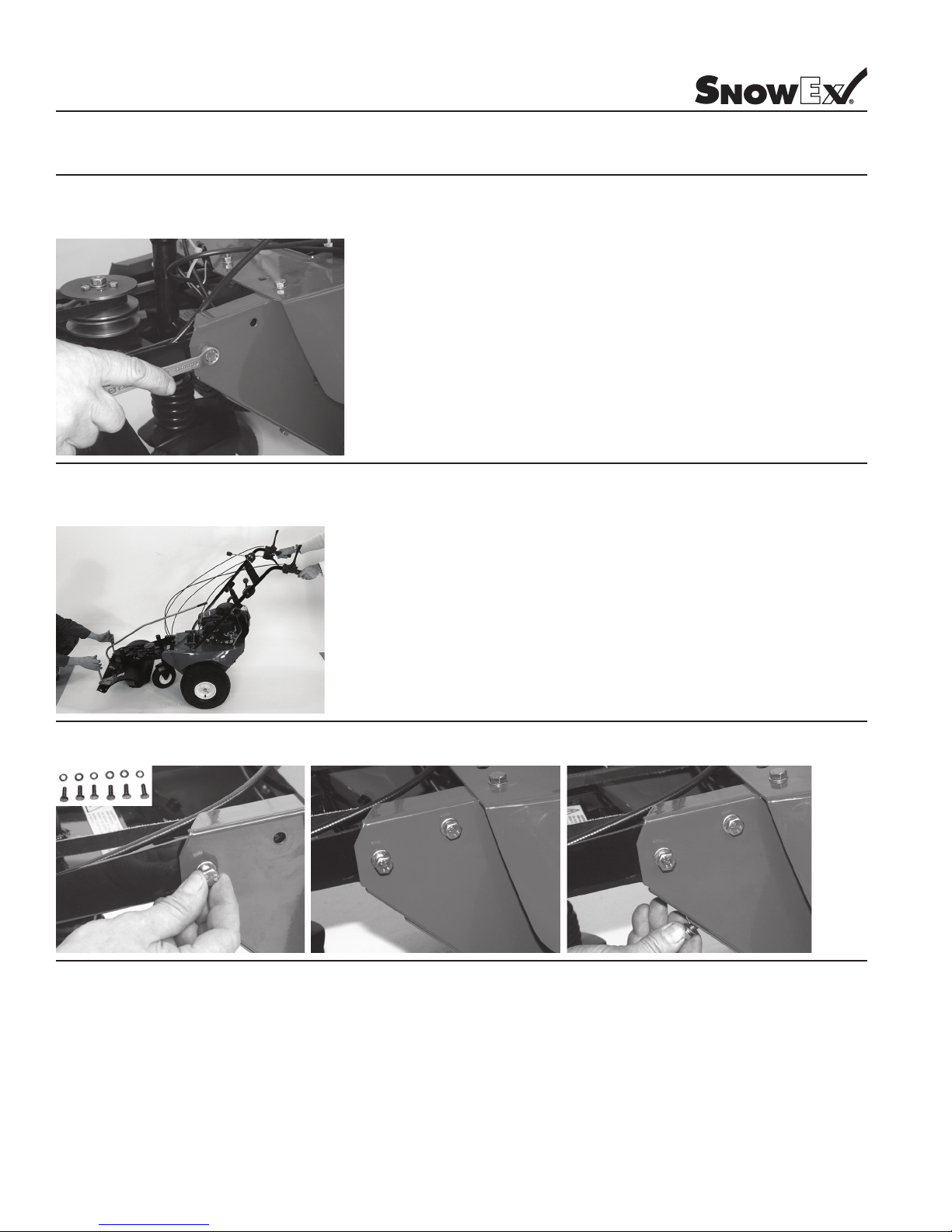

Remove the bolts on both sides that hold the Wheel Drive Housing to the Brush Drive Extension.
DO NOT RE-USE THE REMOVED HARDWARE.
STEP 13
Remove the bolts on both sides that hold the Wheel Drive Housing to the Brush Drive Frame. Pull the Brush Drive Frame forward keeping the
frame-member as level as possible and keeping the frame from scraping the cover.
STEP 14

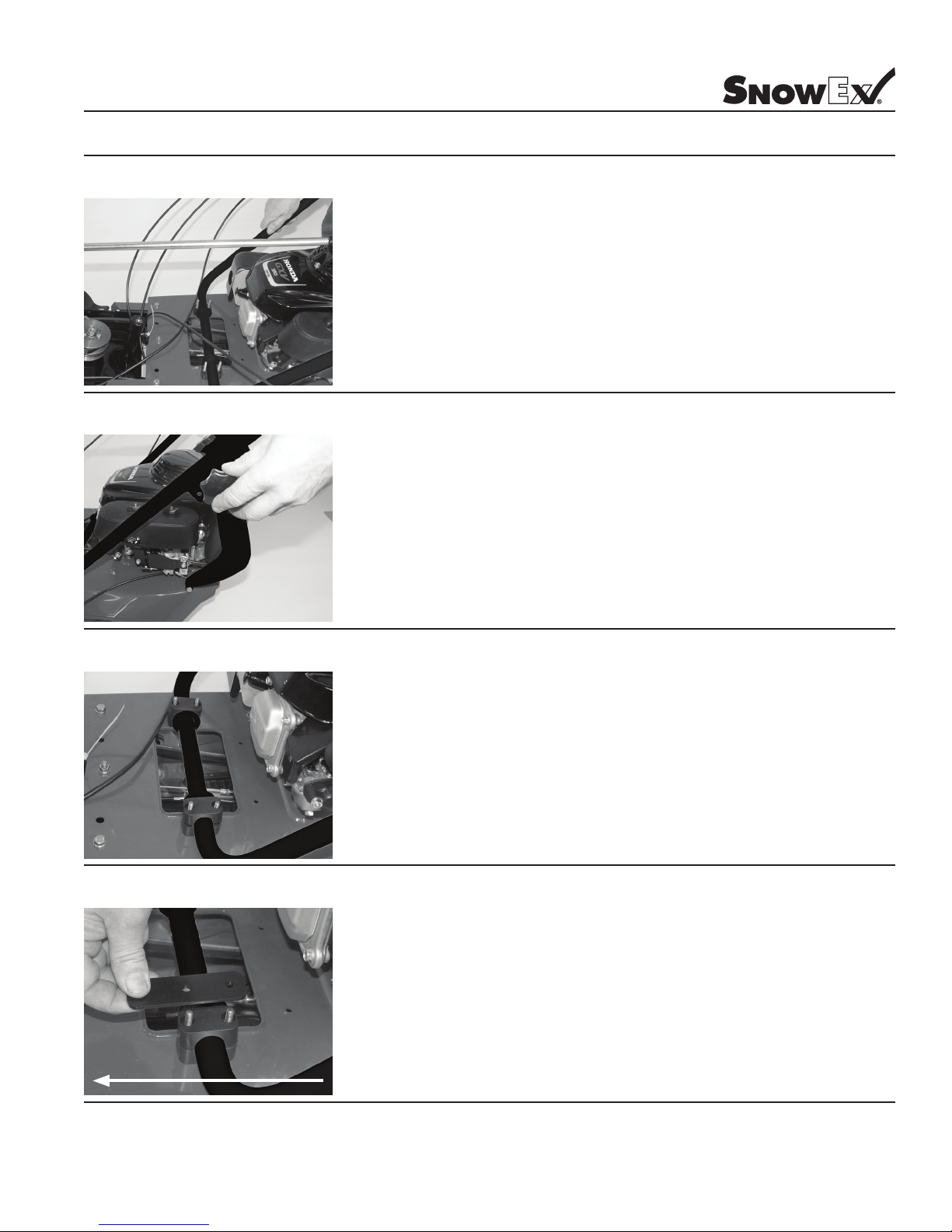

Loosely pre-assemble the Brushing Sub-Assembly to the Axle Drive Housing with bolts and washers. Begin at the front.
Assembly Instructions

9© TrynEx International 2013 (REV A) F51067C
STEP 15
Tighten the bolts holding the Brushing Mechanism to the Axle Drive Housing in the order shown.
IMPORTANT
Tighten the bottom bolts rst, then tighten the bolts on the side. Please note the
order in which the bolts are tightened. Otherwise, the machine is not exactly
aligned and the drive belt could wear down the brush.
STEP 16
Fix the Cable to the Handle Bars with cable ties at the locations show. Trim the end off when nished all the cable ties.
Assembly Instructions
1.
2. 3.
The ties here must form
a loop. Do not tighten.
The cable must be able
to move when the handle
is folded.

10 © TrynEx International 2013 (REV A) F51067C
STEP 17

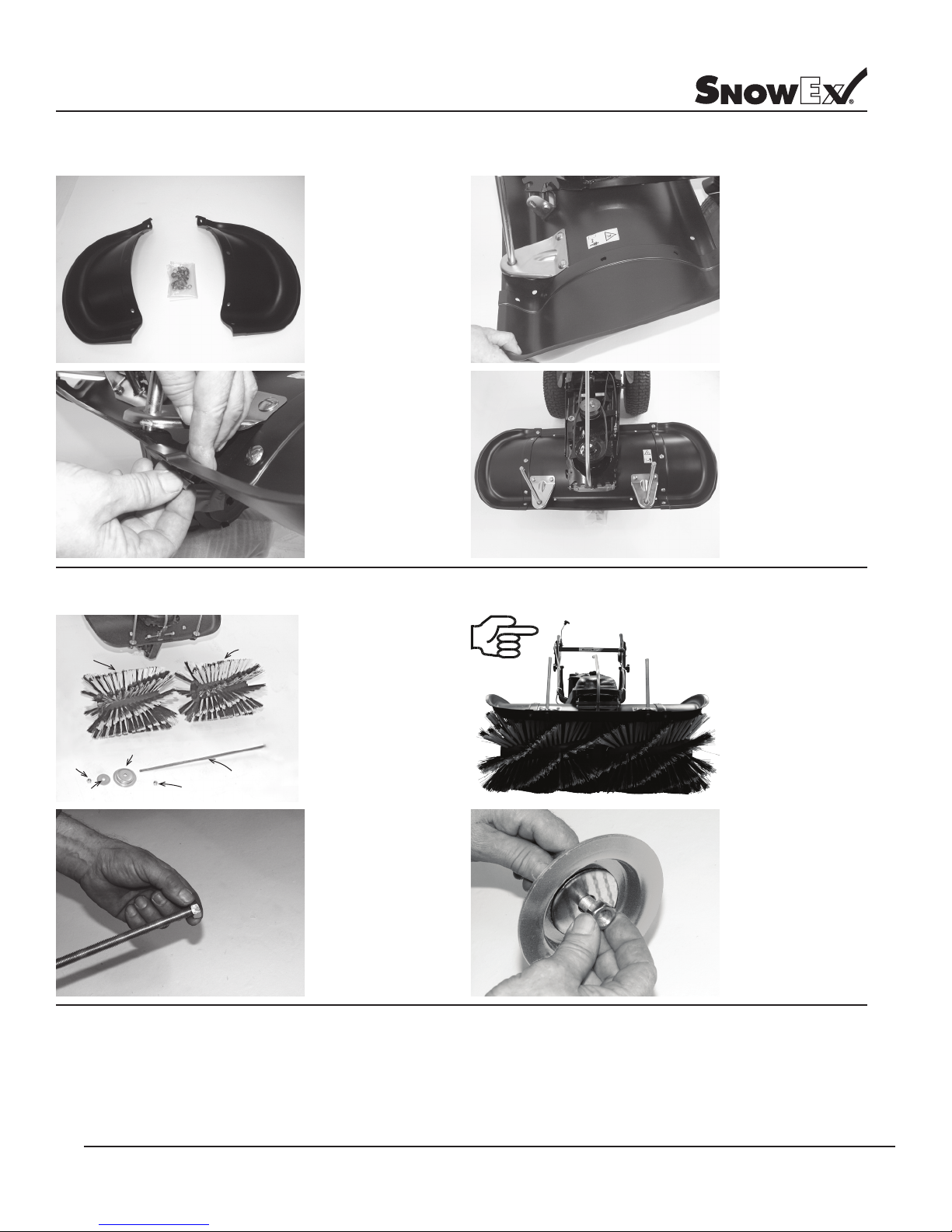

Attach the Brush Cover Side Panels.
STEP 18
Installing the Brushes.
Assembly Instructions
Parts.
Position the side panel
so that the holes are
concentric.
Repeat this procedure
for the second panel.
Push the bolts through
from above. Push the
washers on from below
and screw on the nuts.
Tighten.
Axle
Nut
Locknut
Washer
Cap
Left Brush
Right Brush
Parts.
Put cap and washer on
the axle.
Bristles should be
installed as shown –
curving upward from
the left.
Screw the nut onto the
axle.

11© TrynEx International 2013 (REV A) F51067C
Assembly Instructions
Put the Axle with the
Cap, Washer and Right
Brush through the drive
source (centered under-
neath the brush cover).
Put the Left Brush on
– make sure the brush
is locked onto center
Cap-Gear.
Put the cap and washer
on the end. Thread on
Locknut.
Tighten the axle – You
will need two 19 mm
wrenches.
Put the Axle with the
Cap, Washer and Brush
through the drive source
(centered underneath
the brush cover).
In the center, the tab on
the Cap-Gear should t
the slot on the brush
cylinder.

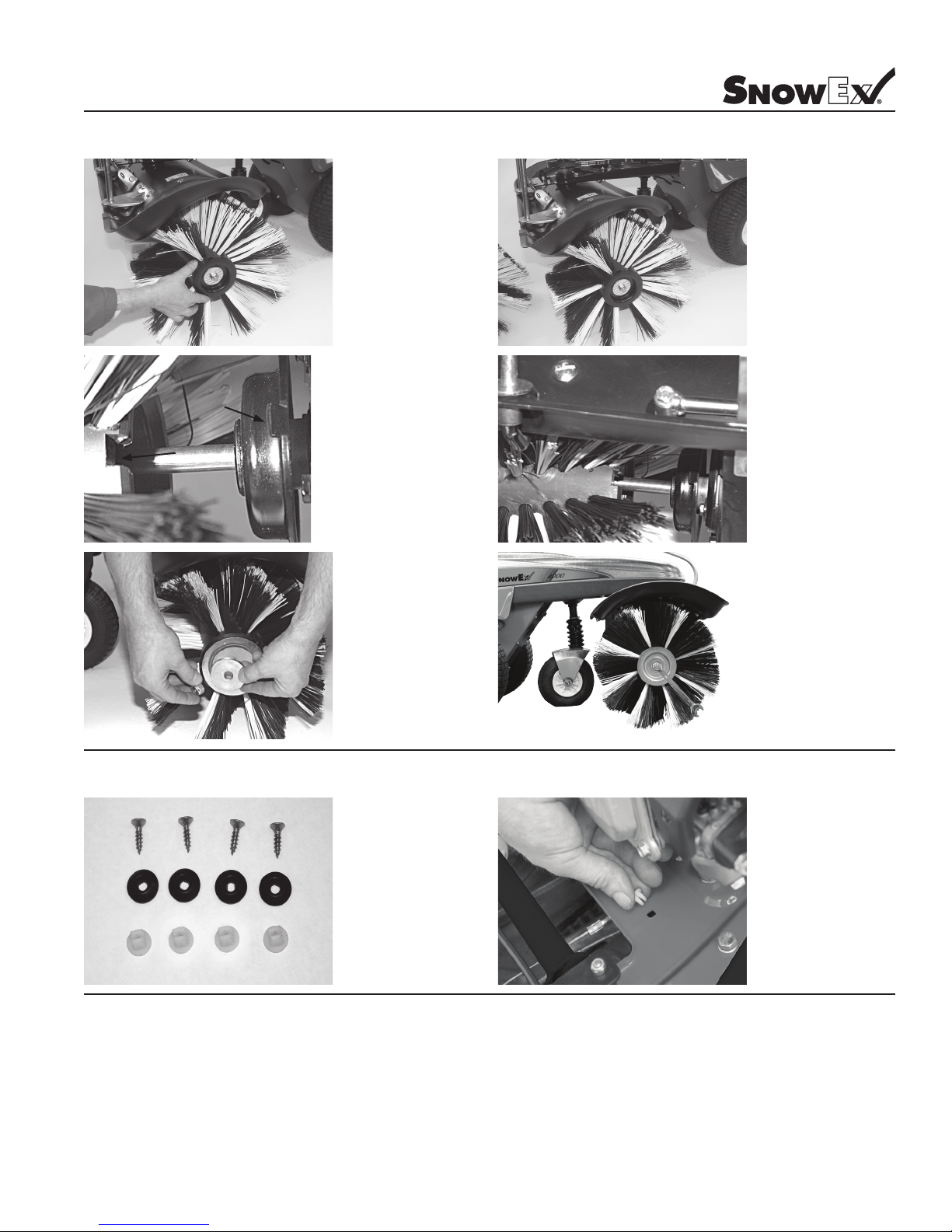

Hardware needed. Torx
Screws, Counter-Sink
Washers, Snap Nuts.
Installation of snap nut.
STEP 18 – CONTINUED
STEP 19
Install the belt cover.
TAB
SLOT

12 © TrynEx International 2013 (REV A) F51067C
Assembly Instructions
Set the brush at an
angle. Slip the cover
over the belt area and
back so the Snap Nuts
can be seen through the
holes in the cover.
IMPORTANT
Now that assembly is nished, ll the motor with oil and fuel tank with unleaded gasoline. See Maintenance Instruc-
tions in Owner’s Manual for oil-lling instructions.
STEP 22
Install the Plow Blade.
STEP 21

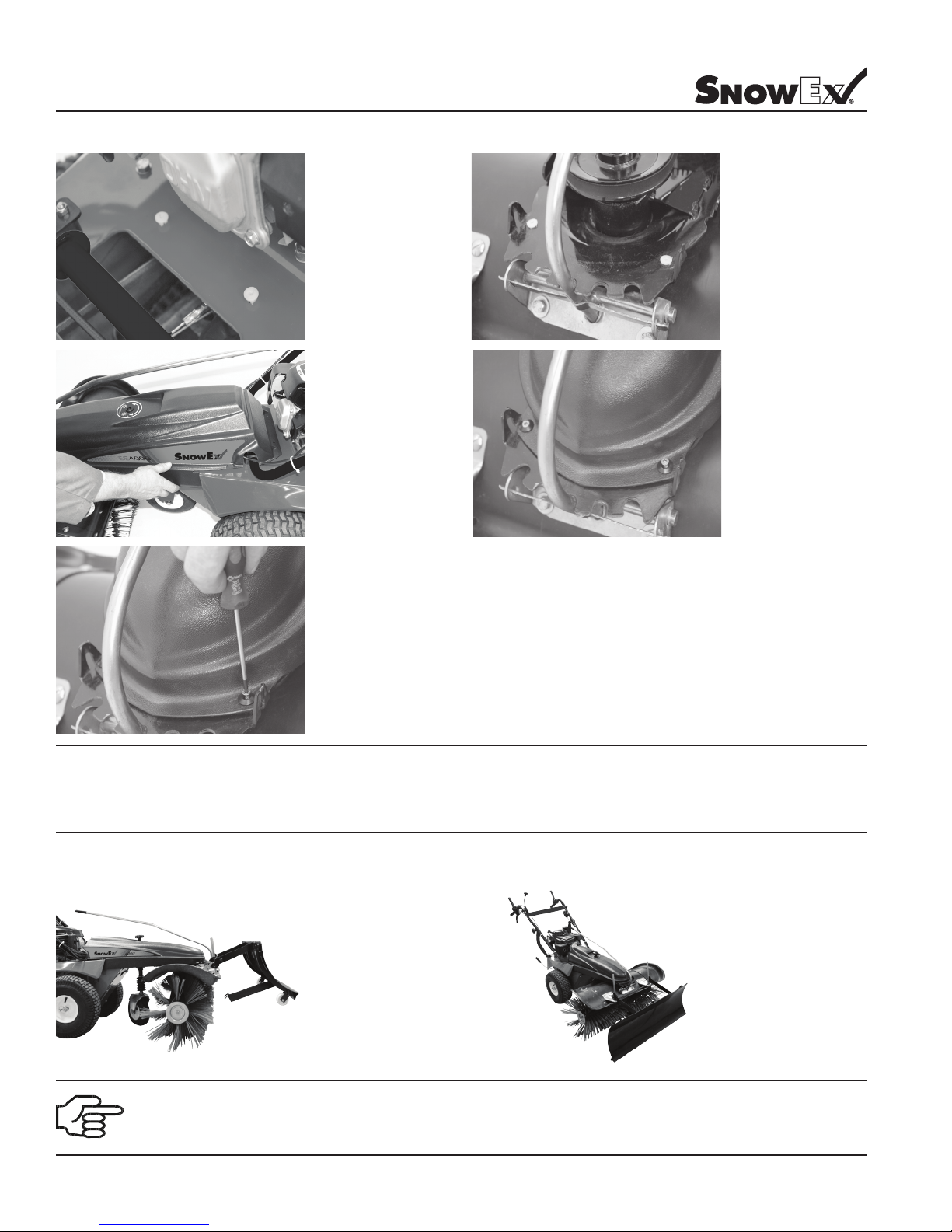

Thread the Height Adjustment Knob into the Height Adjustment Mechanism: Put a lubricant on the threads. Push the threads through the
rubber bushing. Feel around for the hole in the mechanism. Push down to ensure the threads are lined up. Make sure the knob is standing
vertical. Begin tightening. Do not force the knob to tighten. Refer to “Adjusting Brush Height” for instructions to adjust the brush height.
Location of Snap Nuts.
Put Torx Screws with
the Counter-Sink Wash-
ers through the mount-
ing holes on the cover
and thread into the snap
nuts. Tighten.
Tightening. T20.
Lower plow until the
wheels rest on the
ground.
Hold plow at an angle,
lower plow over re-
ceiver bar. The bar will
t between the tabs on
the plow.
Location of Snap Nuts.
STEP 19 CONTINUED

13© TrynEx International 2013 (REV A) F51067C
