Instruction Manual
Manual de Instrucciones
Manuel d’Instructions
PPBP30
IMPORTANT MANUAL - Do not throw away
MANUAL IMPORTANTE - No lo descarte
MANUEL IMPORTANT - A Conserver
A WARNING:
Read the operator’s manual and follow all warnings and safety
instructions. Failure to do so can result in serious injury. Always wear
eye protection.
ADVERTENCIA:
Lea el manual del operador y siga todas las advertencias e instruc-
clones de seguridad. El no hacerlo puede resultar en lesiones graves.
AVERTISSEMENT:
Lire le manuel de i'utilisaleur et bienrespecter tous les avertisse-
ments et toutes les instructions de security Tout defaut de le faire
pourrait entramer des blessures graves,
Poulan PRO Poulan PRO
1030 Stevens Creek Road 850 Matheson Blvd. West
Augusta, GA 30907 Mississauga, Ontario L5V 0B4
9096*320642

1 - GENERAL INFORMATION
1-1 .
GENERAL IDENTIFICATION
1 .
throttle trigger
13, CONTROL HANDLE
2. THROTTLE ADJUSTER
14. OPERATING TUBE
3.
ON/STOP SWITCH
15. HOSE CLAMP
4.
TOP ASSIST HANDLE
16. FLEX TUBE
5.
SPARK PLUG WIRE / SPARK PLUG
17. THROTTLE LINKAGE
6.
CHOKE LEVER
18.
MUFFLER COVER
7.
STARTER HANDLE
19. SPARK ARRESTER SCREEN
8, AIR CLEANER COVER
20. VENTED BACK PAD
9. FUEL CAP
21. INTERMEDIATE TUBE
10 .
FUEL TANK
22.
2-3/16” (56mm) NOZZLE
11.
PRIMER BULB
23. 1-9/16” (40mm) CONCENTRATOR NOZZLE
12. HARNESS
24. THROTTLE LINKAGE CLIPS
2

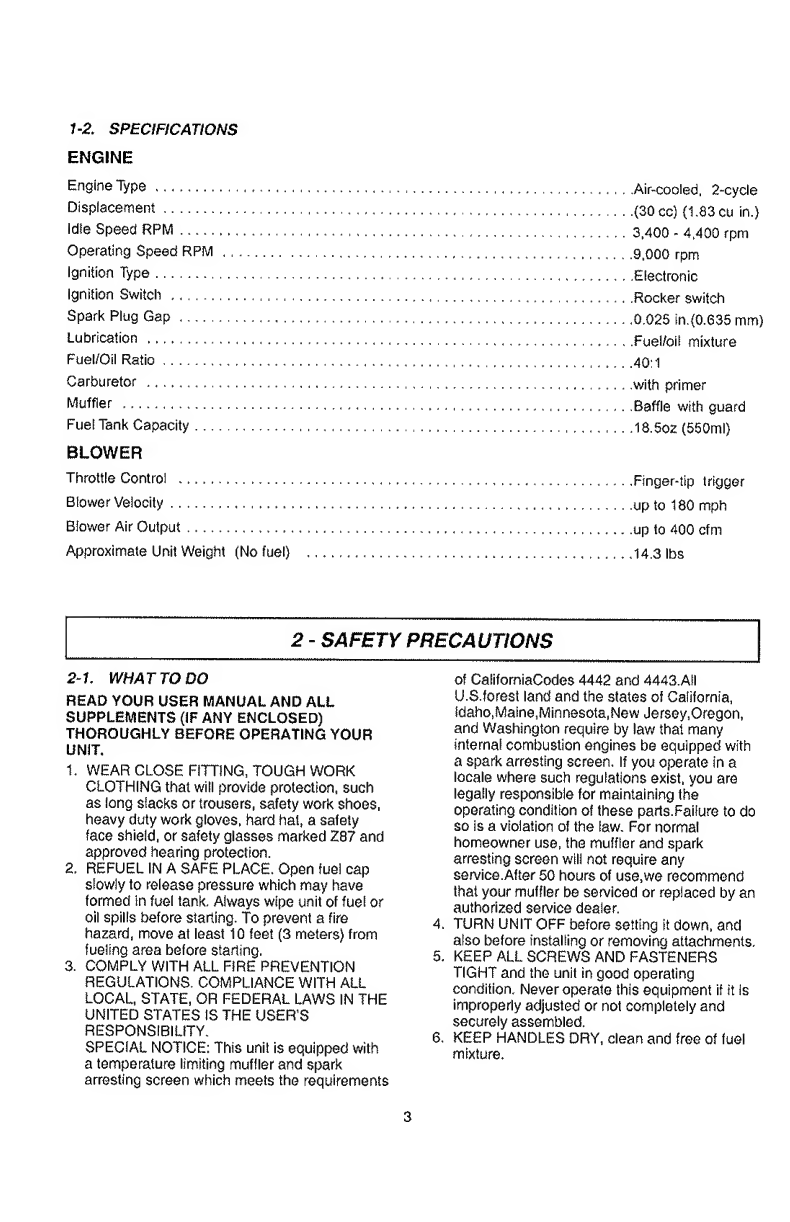

1-2 . SPECIFICATIONS
ENGINE
Engine Type .Air-cooled, 2-cycle
Displacement.(30 cc) {1.63 cu in.)
Idle Speed RPM.3 400 - 4,400 rpm
Operating Speed RPM.9 000 rpm
Ignition Type.Electronic
Ignition Switch .Rocker switch
Spark Plug Gap.0.026 in.{0.635 mm)
Lubrication .Fuel/oil mixture
Fuel/Oil Ratio.40: i
Carburetor .with primer
Muffler .Baffle with guard
Fuel Tank Capacity.i8.5oz (550ml)
BLOWER
Throttle Control .Finger-tip trigger
Blower Velocity.up to 180 mph
Blower Air Output.up to 400 cfm
Approximate Unit Weight (No fuel) .14.3 lbs
2 - SAFETY PRECAUTIONS
2-1, WHAT TO DO
READ YOUR USER MANUAL AND ALL
SUPPLEMENTS (IF ANY ENCLOSED)
THOROUGHLY BEFORE OPERATING YOUR
UNIT.
1. WEAR CLOSE FITTING, TOUGH WORK
CLOTHING that will provide protection, such
as long slacks or trousers, safety work shoes,
heavy duty work gloves, hard hat, a safety
face shield, or safety glasses marked 287 and
approved hearing protection.
2. REFUEL IN A SAFE PLACE, Open fuel cap
slowly to release pressure which may have
formed in fuel tank. Always wipe unit of fuel or
oil spills before starting. To prevent a fire
hazard, move at least 10 feet (3 meters) from
fueling area before starting.
3. COMPLY WITH ALL FIRE PREVENTION
REGULATIONS. COMPLIANCE WITH ALL
LOCAL, STATE, OR FEDERAL LAWS IN THE
UNITED STATES IS THE USER'S
RESPONSIBILITY.
SPECIAL NOTICE: This unit is equipped with
a temperature limiting muffler and spark
arresting screen which meets the requirements
of CaiiforniaCodes 4442 and 4443.AII
U.S.forest land and the states of California,
Idaho,Maine,Minnesota,New Jersey,Oregon,
and Washington require by law that many
internal combustion engines be equipped with
a spark arresting screen. If you operate in a
locale where such regulations exist, you are
legally responsible for maintaining the
operating condition of these parts.Failure to do
so is a violation of the Saw. For normal
homeowner use, the muffler and spark
arresting screen will not require any
service.After 50 hours of use,we recommend
that your muffler be serviced or replaced by an
authorized service dealer.
4. TURN UNIT OFF before setting It down, and
also before installing or removing attachments,
5. KEEP ALL SCREWS AND FASTENERS
TIGHT and the unit in good operating
condition. Never operate this equipment if it is
improperly adjusted or not completely and
securely assembled.
6. KEEP HANDLES DRY, clean and free of fuel
mixture.
3

7. STORE EQUIPMENT AWAY FROM
POSSIBLE IGNITION SOURCES, such as
gas-powered water heaters, clothes dryers, or
oil-fired furnaces, portable heaters, etc.
8. ALWAYS KEEP the engine free of debris
build-up.
9. OPERATION OF EQUIPMENT should always
be restricted to mature and properly instructed
individuals.
10. PERSONS WITH RESPIRATORY
PROBLEMS and persons operating blower in
very dusty environments, should wear a dust
particle mask at all times. Paper dust masks
are available at most paint and hardware
stores.
2-2. WHAT NOT TO DO
1. DO NOT USE ANY OTHER FUEL than that
recommened in your manual. Always follow
instructions in the Fuel and Lubrication
section of this manual. Never use gasoline
unless it is properly mixed with 2-cycle engine
lubricant. Permanent damage to engine will
result, voiding manufacturer’s warranty.
2. DO NOT SMOKE while refueling or operating
equipment.
3. DO NOT OPERATE UNIT WITHOUT A
MUFFLER and properly installed muffler
shield.
4. DO NOT TOUCH or let your hands or body
come in contact with a hot muffler or spark
plug wire.
5. DUE TO THE DANGER of exhaust fumes,
never operate blower in a confined or poorly
ventilated area.
6. NEVER POINT BLOWER in the direction of
people, animals, buildings, automobiles, or
windows, etc.
7. DO NOT operate unit without inlet cover
installed to prevent contact with impeller.
8. DO NOT set a hot engine down where
flammable material is present.
9. DO NOT OPERATE UNIT FOR
PROLONGED PERIODS. Rest periodically.
10. DO NOT OPERATE UNIT WHILE UNDER
THE INFLUENCE OF ALCOHOL OR
DRUGS.
11 . CAUTION: DO NOT ADD, REMOVE OR
ALTER ANY COMPONENTS OF THIS
PRODUCT. Doing so could cause personal
injury and/or damage the unit voiding the
manufacturer’s warranty.
12. DO NOT operate your unit near or around
flammable liquids or gases whether in or out
of doors. An explosion and/or fire may result.
13. DO NOT WEAR loose clothing, scarfs, neck
chains, unconfined long hair, and the like.
Doing so could result in injury associated with
objects being drawn into the rotating parts.
14. DO NOT refuel a running engine or an engine
that is hot.
2-3. IDENTIFICA TtON OF SAFETY S YMBOLS
^WARNING:
This unit can be dangerous! Careless or improper use can cause serious injury.
Read your operator’s manual carefully until you completely understand and can follow all
warnings and safety rules before operating the unit. Failure to do so can result in serious injury.
Save operator’s manual.
The blower can throw objects violently. You can be blinded or injured.
Always wear hearing protection and safety glasses marked Z87, Always
wear heavy, long pants, long sleeves, boots and gloves.
Hazard zone for thrown objects. Keep children, bystanders, and animals away from
work area a minimum of 30 feet (10 meters) when starting or operating unit. Do not
poinl blower nozzle in the direction of people or pets.
4

Secure hair above shoulder length. Do not wear jewelry, loose clothing,
or clothing with loosly hanging straps, ties, tassels, etc. They can be
caught in moving parts.
Always stop unit and disconnect spark plug before cleaning or servicing.
A WARNING:
Fire hazard. Never mix, pour t or store gasoline or use the unit near a flame or sparks
(including smoking, open flames, or work that can cause sparks).
AWARNING:
The muffler is very hot during and after use.
Do not touch the muffler, muffler guard, or surrounding surfaces, or allow combustible
material such as dry grass or fuel to do so.
The engine continues to rotate after the unit is switched off.
3 - ASSEMBL Y INSTRUCTIONS
3-1. ATTACH FLEX TUBE
Put the hose clamp(C) on the flex tube(B) before
connecting the flex tube(B) and the fan’s outlet
tube(A) together.
Connect the flex tube (B) to the fan's outlet tube
(A) (Fig. 3-1 A) with a hose clamp (C) (Fig. 3-1B)
and tighten securely (Fig. 3-1B).
3-2. ATTACH OPERATING TUBE
NOTE: keep the throttle cable as straight as
possible when connecting the blower tubes.
1. Place the unit on flat surface during assembly.
Insure screw mechanism of clamp is
positioned away from operator.
2. Put the hose clamp (C) on the flex tube(8) and
the operating tube before connecting them
together
3. Turn the throttle linkage mark (D) so it aligns
with the throttle handle (F) (Fig.3-2A). Insert
the operating tube (E) into the flex tube (B)
(Fig. 3-2A) and then tighten securely with a
hose clamp (G) (Fig. 3-2B).

4. Attach throttle linkage clips to both ends of the
flex tube to secure the throttle cable.
(Fig. 3-2D)
3-2A
3-2C
3-2D
3-3. ATTACH INTERMEDIATE TUBE AND
CONCENTRATOR NOZZLE
Connect the intermediate tube (H) and
concentrator nozzle (I) or 56mm no 2 zie (J) {you
can only use one nozzle at a time). Push the
tubes together and turn clockwise until they lock
together (Fig. 3-3A). Use concentrator nozzle
when you need more airflow in tight places; flower
beds, under decks, etc.
J
3-3A
3-4. ADJUST BACK PACK HARNESS AND
CONTROL HANDLE
1. Place blower on your back by slipping arms
through the shoulder straps as if you were
putting on a jacket (Figure 3-4A).
2. Adjust backpack harness and control handle.
3. Once adjustments have been made to the
straps for user comfort, remove the blower
from your back and place on level ground in
an upright position.
3-4A
6

4 - FUEL AND LUBRICATION
4-1. FUELING ENGINE
WARNING: Remove fuel cap slowly when
refueling.
This engine is certified to operate on unleaded
gasoline. Before operation, gasoline must be
mixed with a good quality synthetic 2-cycle
air-cooled engine oil designed to be mixed at a
ratio of 40:1. PoulanAA/EED EATER brand
synthetic oil is recommended. Mix gasoline and oil
at a ratio of 40:1. A 40:1 ratio is obtained by
mixing 3.2 fluid ounces (95 mi) of oil with 1 gallon
(4 liters) of unleaded gasoline. DO NOT USE
automotive oil or marine oil. These oils will cause
engine damage. When mixing fuel, follow
instructions printed on container. Once oi! is
added to gasoline, shake container momentarily
to assure that the fuel is thoroughly mixed. Always
read and follow the safety rules relating to fuel
before fueling your unit.
CAUTION: Never use straight gasoline in your
unit. This will cause permanent engine damage
and void the warranty.
4-2. FUEL REQUIREMENTS
This engine requires the use of minimum 87
octane [R+M]/2 clean gasoline.
IMPORTANT
Use of alcohol blended fuels (called gasohol or
using ethanol or methanol) can cause major
engine performance and durability problems.
WARNING: Alternative fuels (not gasoline) such
as E-15 (15% alcohol), E-20 (20% alcohol), E-85
(85% alcohol) are NOT classified as gasoline and
are NOT approved for use in 2-stroke gasoline
engines. Use of alternative fuels will cause
problems such as: improper clutch engagements,
overheating, vapor lock, power loss, lubrication
deficiency, deterioration of fuel lines, gaskets and
internal carburetor components, etc. Alternative
fuels cause high moisture absorption into the
fuel/oil mixture leading to oil and fuel separation.
4-3. FUEL AND LUBRICATION SYMBOLS
FUEL MIXING TABLE
GASOLINE
40:1 Ratio
Lubricant
1 U.S. Gal.
3.2 oz.
95ml (cc)
5 Liters
4.3 oz.
125ml (cc)
1 Imp. Gal.
4.3 oz.
125mi (cc)
Mixing
40 Parts Gasoline to
Procedure
1 Part Lubricant
1ml=1cc
5 - STARTING/STOPPING INSTRUCTIONS
5-1.1. STARTING A COLD ENGINE
NOTE: This product is designed to be started at
idle.
1. Pump primer bulblO X by pressing up on the
buib(D). (Fig. 5-1B)
2. Your unit is designed with a 3-position choke:
FULL CHOKE "H", HALF CHOKE H N” and
RUN “HP.
Move choke lever to FULL CHOKE 11 H ”
position. (Fig. 5-1 A)
NOTE: Easy Start power assist starting
significantly reduces the pulling effort. Pull the
starter cord slowly toabout 3 1/2 feet, the power
assist will turn over the enginewith little resistence
from the engine.
3. Squeeze throttle trigger and turn throttle
adjuster clockwise until it stops.
Throttle adjuster position:
(1) Idling
(2) Full Throttle
Fig. 5-1C)
4. With the unit on the ground,hold the top assist
handle and step on the bottom of the frame
with your foot. (Fig.5-1D)
7

Pull starter rope slowly until engine sounds as
if it is trying to start, but do not pull rope more
than 6 times.
5. Move choke lever to HALF CHOKE *' M ”
position.(Fig.5-1E)
6. Pull starter rope slowly until engine starts.
7. Allow engine to run 10 seconds; then, move
the choke lever to RUN “Hi”position.(Fig.5~1F)
8. Press trigger to run.
5-1.2. STARTING A WARM ENGINE
1. Move choke lever to HALF CHOKE “’M"
position.(Fig.5-1E)
2. Pull starter rope siowly until engine starts.
3. Allow engine to run 10 seconds; then, move
the choke lever to RUN “H l’'position.(Fig.5-1F)
NOTE: if engine has not started, pull starter rope
5 more pulls, if engine still does not run, it is
probably flooded. Move the choke lover to the
RUN "Ml" position. Grip starter handle and pull
starter rope slowly rope to clear the engine of
excess fuel If engine fails to srart after repeated
attempts, refer to troubleshooting section.
5-1B
Throttle
5-1C
5-1F
IMPORTANT IDLING INFORMATION
in some cases due to operating conditions
(altitude, temperature etc.) your blower may need
a slight adjustment to the idle speed.
If unit does not Idle after restarting 2 times after
warm up, follow these steps to adjust idle.
1. Locate the idle adjustment screw (E) on the
carburetor (Fig. 5-1G).
2, Using a Phillips or slotted screwdriver - turn
screw 1/4 to 1/2 turn clockwise (to the right).
Unit should then idle properly.
8

5-2. STOPPING THE ENGINE
Emergency Stopping Procedure. When it is
necessary to stop blower engine immediately,
press and hold the ON/STOP switch (A) until the
engine stops completely (Figure 5-2).
Normal Stopping Method. For normal stopping,
release trigger and allow engine to return to idle
speed. Then press and hold the ON/STOP switch
(A) until the engine stops completely. (Figure 5-2)
5-2
6 - OPERATING INSTRUCTIONS
6-1. BLOWER OPERATIONS
AWARNING Because of flying debris,
always wear a safety face shield or safety glasses
marked Z87 when operating blower.
AWARNING Before using your blower,
review Safety Precautions in your User Manual,
and all regulations for operation of the unit. These
precautions and regulations are for your
protection.
AWARNING DO NOT operate the
blower with other people or animals in the
immediate vicinity. Allow a minimum of 30 feet
(10 meters) between operator and other people or
animals.
1. Use the bfower for trees, shrubs, flower beds,
and hard-to-clean areas.
2. Use the unit around buildings and for other
normal cleaning procedures.
3. Use the blower around walls, overhangs,
fences, and screens.
4. We recommend that a face mask be worn
when operating bfower in dusty areas.
5. Stand away from the debris, at a distance that
will easily allow you to control the direction of
blown debris. Never blow debris in direction of
bystanders.
6. To control velocity of airstream, blower can be
operated at any speed between idle and full
throttle. Experience with the unit will help you
determine the amount of airflow necessary for
each application.
7. Operate power equipment only at reasonable
hours-not early in the morning or late at night
when people might be disturbed. Comply with
times listed in local ordinances.
8. To reduce sound levels, limit the number of
pieces of equipment used at any one time.
9. Operate power blowers at the lowest possible
throttle speed to do the job.
10. Check your equipment before operation,
especially the muffler, air intakes and air
filters.
11. Use rakes and brooms to loosen debris before
blowing. In dusty conditions, slightly dampen
surfaces when water is available.
12. Conserve water by using power blowers
instead of hoses for many lawn and garden
applications, including areas such as gutters,
screens, patios, grills, porches and gardens.
13. Watch out for children, pets, open windows or
freshly washed cars, and blow debris safely
away.
14. Use intermediate tube plus nozzle of your
choice so the airstream can work close to the
ground.
15. After using blowers and other equipment,
CLEAN UP!
Dispose of debris in trash receptacles.
6-2. OPERATION INSTRUCTIONS
1. Follow the instructions “STARTING A COLD
ENGINE”.
2. Once unit is running, place unit on your back
by slipping arms through the shoulder straps
as if your were putting on a jacket (Fig. 6-2A).
3. When preparing to clear an area of debris,
always position yourself so that you can control
the direction debris will be blown .
4. The control handle and the flexibility of the
blower tube assembly will allow you to clear
the most hard-to-reach areas .
5. The hand grip, throttle trigger, throttle adjuster
and ignition on/stop switch are all mounted on
a swivel handle that offers a wide range of
operating positions and comfort (Fig. 6-2C).
6-2A
9

6-2B
7 ~ MAINTENANCE INSTRUCTIONS
7-1. MAINTENANCE SCHEDULE
Perform maintenance procedures at the frequency
stated in the table. These procedures should also
be a part of any seasonal tune-up.
NOTE: Maintenance, replacement, or repair of the
emission control devices and system may only be
performed by an authorized service dealer.
A good preventive maintenance program of regular inspection and care will increase life and improve
performance of your blower. This maintenance checklist is a guide for such a program.
Cleaning, adjustment, and part replacement may be required, under certain conditions, at more frequent
intervals than those indicated,
CUSTOMER RESPONSIBILITY
WARNING
To prevent serious injury, never perform
maintenance or repairs with unit running. Always
service and repair a coo! unit. Disconnect the
spark plug wire to ensure that the unit cannot
start.
MAINTENANCE CHECKLIST
EACH USE
HOURS OF
OPERATION
ITEM
BEFORE EACH USE
10
20
SCREW/NUTS/BOLTS
INSPECT/TIGHTEN
✓
AIR FILTER
CLEAN OR REPLACE
i
FUEL FILTER
REPLACE
i
SPARK PLUG
CLEAN / ADJUST / REPLACE
wa
SPARK ARRESTER SCREEN
INSPECT
wm
REPLACE
wa
FUEL HOSES
INSPECT
✓
Hi
|
REPLACE AS REQUIRED
* Recommended for Maintenance by an Authorized Service Center Technician.
10

7-2. AIR FILTER
CAUTION
NEVER operate blower without the air filter. The
air filter must be kept dean, (f it becomes
damaged, install a new filter.
TO CLEAN AIR FILTER:
1. Loosen knob (A) holding air filter cover in
place, remove cover (B) and lift filter (C) from
air box (Fig. 7-2A & Fig. 7-2B),
2. Wash filter in soap and water. DO NOT USE
GASOLINE!
3. Air dry filter.
4. Reinstall filter.
NOTE: Replace filter if frayed, torn, damaged or
unable to be cleaned.
7-28
7-3. FUEL CAP/FUEL FILTER
CAUTION
Remove fuel from unit and store in approved
container before starting this procedure. Open
fuel cap slowly to release any pressure which
may have formed in fuel tank.
FUEL FILTER:
1. Completely remove fuel cap (A) from fuel tank
(B) to allow removal of the fuel filter (D) from
tank. Use a piece of wire (C) with a hook
formed at the end to pull filter out of tank. (Fig.
7-3A&7-3B).
2. Pull filter (D) off with a twisting motion. (Fig.
7-3C)
3. Replace fuel filter (D). (Fig, 7-3C)
NOTE: Never operate the blower without the fuel
filter Internal engine damage could result!
7-3C
7-4. IDLE ADJUSTMENT
The carburetor was pre-set at the factory for
optimum performance. If further adjustments are
necessary take your blower to an authorized
service dealer
7-5. SPARKPLUG
1. To remove spark plug (B) (Fig. 7-5B) for
cleaning or replacement: make sure engine is
off, spark plug is cool, then grasp spark plug
boot firmly and remove from spark plug.
Remove spark plug with correct spark plug
tool. Inspect, clean or replace as needed.
2. Spark plug gap = .025" (.635mm) (Fig. 7-5A).
3. Torque to 105 to 130 inch pounds (12 to 15
N*m). Connect spark plug boot.
4. If needed replace spark plug with Champion
R27C or equivalent.
11

7-5 B
7-6. SPARK ARRESTOR SCREEN / COLLAR
ASSEMBLY
1. To replace spark arrestor screen/collar
assembly (A) (Fig, 7-5B), use a needle nose
pliers and pinch an edge of the collar. Pull out
the whole spark arrestor screen assembly.
2. Use the needle nose pliers to push in a new
spark arrestor screen assembly by opening
the pliers slightly to press the inner surface of
the assembly securely into place.
7-7. STORAGE
Failure to follow these steps may cause varnish to
form in the carburetor which can cause difficult
starting or permanent damage following storage.
1. Perform all the general maintenance
recommended in the Maintenance Section of
your User Manual.
2. Clean exterior of engine and blower tubes.
3. Drain fuel from the fuel tank by running the
unit dry or by removing the fuel cap and
tipping the motor housing/fuel tank over and
draining oil/fuel mixture into a container with
the same 2-cycle fuel mixture.
4. After fuel is drained, start engine.
5. Run engine at idle until unit stops. This will
purge the carburetor of fuel.
6. Allow engine to cool (approx. 5 minutes).
7. Using a spark plug wrench, remove the spark
plug.
8. Pour 1 teaspoon of clean 2-cycle oil into the
combustion chamber. Puli starter rope slowly
several times to coat internal components.
Reinstall spark plug.
9. Store unit in a cool, dry place away from any
source of ignition such as an oil burner, water
heater, etc,
7-8. REMOVING A UNIT FROM STORAGE
1. Remove spark plug,
2. Pull starter rope briskly to clear excess oil from
combustion chamber.
3. Clean and gap spark plug or install a new
spark plug with proper gap.
4. Prepare unit for operation.
5. Fill fuel tank with proper fuel / oil mixture. See
Fuel and Lubrication Section.
8 - TROUBLESHOOTING THE ENGINE
PROBLEM
PROBABLE CAUSE
CORRECTIVE ACTION
Unit won't start or starts
but will not run.
Incorrect starting procedures.
Follow instructions in the User
Manual,
Incorrect carburetor mixture
adjustment setting.
Have carburetor adjusted by an
Authorized Service Center.
Fouled spark plug
Clean / gap or replace plug.
Fuel filter plugged.
Replace fuel filter.
Unit starts, but engine has
low power.
Incorrect lever position on choke.
Move to RUN position.
Dirty spark arrester screen.
Replace spark arrester screen.
Dirty air filter.
Remove , clean and reinstall filter.
Incorrect carburetor mixture
adjustment setting.
Have carburetor adjusted by an
Authorized Service Center.
Engine hesitates.
Incorrect carburetor mixture
adjustment setting.
Have carburetor adjusted by an
Authorized Service Center,
No power under load.
Runs erratically.
Incorrectly gapped spark plug.
Clean / gap or replace plug.
Smokes excessively.
Incorrect carburetor mixture
adjustment setting.
Have carburetor adjusted by an
Authorized Service Center.
incorrect fuel mixture. Use properly mixed fuel
(40:1 mixture).
12

9 - LIMITED WARRANTY
Poglan PRO, a division of Husqvarna
Consumer Outdoor Products N.A., Inc.,
warrants to the original consumer purchaser
that each new Poulan PRO brand gasoline tool
or attachment is free from defects in material
and workmanship and agrees to repair or
replace under this warranty any defective
gasoline product or attachment as follows from
the original date of purchase.
2 YEARS - Parts and Labor, when used for
household purposes.
90 DAYS - Parts and Labor, when used for
commercial, professional, or income producing
purposes.
30 DAYS - Parts and Labor, if used for rental
purposes.
This warranty is not transferable and does not
cover damage or liability caused by improper
handling, improper maintenance or alteration, or
the use of accessories and/or attachments not
specifically recommended by Poulan PRO for
this too!. This warranty does not cover parts that
will wear and require replacement with
reasonable use during the warranty period. This
warranty does not cover pre-delivery setup or
normal adjustments explained in the instruction
manual. This warranty does not cover
transportation costs. In the event you have a
claimunder thiswarranty, you must return the
product to an authorized service dealer.
Should you have any unanswered questions
concerning this warranty, please contact:
Poulan PRO, a division of Husqvarna
Consumer Outdoor Products N.A., Inc.
1030 Stevens Creek Road
Augusta, GA 30907
1 -800-554-6723
In Canada, contact:
Poulan PRO
850 Matheson Blvd. West
Mississauga.Ontario L5V 0B4
Giving the model number, serial number and
date of purchase of your product and the name
and address of the authorized dealer from whom
it was purchased.
THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY HAVE
OTHER RIGHTS WHICH VARY FROM STATE
TO STATE.
NO CLAIMS FOR CONSEQUENTIAL OR
OTHER DAMAGES WILL BE ALLOWED, AND
THERE ARE NO OTHER EXPRESS
WARRANTIES EXCEPT THOSE EXPRESSLY
STIPULATED HEREIN.
SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS OR THE EXCLUSION OR
LIMITATIONS OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATIONS OR EXCLUSION MAY
NOT APPLY TO YOU.
This is a limited warranty within the meaning of
that termas defined in the Magnuson-Moss Act
of 1975,
The policy of Poulan PRO is to continuously
improve its products. Therefore, Poulan PRO
reserves the right to change, modify, or
discontinue models, designs, specifications, and
accessories of all products at any time without
notice or obligation to any purchaser.
13

U.S. EPA/CALIFORNIA/ENVIRONMENT CANADA
EMISSIONS CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS: The U.S. Environmental Protection Agency, California
Air Resources Board, Environment Canada and Poulan PRO are pleased to explain the emissions control
system warranty on your year 2009 and later small off-road engine. In California, all small off-road engines
must be designed, built, and equipped to meet the State's stringent anti-smog standards. Poulan PRO must
warrant the emission control system on your small off-road engine for the periods of time listed below
provided there has been no abuse, neglect, or improper maintenance of your small off-road engine. Your
emission control system includes parts such as the carburetor, the ignition system and the fuel tank. Where
a warrantable condition exists, Poulan PRO will repair your smalt off-road engine at no cost to you. Expenses
covered under warranty include diagnosis, parts and labor.
MANUFACTURER'S WARRANTY COVERAGE: If any emissions related part on your engine (as listed
under Emissions Control Warranty Parts List) is defective or a defect in the materials or workmanship of the
engine causes the failure of such an emission related pari, the part will be repaired or replaced by Poulan
PRO. . U1 ,
OWNER'S WARRANTY RESPONSIBILITIES: As the small off-road engine owner, you are responsible for
the performance of the required maintenance listed in your instruction manual. Poulan PRO recommends
that you retain all receipts covering maintenance on your small off-road engine, but Poulan PRO cannot
deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled
maintenance. As the small off-road engine owner, you should be aware that Poulan PRO may deny you
warranty coverage if your small off-road engine or a part of it has failed due to abuse, neglect, improper
maintenance, unapproved modifications, or the use of parts not made or approved by the original equipment
manufacturer. You are responsible for presenting your small off-road engine to a Poulan PRO authorized
repair center as soon as a problem exists. Warranty repairs should be completed in a reasonable amount of
time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilities,
you should contact your nearest authorized service center, call Poulan PRO at 1-800-5S4-67_23 ( or send
e-mail correspondence to [email protected]. WARRANTY COMMENCEMENT
DATE: The warranty period begins on the date the small off-road engine is purchased.
LENGTH OF COVERAGE: This warranty shall be for a period of two years from the initial date of purchase,
WHAT IS COVERED: REPAIR OR REPLACEMENT OF PARTS. Repair or replacement of any warranted
part will be performed at no charge to the owner at an approved Poulan PRO servicing center. If you have
any questions regarding your warranty rights and responsibilities, you should contact your nearest
authorized service center, call Poulan PRO at t-800-554-6723, or send e-mail correspondence to
emission.warranty @HCOP-emission.com.
WARRANTY PERIOD: Any warranted part which is not scheduled tor replacement as required maintenance,
or which is scheduled only for regular inspection to the effect of "repair or replace as necessary" shail be
warranted for 2 years. Any warranted part which is scheduled for replacement as required maintenance shall
be warranted for the period of time up to the first scheduled replacement point for that part.
DIAGNOSIS: The owner shall not be charged for diagnostic labor which leads to the determination that a
warranted part is defective if the diagnostic work is performed at an approved Poulan PRO servicing center.
CONSEQUENTIAL DAMAGES: Poulan PRO may be liable for damages to other engine components
caused by the failure of a warranted part still under warranty, WHAT IS NOT COVERED: All failures caused
by abuse, neglect, or improper maintenance are not covered.
ADD-ON OR MODIFIED PARTS: The use of add-on or modified parts can be grounds for disallowing a
warranty claim. Poulan PRO is not liable to cover failures of warranted parts caused by the use of add-on or
modified parts. . , , .......
HOW TO FILE A CLAIM: If you have any questions regarding your warranty rights and responsibilities, you
should contact your nearest authorized service center, call Poulan PRO at 1-800-554-6723, or send e-mail
correspondence to [email protected].
WHERE TO GET WARRANTY SERVICE: Warranty services or repairs shall be provided at all Poulan PRO
service centers. Call 1-800-554-6723 or send e-mail correspondence to emission.warranty
@HCOP-emission.com. A r, ,
MAINTENANCE, REPLACEMENT AND REPAIR OF EMISSION RELATED PARTS: Any Poulan PRO
approved replacement part used in the performance of any warranty maintenance or repair on emission
related parts will be provided without charge to the owner if the part is under warranty.
EMISSION CONTROL WARRANTY PARTS LIST: Carburetor, air filter (covered up to maintenance
schedule), ignition system: spark plug (covered up to maintenance schedule), ignition module, muffler
including catalyst (if equipped), fuel tank.
MAINTENANCE STATEMENT: The owner is responsible for the performance of all required maintenance
as defined in the instruction manual.
14

The information on the product label indicates which standard your engine is certified.
Example: (Year) EPA and/or CALIFORNIA.
EMISSION CO
EMISSI
NTROL INFORMATION THIS ENGINE MEETS EXH. AND E YAP, 1
ONS REGULATIONS FOR SMALL OFF ROAO ENGINES
FAMlLYiOlSP
SERIAL#
MODEL#
EMISSION
POULAN PRO 2005 US EPA AND CALIFORNIA
8 PWES.0J04BF / 30CC; EM
CSXXXXXXXXXX
MOD:BUO 711871
COMPLIANCE PERIOD 60 HOURS
This engine is certified to be emissions compliant for the following use:
SB Moderate (50 hours)
□ Intermediate {125 hours)
□ Extended (300 hours)
15
