SOCO CPX Installation instructions

Please do not use bike before you read this manual carefully and know function of it.
Please keep this manual carefully.
Follow us
Scan QR code to
download e-user manual
Vmoto Soco
www.vmotosoco.com

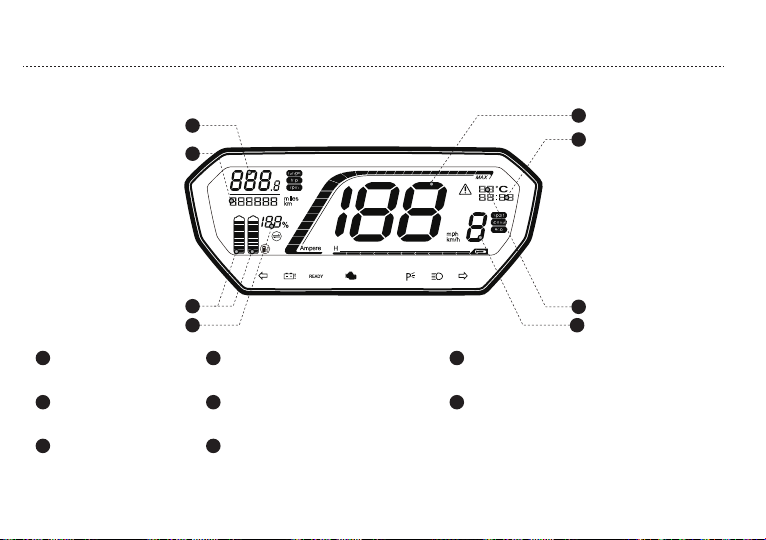

1
2
3
4
5
1
To ensure the safety of you and others, please make sure to observe the following matters:
1
2
3
SAFETY INSTRUCTION
USER INSTRUCTION
To ensure your safety,please read this manual carefully before riding and make sure you are always
following the requirements below:
Fully understand the information in this manual, include but not limited to the relevant instruction, precautions and warnings.
Fully understand the operation and contingency measures of CPX smart electric bike.
Be Fully aware of warning labels of CPX smart electric bike.
Don’t disassemble vehicle or any parts, if need replacement, please contact local dealer.
Please keep this manual carefully.
All parameters of this vehicle have been permanently set according to the national standard before leaving factory.The
company is not responsible, if the original electrical or circuit has changed and caused excess, such as increase the
speed.
Don’t lend your vehicle to someone who can’t operate it in order to prevent any hurts.
Please comply with local laws and regulations to drive on the road.
Do not ride after you take medications which may affect your riding ability, drink alcohol, or when you are unwell.

Observe traffic regulations and traffic signs, according to the provisions of laws and regulations to carry man and cargo.
Confirm the surrounding road conditions and bike condition any time,so as to actively avoid danger.
In rainy and snowy weather, braking distance will be extended, please slow down, Avoid travelling in bad weather such as
storms and typhoons.
Wear safety equipment, such as helmet, and appropriate protective clothing if necessary, such as gloves and mask.
To ensure the safety of you and others, please avoid using the high beam under good lighting conditions. Continuous use of
the high beam will cause visual obstacles to the opposite vehicles and pedestrians and affect the safe driving
Please turn off the power and remove the key immediately after use. Do not allow children to play, so as to avoid loss to your
family and property.
Perform a basic check each time before riding, and regularly go to SOCO Service Center for maintenance.
Check before riding. If there is any abnormality, please timely carry out maintenance or seek professional maintenance.
4
5
6
7
8
9
10
a. Check the status of power circuit, lighting circuit, etc.
b. Check whether the front and rear brakes work normally.
c. Check fixing of handlebars、 front and rear wheels
d. Check tire pressure.
2
USER INSTRUCTION

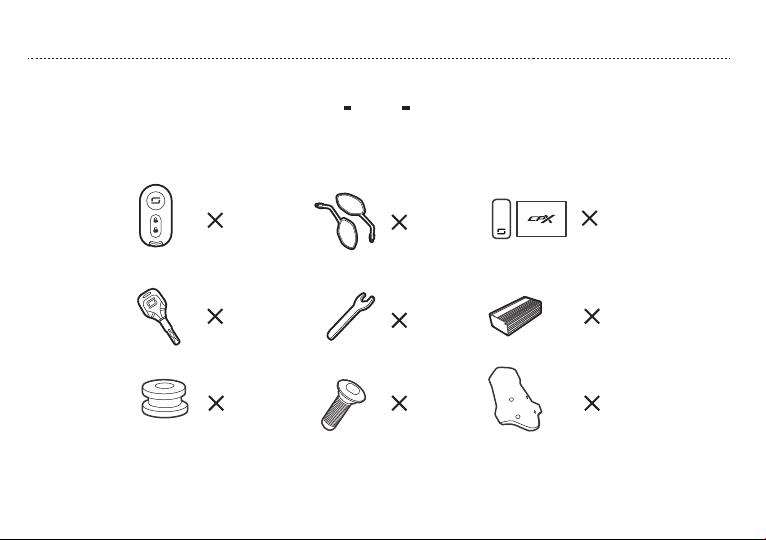

Check accessories items
2 1 1
1 12
Intelligent remote control
key Rear view mirror wrench
Certificate,Operating manual
Front windshield
Charger
4 4 1
QUICK START
01
3
Hexagon boltI-shaped rubber
Rear view mirrors

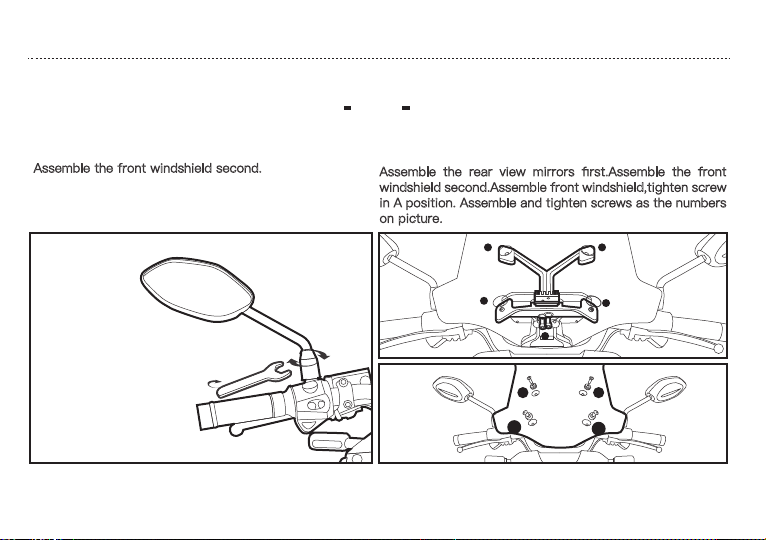

Assemble parts
02
12
34
12
34
A
4
QUICK START

Install battery pack
03

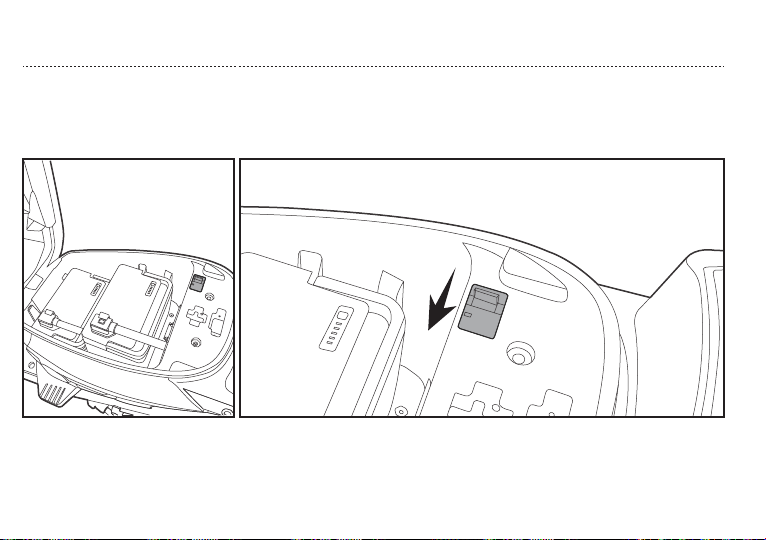

1Put in the battery pack. 2 3 4
QUICK START
Open battery
compartment under the
seat and remove the
segregation board.
Plug-in the main
connector,switch on
circuit protector.
Put the segregation
board back and put
down the seat.
5

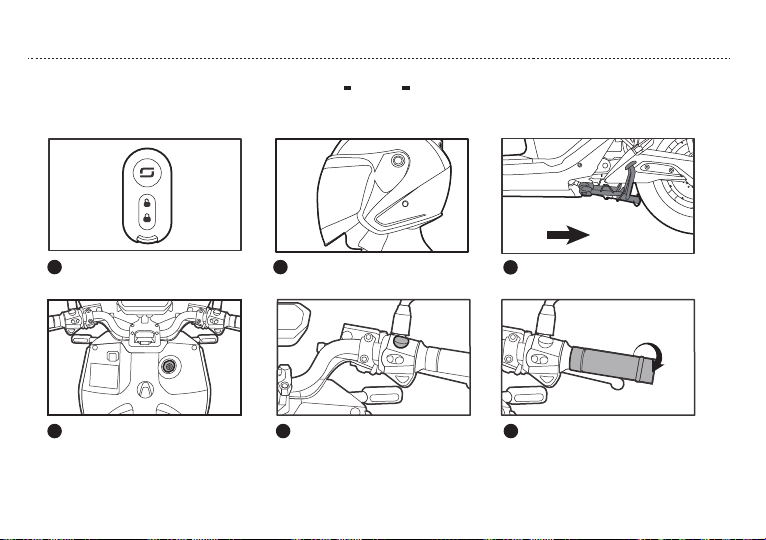

04
Press ‘UNLOCK’ on remote
control.
IGNITE CPX
1Wear helmet.
2 3
4 5 6
Ride on CPX,kick side
stand and main stand out.
Press ‘Power’on remote
control or turn the key to
ignition switch “On”
position, power on
Press ‘Parking’ button,
unparking CPX, parking
symbol off, READY light
on.
Turn accelerator gently,
CPX run.
QUICK START
6

Download APP
CPX smart electric bike has GPRS function,can connect with your smart phone.
By APP,you can use smart phone to manage and query your CPX.
Only IOS and Android are currently available now,please confirm your smart phone operating system in advance.
SUPERSOCO
05
QUICK START
IOS system:APP only supports Apple ISO 9.0 system and above.
Android system: APP only supports Android 4.4 system and above.
Download and install the SUPER SOCO APP by QR code in this manual or key box.
7

DESCRIPTION OF COMPONENTS AND PARTS
OPERATION GUIDE
RIDING GUIDE
BATTERY USE INSTRUCTION
APP INSTRUCTION
MAINTENANCE
FAQ & TROUBLE SHOOTING
CUSTOMER SERVICE
08
10
16
19
20
21
22
25
CONTENTS
8

DESCRIPTION OF COMPONENTS AND PARTS
SIDE VIEW
a. Schematic diagram of components and parts
Headlamp
Brake system
Aluminum rim
Rear footrest
FOC vector controller
Rear swing arm
Rear license bracket
Side stand
OBD checking
Main stand
9

DESCRIPTION OF COMPONENTS AND PARTS
a.Schematic diagram of components and parts
TOP VIEW
Rear mirror
Front brake lever
Rear brake lever
Left-handlebar switch assy
Accelerator
Right-handlebar switch assy
Brake cylinder
Winker
Speedometer assy
Deputy seat
Main seat
Windshield
10

DESCRIPTION OF COMPONENTS AND PARTS

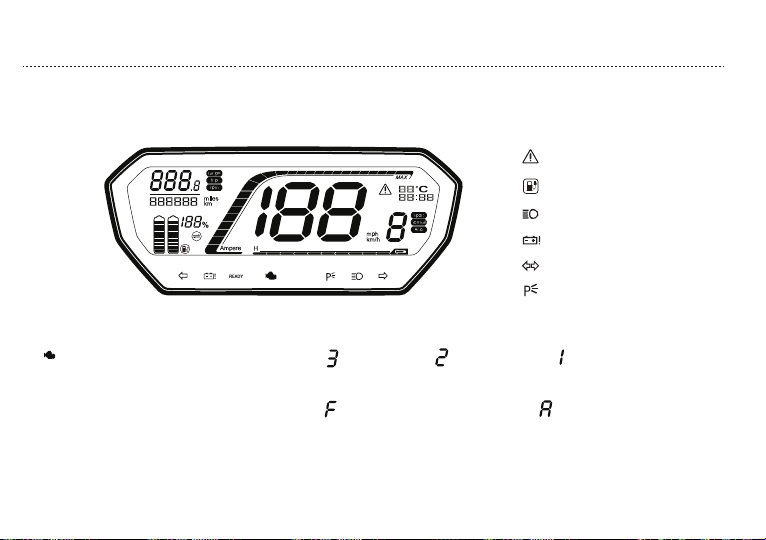

b. DESCRIPTION OF COMPONENTS AND PARTS
1
2
3
4
1
Speed
Display current speed Display the total mileage
Time
Display current time
Endurance Mileage
Total mileage 7
Display current gear/Forward,reverse status.
Gear display/Forward,reverse status display
8
Display current controller temperature
Controller temperature
5
6
Display current A、B battery power
Power display bar
Battery percentage display
Display current A、B battery power percentage
(When work with two battery, battery percentage display the higher battery)
2
8
3
4
5
6 7
Display current
endurance mileage
11

DESCRIPTION OF COMPONENTS AND PARTS
b. DESCRIPTION OF COMPONENTS AND PARTS
SPORT Mode NORMAL Mode ECO Mode
High beam indicator
Winker indicator light
Battery error/Charging now
Parking Light
CPX in moving forward position
OBD checking error codes
Start lighting
READY
See page 16 FAQ & TROUBLE SHOOTING
CPX is ready to ride when ready in display CPX in reverse position
Charging light
Errors
12

132
a.LEFT SWITCH
Press, horn on; release, horn off.
HORN SWITCHWINKER SWITCHHigh/low beam switch
Turn to left, left winker on;
Turn to right, right winker on.
Up position, high beam on;
Down position, low beam on.
OPERATION GUIDE
2
3
1
13

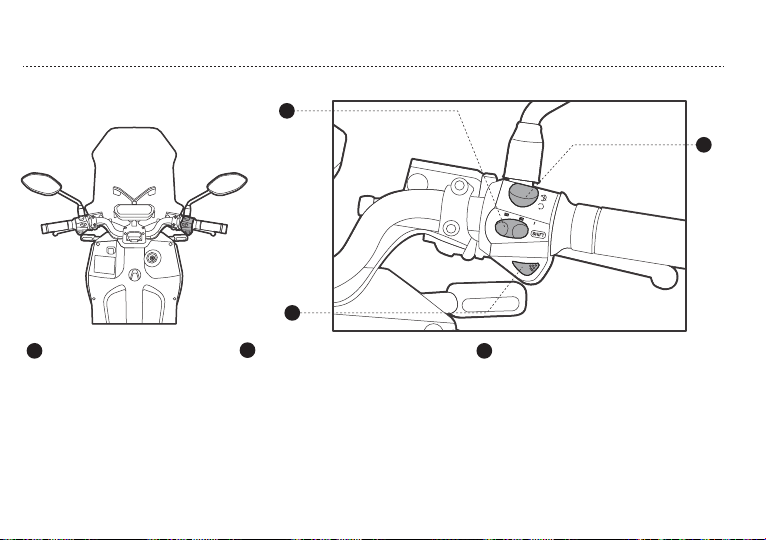

b. RIGHT SWITCH
1
2
3
R
1 3 Forward reverse switchMode switch 2Parking switch
OPERATION GUIDE
CPX is set with 3 modes: 1: ECO
mode 2: NORMAL mode 3: SPORT
mode. Position at left, mode 1;
position in the middle, mode 2;
position at right, mode 3.
Press the parking switch up,CPX at
parking position,parking
indicator(P)light on;press the parking
switch down display(READY),CPX at
unparking status.
Gently press two times forward reverse switch
R,display mode number change to “F”,CPX is
ready to move forward,turn accelerator
gently,CPX can drive forward;press again,CPX
in reverse position,keep pressing “R”
button,turn accelerator gently,CPX can move
backward;press again,display show mode
number as normal,CPX in normal driving
position.
14

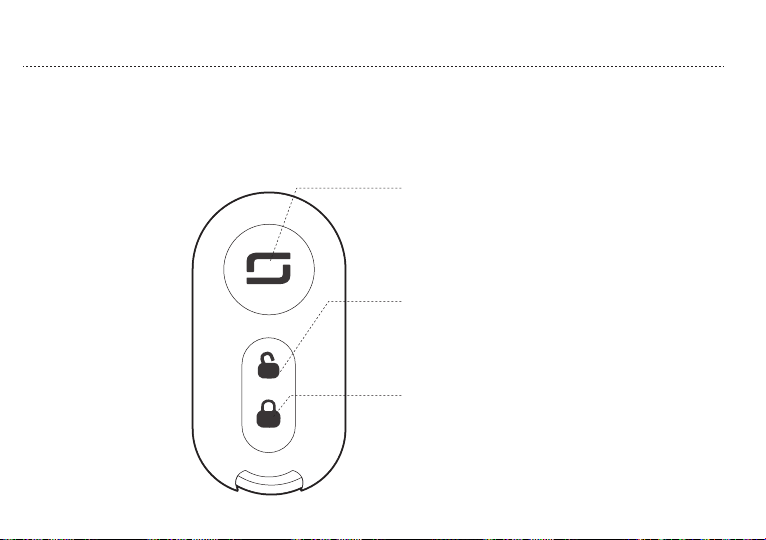

c. REMOTE CONTROL
3. LOCK
2. UNLOCK
1. Key less start
After unlocking CPX via remote control, press the
“POWER”, power on, press again, power off
When CPX in resting state, press “LOCK”, “POWER”
flash, CPX locked.
When CPX in lock state,press “UNLOCK”, “POWER”
continuously on,CPX unlocked.
CPX use second generation smart remote control, within 50 meter radius, press the button, can lock or unlock your CPX.
OPERATION GUIDE
15

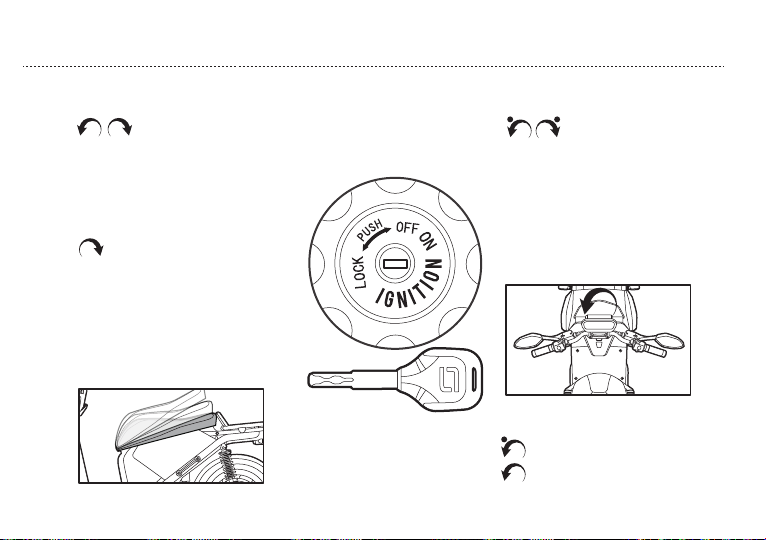

d. Mechanical key
1. Mechanical key start 2. HANDLEBAR LOCK
3. Open storage & seat
After unlocking CPX via remote
control,turn the key to
“ON”position,power on,turn the key
back to “OFF” position,power off.
Put in the key and press then turn left
Put the key in then turn left
1.CPX in parking position, turn
handlebar to the extreme left position,
put key in handlebar lock, and turn the
key to right position, handlebar locked.
2.Put the key in handlebar lock, turn the
key to left position, handlebar unlocked.
Put key in storage&seat lock, turn
key to right direction, when hear
sound “click”, storage&seat open.
Press “unlock” 3s via remote
control, when hear sound “click”,
storage&seat open.
OPERATION GUIDE
16

OPERATION GUIDE
g. KILL SWITCH
TIPS：For your own safety, please put kill switch at “OFF” position:
A. Before taking out battery pack;
B. Before cleaning and washing;
C. Long time storage.
OFF
ON
Kill switch, protect power, when current over than set range cause by abnormal situation or short circuit, kill switch will stop
the connection between battery and CPX automatically, for safety reason.
17

RIDING GUIDE
Any exceptions or operational doubts, please contact Super SOCO official dealer’s service center.
1
2
3
4
5
6
6
7
8
9
10
11
12
a. CHECKING LIST BEFORE RIDING
Make sure to check the following items before riding your CPX
Whether the handlebar is stable and flexible when turning.
Whether the right and left switches on the handlebar can work properly or not.
Whether the accelerator can work properly or not.
Make sure the tyre pressure is correct. The recommended tire pressure is 175Kpa for front wheel, 200kpa for rear
wheel(without passenger),225kpa(with passenger)
Check tyre surface, make sure no cracks, damage, and foreign matter puncture or attachment.
Whether the tread depth is enough,such as worn to the black shadow position on the sketch ,tyre need to be replaced.
Whether any error warning light in the speedometer with power on or not.
Whether the battery capacity is enough for your trip.
Whether all light work properly or not.
Whether the horn work properly or not.
Whether the mirrors are clean and adjust them to the appropriate angle.
Whether the brake oil is enough, whether the brake lever and brake
system work properly or not.
18

b. POWER ON
Press “UNLOCK” on remote
control
Put on helmet.
1Riding CPX, kick out side
stand.
2 3
4 5 Turn throttle gently, CPX
run.
6
Press “POWER”or turn the
key to on position in ignition
switch, power on
RIDING GUIDE
Press ‘Parking’ button,
unparking CPX, parking
symbol off,READY light
on.
