USER MANUAL

1
2
3
4
5
To ensure the safety of you and others, please make sure to observe the following matters：
1
2
3
USER INSTRUCTION
SAFE INSTRUCTION
Please do not lend your vehicle to someone who can not control it to avoid injury
Minors under 16 years old is not allowed to ride our vehicle on the road
Please make sure you have a driving license when driving this vehicle. Do not drive without a license
To ensure your safety, please read this manual carefully before riding and make sure you
are always following the requirements below:
Fully understand the information in this manual, including but not limited to the relevant instructions, precautions and warnings
Fully understand the operation and contingency measures of TC intelligent electric vehicle
Be fully aware of warning labels of TC intelligent electric vehicle
Do not disassemble the electric vehicle and parts without permission, Please contact customer service department and dealers
if you need any replacement or do further purchase.
Please keep this User Manual properly
All parameters have been permanently set according to national standards before delivery, our company is not responsible
for anything change like the original electrical circuit ,wire harness and maximum speed.
1

4
5
6
7
8
9
10
a.Check the power circuit, lighting circuit statues etc
b.Check whether the front and rear brakes work properly
c.Check the handlebar and the front and rear wheels fixing
d.Check the tire pressure

e.Check the belt whether loose or damaged
f.Check the belt wheels whether it is damaged
g.Check the belt whether belt wheel tooth groove
USER INSTRUCTION
Do not ride after you take medications which may effect your riding ability, drink alcohol or when you feel physically upset
Observe traffic regulations and traffic signs, manned and loaded in accordance with local laws and regulations and confirm
the surrounding road conditions and bike’s conditions at any time, so as to actively avoid danger
In case of rain and snow, the braking distance shall be increased. Pay attention to slowing down the speed.Try to avoid
traveling as much as possible in inclement weather condition
Wear safety equipment, such as helmet, and appropriate protective clothing if necessary, such as gloves and boots
In order to ensure the safety of you and others, please DO NOT use high beam in good lighting conditions. The continuous
use of high beam will cause the visual disturbance to vehicles and pedestrians on the opposite side, affecting normal driving
Please pay attention to the safety instruction
Check before riding. In case of any abnormality, please timely repair or go to official dealer’s service center
a.Electric bikes should not be parked in building foyers, evacuation staircases, walkways and safety exits
b.Electric bicycles should not be charged and parked in residential buildings, and should be far away from combustible materials
when charging, and the charging time should not be too long.
c.Please pay attention to the correct use of the battery and warning labels; Waste battery can not be dismantled without authoriza-
tion, Pls contact the customer service center for the unified recycling treatment
d.Please pay attention to the safe instruction and warning labels of the charger; When replacing the charger, it should match the
model of the battery
e.Please pay attention to the precautions concerning water washing
2

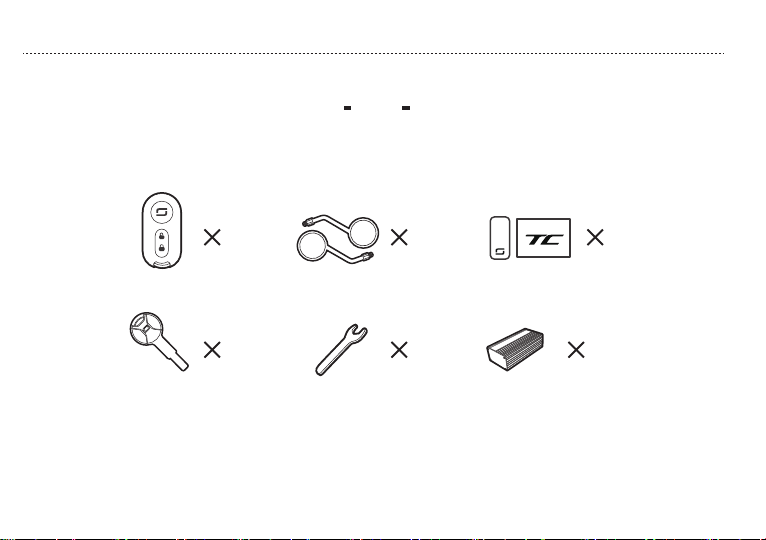

Parts inspection
2 1 1
1 12
Quick start
Keys
Mirrors
Spanner for mirrors
User manual
Charger
01
QUICK START
3

Install battery
12Remove the storage 3
02
Open storage box,
take out cover box
protector switch，put
the storage box in and
close
QUICK START
ON OFF
4
Connect power plug,
make sure it's plugged
in and hear a click
4

03
Quick start
QUICK START
Press “unlock”on remote
control
Press “Parking" button,
unparking TC, parking symbol
off
Turn accelarator gently,
motorcycle run
Put helmet on Get on motorcycle, kick side
stand out
1
Press “Power", power on
1
2 3
56
5

QUICK START
04
Download APP
TC has GPRS functions, subject to different countries, can connect with your smart phone.
By APP,you can use smart phone to manage and query your TC.
Only iOS and Android are currently available now, please confirm your smart phone operating system in advance.
iOS system: APP only supports Apple iOS 9.0 system and above.
Android system: APP only supports Android 4.4 system and above.
From the date of purchase of the vehicle, you will automatically receive
a free two-year central control SIM card data in order to use the SOCO
electric vehicle APP function. Please be sure to complete the next
year's data recharge before the end of the two-year free period. If the
recharge is not overdue, the operator will automatically close the
recharge interface, the flow recharge function cannot be restored, and
the SOCO electric vehicle APP cannot be used normally.
6

Accessories checklist
Operation guide
Ride guide
Battery use guide
APP instructions
Maintenance
FAQ
08
11
16
19
22
23
25
CONTENTS
7

TOP VIEW

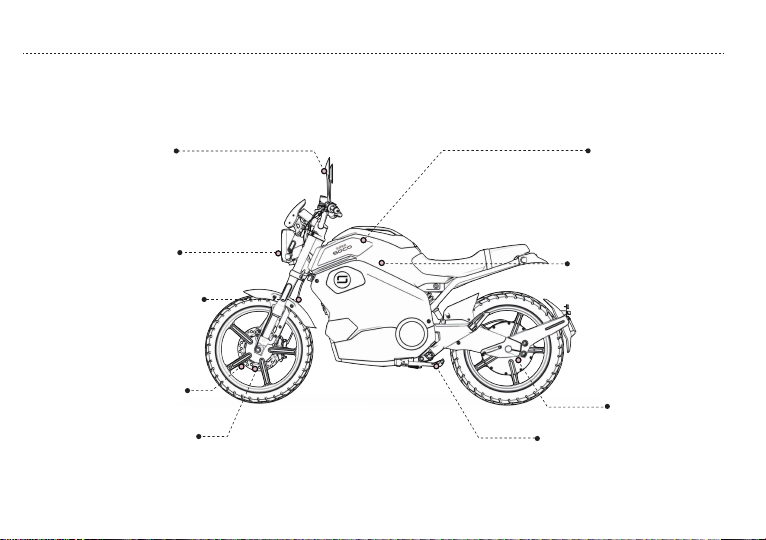

a. SCHEMATIC DIAGRAM OF COMPONENTS AND PARTS
DESCRIPTION OF COMPONENTS AND PARTS
Front brake lever
Rear brake lever
Tail lamp
Left-handlebar switch assy
Accelerator
Right-handlebar switch assy
Winker
Speedometer
Saddle
8

SIDE VIEW
DESCRIPTION OF COMPONENTS AND PARTS
a. SCHEMATIC DIAGRAM OF COMPONENTS AND PARTS
Headlight
Storage box
Battery compartment
Back mirror
Disc brake system
FOC vector controller
Hub motor
Electronic side stand
Spoke-type
aluminum hub
9

DESCRIPTION OF COMPONENTS AND PARTS

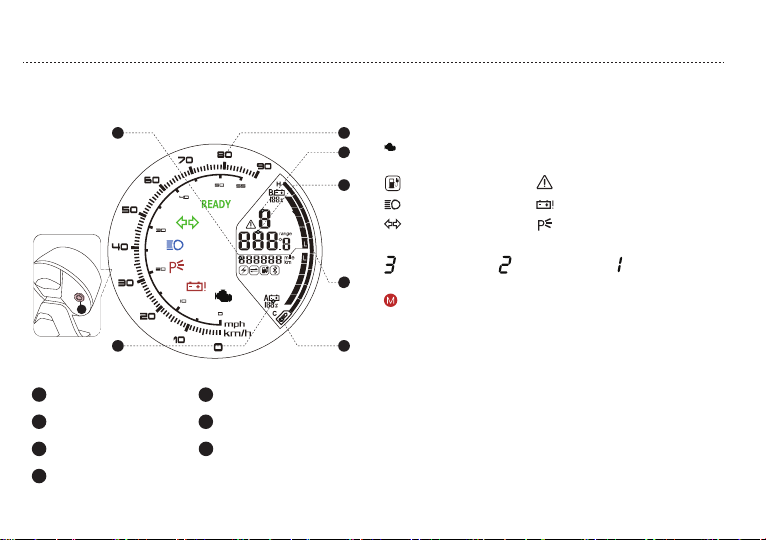

b.SCHEMATIC DIAGRAM OF THE SPEEDOMETER
1
2
3
4
Speed display
Cruising range/
Ambient temperature
Total mileage
Controller temperature
7Gear display
5
6
Battery indicator
Battery percentage display
BUTTON FUNCTION DESCRIPTION
High beam indicator
Winker indicator
Battery error
Parking indicator
Indication P shows in parking mode
Start indicator The vehicle can be started when
READY is displayed
READY
Charging Error
Sport mode Cruise mode ECO mode
1
5
4
2
3
6
7
M
10
Display switching-cruising range/ambient temperature In normal
mode, short press the key switch to switch strongly and save the
state.
Turn on the instrument backlight manually (text version backlight +
LCD backlight) In normal mode, press the button to force the
instrument backlight and headlights to be turned on
Display unit switching (KM and Mile, km/h and mph) In normal
mode, long press the key switch to switch the unit and save the
state
TIPS:Short press and press the button for less than 2 seconds, then
release the button;
Press the button for less than 8 seconds and longer than 2
seconds, then release the button. Long press the button for more
than 8 seconds, then release the button
OBD Indicating OBD checking error codes
See page 24 FAQ & TROUBLESHOOTING

132

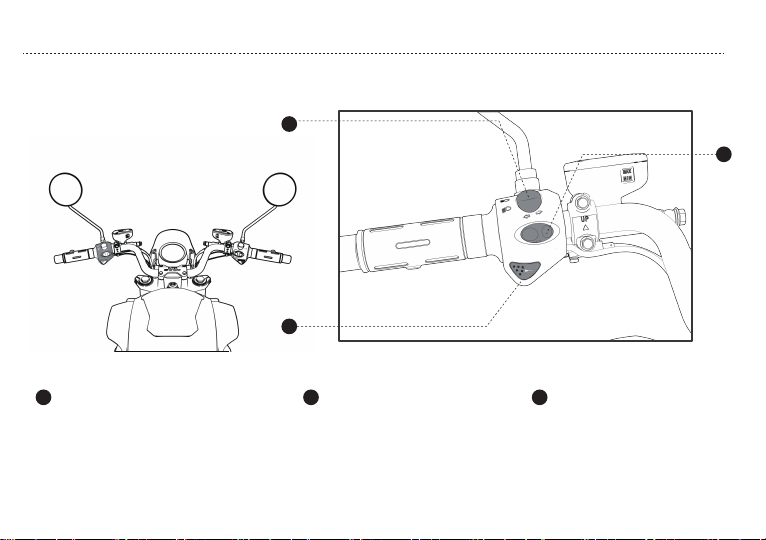

a.Left Switch Assy
Press to make a sound and release
to stop
Horn buttonWinker buttonHigh/low beam switch button
Dial to the left side to turn on the
left winker; Dial to the right side to
turn on the right winker
Press up to turn on the high beam
Press down to turn on the low beam
2
3
1
OPERATION GUIDE
11

b.Right Switch Assy 1
2
3
1 3 Parking buttonGear shift button 2Emergency flashers
OPERATION GUIDE
The bike is set with 1 ECO mode, 2
Cruise mode, and 3 Sport mode. To
the right is the ECO mode, to the
middle is the Cruise mode, and to the
left is the Sport mode
“ Emergency flashers " Press the
vehicle up to turn on the double flash
state, and press it down to turn off
the double flash state.
“Parking button" Press up the vehicle
to enter the parking state, the
parking indicator (P) will light up;
press down the display (READY) to
release the parking state.
12

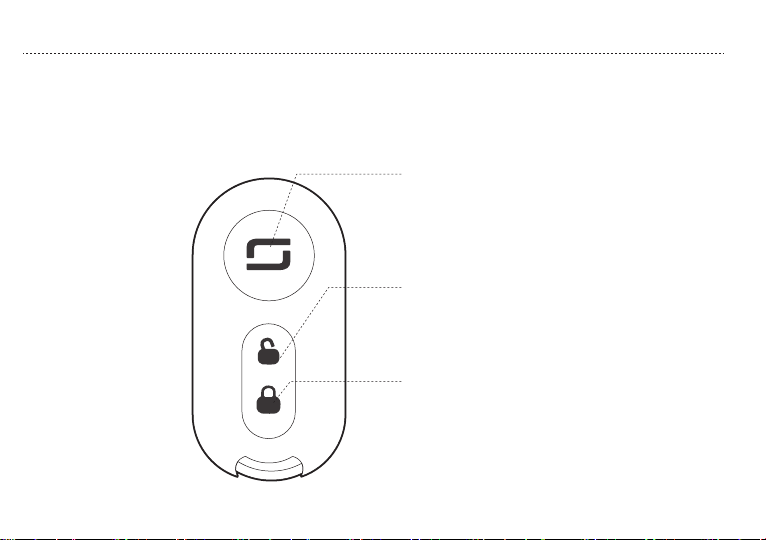

c.Intelligent Remote Control Operation
3.Lock botton
2.Unlock botton
1.Generation smart remote control
After unlocking TC via remote control, press
the“POWER”, power on, press again, power off.
When TC in resting state,
press“LOCK”,“POWER”flash, TC locked.
Press“UNLOCK”,“POWER” continuouslyon,
stand-by status.
We use the second generation of SUPER SOCO intelligent remote control key. You can easily lock or unlock the vehicle by
tapping the button within the effective distance.
OPERATION GUIDE
13

d. How To Operate The Physical Handlebar Lock
After the bike stops, turn the handlebar to the far left, insert the key into the physical handlebar lock, and rotate it rightwards
to lock the bike.
Insert the key into the physical handlebar lock, and rotate it leftwards to unlock the bike
1
2
e. Open The Storage box & Cushion
Put the key in, turn right, when hear sound “click", storage open
Put the key in, turn left, cushion open
1
2
OPERATION GUIDE
14

f. Circuit Protector Switch Operate
TIPS：In order to protect your safety, please turn off the circuit protector switch when cleaning, storing the vehicle for a long time,
or removing the battery .
OPERATION GUIDE
ON OFF
As the protection switch for the main power of electric vehicle, the circuit protector will automatically disconnect to ensure
safety when the vehicle circuit is abnormal or the current caused by short circuit exceeds the set safe value.
15

In case any questions or unusual, please contact after sales service or dealer
1
2
3
4
5
6
6
7
8
9
10
11
12

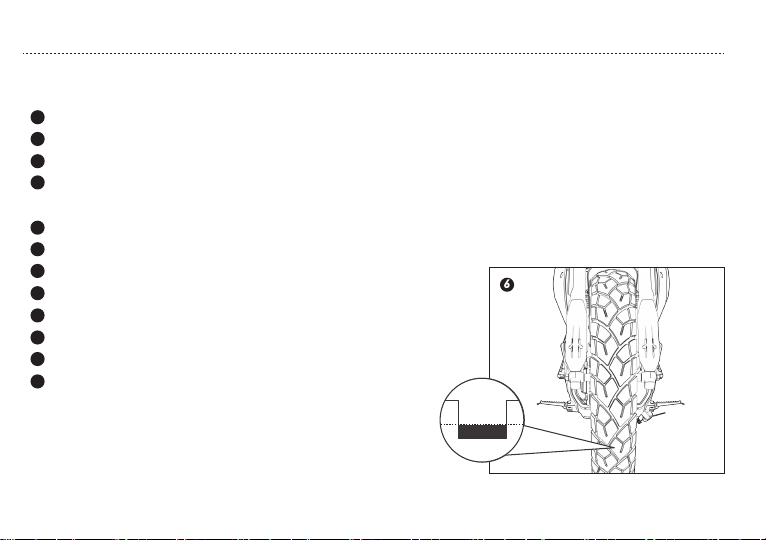

a. Check List Before Riding
Make sure to check the following items before riding a TC intelligent electric vehicle, which will guarantee your safety on the road.
RIDING GUIDE
Whether the handlebar is stable and flexible when turning.
Whether the switches on the right and left handlebars can work correct.
Whether the throttle working properly.
Make sure the tyre pressure is ok. The suggested tire pressure is 175Kpa for front wheel, 200Kpa for rear wheel with
rider only；225Kpa for rear wheel with 1 rider and 1 passenger.
Check tire surface, make sure no cracks, damage, and foreign matter puncture or attachment.
Whether the tread depth is sufficient.If the tire is worn to the black shadow mark in the picture, it needs to be replaced.
Whether any error warning light on the display when power on.
Whether the battery capacity is sufficient for your trip.
Whether all lights working properly.
Whether the horn working properly.
Whether the mirrors are clean. Adjust them to the proper angle.
Whether the brake oil is sufficient, whether the brake lever and brake
16

Press “unlock”on remote
control
Press“Parking" button,
unparking TC, parking
symbol off
Turn accelarator gently,
motorcycle run
Put helmet on Get on motorcycle, kick side
stand out

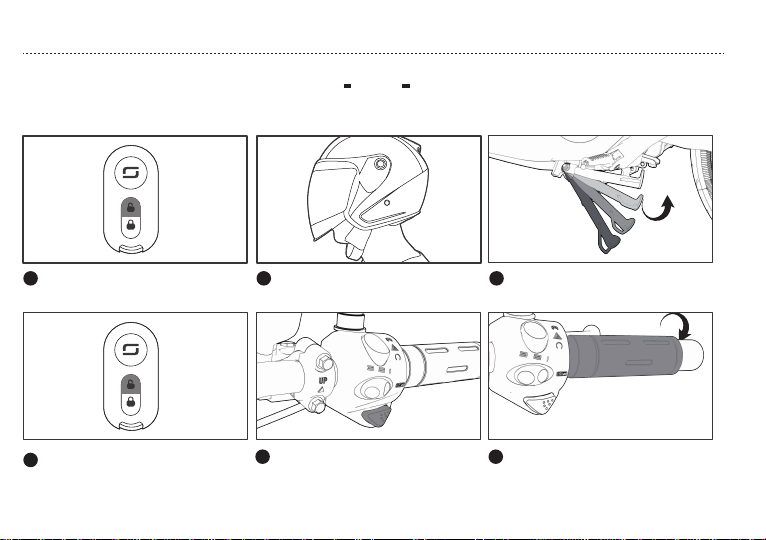

b. Start the vehicle
1
Press “Power", power on
4
2 3
5 6
OPERATION GUIDE
17

c. Riding precautions
TIPS：
1
2
3
4
5
Before riding, please make sure that the electronic side stand is stowed and turn the handlebar to make
sure that the front lock is closed;
During riding, if you press the “park button" or turn on the electronic side stand, the whole vehicle will be
powered off. Therefore, it is prohibited to press the “park button" or turn on the electronic temple during
riding to prevent the vehicle from suddenly losing power In danger
The vehicle must be completely stationary to start. If the vehicle is abnormal during travel, please
carefully taxi or push to a safe area. Do not try to restart the vehicle during travel or on the lane to avoid
danger.
1
2
3
RIDING GUIDE
When the vehicle starts, it should accelerate slowly to avoid excessive starting current caused by
sudden acceleration and increase energy consumption
On the premise of ensuring safety, keep a constant speed as much as possible during driving, reduce
frequent starting, braking, instant acceleration and other operations to increase energy consumption
The maximum load capacity of this vehicle is 150KG, and overloading is strictly prohibited.
Please press the “park button" when driving the vehicle to prevent accidental turning of the handlebar,
which may cause the vehicle to start suddenly and cause an accident
Turn off the power and remove the key when parking
18

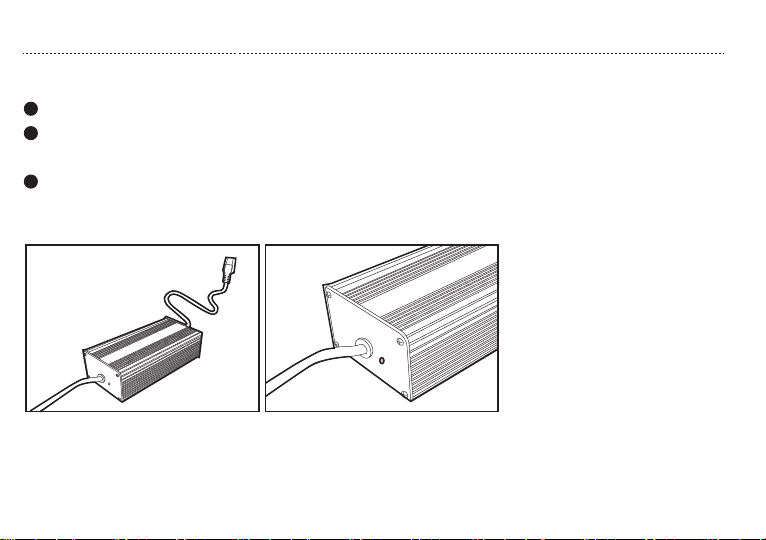

a.Vehicle Body Charging
Battery level display
Charging: red light is on continuously
Full: green light on continuously
Fault: red and green light flash alternately
Insert the main charger plug into the charging port of the vehicle.
Insert the chargers AC power plug into the socket, and the battery starts charging when the charger
indicator turns red.
The battery is fully charged if the charger indicator turns from red to green
1
2
3
BATTERY USE INSTRUCTION
19
