socomec DIRIS B-30 User manual
DIRISB-30
Multifunction meter and associated current
sensors
EN
USER MANUAL
www.socomec.com
www.socomec.com/
en/diris-b
2EN
1. DOCUMENTATION .............................................................4
2. DANGER AND WARNING .......................................................5
2.1. Risk of electrocution, burns or explosion ................................5
2.2. Risk of damaging the unit .............................................5
2.3. Liability .............................................................6
3. PRELIMINARY OPERATIONS....................................................7
4. INTRODUCTION ...............................................................8
4.1. Functions ...........................................................8
4.2. DIRIS B-30 ..........................................................9
4.2.1. Range ....................................................9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
4.2.3. Dimensions ...............................................10
..................................10
4.3. Optional modules ...................................................11
4.3.1. Range ...................................................11
4.3.2. Dimensions ...............................................11
4.4. Associated current sensors...........................................12
................................13
4.4.2. TR split-core current sensors ................................14
4.4.3. TF Rogowski stranded current sensors .......................15
....................................15
5. INSTALLATION ...............................................................17
5.1. Recommendations and safety ........................................17
5.2. Installation of the DIRIS B-30 .........................................17
5.2.1. DIN rail mounting ..........................................17
5.2.2. Base plate mounting .......................................17
5.3. Installing the optional modules........................................18
......................18
5.3.2. Installing an optional module on an optional module ............18
5.4. Installing TE solid-core sensors .......................................18
5.4.1. Mounting accessories ......................................18
5.4.2. Base plate mounting .......................................19
5.4.3. DIN rail mounting ..........................................20
...........................................20
5.4.5. Busbar mounting ..........................................21
......................................21
5.5. Installing TR split-core sensors .......................................22
....................................................22
5.6. stranded sensors TE mounting........................................22
........................................22
....................................................23
...................................................23
5.7. Installing the 5A adapter .............................................24
6. DIRIS B-30 CONNECTION .....................................................25
6.1. Description of the DIRIS B-30 terminals................................25
6.2. Connecting the current sensors .......................................26
.......................................26
...............26
6.3. Auxiliary power supply connection ....................................27
6.4. Connection to the electrical network and to the loads ...................27
...............27
.........28
6.5. Connection of the functional earth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
6.6. Connecting the inputs ...............................................30
EN CONTENTS
3
EN
7. CONNECTING THE OPTIONAL MODULES ......................................31
7.1. Description of the terminals ..........................................31
7.1.1. Input/output modules ......................................31
...................................32
7.2. Power supply connection ............................................32
8. STATUS AND AUTO-ADDRESSING LEDS .......................................33
8.1. Status LEDs ........................................................33
8.2. Auto-addressing ....................................................33
9. COMMUNICATION ............................................................35
9.1. General information .................................................35
9.2. RS485 communication...............................................36
9.3. Radio-frequency (RF) communication..................................36
9.4. Communication tables ...............................................37
10. CONFIGURATION ............................................................38
10.1. Configuration using Easy Config .....................................38
.......................................38
........................................39
10.2. Configuration from the DIRIS D-30 remote display .....................41
........................................41
11. ALARMS ....................................................................42
11.1. Alarms upon events ................................................42
......................................42
......42
............................42
............................................43
..........................................43
.............................................43
....................................44
11.2. Set-up alarms .....................................................44
...............................44
............44
......................................44
11.3. Setting up alarms ..................................................44
......................................44
....................................44
......................................44
..........................................45
.....................................45
12. CHARACTERISTICS..........................................................46
13. PERFORMANCE CLASSES ...................................................51
13.1. Specification of the characteristics ...................................51
13.2. Evaluation of the power supply quality................................52
4EN
1. DOCUMENTATION
address:
www.socomec.com/en/diris-b
5
EN
2. DANGER AND WARNING
professionals.
2.1. Risk of electrocution, burns or explosion
Ref.
Failure to take these precautions could cause death or serious injuries.
2.2. Risk of damaging the unit
Ref.
Failure to respect these precautions could cause damage to the unit.
6EN
2.3. Liability
7
EN
3. PRELIMINARY OPERATIONS
installation.
8EN
4. INTRODUCTION
modules.
*PMD: Performance Measuring and monitoring Device in accordance with IEC standard 61557-12.
4.1. Functions
-
-
-
-
-
-
-
-
-
Logging
-
-
Metering
-
-
Alarm
-
9
EN
Connection
-
-
-
-
Inputs / Outputs
- 2 logic inputs
-
Communication
-
-
-
-
-
-
4.2. DIRIS B-30
4.2.1. Range

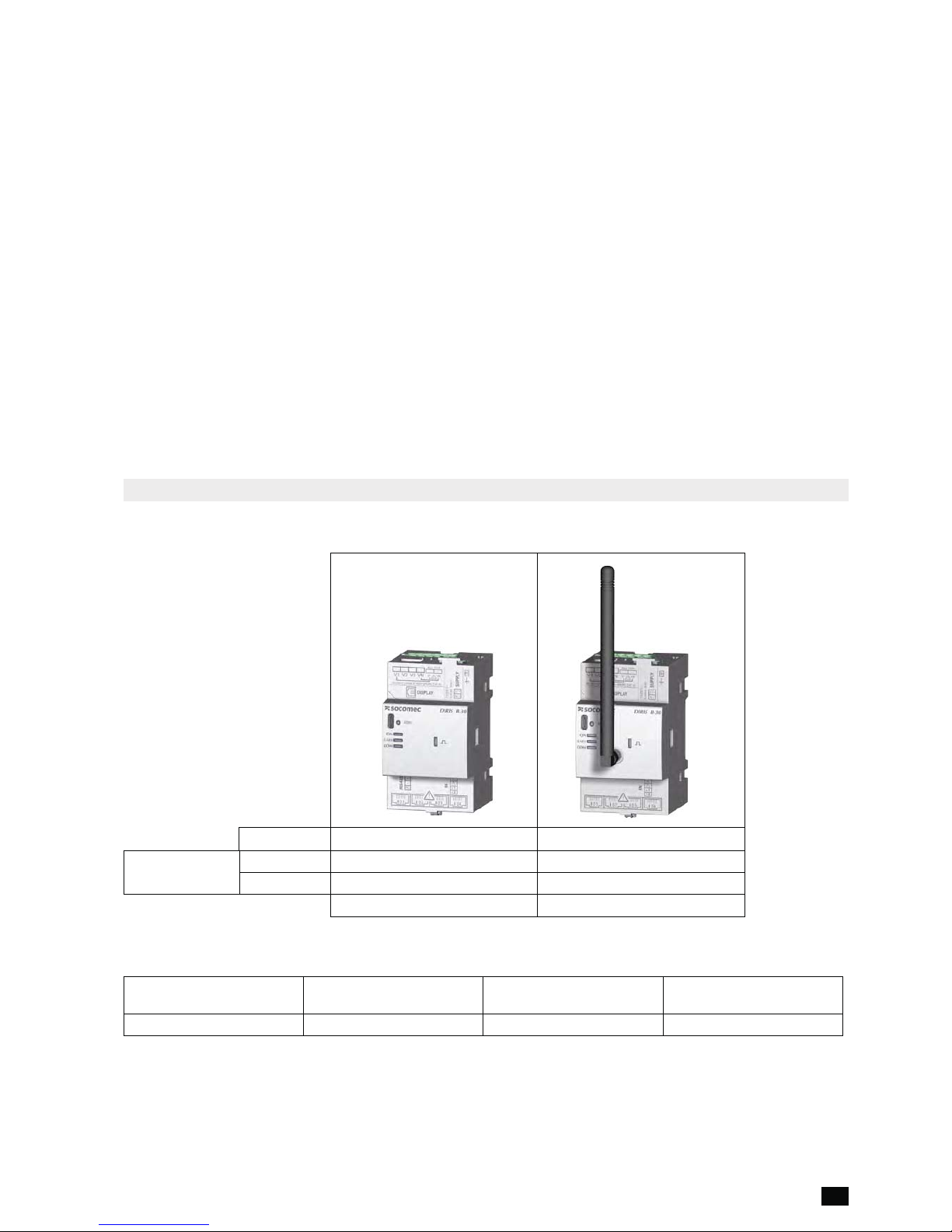

PMD DIRIS B-30 RS DIRIS B-30 RF
RF
4.2.2. Accessories
Sealing kit.
USB cable for configuration
10 EN
4.2.3. Dimensions
2.12
54
3.54
90
1.73
44
2.36
60
0.23
6
1.42
36
1.77
45
4.72
120
0.59
15
Dimensions in/mm
4.2.4. Electrical values measured
General Instant with timestamped Min/Max & Average with timestamped
Min/Max
f
Quality Instant & Average
Energies
11
EN
4.3. Optional modules
functionalities in terms of inputs/outputs and communication modes.
4.3.1. Range

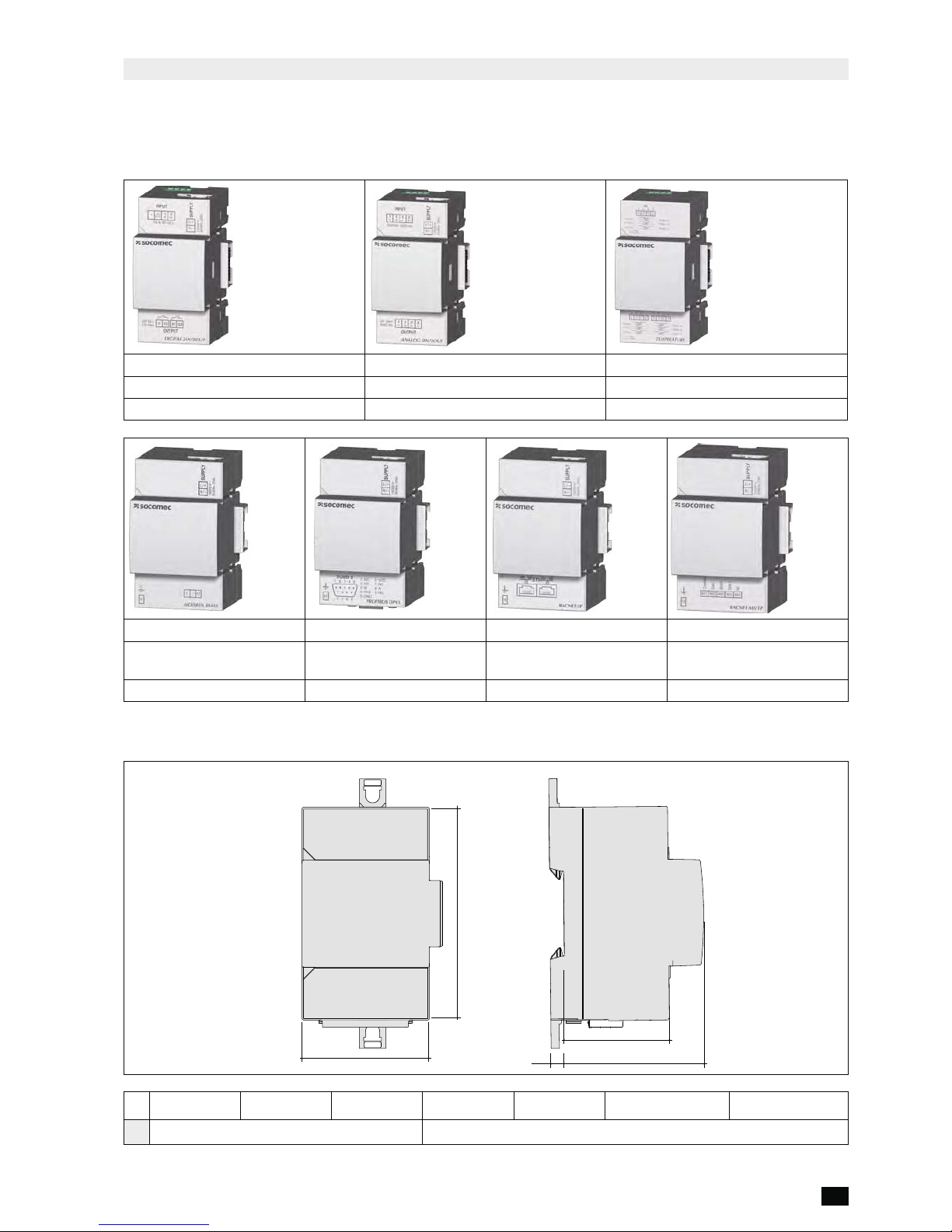

DIRIS O-iod DIRIS O-ioa DIRIS O-it
Module 2 digital inputs/outputs Module 2 analogue inputs/outputs Module 3 temperatureinputs
DIRIS O-m DIRIS O-p DIRIS O-b/ip DIRIS O-b/mstp
communication module
communication module
module
communication module
4.3.2. Dimensions
Dimensions in/mm
A
3.54
90
1.73
44
2.36
60
0.23
6
DIRIS O-iod DIRIS O-ioa DIRIS O-it DIRIS O-m DIRIS O-p DIRIS O-b/ip DIRIS O-b/mstp
A1.77in / 45mm 2.12in / 54mm
12 EN
4.4. Associated current sensors
DIRIS B-30
Recommendations:
current sensors are installed
Length (m) Quantity Reference
0.1
3
4
0.2
3
4
0.3
3
4
0.5
3
4
1
3
4
2
3
4
13
EN

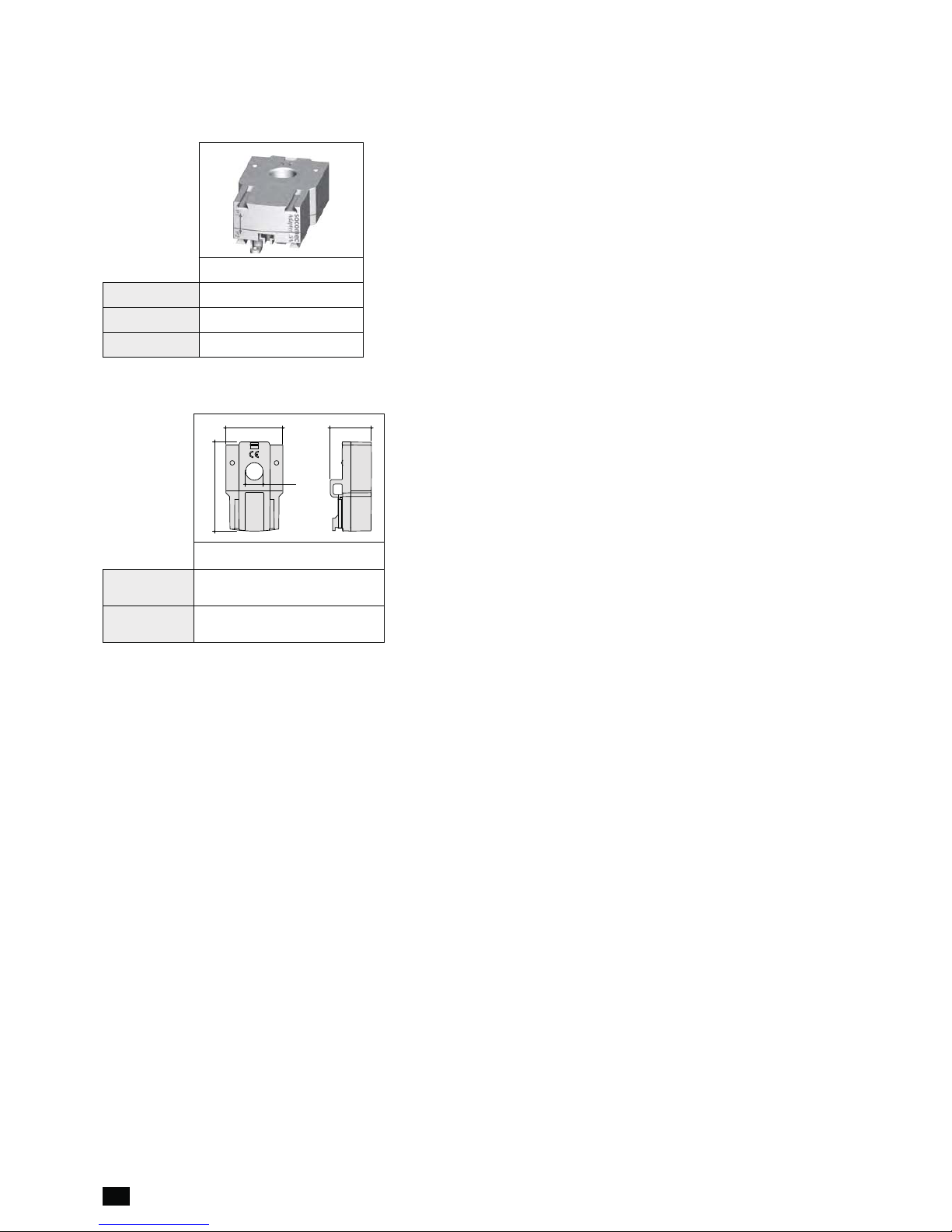

4.4.1. TE solid-core current sensors
plate.
4.4.1.1. Range
TE-18 TE-18 TE-25 TE-35 TE-45 TE-55
Pitch 25mm 35mm 45mm 55mm
I nominal
Maximum l
Reference
4.4.1.2. Dimensions
L
P
W
H
L
W
P
T
H
Dimensions in/mm TE-18 TE-25 TE-35 TE-45 TE-55
Pitch 0.71
0.98
25
1.37
35
1.77
45
2.16
55
LxHxD 1.10 x 0.79 x 1.77
0.98 x 1.28 x 2.56
1.37 x 1.28 x 2.79
1.77 x 1.28 x 3.38
2.16 x 1.28 x 3.93
Window (W) ø 0.33
0.53 x 0.53
0.82 x 0.82
1.22 x 1.22
1.61 x 1.61
(T) -0.69
17.5
0.69
17.5
0.77
0.85
21.5
14 EN
4.4.2. TR split-core current sensors
4.4.2.1. Range
TR-10 TR-16 TR-24 TR-36
Cable
passage
diameter
ø10mm ø24mm
I nominal
Maximum l
Reference
4.4.2.2. Dimensions
PA
L
Ø W
C
B
H
Dimensions in/mm TR-10 TR-16 TR-24 TR-36
LxHxD 0.98 x 1.54 x 2.79
1.18 x 1.65 x 2.91
1.77 x 1.73 x 3.74
2.24 x 1.65 x 4.37
W0.39
10
0.63
0.94
24
1.42
A2.28
2.40
2.83
72
3.23
B0.57
14.5
0.75
0.87
22
0.87
22
C1.02
1.22
31
1.34
34
1.59
40.5
15
EN
4.4.3. TF Rogowski stranded current sensors
campaigns.
4.4.3.1. Range
TF-55 TF-120 TF-300
Loop length 55mm 120mm 300mm
I nominal
Reference
4.4.3.2. Dimensions
0.71
18
3.34
85
Ø
E
p
L
0.71
18
3
.
34
85
1.49
38
p
Ø
E
L
Dimensions in/mm TR-55 TR-120 TR-300
Diameter 2.16
55
4.72
120
11.81
300
p6.77
172
14.80
37.08
E0.23
0.43
11
0.43
11
L59.05
1500
4.4.4. Adapters for 5A sensors
16 EN
4.4.4.1. Range
5A adapter
Nom. I
Max. I
Reference
4.4.4.2. Dimensions
L
P
W
H
Dimensions in/mm 5A adapter
LxHxD 1.10 x 0.79 x 1.77
Window (W) ø 0.33
17
EN
5. INSTALLATION
sensors.
5.1. Recommendations and safety
5.2. Installation of the DIRIS B-30
5.2.1. DIN rail mounting
Installation
1
2
0.29 or 0.59
7.5 or 15
1.38
35
1 2
5.2.2. Base plate mounting
0.19 in
5 mm
3.94 in
100 mm
0.47in/12mm
18 EN
5.3. Installing the optional modules

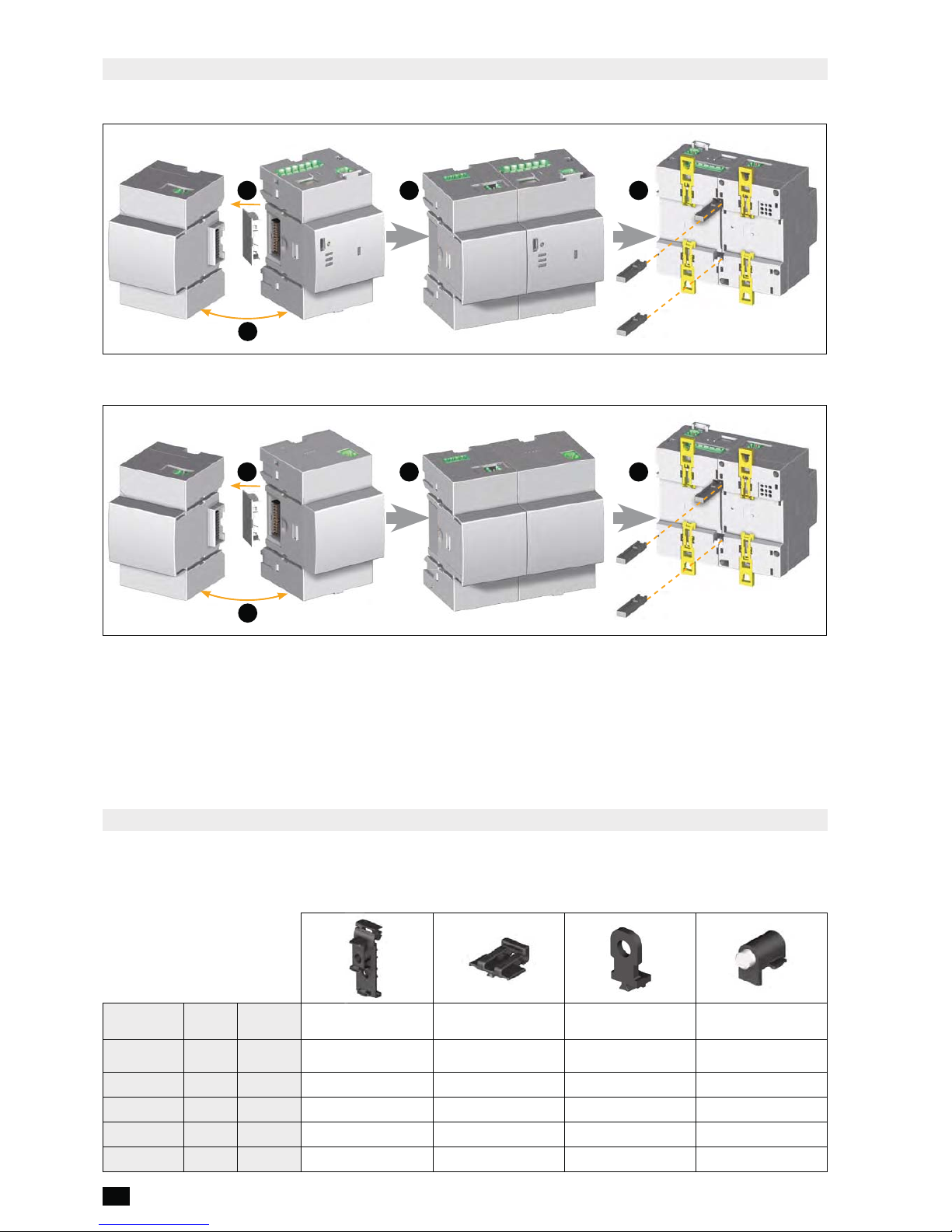

5.3.1. Optional module installed on DIRIS B-30
DIRIS B-30
1 3 4
module
2
DIRIS B 3
0
5.3.2. Installing an optional module on an optional module
1 3 4
module
2
installation
5.4. Installing TE solid-core sensors
5.4.1. Mounting accessories
Reference Pitch DIN rail and base
plate mounting
DIN rail mounting Base plate mounting Busbar mounting
TE-18
TE-25
TE-35
TE-45
TE-55
19
EN
5.4.2. Base plate mounting
TE-18
0.17 / 4.2
1Nm
1
N
m
0.81
20.5
1.05
1
1
2
2
2
2
3
3
TE-25 - > TE-55
0.20 / 5.2
1Nm
20 EN

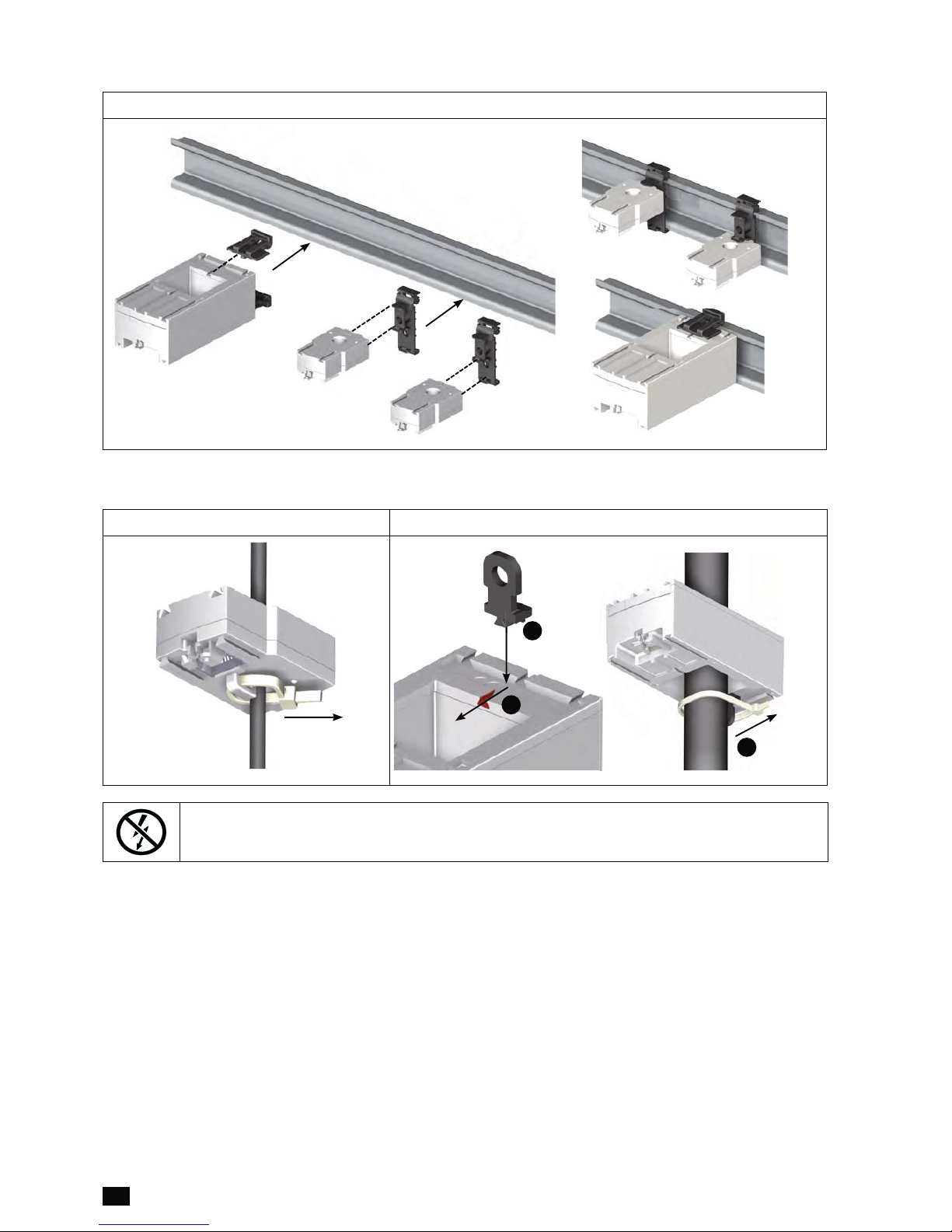

5.4.3. DIN rail mounting
TE-18 - > TE-55
5.4.4. Cable mounting
TE-18 TE-25 - > TE-55
2
3
1
