SOHL FURNITURE UH7728 User manual

Lift Up Coffee Table
Assembly Instructions
ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
AFTER SALES SUPPORT
1300 777 137
[e-mail]

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
2 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]
Assembly requirements
Equipment: phillips head screwdriver and flat head screwdriver.
2 x adults required
1.5 m x 1m assembly space required
1 hour assembly time
Contents
Warranty Details 3
Assembly Tips 4
Using Cam Lock and Quickfit 5
Hardware List 6
Parts List 7
Assembly Instructions 8
Repair and Refurbished Goods or Parts Notice 23

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
3 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]
Lift Up Coffee Table
Warranty Details
REGISTER YOUR PURCHASE ATwww.aldi.com.au/en/about-aldi/product-registration/TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION
The product is guaranteed to be free from defects in workmanship and parts for a period
of 12 months (dependent on product) from the date of purchase. Defects that occur within this
warranty period, under normal use and care, will be repaired, replaced or refunded
at our discretion. The benefits conferred by this warranty are in addition to all rights and
remedies in respect of the product that the consumer has under the Competition and Consumer
Act 2010 and similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
4 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]
Assembly Tips
Important
•
Please read these instructions carefully before use and keep for future
reference.
•
This product is intended for domestic use only and is not designed for commercial use.
•
Do not use this item if any components are missing or damaged.
•
Assembly to be carried out by a competent adult only.
•
During assembly children should be kept away from the product due to possible risk of
injury.
Tips bef
ore you start:
1.
Please check that all parts are present before you start the assembly of your furniture.
2.
For ease and speed of assembly, we recommend that before you commence each step of
the assembly, that you identify all the parts required for that step.
3.
For larger items, please ensure that you have sufficient space and people to assemble your
product safely.
4.
We recommend that, where possible, all items are assembled near to the ar
ea in which they
will be placed in use, to avoid moving the product unnecessarily once assembled.
5.
For the protection of your furniture, we recommend that the product is placed on a protect-
ed surface during assembly to prevent any damage.
6.
During assembly please take care not to over-tighten any fittings, as this may damage the
product.
7.
Always place the product on a flat, steady and stable surface.
8.
Do not stand on the product. Do not use the product as a stepladder.
9.
This product is intended for indoor, household use only as it is a non-industrial product.
10.
Usage of power tools is not recommended for assembling this product.
11.
Please use caution and care when lifting the product to avoid personal injury and/or dam-
age.
Car
e and Maintenance of your Furniture
Regularly check all fastenings to ensure that they are properly tightened.
To clean your item, please use a damp cloth and wipe clean.
Never allow any kind of liquid to remain on your furniture. Absorption can cause wood to
warp or finishes to de-laminate.
Please do not place hot items (eg. hot drinks) directly on to the surface.
Please refer to separate Warranty Certificate for full warranty details and information.

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
5 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]

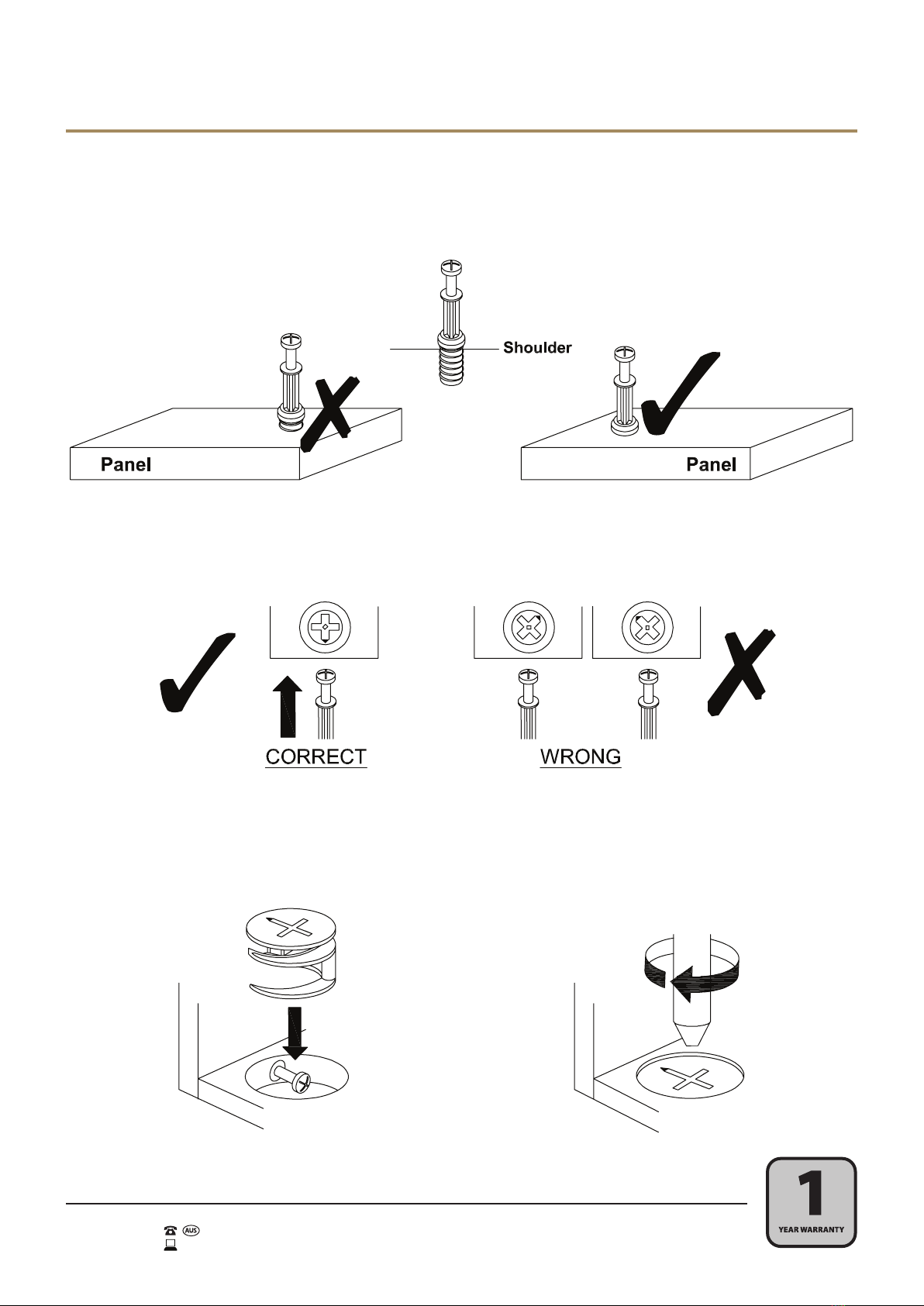

CAM LOCK
When fitting cam lock, ensure starting position is correct before you insert connecting quickfit.
Quickfit head should be in the centre of the
cam lock when the two panels are joined.
Cam lock should be inserted before quickfit.
Turn cam lock clockwise to tighten.
Using Cam Lock and Quickfit
QUICKFIT
Tighten quickfit until shoulder is flush with panel. Do not overtighten or undertighten.

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
6 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]
16 x E
Screw
30 x A
Quickfit Screw
6 x D
Screw
30 x B
Cam Lock
36 x C
Wooden Dowel
1 x F
Hinge
1 x G
Hinge
8 x H
Screw
8 x I
Bolt
1 x J
Allen Key

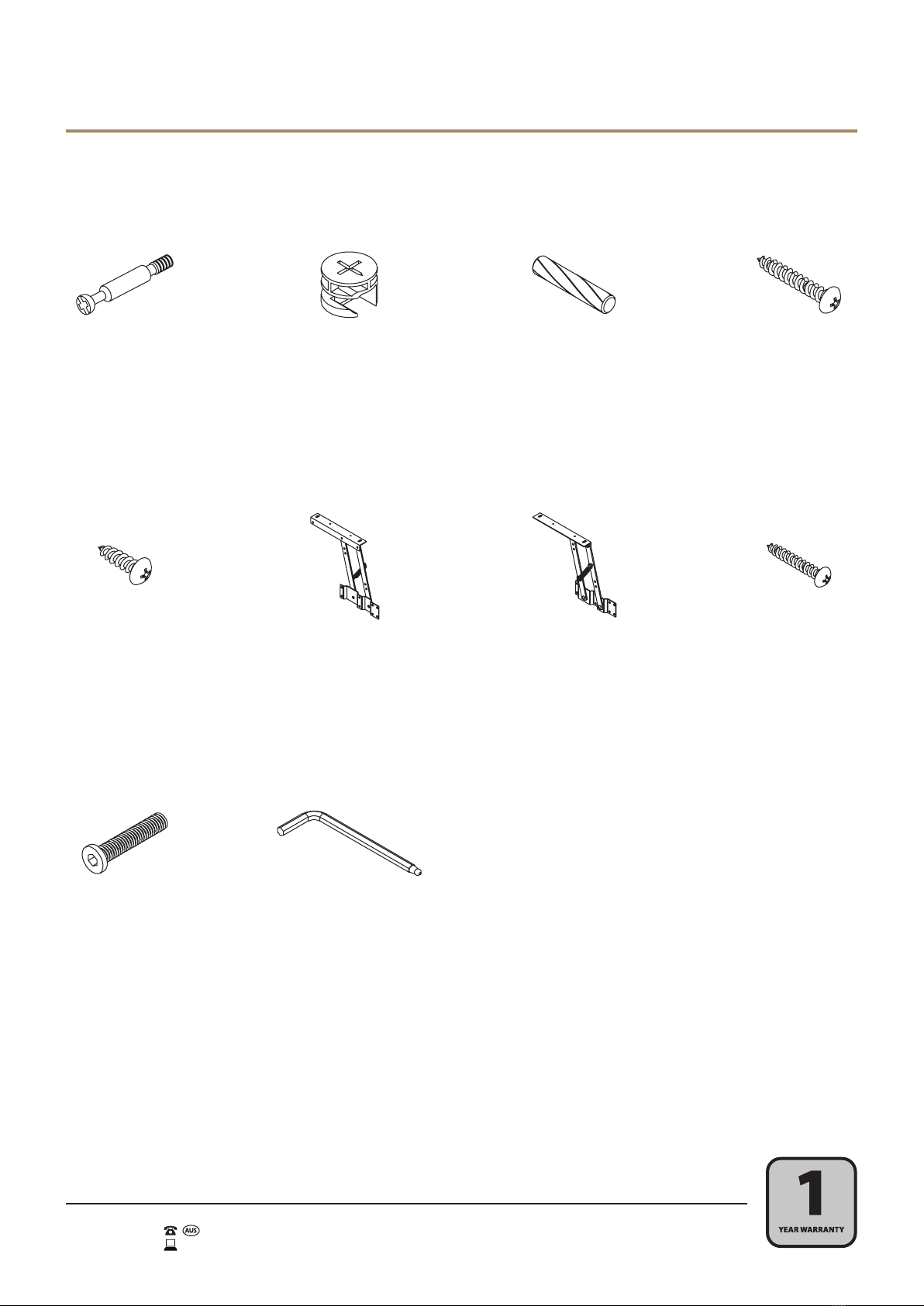

Hardware List

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
7 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]
1 - 1pc 2 - 1pc
4 - 1pc 5 - 1pc 6 - 1pc
7 - 2pcs 8 - 2pcs
3 - 1pc
9 - 2pcs
10 - 1pc 11 - 1pc 12 - 1pc

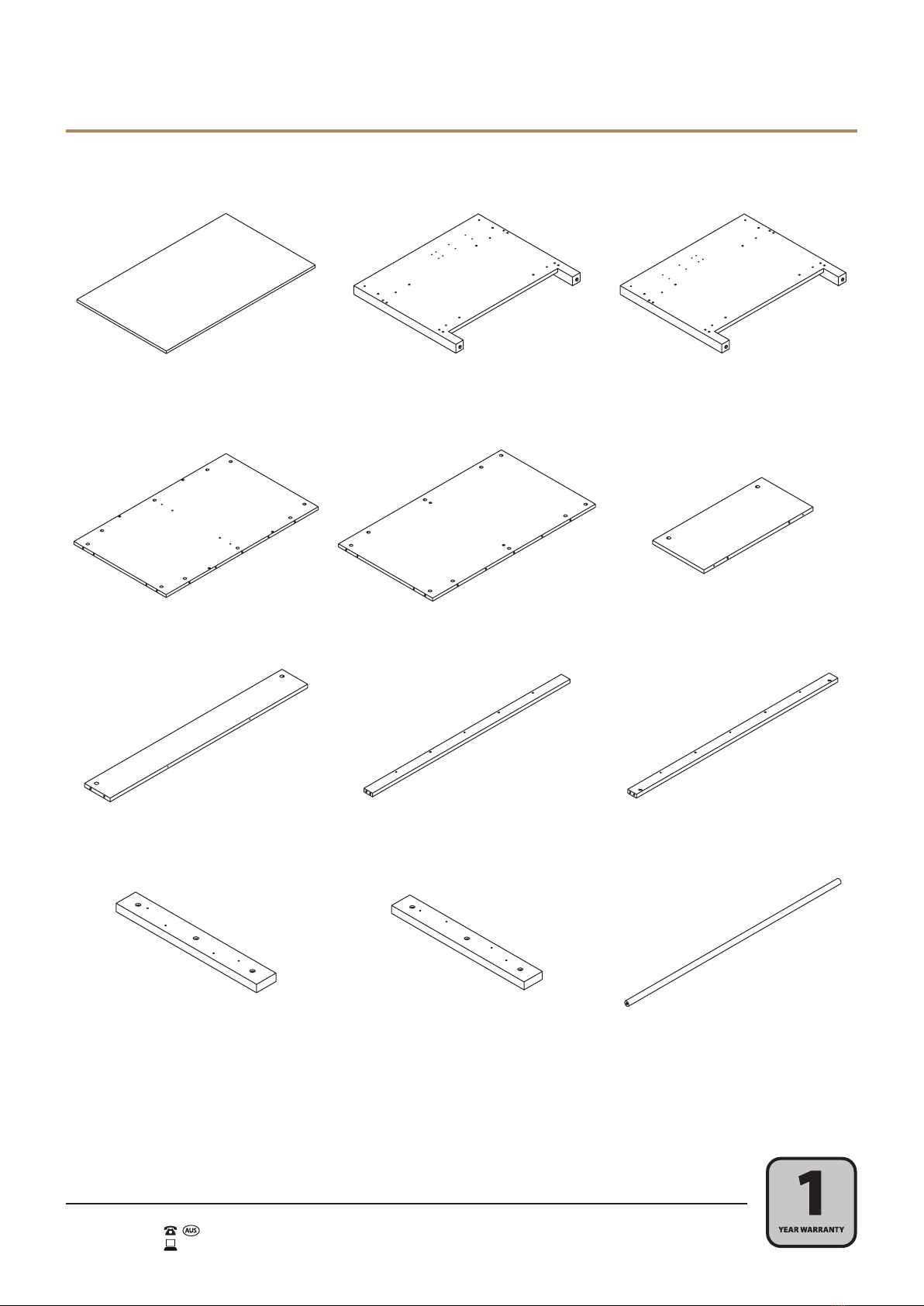

Parts List

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
8 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]
A x 2
4
A
A
Assembly Instructions
Step 1
Fix quickfit screws Ato part 4.

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
9 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]
A x 16
3
A
A
A
A
A
A
A
A
2
A
A
A
A
A
A
A
A
Assembly Instructions (cont)

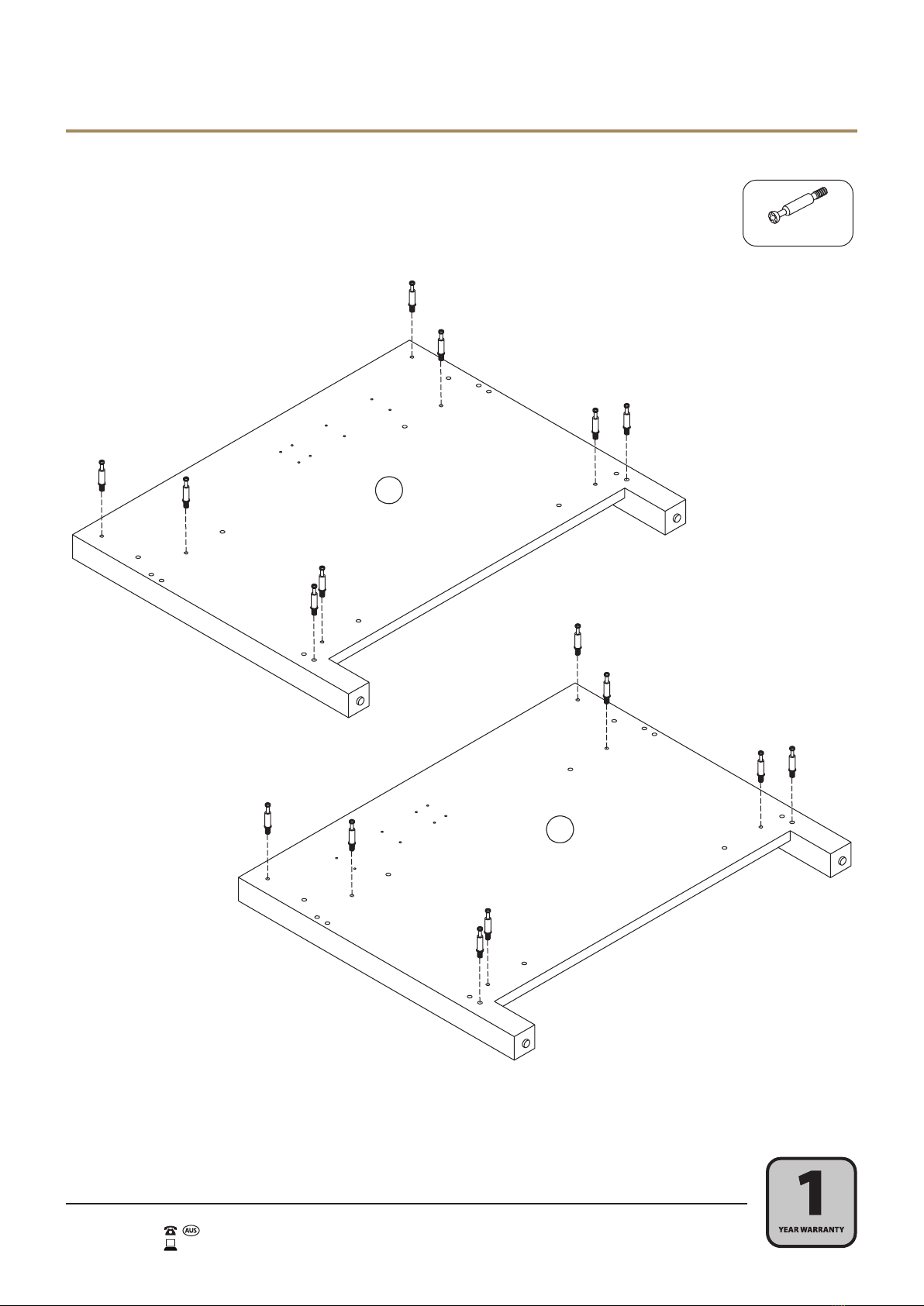

Step 2
Fix quickfit screws Ato parts 2and 3.

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
10 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]
A x 12
C x 20
9
A
A
A
C
C
9
A
A
A
C
C
8
A
A
A
C
C
C
C
8
A
A
A
C
C
C
C
C
C
C
C
C
C
C
C
Assembly Instructions (cont)
Step 3
Fix quickfit screws Ato parts 8and 9.
Insert wooden dowels Cto parts 8and 9.

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
11 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]
B x 10
B
B
B
B
B
B
B
B
B
B
4
8
8
C
C
C
C
C x 4
Assembly Instructions (cont)

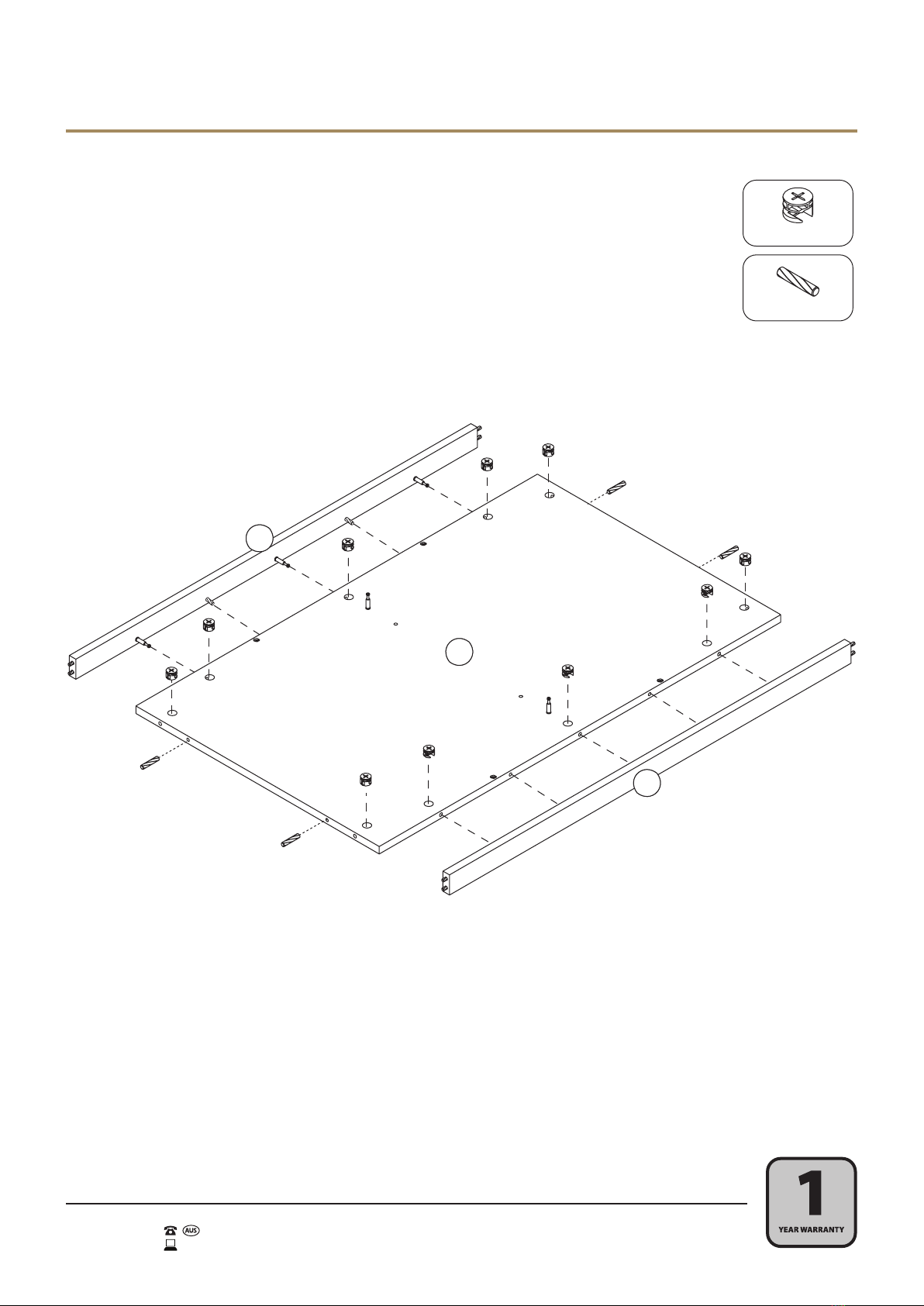

Step 4
Insert cam locks Band wooden dowels Cto part 4.
Attach parts 8to part 4.
Turn cam locks clockwise to tighten.

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
12 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]
B x 10
B
B
B
B
B
B
B
B
B
B
5
9
9
C x 4
C
C
C
C
Assembly Instructions (cont)

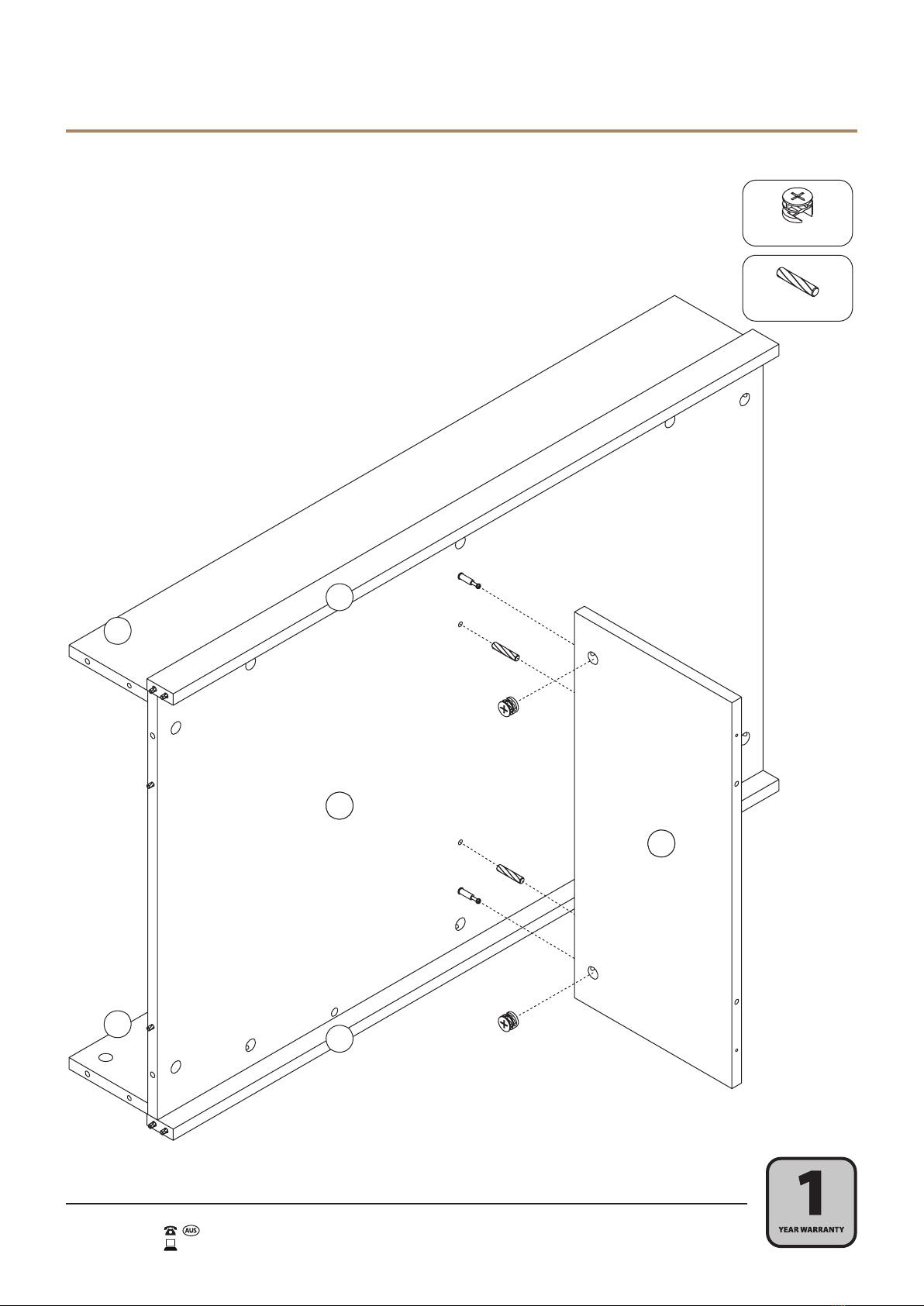

Step 5
Insert cam locks Band wooden dowels Cto part 5.
Attach parts 9to part 5.
Turn cam locks clockwise to tighten.

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
13 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]
D x 4
4
7
8
8
7
D
D
D
D
B
B
B
B
B x 4
C
C
C
C
C x 4
Assembly Instructions (cont)
Step 6
Insert cam locks Band wooden dowels Cto parts 7.
Fix parts 7to part 4using screws D.

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
14 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]
B x 2
C x 2
4
7
7
8
8
6
C
C
B
B
Assembly Instructions (cont)
Step 7
Insert wooden dowels Cto part 4.
Insert cam locks Bto part 6.
Attach part 6to part 4.
Turn cam locks clockwise to tighten.

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
15 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]
D x 2
C x 2
4
6
5
9
9
C
C
D
D
B
B
B x 4
B
B
Assembly Instructions (cont)

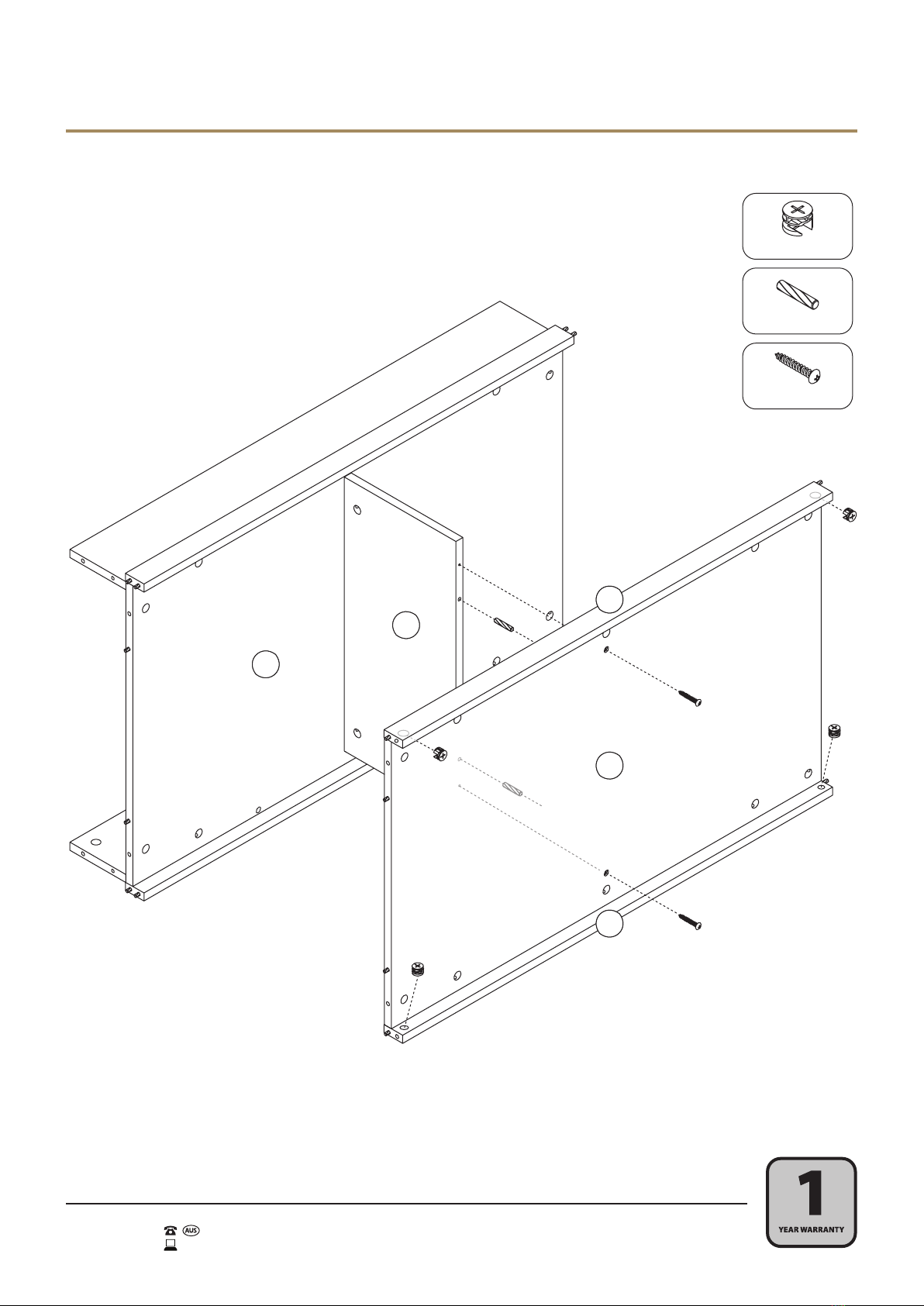

Step 8
Insert wooden dowels Cto part 6.
Insert cam locks Bto parts 9.
Fix part 5to part 6using screws D, as shown.

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
16 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]
5
4
2
7
Assembly Instructions (cont)

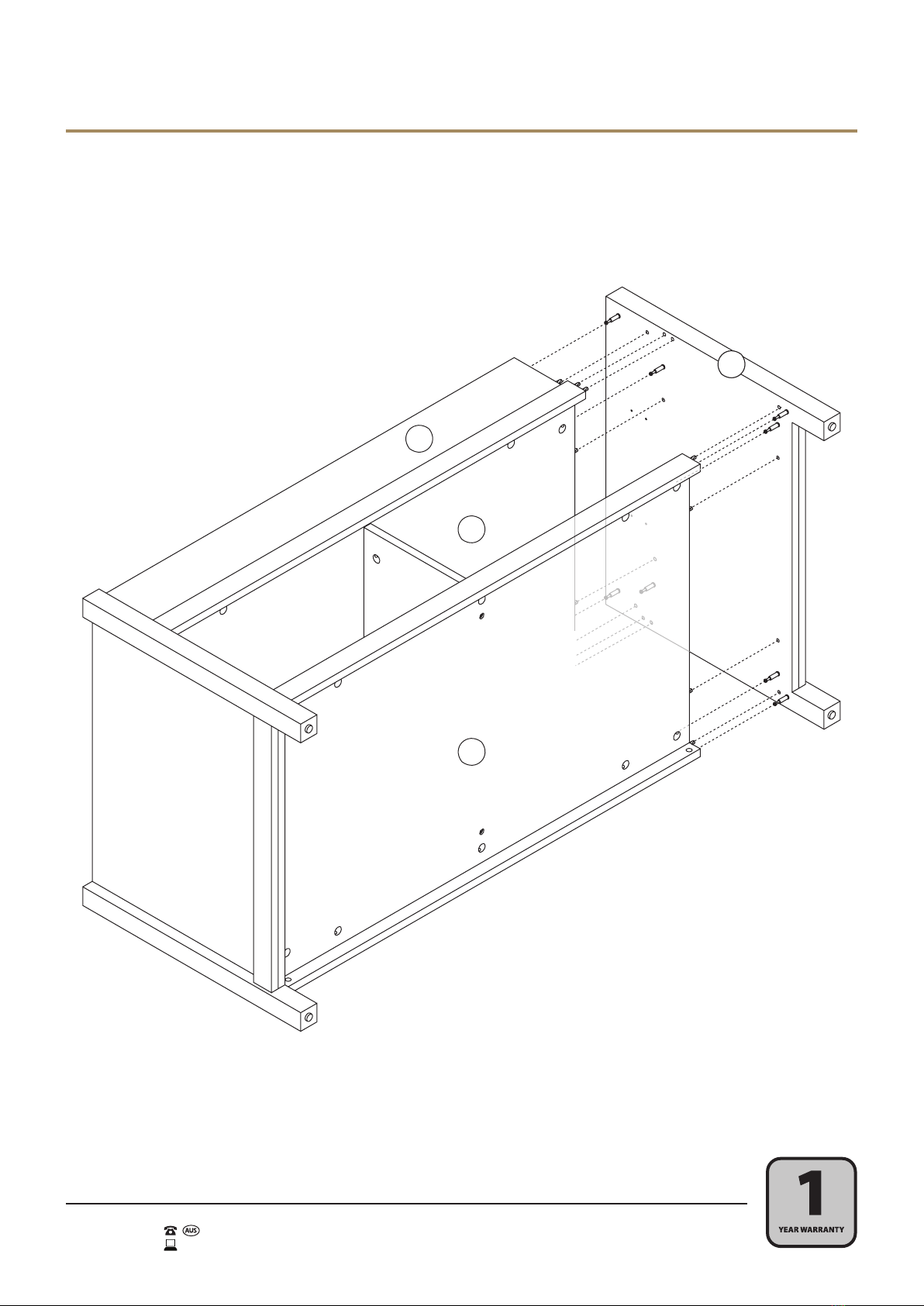

Step 9
Attach part 2to assembled unit, as shown.
Turn cam locks clockwise to tighten.

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
17 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]
4
3
5
7
Assembly Instructions (cont)
Step 10
Attach part 3to assembled unit, as shown.
Turn cam locks clockwise to tighten.

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
18 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]
I x 6
J x 1
1
11
10
I
I
I
I
J
I
I
100 45 376037
100 45 376037
10
11
Assembly Instructions (cont)

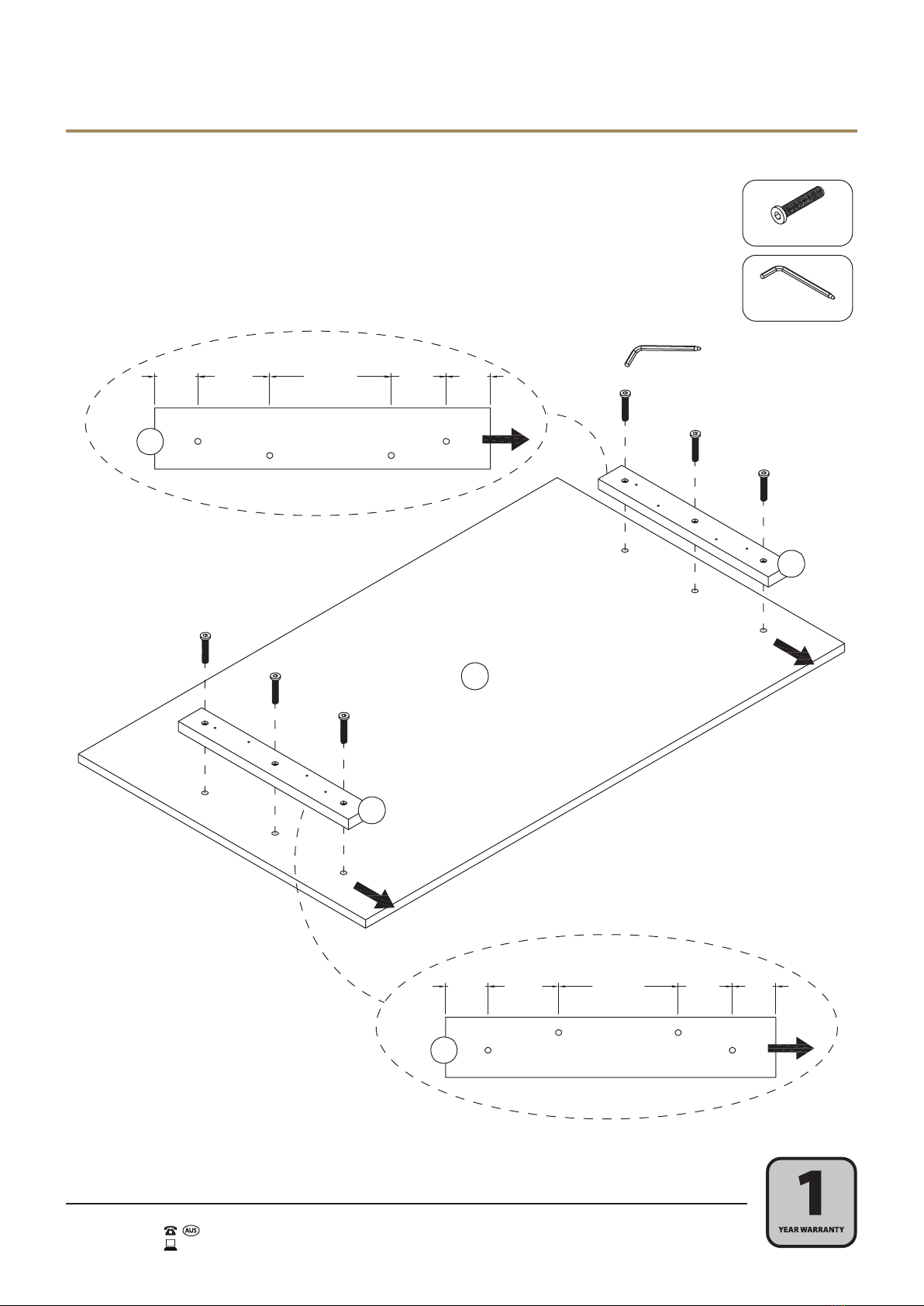

Step 11
Fix parts 10 and 11 to part 1using bolts Iand allen key J, as shown.
Important: please ensure you reference the diagrams and measurements above to
install parts 10 and 11 correctly.

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
19 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]
F
H
HHH
H
G
H
H
H
1
F x 1
G x 1
H x 8
H
HHHF
Assembly Instructions (cont)

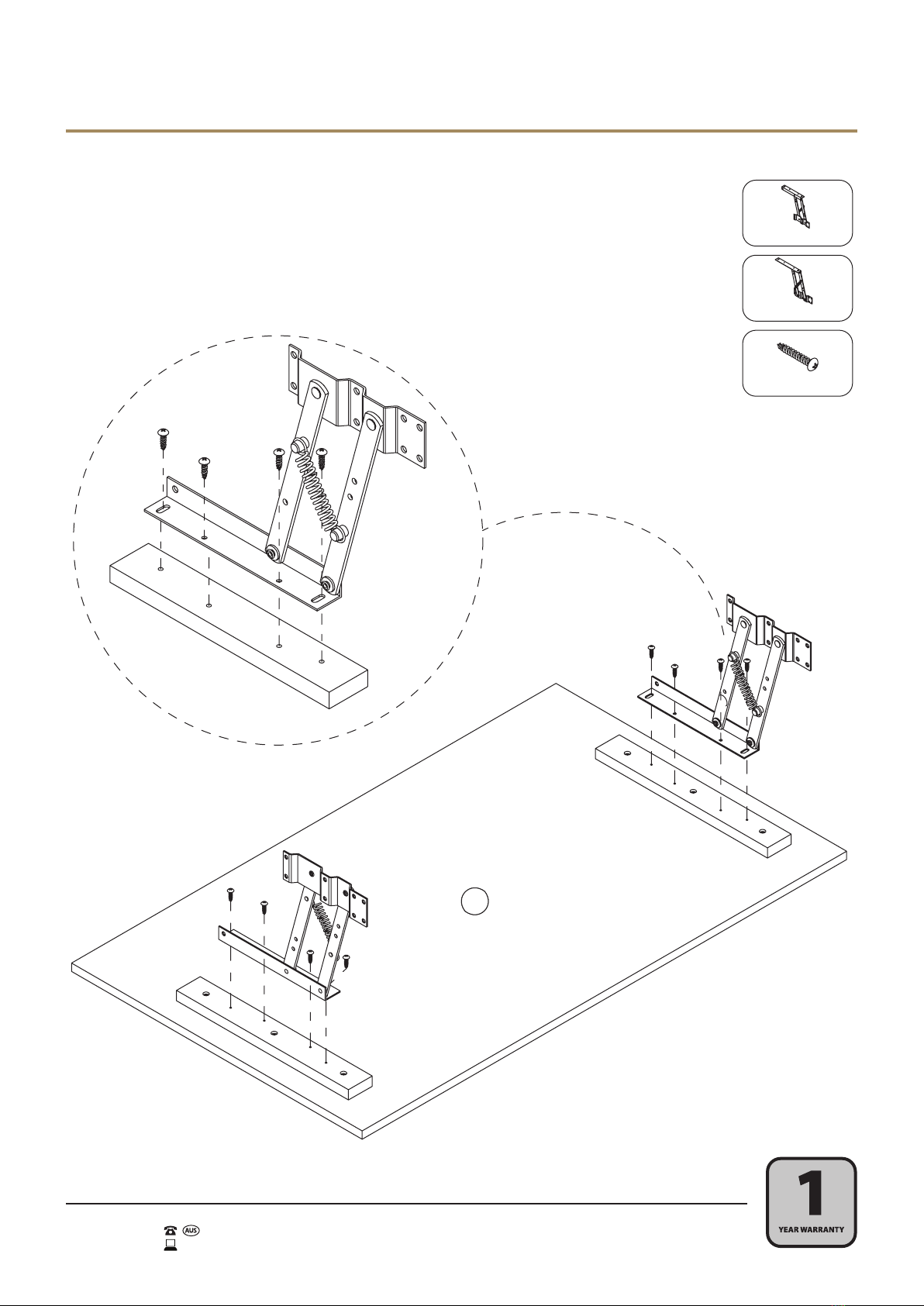

Step 12
Fix hinges Fand Gto part 1using screws H, as shown.

ASSEMBLY INSTRUCTIONS
MODEL: UH7728 / UH7729 PRODUCT CODE: 705685 / 705686 10/2021
20 of 23
AFTER SALES SUPPORT
1300 777 137
[e-mail]
1
12
G
I
IJ
F
I x 2
J x 1
I
J
F
G
I
Assembly Instructions (cont)

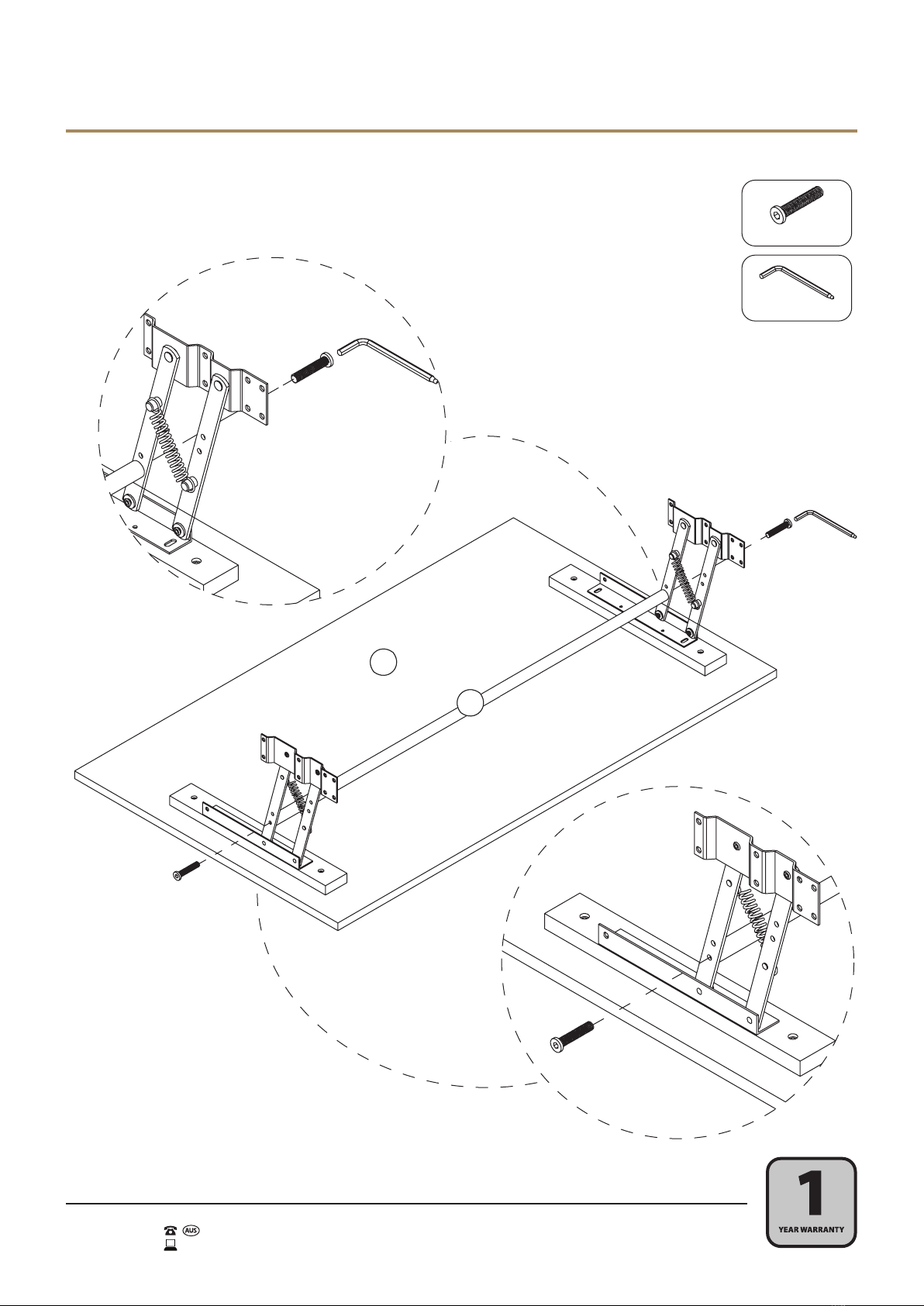

Step 13
Fix part 12 to hinges Fand Gusing bolts Iand allen key J, as shown.
