SOHL FURNITURE SEWB-2 User manual

Lift Up Storage Bench
Assembly Instructions
ASSEMBLY INSTRUCTIONS
MODEL: SEWB-2 PRODUCT CODE: 705712 10/2021
AFTER SALES SUPPORT
1300 777 137
[e-mail]

ASSEMBLY INSTRUCTIONS
MODEL: SEWB-2 PRODUCT CODE: 705712 10/2021
2 of 18
AFTER SALES SUPPORT
1300 777 137
[e-mail]
Assembly requirements
Equipment: phillips head screwdriver and flat head screwdriver.
2 x adults required
1.5 m x 1m assembly space required
1 hour assembly time
Contents
Warranty Details 3
Assembly Tips 4
Using Cam Lock and Quickfit 5
Hardware List 6
Parts List 7
Assembly Instructions 8
Repair and Refurbished Goods or Parts Notice 18

ASSEMBLY INSTRUCTIONS
MODEL: SEWB-2 PRODUCT CODE: 705712 10/2021
3 of 18
AFTER SALES SUPPORT
1300 777 137
[e-mail]
Lift Up Storage Bench
Warranty Details
REGISTER YOUR PURCHASE ATwww.aldi.com.au/en/about-aldi/product-registration/TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION
The product is guaranteed to be free from defects in workmanship and parts for a period
of 12 months (dependent on product) from the date of purchase. Defects that occur within this
warranty period, under normal use and care, will be repaired, replaced or refunded
at our discretion. The benefits conferred by this warranty are in addition to all rights and
remedies in respect of the product that the consumer has under the Competition and Consumer
Act 2010 and similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.

ASSEMBLY INSTRUCTIONS
MODEL: SEWB-2 PRODUCT CODE: 705712 10/2021
4 of 18
AFTER SALES SUPPORT
1300 777 137
[e-mail]
Assembly Tips
Important
•
Please read these instructions carefully before use and keep for future
reference.
•
This product is intended for domestic use only and is not designed for commercial use.
•
Do not use this item if any components are missing or damaged.
•
Assembly to be carried out by a competent adult only.
•
During assembly children should be kept away from the product due to possible risk of
injury.
Tips bef
ore you start:
1.
Please check that all parts are present before you start the assembly of your furniture.
2.
For ease and speed of assembly, we recommend that before you commence each step of
the assembly, that you identify all the parts required for that step.
3.
For larger items, please ensure that you have sufficient space and people to assemble
your product safely.
4.
We recommend that, where possible, all items are assembled near to the area in which
they will be placed in use, to avoid moving the product unnecessarily once assembled.
5.
For the protection of your furniture, we recommend that the product is placed on a
protected surface during assembly to prevent any damage.
6.
During assembly please take care not to over-tighten any fittings, as this may
damage the product.
7.
Always place the product on a flat, steady and stable surface.
8.
Do not stand on the product. Do not use the product as a stepladder.
9.
This product is intended for indoor, household use only as it is a non-industrial product.
10.
Usage of power tools is not recommended for assembling this product.
11.
Please use caution and care when lifting the product to avoid personal injury
and/or damage.
Car
e and Maintenance of your Furniture
Regularly check all fastenings to ensure that they are properly tightened.
To clean your item, please use a damp cloth and wipe clean.
Never allow any kind of liquid to remain on your furniture. Absorption can cause wood
to warp or finishes to de-laminate.
Please do not place hot items (eg. hot drinks) directly on to the surface.
Please refer to separate Warranty Certificate for full warranty details and information.

ASSEMBLY INSTRUCTIONS
MODEL: SEWB-2 PRODUCT CODE: 705712 10/2021
5 of 18
AFTER SALES SUPPORT
1300 777 137
[e-mail]
CAM LOCK
When fitting cam lock, ensure starting position is correct before you insert connecting quickfit.
Quickfit head should be in the centre of the
cam lock when the two panels are joined.
Cam lock should be inserted before quickfit.
Turn cam lock clockwise to tighten.
Using Cam Lock and Quickfit
QUICKFIT
Tighten quickfit until shoulder is flush with panel. Do not overtighten or undertighten.

ASSEMBLY INSTRUCTIONS
MODEL: SEWB-2 PRODUCT CODE: 705712 10/2021
6 of 18
AFTER SALES SUPPORT
1300 777 137
[e-mail]
4 x A
Quickfit
Screw
4 x B
Cam Lock
12 x C
Wooden
Dowel
8 x D
Bolt
24 x G
Screw
2 x H
Liftup Hinge
8 x E
Barrel Nut
3 x F
Hinge
8 x I
Screw
1 x J
Allen Key
8 x K
Sticker
Hardware List

ASSEMBLY INSTRUCTIONS
MODEL: SEWB-2 PRODUCT CODE: 705712 10/2021
7 of 18
AFTER SALES SUPPORT
1300 777 137
[e-mail]
1 - 1pc 3 - 1pc
5 - 1pc 6 - 1pc
7 - 1pc 8 - 1pc 9 - 1pc
4 - 1pc
2 - 1pc
Parts List

ASSEMBLY INSTRUCTIONS
MODEL: SEWB-2 PRODUCT CODE: 705712 10/2021
8 of 18
AFTER SALES SUPPORT
1300 777 137
[e-mail]
A x 2
E x 8
F x 3
G x 15
E
E
E
E
E
E
E
E
A
A
G
G
G
F
G
G
G
G
G
F
G
G
G
G
G
F
4
5
G
G
G
F
G
G
G
G
Assembly Instructions
Step 1
Fix quickfit screws Ato parts 4and 5.
Insert nuts Eto parts 4and 5.
Fix hinges Fto part 5using screws Gas shown.

ASSEMBLY INSTRUCTIONS
MODEL: SEWB-2 PRODUCT CODE: 705712 10/2021
9 of 18
AFTER SALES SUPPORT
1300 777 137
[e-mail]
A x 2
A
2
A
3
Assembly Instructions (cont)
Step 2
Insert quickfit screws Ato parts 2and 3.

ASSEMBLY INSTRUCTIONS
MODEL: SEWB-2 PRODUCT CODE: 705712 10/2021
10 of 18
AFTER SALES SUPPORT
1300 777 137
[e-mail]
B x 2
B
C
C
B
4
8
5
C x 2
Assembly Instructions (cont)

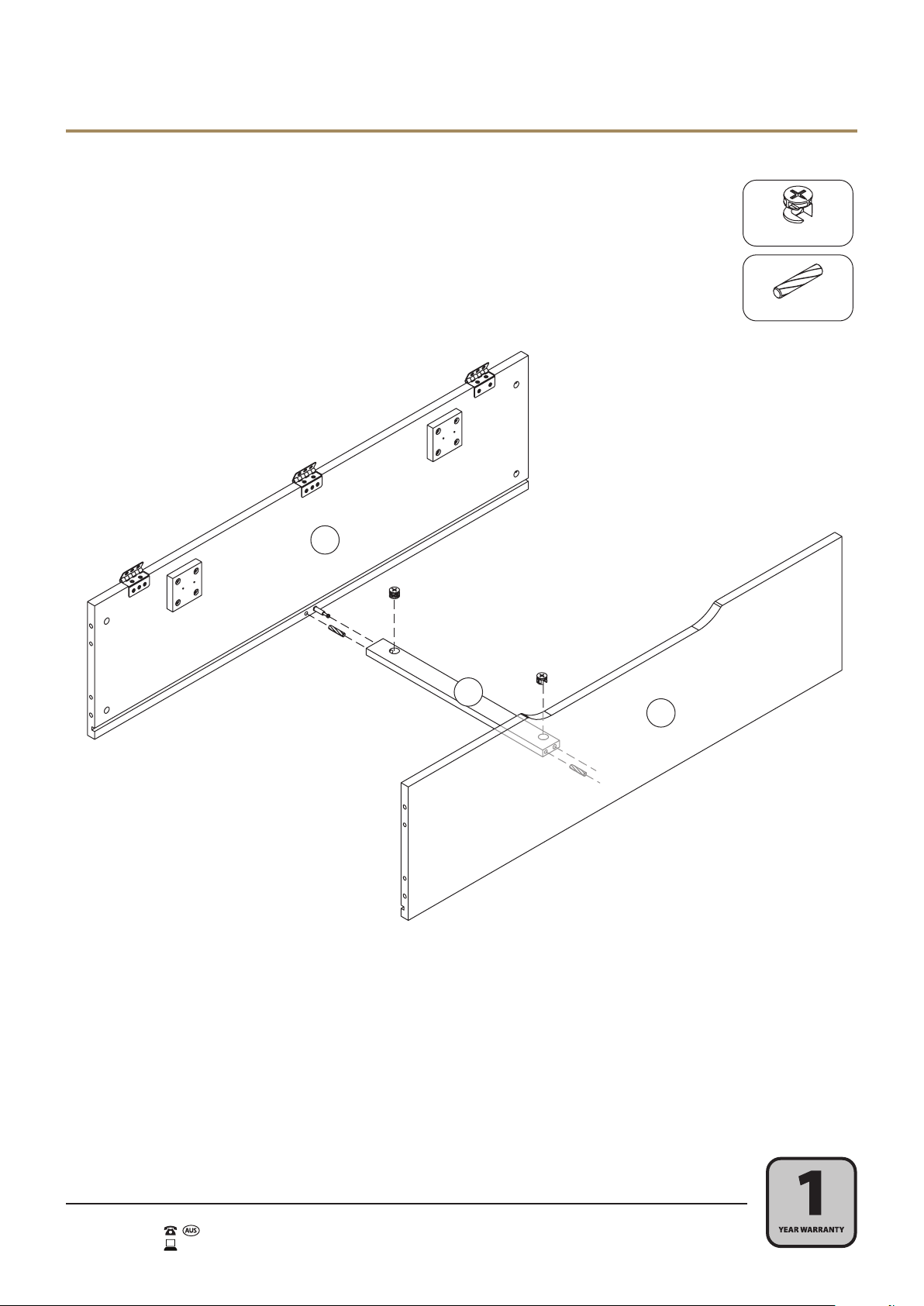

Step 3
Insert cam locks Band wooden dowels Cto part 8.
Attach part 8to parts 4and 5, as shown.

ASSEMBLY INSTRUCTIONS
MODEL: SEWB-2 PRODUCT CODE: 705712 10/2021
11 of 18
AFTER SALES SUPPORT
1300 777 137
[e-mail]
B x 1
C x 5
B
C
D
D
D
J
D
C
C
C
5
2
7
4
D x 4
J x 1
Assembly Instructions (cont)
Step 4
Insert cam lock Bto part 7.
Insert wooden dowels Cto parts 4, 5and 7.
Fix part 2to parts 4, 5and 7using bolts Dand allen key J.

ASSEMBLY INSTRUCTIONS
MODEL: SEWB-2 PRODUCT CODE: 705712 10/2021
12 of 18
AFTER SALES SUPPORT
1300 777 137
[e-mail]
5
2
7
4
6
Assembly Instructions (cont)

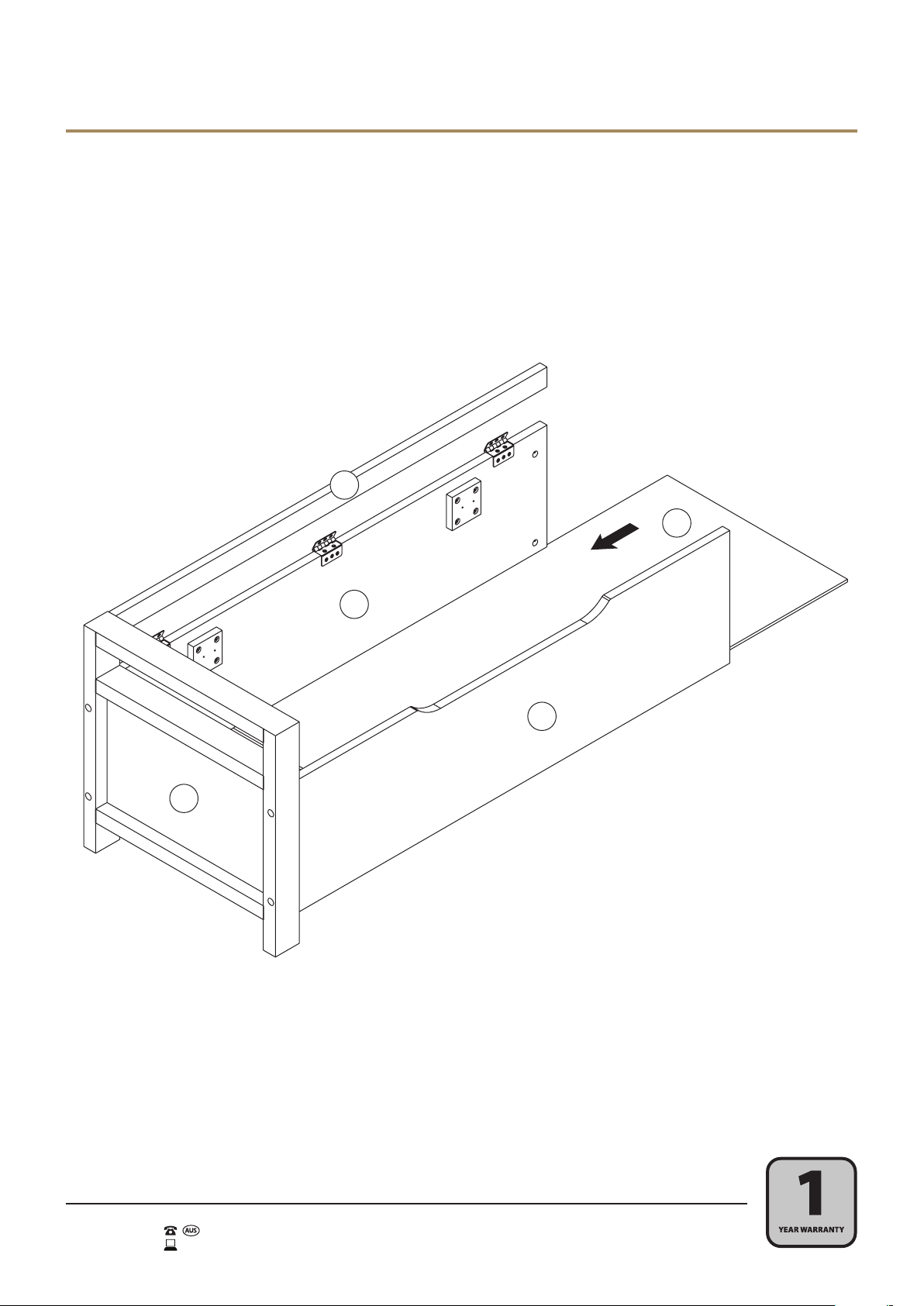

Step 5
Insert part 6into grooves between parts 2, 4and 5, as shown.

ASSEMBLY INSTRUCTIONS
MODEL: SEWB-2 PRODUCT CODE: 705712 10/2021
13 of 18
AFTER SALES SUPPORT
1300 777 137
[e-mail]
B x 1
C x 5
D x 4
J x 1
5
7
4
3
B
C
D
D
D
D
C
C
C
C
J
Assembly Instructions (cont)
Step 6
Insert cam lock Bto part 7.
Insert wooden dowels Cto parts 4, 5and 7.
Fix part 3to parts 4, 5and 7using bolts Dand allen key J.

ASSEMBLY INSTRUCTIONS
MODEL: SEWB-2 PRODUCT CODE: 705712 10/2021
14 of 18
AFTER SALES SUPPORT
1300 777 137
[e-mail]
G x 9
5
1
G
G
G
G
G
G
G
GG
G
G
G
F
Assembly Instructions (cont)

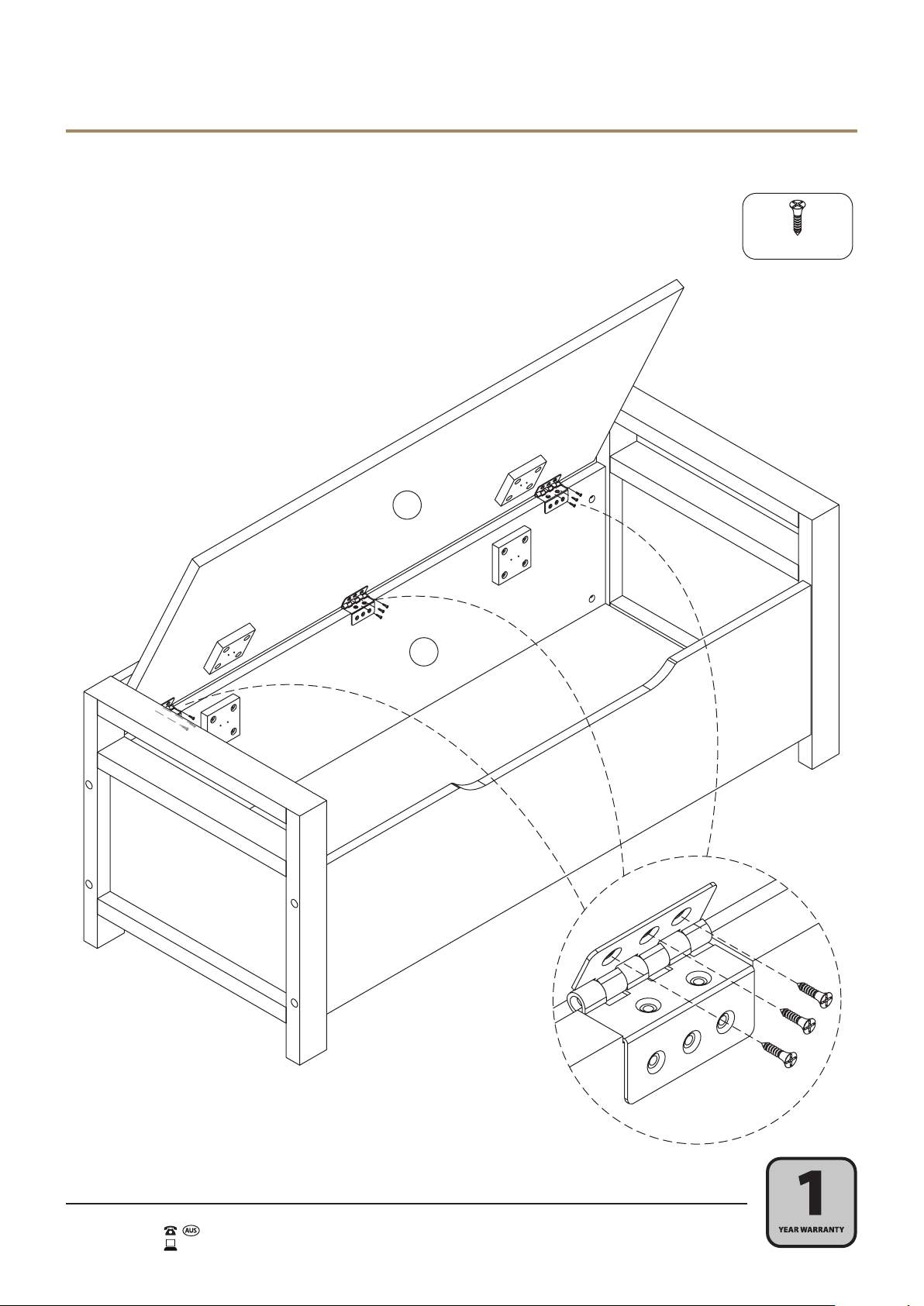

Step 7
Fix part 1to part 5using screws G, as shown.

ASSEMBLY INSTRUCTIONS
MODEL: SEWB-2 PRODUCT CODE: 705712 10/2021
15 of 18
AFTER SALES SUPPORT
1300 777 137
[e-mail]
I
I
I
I
H
5
1
II
II
II
II
H
H
H x 2
I x 8
Assembly Instructions (cont)
Step 8
Fix lift up hinge Hto parts 1and 5using screws I, as shown.

ASSEMBLY INSTRUCTIONS
MODEL: SEWB-2 PRODUCT CODE: 705712 10/2021
16 of 18
AFTER SALES SUPPORT
1300 777 137
[e-mail]
9
1
Assembly Instructions (cont)
Step 9
Place part 9on top of part 1, as shown.
Please note when accessing the inner storage you must remove the cushion prior to
opening the lid. Once you are finished, close the lid and return the cushion into position.

ASSEMBLY INSTRUCTIONS
MODEL: SEWB-2 PRODUCT CODE: 705712 10/2021
17 of 18
AFTER SALES SUPPORT
1300 777 137
[e-mail]
120kg
K x 8
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
Assembly Instructions (cont)
Step 10
To conceal exposed hardware, attach stickers Konto the assembled unit,
as shown.
Please note: the maximum recommended weight is 120kg.
Your lift up storage bench is ready for use.
Register your purchase at www.aldi.com.au/en/about-aldi/product-registration/
to keep up-to-date with important product information

ASSEMBLY INSTRUCTIONS
MODEL: SEWB-2 PRODUCT CODE: 705712 10/2021
18 of 18
AFTER SALES SUPPORT
1300 777 137
[e-mail]
Lift Up Storage Bench
Repair and Refurbished
Goods or Parts Notice
Unfortunately, from time to time, faulty products are manufactured which need to be returned to
the Supplier for repair.
Please be aware that if your product is capable of retaining user-generated data (such as files
stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored
on a portable media player, games saved on a games console or files stored on a USB memory
stick) during the process of repair, some or all of your stored data may be lost.
We recommend you save this data elsewhere prior to sending the product for repair.
You should also be aware that rather than repairing goods, we may replace them with
refurbished goods of the same type or use refurbished parts in the repair process.
Please be assured though, refurbished parts or replacements are only used where they meet
ALDI’s stringent quality specifications.
If at any time you feel your repair is being handled unsatisfactorily, you may escalate your
complaint. Please telephone us on 1300 777 137 or write to us at:
UNCLE BILL’S AUSTRALIA PTY LTD
48B Egerton Street Silverwater NSW 2128 Australia
1300 777 137
[e-mail]
Opening Hours 9:00am - 4:30pm (Mon-Fri), 9:00am - 3:00pm (Sat)
