Solar Energy WWKS 300 User manual

Domestic Hot Water Tank
Installation and
Operating Manual
WWKS 300
WWKS 500
For the professionals
Read carefully before installation
EN

2We reserve the right to make changes owing to technical improvements.
1 Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Safety Instructions and Explanation of
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1 Safety instructions. . . . . . . . . . . . . . . . . 3
2.2 Explanation of symbols . . . . . . . . . . . . . 4
3 Scope of Supply. . . . . . . . . . . . . . . . . . . 4
4 Specifications . . . . . . . . . . . . . . . . . . . . 5
4.1 Legal Regulations . . . . . . . . . . . . . . . . . 5
5 Technical Data . . . . . . . . . . . . . . . . . . . . 6
6 Installation . . . . . . . . . . . . . . . . . . . . . . . 8
6.1 Installation of the tank . . . . . . . . . . . . . . 8
7 Comissioning . . . . . . . . . . . . . . . . . . . . . 8
7.1 Maintenance . . . . . . . . . . . . . . . . . . . . . 9
8 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 9
9 Annexe . . . . . . . . . . . . . . . . . . . . . . . . . 10
Table of Contents
Table of Contents

3Use
We reserve the right to make changes owing to technical improvements..
1 Use
The domestic hot water tank serves for heating
and storing process water. Above all, solar sy-
stems and supplementary heating systems, like
gas, oil heaters or solid boilers, are the heat gene-
rators that come into consideration.
Any other use, or use over and above that de-
scribed, will be considered not in conformity with
intended purpose. The manufacturer rejects all
liability for damage from usage not in conformity
with intended purpose and the owner/operator
alone bears the risk.
2 Safety Instructions and Explanation of Symbols
2.1 Safety instructions
►The tank may only be installed, commissioned
and maintained by qualified technical person-
nel.
►This appliance is not intended for use by per-
sons (including children) with limited physical,
sensory or mental abilities or with a lack of
experience and/or knowledge, unless they are
being supervised by a person who is respon-
sible for their safety, or have received instruc-
tions from such a person as regards its use.
►Comply with the instructions, so that trouble-
free working is ensured.
►Install only in dry and frost-free rooms.
►Operate only at ambient temperatures bet-
ween +2 °C and +40 °C.
►The operating pressures given on the type
plate may not be exceeded! Touching the tank
during operation can result in burns.
►The installation and operation must be carried
out in keeping with the locally applicable regu-
lations and standards or directives.
►For maintenance, or in case of faults, contact
the responsible technical workshop.

4Scope of Supply We reserve the right to make changes owing to technical improvements.
3 Scope of Supply
Domestic hot water tank
Bild 1: Tank
Safety Instructions
are marked with a warning triangle as
shown alongside.
Safety instructions mark important information for
cases in which there can be possible danger for
humans and the machine. Additional keywords
indicate the type and seriousness of the danger.
Notes
are marked with an information trian-
gle as shown alongside.
Notes mark important information for cases in
which there is no danger for humans and the
machine.
max. tightening
torque [Nm]
ax tightening
ma
Spanner
specifies the prescribed direction
of rotation and the maximum
tightening torque.
2.2 Explanation of symbols

5Specifications
We reserve the right to make changes owing to technical improvements..
4 Specifications
4.1 Legal Regulations
The Device must be installed and operated
according to the following norms and country
specific directives and provisions
• DIN EN 12828
• DIN 1988
• DIN 4708
• DIN 4751
• DIN 4753-1
• DIN 4757
• DIN 18380
• DIN 18381
• DIN 18382
• DIN EN 12975
• VDE 0100
• VDE 0185
• VDE 0190
• ÖNORM ENV
12977-1
• ÖNORM M7700
• ÖNORM M7701
• ÖNORM M7731

6Technical Data We reserve the right to make changes owing to technical improvements.
AHot water
BHeating inflow
CCirculation return line
DHeating return line
ECold water / Draining
FAnode not insulated
GThermometer
H Plug G1 1/2", insulation and
cover
I Blind flange with EPDM dia-
phragm gasket
JPlug 1 1/4"
KSolar return line G1"
L Solar inflow G1"
Sensor positions
1 Heating zone
2 Solar zone

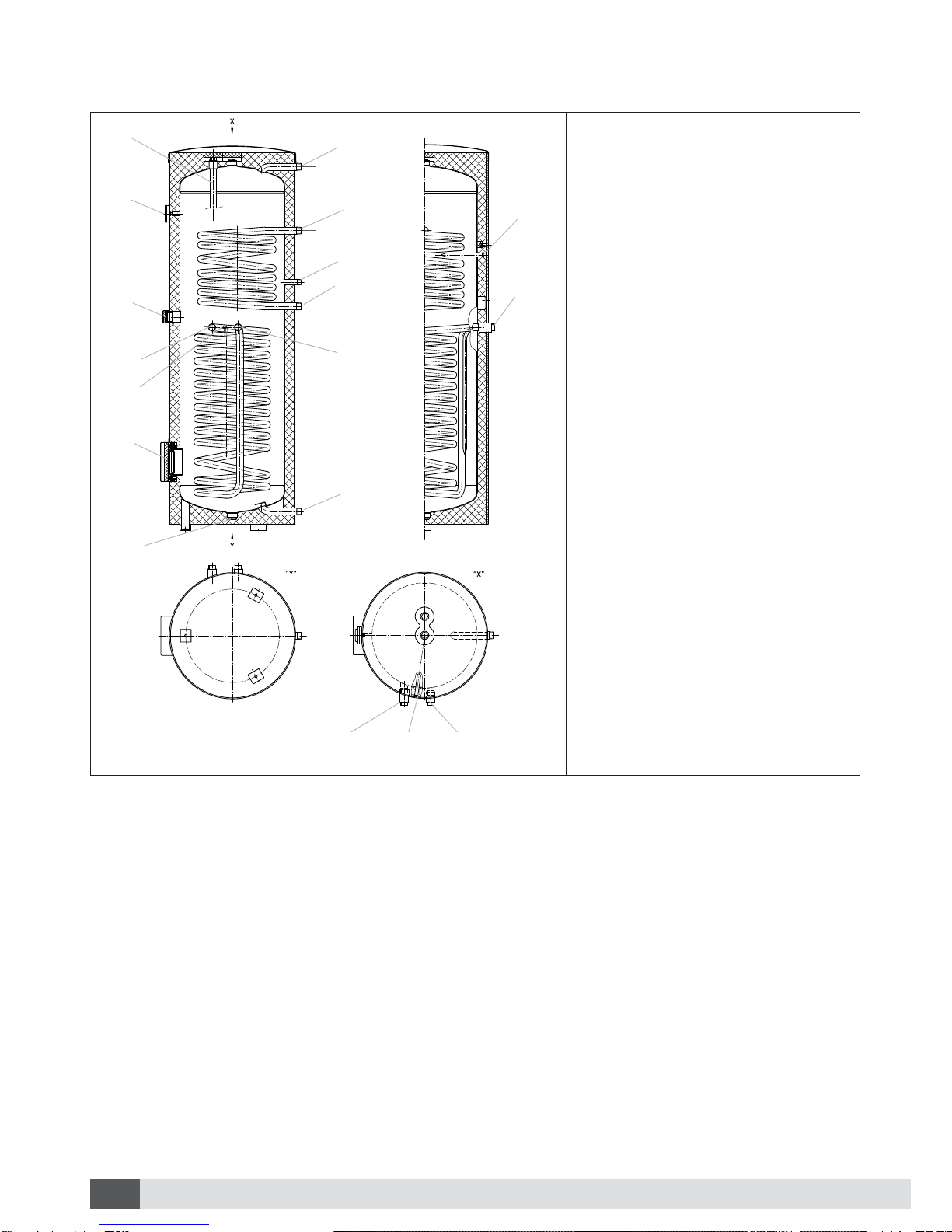

Bild 2: Structur of the tank
5 Technical Data
A
B
C
D
E
F
G
H
I
J
K
K
L
1
2
2LK

7Technical Data
We reserve the right to make changes owing to technical improvements..
Tab. 1: Technical Data of the WWKS 300
Domestic hot water tank WWKS 300
sertil592emulovteN
mm006retemaiD
mm4971thgieH
gk611thgieW
Permissible operating tempera-
ture of service water
95° C
Permissible operating pressure of
service water
10 bar
Permissible operating tempera-
ture of solar circuit
110° C
Permissible operating pressure of
solar circuit
10 bar
Heating surface of solar panel 1,53 m2
Rating of solar heat exchanger 48 kW
Volume of solar heat exchanger 10,8 litres
Permissible operating tempera-
ture of heating water
110° C
Permissible operating pressure of
heating water
10 bar
Heating surface of heating panel 0,8 m2
Rating of heating panel 26 kW
Volume of heating panel 5,7 litres
Tab. 2: Technical data of thr WWKS 500
Domestic hot water tank WWKS 500
sertil174emulovteN
mm007retemaiD
mm0291thgieH
gk941thgieW
Permissible operating tempera-
ture of service water
95° C
Permissible operating pressure of
service water
10 bar
Permissible operating tempera-
ture of solar circuit
110° C
Permissible operating pressure of
solar circuit
10 bar
Heating surface of solar panel 1,95 m2
Rating of solar heat exchanger 65 kW
Volume of solar heat exchanger 13,6 litres
Permissible operating tempera-
ture of heating water
110° C
Permissible operating pressure of
heating water
10 bar
Heating surface of heating panel 1,27 m2
Rating of heating panel 40 kW
Volume of heating panel 8,9 litres

8Installation We reserve the right to make changes owing to technical improvements.
7 Comissioning
Damage to property
Start up the machine only after it has
been completely filled
►Check the union nuts for firmness.
►Rinsing the machine.
►Filling and venting the machine till the system
is completely de-aerated.
►Before commissioning, check whether the
water supply has been opened and the tank
filled.
►The compact hot water storage tank may not
be operated above 95°C. The ideal operating
temperature is 50 - 60°C. With these opera-
ting temperatures, you can save energy and
avoid the heat-dependent calcification.
►Electrical heating elements may only be in-
stalled by approved electrical technicians.
Care must be taken that the electrical hea-
ting element is connected in keeping with the
circuit diagram and in accordance with the
country-specific regulations. The specifications
of the EVU and VDE must also be mandatorily
observed.
►The electrical heating element should be
maintained annually and de-calcified if re-
quired.
Flow noises
indicate air trapped in the machine.
After commissioning, the function and the air tig-
htness of the entire machine should be checked.
6.1 Installation of the tank
►Electrical heating elements may only be in-
stalled by approved electrical technicians.
►A dry, frost-free room that provides sufficient
space for maintenance work is requried as the
installation site.
►The compact hot water storage tank must be
installed so that it is protected from splashing
water and may only be run at room tempera-
tures below 40 ° C.
►When positioning the tank, it is necessary to
ensure that the underlying ground is of suffici-
ent strength. .
►The tank should be positioned min. 10 cm
away from the wall
►The connections should be made according
to EN 806-1 and DIN 4753/1. To equalise
pressure variations or water hammers in the
cold water network and to avoid unnecessary
wastage of water, we recommend the instal-
lation of a suitable expansion vessel with flow
fittings.
6 Installation

9Warranty
We reserve the right to make changes owing to technical improvements..
• The cleaning of the tank and the inspection of
the plant should be carried out annually.
• The functional safety of the safety valve should
be checked at regular intervals, with an annu-
al maintenance by technical personnel being
recommended. .
• The magnesium anode should first be che-
cked the first time after 2 years, according to
DIN 4753, and then every year, and replaced if
required.
7.1 Maintenance
The manufacturer has a warranty on the supplied
product and its components of 5 years from the
date of delivery.
Unauthorised modifications or changes are not
permitted for safety reasons and will inevitably
lead to the voiding of the warranty for the machi-
ne.
8 Warranty

10 Annexe We reserve the right to make changes owing to technical improvements.
9 Annexe
X
1794 ±5
1015 ±5
324 ±5
30
M12
Y
„Y“
120°
O 500
O 600 ±5
90 ±5
965 ±5
1064 ±5
1179 ±5
1424 ±5
1728 ±5
965 ±2
1289 ±5
392,5 ±1
130 ±1
340 ±2 327 ±2
90
„X“
8°
333 ±2
125 ±2

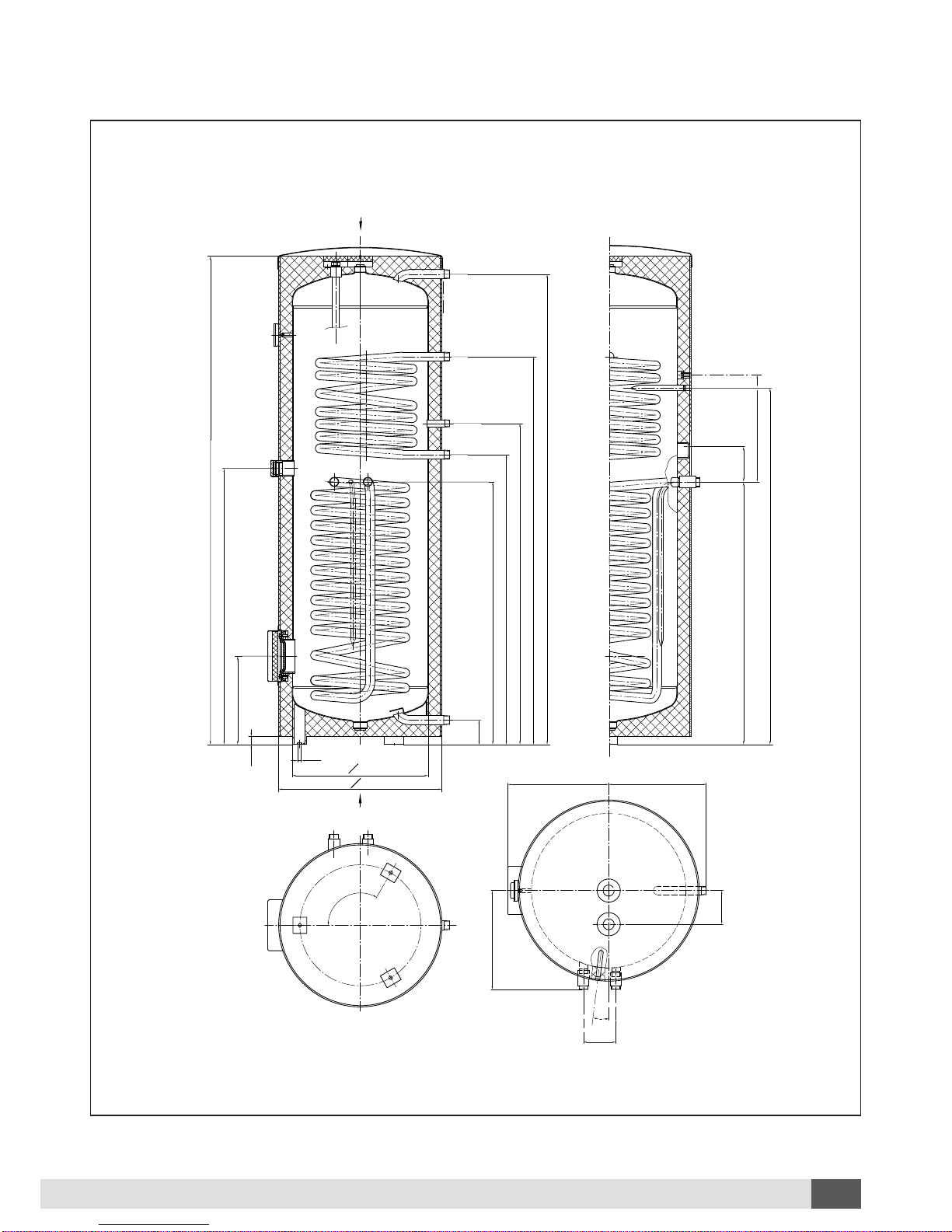

Bild 3: Dimensions of the WWKS 300

11Annexe
We reserve the right to make changes owing to technical improvements..
X
1920 ±5
1040,5 ±5
276 ±5
30 ±3
M12
Y
„Y“
120°
O 597
O 700 ±5
55 ±5 966 1115 ±5
1265 ±5
1605 ±5
1856 ±5
966 ±2
1278 ±5 392,5 ±1
130 ±1
7°
120 ±2
382 ±2
130 ±2
390 ±2 377 ±2
Bild 4: Dimensions of the WWKS 500

700275-1005-en
Contact
www.solarsales.eu
