Solaris LED RGBW 16x1 Half-Batten User manual

RGBW 16x1 Half-Batten
USER MANUAL

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 2 -
TABLE OF CONTENTS
1. INTRODUCTION ............................................................................................................................................3
PRODUCT OVERVIEW ............................................................................................................................................3
WHAT IS INCLUDED ...............................................................................................................................................3
AVAILABLE OPTIONS .............................................................................................................................................3
UNPACKING INSTRUCTIONS ...................................................................................................................................3
POWER REQUIREMENTS........................................................................................................................................3
FREQUENCY SETTING............................................................................................................................................4
SAFETY INSTRUCTIONS .........................................................................................................................................4
2. SETUP............................................................................................................................................................5
FUSE REPLACEMENT.............................................................................................................................................5
FIXTURE LINKING ..................................................................................................................................................5
DMX DATA CABLE................................................................................................................................................5
CABLE /CONNECTORS ..........................................................................................................................................6
3- TO 5-PIN CONVERSION CHART...........................................................................................................................6
SETTING UP A DMX SERIAL DATA LINK ..................................................................................................................7
FIXTURE MOUNTING /RIGGING ..............................................................................................................................7
3. OPERATING INSTRUCTIONS.......................................................................................................................8
CONTROL PANEL NAVIGATION ...............................................................................................................................8
MENU MAP...........................................................................................................................................................9
DMX MODES SUMMARY......................................................................................................................................11
RGB XPIX DMX CHANNELS ................................................................................................................................12
RGB XPIX 16-BIT DMX CHANNELS.....................................................................................................................13
RGBW XPIX DMX CHANNELS.............................................................................................................................14
RGBW XPIX 16-BIT DMX CHANNELS..................................................................................................................15
AUTOLINK MODE 1..............................................................................................................................................18
AUTOLINK MO DE 2.............................................................................................................................................19
STROBE MODES 16X1.........................................................................................................................................20
STROBE +RGB XPIX..........................................................................................................................................22
STROBE +RGBW XPIX.......................................................................................................................................23
4. APPENDIX....................................................................................................................................................24
BASICS OF DMX CONTROL..................................................................................................................................24
GENERAL MAINTENANCE.....................................................................................................................................24
LIMITED WARRANTY............................................................................................................................................25
RETURN PROCEDURE..........................................................................................................................................25
CONTACT INFORMATION......................................................................................................................................26
TECHNCIAL SPECIFICATIONS................................................................................................................................27

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 3 -
1. INTRODUCTION
PRODUCT OVERVIEW
These fixtures are linear LED fixtures with high-intensity RGBW single-chip Cree®LEDs grouped into multiple
independent pixels. In-lens color mixing prevents multicolor shadows. Advanced fixture electronics deliver
flicker-free output with smooth 16-bit dimming.
In-lens color mixing.
Multiple control modes including parametric modes with effects, whole fixture control, and independent
pixel control.
Flicker-free output with smooth 16-bit dimming.
16-bit DMX512 control.
WHAT IS INCLUDED
1x Solaris LED RGBW 16x1 fixture
1x Power cable
1x User Manual
AVAILABLE OPTIONS
Heavy-duty bar yoke (Batten and Half-Batten only)
Lenses: 16°, 22°, 36°, 47°
UNPACKING INSTRUCTIONS
Upon receipt of the fixture, carefully unpack the carton and check the contents to ensure that all parts are
present and in good condition. Notify the shipper immediately and retain packing material for inspection if
any parts appear to be damaged from shipping or if the carton itself shows signs of mishandling. Save the
carton and all packing materials. In the event that a fixture must be returned to the factory, it is important
that the fixture be returned in the original factory box and packing.
POWER REQUIREMENTS
Before powering the unit, make sure the line voltage is within the range of accepted voltages. This fixture
accommodates 100-240VAC, 50/60Hz. All fixtures must be powered directly from a switched circuit and
cannot be operated with a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0-100% switch.
When powered up, Solaris LED performs a preprogrammed internal test. On initial power-up the factory
default DMX address appears on the display screen and Solaris LED is ready for operation. After initial
power-up, the last-saved DMX address will appear.

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 4 -
FREQUENCY SETTING
Depending on location, change the Default Frequency setting to match the mains power (e.g., Canada
and the US should be set at 60Hz). Proper frequency setting will ensure minimum amount of visible
artifacts when using Solaris LED on camera.
SAFETY INSTRUCTIONS
Please keep this Operation Manual for future reference. If unit is sold to another user, make sure they also
receive this instruction booklet.
Ensure fixture is connected to proper voltage, and that line voltage is not higher than that stated on the
fixture.
Make sure there are no flammable materials close to the unit while operating.
Always disconnect from the power source before servicing or fuse replacement. Always use the fuse
specified in this manual.
Always use a safety cable when hanging fixture overhead.
Maximum ambient temperature (Ta) is 40°C (104°F). Do not operate fixture at temperatures above this
rating.
In the event of a serious operating problem, stop using the unit immediately. Repairs must be carried out by
trained, authorized personnel. Contact the nearest authorized technical assistance center. Only OEM spare
parts should be used.
Do not connect the device to a dimmer pack.
Make sure power cord is never crimped or damaged.
Never disconnect power cord by pulling or tugging on the cord.
Avoid direct eye exposure to the light source during operation.
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt
any repairs yourself. In the unlikely event your unit may require service, please contact your
distributor.
Please read these instructions carefully. This user guide
contains important information about the installation,
usage and maintenance of this fixture.

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 5 -
2. SETUP
FUSE REPLACEMENT
The Solaris LED Linear RBW 16x1 uses a 6A 250V slow-blow fuse. To replace fuse:
1. With a screwdriver turn the fuse cap counter-clockwise to remove fuse cap with fuse.
2. Replace fuse attached to fuse cap.
3. Reinsert fuse cap with new fuse and tighten clockwise.
FIXTURE LINKING
A DMX data link is needed to operate one or more fixtures via a DMX-512 lighting console. The combined
number of channels required by all the fixtures on a DMX data link determines the number of fixtures the DMX
data link can support.
Important: Fixtures on a DMX data link must be daisy-chained in one single line. To comply with the
EIA-485 standard, no more than 32 devices should be connected on one data link. Connecting more
than 32 fixtures on one serial data link without the use of a DMX optically-isolated splitter may result in
deterioration of the digital DMX signal.
Maximum recommended DMX data link distance between fixtures: 984 ft. (300 meters).
DMX DATA CABLE
Use a ProPlex® DMX cable or equivalent which meets the specifications for EIA RS-485 applications. Standard
microphone cables cannot transmit DMX data reliably over long distances. The data cable must have the
following characteristics:
2-conductor twisted pair plus a shield
Max. capacitance between conductors –30 pF/ft.
Max. capacitance between conductor and shield –55 pF/ft.
Max. resistance of 20 ohms / 1000 ft.
Nominal impedance 100-140 ohms
Disconnect the power cord before replacing a
fuse and always replace with the same type fuse.

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 6 -
CABLE /CONNECTORS
Cabling must have a male XLR connector on one end and a female XLR connector on the other end.
DMX connector configuration
CAUTION: Do not allow contact between the common and the fixture’s chassis ground. Grounding the
common can cause a ground loop, and your fixture may perform erratically. Test cables with an ohm
meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or
each other.
3-PIN TO 5-PIN CONVERSION CHART
If using a console with a 3-pin DMX output connector, a 3-pin to 5-pin adapter is needed. The chart below details
a proper cable conversion:
3-PIN TO 5-PIN CONVERSION CHART
Conductor
3 Pin Female (output)
5 Pin Male (Input)
Ground / Shield
Pin 1
Pin 1
Data ( -) signal
Pin 2
Pin 2
Data ( + ) signal
Pin 3
Pin 3
Do not use
Do not use
Do not use
Do not use

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 7 -
SETTING UP A DMX SERIAL DATA LINK
1) Connect the male 5-pin XLR connector of the data cable to the female 5-pin XLR output of the DMX console.
Connect the other end of the data cable (female 5-pin XLR) to the male 5-pin XLR connector located on the
Solaris LED.
2) Connect from the fixture output as stated above to the input of the following fixture, and so forth.
3) Continue linking until the last fixture is connected in your DMX signal data chain.
IMPORTANT: In the AutoLink control modes, if the first fixture in chain is set to work in AutoLink 1 or 2
mode, it will take a priority over all subsequent fixtures in the chain. Note! In this case communication
between fixtures is done using a proprietary protocol, other DMX devices in the chain after the first
Solaris LED fixture will not run properly. Powering off one of the fixtures in data chain, will result in a
loss of signal for the remainder of the chain. When using an AutoLink mode, do not connect any other
type of fixtures in your Solaris LED fixture data link.
FIXTURE MOUNTING /RIGGING
Orientation
Solaris LED fixtures may be mounted in any position. Always make sure there is adequate room for
ventilation. Do not obstruct unit’s fan or vents.
Support Stand
Always use a professional stand rated to support weight greater than the Solaris LED weight (see
specifcations). Attach a TVMP spigot to the yoke of the Solaris LED and mount on the stand
Rigging –Always consult a qualified, certified rigging engineer before suspending any fixture
overhead.
Use ProBurger®couplers or equivalent C- or O-type clamps for attaching to truss. It is
important never to obstruct the fan or vents pathway. Adjust the angle of the fixture by
loosening both knobs and tilting the fixture. After finding the desired position, retighten both
knobs.
Always use safety cables!
When selecting installation location, consider routine maintenance.
Never mount fixture where it will be exposed to moisture, high humidity, extreme
temperatures, or restricted ventilation.
temperatures, or restricted ventilation.

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 8 -
3. OPERATING INSTRUCTIONS

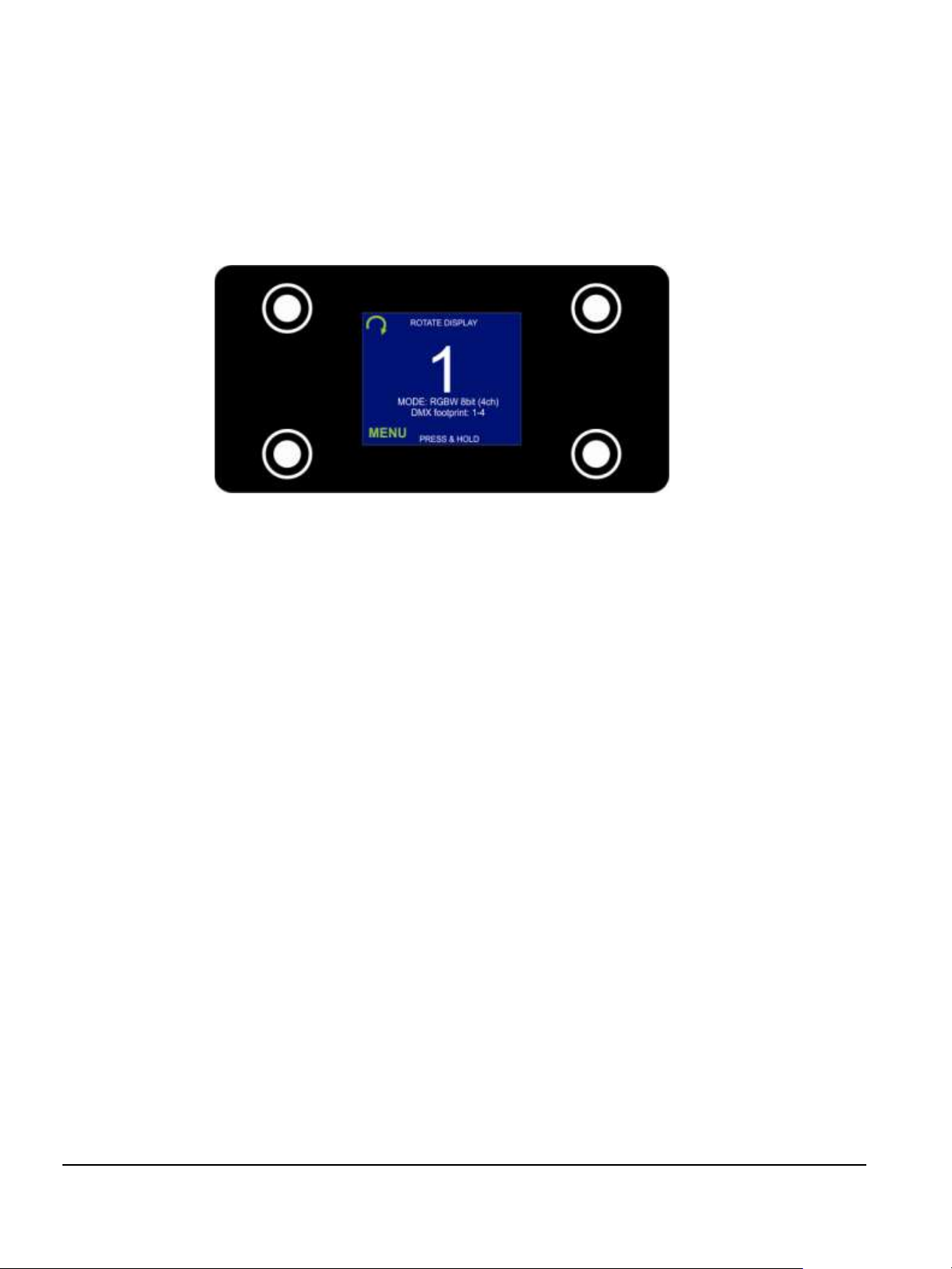

CONTROL PANEL NAVIGATION
Access control panel functions using the four control panel buttons located directly underneath the LCD Display.
The Control Panel LCD Display shows the menu items selected from the menu map (see page 9). When
a menu function is selected, the display will show the first available option for the selected menu function.
To select a menu item, press <MENU>.
Press and hold the <MENU> button to scroll through the top level menu items. This is the top of the menu map.
Use the <UP> and <DOWN> buttons, located right from LCD screen, to navigate the menu map and menu
options. Press the <MENU> button to access the menu function currently displayed or to enable a menu option.
To return to the top of the menu map or menu without changing the value, press the < X > button.
Main Menu Functions:
DMX Address –DMX address selection
Control –Control mode selection menu
Manual –Manual Control
Demo –Demonstration scenes
Config –Configuration Menu
During normal operation, the Control Panel LED Display indicates DMX start address. When the DMX signal is
not connected, or if the Solaris LED is not receiving a DMX signal, the address blinks RED.

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 9 -
MENU MAP
Level 1
Level 2
Level 3
Notes
DMX Address
Set the DMX start address
Control
Set Fixture operating mode
Basic
Simple control as RGB or RGBW wash
fixture
RGB 1pix
RGB 1 pixel 8-bit control mode
RGBW 1pix
RGBW 1 pixel 8-bit control mode
RGB 1pix 16bit
RGB 1 pixel 16-bit control mode
RGBW 1pix 16bit
RGBW 1 pixel 16-bit control mode
RGB 2pix
RGB 2 pixel 8-bit control mode
RGBW 2pix
RGBW 2 pixel 8-bit control mode
RGB 2pix 16bit
RGB 2 pixel 16-bit control mode
RGBW 2pix 16bit
RGBW 2 pixel 16-bit control mode
RGB 4pix
RGB 4 pixel 8-bit control mode
RGBW 4pix
RGBW 4 pixel 8-bit control mode
RGB 4pix 16bit
RGB 4 pixel 16-bit control mode
RGBW 4pix 16bit
RGBW 4 pixel 16-bit control mode
RGB 8pix
RGB 8 pixel 8-bit control mode
RGBW 8pix
RGBW 8 pixel 8-bit control mode
RGB 8pix 16bit
RGB 8 pixel 16-bit control mode
RGBW 8pix 16bit
RGBW 8 pixel 16-bit control mode
RGB 16pix
RGB 16 pixel 8-bit control mode
RGBW 16pix
RGBW 16 pixel 8-bit control mode
RGB 16pix 16bit
RGB 16 pixel 16-bit control mode
RGBW 16pix 16bit
RGBW 16 pixel 16-bit control mode
AutoLink mode 1
Parametric control mode 1
AutoLink mode 2
Parametric control mode 2
Advanced
Control all fixture as strobe and wash light
with pixels at the same time
Strobe + RGB 1pix
Strobe + RGB 1 pixel 8-bit mode
Strobe + RGBW 1pix
Strobe + RGBW 1 pixel 8-bit mode
Strobe + RGB 2pix
Strobe + RGB 2 pixel 8-bit mode
Strobe + RGBW 2pix
Strobe + RGBW 2 pixel 8-bit mode
Strobe + RGB 4pix
Strobe + RGB 4 pixel 8-bit mode
Strobe + RGBW 4pix
Strobe + RGBW 4 pixel 8-bit mode
Strobe + RGB 8pix
Strobe + RGB 8 pixel 8-bit mode
Strobe + RGBW 8pix
Strobe + RGBW 8 pixel 8-bit mode
Strobe + RGB 16pix
Strobe + RGB pixel 8-bit mode
Strobe + RGBW 16pix
Strobe + RGBW 1 pixel 8-bit mode
Manual
Manual control for standalone operation
RED
0-255
Red intensity
GREEN
0-255
Green intensity
BLUE
0-255
Blue intensity
WHITE
0-255
White intensity
Demo
Will activate preprogrammed self-test.

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 10 -
Demo 1
Red color test
Demo 2
Green color test
Demo 3
Blue color test
Demo 4
White color test
Demo 5
Yellow color test
Demo 6
Cyan color test
Demo 7
Pink color test
Demo 8
White color test
Demo 9
Color Amplitude Modulation soft transition
test
Demo 10
Color Amplitude Modulation sharp
transition test
Demo 11
Color + Intensity Amplitude Modulation test
Demo 12
Color + Intensity Amplitude Modulation test
Demo 13
White Intensity Amplitude Modulation test
Demo 14
Red color strobe test
Demo 15
Green color strobe test
Demo 16
Blue color strobe test
Demo 17
White color strobe test
Demo 18
Red flash delay test
Demo 19
Green flash delay test
Demo 20
Blue flash delay test
Auto
Automatic selection of all tests 1- 20
Config
DMX Loss
Desired function should Solaris LED lose
DMX signal
OFF
Do not hold the last received DMX values,
stop light output.
ON
Hold the last received DMX values when
DMX signal is lost.
Fan
This function offers to limit the cooling fan
operation.
OFF
Fan off
ON
Fan on
Display
Display backlight control
ON
Backlight on all the time
10s
Backlight will turn off after 10 seconds
30s
Backlight will turn off after 30 seconds
Fade Time
Fade time setup. Set the way the Solaris
LED reacts to change of DMX values.
Designed to allow the light output to react
as smoothly as possible when crossfading
DMX values.
OFF
Solaris LED will not change the
smoothness of crossfading of values
coming from the lighting control.
Smart Fade
To add smoothness to slow crossfading
DMX values coming from the lighting
controller, but will also allow for very quick
changing of values where smoothness is
not applicable.

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 11 -
Fixed fade
Fade time for any change in DMX values
can be set manually. Timing values can be
set between 0.00 and 2.50 seconds.
Gamma
Gamma 8
Gamma correction for 8-bit parameter
width
Gamma 16
Gamma correction for 16-bit parameter
width
Async Strobe
In Advanced control modes where there
are Strobe controls, when set to ON, a
change in strobe intensity will one-shot the
strobe and/or effect when strobe rate is set
at 0.
OFF
ON
Thermometer
Display internal temperature
Line Freq.
Line Frequency. This setting depends on
the country you are using the Solaris LED
in and the incoming power provided.
50 Hz
60 Hz
Upload
Password
If fixture has newer firmware, it can update
other Solaris LED fixtures connected to
DMX output. Password: 111.
Warning: Do not use splitters or any other
devices, or disconnect power while
updating. This can permanently damage
the fixtures.
Reset
Reset fixture to factory defaults
NO
YES
DMX CONTROL MODES SUMMARY
BASIC CONTROL MODES
RGB Xpix –RGB control mode, use fixture as 1, 2, 4, 8 or 16 independent pixels. 8 or 16 bit parameter
width.
RGBW Xpix –RGBW control mode, use fixture as 1, 2, 4, 8 or 16 independent pixels. 8 or 16 bit parameter
width.
AutoLink mode 1 –Parametric control mode with various scene, color mixing and effects possibilities, 20
channels per link (link can contain various count of units). Link can contain 2-255 pixel-long fixture chain
without repeated segments. One link occupies only 20 DMX channels regardless of fixture count. AutoLink
mode 1 uses 8 bit parameter width.
AutoLink mode 2 –Second parametric control mode, includes black level control. 17 channels per link (link
can contain various numbers of units). Link can contain 2-255 pixel-long fixture chain without repeated
segments. One link occupies only 20 DMX channels regardless of fixture count. AutoLink mode 2 uses 8
bit parameter width.

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 12 -
ADVANCED CONTROL MODES
Strobe + RGB Xpix –RGB strobe + RGB pixel control mode. Use fixture as RGB strobe and 1, 2, 4, 8 or 16
independent RGB pixels at the same time. 8 bit parameter width.
Strobe + RGBW Xpix -RGBW strobe + RGBW pixel control mode. Use fixture as RGBW strobe and 1, 2,
4, 8 or 16 independent RGBW pixels at the same time. 8 bit parameter width.
RGB XPIX DMX CHANNELS
PIXEL MODE
CHANNEL
DMX
VALUE
PERCENT
FUNCTION
RGB 1pix
1
0 - 255
0 - 100
1 pix Red intensity
2
0 - 255
0 - 100
1 pix Green intensity
3
0 - 255
0 - 100
1 pix Blue intensity
RGB 2pix
4
0 - 255
0 - 100
2 pix Red intensity
5
0 - 255
0 - 100
2 pix Green intensity
6
0 - 255
0 - 100
2 pix Blue intensity
RGB 4pix
7
0 - 255
0 - 100
3 pix Red intensity
8
0 - 255
0 - 100
3 pix Green intensity
9
0 - 255
0 - 100
3 pix Blue intensity
10
0 - 255
0 - 100
4 pix Red intensity
11
0 - 255
0 - 100
4 pix Green intensity
12
0 - 255
0 - 100
4 pix Blue intensity
RGB 8pix
13
0 - 255
0 - 100
5 pix Red intensity
14
0 - 255
0 - 100
5 pix Green intensity
15
0 - 255
0 - 100
5 pix Blue intensity
16
0 - 255
0 - 100
6 pix Red intensity
17
0 - 255
0 - 100
6 pix Green intensity
18
0 - 255
0 - 100
6 pix Blue intensity
19
0 - 255
0 - 100
7 pix Red intensity
20
0 - 255
0 - 100
7 pix Green intensity
21
0 - 255
0 - 100
7 pix Blue intensity
22
0 - 255
0 - 100
8 pix Red intensity
23
0 - 255
0 - 100
8 pix Green intensity
24
0 - 255
0 - 100
8 pix Blue intensity
RGB 16pix
25
0 - 255
0 - 100
9 pix Red intensity
26
0 - 255
0 - 100
9 pix Green intensity
27
0 - 255
0 - 100
9 pix Blue intensity
28
0 - 255
0 - 100
10 pix Red intensity
29
0 - 255
0 - 100
10 pix Green intensity
30
0 - 255
0 - 100
10 pix Blue intensity
31
0 - 255
0 - 100
11 pix Red intensity
32
0 - 255
0 - 100
11 pix Green intensity
33
0 - 255
0 - 100
11 pix Blue intensity
34
0 - 255
0 - 100
12 pix Red intensity
35
0 - 255
0 - 100
12 pix Green intensity
36
0 - 255
0 - 100
12 pix Blue intensity
37
0 - 255
0 - 100
13 pix Red intensity
38
0 - 255
0 - 100
13 pix Green intensity
39
0 - 255
0 - 100
13 pix Blue intensity
40
0 - 255
0 - 100
14 pix Red intensity
41
0 - 255
0 - 100
14 pix Green intensity
42
0 - 255
0 - 100
14 pix Blue intensity
43
0 - 255
0 - 100
15 pix Red intensity
44
0 - 255
0 - 100
15 pix Green intensity
45
0 - 255
0 - 100
15 pix Blue intensity
46
0 - 255
0 - 100
16 pix Red intensity

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 13 -
47
0 - 255
0 - 100
16 pix Green intensity
48
0 - 255
0 - 100
16 pix Blue intensity
RGB XPIX 16BIT DMX CHANNELS
PIXEL MODE
CHANNEL
DMX
VALUE
PERCENT
FUNCTION
RGB 1pix
16bit
1
0 - 255
0 - 100
1 pix Red intensity HIGH Byte
2
0 - 255
0 - 100
1 pix Red intensity LOW Byte
3
0 - 255
0 - 100
1 pix Green intensity HIGH Byte
4
0 - 255
0 - 100
1 pix Green intensity LOW Byte
5
0 - 255
0 - 100
1 pix Blue intensity HIGH Byte
6
0 - 255
0 - 100
1 pix Blue intensity LOW Byte
RGB 2pix
16bit
7
0 - 255
0 - 100
2 pix Red intensity HIGH Byte
8
0 - 255
0 - 100
2 pix Red intensity LOW Byte
9
0 - 255
0 - 100
2 pix Green intensity HIGH Byte
10
0 - 255
0 - 100
2 pix Green intensity LOW Byte
11
0 - 255
0 - 100
2 pix Blue intensity HIGH Byte
12
0 - 255
0 - 100
2 pix Blue intensity LOW Byte
RGB 4pix
16bit
13
0 - 255
0 - 100
3 pix Red intensity HIGH Byte
14
0 - 255
0 - 100
3 pix Red intensity LOW Byte
15
0 - 255
0 - 100
3 pix Green intensity HIGH Byte
16
0 - 255
0 - 100
3 pix Green intensity LOW Byte
17
0 - 255
0 - 100
3 pix Blue intensity HIGH Byte
18
0 - 255
0 - 100
3 pix Blue intensity LOW Byte
19
0 - 255
0 - 100
4 pix Red intensity HIGH Byte
20
0 - 255
0 - 100
4 pix Red intensity LOW Byte
21
0 - 255
0 - 100
4 pix Green intensity HIGH Byte
22
0 - 255
0 - 100
4 pix Green intensity LOW Byte
23
0 - 255
0 - 100
4 pix Blue intensity HIGH Byte
24
0 - 255
0 - 100
4 pix Blue intensity LOW Byte
RGB 8pix
16bit
25
0 - 255
0 - 100
5 pix Red intensity HIGH Byte
26
0 - 255
0 - 100
5 pix Red intensity LOW Byte
27
0 - 255
0 - 100
5 pix Green intensity HIGH Byte
28
0 - 255
0 - 100
5 pix Green intensity LOW Byte
29
0 - 255
0 - 100
5 pix Blue intensity HIGH Byte
30
0 - 255
0 - 100
5 pix Blue intensity LOW Byte
31
0 - 255
0 - 100
6 pix Red intensity HIGH Byte
32
0 - 255
0 - 100
6 pix Red intensity LOW Byte
33
0 - 255
0 - 100
6 pix Green intensity HIGH Byte
34
0 - 255
0 - 100
6 pix Green intensity LOW Byte
35
0 - 255
0 - 100
6 pix Blue intensity HIGH Byte
36
0 - 255
0 - 100
6 pix Blue intensity LOW Byte
37
0 - 255
0 - 100
7 pix Red intensity HIGH Byte
38
0 - 255
0 - 100
7 pix Red intensity LOW Byte
39
0 - 255
0 - 100
7 pix Green intensity HIGH Byte
40
0 - 255
0 - 100
7 pix Green intensity LOW Byte
41
0 - 255
0 - 100
7 pix Blue intensity HIGH Byte
42
0 - 255
0 - 100
7 pix Blue intensity LOW Byte
43
0 - 255
0 - 100
8 pix Red intensity HIGH Byte
44
0 - 255
0 - 100
8 pix Red intensity LOW Byte
45
0 - 255
0 - 100
8 pix Green intensity HIGH Byte
46
0 - 255
0 - 100
8 pix Green intensity LOW Byte
47
0 - 255
0 - 100
8 pix Blue intensity HIGH Byte
48
0 - 255
0 - 100
8 pix Blue intensity LOW Byte
RGB 16pix
16bit
49
0 - 255
0 - 100
9 pix Red intensity HIGH Byte
50
0 - 255
0 - 100
9 pix Red intensity LOW Byte
51
0 - 255
0 - 100
9 pix Green intensity HIGH Byte
52
0 - 255
0 - 100
9 pix Green intensity LOW Byte
53
0 - 255
0 - 100
9 pix Blue intensity HIGH Byte
54
0 - 255
0 - 100
9 pix Blue intensity LOW Byte
55
0 - 255
0 - 100
10 pix Red intensity HIGH Byte
56
0 - 255
0 - 100
10 pix Red intensity LOW Byte
57
0 - 255
0 - 100
10 pix Green intensity HIGH Byte
58
0 - 255
0 - 100
10 pix Green intensity LOW Byte
59
0 - 255
0 - 100
10 pix Blue intensity HIGH Byte

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 14 -
60
0 - 255
0 - 100
10 pix Blue intensity LOW Byte
61
0 - 255
0 - 100
11 pix Red intensity HIGH Byte
62
0 - 255
0 - 100
11 pix Red intensity LOW Byte
63
0 - 255
0 - 100
11 pix Green intensity HIGH Byte
64
0 - 255
0 - 100
11 pix Green intensity LOW Byte
65
0 - 255
0 - 100
11 pix Blue intensity HIGH Byte
66
0 - 255
0 - 100
11 pix Blue intensity LOW Byte
67
0 - 255
0 - 100
12 pix Red intensity HIGH Byte
68
0 - 255
0 - 100
12 pix Red intensity LOW Byte
69
0 - 255
0 - 100
12 pix Green intensity HIGH Byte
70
0 - 255
0 - 100
12 pix Green intensity LOW Byte
71
0 - 255
0 - 100
12 pix Blue intensity HIGH Byte
72
0 - 255
0 - 100
12 pix Blue intensity LOW Byte
73
0 - 255
0 - 100
13 pix Red intensity HIGH Byte
74
0 - 255
0 - 100
13 pix Red intensity LOW Byte
75
0 - 255
0 - 100
13 pix Green intensity HIGH Byte
76
0 - 255
0 - 100
13 pix Green intensity LOW Byte
77
0 - 255
0 - 100
13 pix Blue intensity HIGH Byte
78
0 - 255
0 - 100
13 pix Blue intensity LOW Byte
79
0 - 255
0 - 100
14 pix Red intensity HIGH Byte
80
0 - 255
0 - 100
14 pix Red intensity LOW Byte
81
0 - 255
0 - 100
14 pix Green intensity HIGH Byte
82
0 - 255
0 - 100
14 pix Green intensity LOW Byte
83
0 - 255
0 - 100
14 pix Blue intensity HIGH Byte
84
0 - 255
0 - 100
14 pix Blue intensity LOW Byte
85
0 - 255
0 - 100
15 pix Red intensity HIGH Byte
86
0 - 255
0 - 100
15 pix Red intensity LOW Byte
87
0 - 255
0 - 100
15 pix Green intensity HIGH Byte
88
0 - 255
0 - 100
15 pix Green intensity LOW Byte
89
0 - 255
0 - 100
15 pix Blue intensity HIGH Byte
90
0 - 255
0 - 100
15 pix Blue intensity LOW Byte
91
0 - 255
0 - 100
16 pix Red intensity HIGH Byte
92
0 - 255
0 - 100
16 pix Red intensity LOW Byte
93
0 - 255
0 - 100
16 pix Green intensity HIGH Byte
94
0 - 255
0 - 100
16 pix Green intensity LOW Byte
95
0 - 255
0 - 100
16 pix Blue intensity HIGH Byte
96
0 - 255
0 - 100
16 pix Blue intensity LOW Byte
RGBW XPIX DMX CHANNELS
PIXEL MODE
CHANNEL
DMX
VALUE
PERCENT
FUNCTION
RGBW 1pix
1
0 - 255
0 - 100
1 pix Red intensity
2
0 - 255
0 - 100
1 pix Green intensity
3
0 - 255
0 - 100
1 pix Blue intensity
4
0 - 255
0 - 100
1 pix White intensity
RGBW 2pix
5
0 - 255
0 - 100
2 pix Red intensity
6
0 - 255
0 - 100
2 pix Green intensity
7
0 - 255
0 - 100
2 pix Blue intensity
8
0 - 255
0 - 100
2 pix White intensity
RGBW 4pix
9
0 - 255
0 - 100
3 pix Red intensity
10
0 - 255
0 - 100
3 pix Green intensity
11
0 - 255
0 - 100
3 pix Blue intensity
12
0 - 255
0 - 100
3 pix White intensity
13
0 - 255
0 - 100
4 pix Red intensity
14
0 - 255
0 - 100
4 pix Green intensity
15
0 - 255
0 - 100
4 pix Blue intensity
16
0 - 255
0 - 100
4 pix White intensity
RGBW 8pix
17
0 - 255
0 - 100
5 pix Red intensity
18
0 - 255
0 - 100
5 pix Green intensity
19
0 - 255
0 - 100
5 pix Blue intensity
20
0 - 255
0 - 100
5 pix White intensity

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 15 -
21
0 - 255
0 - 100
6 pix Red intensity
22
0 - 255
0 - 100
6 pix Green intensity
23
0 - 255
0 - 100
6 pix Blue intensity
24
0 - 255
0 - 100
6 pix White intensity
25
0 - 255
0 - 100
7 pix Red intensity
26
0 - 255
0 - 100
7 pix Green intensity
27
0 - 255
0 - 100
7 pix Blue intensity
28
0 - 255
0 - 100
7 pix White intensity
29
0 - 255
0 - 100
8 pix Red intensity
30
0 - 255
0 - 100
8 pix Green intensity
31
0 - 255
0 - 100
8 pix Blue intensity
32
0 - 255
0 - 100
8 pix White intensity
RGBW 16pix
33
0 - 255
0 - 100
9 pix Red intensity
34
0 - 255
0 - 100
9 pix Green intensity
35
0 - 255
0 - 100
9 pix Blue intensity
36
0 - 255
0 - 100
9 pix White intensity
37
0 - 255
0 - 100
10 pix Red intensity
38
0 - 255
0 - 100
10 pix Green intensity
39
0 - 255
0 - 100
10 pix Blue intensity
40
0 - 255
0 - 100
10 pix White intensity
41
0 - 255
0 - 100
11 pix Red intensity
42
0 - 255
0 - 100
11 pix Green intensity
43
0 - 255
0 - 100
11 pix Blue intensity
44
0 - 255
0 - 100
11 pix White intensity
45
0 - 255
0 - 100
12 pix Red intensity
46
0 - 255
0 - 100
12 pix Green intensity
47
0 - 255
0 - 100
12 pix Blue intensity
48
0 - 255
0 - 100
12 pix White intensity
49
0 - 255
0 - 100
13 pix Red intensity
50
0 - 255
0 - 100
13 pix Green intensity
51
0 - 255
0 - 100
13 pix Blue intensity
52
0 - 255
0 - 100
13 pix White intensity
53
0 - 255
0 - 100
14 pix Red intensity
54
0 - 255
0 - 100
14 pix Green intensity
55
0 - 255
0 - 100
14 pix Blue intensity
56
0 - 255
0 - 100
14 pix White intensity
57
0 - 255
0 - 100
15 pix Red intensity
58
0 - 255
0 - 100
15 pix Green intensity
59
0 - 255
0 - 100
15 pix Blue intensity
60
0 - 255
0 - 100
15 pix White intensity
61
0 - 255
0 - 100
16 pix Red intensity
62
0 - 255
0 - 100
16 pix Green intensity
63
0 - 255
0 - 100
16 pix Blue intensity
64
0 - 255
0 - 100
16 pix White intensity
RGBW XPIX 16BIT DMX CHANNELS
PIXEL MODE
CHANNEL
DMX
VALUE
PERCENT
FUNCTION
RGBW 1pix
1
0 - 255
0 - 100
1 pix Red intensity HIGH byte
2
0 - 255
0 - 100
1 pix Red intensity LOW byte
3
0 - 255
0 - 100
1 pix Green intensity HIGH byte
4
0 - 255
0 - 100
1 pix Green intensity LOW byte
5
0 - 255
0 - 100
1 pix Blue intensity HIGH byte
6
0 - 255
0 - 100
1 pix Blue intensity LOW byte
7
0 - 255
0 - 100
1 pix White intensity HIGH byte

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 16 -
8
0 - 255
0 - 100
1 pix White intensity LOW byte
RGBW 2pix
9
0 - 255
0 - 100
2 pix Red intensity HIGH byte
10
0 - 255
0 - 100
2 pix Red intensity LOW byte
11
0 - 255
0 - 100
2 pix Green intensity HIGH byte
12
0 - 255
0 - 100
2 pix Green intensity LOW byte
13
0 - 255
0 - 100
2 pix Blue intensity HIGH byte
14
0 - 255
0 - 100
2 pix Blue intensity LOW byte
15
0 - 255
0 - 100
2 pix White intensity HIGH byte
16
0 - 255
0 - 100
2 pix White intensity LOW byte
RGBW 4pix
17
0 - 255
0 - 100
3 pix Red intensity HIGH byte
18
0 - 255
0 - 100
3 pix Red intensity LOW byte
19
0 - 255
0 - 100
3 pix Green intensity HIGH byte
20
0 - 255
0 - 100
3 pix Green intensity LOW byte
21
0 - 255
0 - 100
3 pix Blue intensity HIGH byte
22
0 - 255
0 - 100
3 pix Blue intensity LOW byte
23
0 - 255
0 - 100
3 pix White intensity HIGH byte
24
0 - 255
0 - 100
3 pix White intensity LOW byte
25
0 - 255
0 - 100
4 pix Red intensity HIGH byte
26
0 - 255
0 - 100
4 pix Red intensity LOW byte
27
0 - 255
0 - 100
4 pix Green intensity HIGH byte
28
0 - 255
0 - 100
4 pix Green intensity LOW byte
29
0 - 255
0 - 100
4 pix Blue intensity HIGH byte
30
0 - 255
0 - 100
4 pix Blue intensity LOW byte
31
0 - 255
0 - 100
4 pix White intensity HIGH byte
32
0 - 255
0 - 100
4 pix White intensity LOW byte
RGBW 8pix
33
0 - 255
0 - 100
5 pix Red intensity HIGH byte
34
0 - 255
0 - 100
5 pix Red intensity LOW byte
35
0 - 255
0 - 100
5 pix Green intensity HIGH byte
36
0 - 255
0 - 100
5 pix Green intensity LOW byte
37
0 - 255
0 - 100
5 pix Blue intensity HIGH byte
38
0 - 255
0 - 100
5 pix Blue intensity LOW byte
39
0 - 255
0 - 100
5 pix White intensity HIGH byte
40
0 - 255
0 - 100
5 pix White intensity LOW byte
41
0 - 255
0 - 100
6 pix Red intensity HIGH byte
42
0 - 255
0 - 100
6 pix Red intensity LOW byte
43
0 - 255
0 - 100
6 pix Green intensity HIGH byte
44
0 - 255
0 - 100
6 pix Green intensity LOW byte
45
0 - 255
0 - 100
6 pix Blue intensity HIGH byte
46
0 - 255
0 - 100
6 pix Blue intensity LOW byte
47
0 - 255
0 - 100
6 pix White intensity HIGH byte
48
0 - 255
0 - 100
6 pix White intensity LOW byte
49
0 - 255
0 - 100
7 pix Red intensity HIGH byte
50
0 - 255
0 - 100
7 pix Red intensity LOW byte
51
0 - 255
0 - 100
7 pix Green intensity HIGH byte
52
0 - 255
0 - 100
7 pix Green intensity LOW byte
53
0 - 255
0 - 100
7 pix Blue intensity HIGH byte
54
0 - 255
0 - 100
7 pix Blue intensity LOW byte
55
0 - 255
0 - 100
7 pix White intensity HIGH byte
56
0 - 255
0 - 100
7 pix White intensity LOW byte
57
0 - 255
0 - 100
8 pix Red intensity HIGH byte
58
0 - 255
0 - 100
8 pix Red intensity LOW byte
59
0 - 255
0 - 100
8 pix Green intensity HIGH byte
60
0 - 255
0 - 100
8 pix Green intensity LOW byte
61
0 - 255
0 - 100
8 pix Blue intensity HIGH byte
62
0 - 255
0 - 100
8 pix Blue intensity LOW byte
63
0 - 255
0 - 100
8 pix White intensity HIGH byte
64
0 - 255
0 - 100
8 pix White intensity LOW byte
RGBW 16pix
65
0 - 255
0 - 100
9 pix Red intensity HIGH byte
66
0 - 255
0 - 100
9 pix Red intensity LOW byte

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 17 -
67
0 - 255
0 - 100
9 pix Green intensity HIGH byte
68
0 - 255
0 - 100
9 pix Green intensity LOW byte
69
0 - 255
0 - 100
9 pix Blue intensity HIGH byte
70
0 - 255
0 - 100
9 pix Blue intensity LOW byte
71
0 - 255
0 - 100
9 pix White intensity HIGH byte
72
0 - 255
0 - 100
9 pix White intensity LOW byte
73
0 - 255
0 - 100
10 pix Red intensity HIGH byte
74
0 - 255
0 - 100
10 pix Red intensity LOW byte
75
0 - 255
0 - 100
10 pix Green intensity HIGH byte
76
0 - 255
0 - 100
10 pix Green intensity LOW byte
77
0 - 255
0 - 100
10 pix Blue intensity HIGH byte
78
0 - 255
0 - 100
10 pix Blue intensity LOW byte
79
0 - 255
0 - 100
10 pix White intensity HIGH byte
80
0 - 255
0 - 100
10 pix White intensity LOW byte
81
0 - 255
0 - 100
11 pix Red intensity HIGH byte
82
0 - 255
0 - 100
11 pix Red intensity LOW byte
83
0 - 255
0 - 100
11 pix Green intensity HIGH byte
84
0 - 255
0 - 100
11 pix Green intensity LOW byte
85
0 - 255
0 - 100
11 pix Blue intensity HIGH byte
86
0 - 255
0 - 100
11 pix Blue intensity LOW byte
87
0 - 255
0 - 100
11 pix White intensity HIGH byte
88
0 - 255
0 - 100
11 pix White intensity LOW byte
89
0 - 255
0 - 100
12 pix Red intensity HIGH byte
90
0 - 255
0 - 100
12 pix Red intensity LOW byte
91
0 - 255
0 - 100
12 pix Green intensity HIGH byte
92
0 - 255
0 - 100
12 pix Green intensity LOW byte
93
0 - 255
0 - 100
12 pix Blue intensity HIGH byte
94
0 - 255
0 - 100
12 pix Blue intensity LOW byte
95
0 - 255
0 - 100
12 pix White intensity HIGH byte
96
0 - 255
0 - 100
12 pix White intensity LOW byte
97
0 - 255
0 - 100
13 pix Red intensity HIGH byte
98
0 - 255
0 - 100
13 pix Red intensity LOW byte
99
0 - 255
0 - 100
13 pix Green intensity HIGH byte
100
0 - 255
0 - 100
13 pix Green intensity LOW byte
101
0 - 255
0 - 100
13 pix Blue intensity HIGH byte
102
0 - 255
0 - 100
13 pix Blue intensity LOW byte
103
0 - 255
0 - 100
13 pix White intensity HIGH byte
104
0 - 255
0 - 100
13 pix White intensity LOW byte
105
0 - 255
0 - 100
14 pix Red intensity HIGH byte
106
0 - 255
0 - 100
14 pix Red intensity LOW byte
107
0 - 255
0 - 100
14 pix Green intensity HIGH byte
108
0 - 255
0 - 100
14 pix Green intensity LOW byte
109
0 - 255
0 - 100
14 pix Blue intensity HIGH byte
110
0 - 255
0 - 100
14 pix Blue intensity LOW byte
111
0 - 255
0 - 100
14 pix White intensity HIGH byte
112
0 - 255
0 - 100
14 pix White intensity LOW byte
113
0 - 255
0 - 100
15 pix Red intensity HIGH byte
114
0 - 255
0 - 100
15 pix Red intensity LOW byte
115
0 - 255
0 - 100
15 pix Green intensity HIGH byte
116
0 - 255
0 - 100
15 pix Green intensity LOW byte
117
0 - 255
0 - 100
15 pix Blue intensity HIGH byte
118
0 - 255
0 - 100
15 pix Blue intensity LOW byte
119
0 - 255
0 - 100
15 pix White intensity HIGH byte
120
0 - 255
0 - 100
15 pix White intensity LOW byte
121
0 - 255
0 - 100
16 pix Red intensity HIGH byte
122
0 - 255
0 - 100
16 pix Red intensity LOW byte
123
0 - 255
0 - 100
16 pix Green intensity HIGH byte
124
0 - 255
0 - 100
16 pix Green intensity LOW byte
125
0 - 255
0 - 100
16 pix Blue intensity HIGH byte

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 18 -
126
0 - 255
0 - 100
16 pix Blue intensity LOW byte
127
0 - 255
0 - 100
16 pix White intensity HIGH byte
128
0 - 255
0 - 100
16 pix White intensity LOW byte
AUTOLINK MODE 1
Channel
Value
Function
DESCRIPTION
1
000 ↔ 255
RED intensity 0% - 100%
Background color
2
000 ↔ 255
GREEN intensity 0% - 100%
Background color
3
000 ↔ 255
BLUE intensity 0% - 100%
Background color
4
000 ↔ 255
WHITE intensity 0% - 100%
Background color
5
000 ↔ 255
000
020
030
050
080
100
120
140
170
200
220
230
255
HUE (when Saturation value is 255)
Red
Orange
Yellow
Light green
Green
Blue –Green
Cyan
Light Blue
Blue
Lavender
Pink
Magenta
Red
Effect Color
6
000 ↔ 255
Saturation 0% - 100%
Effect Color
7
000 ↔ 255
Intensity (for effects) 0% - 100%
Effect Color
8
000 ↔ 255
Color Deep
Color Amplitude
Modulation
Color effect –modifies
selected effect color Hue. If
value 80 is selected for effect
color Hue (ch. 5) and size (ch.
8) is set to 20, color effect will
alternate between Hue 80 and
100. Ch. 10 selects soft or
hard transition between colors.
It is recommended to begin
with this channel at full to
better see changes made.
9
000 ↔ 255
000
001
002
003
005
008
012
019
032
073
154
255
Color Length
Full data chain length
9/10 from all data chain length
8/10 from all data chain length
7/10 from all data chain length
6/10 from all data chain length
5/10 from all data chain length
4/10 from all data chain length
3/10 from all data chain length
2/10 from all data chain length
1/10 from all data chain length
1/20 from all data chain length
1/30 from all data chain length
Color Amplitude
Modulation
10
000 ↔ 255
000
255
Color Ascent (color transition)
Soft color transition 0%
Sharp color transition 100%
Color Amplitude
Modulation
11
000 ↔ 255
000
000 ↔ 127
128↔254
255
Color Speed and Direction
Color Speed 0%
Color Speed from 1% to 100%
Color Direction: From start to end
Color Speed from 100% to 1%
Direction: from end to start
Color Speed 0%
Color Amplitude
Modulation
12
000 ↔ 255
Intensity Deep
Intensity Amplitude
Modulation
Intensity effect –applied on
top of color effect. To get solid

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 19 -
13
000 ↔ 255
000
001
002
003
005
008
012
019
032
073
154
255
Intensity Length
Full data chain length
9/10 from all data chain length
8/10 from all data chain length
7/10 from all data chain length
6/10 from all data chain length
5/10 from all data chain length
4/10 from all data chain length
3/10 from all data chain length
2/10 from all data chain length
1/10 from all data chain length
1/20 from all data chain length
1/30 from all data chain length
Intensity Amplitude
Modulation
color with “black” holes, set
background color (ch. 1 thru 4)
to 0, set desired effect color
(ch. 5 thru 7), color effect size
to 0 (ch. 8), and intensity effect
size to desired level (ch. 12).
Controls work the same way
as color effect, but size defines
intensity effect size –100%
means alternation between
100% and 0% intensity. It is
recommended to begin with
transition set to 255 to better
see effect size.
14
000 ↔ 255
000
255
Intensity Ascent ( intensity transition
)
Soft intensity transition
Sharp intensity transition
Intensity Amplitude
Modulation
15
000 ↔ 255
000
000 ↔ 127
128↔254
255
Intensity Speed and Direction
Intensity Speed 0%
Intensity Speed from 1% to 100%
Intensity Direction: From start to end
Intensity Speed from 100% to 1%
Intensity Direction: from end to start
Intensity Speed 0%
Intensity Amplitude
Modulation
16
000 ↔ 255
000
001
020
030
050
080
100
120
140
170
200
220
230
255
Flash Color
White
Red
Orange
Yellow
Light green
Green
Blue –Green
Cyan
Light Blue
Blue
Lavender
Pink
Magenta
Red
Flash Controls
Strobe with color select. Flash
delay sets delay between
devices in DMX chain –if set
to value above 0, each unit will
delay its flash by a preset time.
Flash Forced is to create a
single asynchronous flash,
similar to other popular strobes
when the intensity channel is
raised.
17
000 ↔ 255
Flash Level ( flash intensity )
Flash Controls
18
000 ↔ 255
Flash Speed ( flash rate )
Flash Controls
19
000 ↔ 255
000
000 ↔ 254
255
Flash Delay
Flash Delay 0%
Flash Delay 1% - 100%
Flash Delay 0%
Flash Controls
20
000 ↔ 255
000 ↔ 127
128
129 ↔ 255
Flash Forced
Off
Flash 1 time
Off
Flash Controls
AUTOLINK MODE 2
CHANNEL
VALUE
FUNCTION
DESCRIPTION
1
0 - 255
RED intensity 0% - 100%
Background Red
HTP merged to effects, EXCEPT when
channel 12 set to >0
2
0 - 255
GREEN intensity 0% - 100%
Background Green
3
0 - 255
BLUE intensity 0% - 100%
Background Blue
4
0 - 255
White intensity 0% - 100%
Background White
5
0 - 255
Effect Red
Effect color
6
0 - 255
Effect Green
7
0 - 255
Effect Blue
8
0 - 255
Effect White
9
2 - 255
Pixel distance
Selects effect size (distance) in pixels.
Min. length –2 pixels
10
1 - 255
1 to distance
Pixel width
Effect pixel filling in percent. For example,
if pixel distance set to 10 pixels and width
set to 30%, effect width is 3 pixels.

Solaris LED RGBW 16x1 user manual version 1.9.1 031115
- 20 -
11
0 - 127
0 - max speed, right direction
Pixel movement speed
and direction control
127 - 255
max - 0 speed, left direction
12
0 - 255
0 - 100%
Pixel soft ( blur )
13
0 - 255
Black level under effect color
Changes merging of background
channels to effect channels. If above
zero, background channel intensity is
reduced. This is to achieve “clean” colors
in effects. For example, if background is
set to RED and effect to BLUE, the
resulting effect color is MAGENTA
because the effect is merged to the
background. If this channel is set to
100%, the effect color changes from
MAGENTA to BLUE.
14
0 - 255
Pixel inverse point
Changes running order
15
0 - 255
Pixel mirror
Changes running direction at 0% –
current direction; 1-50% –addition of
reversed direction; 50-99% –removal of
current direction; 100% –only reversed
direction.
16
0 - 255
Flash rate
At 0 –no strobing; 1-100% –strobing
speed.
17
0 - 255
Flash random
At 0 –synchronized strobe;
1-100% –strobe randomization.
18
Reserved
19
Reserved
20
Reserved
STROBE MODES –16X1
Four channels control the functions of the strobe parameter: Strobe Intensity, Strobe Duration, Strobe
Rate and Strobe FX.
There are a number of effects that also use the strobe rate and duration controls to affect the effect’s look.
Please experiment to find the right duration and rate for your application.
DMX
value
%
Flash intensity
0 5
0 2
Blackout
6-255
3 - 100
Intensity level
Flash duration
0 - 254
0 - 99
0 - 650ms (50Hz AC)
255
100
HYPER
Flash rate
0 - 5
0 - 2
No flash
6 - 255
3 - 100
0.5 - 25Hz (50Hz AC); 0.6 - 30Hz
(60Hz AC)
Flash effects
0 - 4
0 - 2
No effect
5
3
Wash Override (only available in RGB
Strobe and RGBW Strobe modes) 1
6 - 42
4 -16
Ramp up
