Sound Sation Pro-Lighting Sestetto 1018 Slim User manual

Sestetto 1018 Slim
USER MANUAL
PRO-LIGHTING

Dear customer，
first of all thanks for purchasing a SOUNDSATION® product. Our
mission is to satisfy all the possible needs of musical instrument and
professional audio users offering a wide range of products using the
latest technologies for a reasonable price.
We hope you will be satisfied with this item and, if you want to
collaborate, we are looking for a feedback from you about the
operation of the product and for possible improvements to
introduce in the next future. Go to our website
www.soundsationmusic.com and send an e-mail with your opinion,
this will help us to build instruments ever closer to customer’s real
requirements.
One last thing: read this manual before using the instrument, an
incorrect operation can cause damages to you and to the unit. Take
care!
The SOUNDSATION Team
All SOUNDSATION products feature a limited two-year
warranty. This two-year warranty is specific to the date of
purchase as shown on your purchase receipt.
The following cases/components are not covered from the
above warranty :
Any accessories supplied with the product
Improper use
Fault due to wear and tear
Any modification of the product effected by the user or a third
party
SOUNDSATION shall satisfy the warranty obligations by
remedying any material or manufacturing faults free of charge at
SOUNDSATION’s discretion either by repair or by exchanging
individual parts or the entire appliance. Any defective parts
removed from a product during the course of a warranty claim
shall become the property of SOUNDSATION
While under warranty period, defective products may be returned to your
local SOUNDSATION dealer together with original proof of purchase. To
avoid any damages in transit, please use the original packaging if
available. Alternatively you can send the product to SOUNDSATION
SERVICE CENTER – Via Enzo Ferrari , 10 – 62017 Porto Recanati - Italy .
In order to send a product to service center you need an RMA number.
Shipping charges have to be covered by the owner of the product.
For further information please visit www.soundsationmusic
WARRANTY & SERVICE

WARNING
PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only
This symbol indicates that this product is not to be disposed of with your household
waste, according to the WEEE Directive ( 2202/96/EC) and your national law.
This product should be handed over to a designated collection point, e.g., on an
authorized one-for-one basis when you buy a new similar product or to an authorized
collection site for recycling waste electrical and electronic equipment (WEEE) .
Improper handling of this type of waste could have a possible negative impact on the
environment and human health due to potentially hazardous substances that are
generally associated with EEE. At the same time , your cooperation in the correct
disposal of this product will contribute to the effective usage of natural resources.
For more information about where you can drop off your waste equipment for recycling ,
please contact your local city office , waste authority , approved WEEE scheme or your
household waste disposal service.
Contents and images shown on this manual can be changed without any notice. Please
visit our website www.soundsationmusic.com to check latest version.
DESIGNED IN ITALY BY SOUNDSATION®
All the Trademarks are property of their respective owners
SOUNDSATION® is a registered trademark of
FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati – Italy
© SOUNDSATION 2012 – All rights reserved – All total or partial reproduction of this
manual by any other company or person without express authorization of
SOUNDSATION is strictly forbidden.
If any foreign objects enter the instrument, please contact your dealer
or an authorized SOUNDSATION center.
The serial number, electrical features and international standards are
printed on a label located in the bottom of the fixture.
In case of problems remember to give the serial number to the
responsible of the technical assistance.
GENERAL WARNINGS
To prev ent possible d am ag es, r ead the following list of actio ns:
- Do not place the product in wet or dirty environments.
- Do not remove the protective coverings.
-Do not cover any of the products ventilation holes.
- Air must circulate freely around the product.
- Do not set the product on a surface with excessive vibration.
- Do not expose the product to high electrical-magnetic interference.
- Do not expose the product to heat, cold, wet in improper way in respect to
its IP grade
- Do not leave the product in direct sunlight.
- Do not expose the product to electrostatic forces.
- Do not place items with flames, such as candles or lighters, on the product.
- Do not place the product on anything containing water or other fluids.

Contents
Section 1.Getting Started
² Unpacking
² Safety Instruction
Section 2. Set Up
² Installation
² Controlling Board
² Machine Connection
Section 3. Troubleshooting
² Troubleshooting
Section 4. Reference
² Control Menu
² DMX Protocol
² Specification
Temperature control:
when the temperature of light source reaches 80°,
the maximum power reduces 50%,
when the temperature of light source goes down to 65°,
the maximum power recovers to 100%
Noise:
adjusted by intelligent-control fan,
fan with low speed rotation when light is started,
the higher the temperature is,
The faster the fan rotates
Voltage:AC100V-240V,50/60HZ
Rated power:200W
Running temperature:0-40°
Display:LED digital tube display + 4 buttons
Power interface: power con
Signal interface:3 pin
Level of Protection:IP20
Net weight:2.8KG
Size:31x26x11(cm)

Specification
Light source:18pcs x 10w
Beam angel:25°(lens)
Strobe:0-20Hz
Dimmer:standard mode + 4 types of dimmer curves
Connection control:DMX512
Channel:13/8(switchable)
Built-in program: 5 strobes + 6 autos + 2 sound active
Control mode:DMX512, manual operation, master-slave, sound active
Cool system:
using fan with intelligent-temperature control
to cool down the heat
Section 1. Getting Started
² Unpacking
² Safety Instruction
Unpacking
" 1pc Fixture
" 1pc User Manual
" 1pc Power Cable /4 fixtures
" 1pc Signal Cable
" 1pc daisy chain power cable
Thanks for using our LED PAR LIGHT range. Carefully unpack the box and check the contents
to ensure that all parts are present and in good conditions. If anything looks as if it has been
damaged in transit, notify the shipper immediately and keep the packing material for inspection.
Again, please save the carton and all packing materials. If a fixture must be returned to
manufacturer, it is important that the fixture be returned in the original manufacturer box and
packing.
Safety Instruction
# Please
conserve
this manual as operation guidance. If you sell this product to other user, please make sure
that they also receive this user manual.
# Always make sure that you are connecting to the proper voltage and that the line voltage you are
connecting to is not higher than that stated on the decal or rear panel of the fixture.
# The fixture is intended to indoor use only. To prevent risk of fire or shock, do not expose fixture to
rain or moisture. Make sure there are no flammable, explosive or corrosive materials surrounded in
0.5 meter while operating.
For your safety，please read this user manual carefully before operation.
The machine should be operated by qualified engineer！

# The unit must be installed in a location with adequate ventilation, at least 50CM away from
adjacent surfaces. Be sure that no ventilation slots are blocked.
# Do not operate at ambient temperatures higher than 104℉(40℃).
# Safe wire should be used to install machine. Bearing of safe wire should
be 3 times of the machine weight. Complimentary signal cable transmits
signals to 20 unit fixtures at most.
Signal amplifier is a must to connect more fixtures. Sectional area of complimentary
power cable is 1 ㎡. In daisy chain model, it allows to connect to 4 fixtures at most.
# Always disconnect from the power source before servicing or replacing
fuse/lamp and be sure to replace with same fuse/lamp size and type.
Cut off power before moving, repairing and cleaning the machine.
# Secure fixture using a safety chain and carrying handles.
Never carry the fixture by its cord.
# In case of failure or misfunction occurred, stop using the unit immediately.
# Repairs carried out by unskilled people can lead to damage or malfunction.
Buy the same spare parts/components from manufacturer directly.
# To avoid electric shock, all fixtures must be connected to circuits with
a suitable ground. Make sure the power cord is never crimped or damaged.
Do not power on and power off the fixture in a short time. For your safety,
do not touch fixture when running.
# When use DMX controller, please make sure that there is no interference
sources(e.g. intercom, high frequency radio waves and radiation source)
Caution!
There are no user serviceable parts inside the unit. Do not open
the housing or attempt any repairs yourself. In the unlikely event
your unit may require service, please contact your local distribution
or after-sale service center.

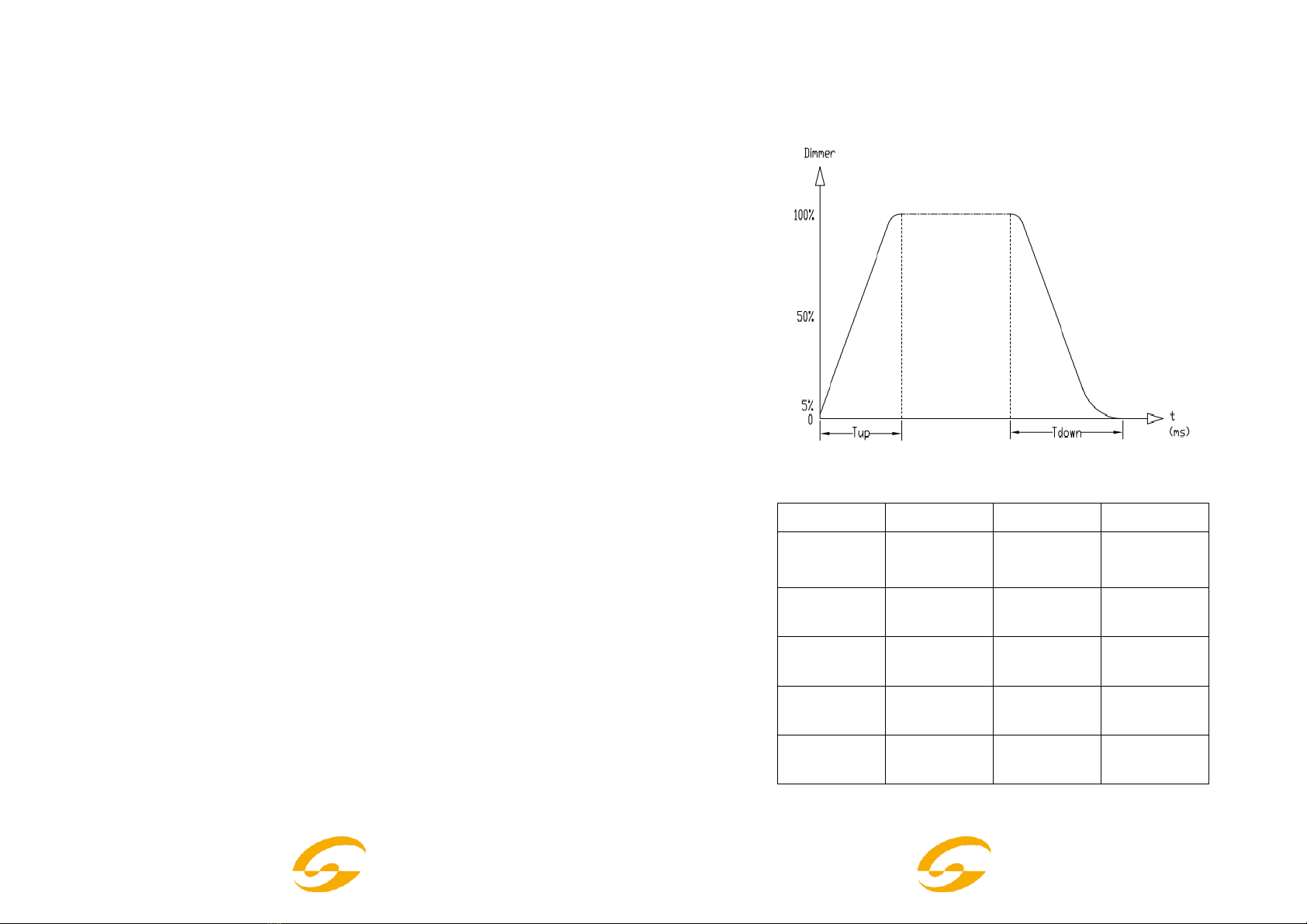

Ramp Effect
Menu
Tup(ms)
Tdown(ms)
Standard
Dimmer Curve
dr-0
0
0
Dimmer Curve
1
dr-1
980
1010
Dimmer Curve
2
dr-2
1210
1320
Dimmer Curve
3
dr-3
1600
1710
Dimmer Curve
4
dr-4
1850
1980

DMX Protocol (8CH
）
CH
Function
Description
CH1
Dimmer
0-255：RGBAW-UV dimmer, from dark to bright
CH2
R Dimmer
0-255：Red linear dimmer, from dark to bright
CH3
G Dimmer
0-255：Green linear dimmer, from dark to bright
CH4
B Dimmer
0-255：Blue linear dimmer, from dark to bright
CH5
A Dimmer
0-255：Amber linear dimmer, from dark to bright
CH6
p Dimmer
0-255：UV linear dimmer, from dark to bright
CH7
W Dimmer
0-255：White linear dimmer, from dark to bright
CH8
Strobe
1-255：7 colors strobe speed dimmer, from slow to fast
Remark：CH 8 mode of dimmer is determined by menu dr
Section 2. Set Up
² Installation
² Controlling Board
² Machine Connection
Installation
This machine should be mounted through the screw holes of truss. Safety wire is a must to fix fixture
well. Make sure truss and safety wire have strong load capacity to bear 3 times weight than fixture at
least. This machine should be installed by qualified technician.
Controlling Board

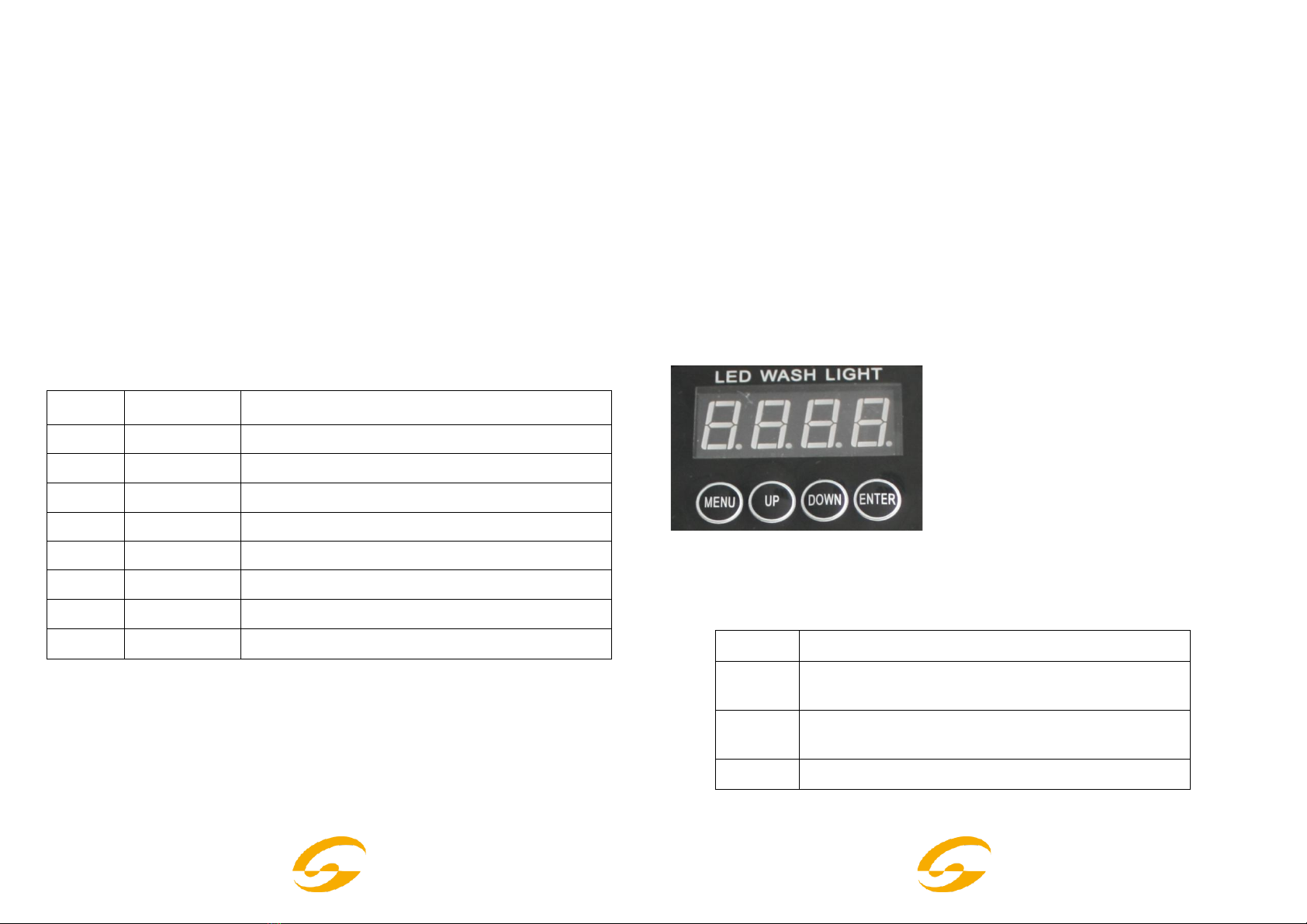

Front display panel
1. Display : Display menu and selected function.
2. Button
MENU
switch menu function
UP
On function: page up
On numerical value: increase value
DOWN
On function: page down
On numerical value: reduce value
ENTER
Settle selected function and value

3. DMX signal input
Control model by DMX signal，please use 3pin XLR signal cable.
4. DMX Signal output
Transfer DMX signal to next model, please use 3pin XLR signal cable.
5. Power output
Connect to obtain power (attention：please use connect to stated voltage.)
6．Power input
Connect to obtain power

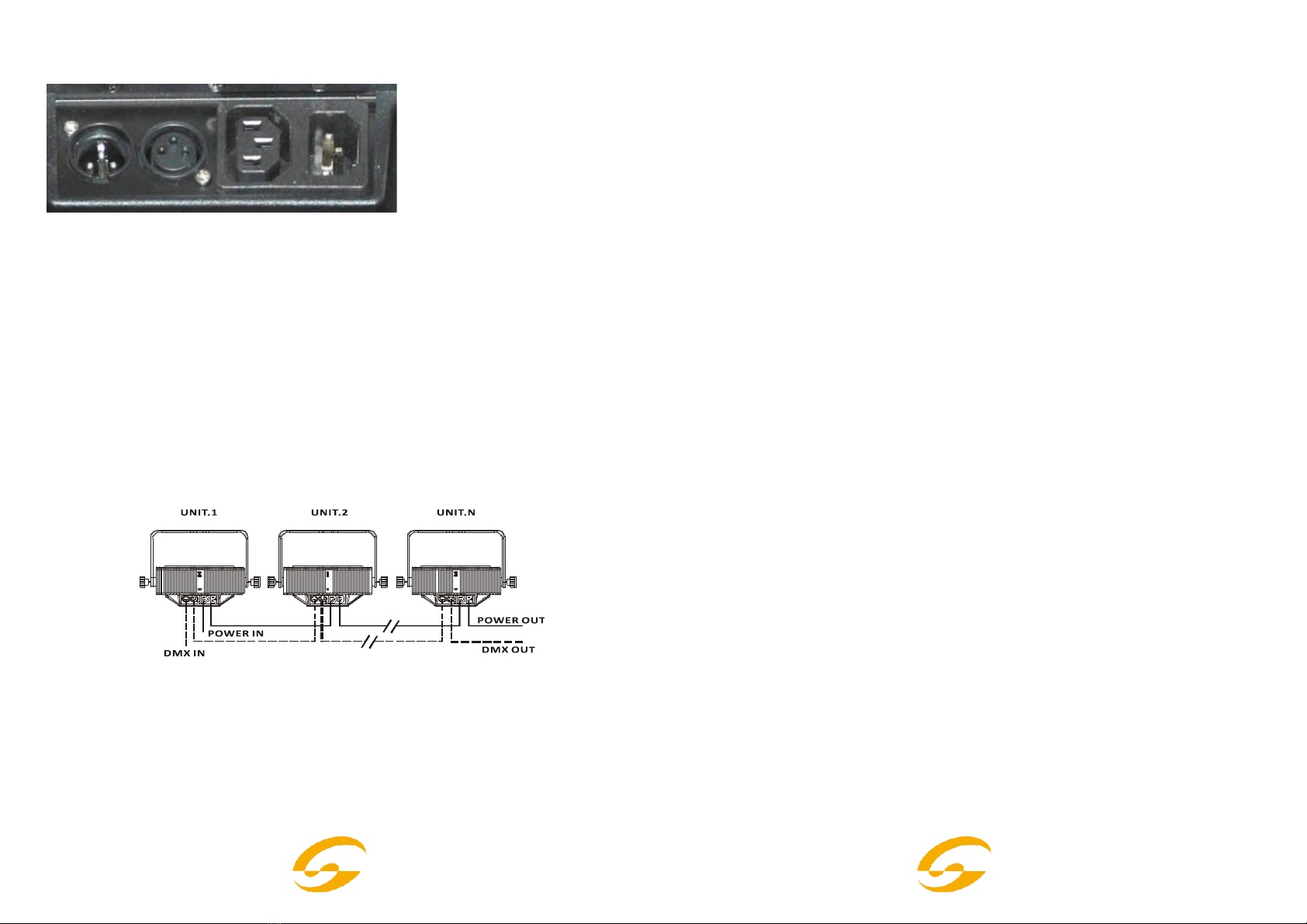

Machine Connection

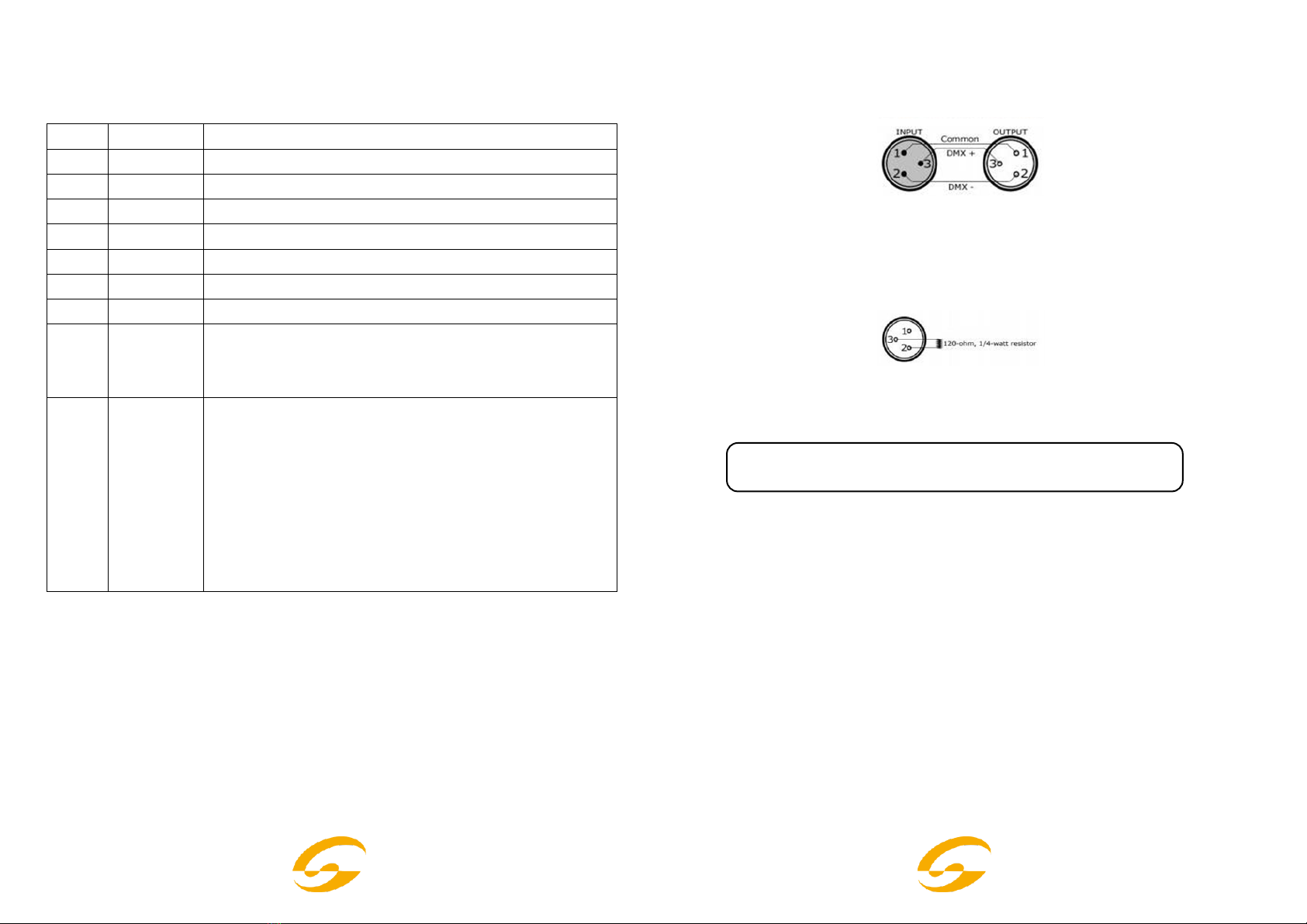

Cable Connectors
Cables must have a male XLR connector on one end and a female XLR connector on the other end.

CH
10
Color
Preset
0-5：N/A
6-15：red 16-25：green 26-35 blue
36-45：light green 46-55：yellow green
56-65：yellow
66-75：tea red 76-85：light orange
86-95：rose red
96-105：pink 106-115：violet 116-125：light
purple
126-135 ：pink blue 136-145 ：light blue
146-155：sky blue
156-165 ：light cyan 166-175 ：dark green
176-185：aqua
186-195 ：light green 196-205：cool white
206-215：light cool white
216-225：pure white 226-235： purple white
236-245：beige
246-255：warm white
CH 11
auto/sound
active
0-10：N/A；
11-40：7 colors shade；
41-70：red,green,blue shade；
71-100：red,green,blue cooling shade；
101-130：7 colors skip；
131-160：red,green,blue skip；
161-190：yellow,cyan,purple skip；
191-220：sound active strobe；221-255：sound
active skip
CH12
Auto
speed
0-255：auto speed，from slow to fast
CH
13
Dimmer
mode
0-20：standard dimmer；21-40:dimmer curve 1；
41-60：dimmer curve 2；61-80：dimmer curve 3;
81-100：dimmer curve 4；101-149:N/A；
150-155(stay 3 sec)：close temperature control；
106-199:N/A；
200-205(stay 3 sec)：open temperature control；
206-255:N/A

DMX Protocol (13CH
）
(CH 13 mode of dimmer is determined by CH 13)
CH
Function
Description
CH1
Dimmer
0-255：RGBWA-UV linear dimmer, from dark to bright
CH2
R Dimmer
0-255：Red linear dimmer, from dark to bright
CH3
G Dimmer
0-255：Green linear dimmer, from dark to bright
CH4
B Dimmer
0-255：Blue linear dimmer, from dark to bright
CH5
A Dimmer
0-255：Amber linear dimmer, from dark to bright
CH6
P Dimmer
0-255：UV linear dimmer, from dark to bright
CH7
W Dimmer
White linear dimmer, from dark to bright
CH 8
Strobe
0-5：N/A 6-55：random strobe 56-105:impulse strobe 106-155：
average strobe 156-205：lightning strobe 206-255：standard
strobe
CH 9
Color
Mixture
0-1：N/A；2-43:red,from dark to bright；
44-85：red , from bright to dark，Green , from dark to bright；
86-127：Green , from bright to dark，blue,from dark to bright；
128-169：red,from dark to bright，blue,full bright；
170-211：red, full bright,，Green , from dark to bright，blue,full
bright；
212-254：red,green,blue,all fully bright，white from dark to bright；
255：red,green,blue,white,all fully bright
A word on termination: DMX is a resilient communication protocol, however errors still occasionally
occur. Termination reduces signal errors, and therefore best practices include use of a terminator in all
circumstances. If you are experiencing problems with erratic fixture behavior, especially over long signal
cable runs, a terminator may help improve performance.
To build your own DMX Terminator: Obtain a 120-ohm, 1/4-watt resistor, and wire it between pins 2&3
of the last fixture. They are also readily available from specialty retailers.
Master-Slave control model
：
Set up one fixture as Master fixture(triggering),other fixtures as slave fixtures(receiving
trigger signals).Set up all fixtures same address value or following DMX controller
performance(Attention: all fixtures use the same DMX channel-7 or 11CH)
Maximum 8 PCS fixtures connected by Daisy chain connection.

Section 3. Troubleshooting
Remark: Host mode(non DMX menu)of dimmer is determined by menu dr
Probable
cause(s)
Remedy
No response
from fixture
when power is
applies
No power to
fixture
Check power cables
Primary fuse
blown
Replace fuse
Secondary
fuse blown
Replace fuse
Fixture resets
but does not
respond
correctly to
controller(DM
X mode
operation)
Controller not
connected
Connect controller
Incorrect
addressing of
the fixtures
Check address setting on fixture and
controller
Bad data link
connection
Inspect cables and correct poor connections
and/or broken cables.
Conflict
between
tracking and
vector control
Eliminate scene cross-fade on controller
Data link not
terminated
Insert termination plug in output of last
fixture
Defective
fixture or 2
devices
transmitting
on link
Bypass fixtures one at a time until normal
operation is regained: unplug both
connectors and connect them directly
together
4
g---
g000-g255:G dimmer，from dark to bright
5
b---
b000-b255: B dimmer，from dark to bright
6
A---
A000-A255：white dimmer，from dark to bright
7
P---
P000to P255：blue dimmer，from dark to bright
8
n---
n000-n255:White dimmer，from dark to bright
The 6-
color’s
different
brightness
can mix out
all kinds of
color
9
pr--
pr01to pr25：25 preset colors
pr0：red pr02：green pr03：blue
pr04：light green pr05:yellow green pr06：yellow
pr07：tea red pr08：light orange pr09：rose red
pr10：pink pr11：voile t pr12：light purple
pr13：pink blue pr14：light blue pr15：sky blue
pr16：light cyan pr17：dark green pr18：aqua
pr19：light green pr20： cool white pr21：light cool
white
pr22：pure white pr23：purple white pr24：beige
pr25：warm white
10
F---
F000-F255:flash speed，from slow to fast(strobe color is
determined by menu r---、g---、b---、A---、P---、n---)
11
C---
C000-C255:7 colors shade speed，from slow to fast
12
J---
J000-J255: 7 colors skip speed，from slow to fast
13
S---
S000-S255:sound active speed, from slow to fast
14
T---
To n ：open temperature control， To ff ：close temperature
control。
15
dr--
dr-0：standard dimmer；dr-1： dimmer curve 1；dr-2：dimmer curve2；dr-
3：dimmer curve 3；dr-4：dimmer curve 4；

Section 4. Reference
² Control Menu
² DMX Protocol
² Specification
Pressing MENU will show 15 different menus, press ENTER to
enter each menu,press up or down to modify the current numbers.
press Enter to save the current number.
Control Menu
Colors cannot
be mixed
Random
color
mixing is
on
Turn off random color mixing
Fixture does
not reset
correctly
Electronic
or
mechanical
failure
Contact service technician
No light, lamp
cuts out
intermittently,
or burns out
too quickly
Lamp
missing or
blown
Disconnect fixture and replace lamp
Fixture or
lamp is too
hot
Allow fixture to cool. If problem
persists, contact service technician
No.
Menu
Function（press ENTER button）
1
d13-
DMX 13 channel control(need connecting controller)
2
d.8--
DMX 8 channel control(need connecting controller)
3
r ---
r000-r255: R dimmer，from dark to bright
